Toyota Supra
1988-08 → 1993-05 · chassis MA70 · catalogue 291220 · Europe
Discontinued model
Data version 1993-11
Meter
28 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83103 | Plate Sub-assy, Combination Meter Circuit, NO.2 |
| 83104 | Plate Sub-assy, Combination Meter Circuit, NO.3 |
| 83105 | Plate Sub-assy, Combination Meter Circuit, NO.4 |
| 83110 | Speedometer Assy |
| 83116 | Bracket, Speedometer |
| 83128 | Knob, Trip Counter |
| 83129 | Wire, Meter |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83133A | Plate, Combination Meter, NO.2 |
| 83138 | Glass, Speedometer |
| 83189 | Bracket, Meter |
| 83248 | Chime, Speed Warning |
| 83251 | Meter, Voltage |
| 83270 | Tachometer Assy, Engine |
| 83310 | Gage Assy, Fuel Receiver |
| 83390A | Switch Assy, Vacuum(FOR ECONOMETER) |
| 83390B | Hose, Vacuum(FOR ECONOMETER) |
| 83399B | Bracket, Vacuum Switch |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83510 | Gage Assy, Oil Pressure Receiver |

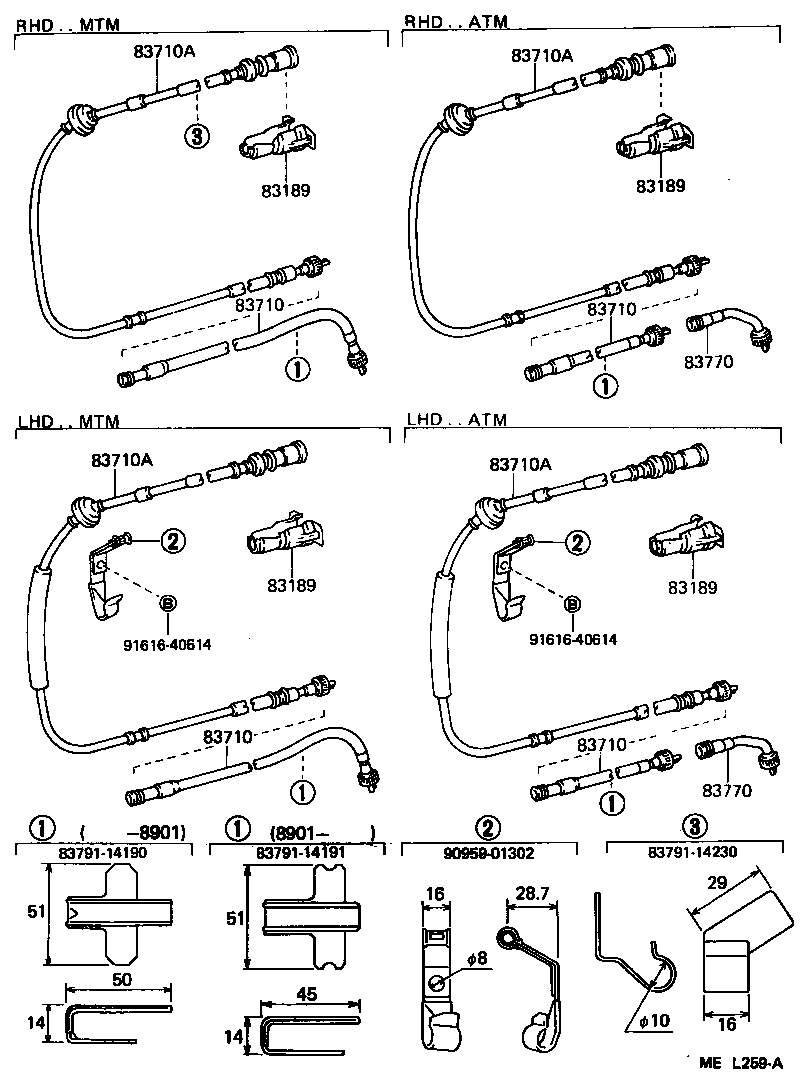

| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83710A | Cable Assy, Speedometer Drive, NO.2 |
| 83770 | Adapter Assy, Speedometer Cable |
| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
