Toyota Supra

2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · Europe

Supported model Data version 2020-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

2 part groups · 2 illustrations

Illustrations

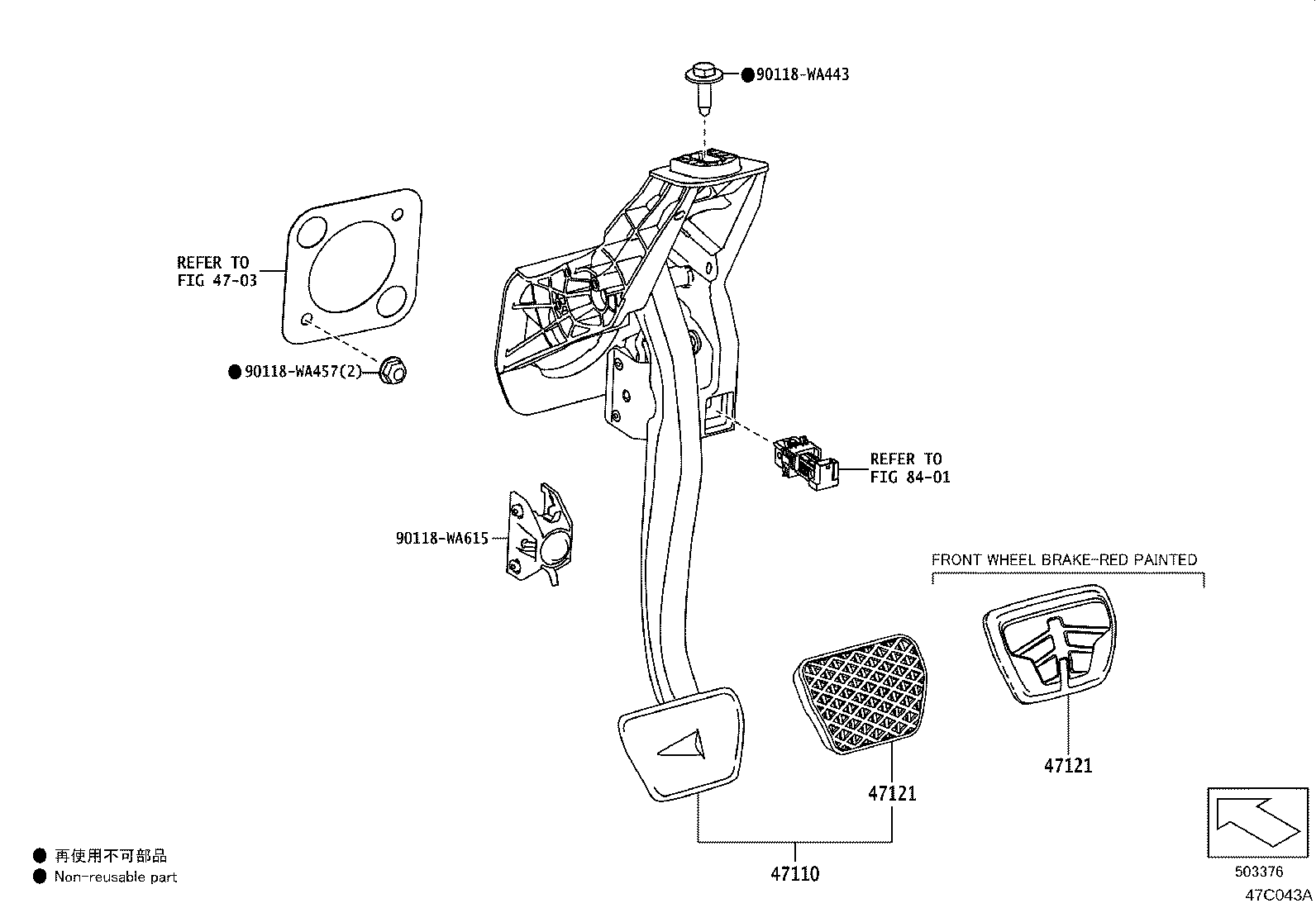

Figure 47B748D 47B748D 2019-03 → — Figure 47C043A 47C043A 2019-03 → —

Part groups

PNCDescription
47110 Support Assy, Brake Pedal
47121 Pad, Brake Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
