Toyota Cressida
1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe
Discontinued model
Data version 1989-02

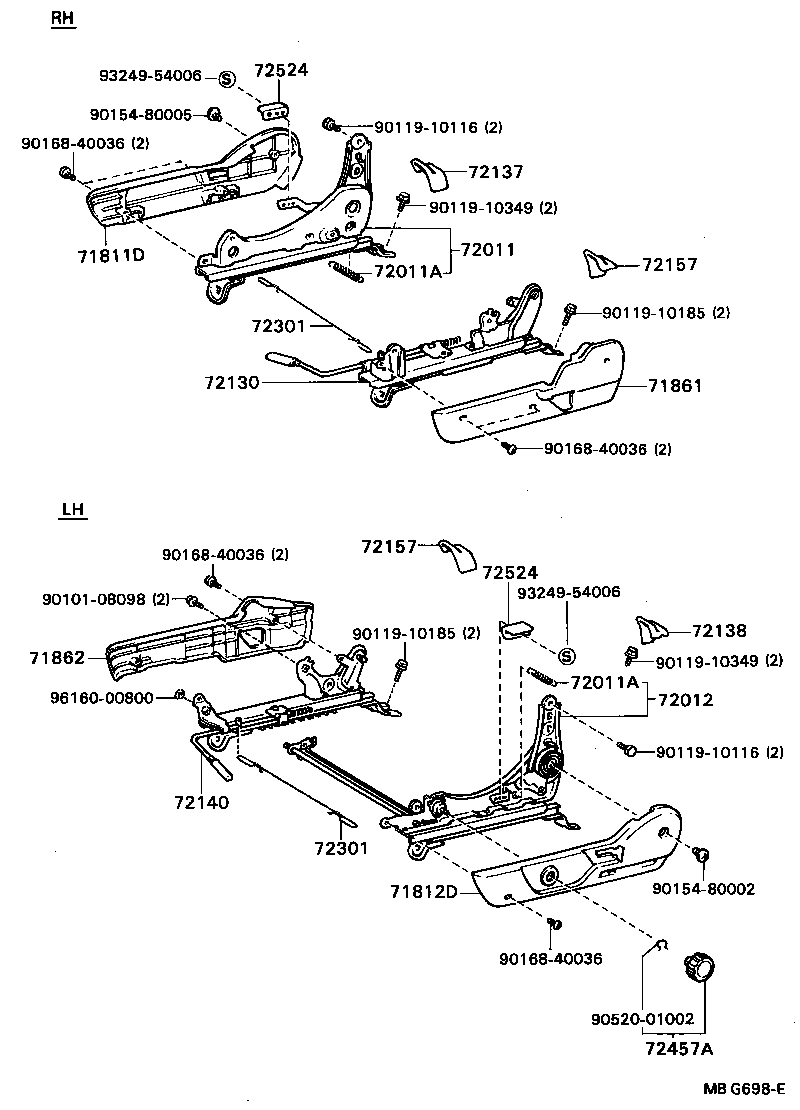

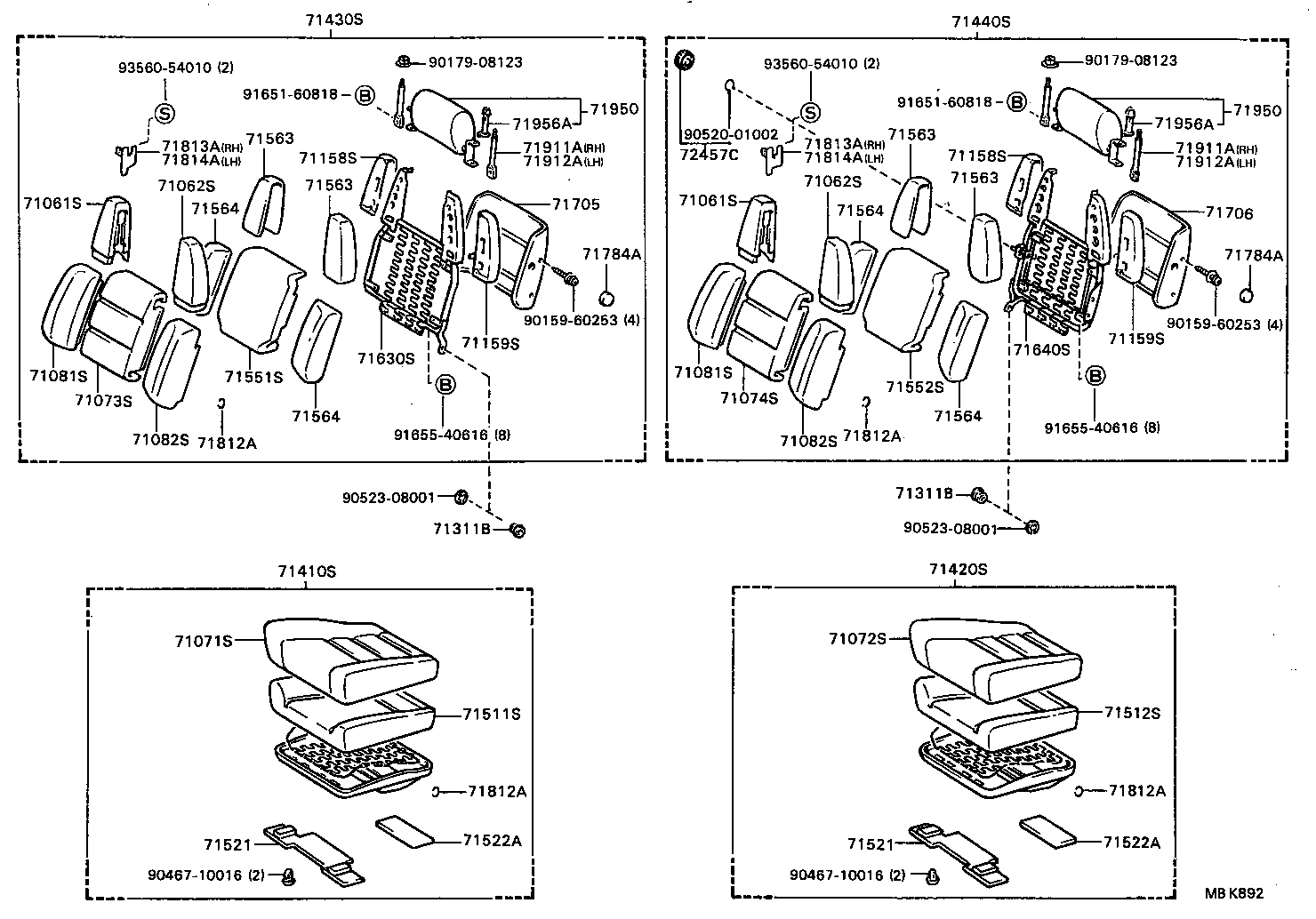

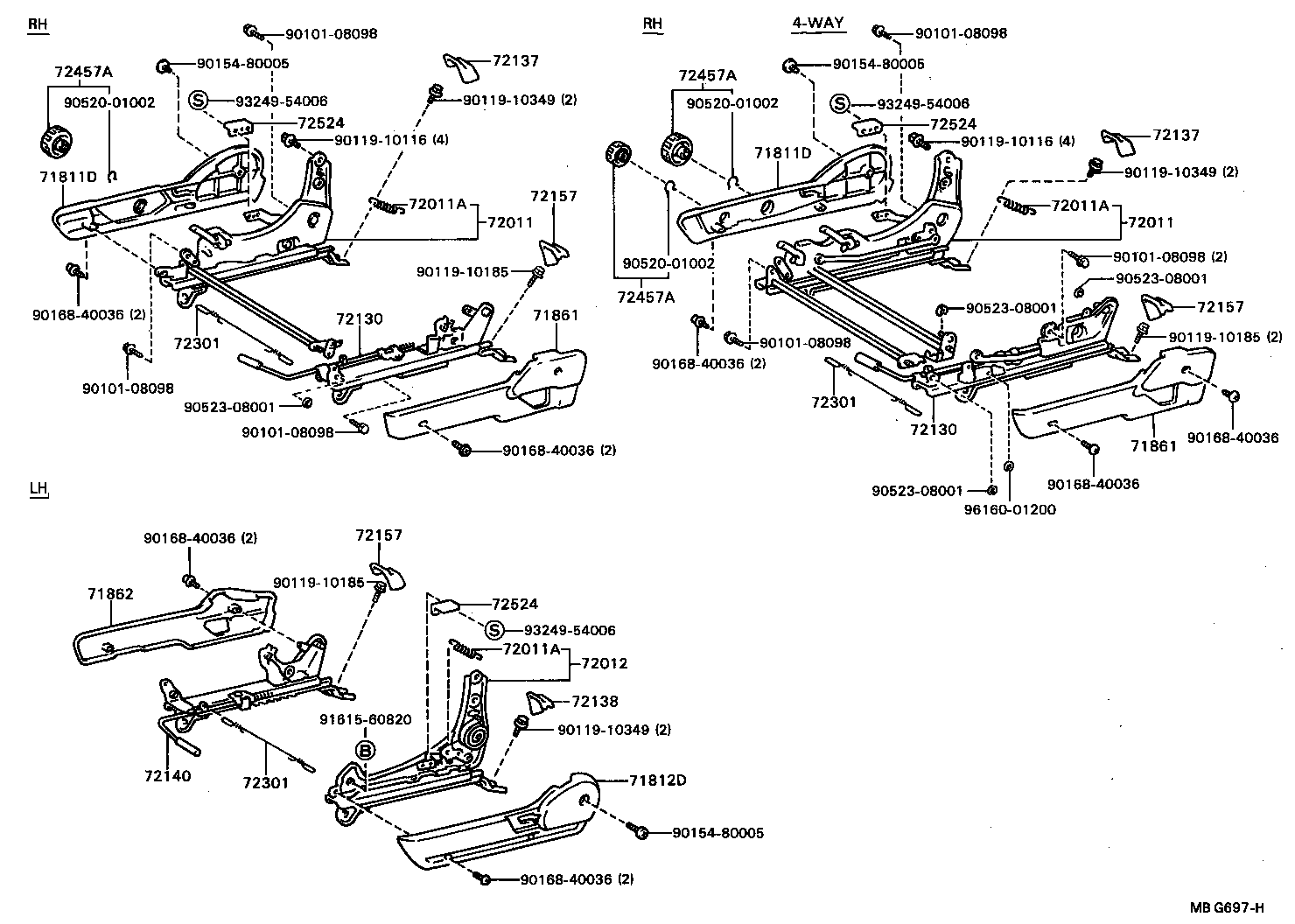

Front Seat & Seat Track
63 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 71061S | Cover Sub-assy, Front Seatback, Upper RH |
| 71062S | Cover Sub-assy, Front Seatback, Upper LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71081S | Cover Sub-assy, Front Seatback Side, RH |
| 71082S | Cover Sub-assy, Front Seatback Side, LH |
| 71158S | Frame, Front Seatback, Upper RH |
| 71159S | Frame, Front Seatback, Upper LH |
| 71311B | Bush (FOR FRONT SEAT HINGE PIN) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71521 | Pad, Front Seat Cushion Silencer, A |
| 71522A | Pad, Front Seat Cushion Silencer, B |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71554 | Pad, Front Seatback, C |
| 71563 | Pad, Front Seatback, Upper |
| 71564 | Pad, Front Seatback, Side |
| 71572 | Pad, Front Seatback Silencer, B |
| 71581C | Pad, Front Seatback Corner, C |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71705 | Board Sub-assy, Front Seatback, RH |
| 71706 | Board Sub-assy, Front Seatback, LH |
| 71731 | Fastener Sub-assy, Seat Cover, A (FOR FRONT SEAT) |
| 71733 | Retainer, Seat Cover Fastener, A (FOR FRONT SEAT) |
| 71784A | Cap, Front Seatback Board |
| 71788B | Washer, Front Seatback Board Setting |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812A | Ring, Hog, Small (FOR FRONT SEAT) |
| 71812D | Shield, Front Seat Cushion, LH |
| 71813A | Shield, Front Seatback, RH |
| 71814A | Shield, Front Seatback, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71911A | Stay, Front Seat Headrest, RH |
| 71912A | Stay, Front Seat Headrest, LH |
| 71950 | Headrest Assy, Front Seat |
| 71956A | Support, Front Seat Headrest |
| 72011 | Adjuster Sub-assy, Front Seat, Outer RH |
| 72011A | Spring, Tension (FOR FRONT SEAT ADJUSTER OUTER) |
| 72012 | Adjuster Sub-assy, Front Seat, Outer LH |
| 72130 | Track Assy, RH Seat, Inner |
| 72137 | Cover, Seat Track, Outer RH |
| 72138 | Cover, Seat Track, Outer LH |
| 72140 | Track Assy, LH Seat, Inner |
| 72157 | Cover, Seat Track Bracket, Inner |
| 72301 | Wire Sub-assy, Seat Track Equalizing |
| 72457A | Knob, Seat Adjuster |
| 72457C | Knob, Side Support Adjuster |
| 72524 | Handle, Reclining Adjuster Release |
| 72760 | Adjuster Assy, Lumbar Support, RH |
| 72770 | Adjuster Assy, Lumbar Support, LH |
| 72791 | Lever, Lumbar Support |
| 72791A | Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
