Toyota Cressida
1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe
Discontinued model
Data version 1989-02
Meter
33 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 81850A | Lamp Assy, Indicator |
| 81850F | Bulb, Indicator Lamp |
| 83100B | Bulb, Combination Meter, NO.1 |
| 83100G | Glass, Combination Meter |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |

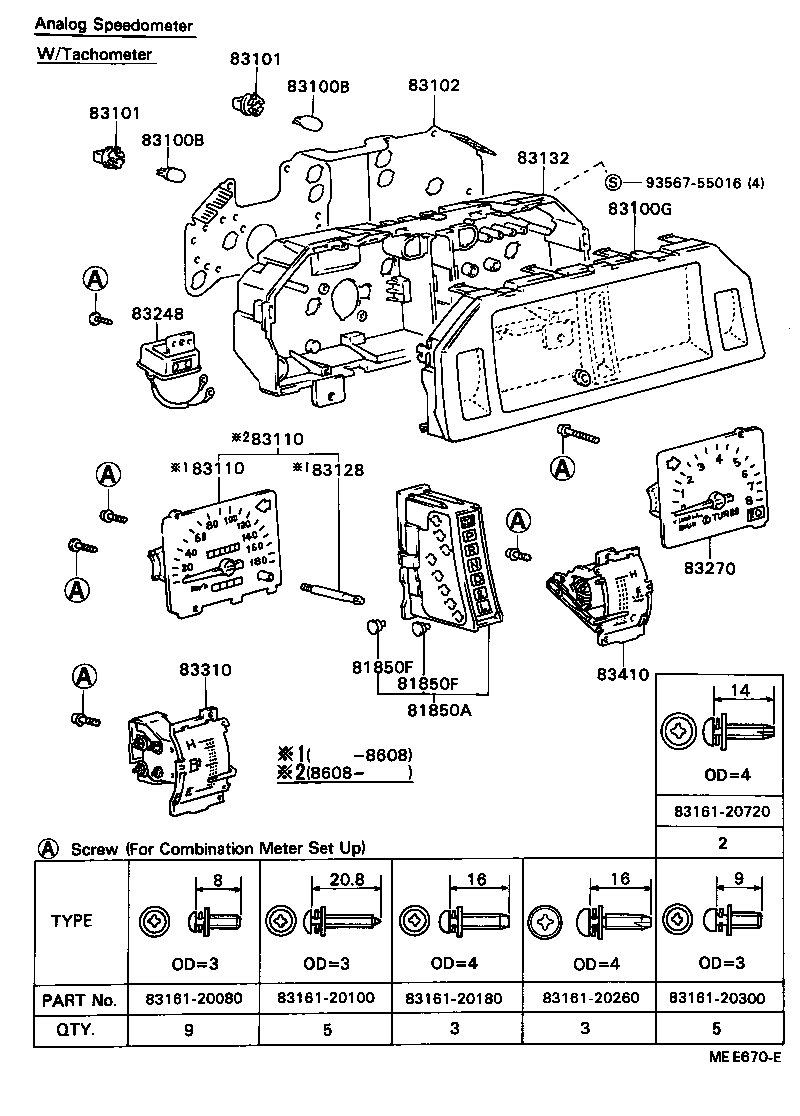

| 83110 | Speedometer Assy |
| 83121 | Counter, Total |
| 83121A | Sensor, Speed |
| 83121B | Cable, Counter And Sensor |
| 83128 | Knob, Trip Counter |
| 83131 | Dial, Meter, NO.1 |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83133A | Plate, Combination Meter, NO.2 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83145 | Lens, Meter, NO.1 |
| 83159 | Switch, Meter, NO.1 |
| 83159A | Switch, Meter, NO.2 |
| 83180 | Detector Assy, Revolution |
| 83189 | Bracket, Meter |
| 83248 | Chime, Speed Warning |
| 83270 | Tachometer Assy, Engine |

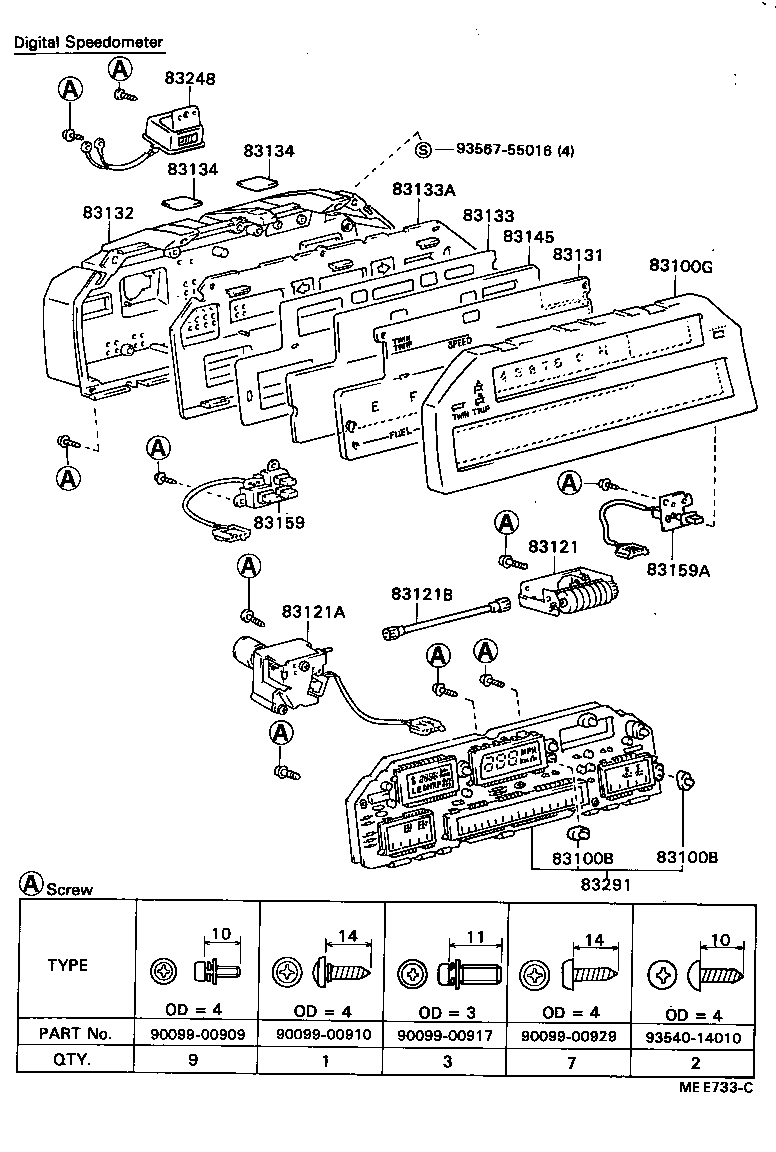

| 83291 | Computer, Combination Meter |
| 83310 | Gage Assy, Fuel Receiver |

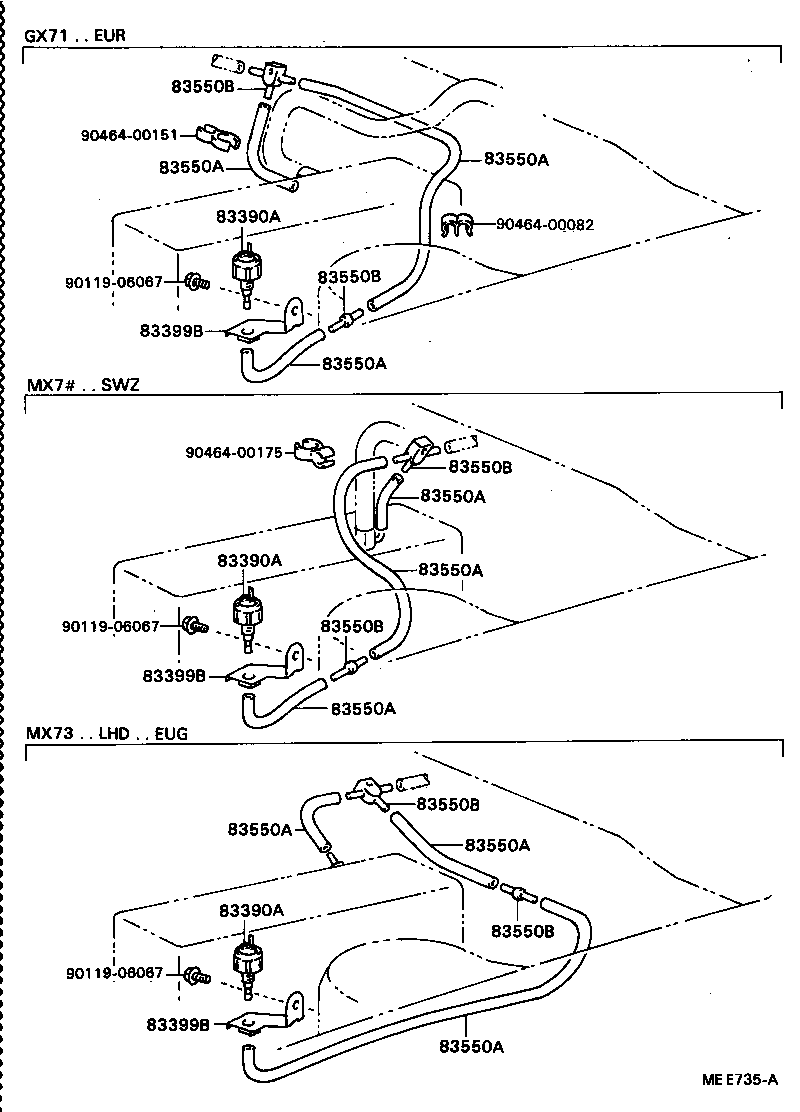

| 83390A | Switch Assy, Vacuum(FOR ECONOMETER) |
| 83399B | Bracket, Vacuum Switch |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83550A | Hose, ED Monitor Gage |
| 83550B | Union OR Way, ED Monitor Gage |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83770 | Adapter Assy, Speedometer Cable |

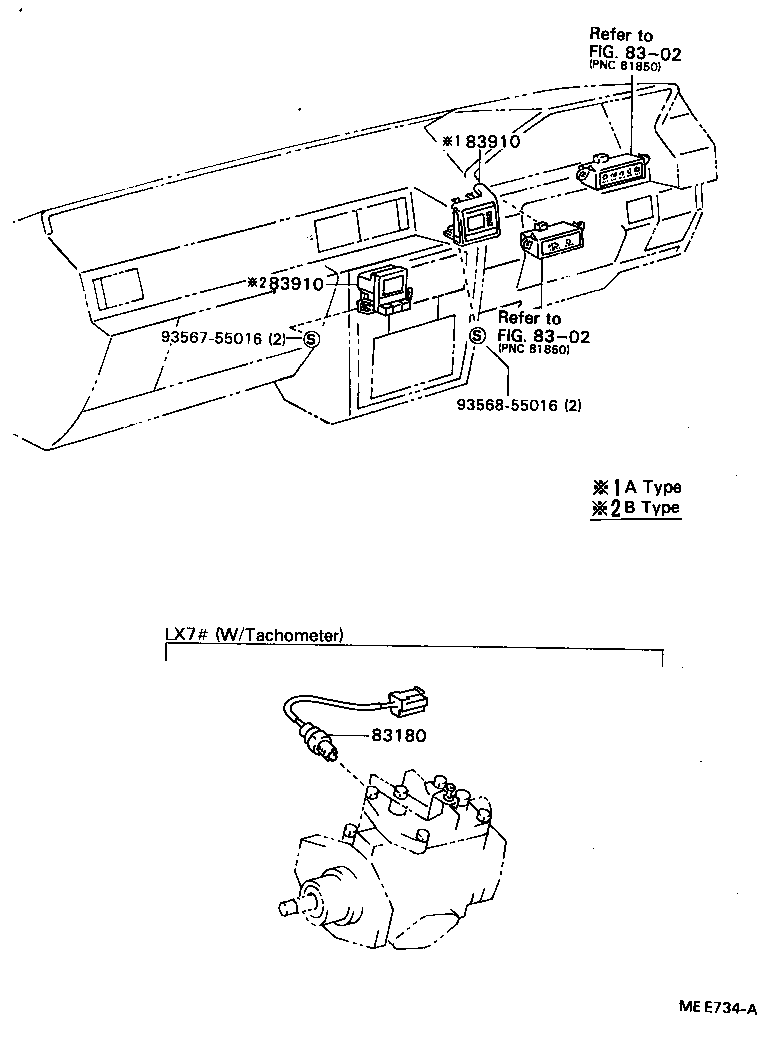

| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
