Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

59 part groups · 12 illustrations

Illustrations

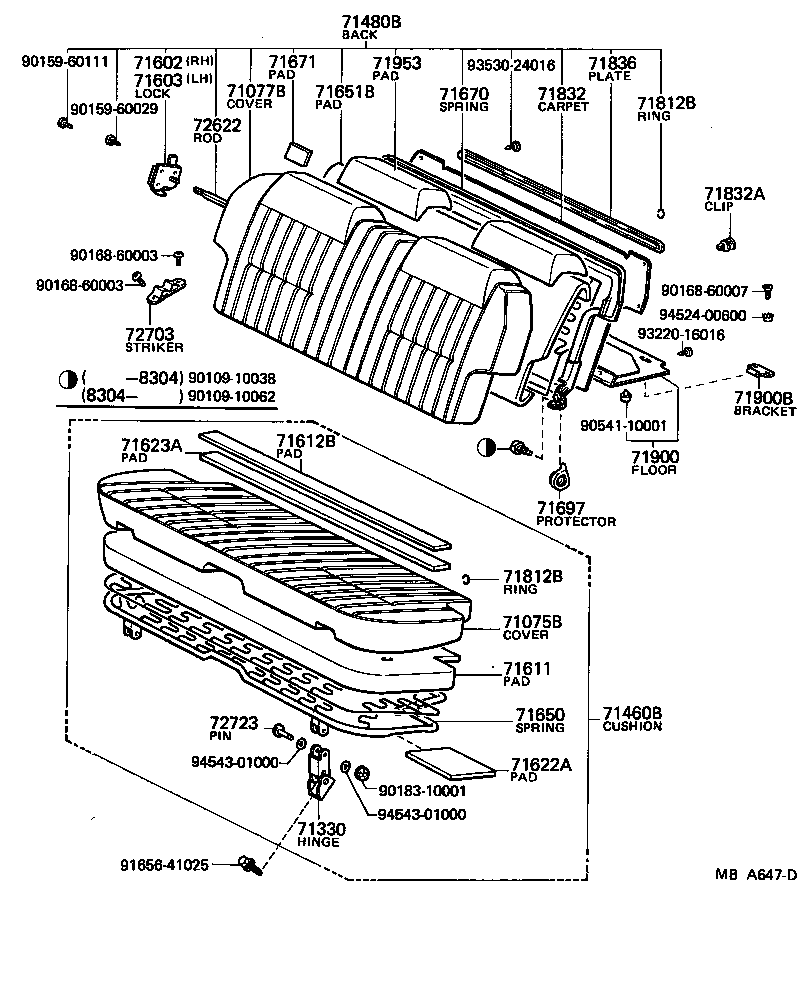

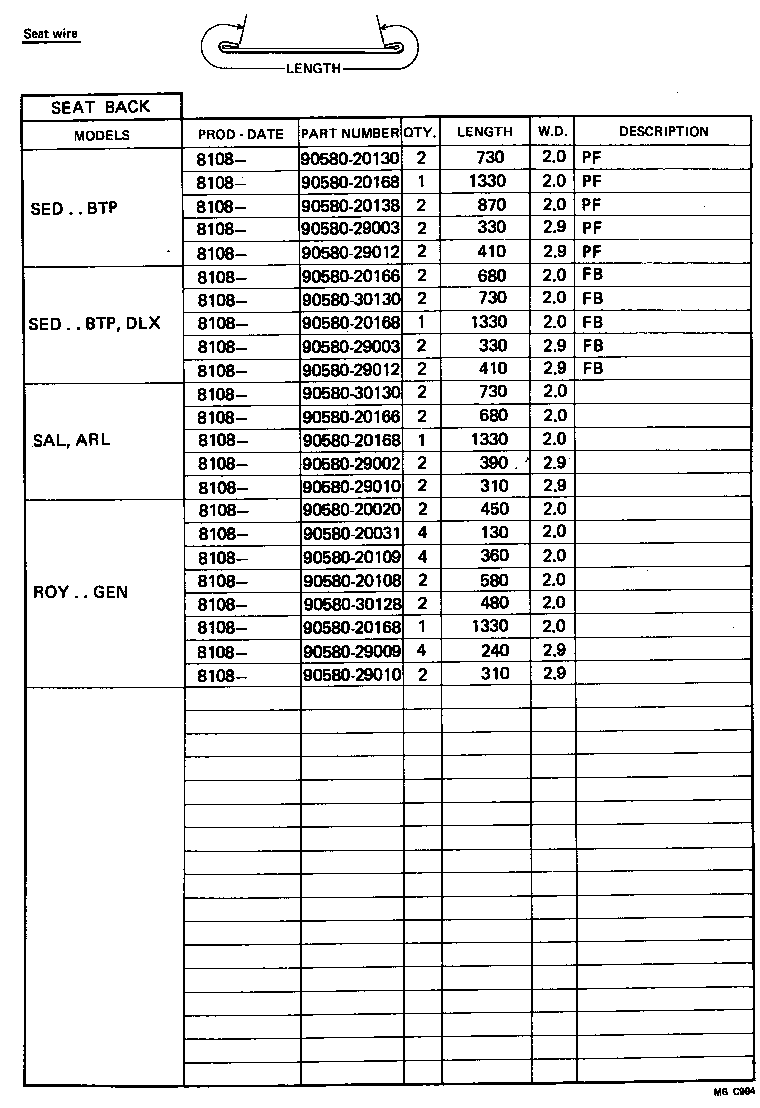

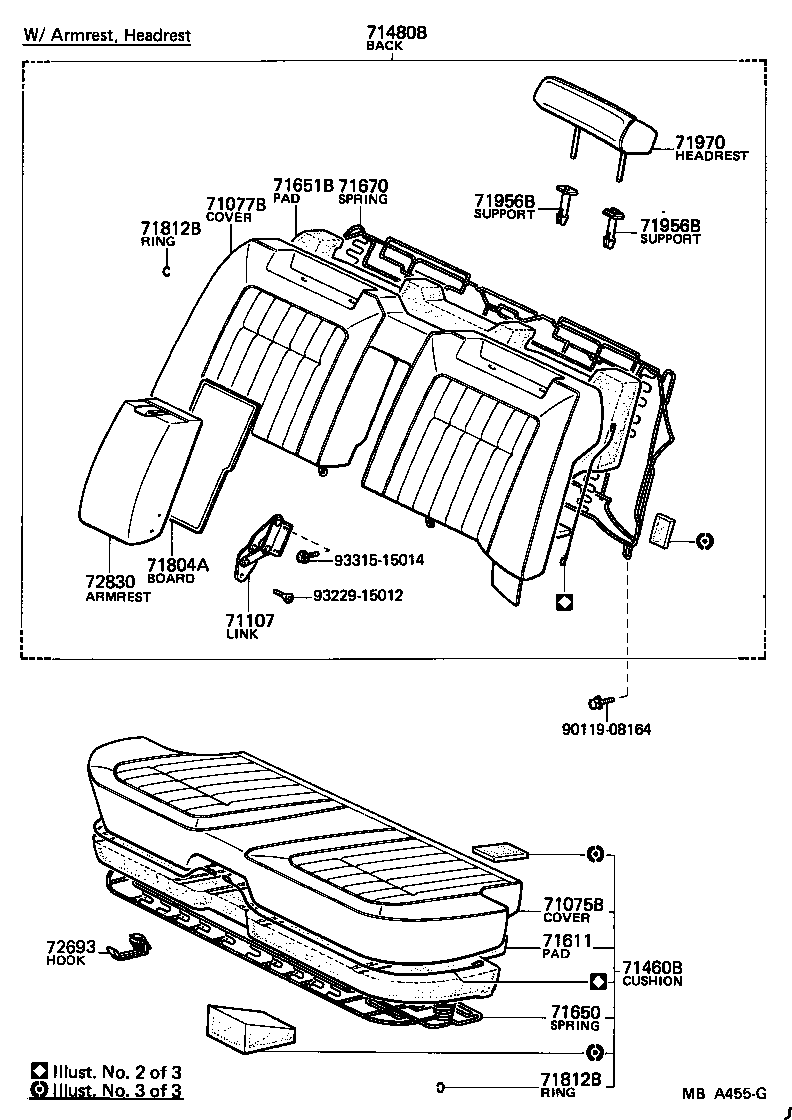

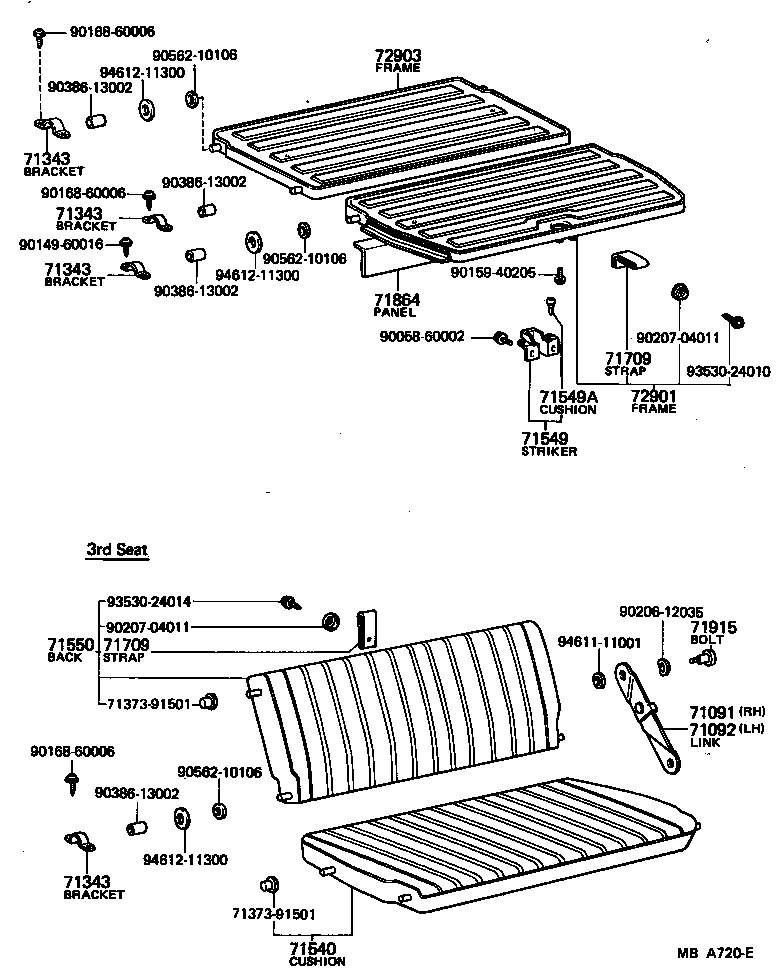

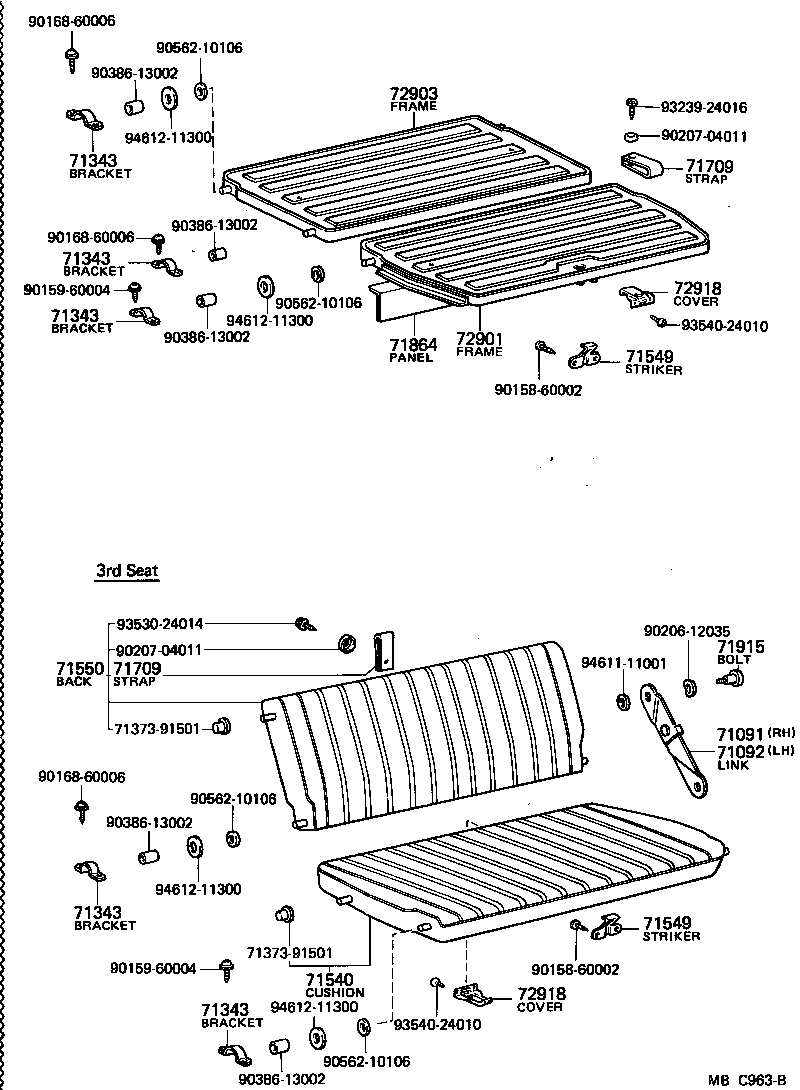

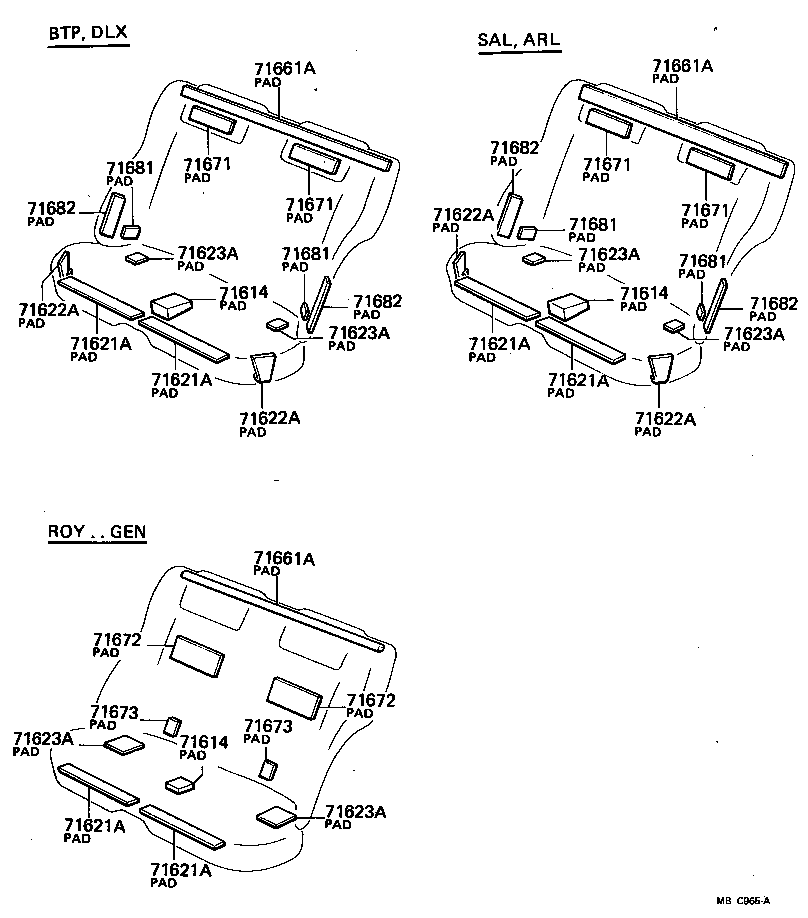

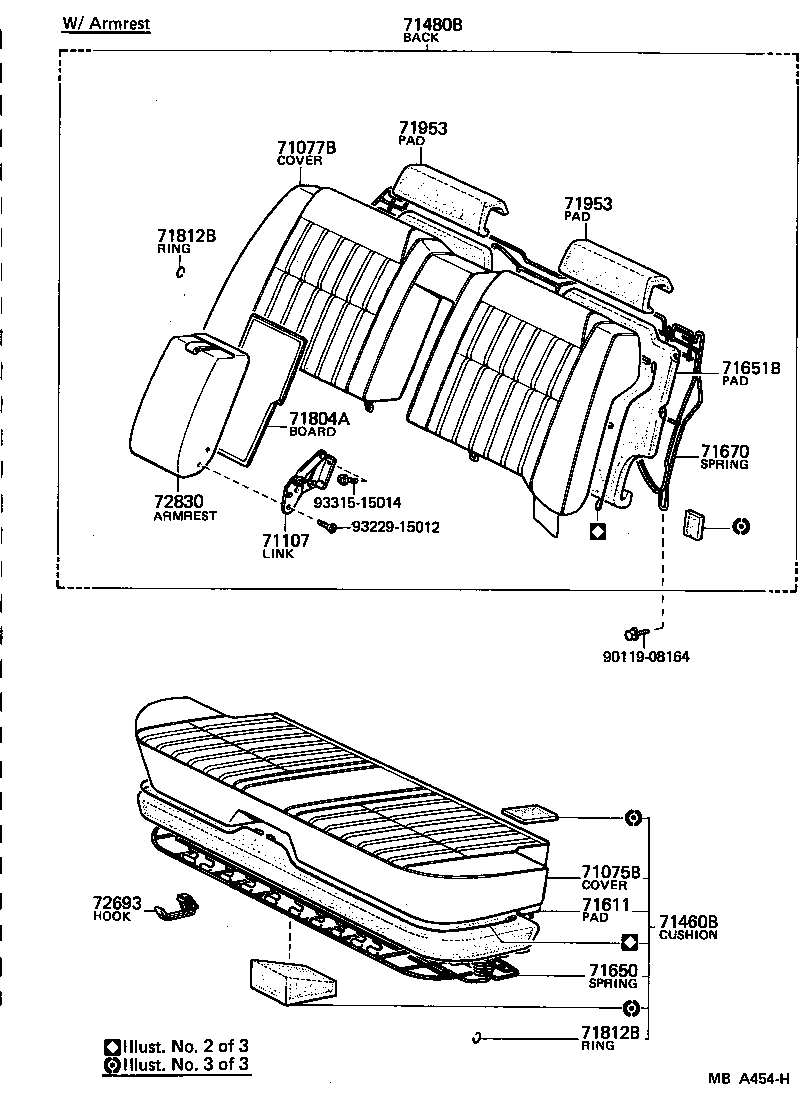

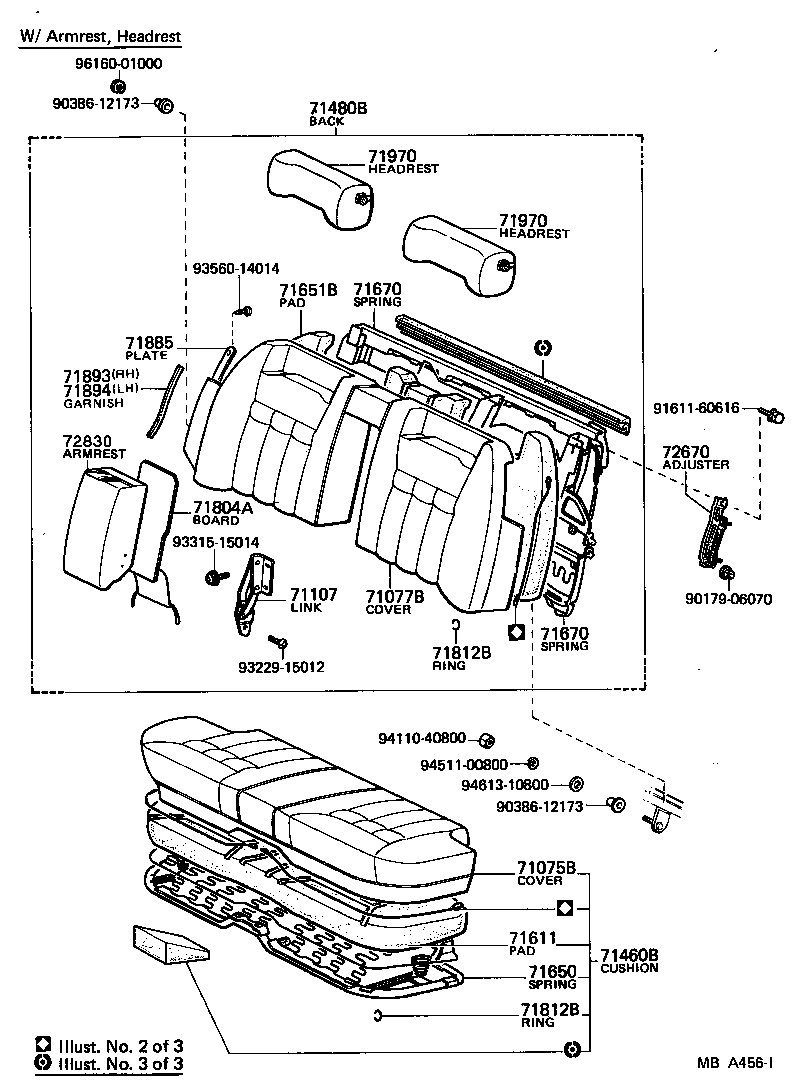

Figure MBA453H MBA453H 1979-09 → — Figure MBA454H MBA454H 1979-09 → — Figure MBA455G MBA455G 1979-09 → — Figure MBA456I MBA456I 1979-09 → — Figure MBA647D MBA647D 1979-09 → — Figure MBA720E MBA720E 1979-09 → 1981-08 Figure MBC963B MBC963B 1981-08 → — Figure MBB115 MBB115 1979-09 → 1981-08 Figure MBB116A MBB116A 1979-09 → 1981-08 Figure MBC993 MBC993 1981-08 → — Figure MBC994 MBC994 1981-08 → — Figure MBC965A MBC965A 1979-09 → —

Part groups

PNCDescription
58443A Cushion, Deck Compartment Box
62551A Cover, Rear Seat Side, RH
62552A Cover, Rear Seat Side, LH
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71091 Link Sub-assy, 3RD Seat, RH
71092 Link Sub-assy, 3RD Seat, LH
71107 Link Sub-assy, Rear Seat Center Armrest
71330 Hinge Assy, Rear Seat Cushion
71343 Bracket, 3RD Seatback
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71540 Cushion Assy, 3RD Seat
71549 Striker, 3RD Seat Cushion Frame
71549A Cushion (FOR 3RD SEAT STRIKER)
71550 Back Sub-assy, Side Seat
71602 Lock Sub-assy, Rear Seatback, RH
71603 Lock Sub-assy, Rear Seatback, LH
71611 Pad, Rear Seat Cushion
71612B Pad, Rear Seat Cushion, B
71614 Pad, Rear Seat Cushion, Center
71621A Pad, Rear Seat Cushion Silencer, A
71622A Pad, Rear Seat Cushion Silencer, B
71623A Pad, Rear Seat Cushion Silencer, C
71650 Spring Assy, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71661A Pad, Rear Seatback, Upper A
71670 Spring Assy, Rear Seatback(FOR BENCH SEAT)
71671 Pad, Rear Seatback Silencer, A
71672 Pad, Rear Seatback Silencer, B
71673 Pad, Rear Seatback Silencer, C
71681 Pad, Rear Seatback Corner, A
71682 Pad, Rear Seatback Corner, B
71697 Protector, Rear Seatback Edge
71709 Strap Sub-assy, 3RD Seatback
71804A Board Sub-assy, Rear Seat Armrest Hole
71812B Clip(FOR REAR SEAT CUSHION COVER)
71832 Carpet OR Mat, Rear Seatback
71832A Clip, Rear Seatback Carpet OR Mat
71836 Plate, Rear Seatback Carpet OR Mat Support, Upper
71864 Panel, Deck Compartment Box Partition
71885 Plate, Rear Seat Side Garnish Edge
71893 Garnish, Rear Seatback Side, Lower RH
71894 Garnish, Rear Seatback Side, Lower LH
71900 Floor Assy, Rear Seat
71900B Bracket (FOR REAR SEAT FLOOR)
71915 Bolt, Seat Link Connecting
71953 Pad, Rear Seat Headrest
71956B Support, Rear Seat Headrest
71970 Headrest Assy, Rear Seat
72622 Rod, Rear Seatback Stopper Connecting
72670 Adjuster Assy, Rear Seatback, Outside
72693 Hook, Rear Seat Cushion Lock
72703 Striker Sub-assy, Rear Seatback Stopper
72723 Pin, Rear Seat Cushion, NO.2
72830 Armrest Assy, Rear Seat, Center
72901 Frame Sub-assy, 3RD Seat Cushion
72903 Frame Sub-assy, 3RD Seatback
72918 Cover, 3RD Seat Cushion Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
