Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

35 part groups · 3 illustrations

Illustrations

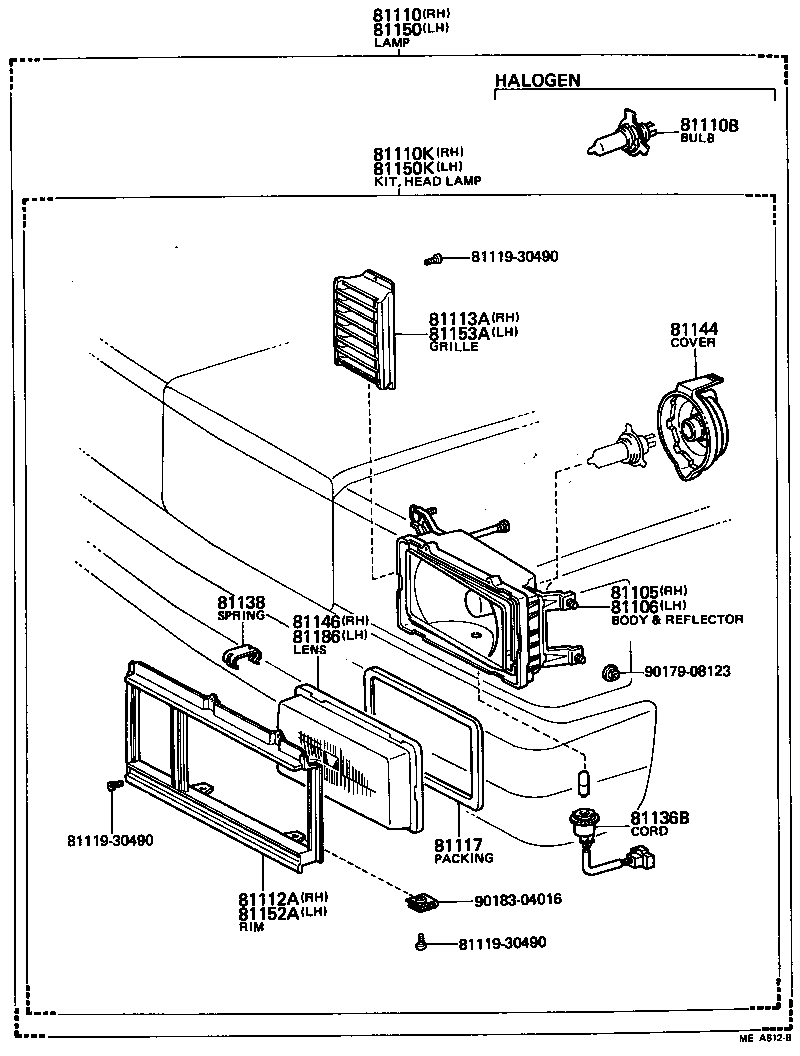

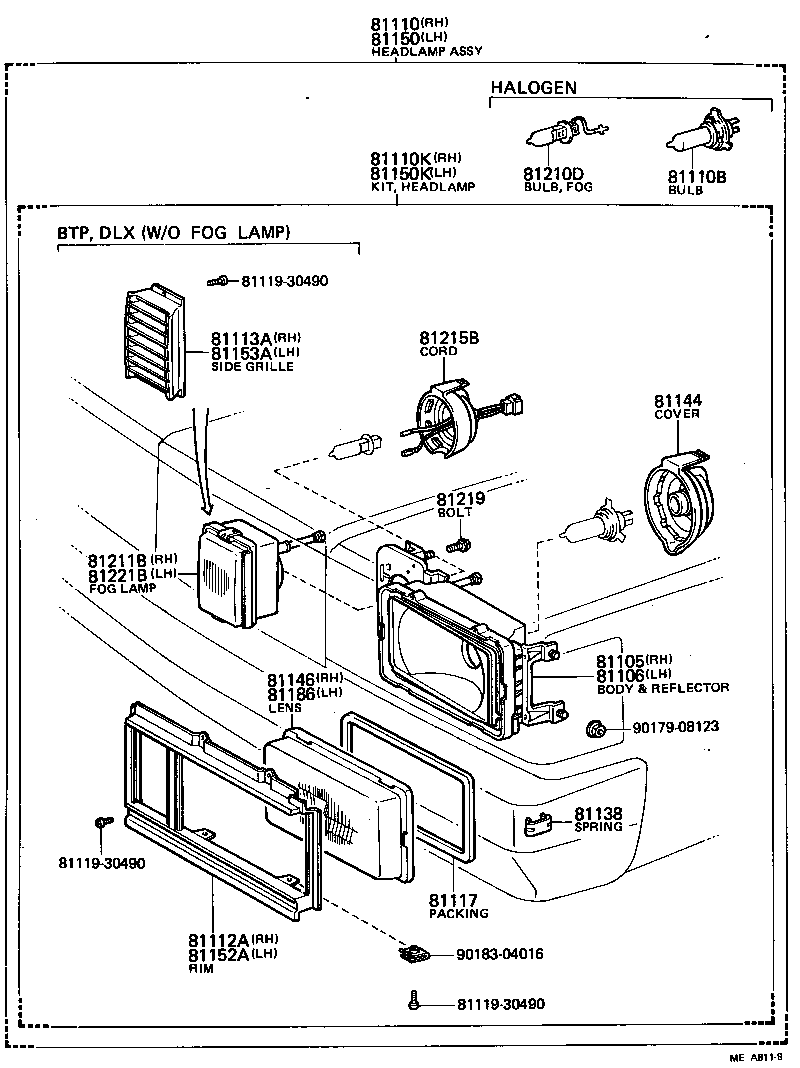

Figure ME8116E ME8116E 1979-09 → 1981-08 Figure MEA811B MEA811B 1981-08 → — Figure MEA812B MEA812B 1981-08 → —

Part groups

PNCDescription
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110K Headlamp Kit, W/O Sealed Beam, RH
81110S Sealed Beam Unit, NO.1
81110T Sealed Beam Unit, NO.2
81111A Ring, Sealed Beam Retaining, NO.1 RH
81112 Ring, Sealed Beam Retaining, NO.2 RH
81112A Rim, Headlamp, RH
81113 Ring, Sealed Beam Mounting, NO.1 RH
81113A Grille, Headlamp Side, RH
81114 Ring, Sealed Beam Mounting, NO.2 RH
81117 Packing, Headlamp Housing
81121 Spring, Headlamp Tension
81131 Screw, Headlamp Adjusting
81136B Cord, Headlamp
81138 Spring, Headlamp
81144 Cover, Headlamp, NO.1
81146 Lens, Headlamp, RH
81150 Headlamp Assy, LH
81150K Headlamp Kit, W/O Sealed Beam, LH
81151A Ring, Sealed Beam Retaining, NO.1 LH
81152 Ring, Sealed Beam Retaining, NO.2 LH
81152A Rim, Headlamp, LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81153A Grille, Headlamp Side, LH
81154 Ring, Sealed Beam Mounting, NO.2 LH
81186 Lens, Headlamp, LH
81210D Bulb, Fog Lamp
81211B Fog Lamp, RH
81215B Cord, Fog Lamp
81219 Bolt, Fog Lamp
81221B Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
