Crankshaft & Piston

22 part groups · 3 illustrations

Illustrations

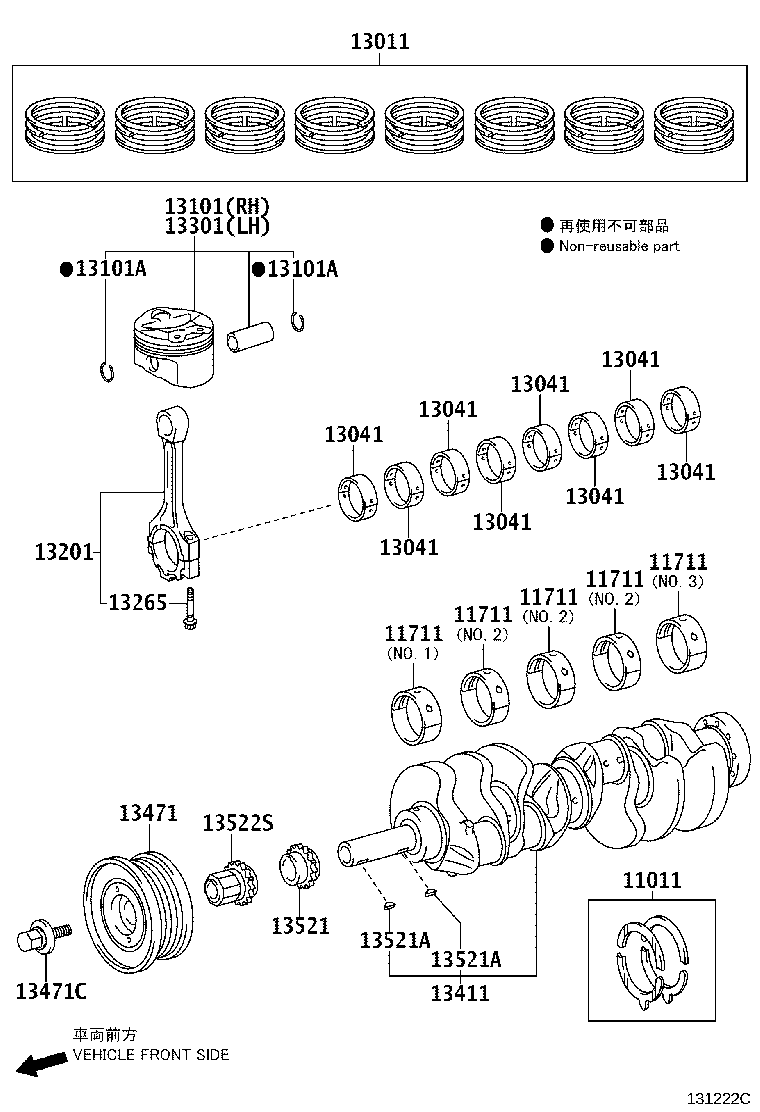

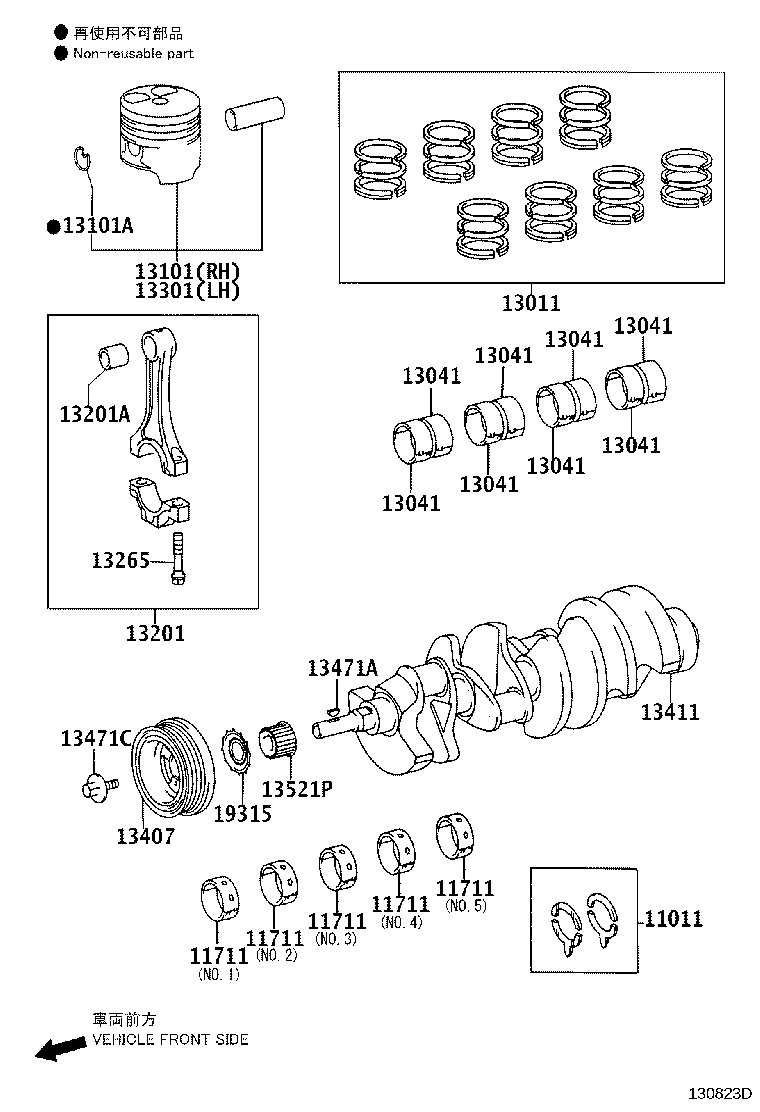

Figure 131562C 131562C 2005-01 → — Figure 130823D 130823D 2005-01 → 2008-09 Figure 131222C 131222C 2007-09 → —

Part groups

PNCDescription
11011 Washer Set, Crankshaft Thrust
11711 Bearing, Crankshaft
13011 Ring Set, Piston
13041 Bearing, Connecting Rod
13101 Piston Sub-assy, W/Pin
13101A Ring, Hole Snap(FOR PISTON PIN)
13201 Rod Sub-assy, Connecting
13201A Bush(FOR CONNECTING ROD SMALL END)
13265 Bolt, Connecting Rod
13301 Piston Sub-assy, W/Pin, LH
13407 Damper Sub-assy, Crankshaft
13411 Crankshaft
13471 Pulley, Crankshaft
13471A Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
13471C Bolt(FOR CRANKSHAFT PULLEY SET)
13521 Gear OR Sprocket, Crankshaft Timing
13521A Key(FOR CRANKSHAFT TIMING GEAR)
13521P Pulley, Crankshaft Timing
13522S Sprocket, Crankshaft Timing, LH
13581 Shaft, Idle Gear, NO.1
13582 Shaft, Idle Gear, NO.2
19315 Plate, Crank Angle Sensor, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
