Toyota Lexus LS460/460L
2006-08 → 2012-09 · chassis USF4# · catalogue 431240 · Europe
Supported model
Data version 2012-10
Switch & Relay & Computer
131 part groups · 17 illustrations

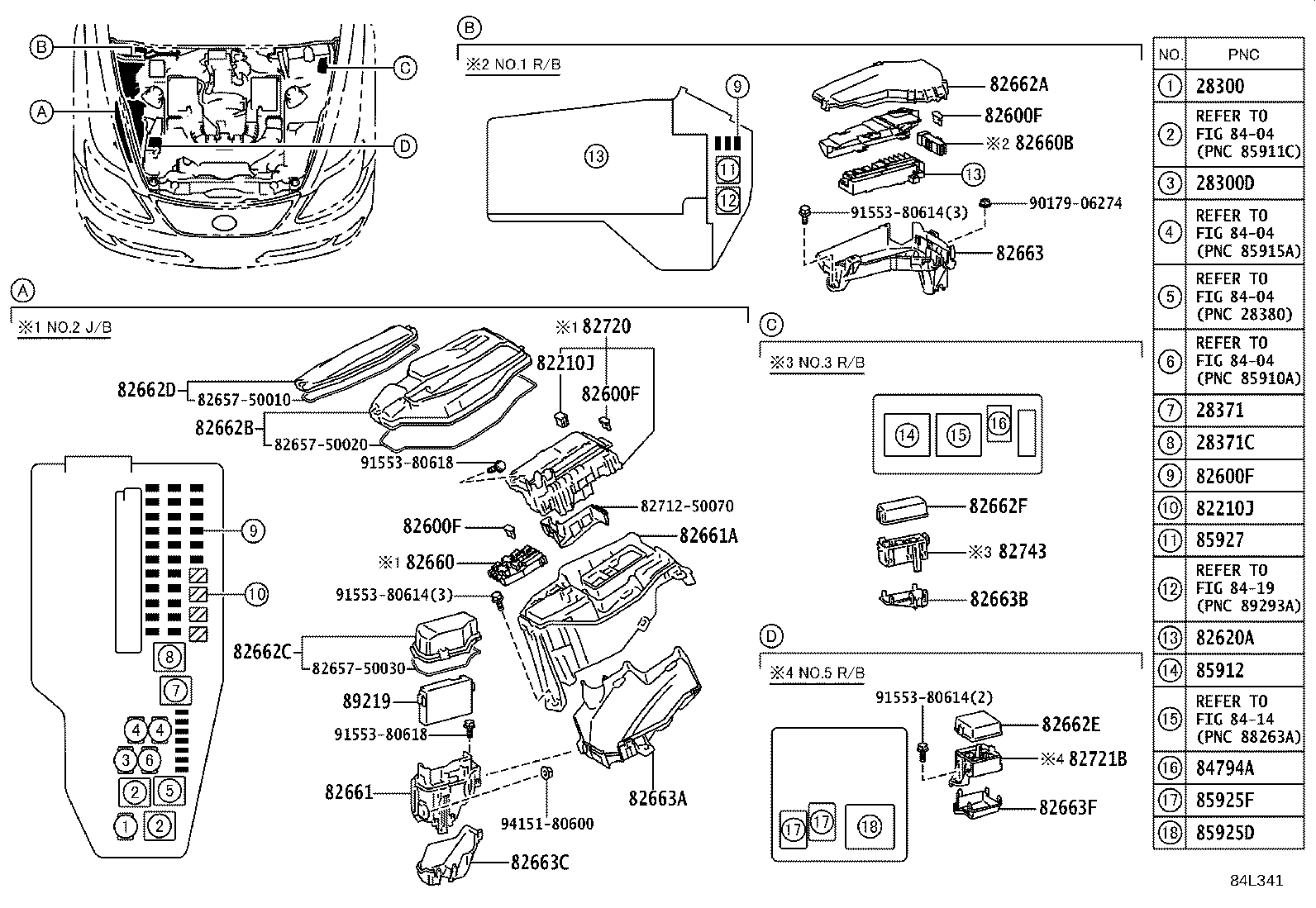

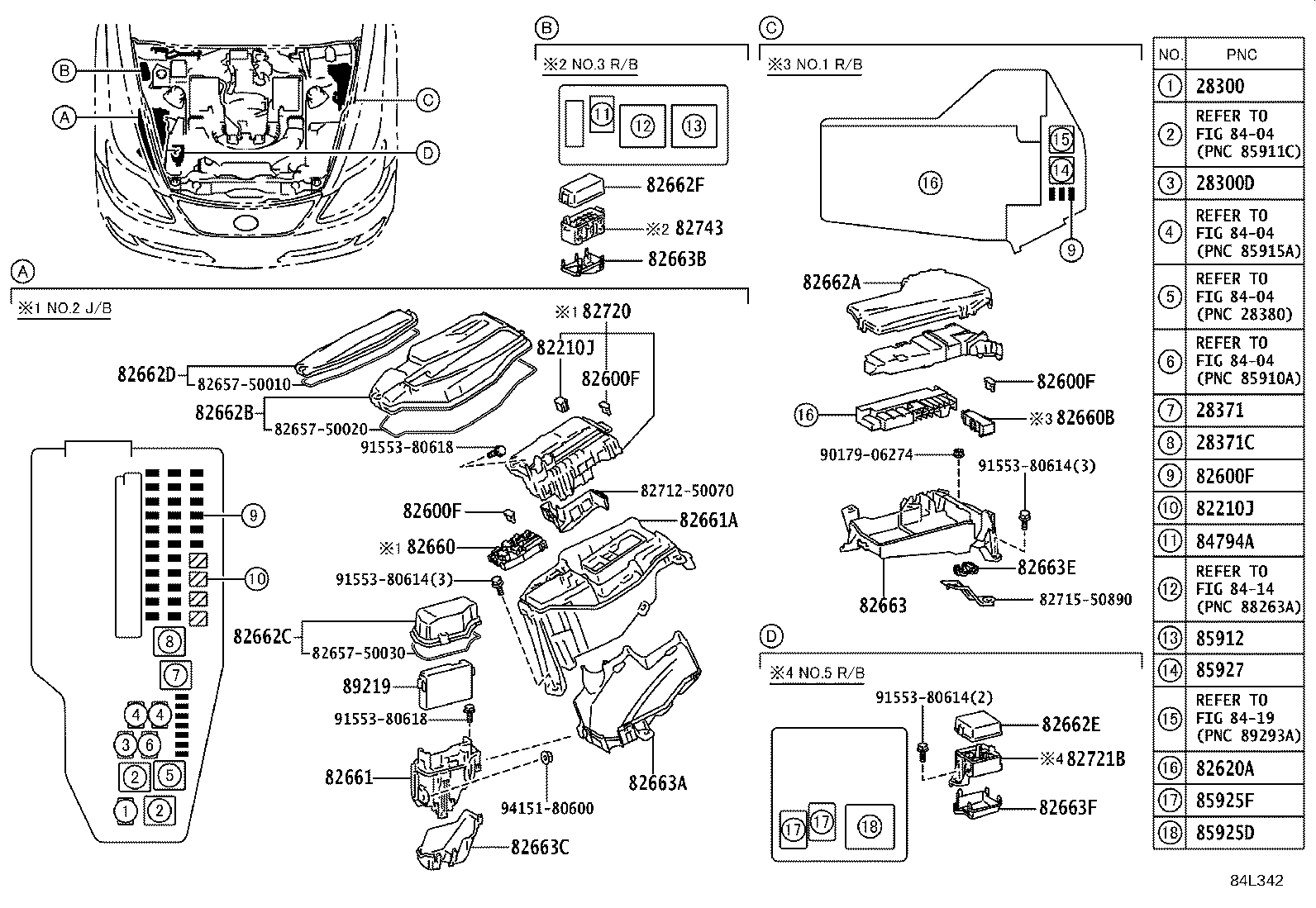

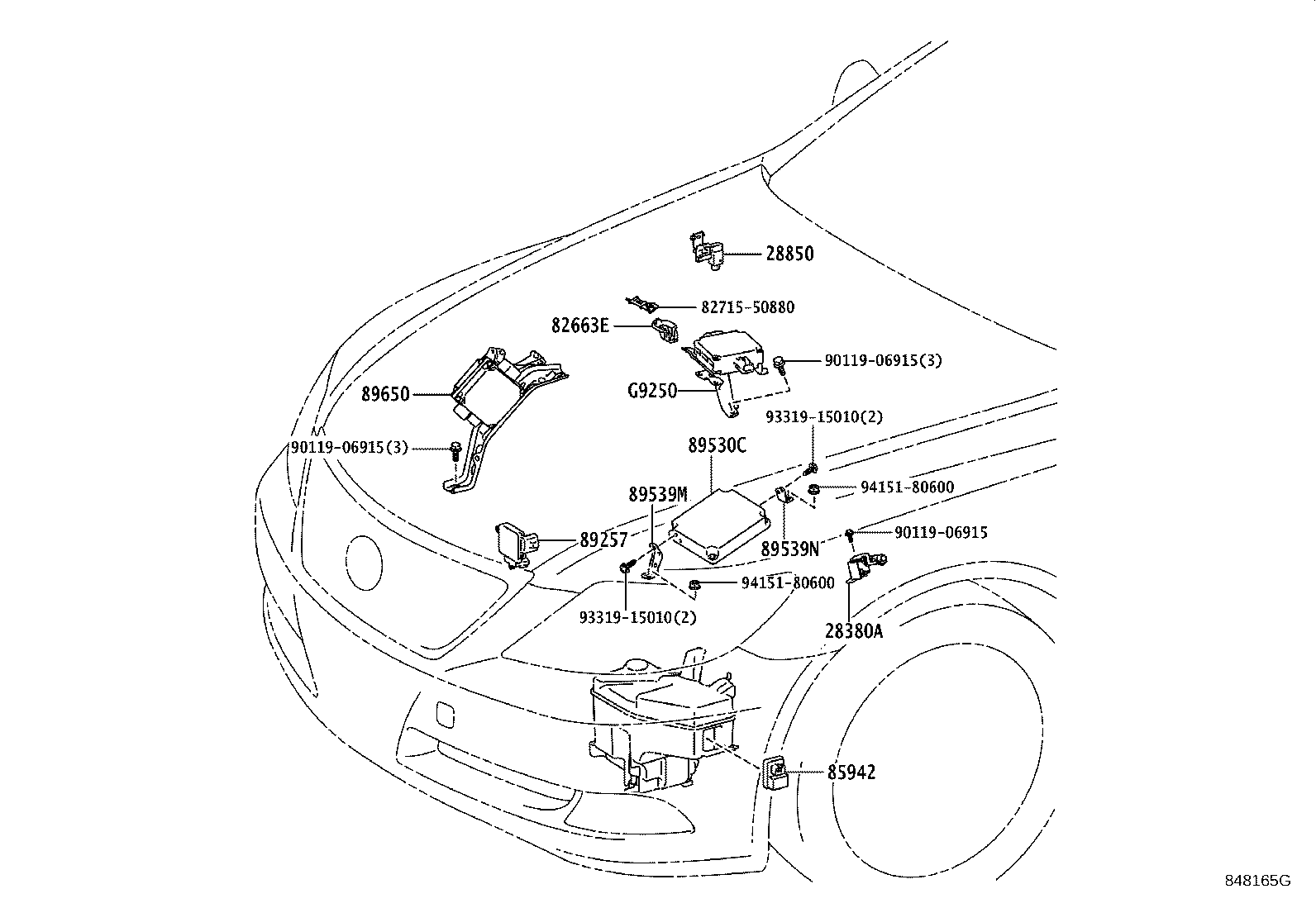

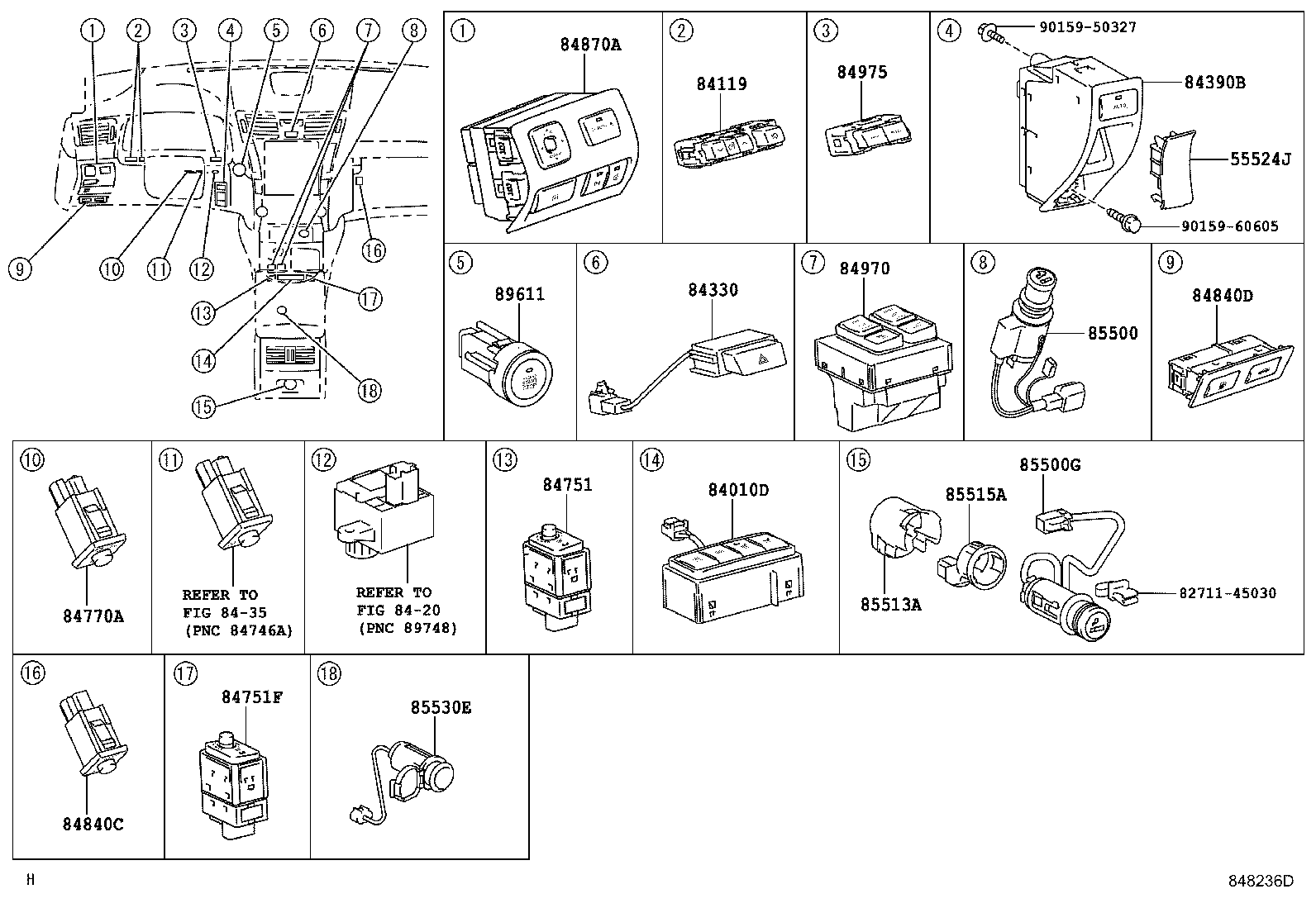

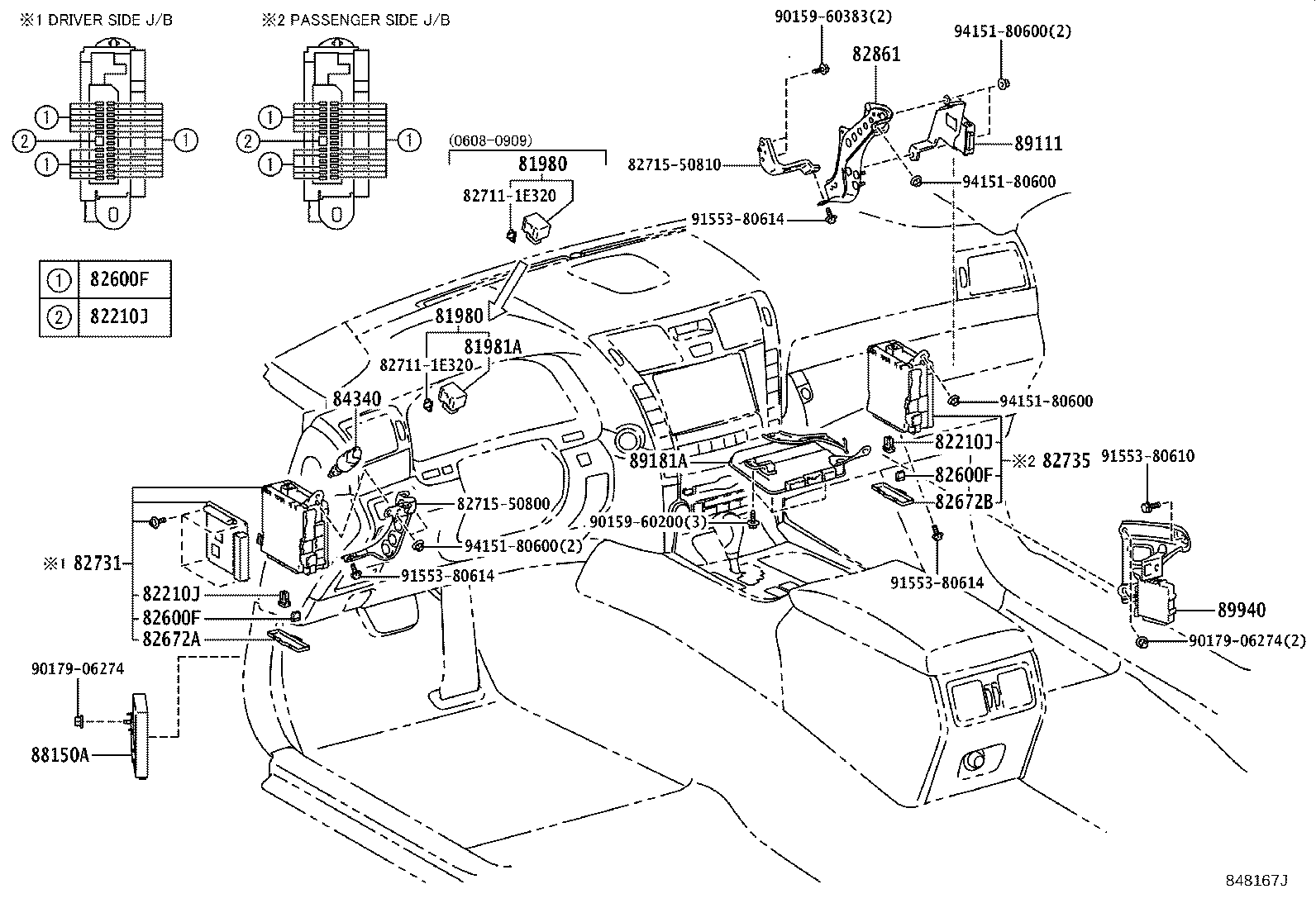

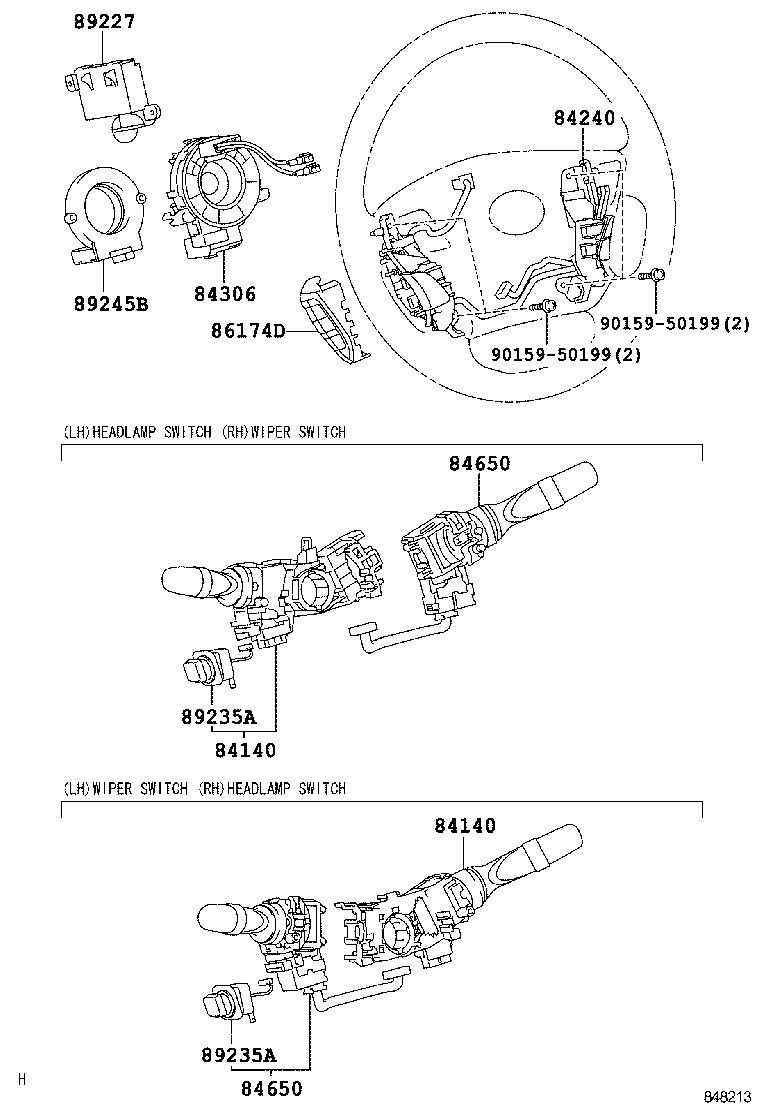

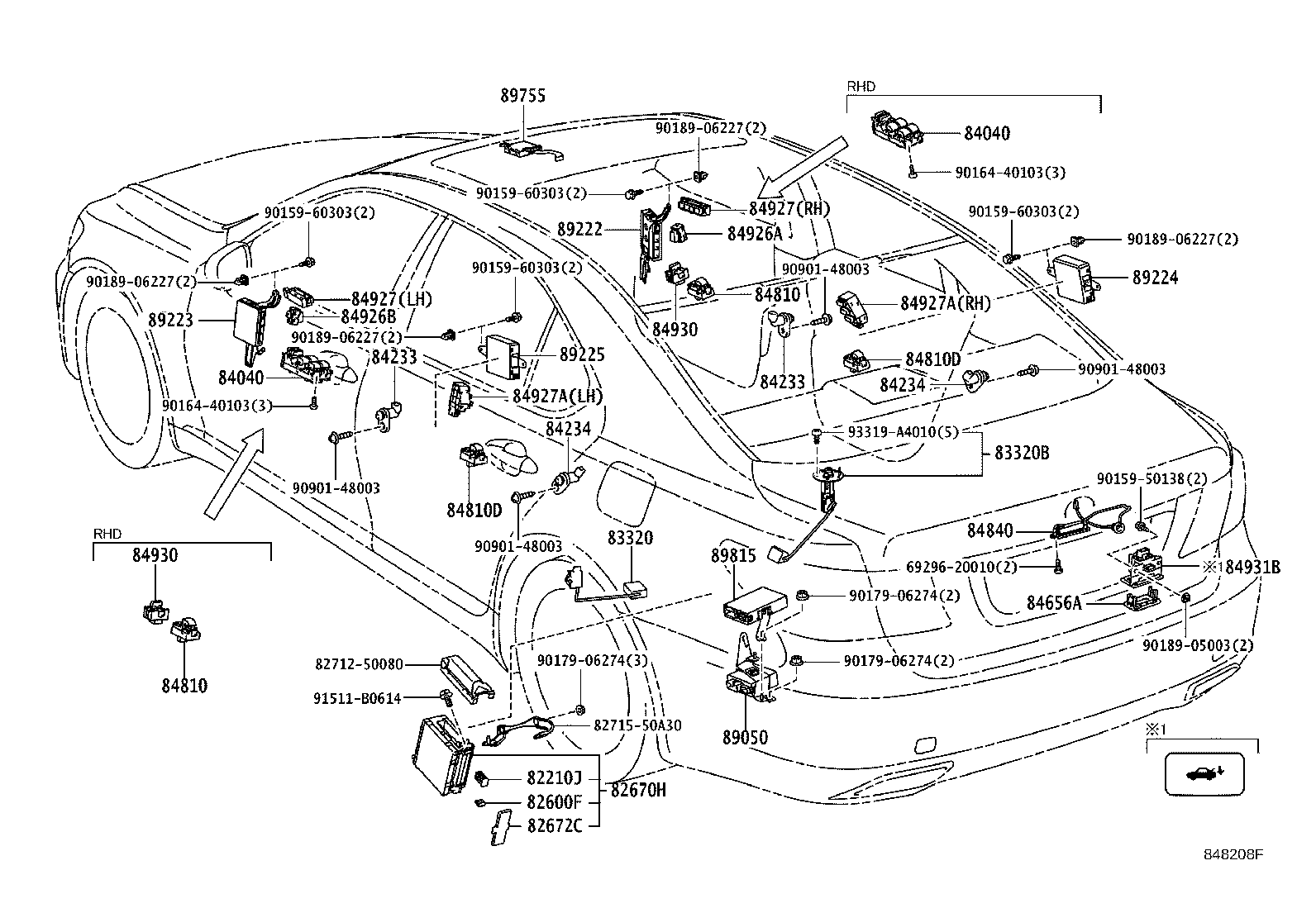

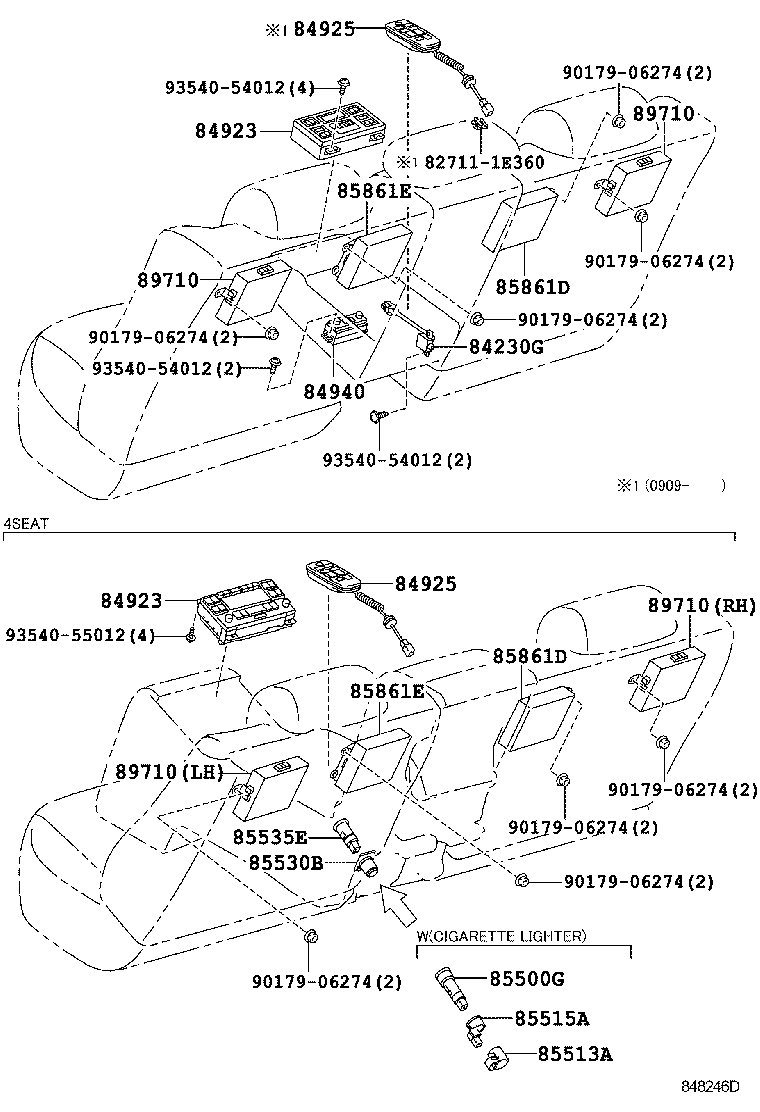

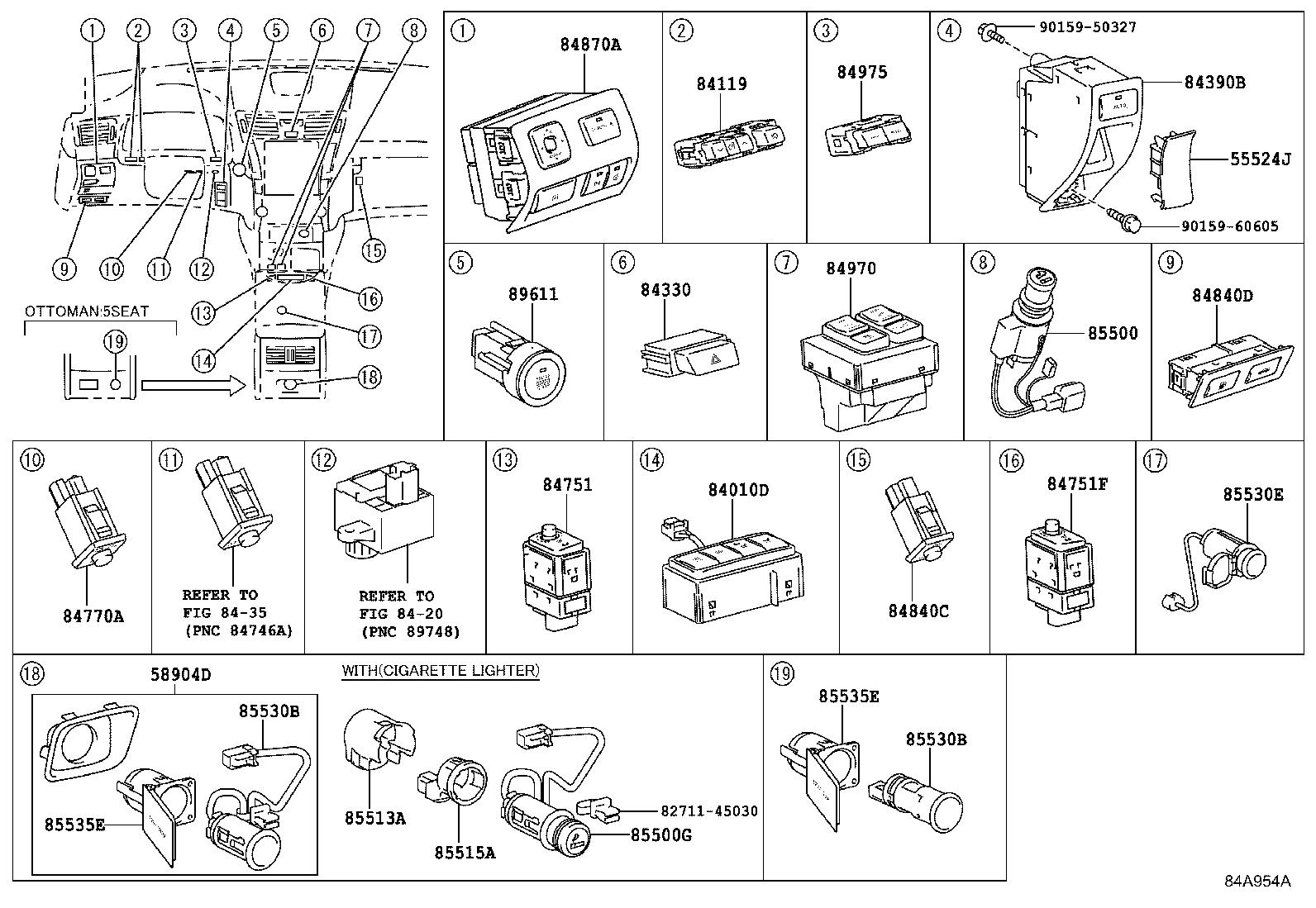

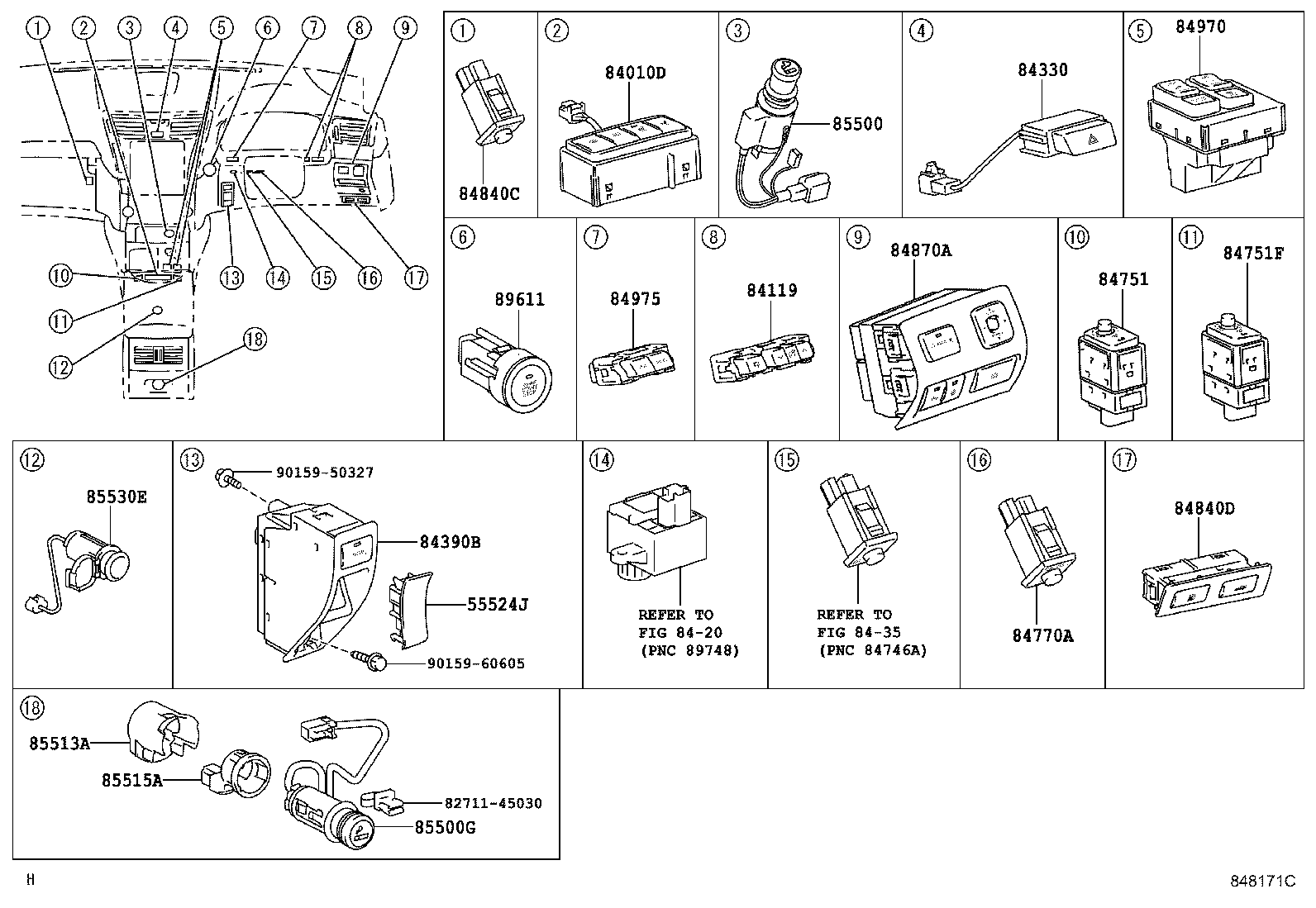

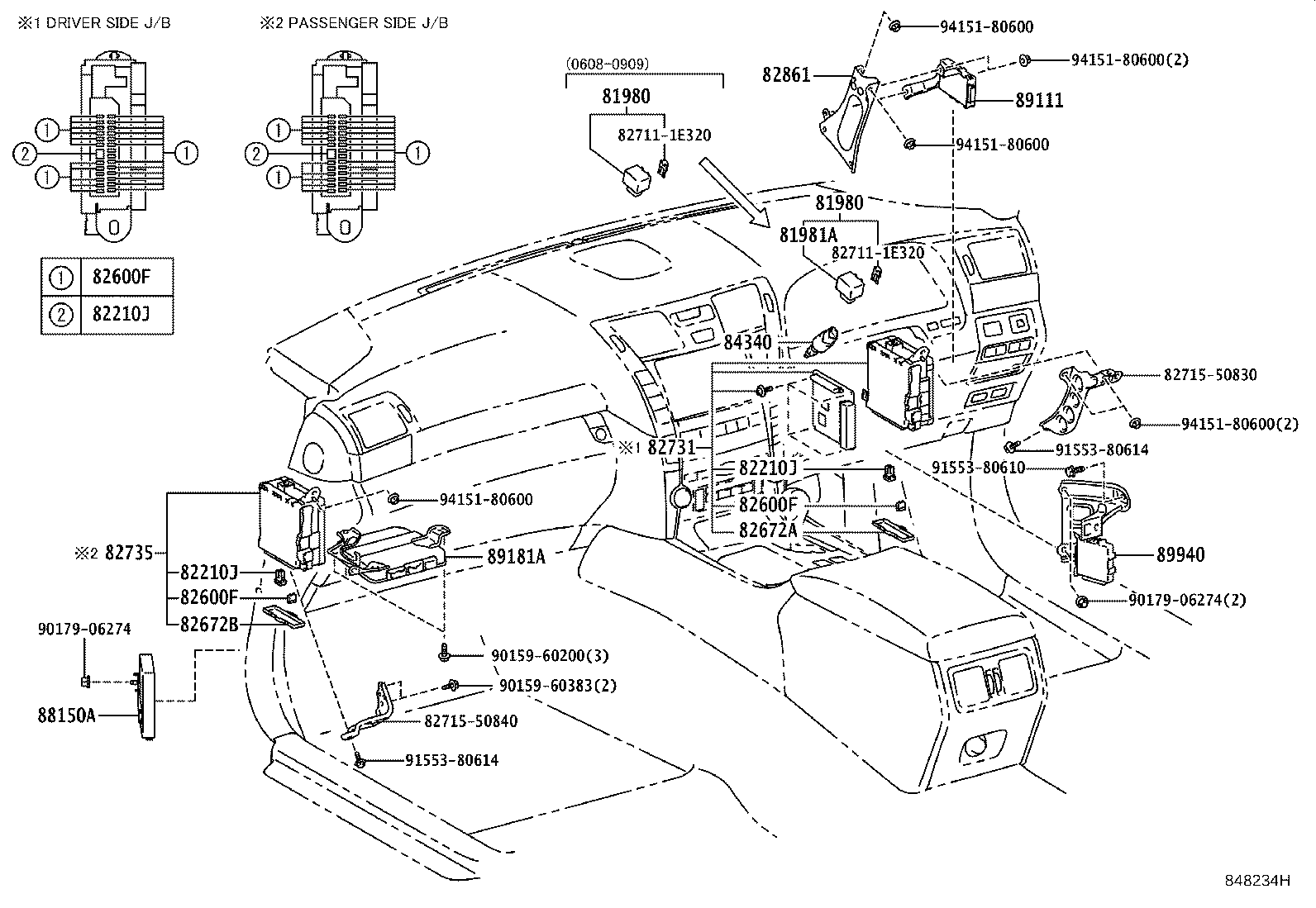

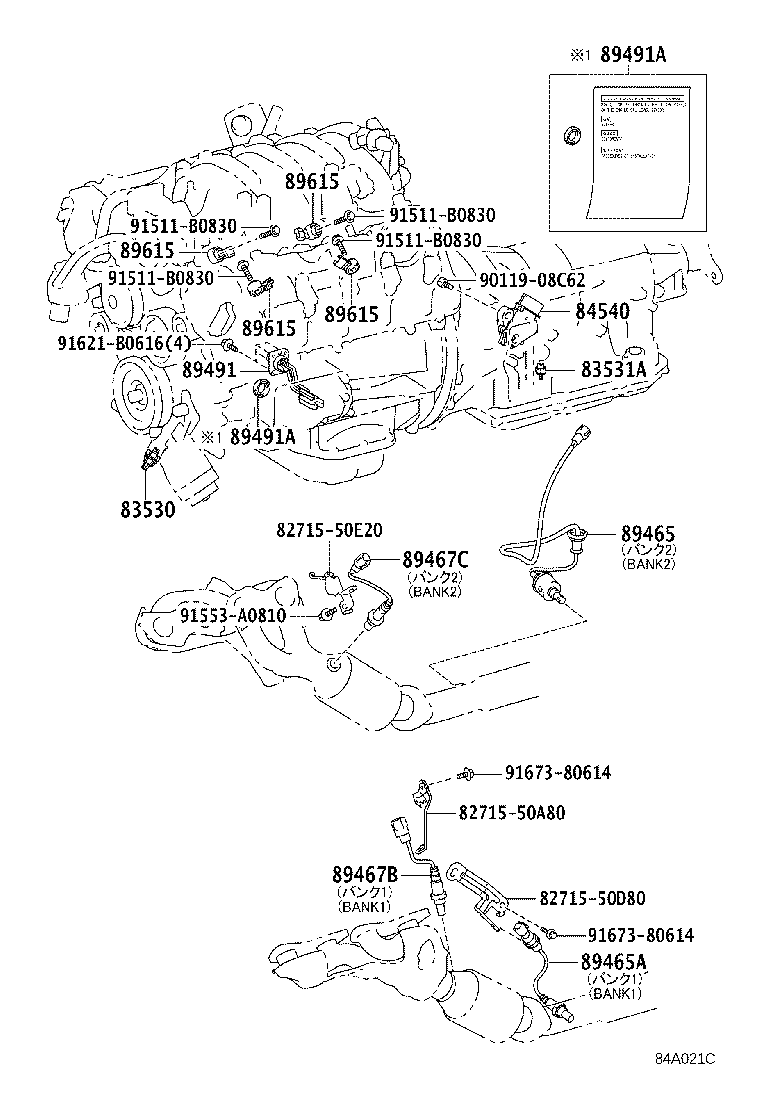

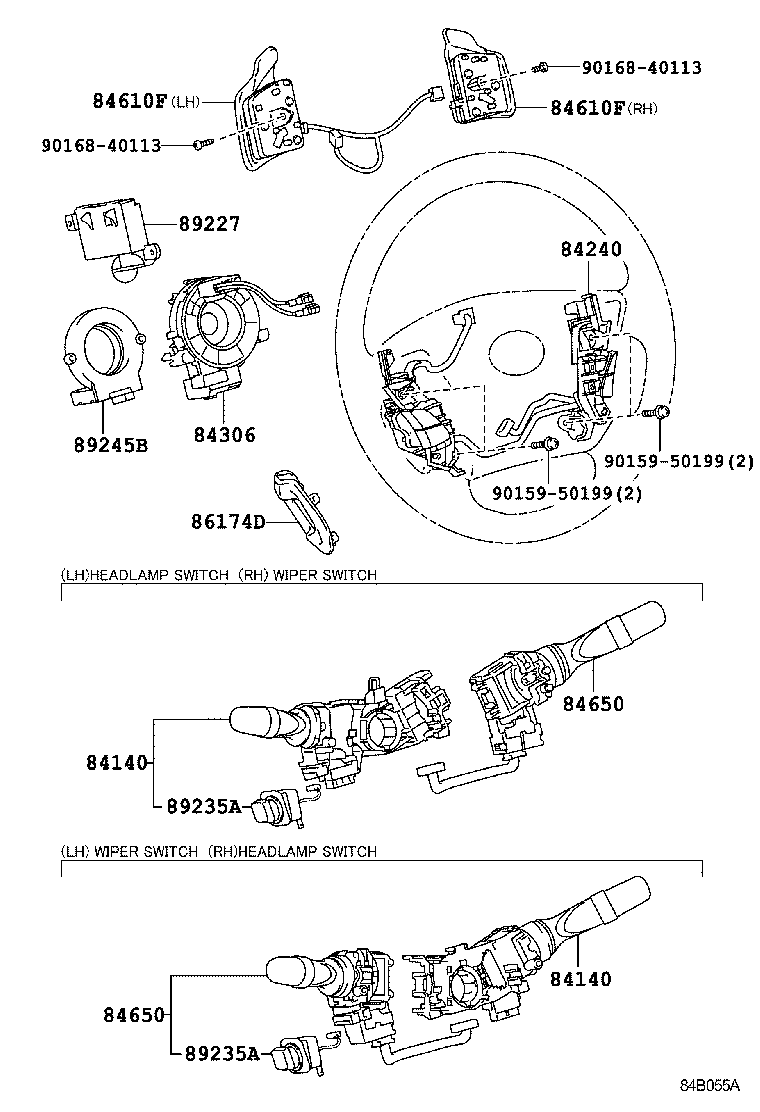

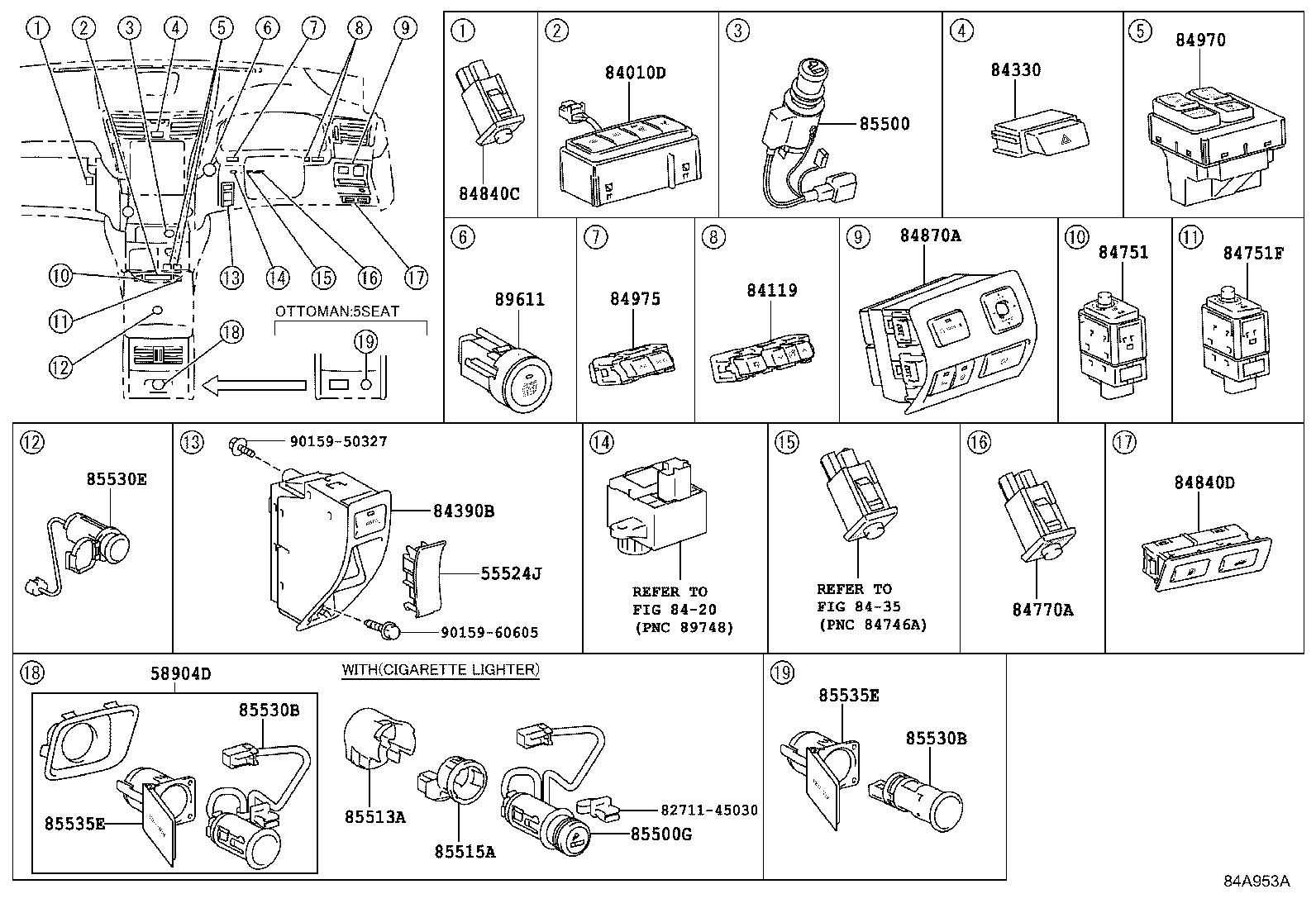

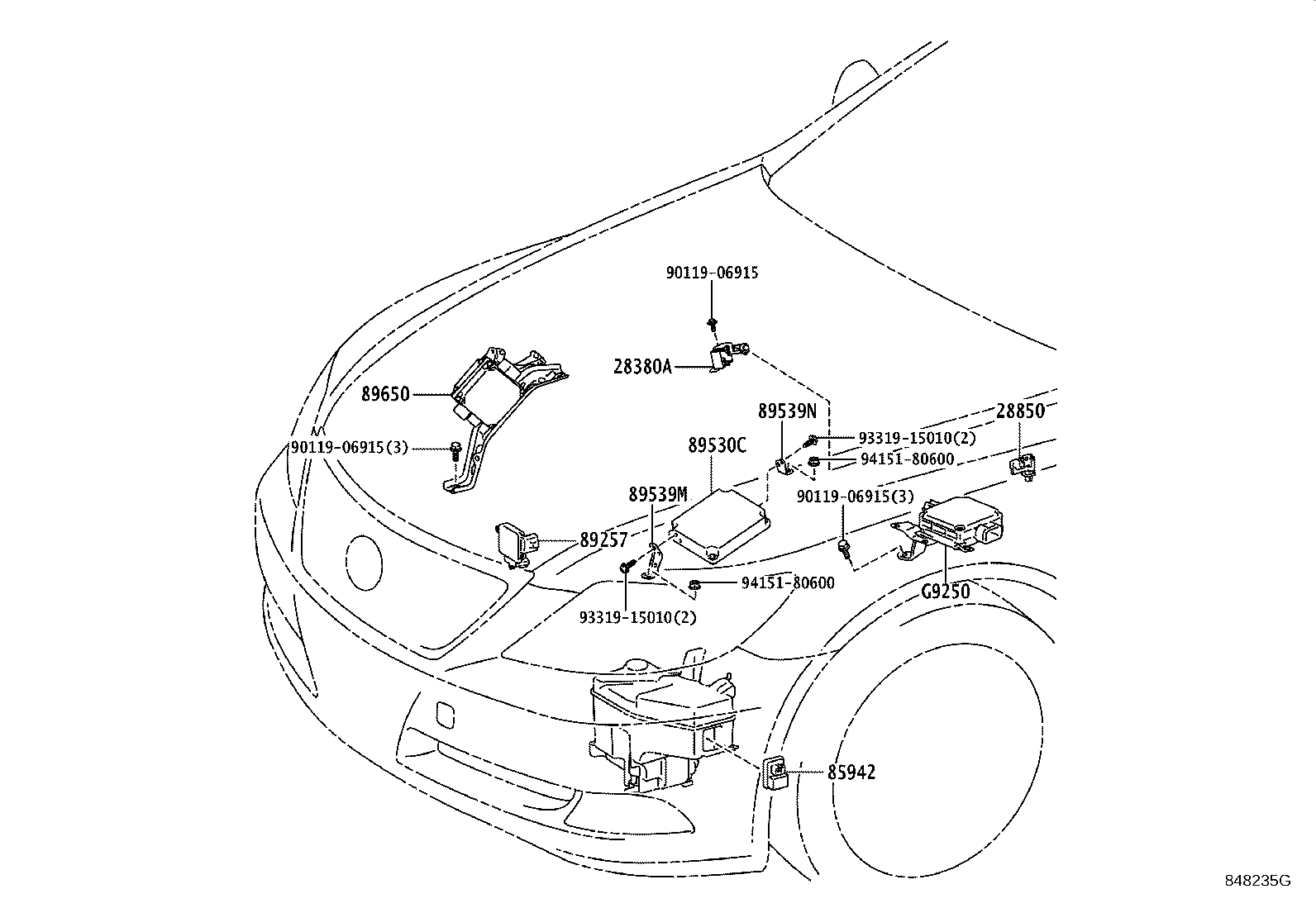

Illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28300D | Relay, Starter Cut |
| 28371 | Relay, Ignition, NO.1 |
| 28371C | Relay, Ignition, NO.2 |
| 28380A | Resister, Fuel Pump |
| 28850 | Sensor Assy, Battery Current |
| 55524J | Cover, Switch Base Hole |
| 58904D | Panel Sub-assy, Console Rear End, NO.2 |
| 81980 | Flasher Assy, Turn Signal |
| 81981A | Flasher, Turn Signal |
| 82210J | Fusible Link |
| 82600F | Fuse, Fuse Block |
| 82620A | Block Assy, Fusible Link |
| 82660 | Block Assy, Relay, Engine Room |
| 82660B | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82661A | Cover, Relay Block, NO.2 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82662D | Cover, Relay Block, Upper, NO.4 |
| 82662E | Cover, Relay Block, Upper, NO.7 |
| 82662F | Cover, Relay Block, Upper, NO.8 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663B | Cover, Relay Block, Lower, NO.3 |
| 82663C | Cover, Relay Block Lower, NO.4 |
| 82663E | Cover, Relay Block, Lower, NO.7 |
| 82663F | Cover, Relay Block, Lower, NO.8 |
| 82670H | Block Assy, Luggage Room Junction |
| 82672A | Cover, Junction Block |
| 82672B | Cover, Junction Block |
| 82672C | Cover, Junction Block |
| 82720 | Block Assy, Engine Room Junction |
| 82721B | Block, Engine Room Junction |
| 82731 | Block, Driver Side Junction |
| 82735 | Block, Passenger Side Junction |
| 82743 | Block, Engine Room Relay, NO.3 |
| 82861 | Bracket, Computer Integration, NO.1 |
| 83320 | Gage Assy, Fuel Sender |
| 83320B | Gage Assy, Fuel Sender, NO.2 |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83531A | Switch, Oil Pressure |
| 84010D | Control & Panel Assy, Integration |
| 84040 | Master Switch Assy,Multiplex Network |
| 84119 | Rheostat, Light Control |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84230G | Switch Assy, Courtesy Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84240 | Switch Assy, Steering Pad, W/Modulator |
| 84306 | Cable Sub-assy, Spiral |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84390B | Switch Assy, Electric Parking Brake |
| 84540 | Switch Assy, Neutral Start |
| 84610F | Switch Assy, Transmission Shift |
| 84650 | Switch Assy, Windshield Wiper |
| 84656A | Bezel, Switch |
| 84751 | Switch, Seat Heater |
| 84751F | Switch, Seat Heater |
| 84770A | Switch Assy, Pre-collision System Cancel |
| 84794A | Relay, FR Wiper Deicer |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84840 | Switch Assy, Luggage Compartment Door Opening |
| 84840C | Switch Assy, Luggage Door Opening, Cancel |
| 84840D | Switch Assy, Luggage Door Opening |
| 84870A | Switch Assy, Outer Mirror |
| 84920 | Switch Assy, Power Seat |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84923 | Switch, Rear Power Seat |
| 84925 | Switch, Seat Vibrator |
| 84926A | Switch, Height Adjustable Anchor |
| 84926B | Switch, Height Adjustable Anchor |
| 84927 | Switch, Seat Memory |
| 84927A | Switch, Rear Seat Memory |
| 84930 | Switch Assy, Door Control |
| 84931B | Switch, Door Control |
| 84940 | Switch Assy, Curtain |
| 84970 | Switch Assy, Combination |
| 84975 | Switch, Trip |
| 85500 | Lighter Assy, Cigarette |
| 85500G | Lighter Assy, Cigarette, Rear |
| 85513A | Cover, Cigarette Lighter, Rear |
| 85515A | Stay, Cigarette Lighter Bezel, Rear |
| 85530B | Socket Assy, Power Outlet, Rear NO.1 |
| 85530E | Socket Assy, Power Outlet, NO.3 |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 85861B | Computer, Seat Climate Control, Front RH |
| 85861C | Computer, Seat Climate Control, Front LH |
| 85861D | Computer, Seat Climate Control, Rear RH |
| 85861E | Computer, Seat Climate Control, Rear LH |
| 85912 | Relay, Defogger |
| 85925D | Relay, Ptc Heater |
| 85925F | Relay, Ptc Heater NO.2 |
| 85927 | Relay, Cooling Fan |
| 85942 | Relay, Headlamp Cleaner Control |
| 86174D | Case, Switch & Volume |
| 88150A | Computer Assy, Driving Support |
| 89050 | Computer Assy, Parking Brake |
| 89111 | Computer, Network Gateway |
| 89181A | Computer, Steering Control |
| 89219 | Computer, Multiplex Network Front Lamp |
| 89222 | Computer, Multiplex Network Door, Front RH |
| 89223 | Computer, Multiplex Network Door, Front LH |
| 89224 | Computer, Multiplex Network Door, Rear RH |
| 89225 | Computer, Multiplex Network Door, Rear LH |
| 89227 | Computer, Multiplex Tilt & Telescopic |
| 89235A | Switch, Tilt & Telescopic |
| 89245B | Sensor, Steering |
| 89257 | Computer, Cooling Fan |
| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |
| 89465B | Sensor, Oxygen NO.3 |
| 89467B | Sensor, Air Fuel Ratio |
| 89467C | Sensor, Air Fuel Ratio, NO.2 |
| 89491 | Sensor, Engine Oil Level |
| 89491A | Gasket, Engine Oil Level Sensor |
| 89530C | Computer Assy, Transmission Control |
| 89539M | Bracket, Transmission Control Computer, NO.1 |
| 89539N | Bracket, Transmission Control Computer, NO.2 |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89710 | Computer Assy, Position Control |
| 89755 | Transmitter, Garage Door Opener |
| 89815 | Computer, Seat Belt Control |
| 89940 | Computer Assy, Headlamp Swivel |
| G9250 | Converter Assy, Power Steering |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
