Toyota Lexus LS460/460L
2012-09 → 2017-08 · chassis USF4# · catalogue 431250 · Europe
Supported model
Data version 2018-03
Abs & Vsc

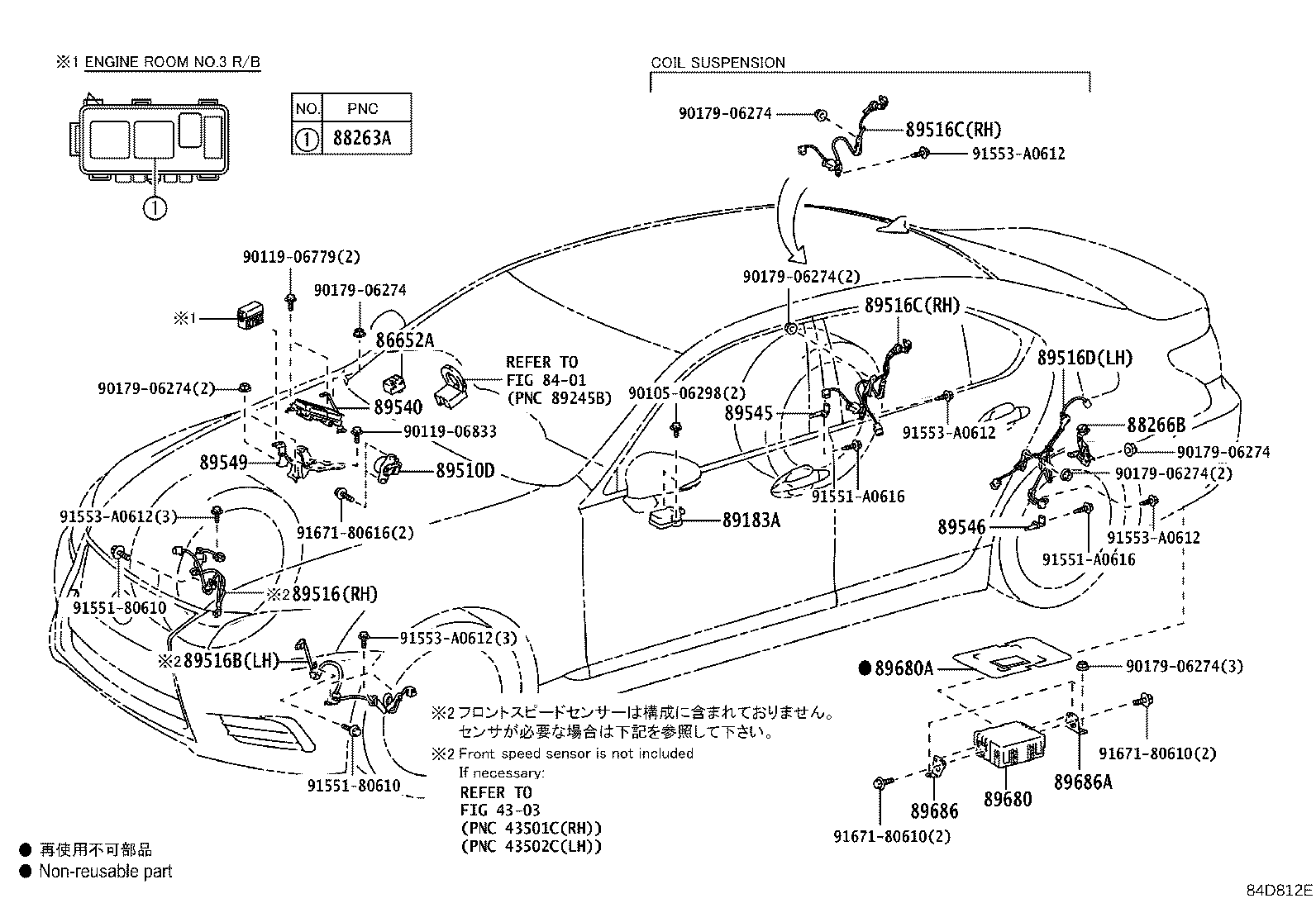

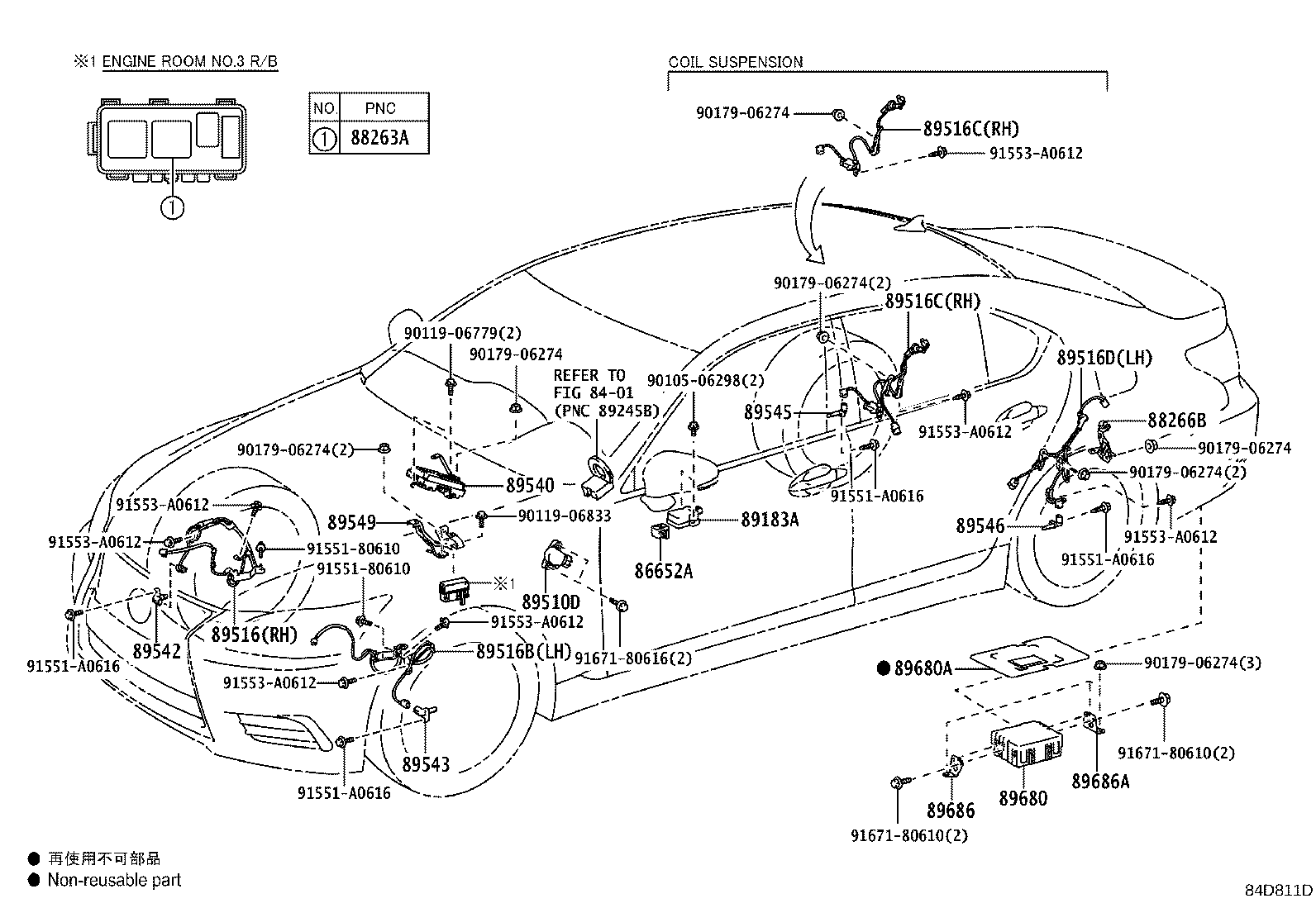

19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86652A | Buzzer Assy, Skid Control |
| 88263A | Relay, Skid Control |
| 88266B | Clamp, Skid Control Sensor, NO.1 |
| 89183A | Sensor, Yawrate |
| 89510D | Sensor Assy, Brake Pedal Stroke |
| 89516 | Wire, Skid Control Sensor |
| 89516B | Wire, Skid Control Sensor |
| 89516C | Wire, Skid Control Sensor, RH |
| 89516D | Wire, Skid Control Sensor, LH |
| 89540 | Computer Assy, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
| 89549 | Bracket, Skid Control Computer |
| 89680 | Supply Assy, Brake Control Power |
| 89680A | Cover, Brake Control Power Supply |
| 89686 | Bracket, Brake Control Power Supply, NO.1 |
| 89686A | Bracket, Brake Control Power Supply, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
