Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

117 part groups · 40 illustrations

Illustrations

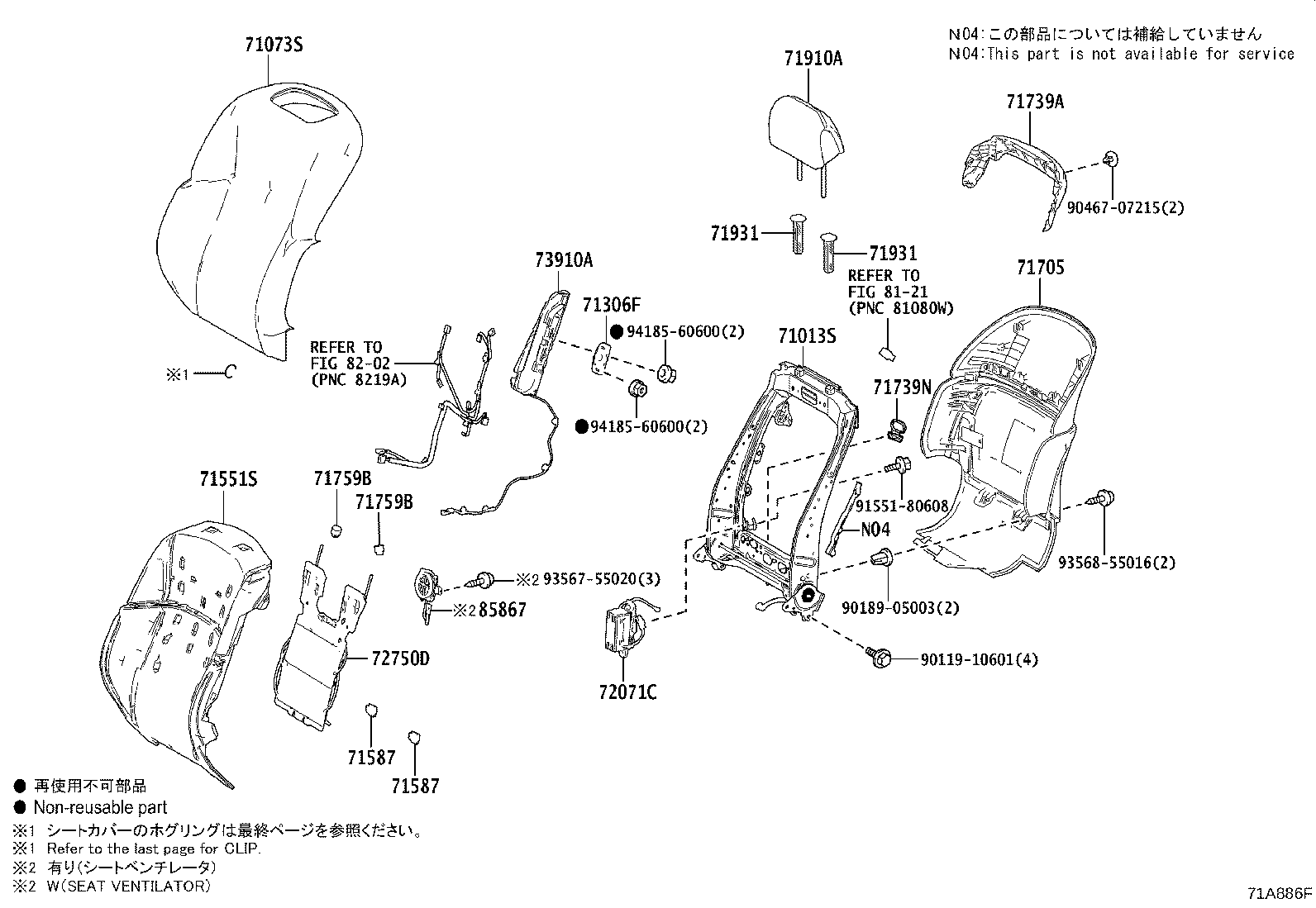

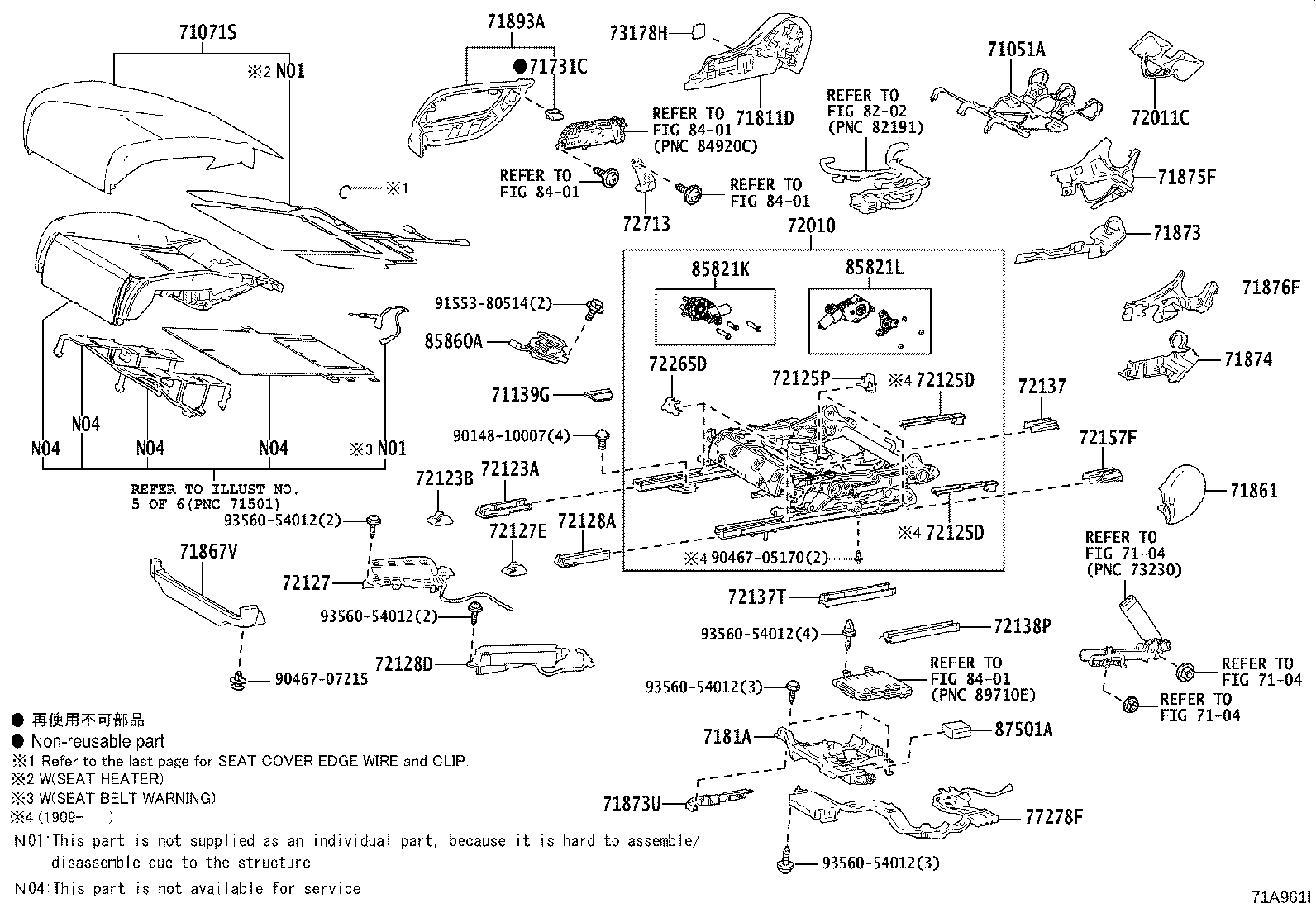

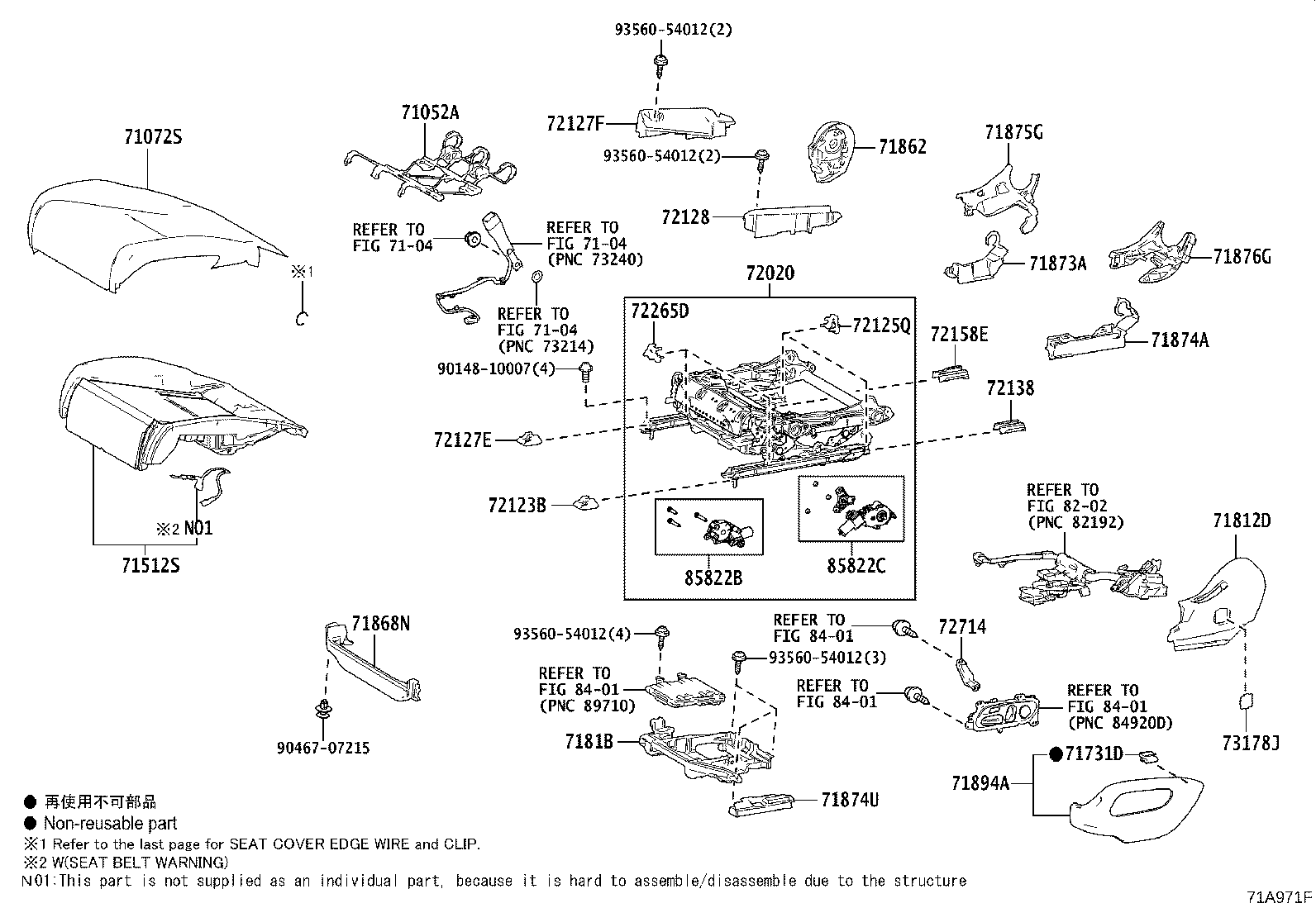

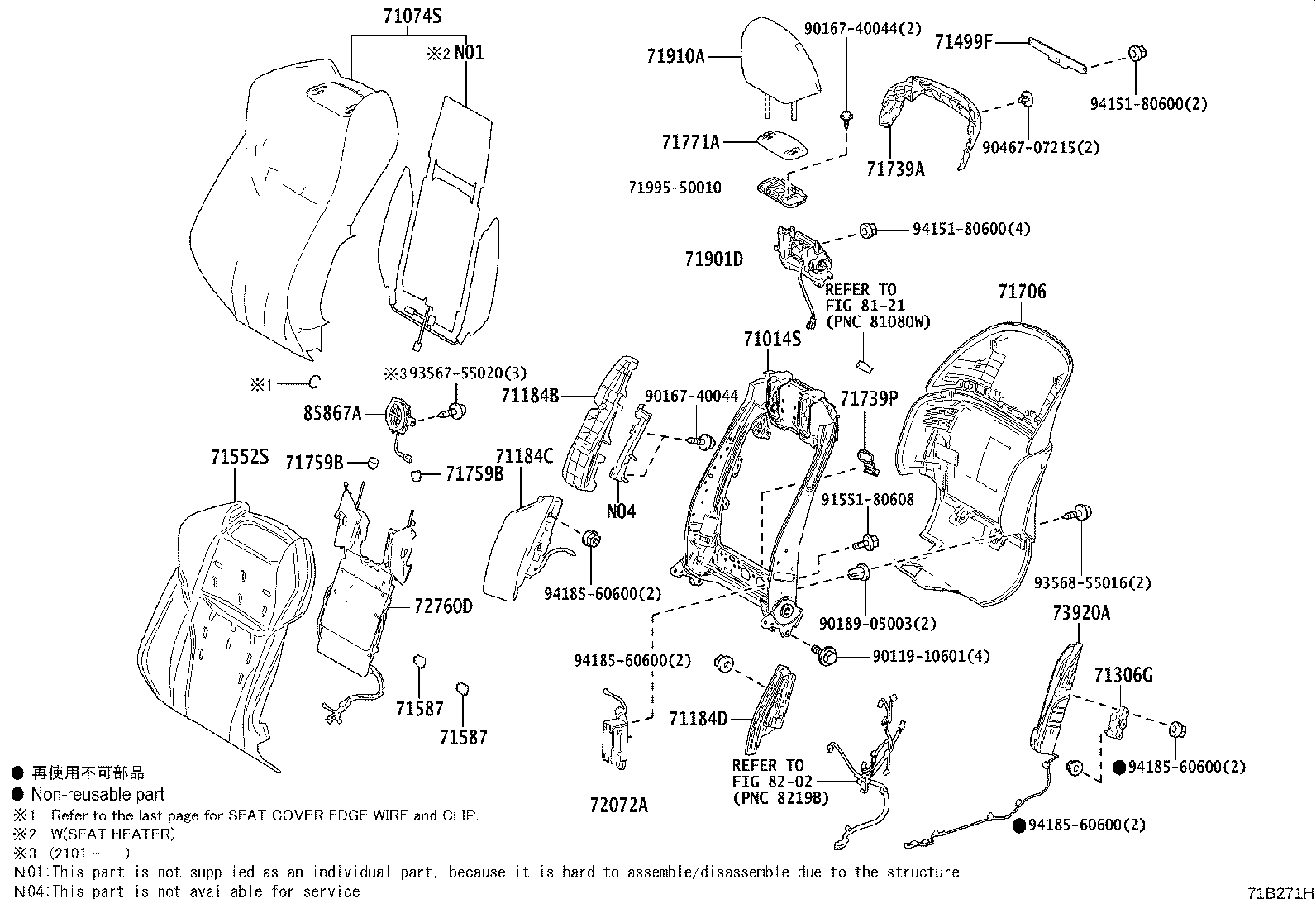

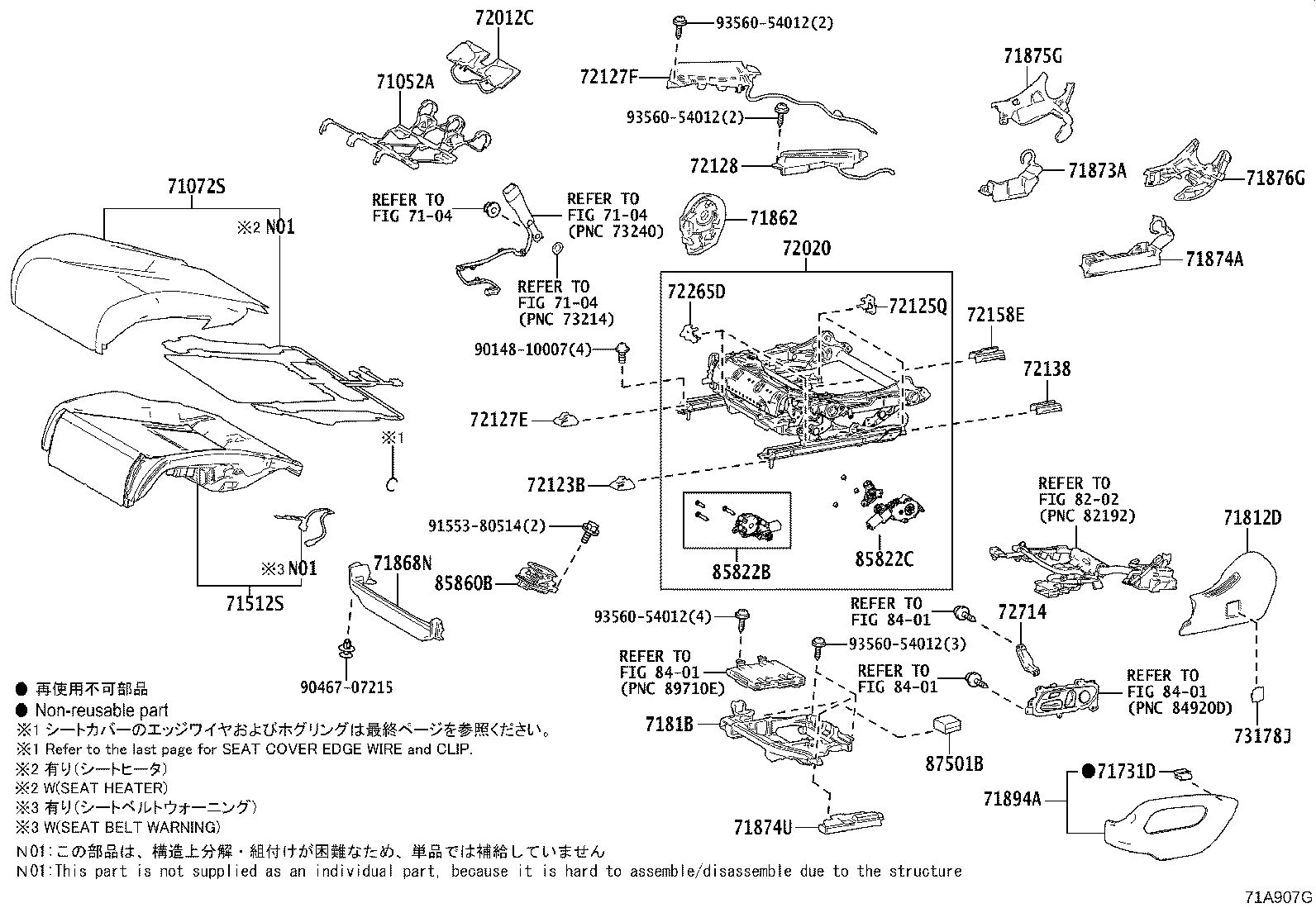

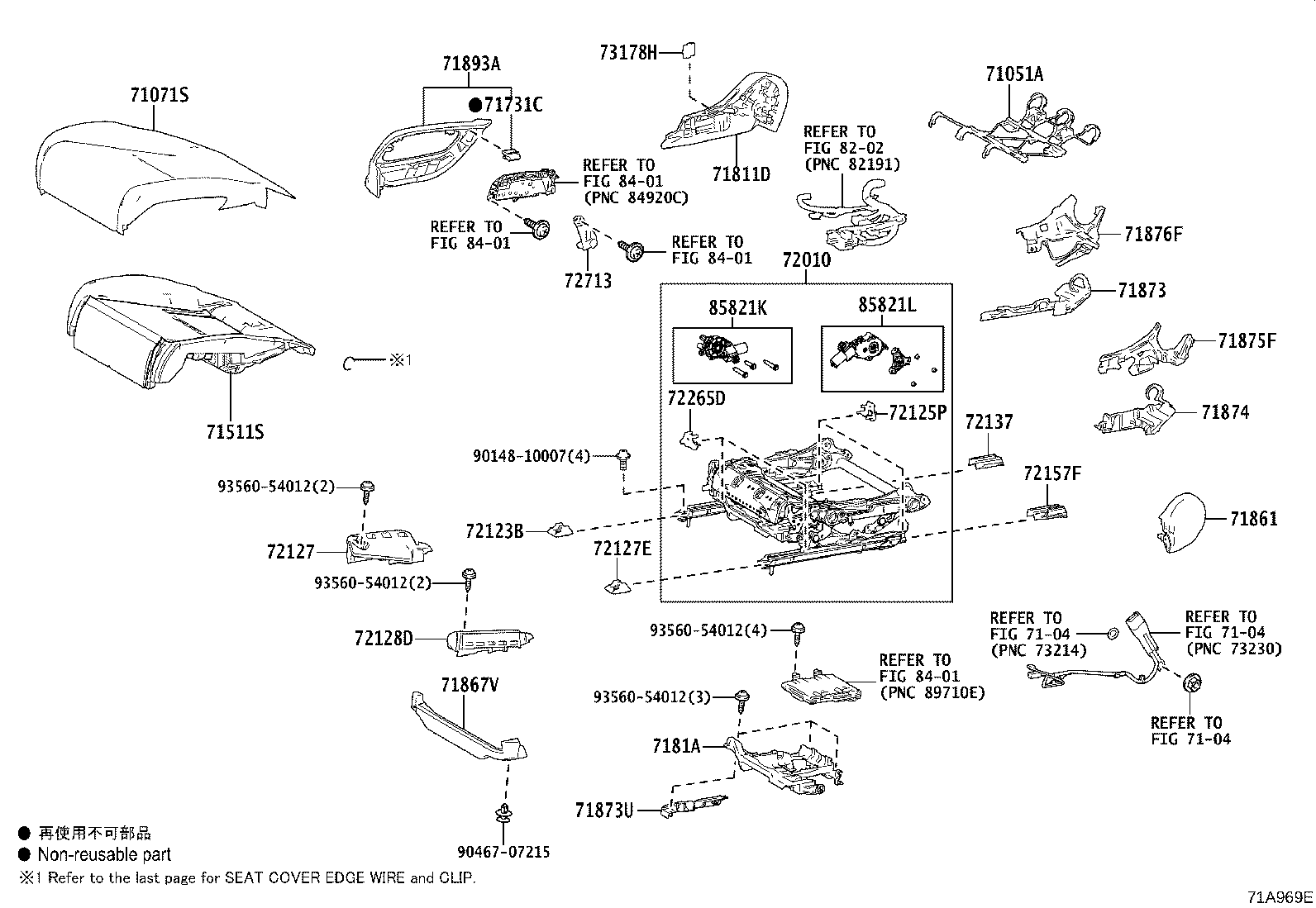

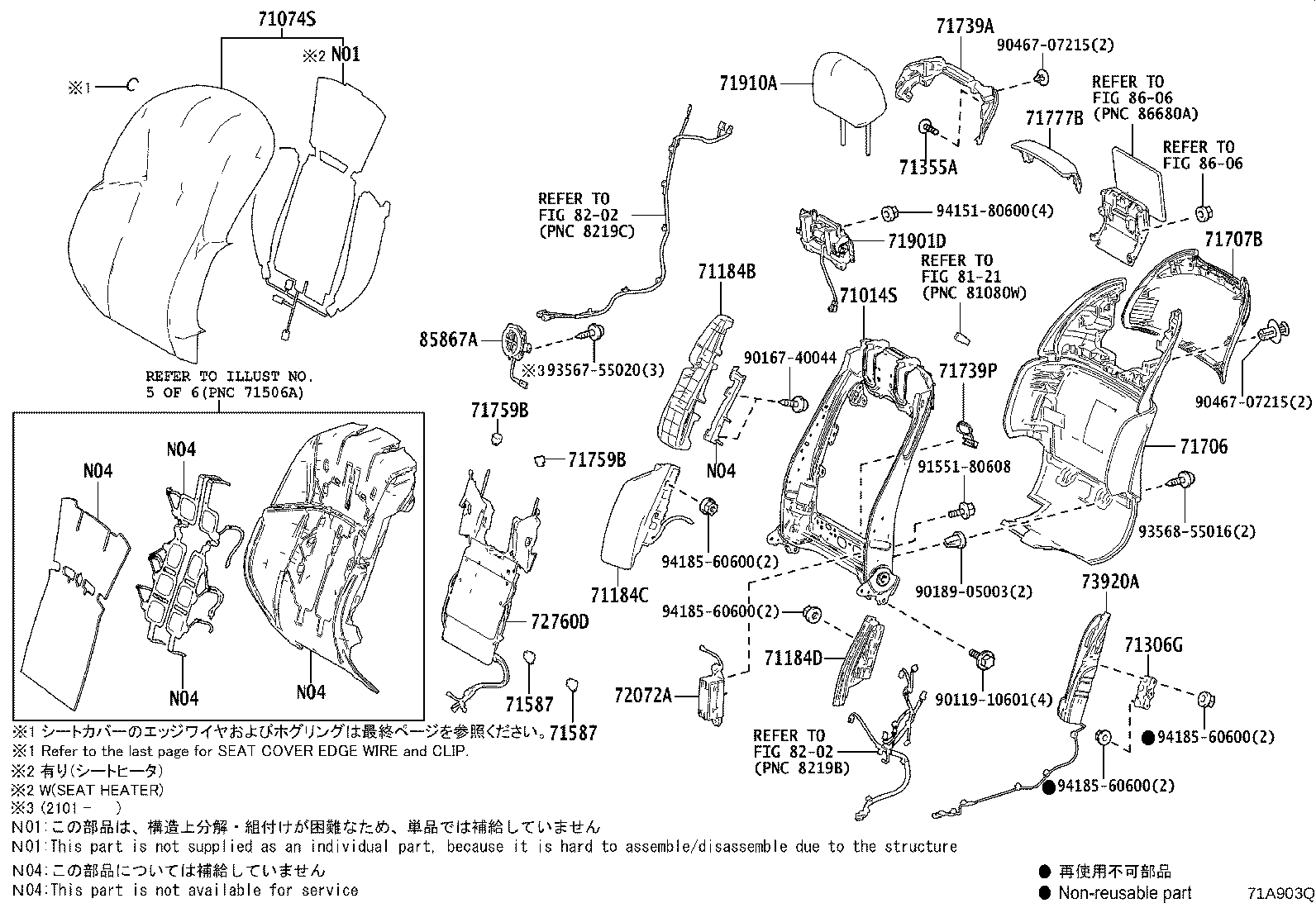

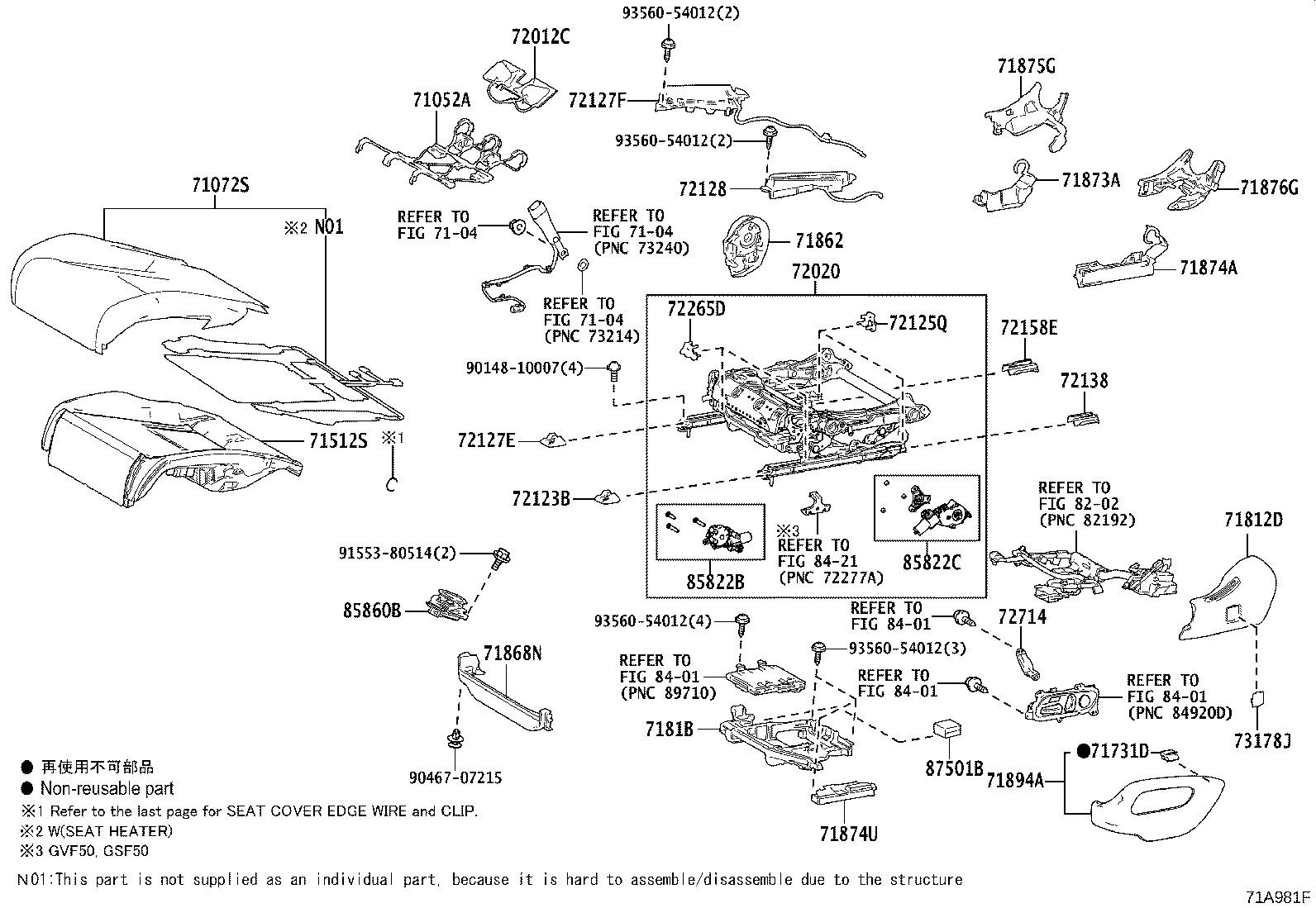

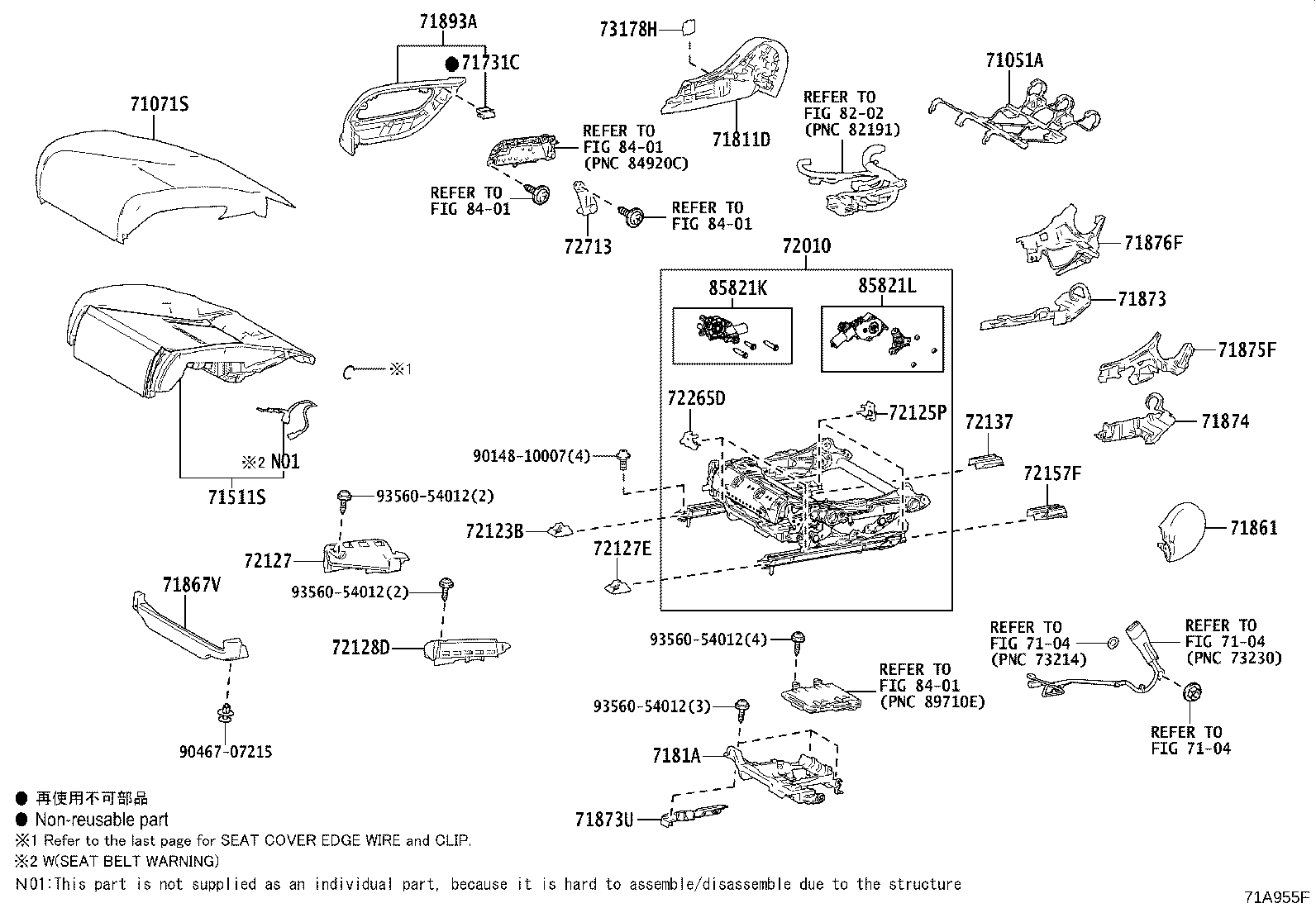

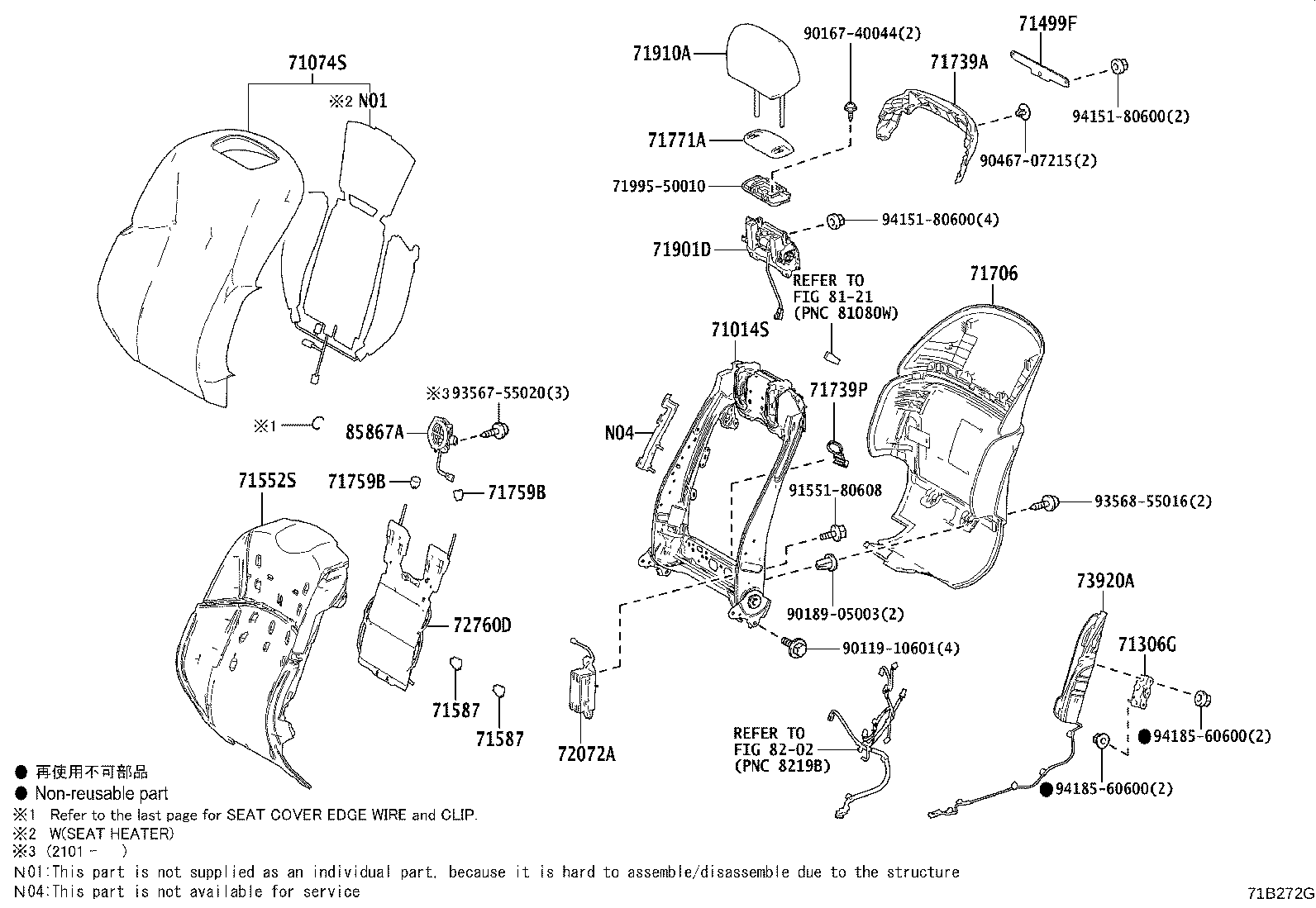

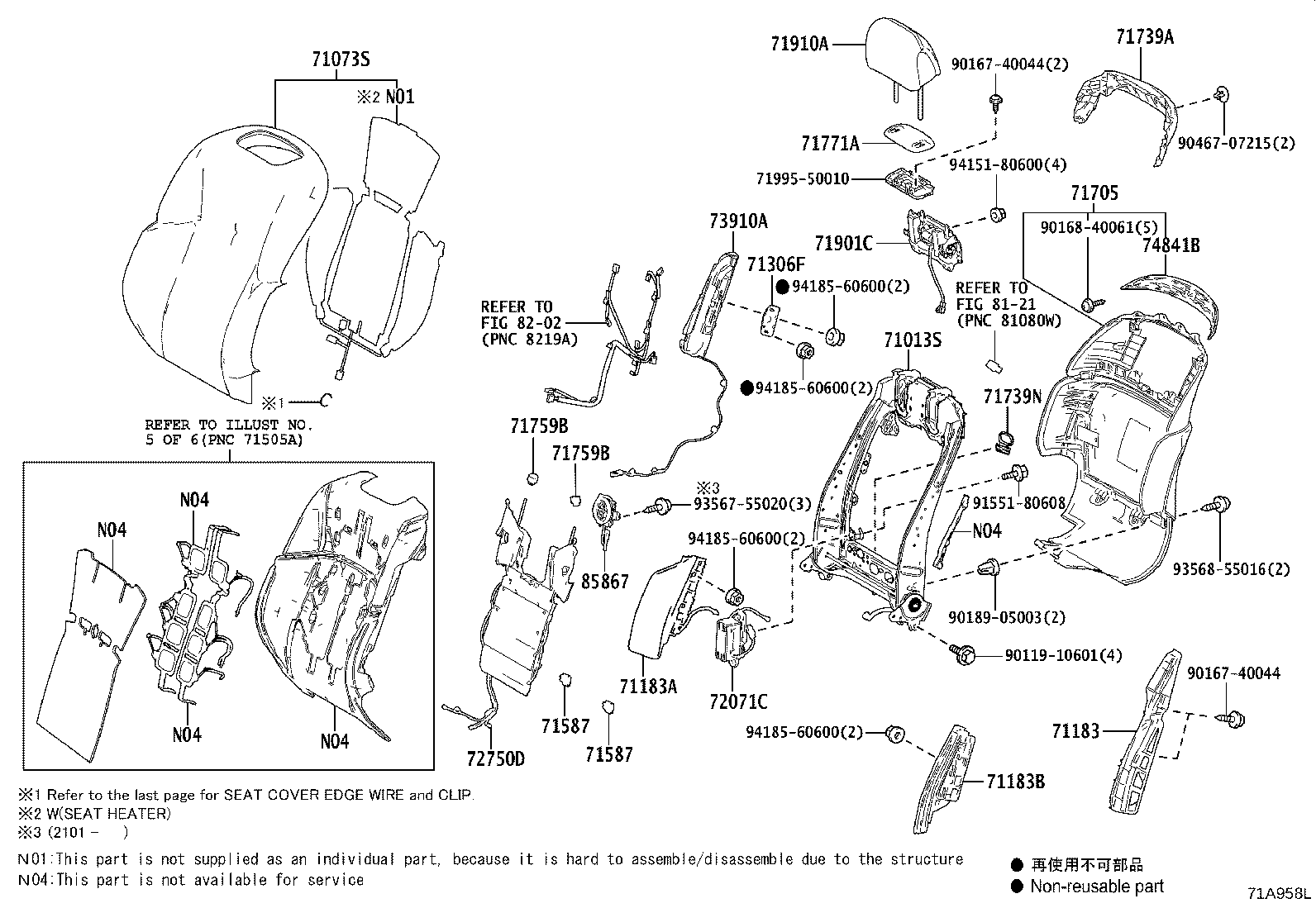

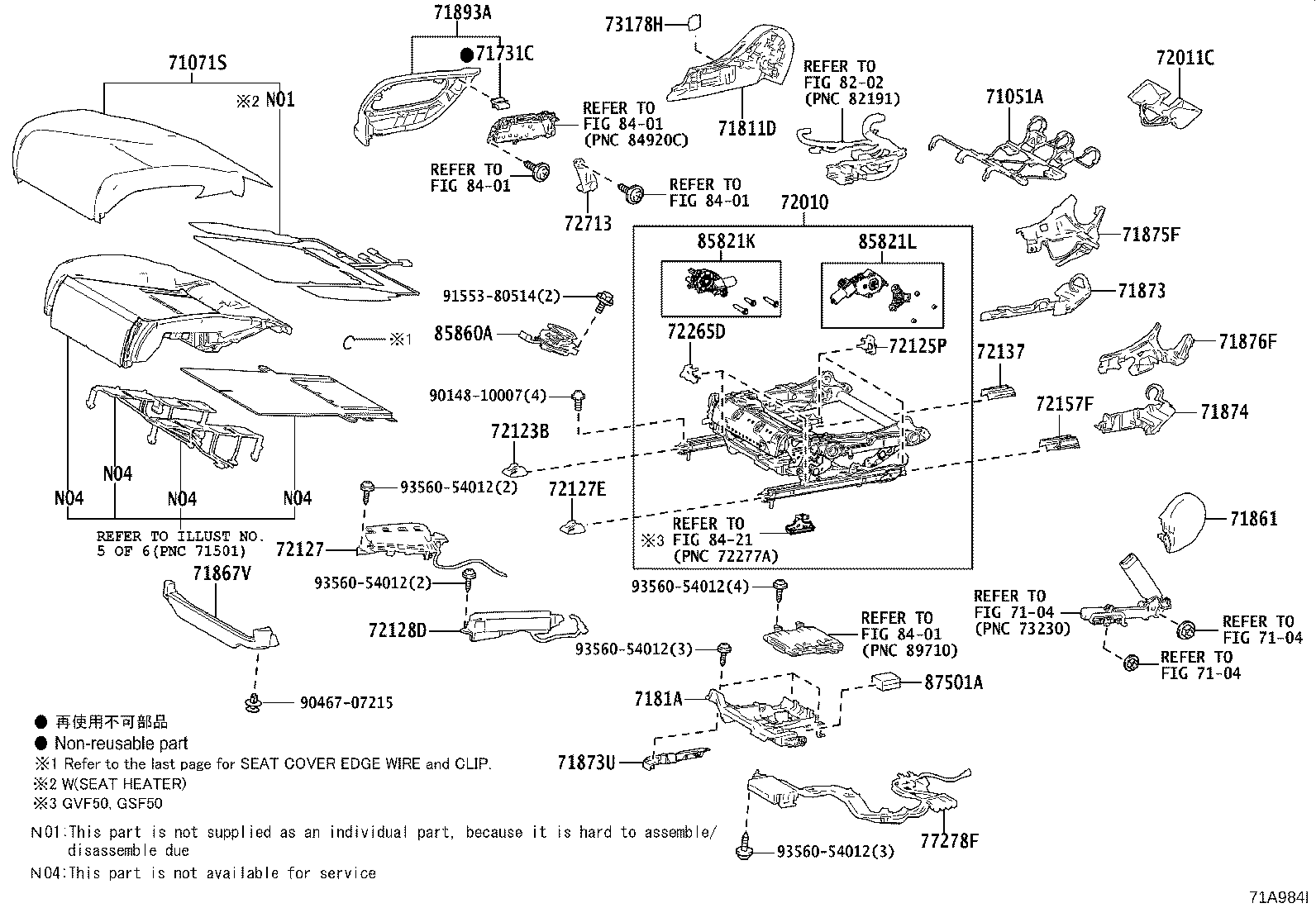

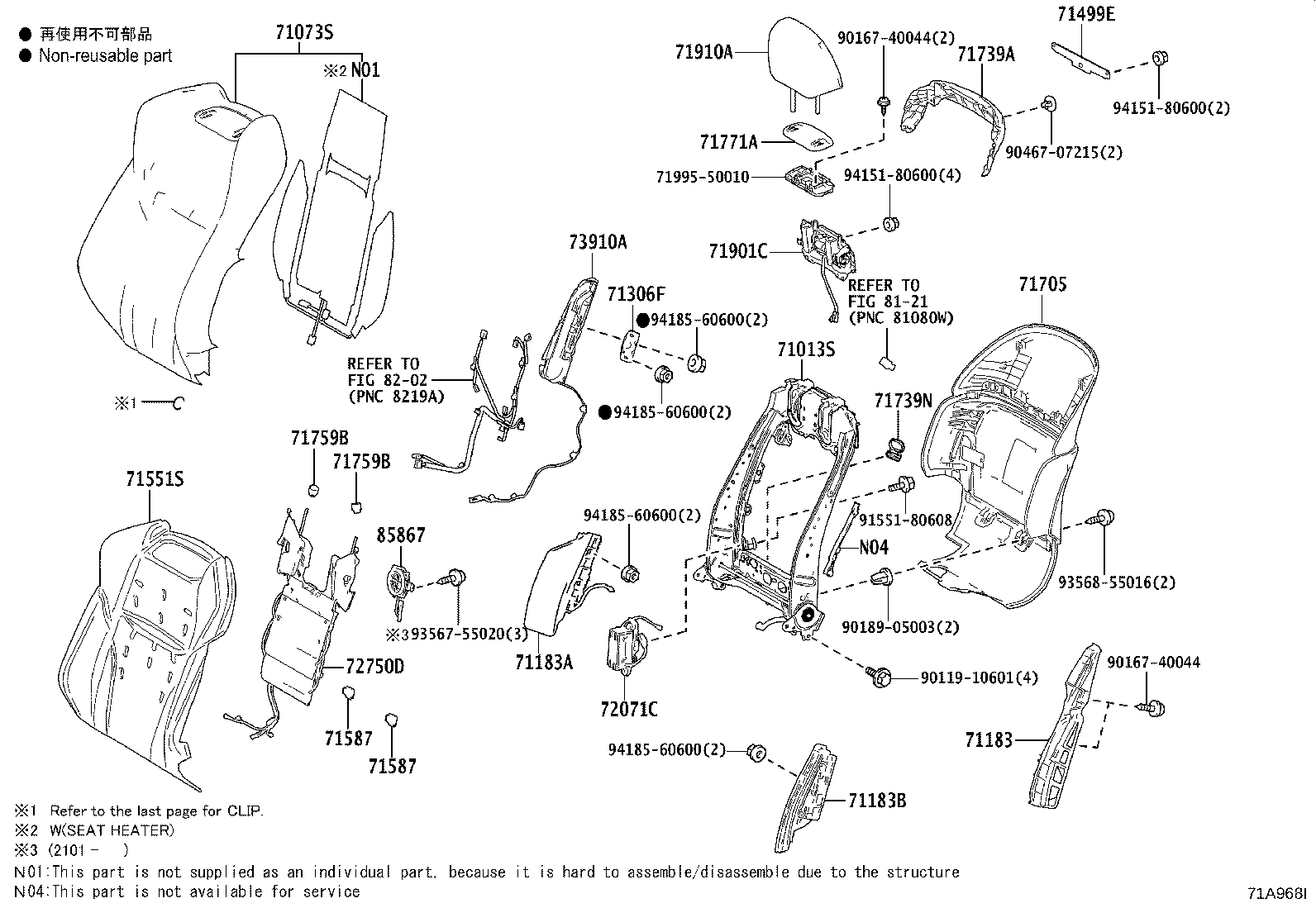

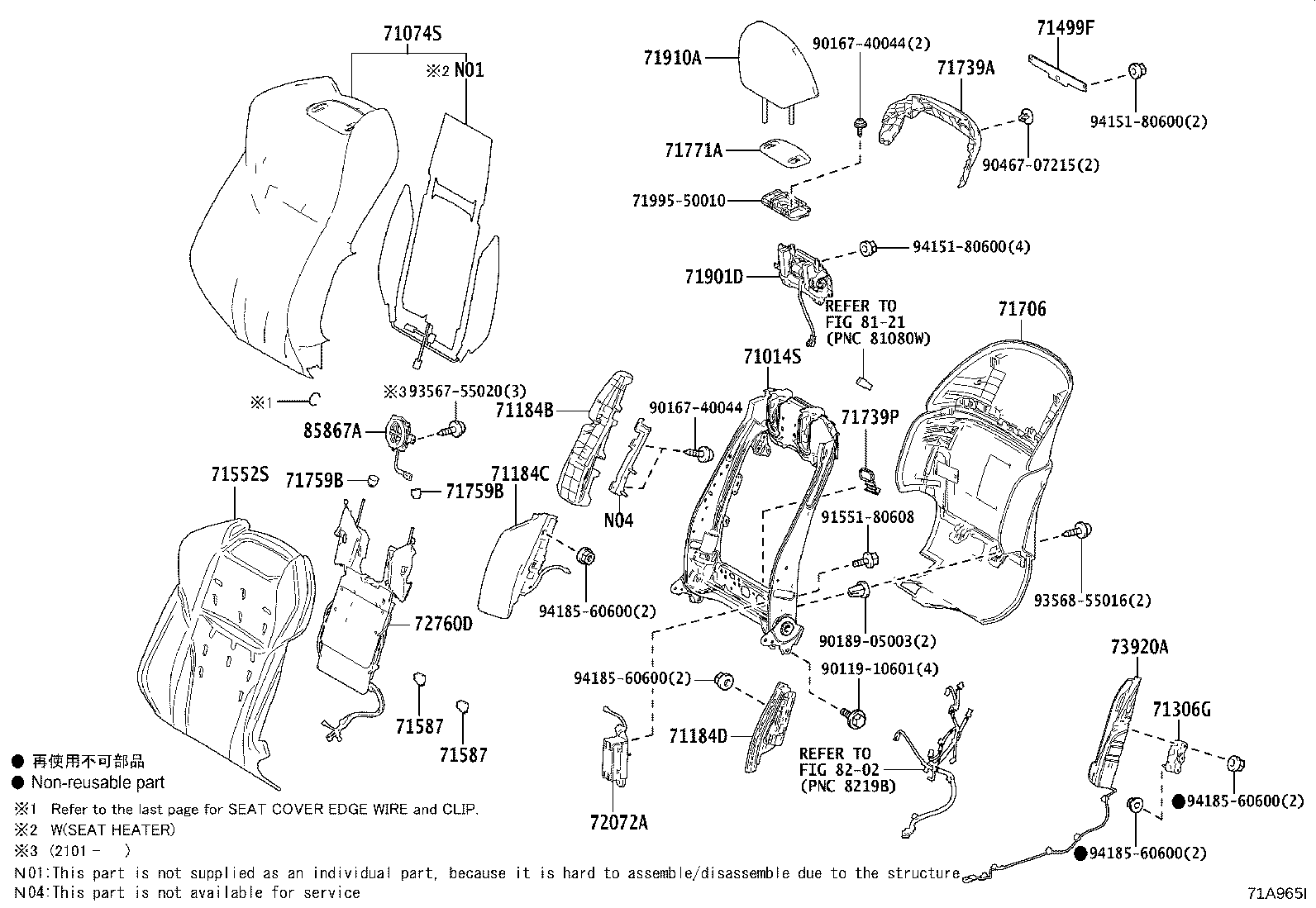

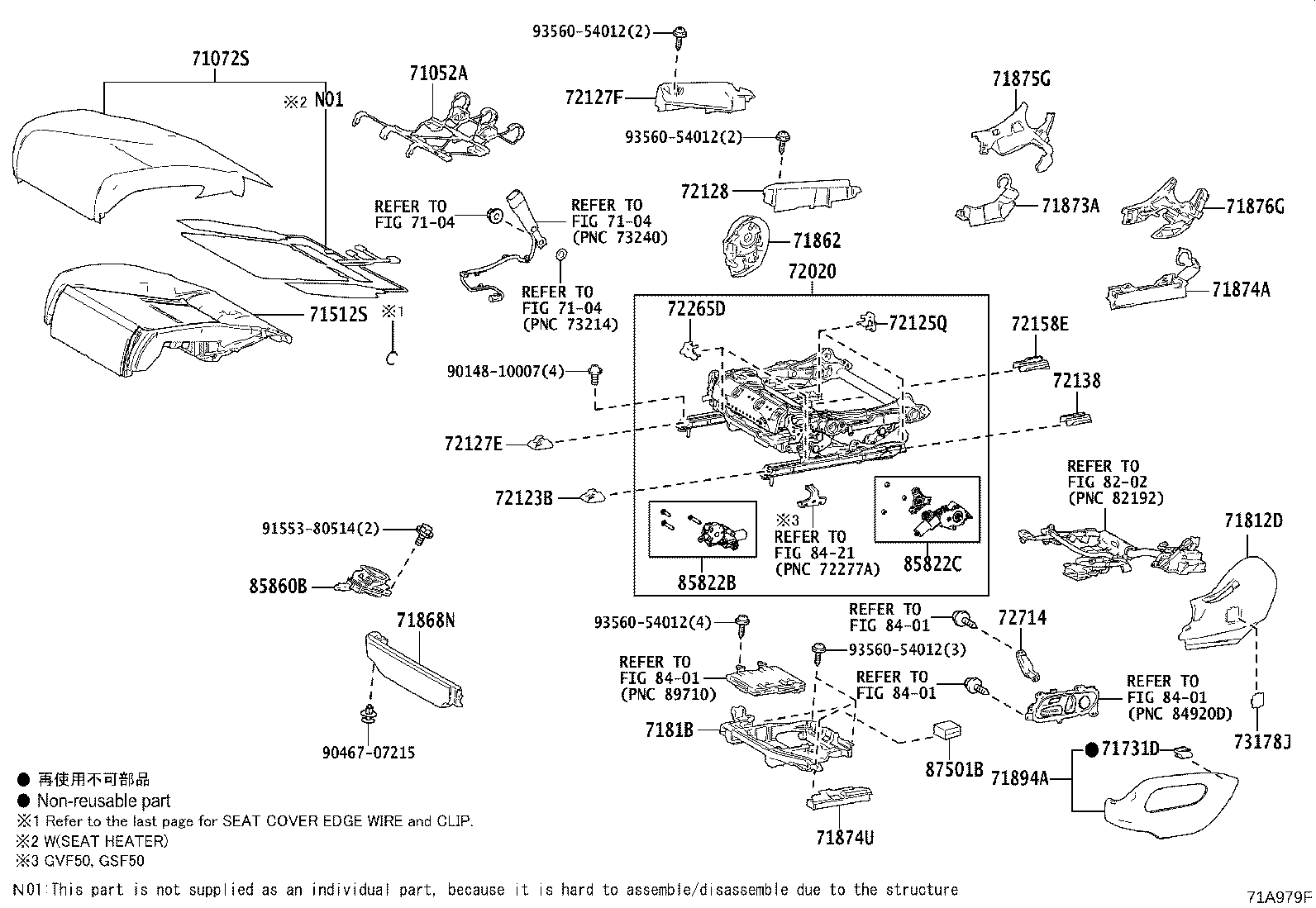

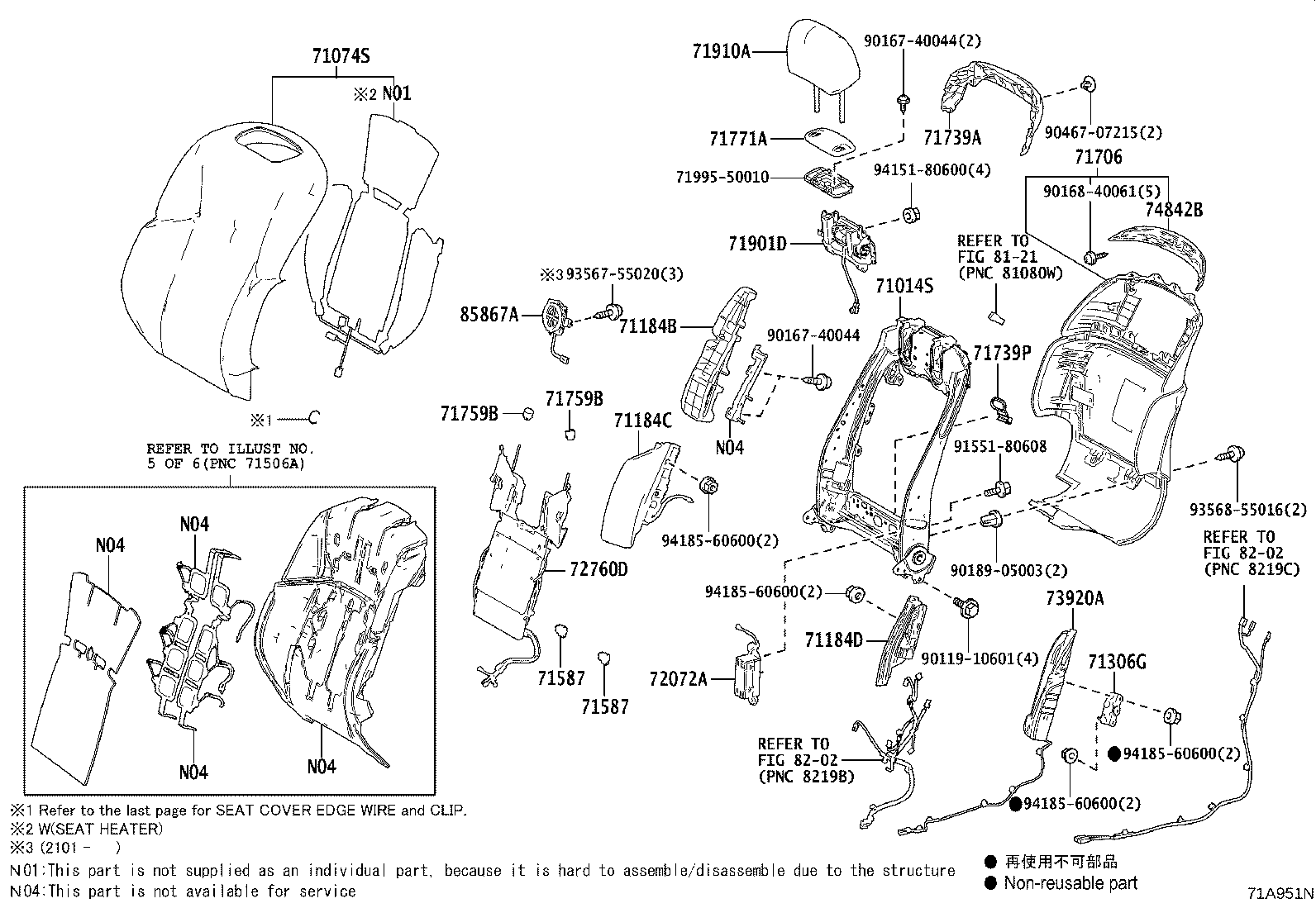

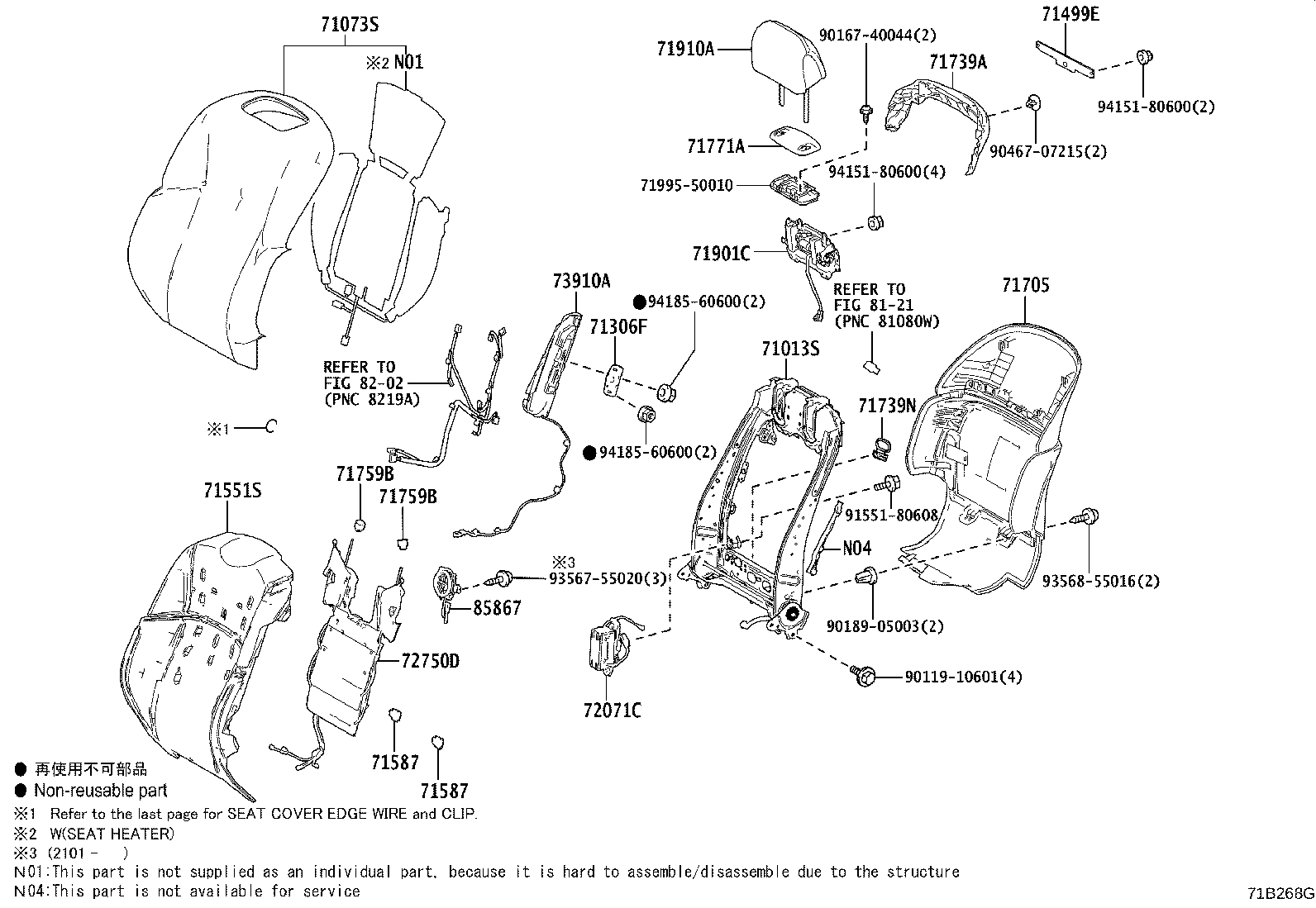

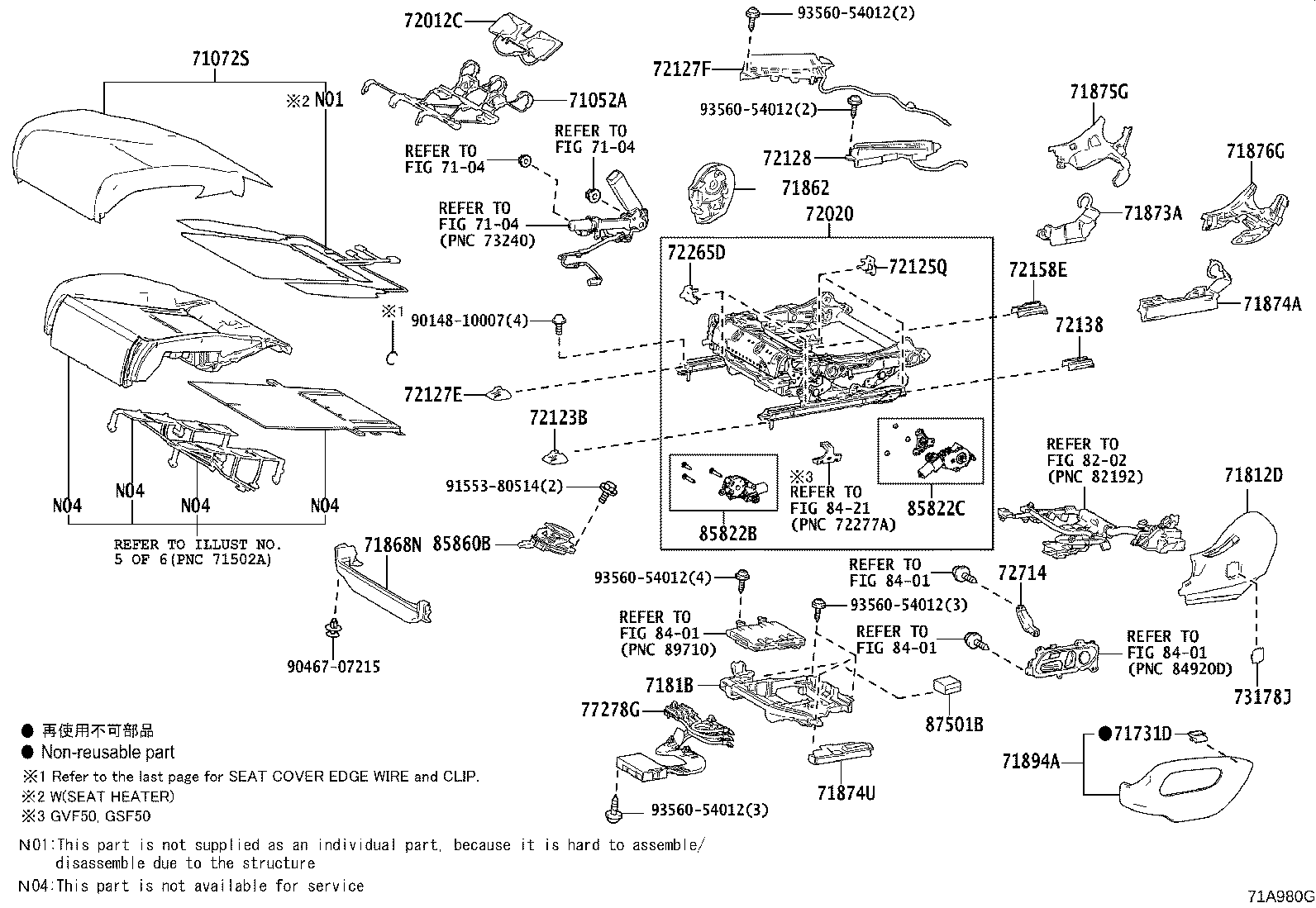

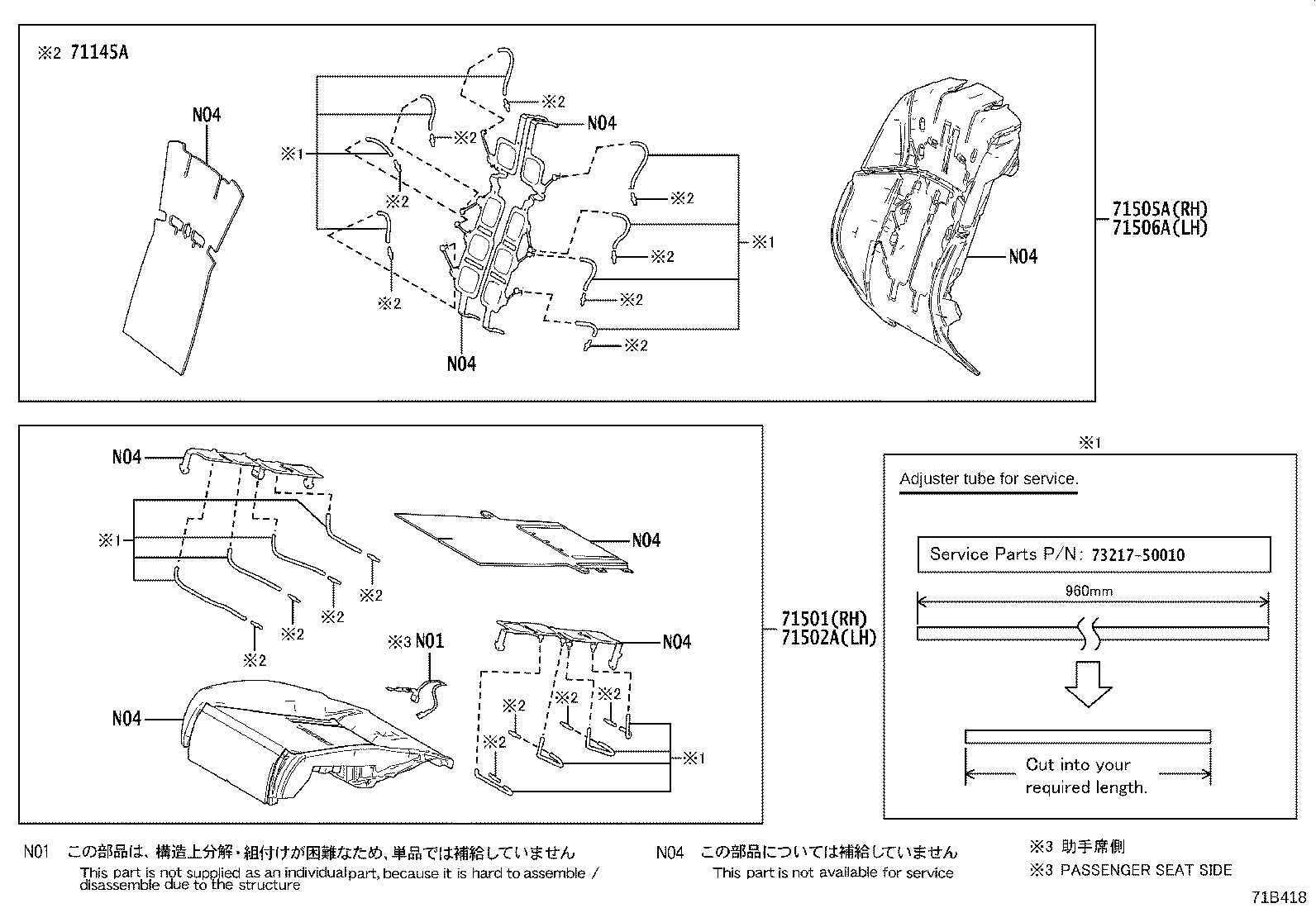

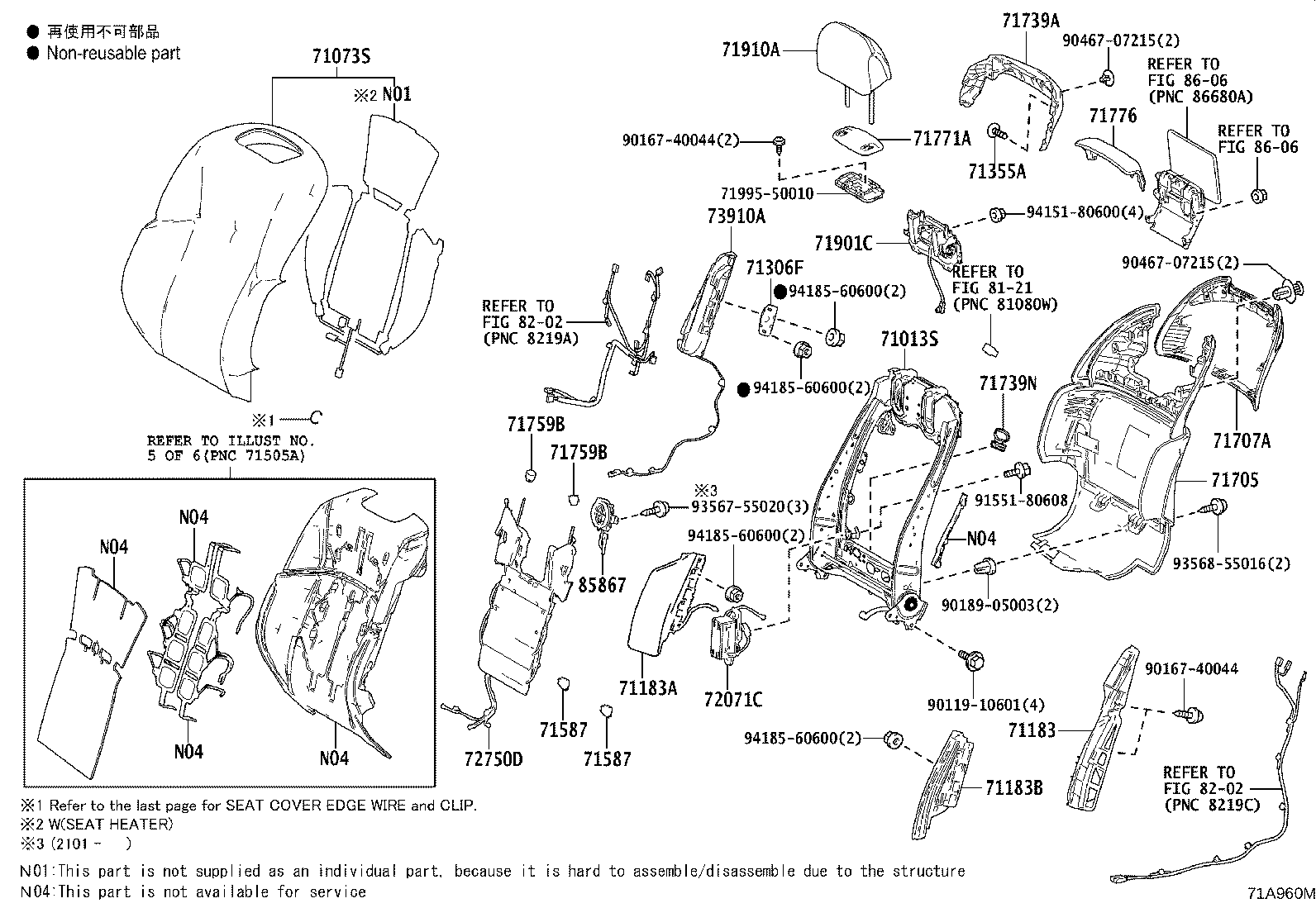

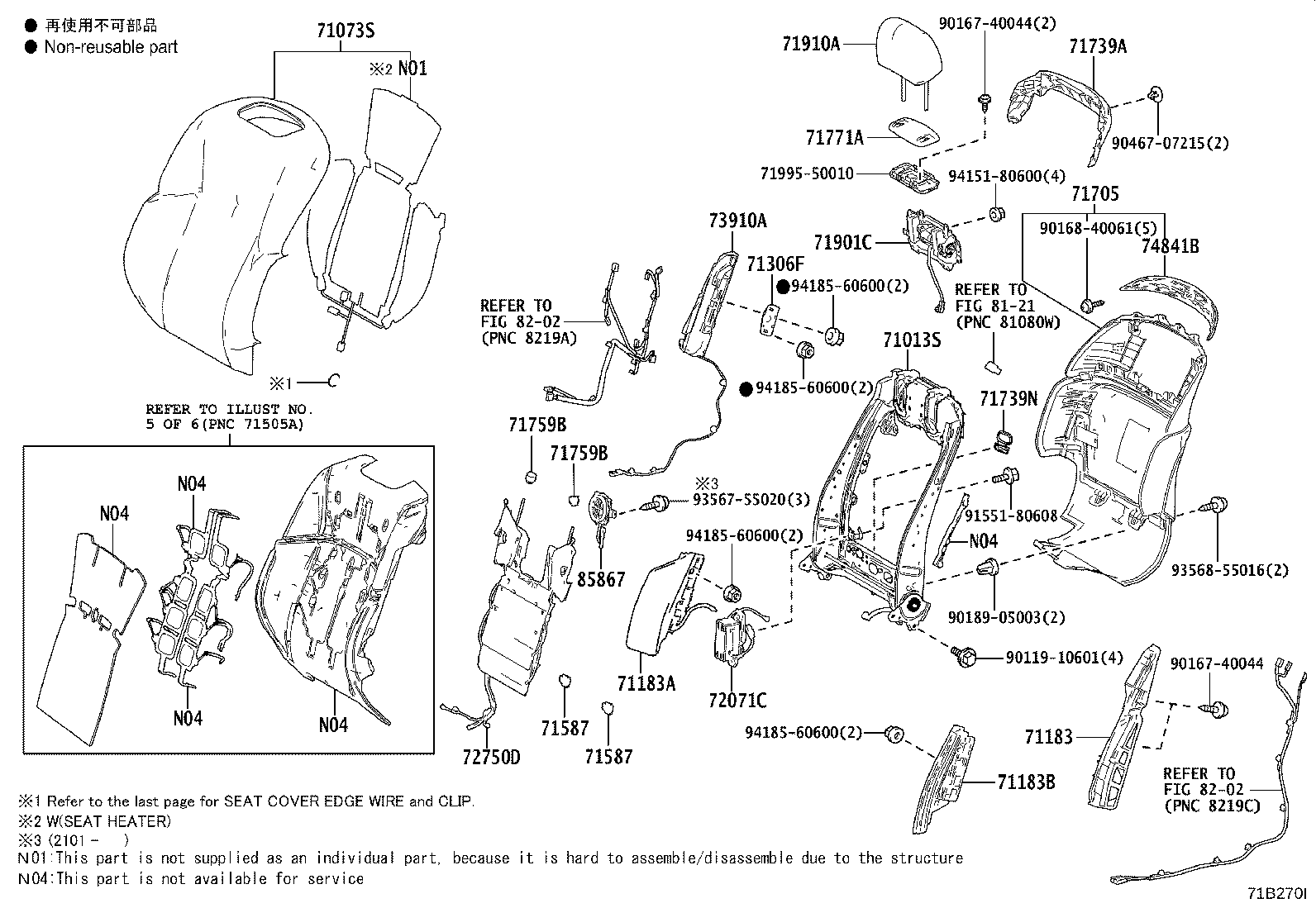

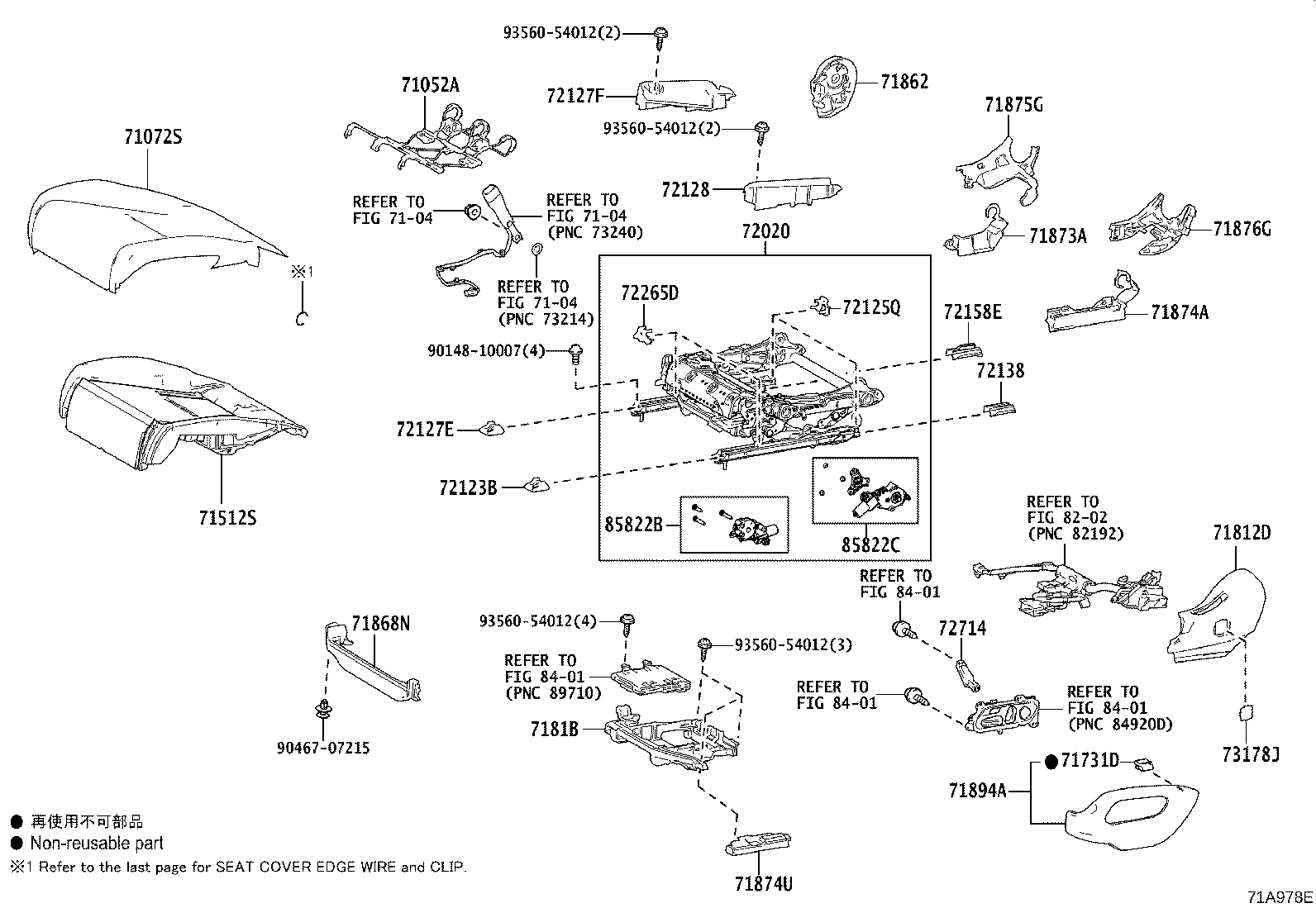

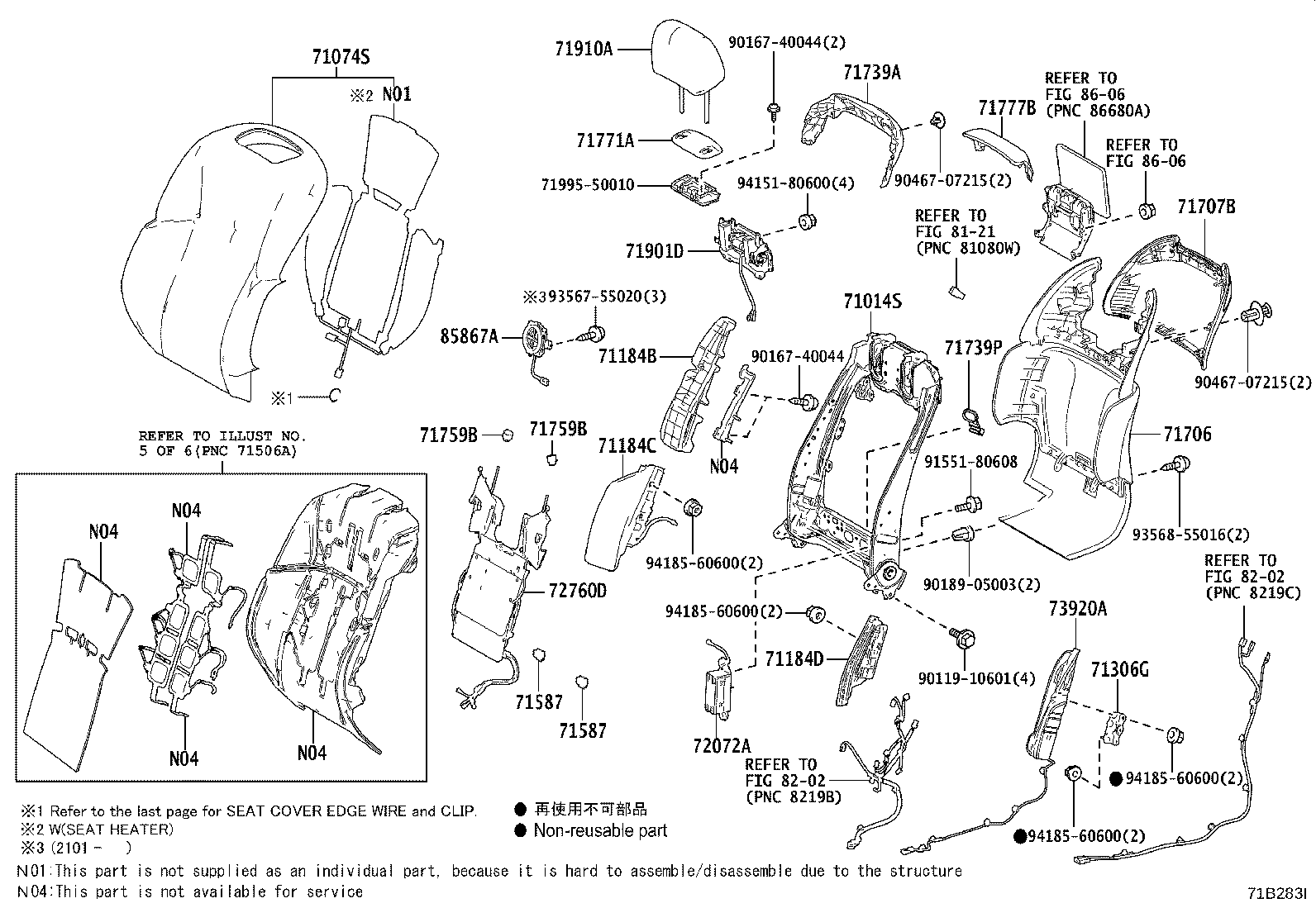

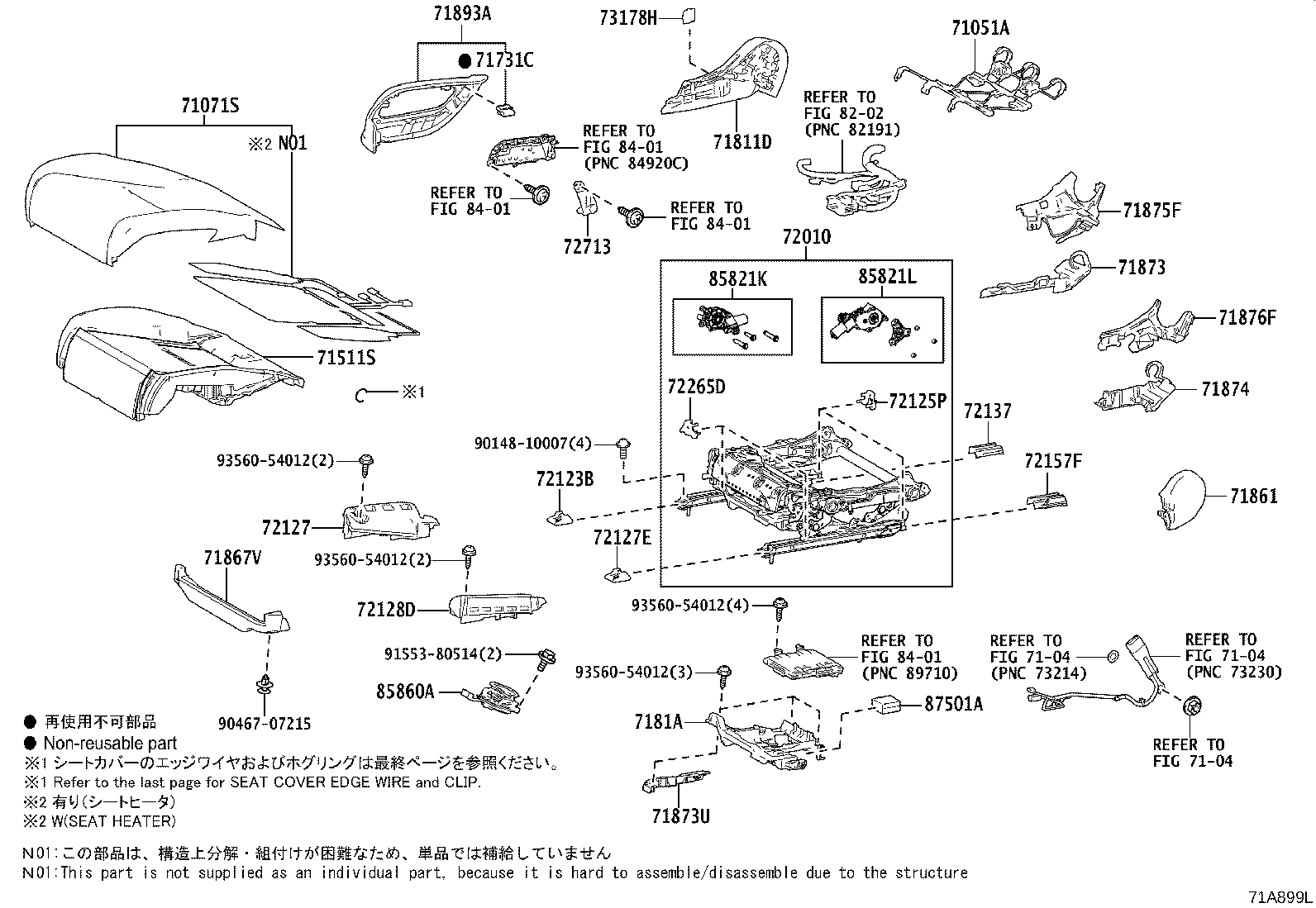

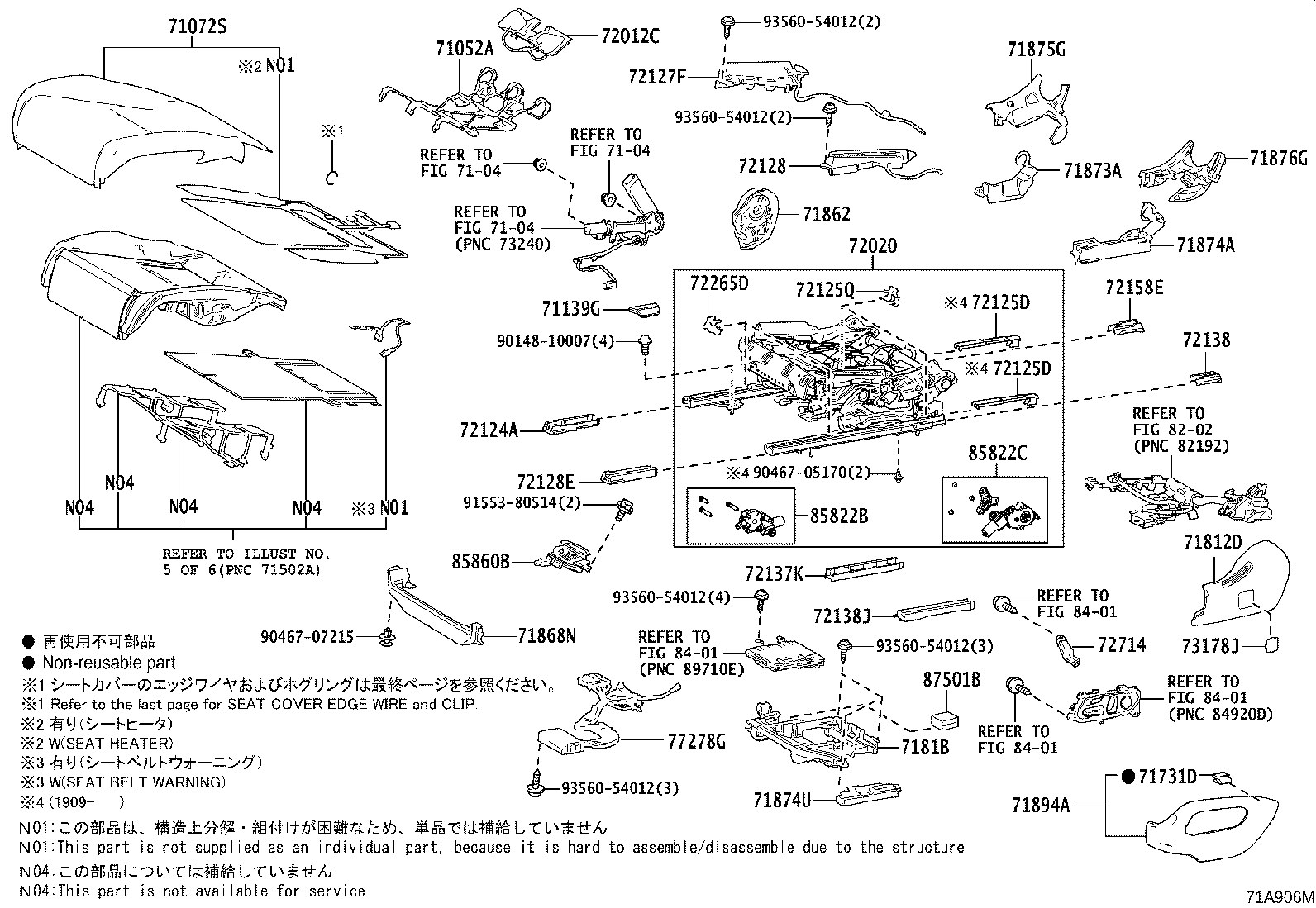

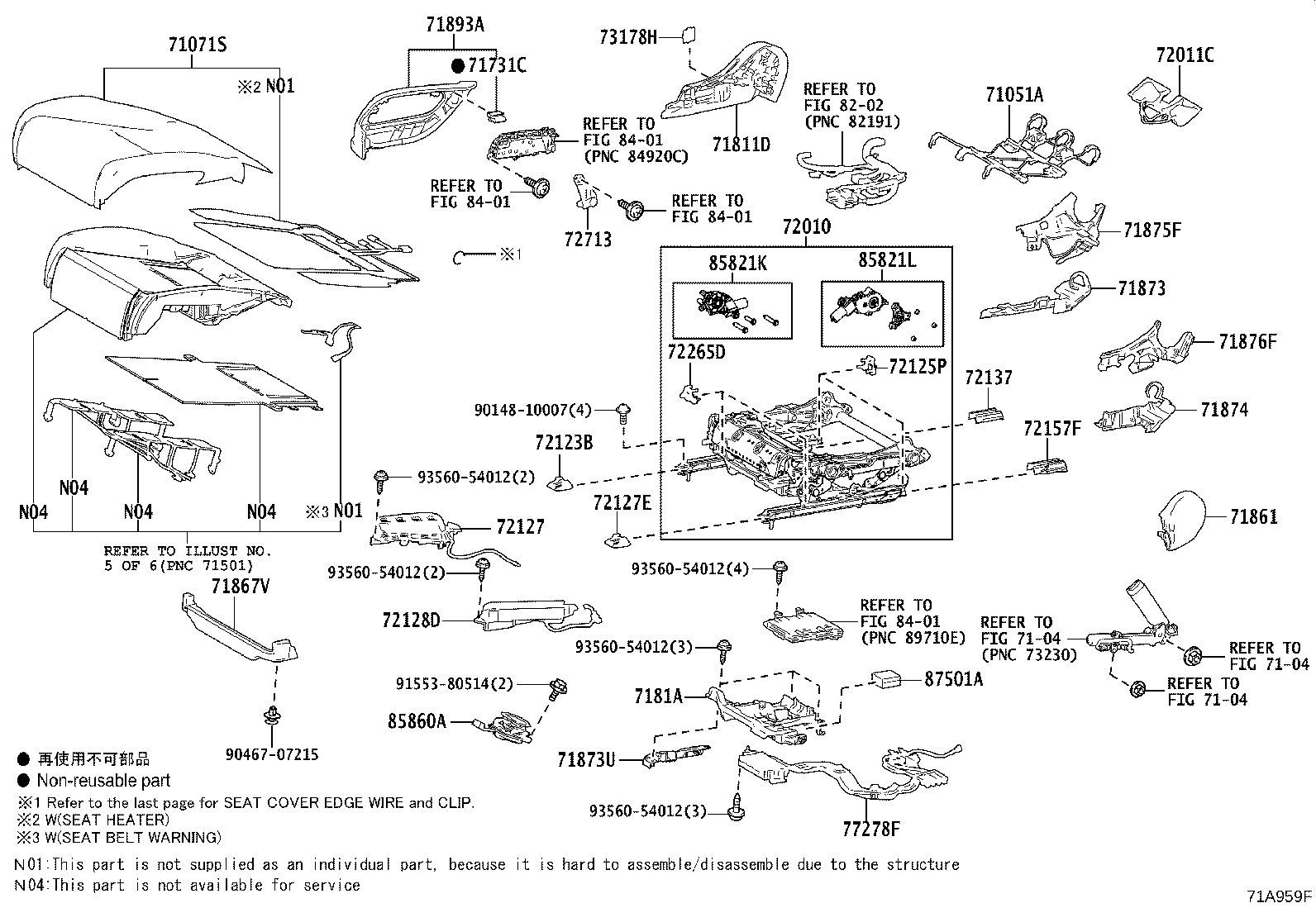

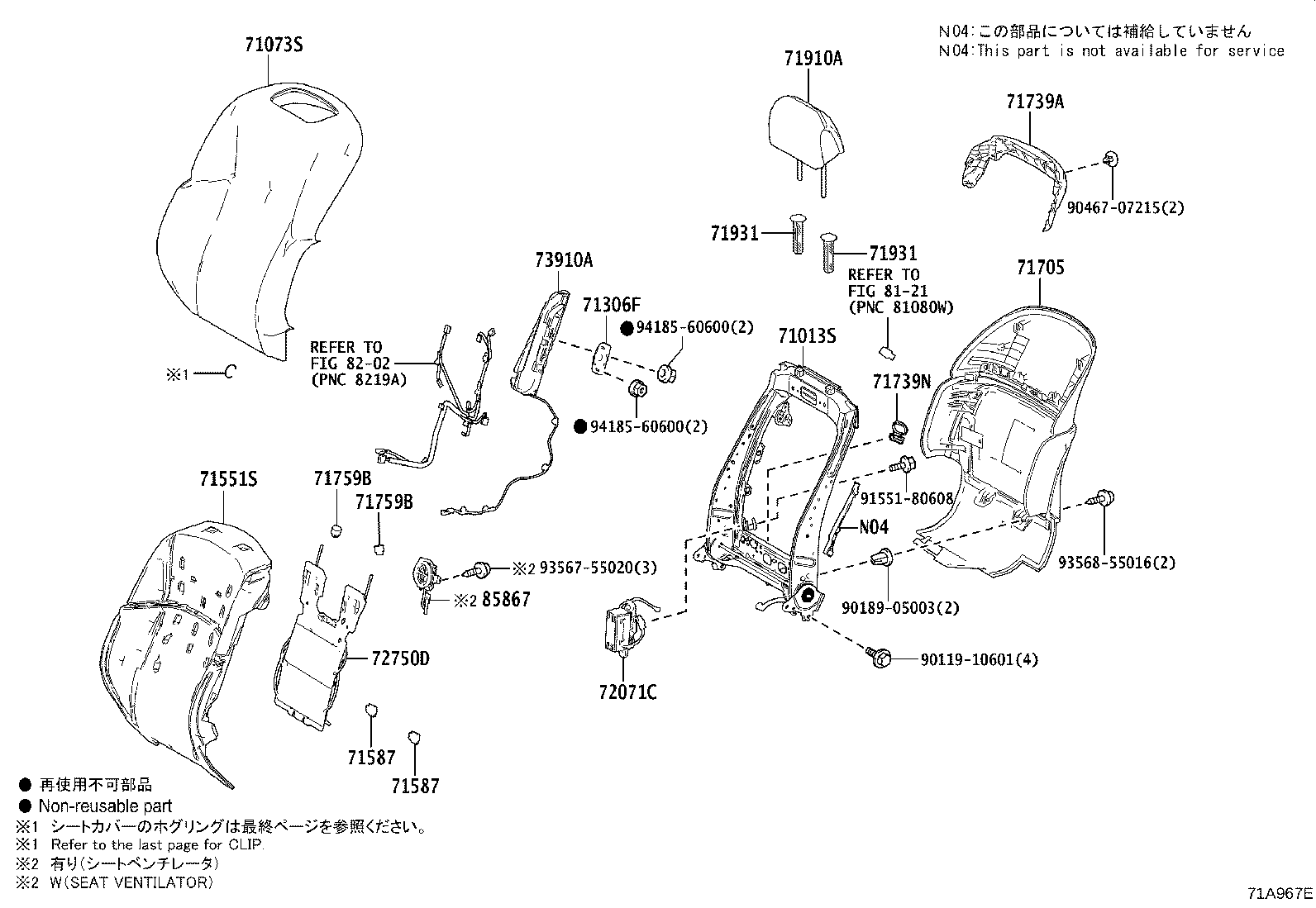

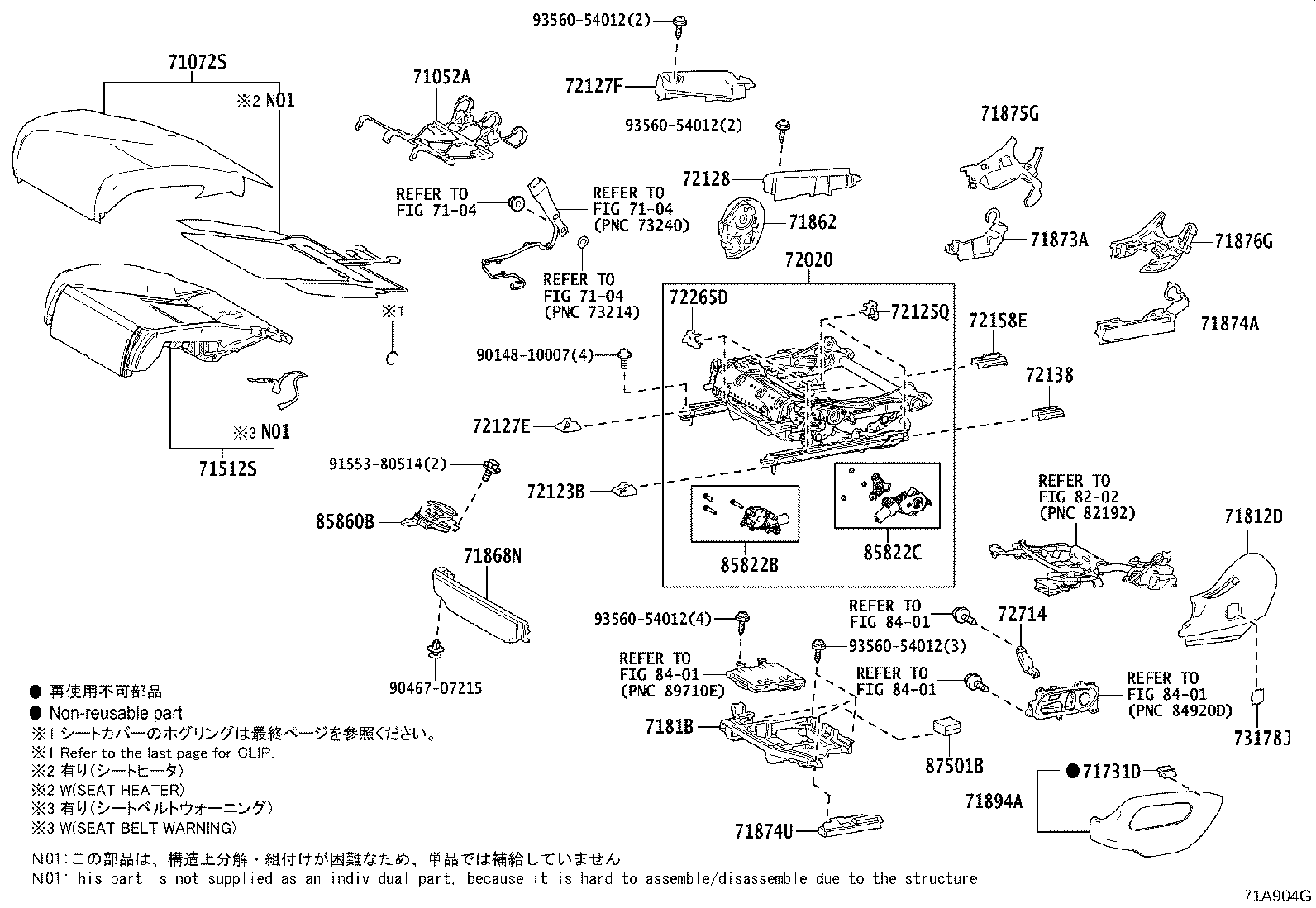

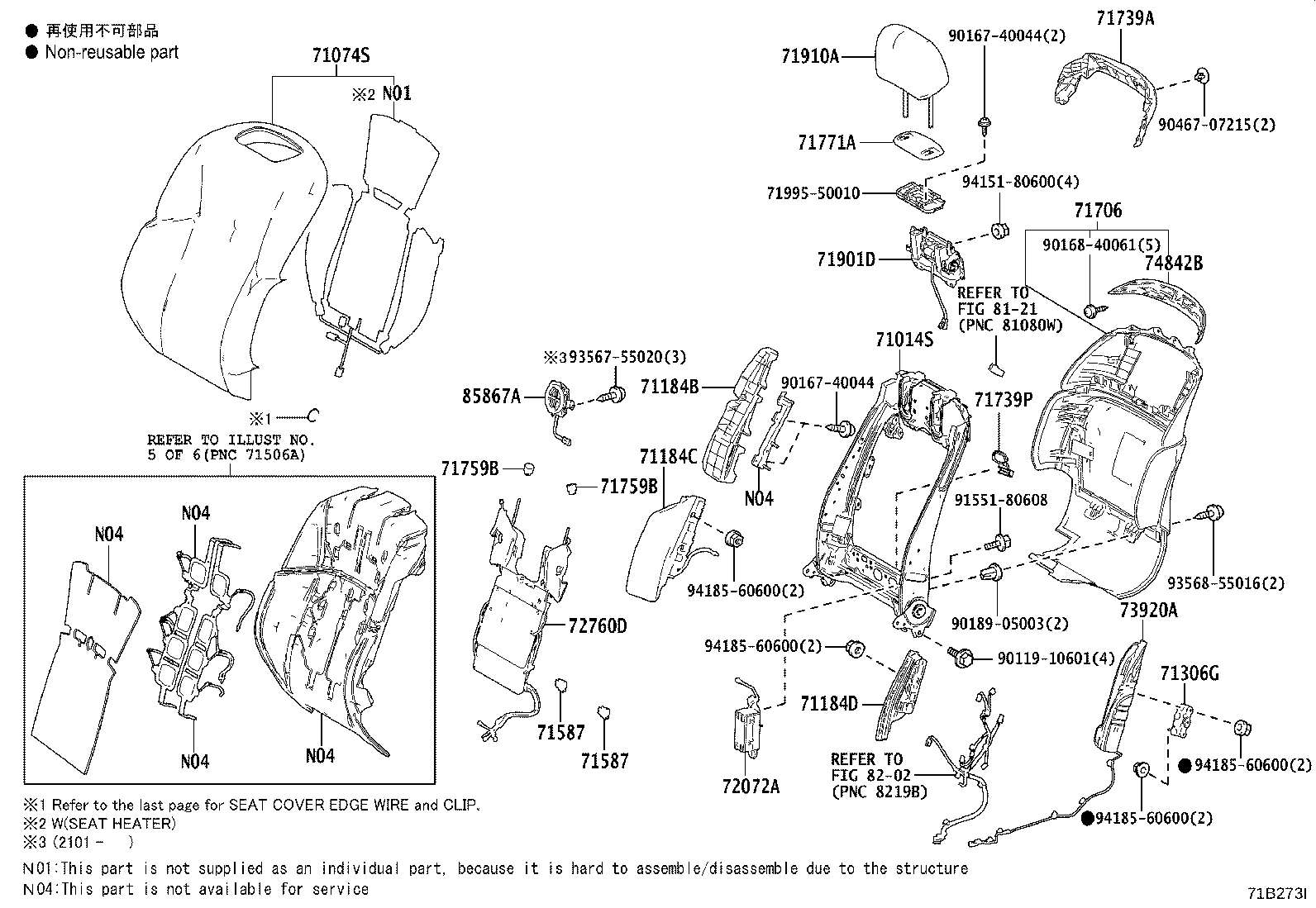

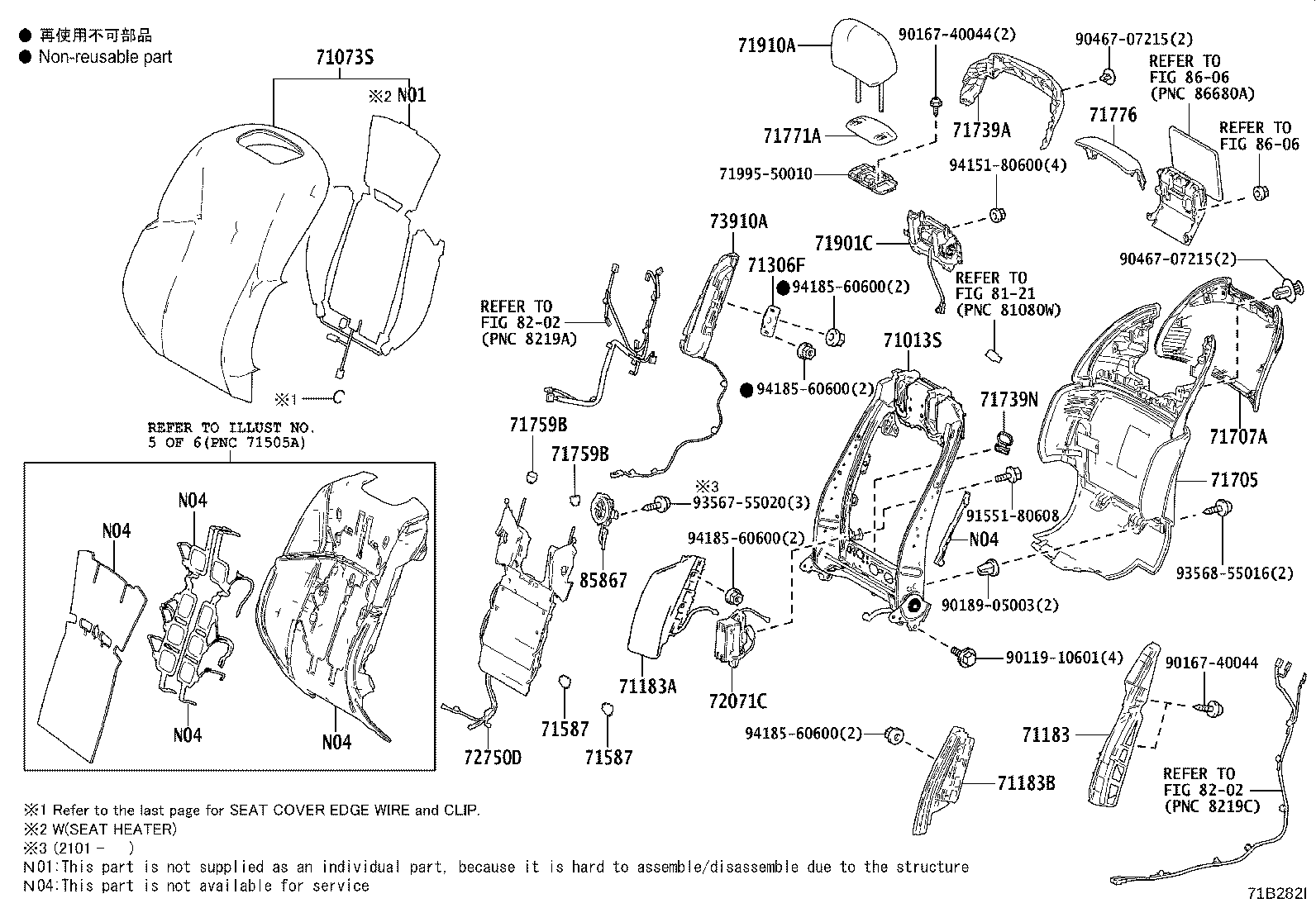

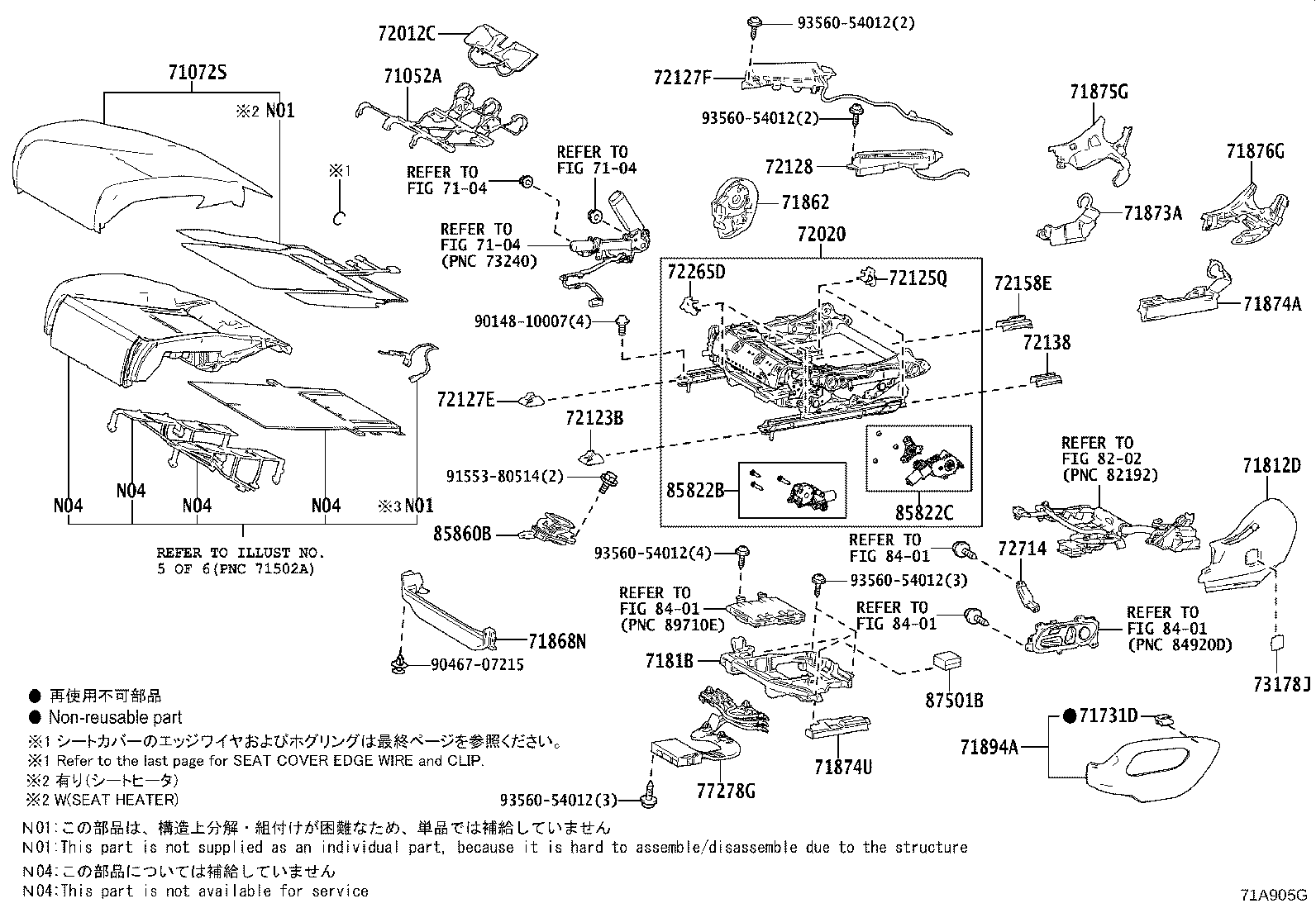

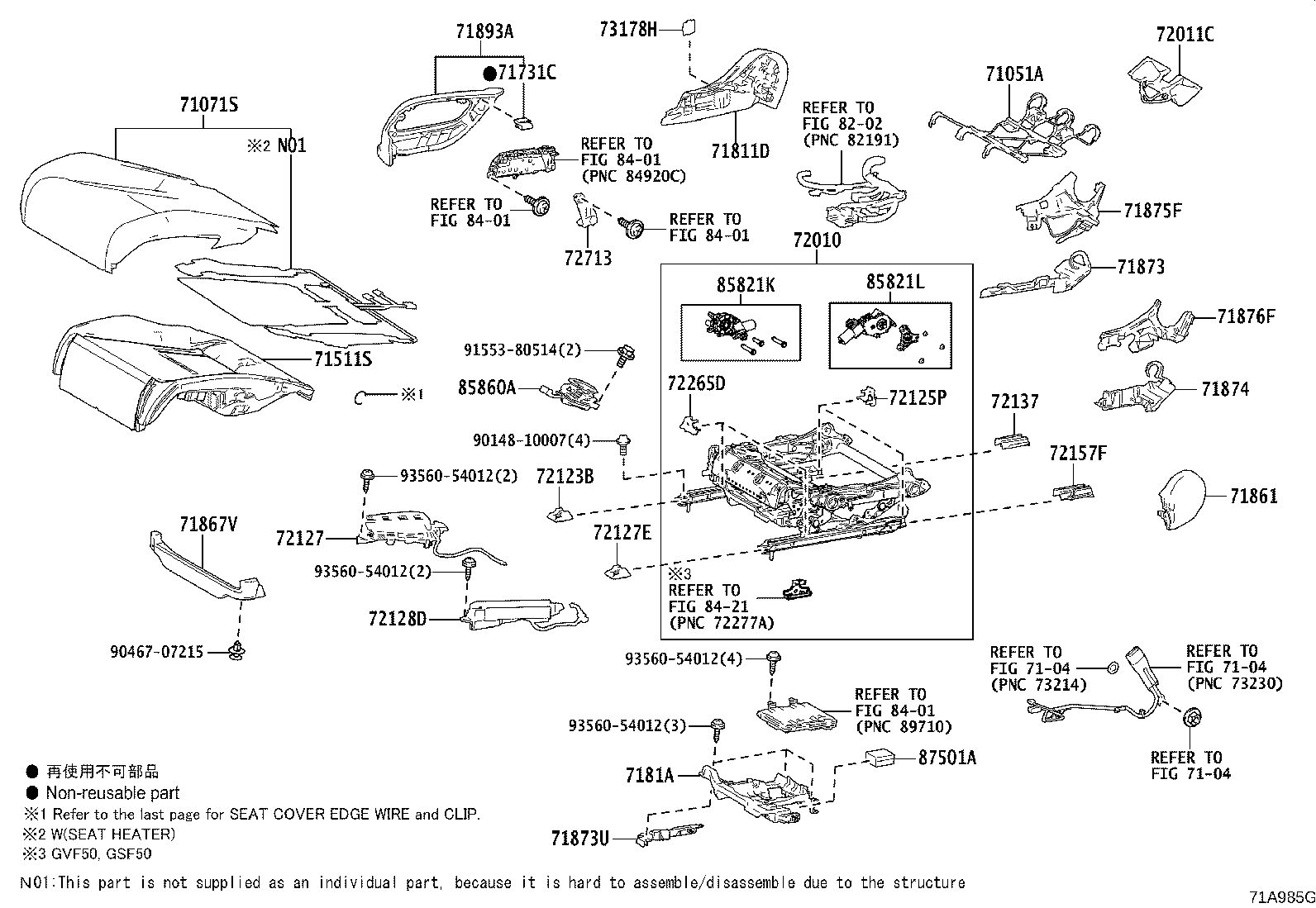

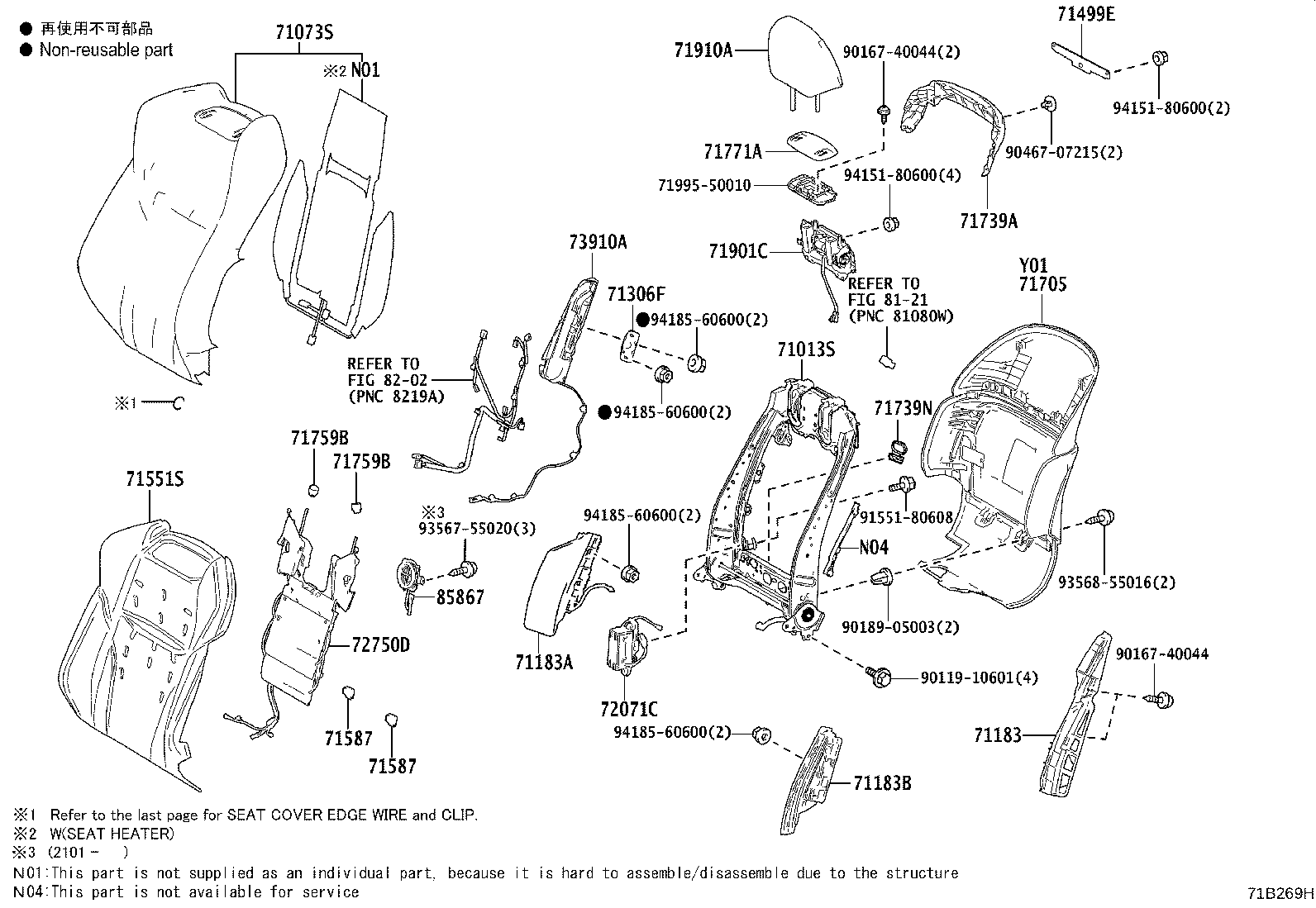

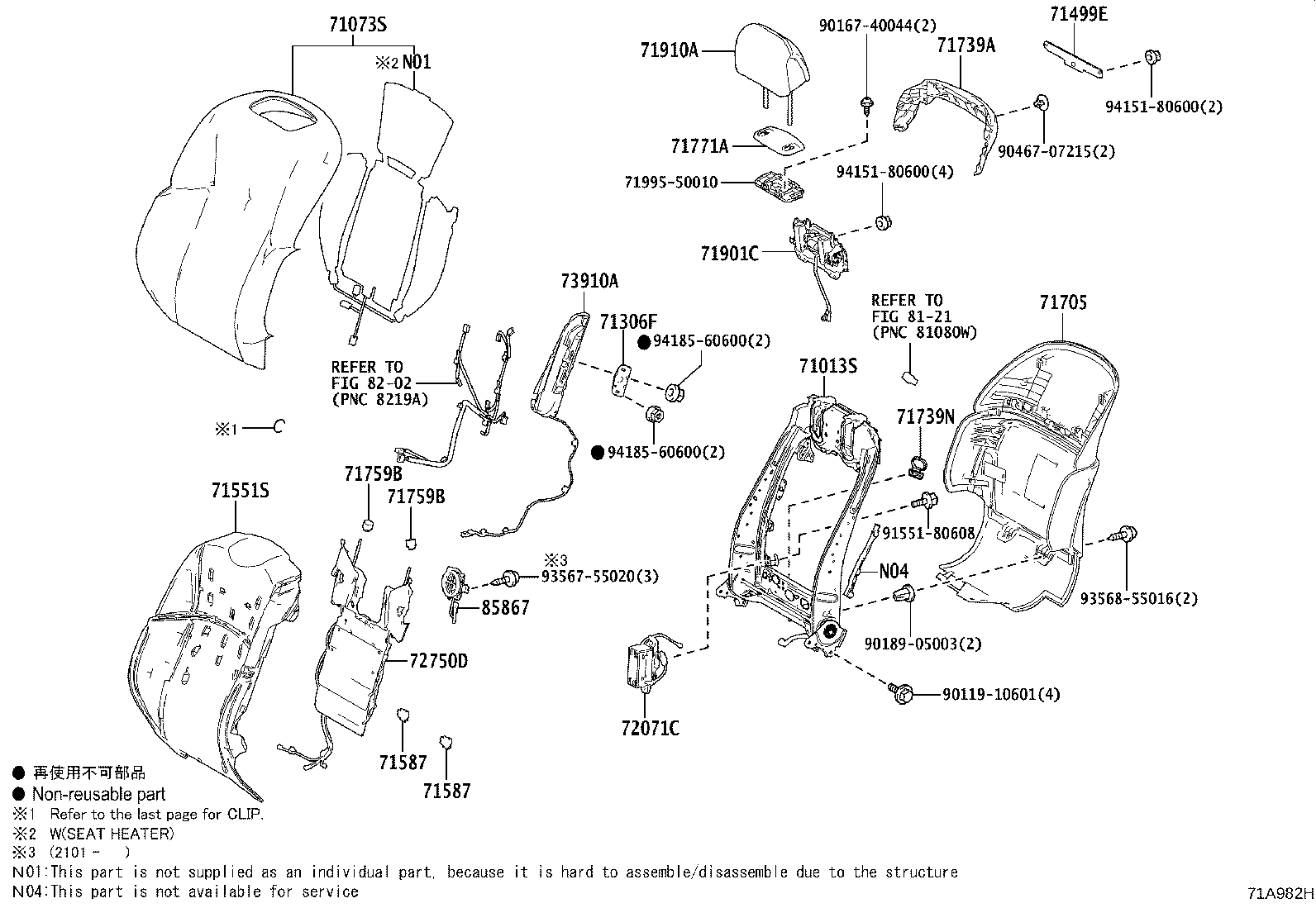

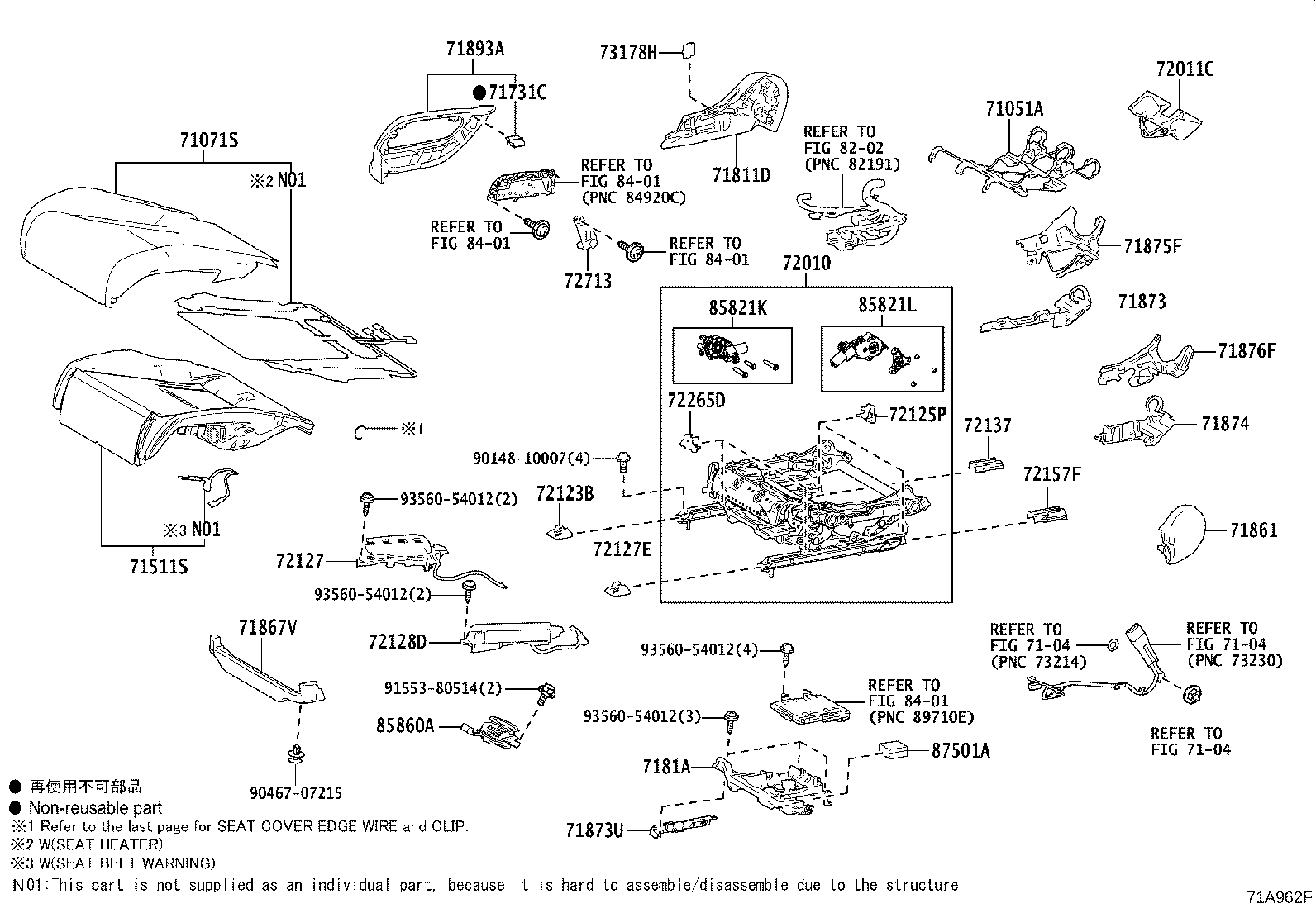

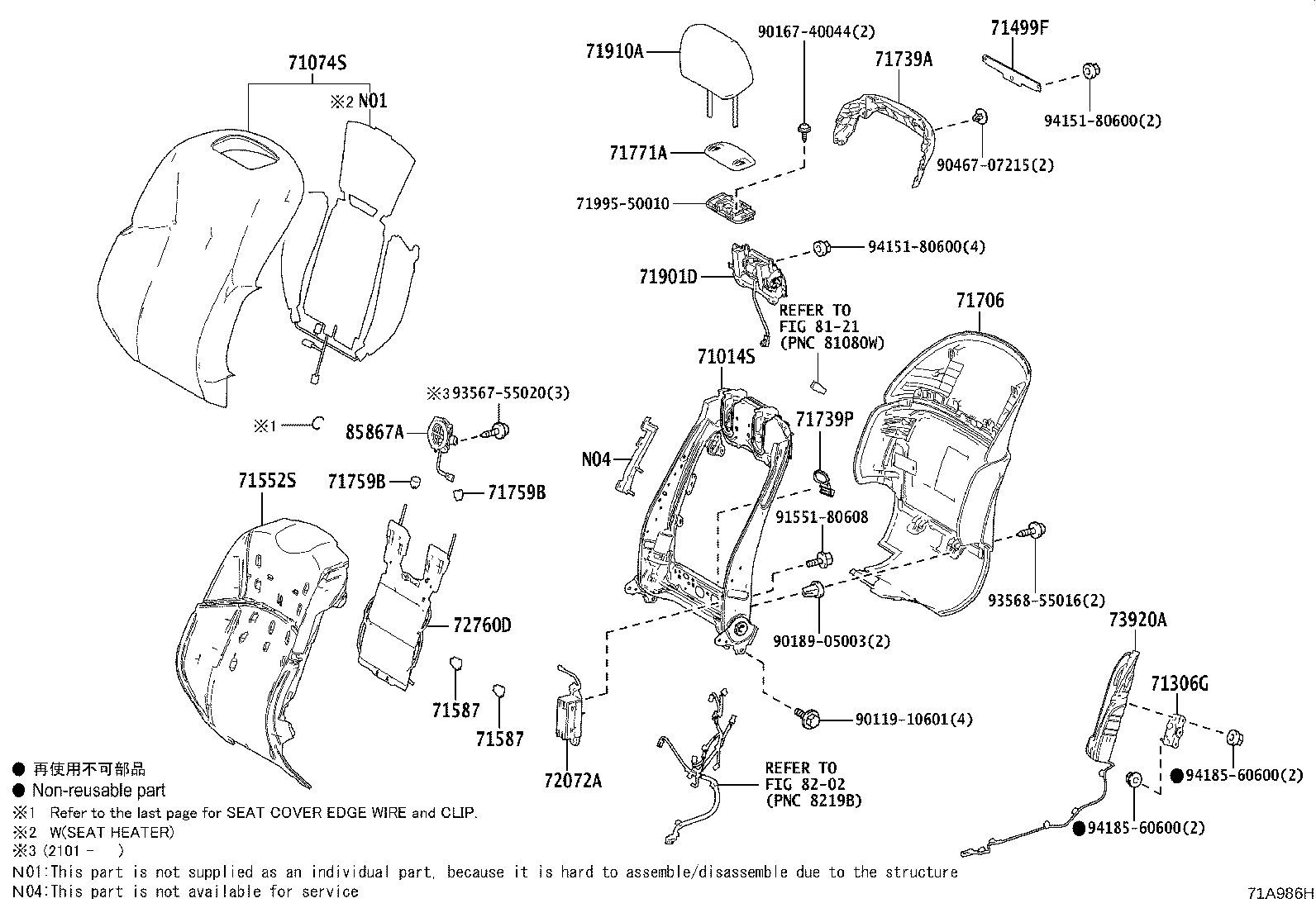

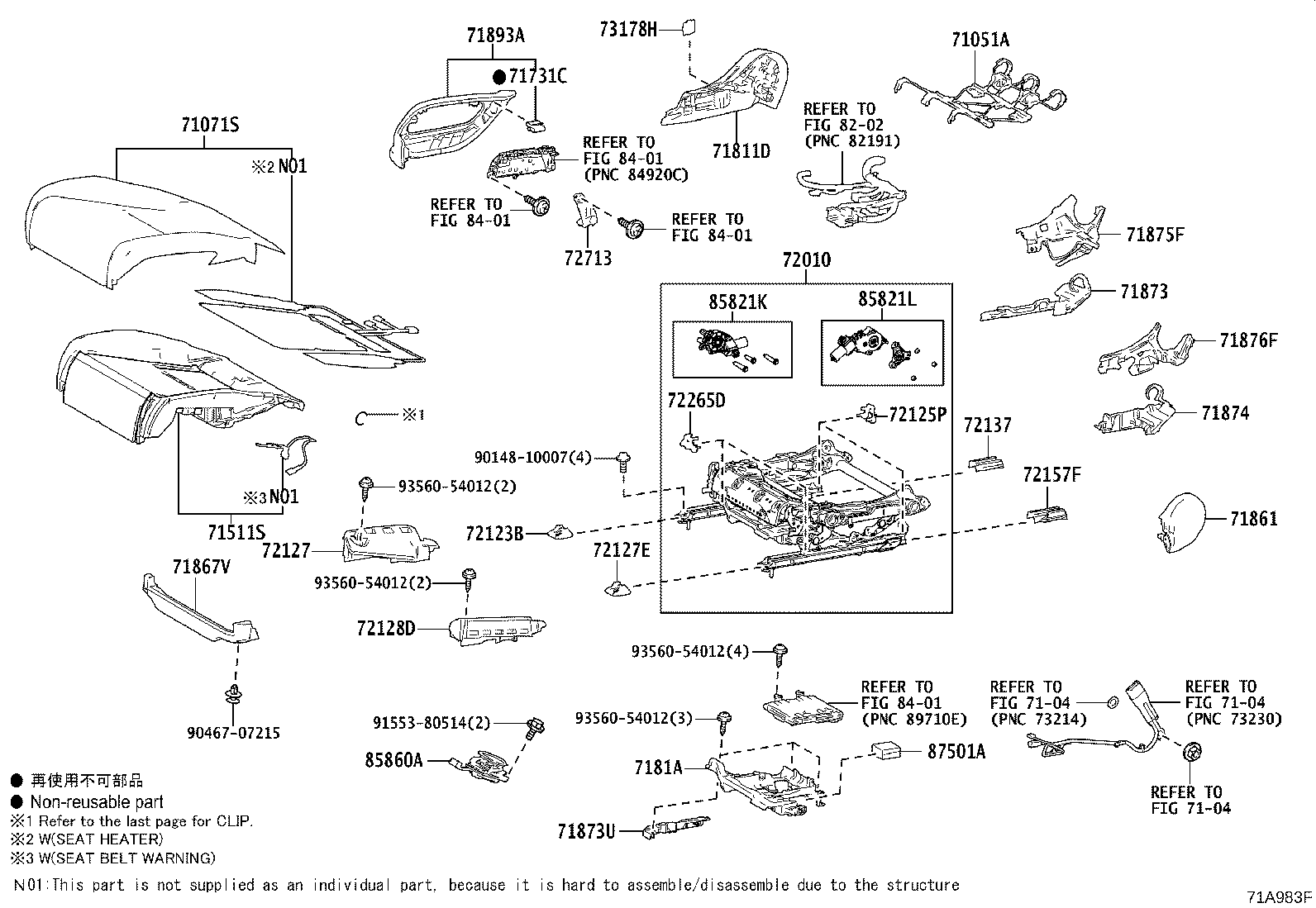

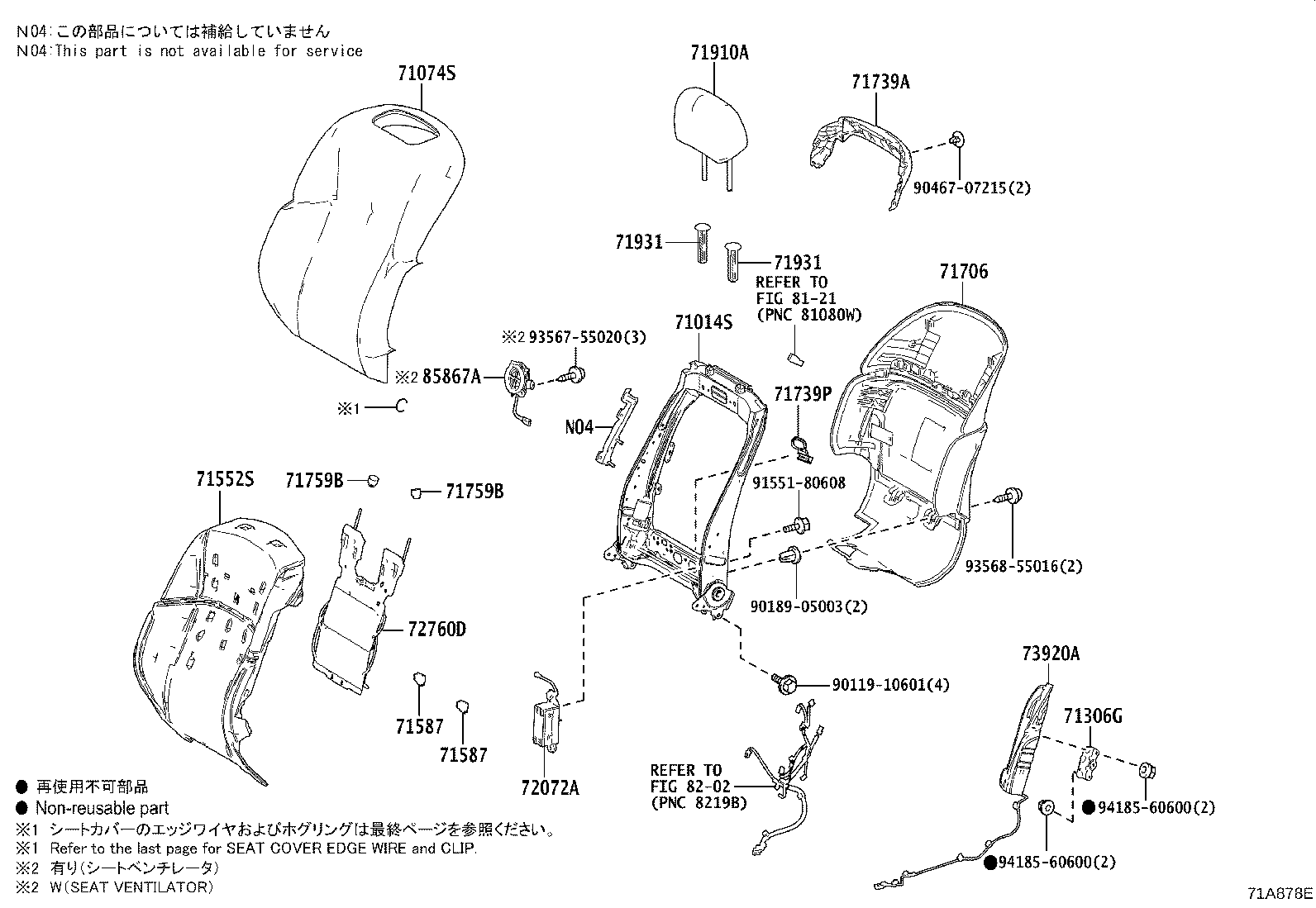

Figure 71A963E 71A963E 2017-10 → — Figure 71A986H 71A986H 2017-10 → — Figure 71A951N 71A951N 2017-10 → — Figure 71B283I 71B283I 2017-10 → — Figure 71A965I 71A965I 2017-10 → — Figure 71A886F 71A886F 2017-10 → — Figure 71B268G 71B268G 2017-10 → — Figure 71B282I 71B282I 2017-10 → — Figure 71B270I 71B270I 2017-10 → — Figure 71B269H 71B269H 2017-10 → — Figure 71A978E 71A978E 2017-10 → — Figure 71A979F 71A979F 2017-10 → — Figure 71A980G 71A980G 2017-10 → — Figure 71A981F 71A981F 2017-10 → — Figure 71A969E 71A969E 2017-10 → — Figure 71A899L 71A899L 2017-10 → — Figure 71A984I 71A984I 2017-10 → — Figure 71A985G 71A985G 2017-10 → — Figure 71A967E 71A967E 2017-10 → — Figure 71A982H 71A982H 2017-10 → — Figure 71A958L 71A958L 2017-10 → — Figure 71A960M 71A960M 2017-10 → — Figure 71A968I 71A968I 2017-10 → — Figure 71A878E 71A878E 2017-10 → — Figure 71B272G 71B272G 2017-10 → — Figure 71B273I 71B273I 2017-10 → — Figure 71A903Q 71A903Q 2017-10 → — Figure 71B271H 71B271H 2017-10 → — Figure 71A955F 71A955F 2017-10 → — Figure 71A983F 71A983F 2017-10 → — Figure 71A959F 71A959F 2017-10 → — Figure 71A961I 71A961I 2017-10 → — Figure 71A962F 71A962F 2017-10 → — Figure 71A971F 71A971F 2017-10 → — Figure 71A904G 71A904G 2017-10 → — Figure 71A905G 71A905G 2017-10 → — Figure 71A906M 71A906M 2017-10 → — Figure 71A907G 71A907G 2017-10 → — Figure 71B418 71B418 2017-10 → — Figure 71A647A 71A647A 2017-10 → —

Part groups

PNCDescription
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71139G Cover, Front Seat Leg
71145A Joint, Front Seat Cushion Wire, NO.1
71183 Support, Front Seatback, RH
71183A Support, Front Seatback, RH NO.2
71183B Support, Front Seatback, RH NO.3
71184B Support, Front Seatback, LH
71184C Support, Front Seatback, LH NO.2
71184D Support, Front Seatback, LH NO.3
71306F Bracket Sub-assy, Front Seat Set, RH
71306G Bracket Sub-assy, Front Seat Set, LH
71355A Clip
71499E Damper, Seatback Spring, RH
71499F Damper, Seatback Spring, LH
71501 Pad Sub-assy, Front Seat Cushion, RH
71502A Pad Sub-assy, Front Seat Cushion, LH
71505A Pad Sub-assy, Front Seatback, RH
71506A Pad Sub-assy, Front Seatback, LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71705 Board Sub-assy, Front Seatback, RH
71706 Board Sub-assy, Front Seatback, LH
71707A Cover Sub-assy, Front Seatback Board
71707B Cover Sub-assy, Front Seatback Board
71731C Fastener, Seat Cover, RH
71731D Fastener, Seat Cover, LH
71739A Bezel, Front Seatback
71739N Bezel, Front Seatback, RH
71739P Bezel, Front Seatback, LH
71759B Hook, Front Seatback
71771A Board, Front Seatback
71776 Cover, Front Seatback Board, NO.1
71777B Cover, Front Seatback Board, NO.2
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
7181A Holder, Front Seat Cushion Wire Harness, RH
7181B Holder, Front Seat Cushion Wire Harness, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867V Shield, Front Seat Cushion, Front RH
71868N Shield, Front Seat Cushion, Front LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71873U Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71874U Shield, Front Seat Cushion, Lower LH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71893A Shield, Power Adjuster, Front RH
71894A Shield, Power Adjuster, Front LH
71901C Insert Sub-assy, Front Seat Headrest, RH
71901D Insert Sub-assy, Front Seat Headrest, LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72010 Adjuster Assy, Front Seat, RH
72011C Adjuster Sub-assy, Front Seat, RH
72012C Adjuster Sub-assy, Front Seat, LH
72020 Adjuster Assy, Front Seat, LH
72071C Pump Sub-assy, Lumber Support, RH
72072A Pump Sub-assy, Lumber Support, LH
72123A Cover, Seat Track Bracket, Outer Front RH
72123B Cover, Seat Track Bracket, Outer Front
72124A Cover, Seat Track Bracket, Inner Front LH
72125D Cover, Seat Track, Upper Rear NO.2
72125P Cover, Seat Track, Upper Rear NO.3
72125Q Cover, Seat Track, Upper Rear NO.4
72127 Support, RH Seat, Outer
72127E Cover, Seat Track Bracket, Inner Front
72127F Support, LH Seat, Inner
72128 Support, LH Seat, Outer
72128A Cover, Seat Track Bracket, Inner Front LH
72128D Support, RH Seat, Inner
72128E Cover, Seat Track Bracket, Outer Front LH
72137 Cover, Seat Track, Outer RH
72137K Cover, Front Seat Track, RH Rear Inner
72137T Cover, Seat Track Bracket, Outer Rear RH
72138 Cover, Seat Track, Outer LH
72138J Cover, Front Seat Track, LH Rear Outer
72138P Cover, Seat Track Bracket, Inner Rear LH
72157F Cover, Seat Track Bracket, Inner Rear RH
72158E Cover, Seat Track Bracket, Inner Rear LH
72265D Cover, Seat Track Upper Rail
72713 Bracket, Seat Adjuster Shield Clamp, RH
72714 Bracket, Seat Adjuster Shield Clamp, LH
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
73178H Cap, Seat Belt Anchor Cover, RH
73178J Cap, Seat Belt Anchor Cover, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
74841B Panel, Front Seatback
74842B Panel, Front Seatback, A
77278F Valve, Check W/Hose(FOR RH SEAT)
77278G Valve, Check W/Hose(FOR LH SEAT)
85821K Motor Assy, Power Seat Tilt, RH
85821L Motor Assy, Power Seat Lifter, RH
85822B Motor Assy, Power Seat Tilt, LH
85822C Motor Assy, Power Seat Lifter, LH
85860A Blower Assy, Seat Cushion Climate Control, RH
85860B Blower Assy, Seat Cushion Climate Control, LH
85867 Blower, Seatback Climate Control, RH
85867A Blower, Seatback Climate Control, LH
87501A Control Sub-assy, Seat Heater, RH
87501B Control Sub-assy, Seat Heater, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
