Toyota Lexus LC500/500H

2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

26 part groups · 3 illustrations

Illustrations

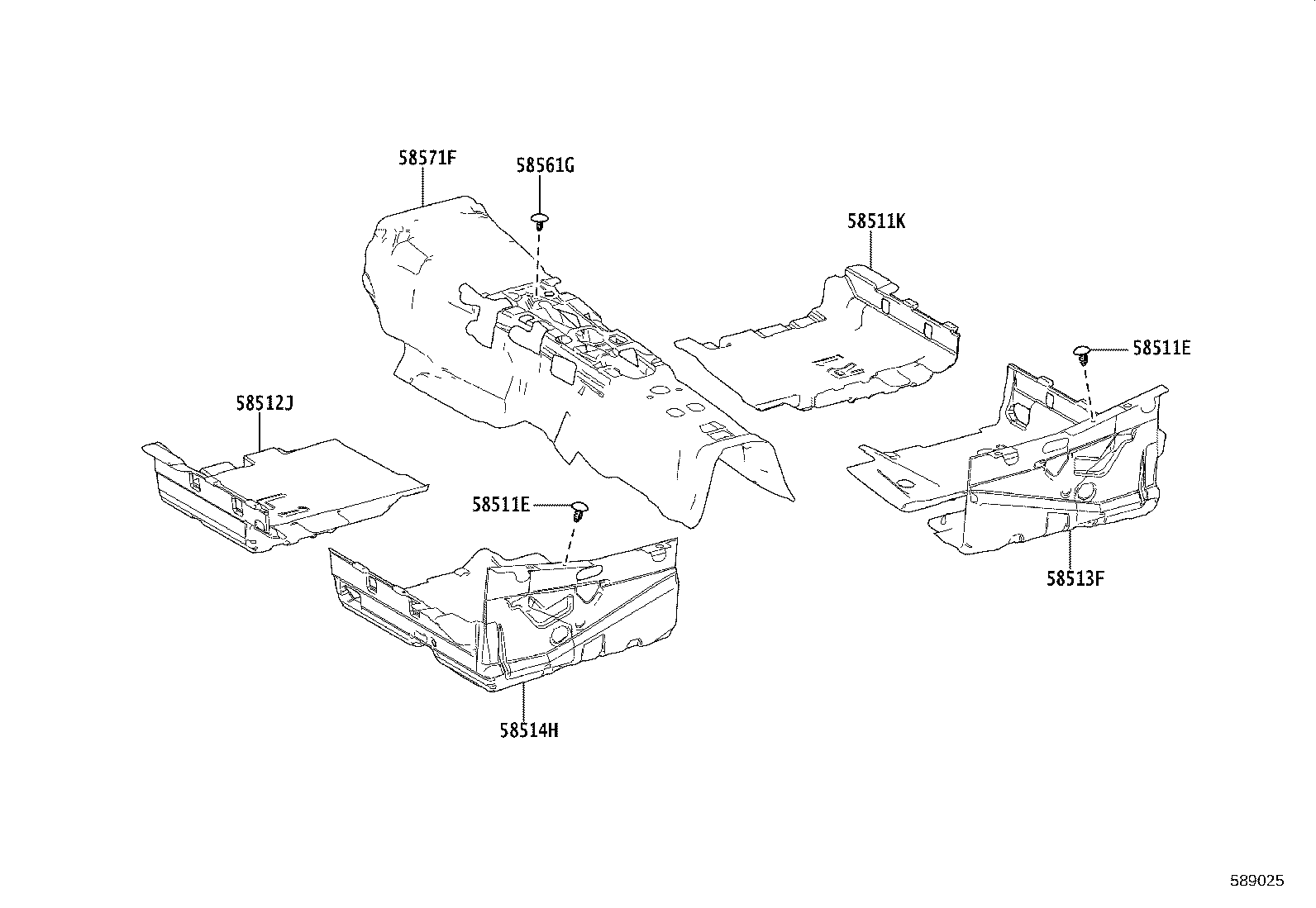

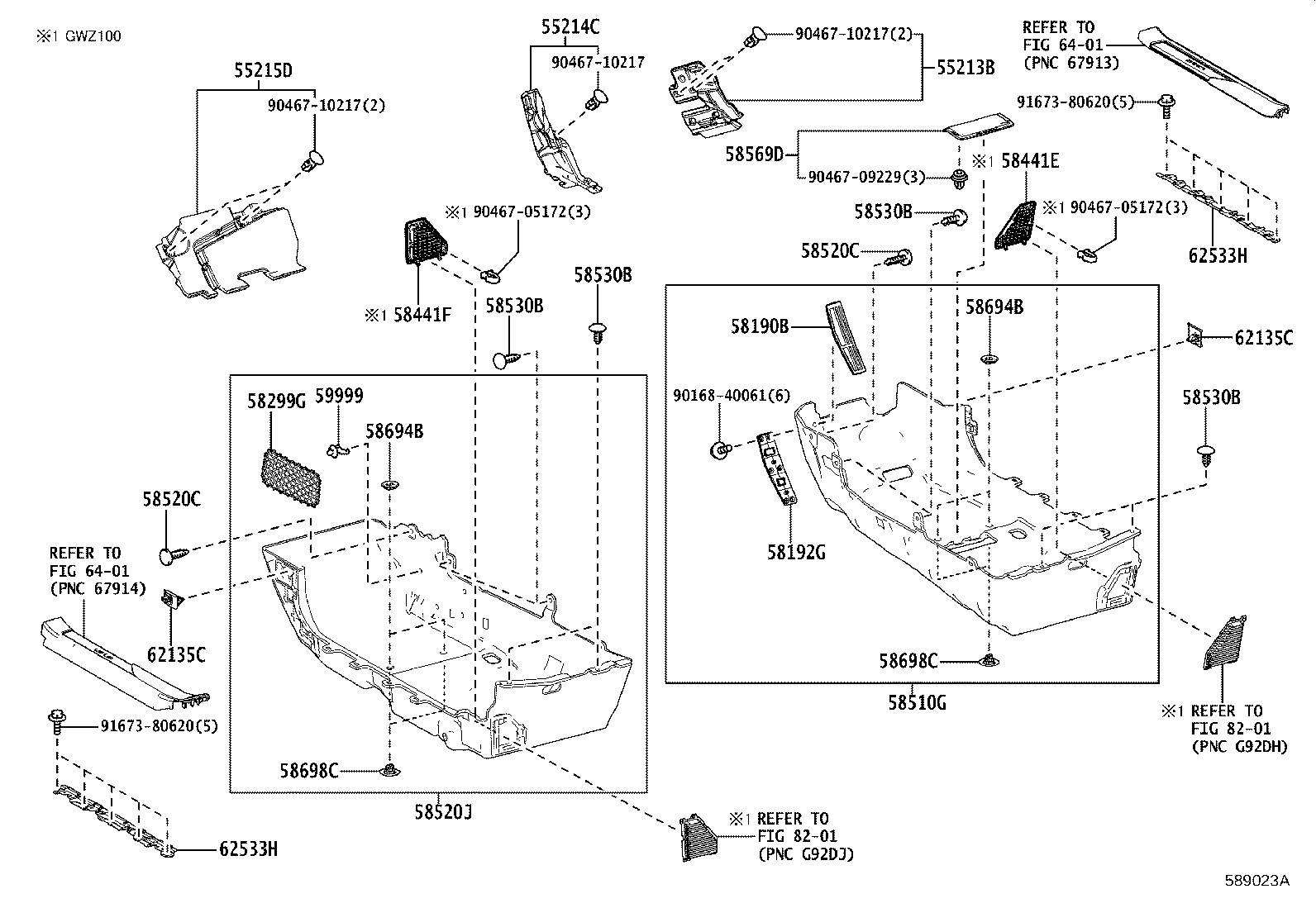

Figure 589024A 589024A 2023-05 → — Figure 589023A 589023A 2023-05 → — Figure 589025 589025 2023-05 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
55216C Pad, Dash Panel Insulator, NO.4
58190B Rest Assy, Front Floor Foot
58192G Panel, Footrest, NO.2
58299G Net, Baggage Holder
58441E Cover, Battery Service Hole
58441F Cover, Battery Service Hole
58510G Carpet Assy, Floor, Front RH
58511E Clip(FOR FRONT FLOOR MAT)
58511K Mat, Floor, NO.1
58512J Mat, Floor, NO.2
58513F Mat, Floor, NO.3
58514H Mat, Floor, NO.4
58520C Clip(FOR FRONT FLOOR CARPET)
58520J Carpet Assy, Floor, Front LH
58530B Clip(FOR FRONT FLOOR CARPET)
58561G Clip(FOR FRONT FLOOR SILENCER)
58569D Cover, Front Floor Caution Plate
58571F Pad, Front Floor, Front
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
59999 Clamp(FOR FLOOR MAT)
62135C Retainer, Cowl Side Carpet
62533H Bracket, Side Trim, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
