Toyota Lexus LC500/500H

2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · Europe

Supported model Data version 2023-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

152 part groups · 20 illustrations

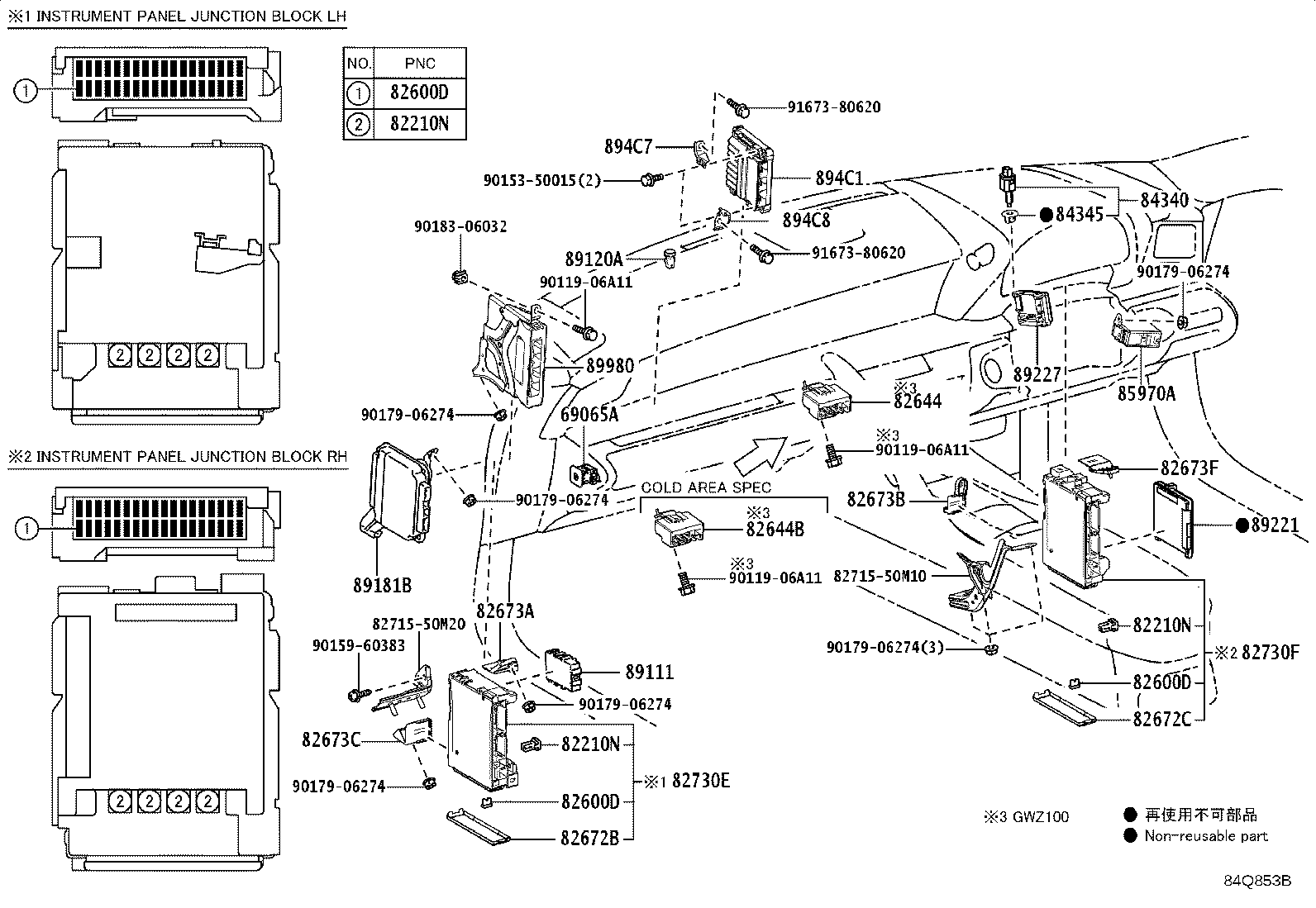

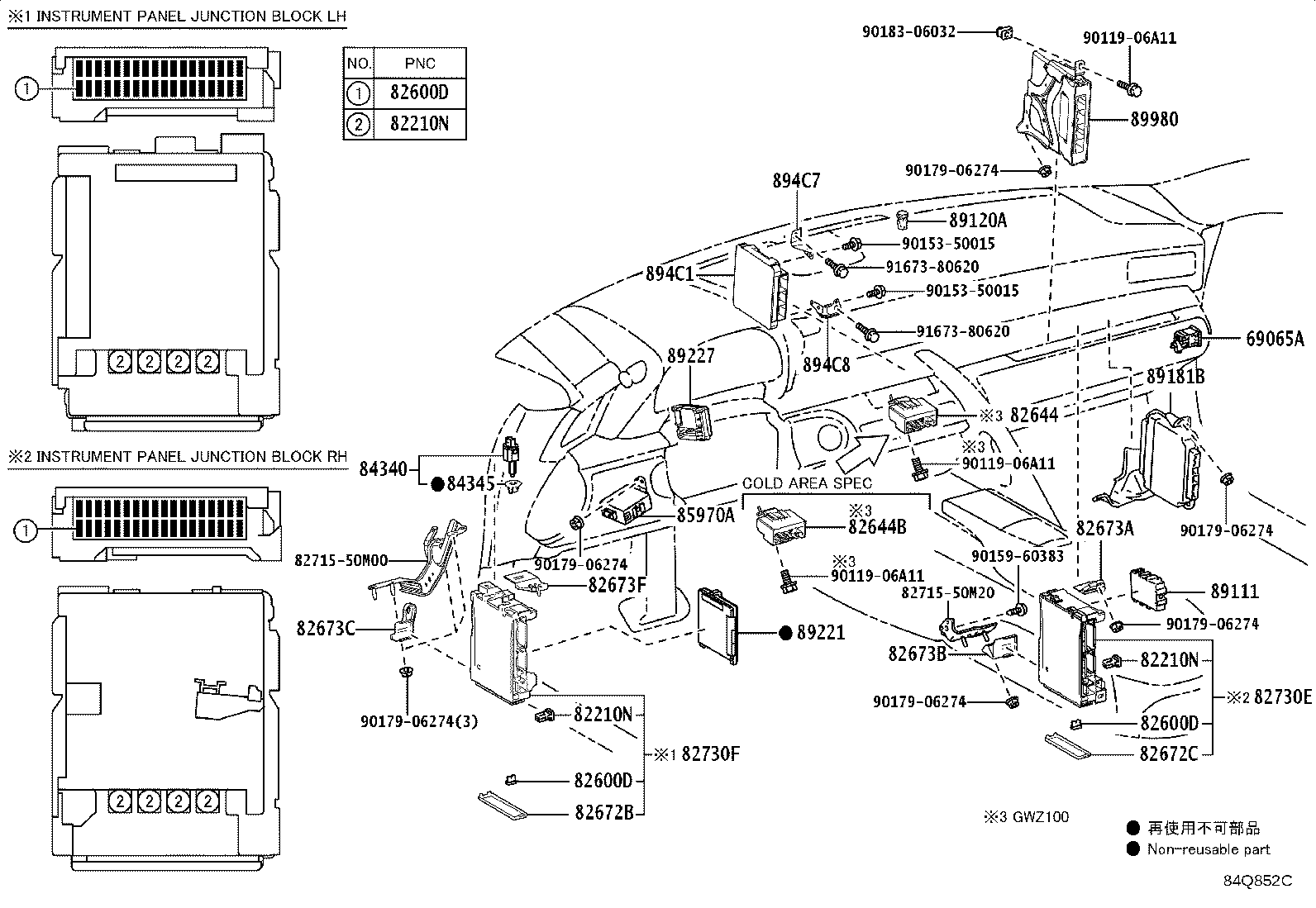

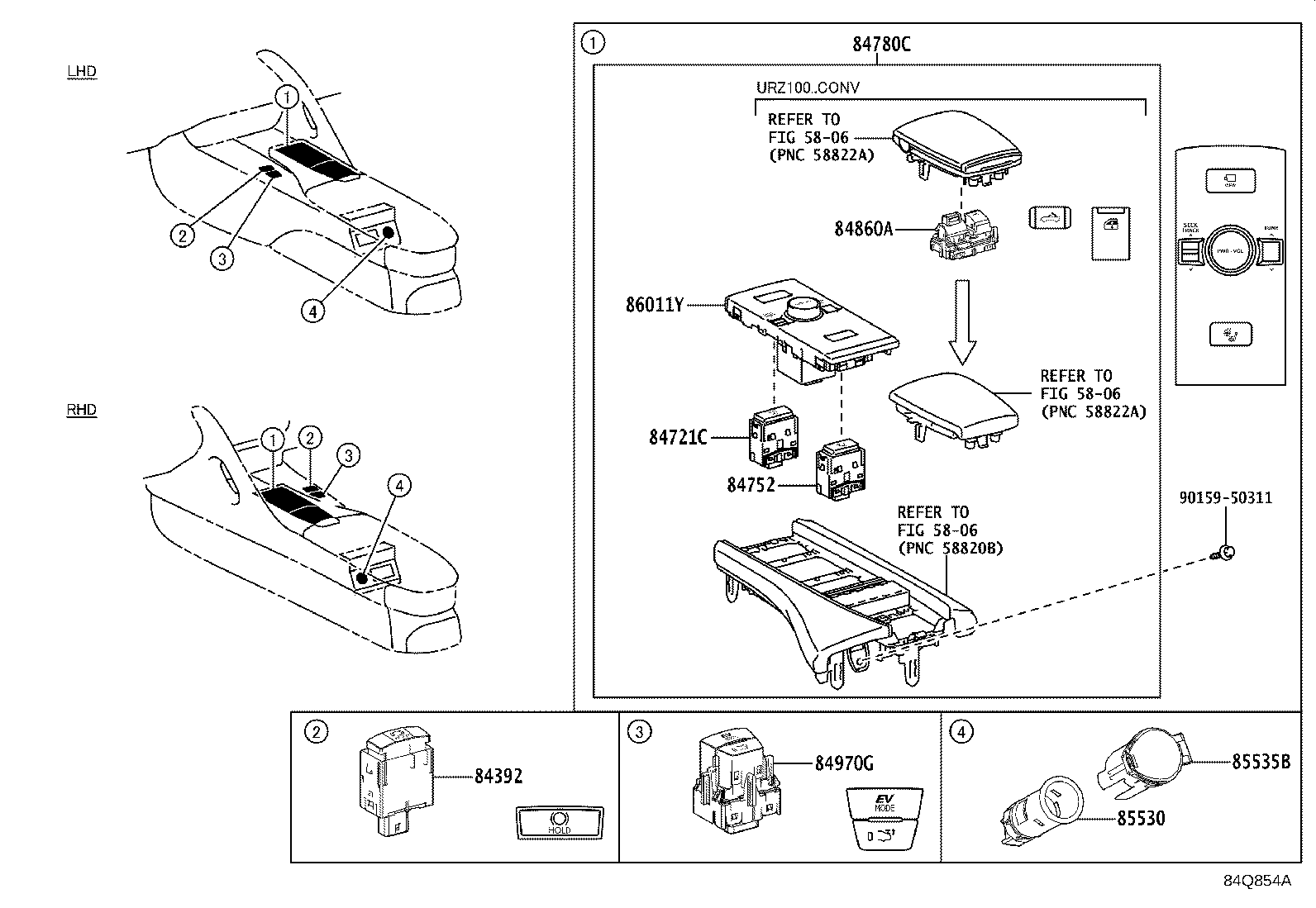

Illustrations

Part groups

PNC	Description
28300	Relay Assy, Starter
28371	Relay, Ignition, NO.1
28371C	Relay, Ignition, NO.2
28800L	Relay, Sub Battery
28850C	Sensor Assy, Battery State
28859A	Holder, Battery Current Sensor
28911	Bracket, Integration Control Supply, NO.1
28911A	Bracket, Integration Control Supply, NO.2
28912	Supply, Integration Control
69065A	Cylinder Sub-assy, Airbag Cut Off Switch
82210J	Fusible Link
82210N	Instrument Panel Fusible Link
82210P	Engine Room Fusible Link
82600D	Instrument Panel Fuse

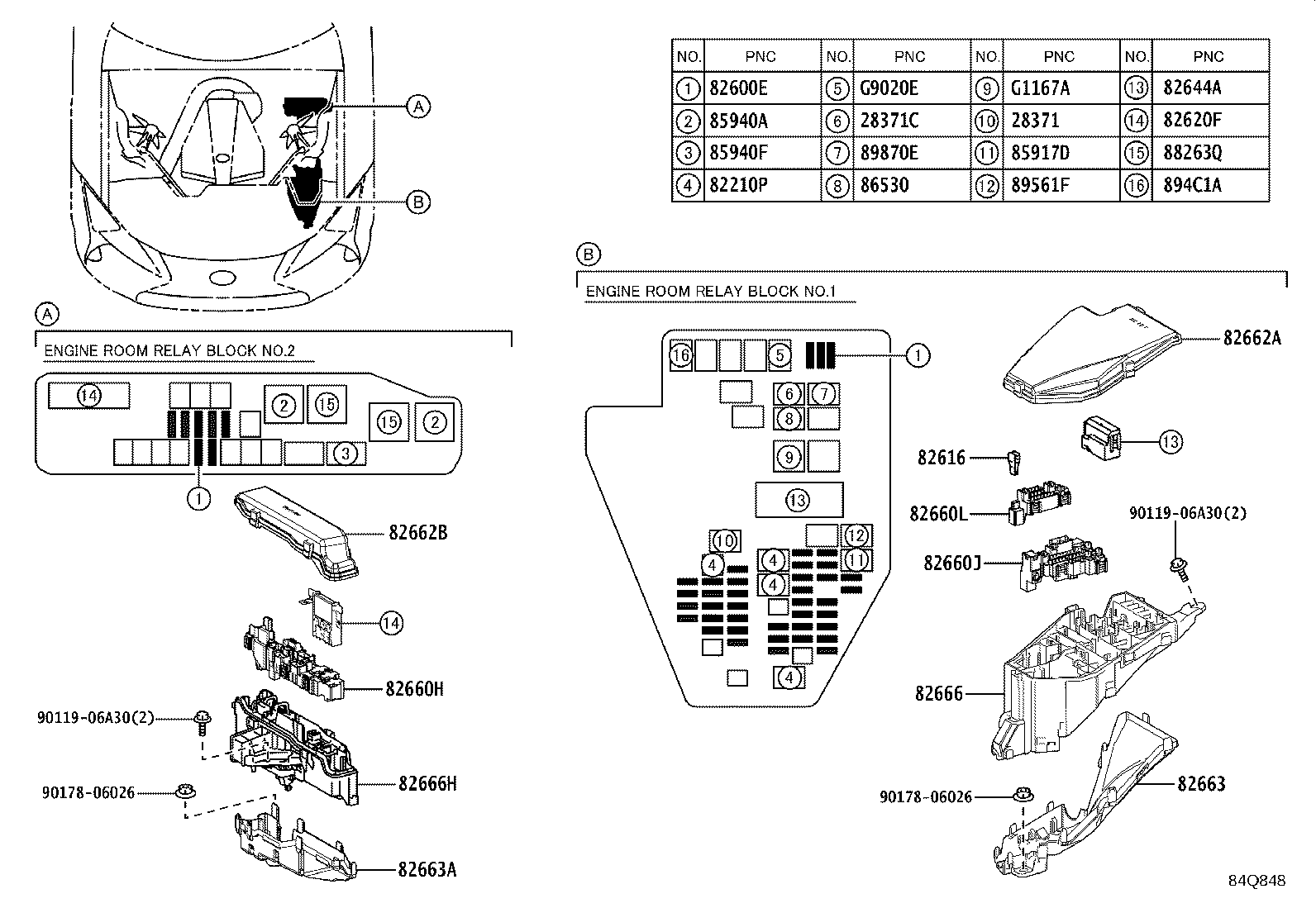

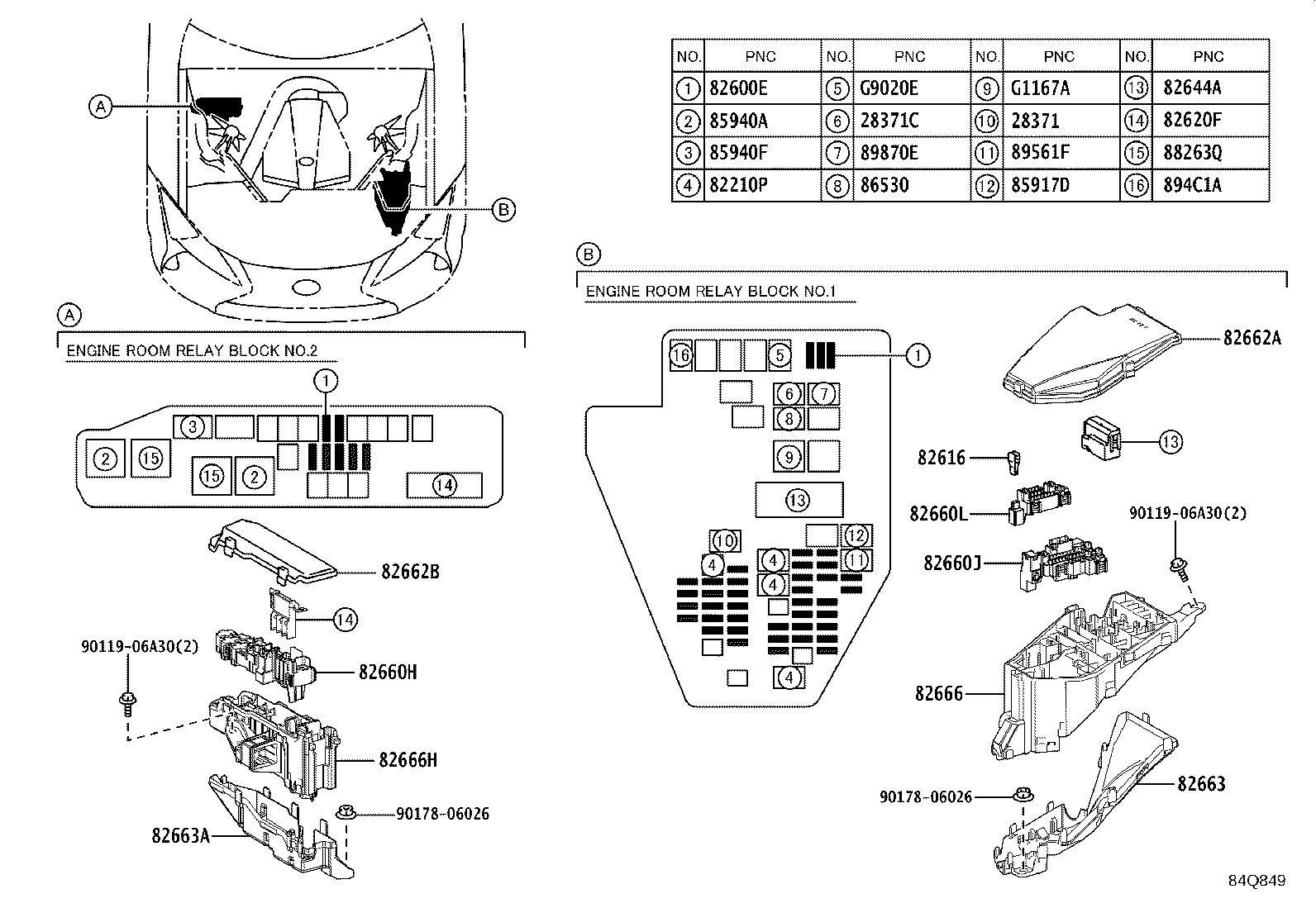

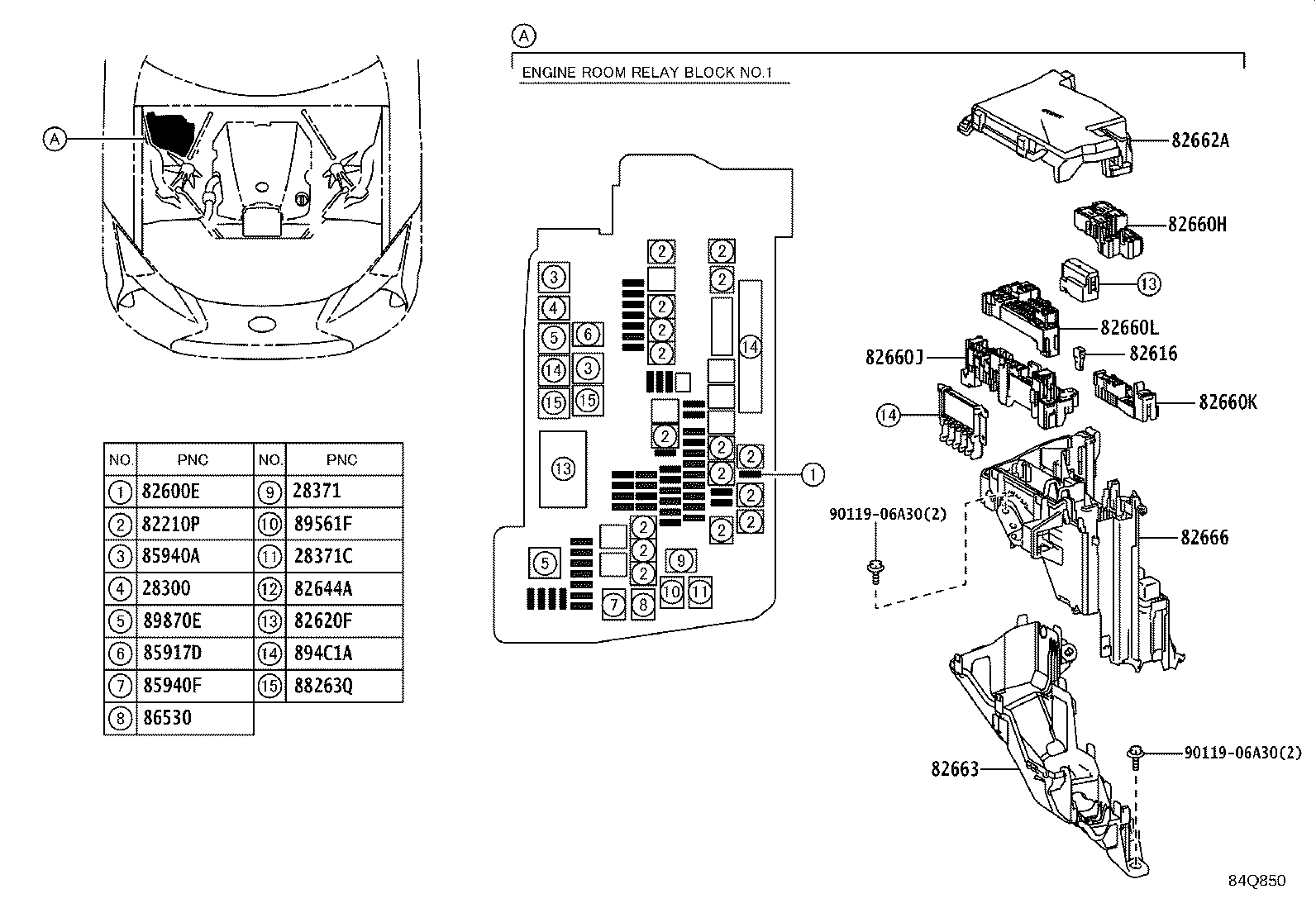

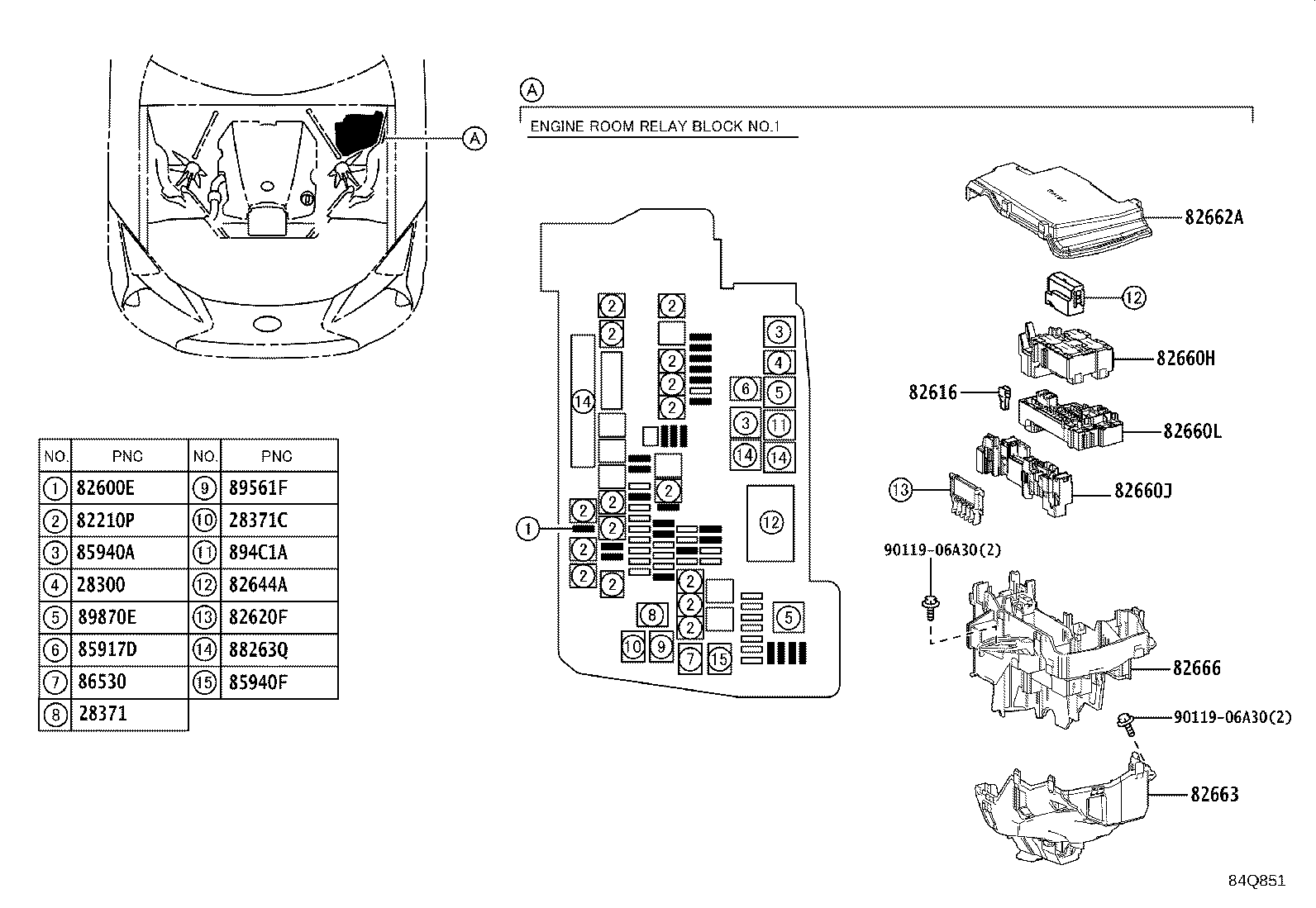

82600E	Engine Room Fuse
82600L	Luggage Room Fuse
82616	Puller, Fuse
82620A	Block Assy, Fusible Link
82620D	Block Assy, Fusible Link
82620E	Block Assy, Fusible Link
82620F	Block Assy, Fusible Link
82644	Computer, Semiconductor Power Integration
82644A	Computer, Semiconductor Power Integration, NO.1
82644B	Computer, Semiconductor Power Integration, NO.2
82644C	Computer, Semiconductor Power Integration, NO.3
82660D	Block Assy, Relay
82660E	Block Assy, Relay
82660F	Block Assy, Relay
82660G	Block Assy, Relay
82660H	Block Assy, Relay
82660J	Block Assy, Relay
82660K	Block Assy, Relay
82660L	Block Assy, Relay
82662A	Cover, Relay Block, Upper, NO.1
82662B	Cover, Relay Block, Upper, NO.2
82662C	Cover, Relay Block, Upper, NO.3
82662D	Cover, Relay Block, Upper, NO.4
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82663B	Cover, Relay Block, Lower, NO.3
82663C	Cover, Relay Block Lower, NO.4
82666	Holder, Connector
82666H	Holder, Connector, NO.2
82672B	Cover, Junction Block
82672C	Cover, Junction Block
82673A	Bracket, Junction Block, NO.1
82673B	Bracket, Junction Block, NO.2
82673C	Bracket, Junction Block
82673F	Bracket, Junction Block
82730E	Block Assy, Junction, RH
82730F	Block Assy, Junction, LH

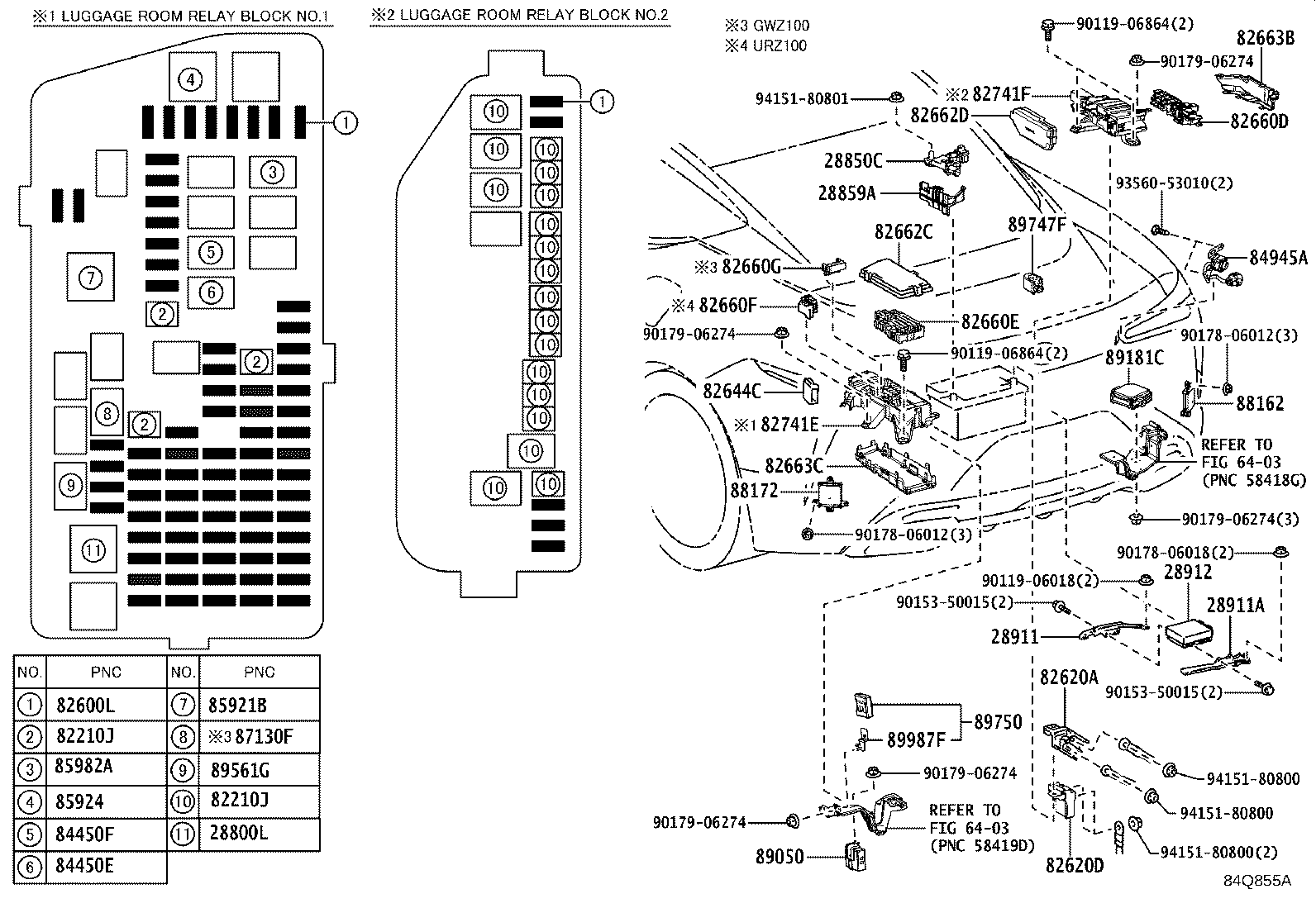

82741E	Block, Luggage Room Relay, NO.1
82741F	Block, Luggage Room Relay, NO.2

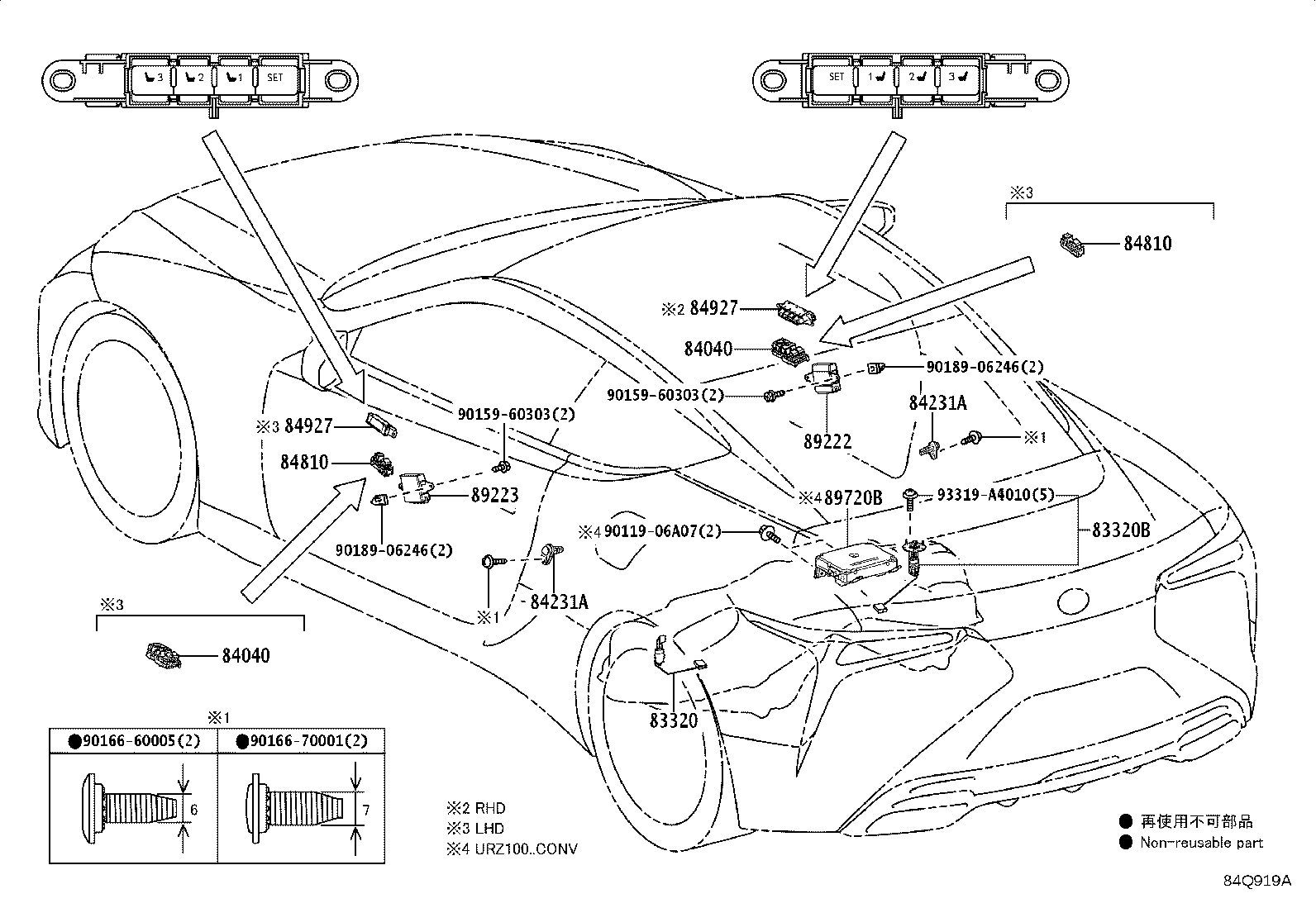

83320	Gage Assy, Fuel Sender
83320B	Gage Assy, Fuel Sender, NO.2

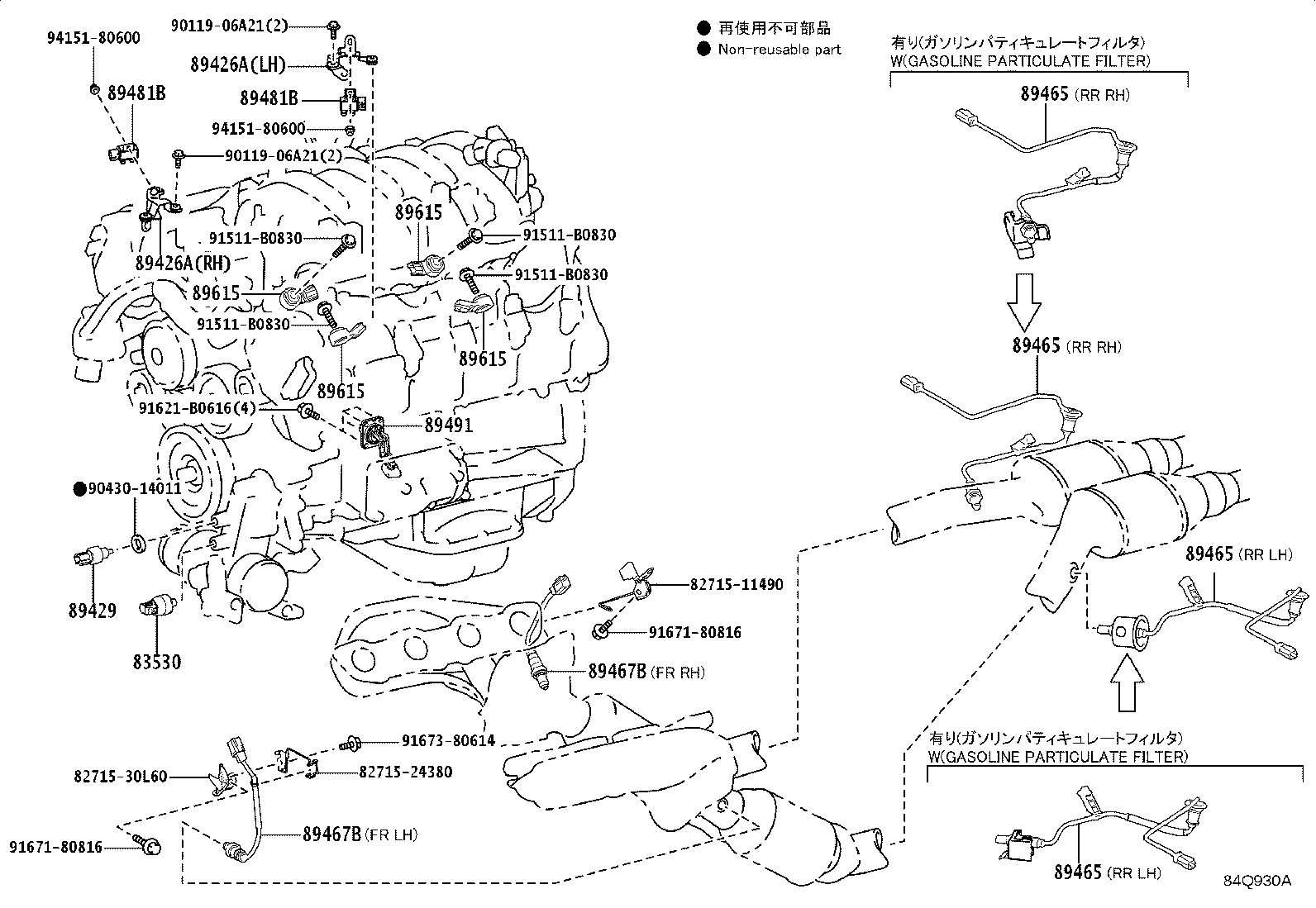

83530	Switch Assy, Oil Pressure (FOR ENGINE)
84040	Master Switch Assy,Multiplex Network
84231A	Switch, Courtesy Lamp
84250A	Switch Assy, Steering Pad

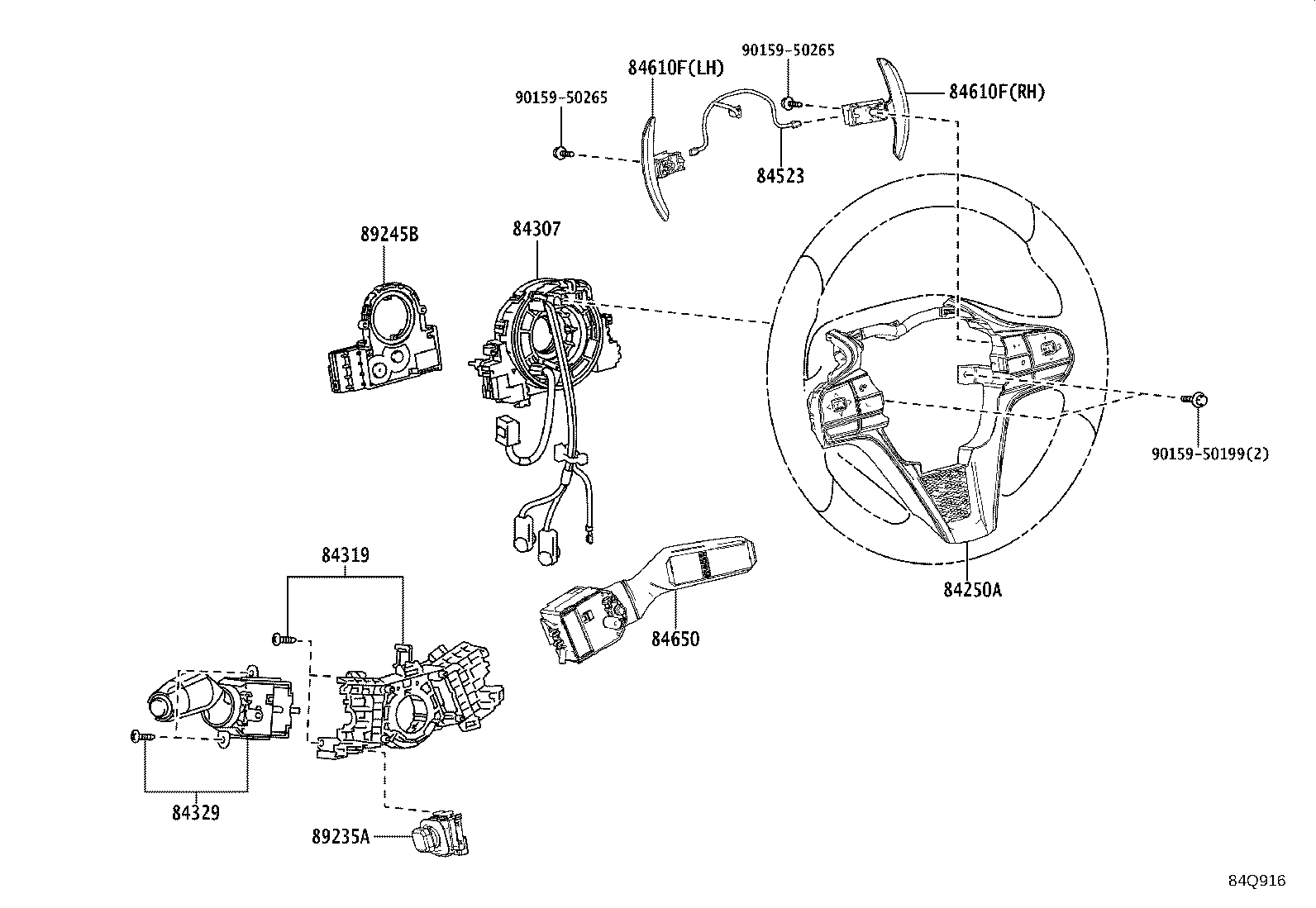

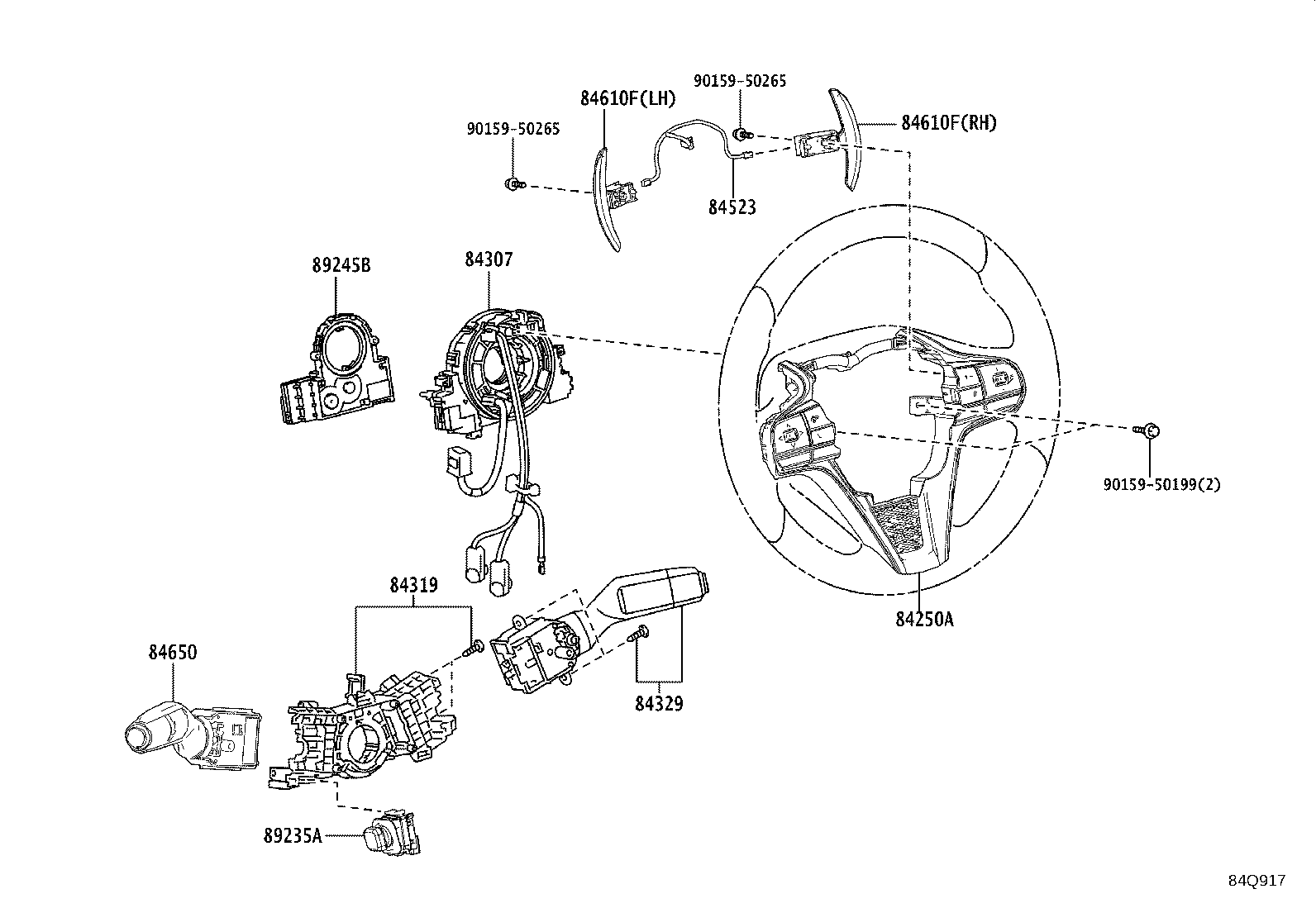

84307	Cable Sub-assy, Spiral W/Sensor
84319	Housing, Steering Wheel Switch
84329	Switch, Turn Signal
84340	Switch Assy, Stop Lamp
84345	Adjuster, Stop Lamp Switch Mounting

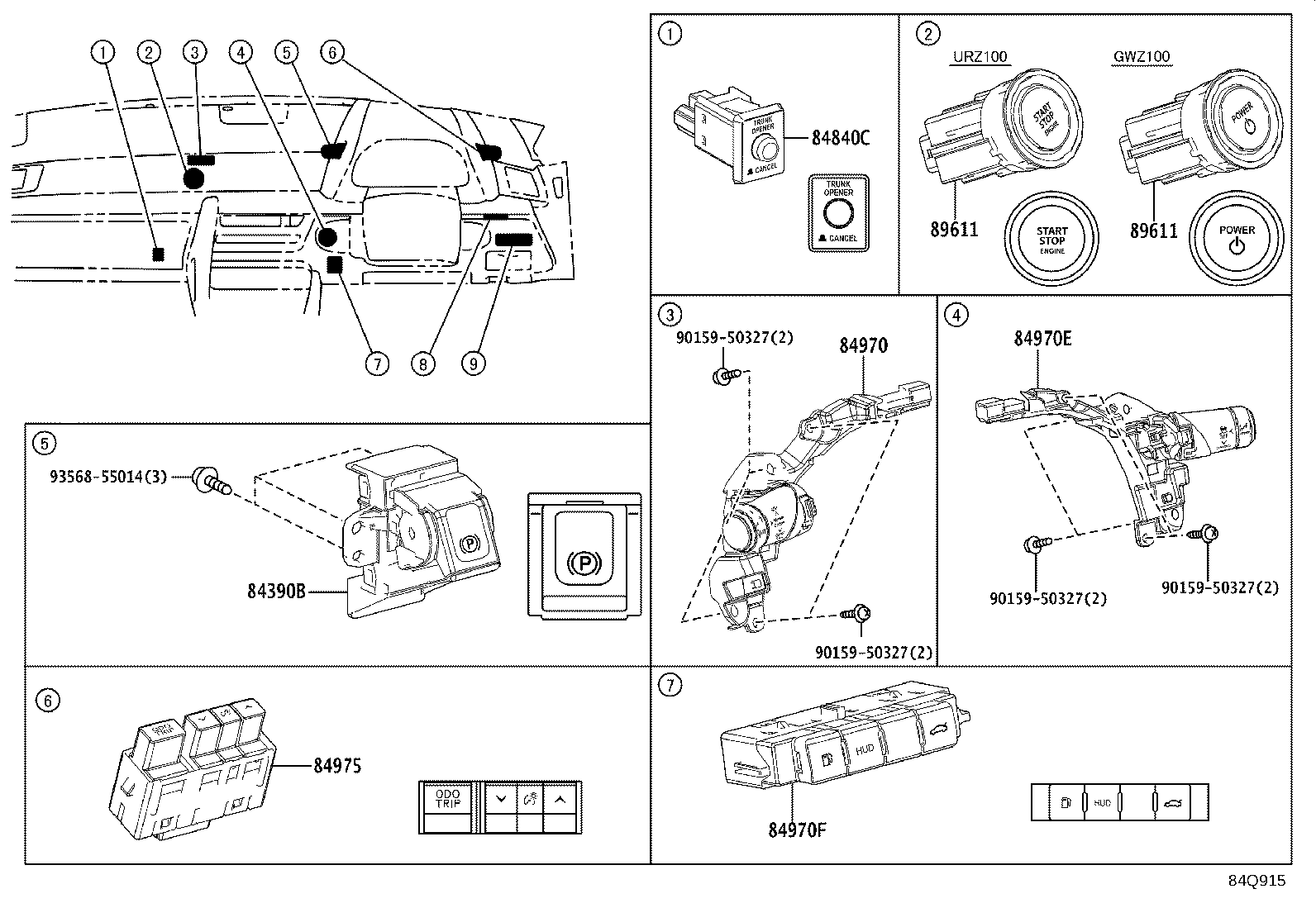

84390B	Switch Assy, Electric Parking Brake
84392	Switch, Brake Hold
84450E	Relay, Luggage Ignition 1, NO.1
84450F	Relay, Luggage Ignition 1, NO.2
84523	Wire, Switch NO.1
84610F	Switch Assy, Transmission Shift
84650	Switch Assy, Windshield Wiper
84656A	Bezel, Switch
84656C	Bezel, Switch NO.2
84721C	Switch, Pattern Select
84752	Switch, Refreshing Seat
84780C	Switch Assy, Radio Remote Tuning
84810	Switch Assy, Power Window Regulator
84840C	Switch Assy, Luggage Door Opening, Cancel
84860A	Switch Assy, Sliding Roof

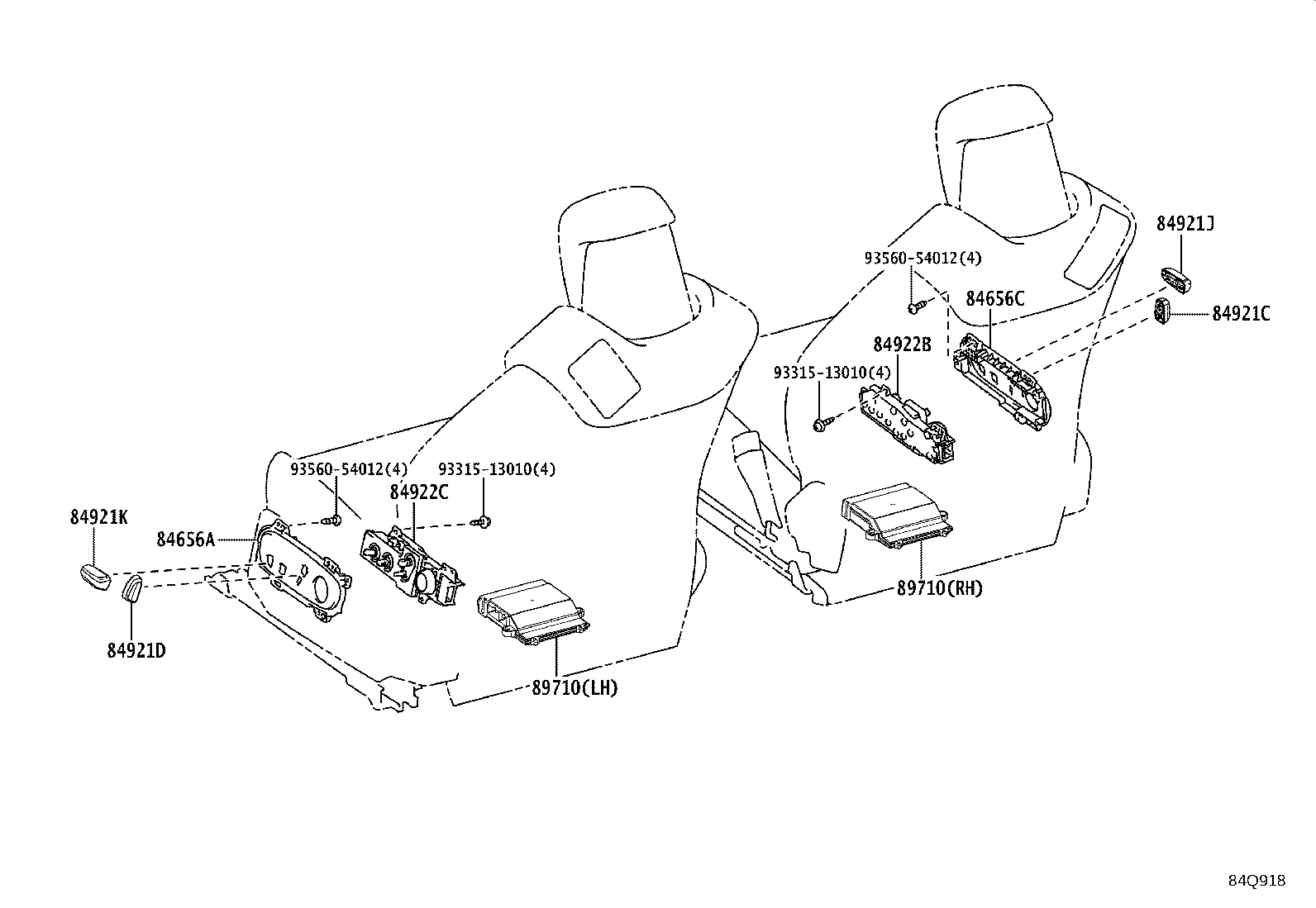

84921C	Knob, Power Seat Switch, RH
84921D	Knob, Power Seat Switch, LH
84921J	Knob, Power Seat Switch, RH
84921K	Knob, Power Seat Switch, LH
84922B	Switch, Front Power Seat, RH
84922C	Switch, Front Power Seat, LH
84927	Switch, Seat Memory
84945A	Switch, Luggage Electrical Key

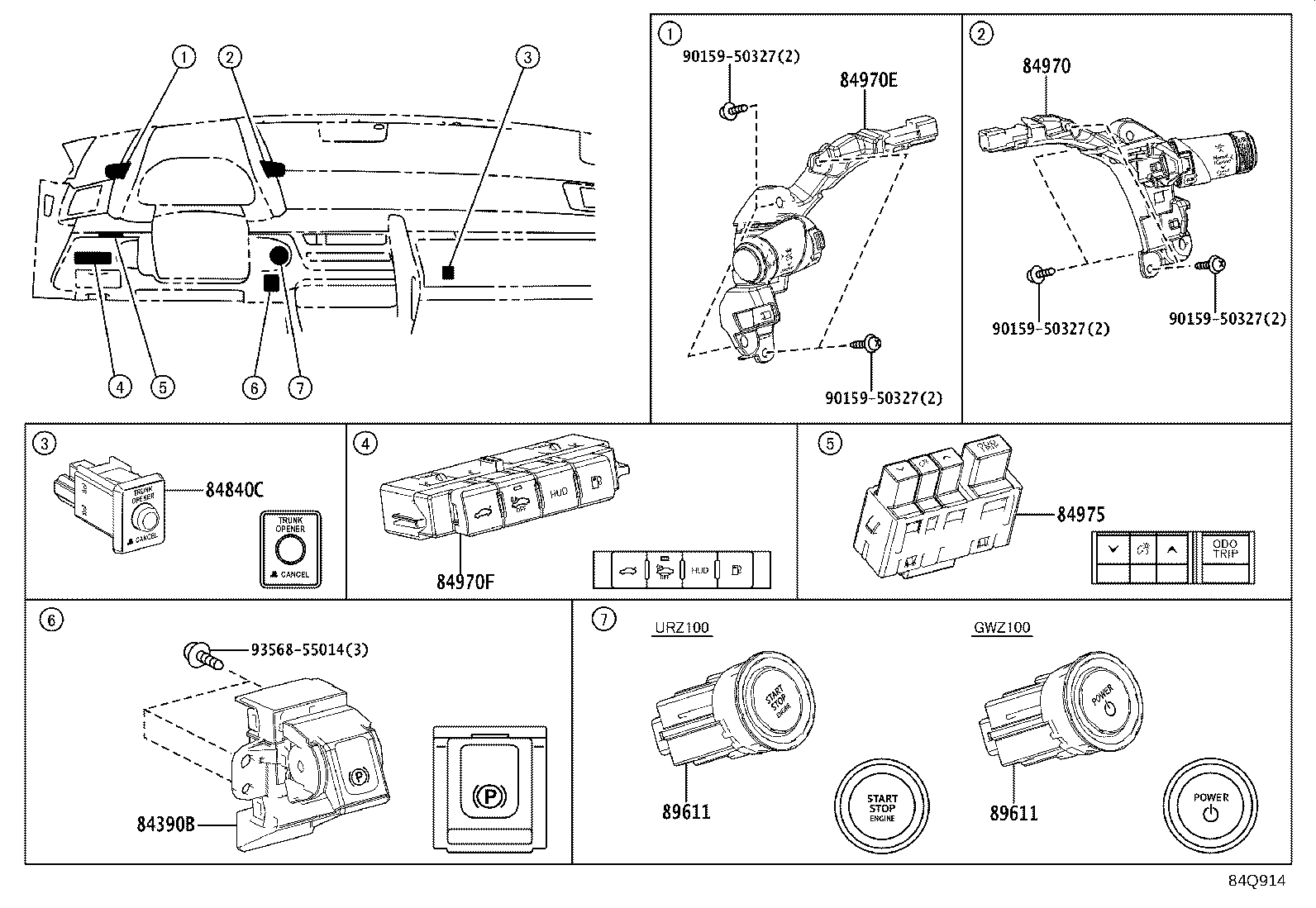

84970	Switch Assy, Combination
84970E	Switch Assy, Combination NO.2
84970F	Switch Assy, Combination, NO.3
84970G	Switch Assy, Combination, NO.4
84975	Switch, Trip
85530	Socket Assy, Power Outlet, NO.1
85535B	Cover, Power Outlet Socket, NO.1
85917D	Relay, Heater(FOR AIR FUEL RATIO SENSOR)
85921B	Relay, Convertible Roof Control
85924	Relay, Ignition Control
85940A	Relay, Windshield Wiper Switch
85940F	Relay Assy, Windshield Deicer

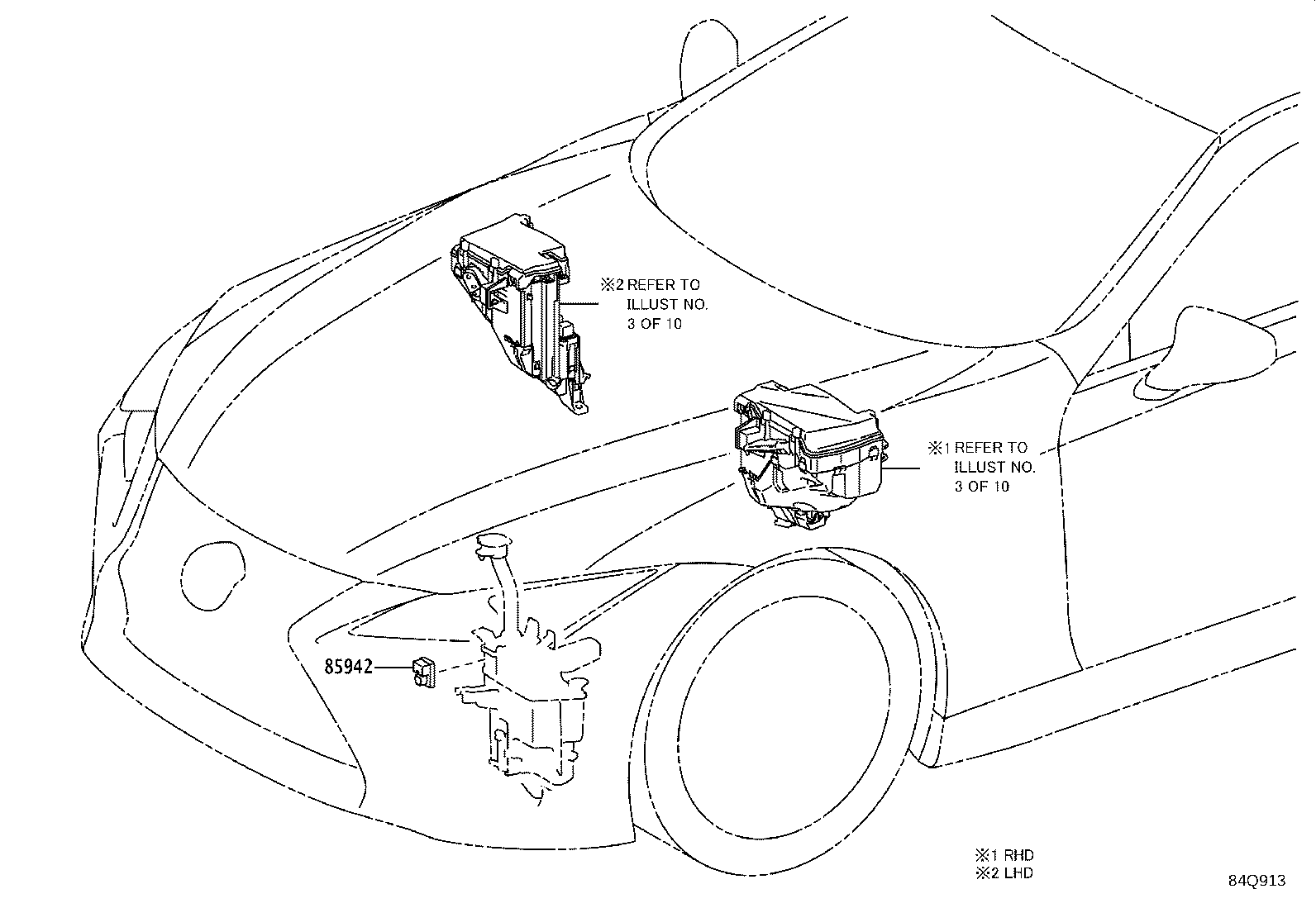

85942	Relay, Headlamp Cleaner Control
85970A	Relay Assy, Double Lock Door Control
85982A	Relay, Luggage Opener
86011Y	Switch & Volume, Set
86530	Relay Assy, Horn
87130F	Relay, Battery Blower, NO.1
88162	Sensor, Blind Spot Monitor, RH
88172	Sensor, Blind Spot Monitor, LH
88263Q	Relay, Abs Motor
89050	Computer Assy, Parking Brake
89111	Computer, Network Gateway
89120A	Sensor, Automatic Light Control
89181B	Computer, Steering Control, FR
89181C	Computer, Steering Control, RR
89221	Computer, Multiplex Network Body
89222	Computer, Multiplex Network Door, Front RH
89223	Computer, Multiplex Network Door, Front LH
89227	Computer, Multiplex Tilt & Telescopic
89235A	Switch, Tilt & Telescopic
89245B	Sensor, Steering

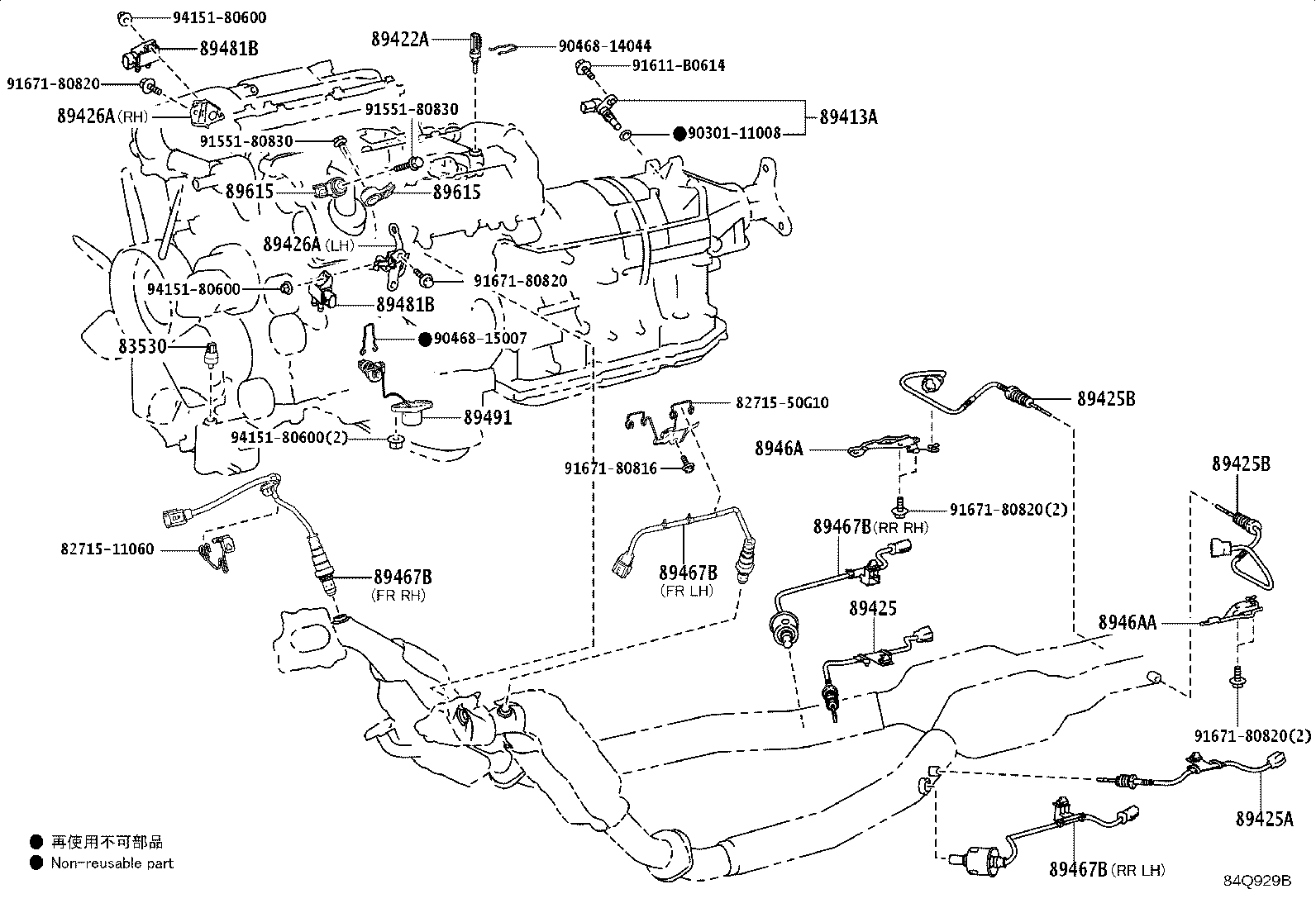

89413A	Sensor, Transmission Revolution
89422A	Sensor, Water Temperature
89425	Sensor, Exhaust Gas Temperature
89425A	Sensor, Exhaust Gas Temperature, NO.2
89425B	Sensor, Exhaust Gas Temperature, NO.3
89426A	Bracket, Vacuum Sensor
89429	Sensor, Oil Temperature
89465	Sensor, Oxygen
89467B	Sensor, Air Fuel Ratio
8946A	Bracket, Exhaust Sensor Clamp
8946AA	Bracket, Exhaust Sensor Clamp, NO.2
89481B	Sensor, Differential Pressure
89491	Sensor, Engine Oil Level
894C1	Computer, Shift Control
894C1A	Relay, Parking Control Motor, NO.1
894C7	Bracket, Shift Control Computer, NO.1
894C8	Bracket, Shift Control Computer, NO.2
89561F	Relay, Electronic Fuel Injection Main, NO.1
89561G	Relay, Electronic Fuel Injection Main, NO.2
89611	Switch, Push Start
89615	Sensor, Knock Control
89710	Computer Assy, Position Control
89720B	Computer Assy, Removable Roof Control
89747F	Buzzer, Blind Spot Monitor
89750	Computer Assy, Spoiler Control
89870E	Relay, Electronic Driver Unit
89980	Computer Assy, Hybrid Vehicle Control
89987F	Bracket, Computer, NO.1

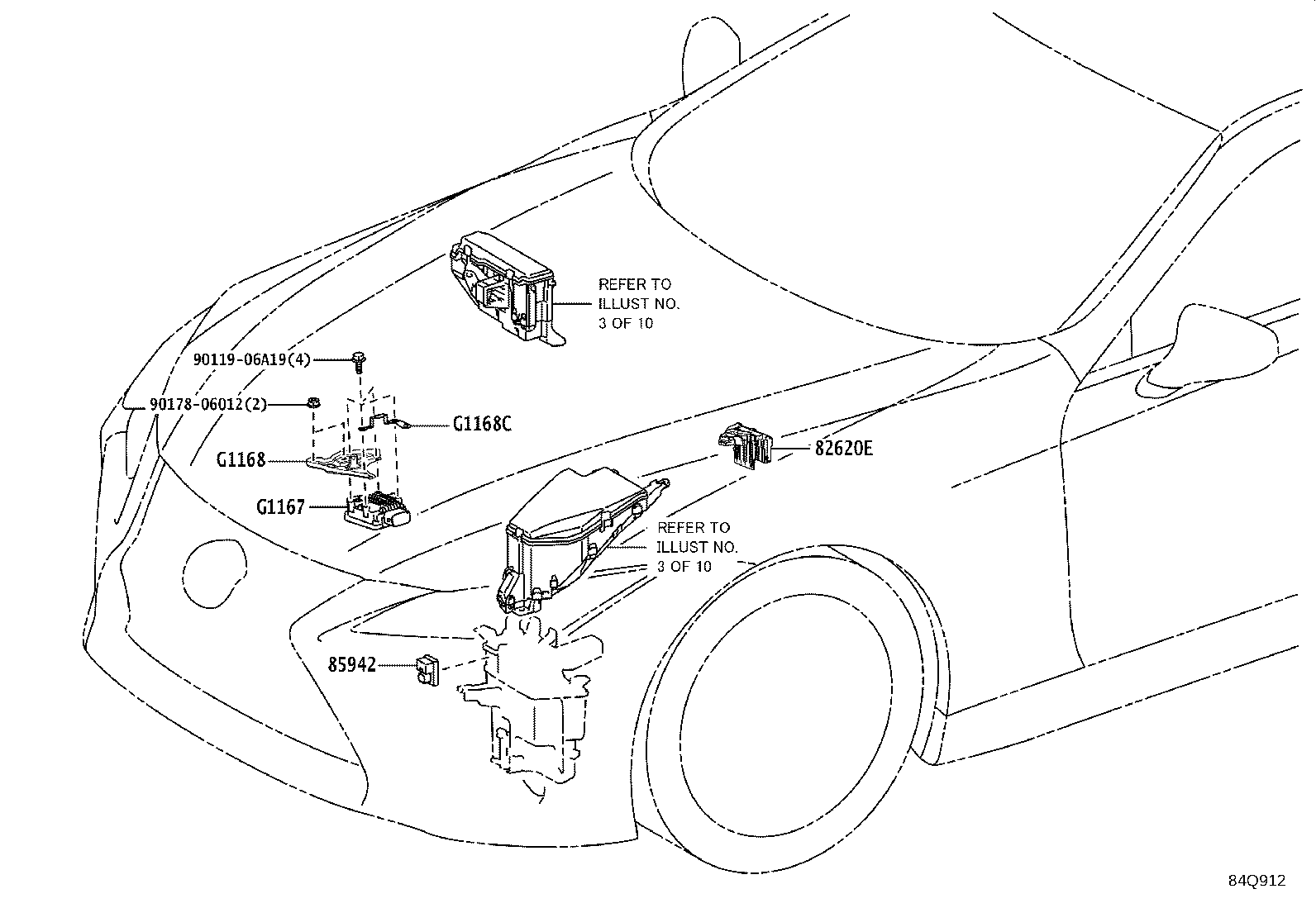

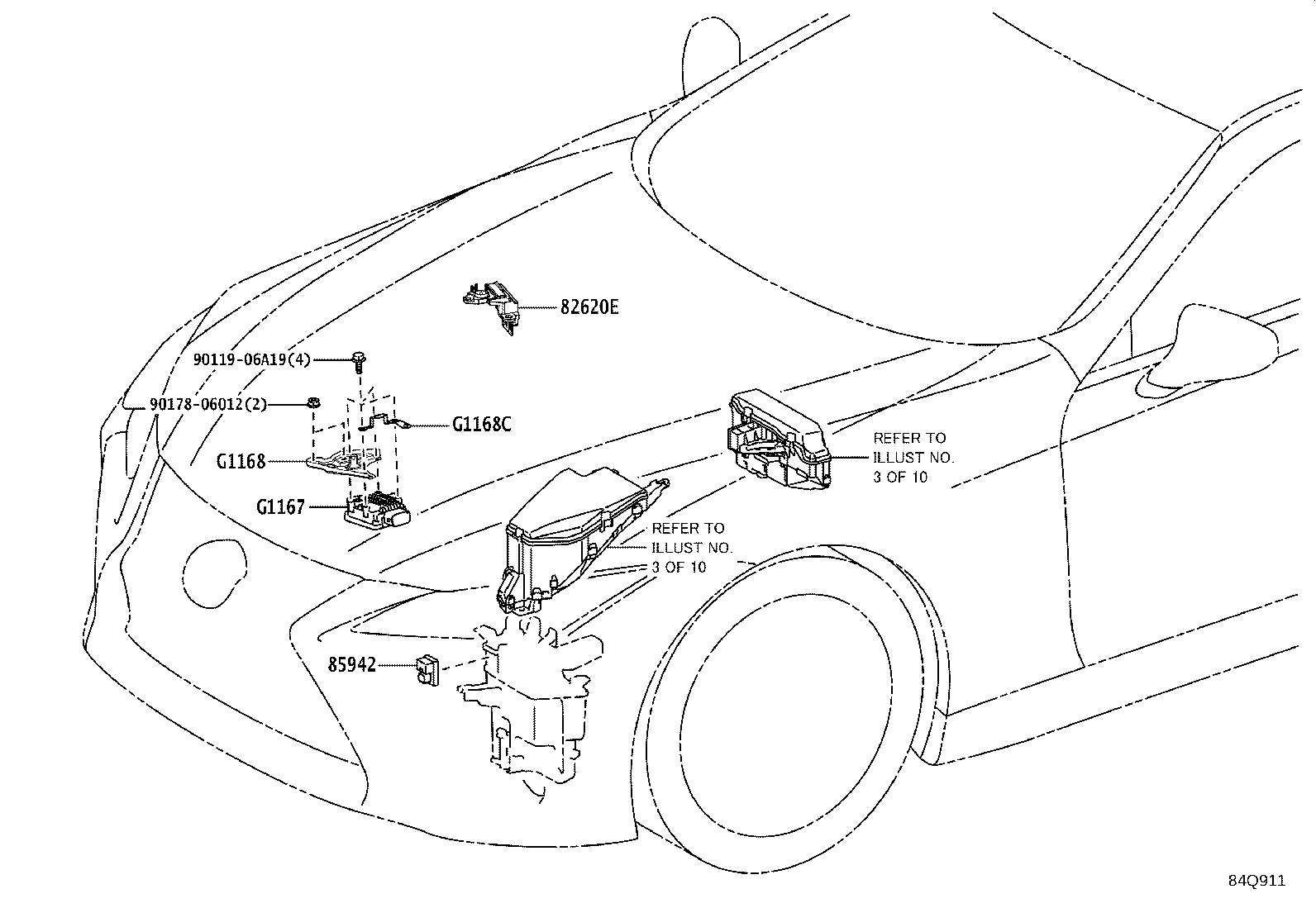

G1167	Controller, Oil Pump Motor
G1167A	Relay (FOR OIL PUMP MOTOR)
G1168	Bracket, Oil Pump Motor Controller
G1168C	Bracket, Oil Pump Motor Controller, NO.2
G9020E	Relay, Hybrid Water Pump

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
