Instrument Panel & Glove Compartment

36 part groups · 14 illustrations

Illustrations

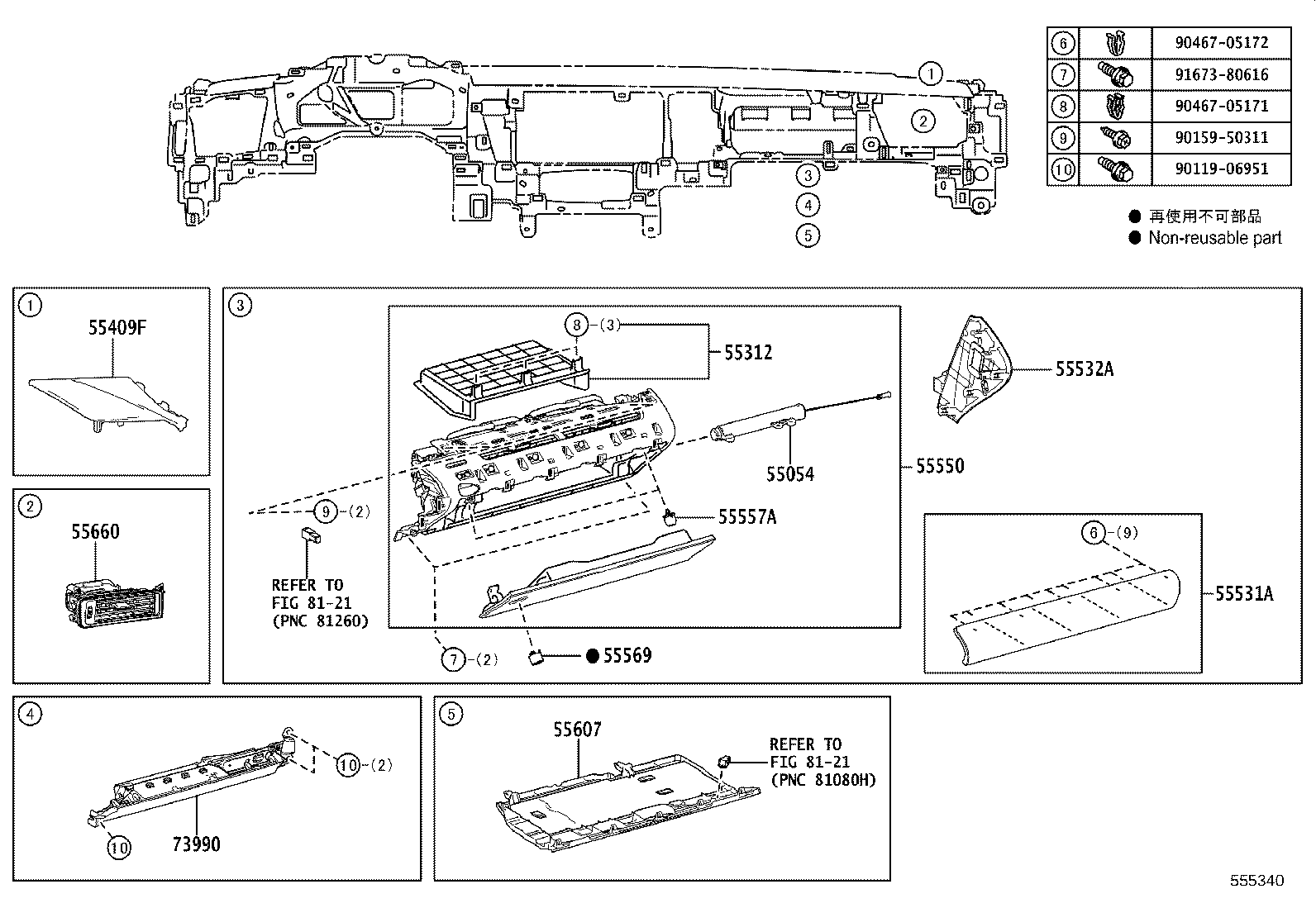

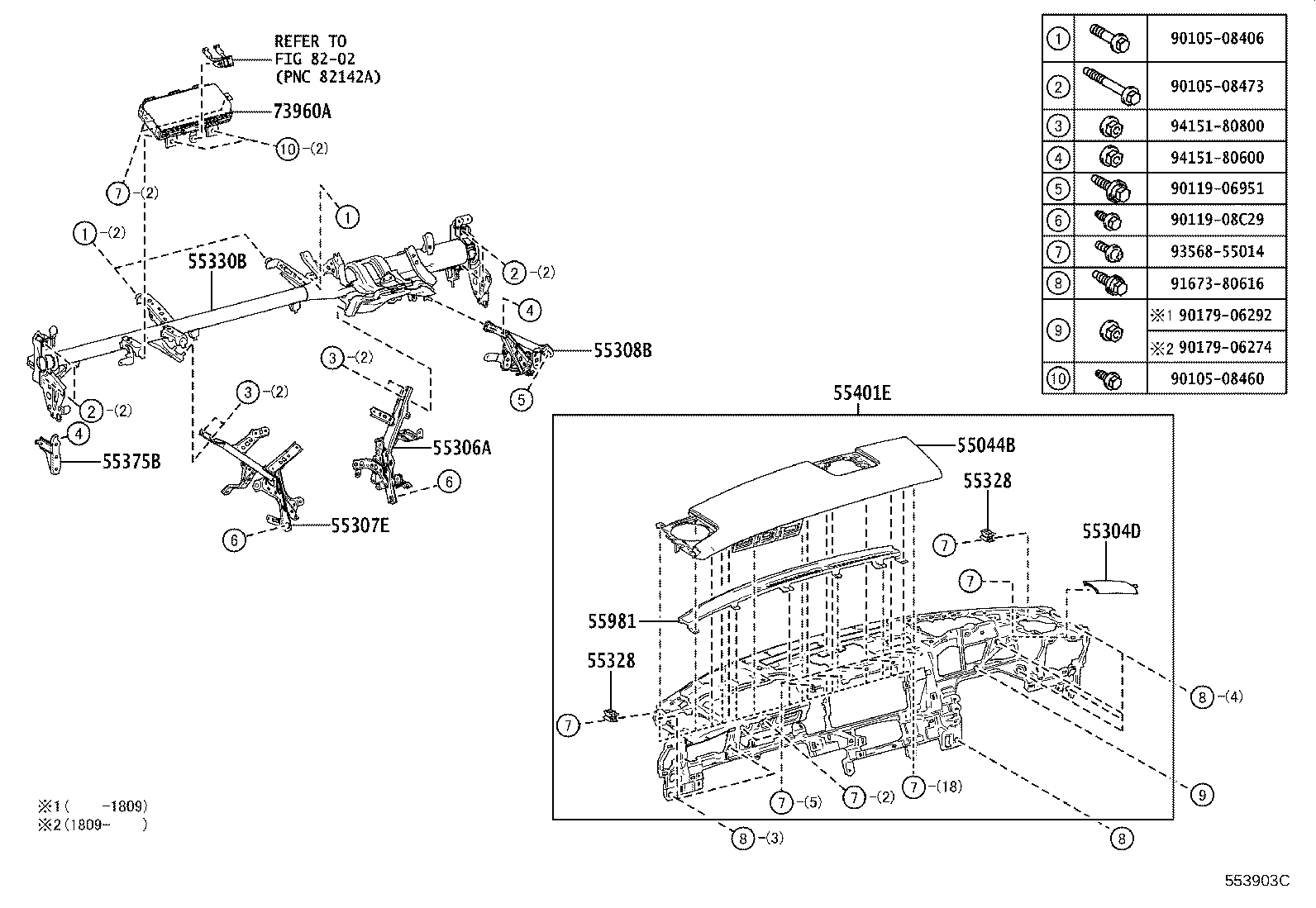

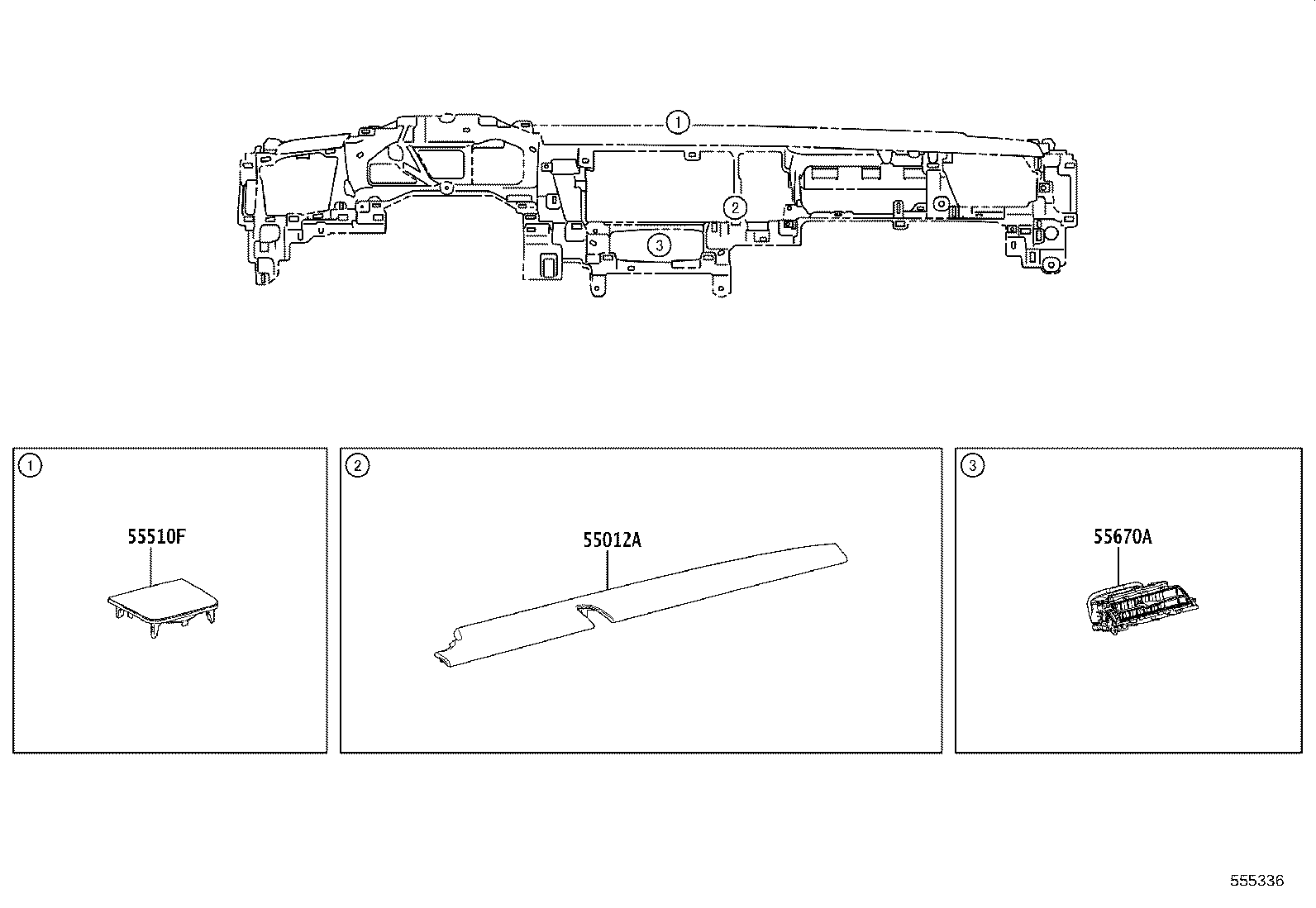

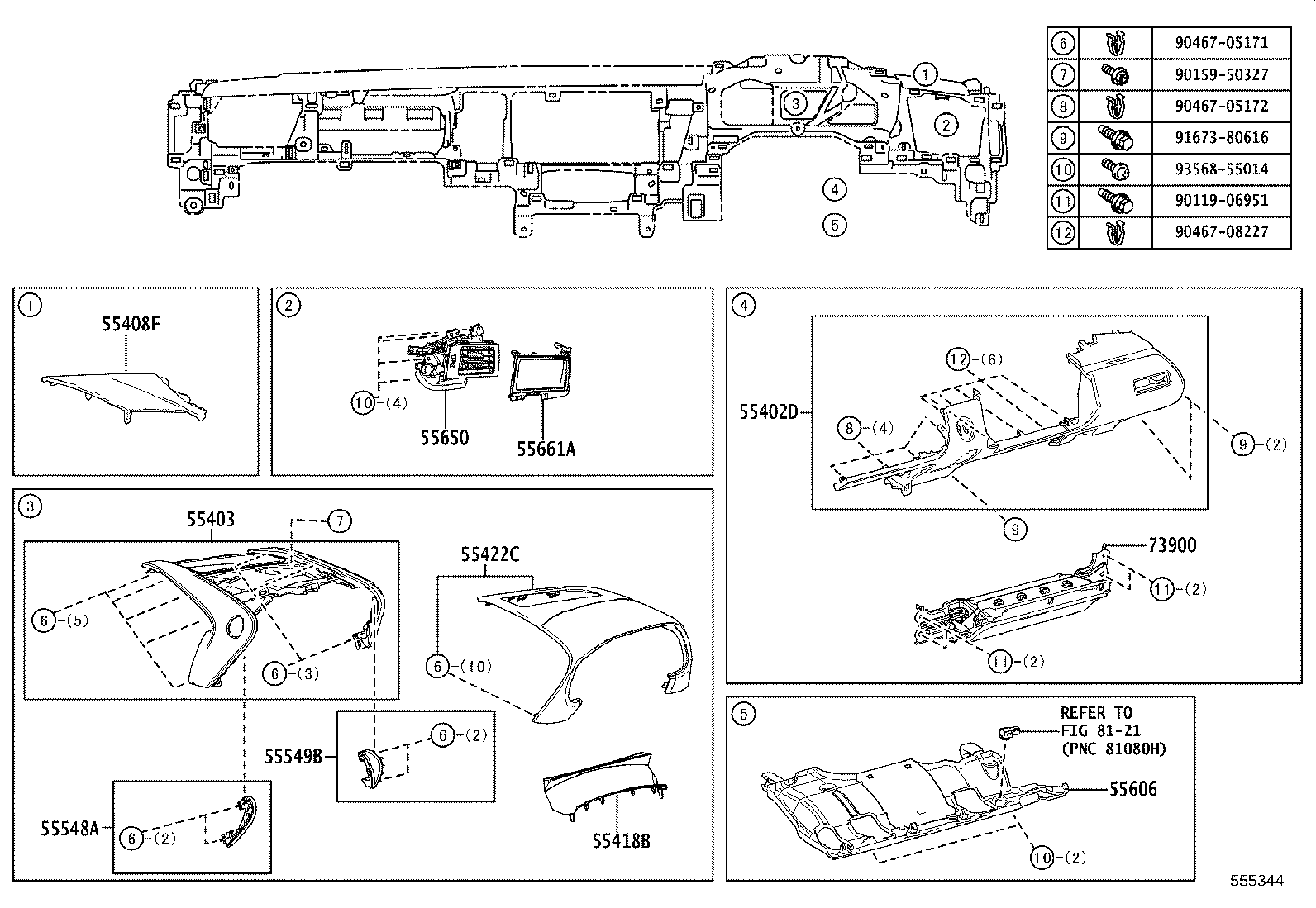

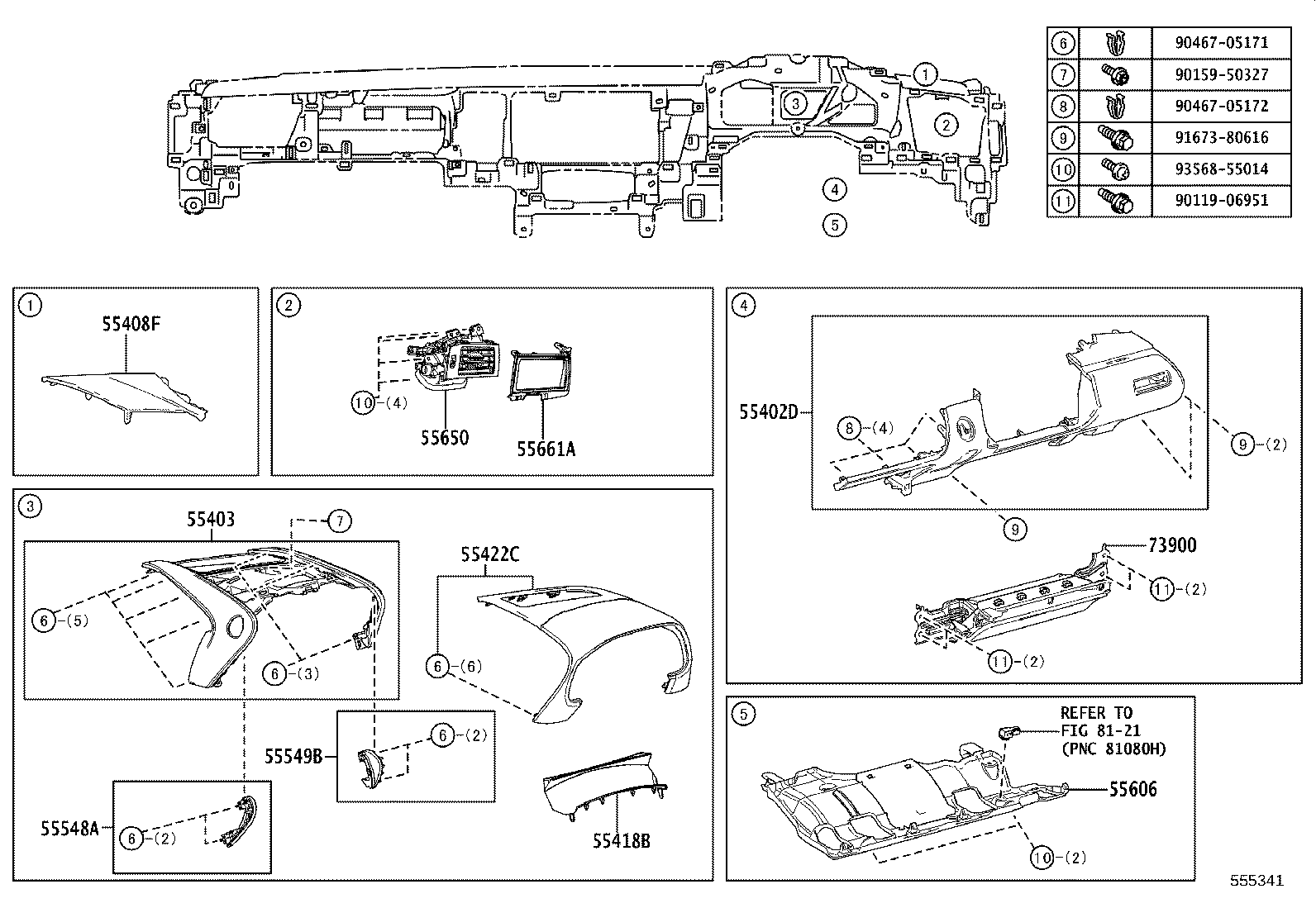

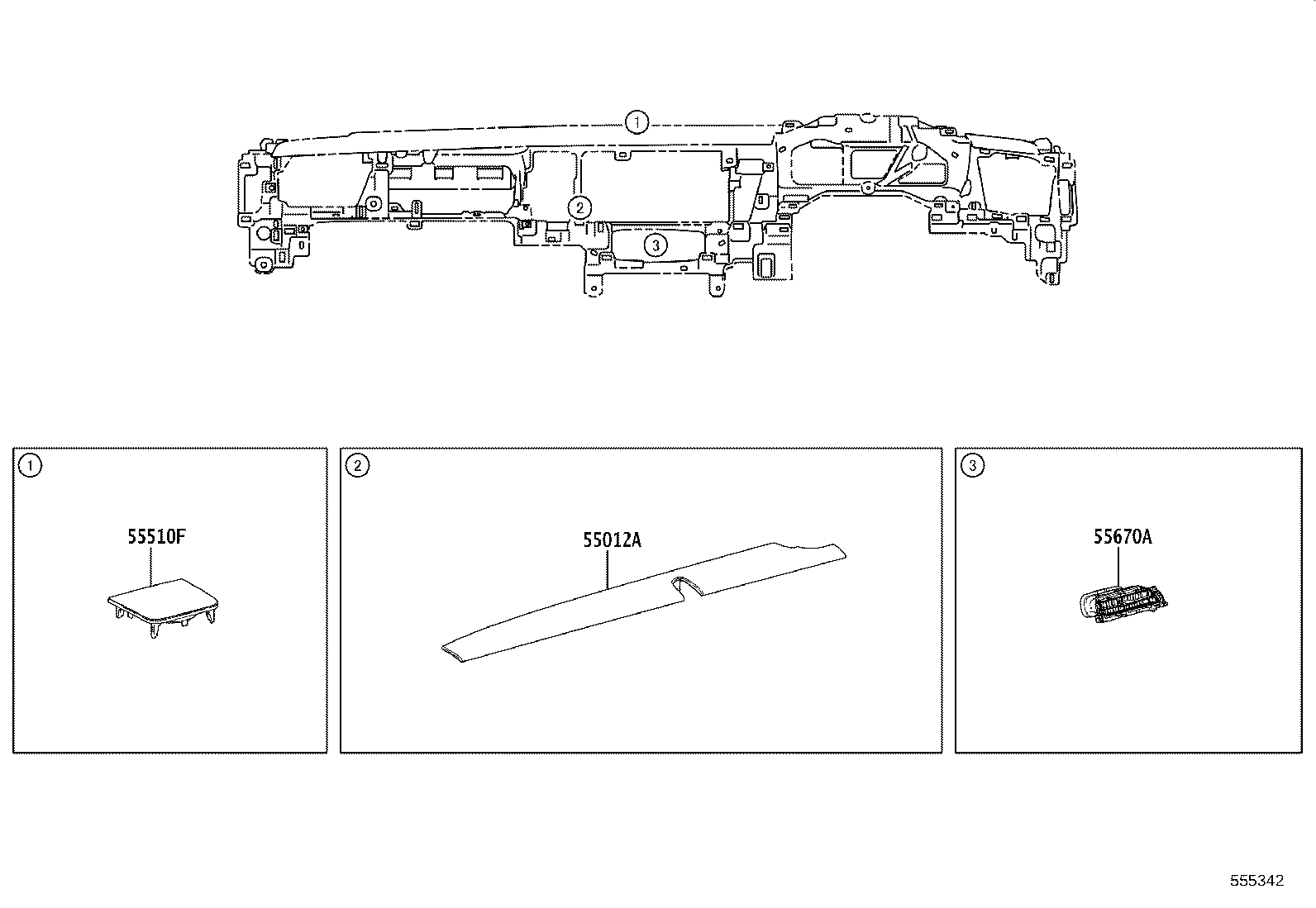

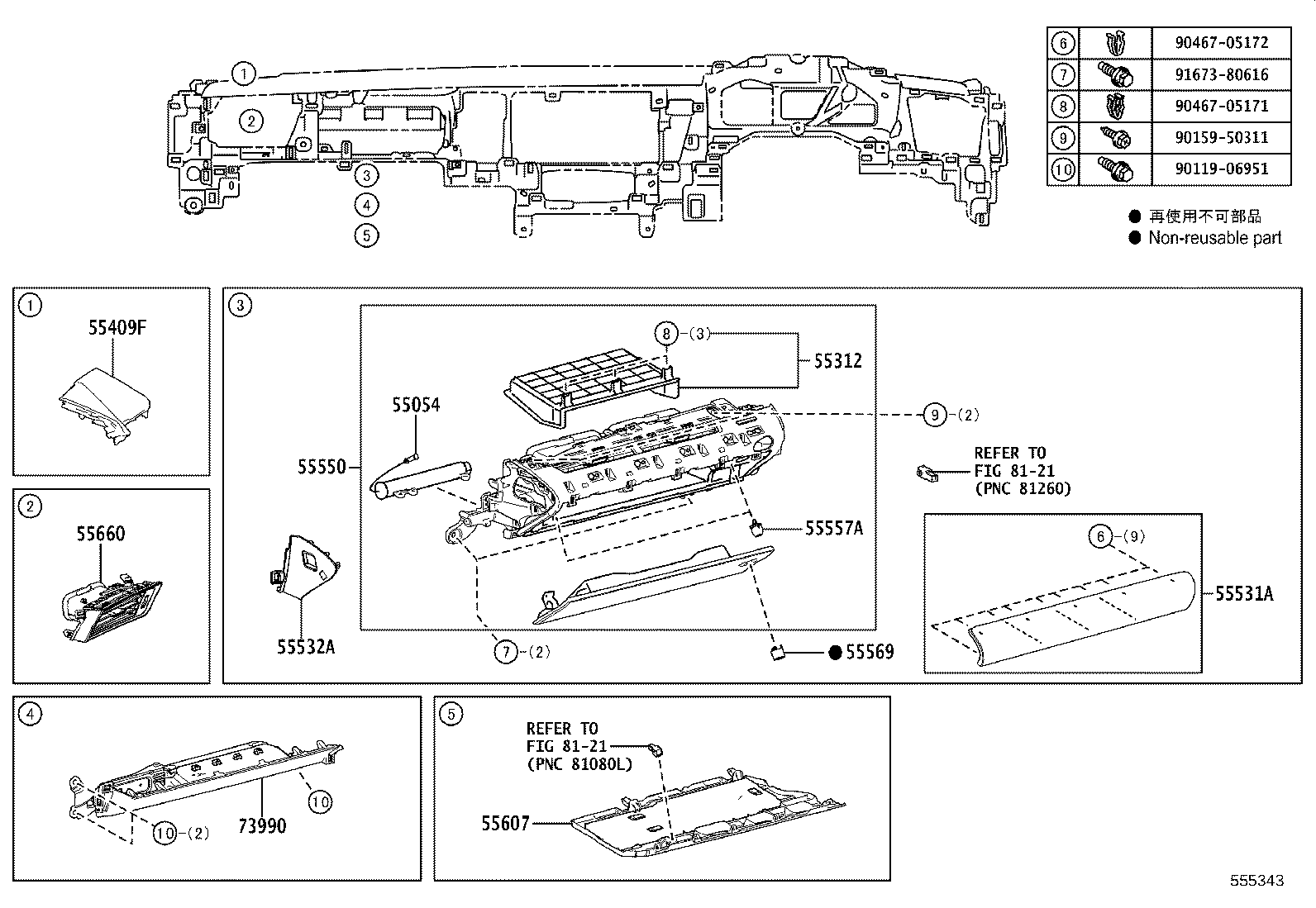

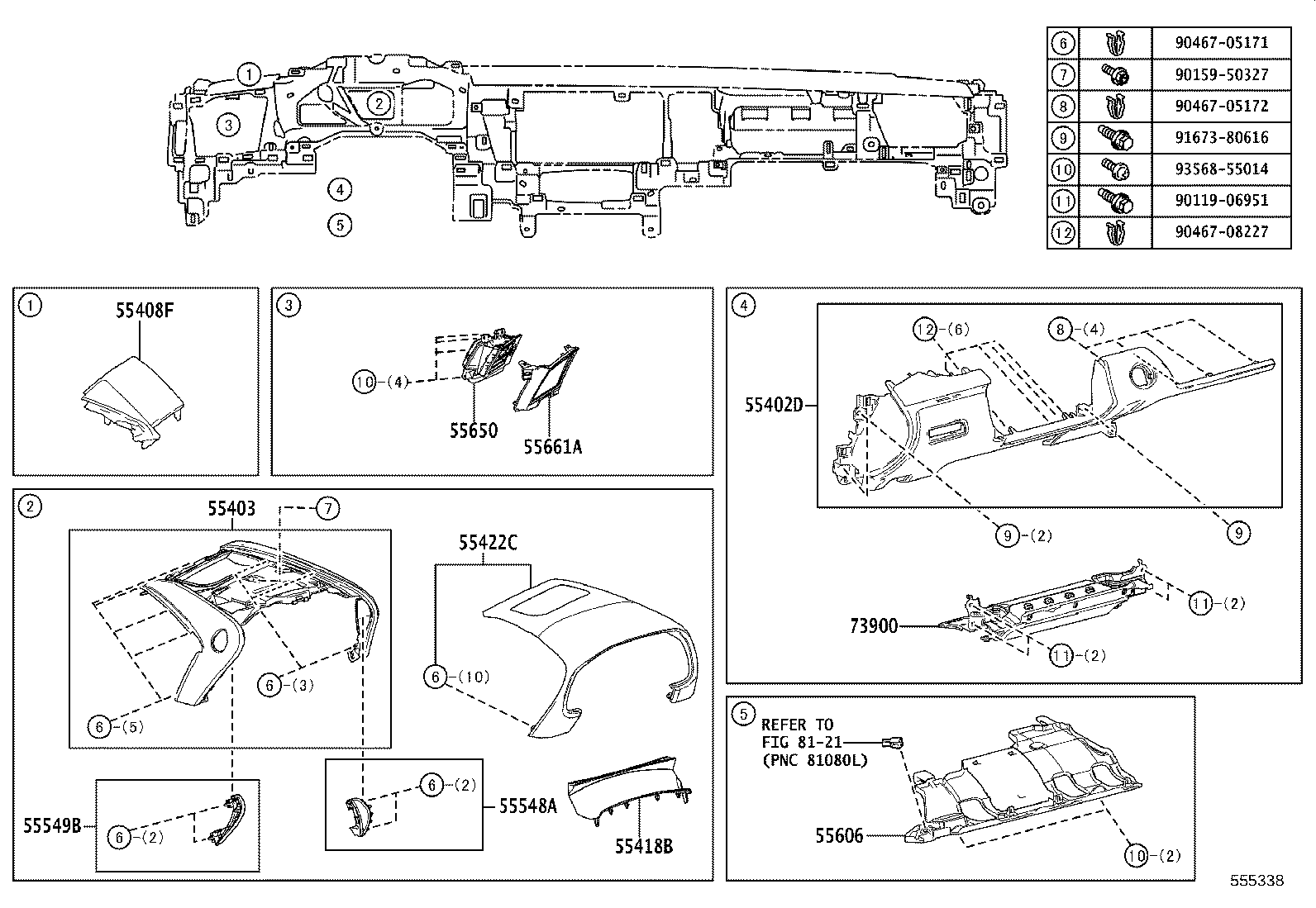

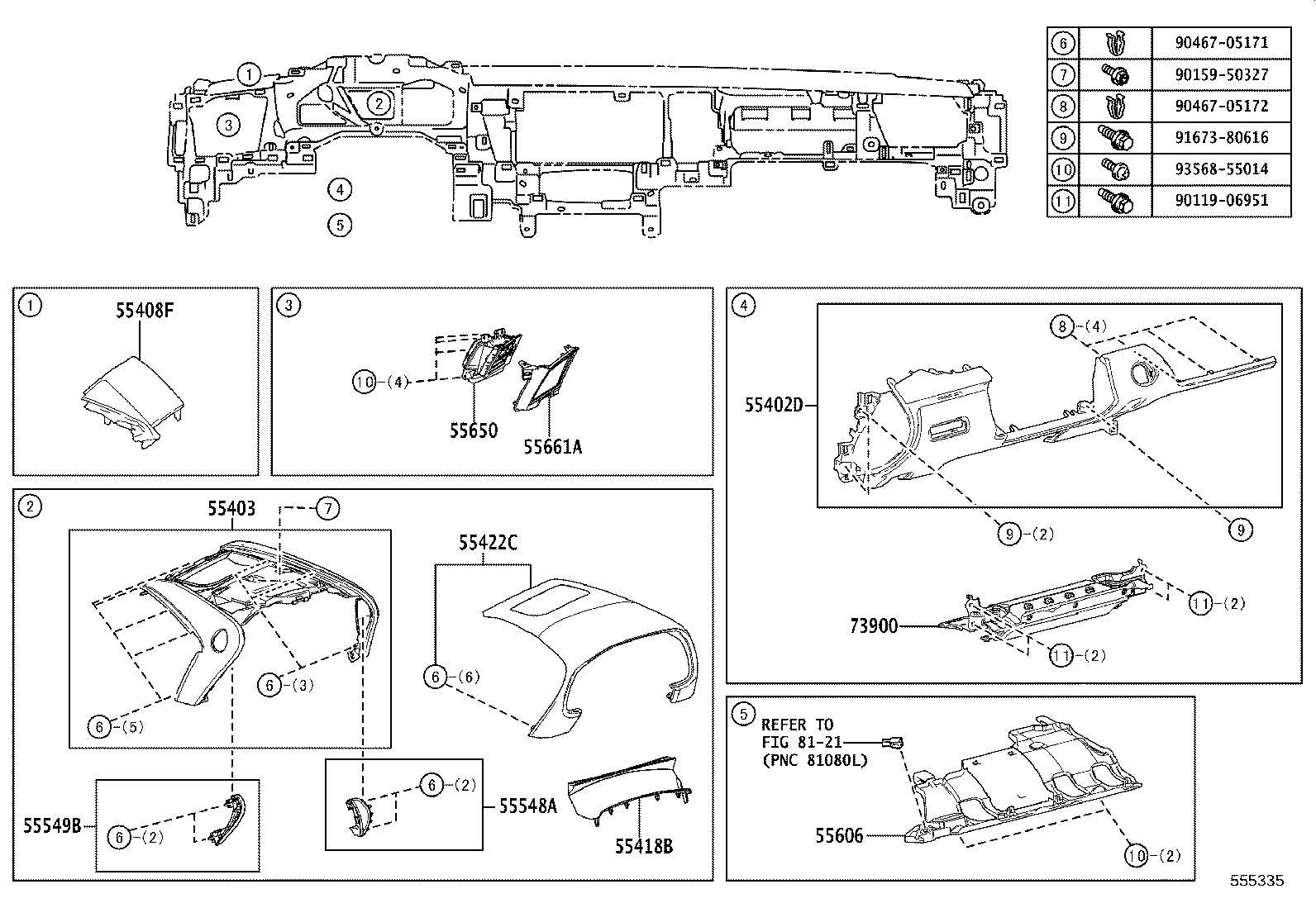

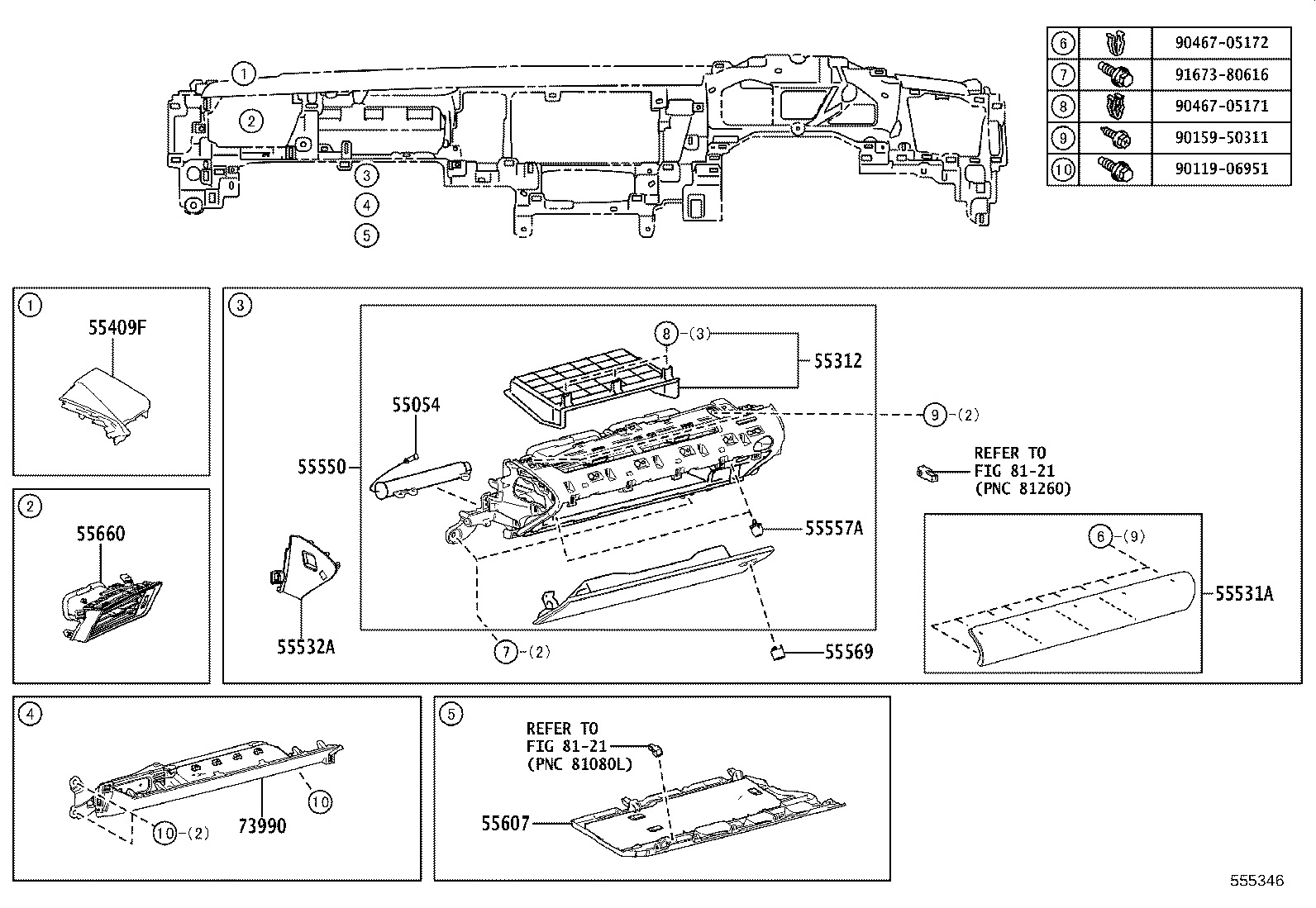

Figure 553904C 553904C 2017-05 → — Figure 555335 555335 2017-05 → 2020-06 Figure 555336 555336 2017-05 → 2020-06 Figure 555337 555337 2017-05 → 2020-06 Figure 555338 555338 2020-06 → — Figure 555339 555339 2020-06 → — Figure 555340 555340 2020-06 → — Figure 553903C 553903C 2017-05 → — Figure 555341 555341 2017-05 → 2020-06 Figure 555342 555342 2017-05 → 2020-06 Figure 555343 555343 2017-05 → 2020-06 Figure 555344 555344 2020-06 → — Figure 555345 555345 2020-06 → — Figure 555346 555346 2020-06 → —

Part groups

PNCDescription
55012A Garnish Sub-assy, Instrument Panel, NO.2
55044B Panel Sub-assy, Instrument Panel Finish, Upper
55054 Stopper Sub-assy, Glove Compartment Door
55304D Panel Sub-assy, Instrument, Main
55306A Brace Sub-assy, Instrument Panel, NO.1
55307E Brace Sub-assy, Instrument Panel, NO.2
55308B Brace Sub-assy, Instrument Panel TO Cowl, NO.3
55312 Panel, Instrument, Lower
55328 Pin, Instrument Panel, NO.1
55330B Reinforcement Assy, Instrument Panel
55375B Bracket, Instrument Panel Lower Mounting, NO.2
55401E Pad Sub-assy, Instrument Panel Safety
55402D Pad Sub-assy, Instrument Panel Safety, NO.1
55403 Hood Sub-assy, Meter
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55418B Spacer,Meter Hood
55422C Panel, Instrument Cluster Finish, Center Upper
55510F Cover Assy, Speaker Opening, NO.1
55531A Panel, Glove Compartment, NO.1
55532A Panel, Glove Compartment, NO.2
55548A Cover, Instrument Panel Hole
55549B Cover, Instrument Panel Hole, NO.2
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55569 Cover, Glove Compartment Door Lock
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55661A Bezel, Instrument Panel Register
55670A Register Assy, Instrument Panel, Center
55981 Garnish, Defroster Nozzle, NO.1
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
73990 Airbag Assy, Instrument Panel, Lower NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
