Toyota Lexus LC500/500H

2017-05 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433510 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

143 part groups · 19 illustrations

Illustrations

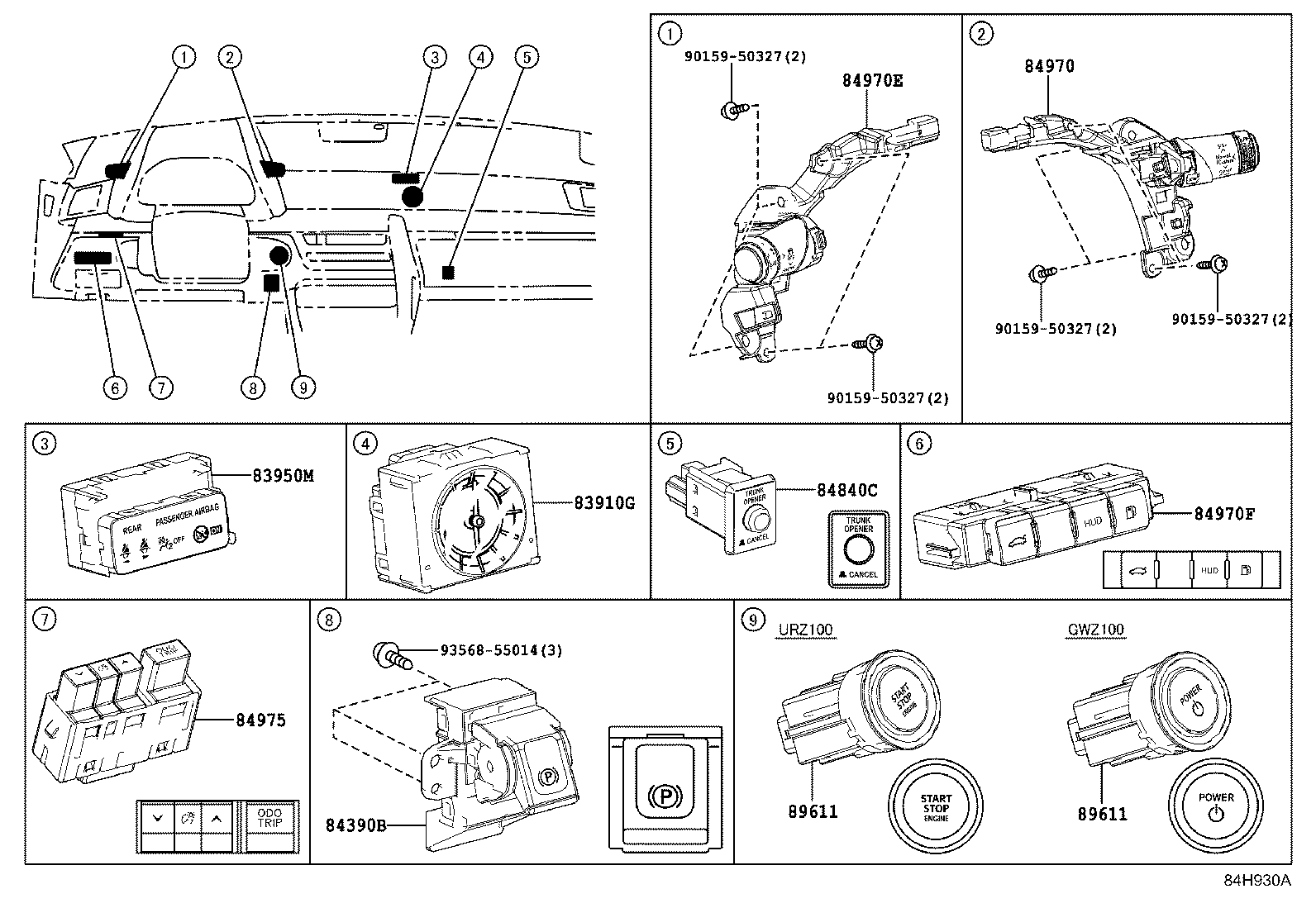

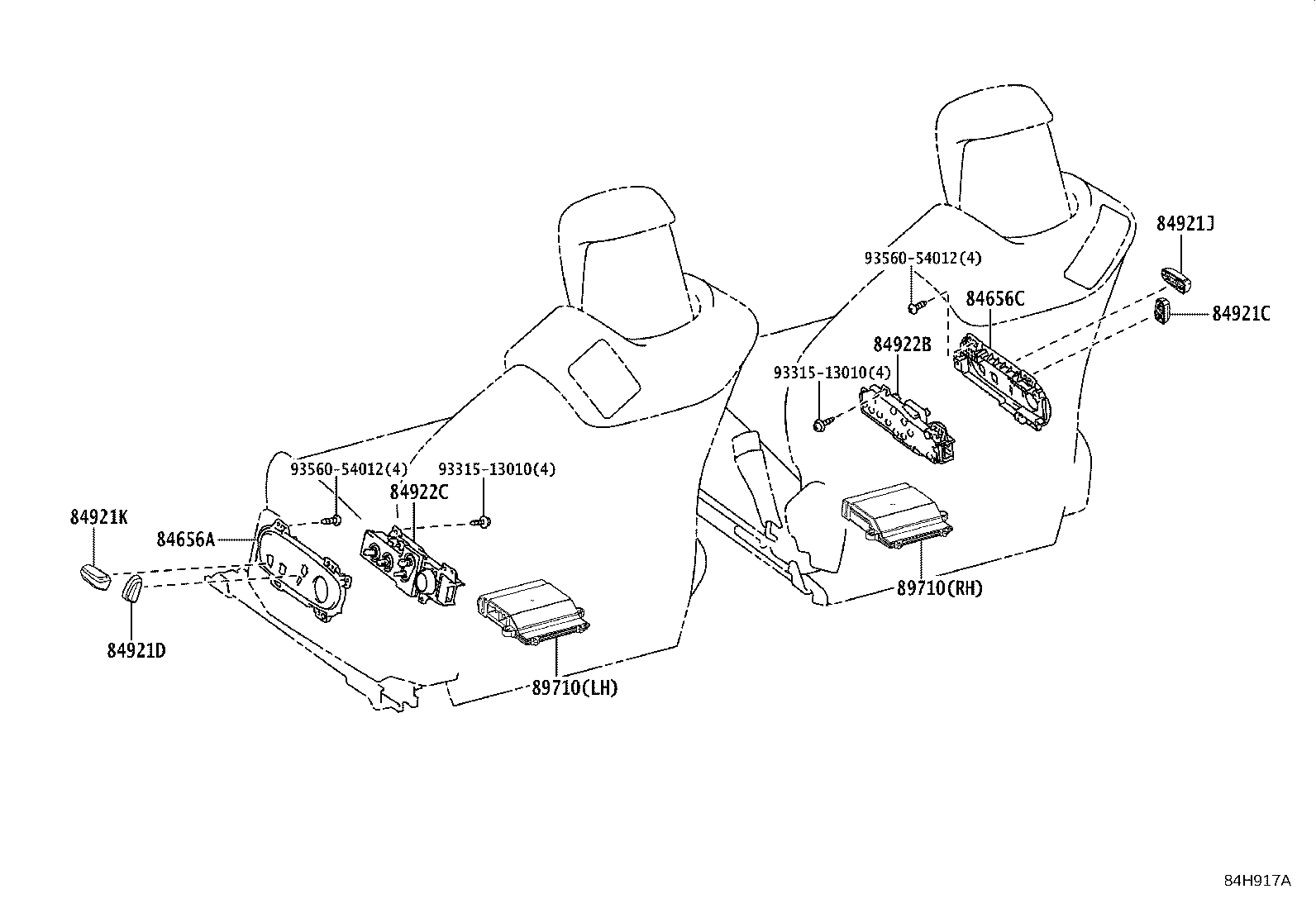

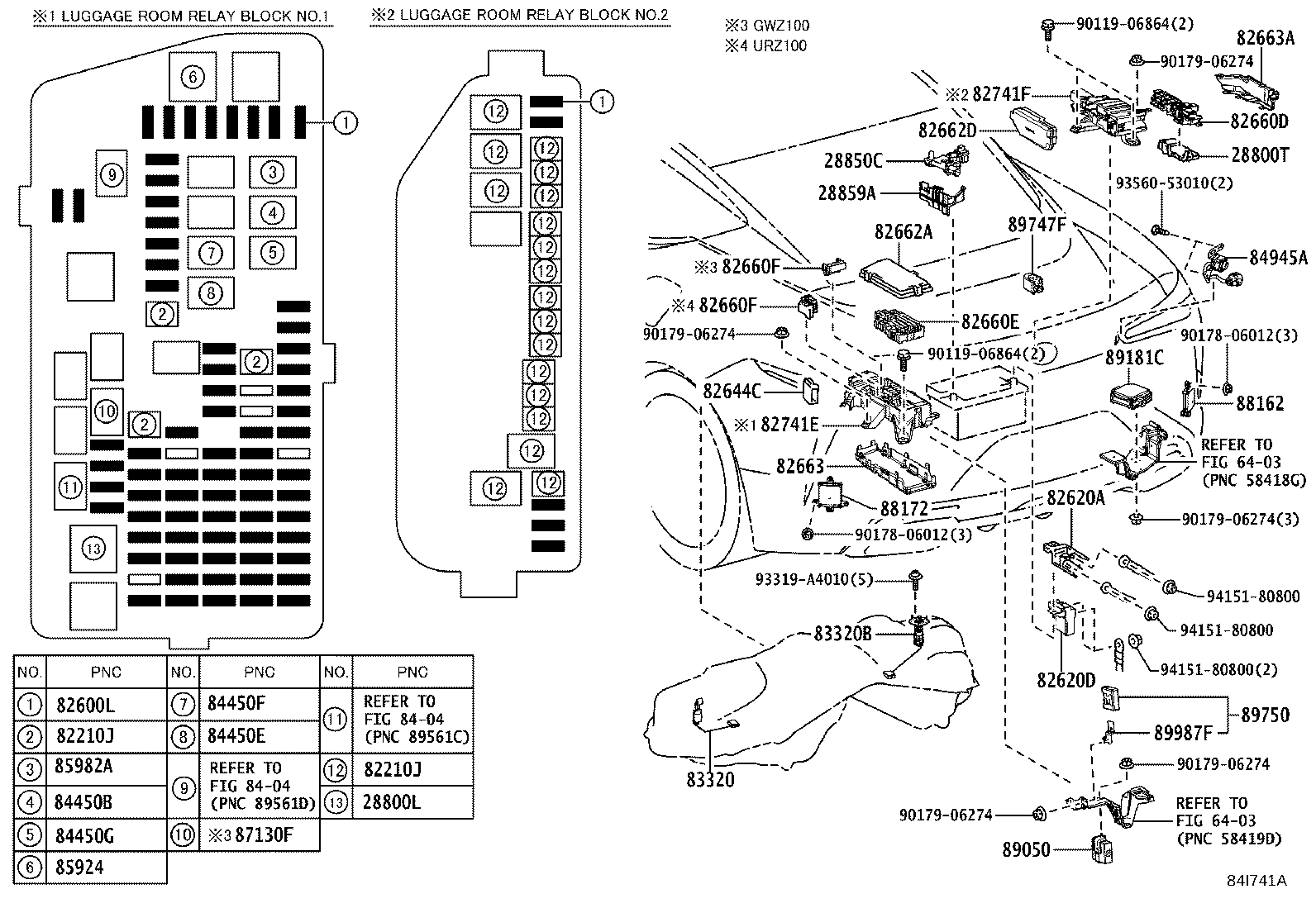

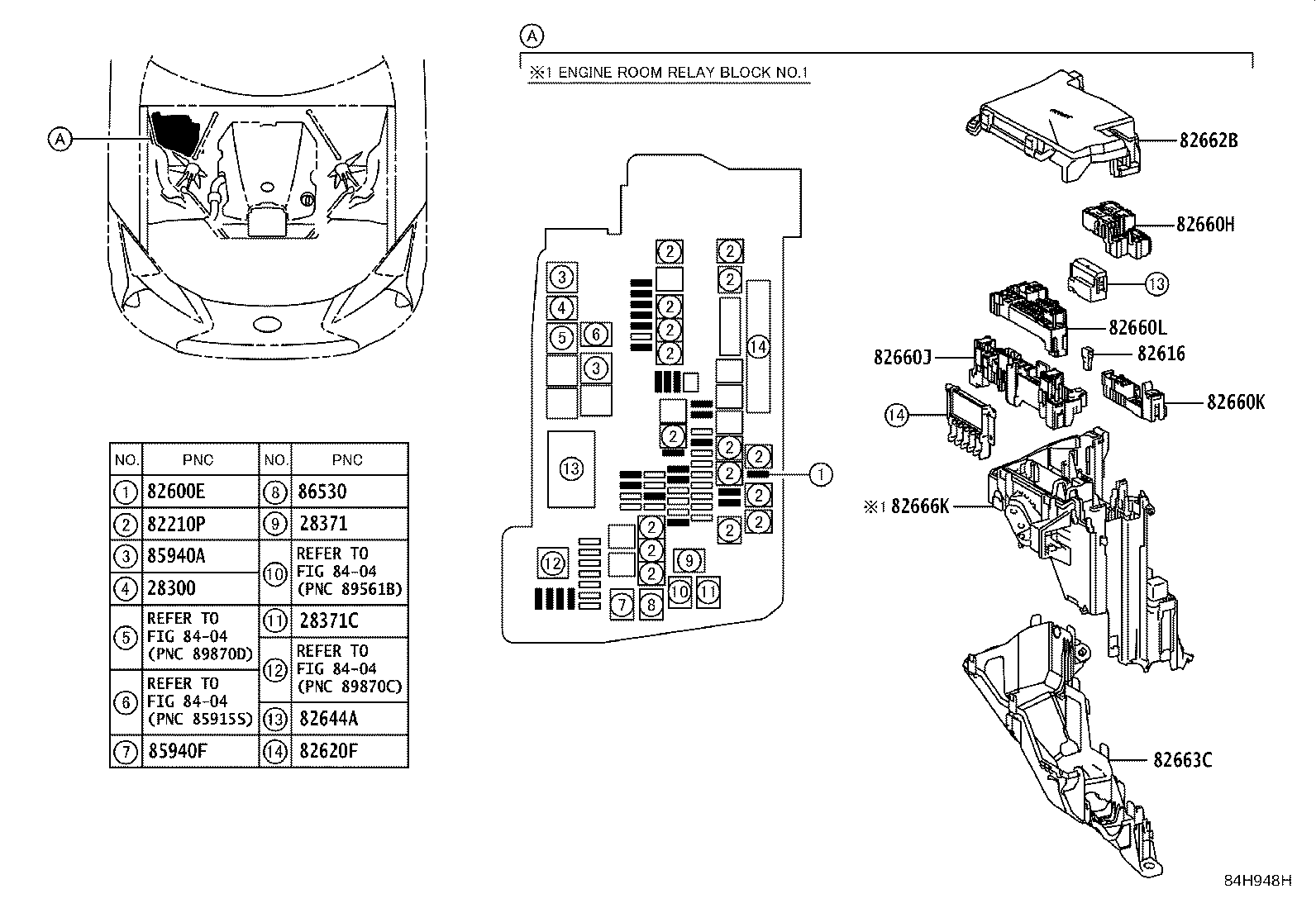

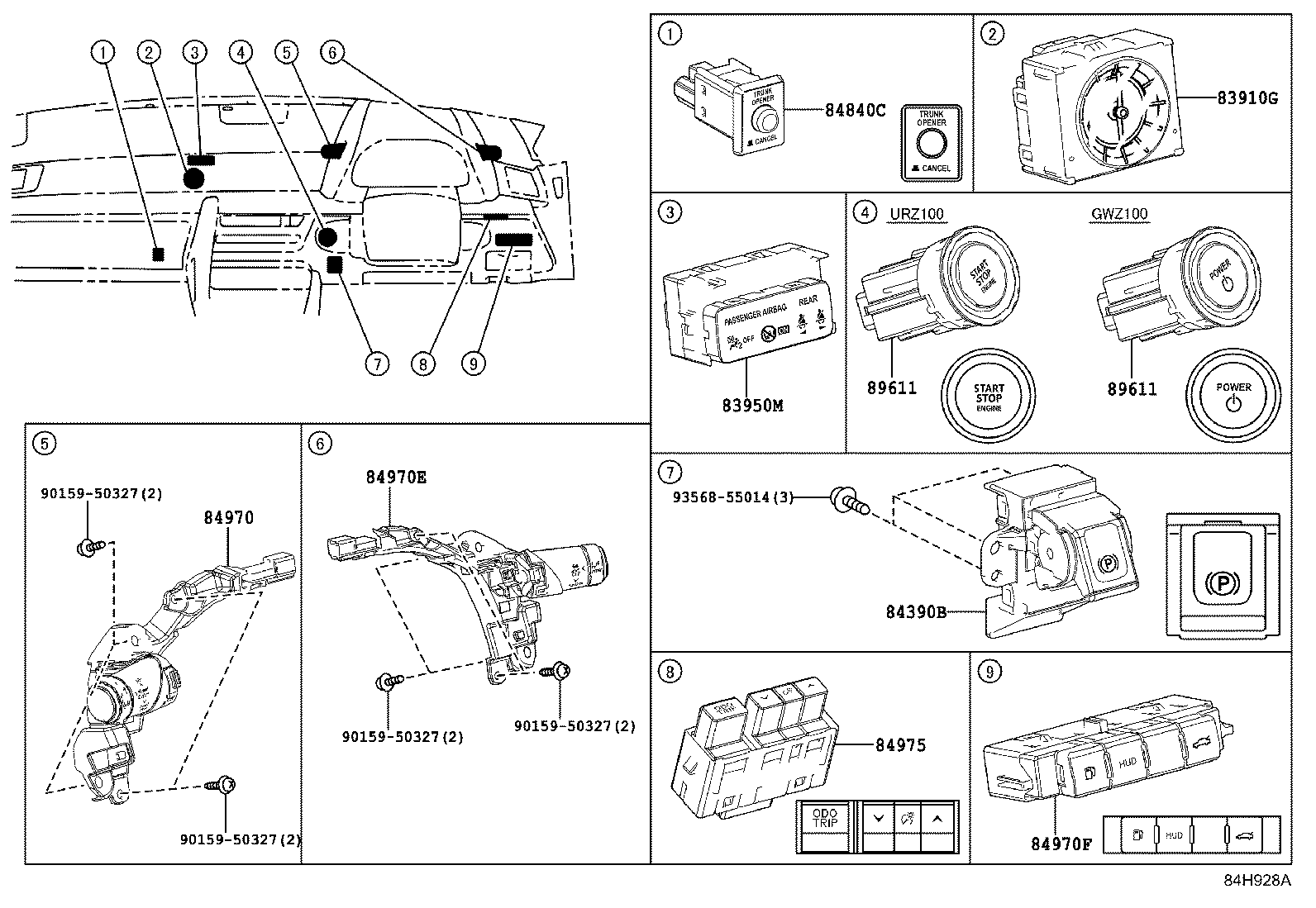

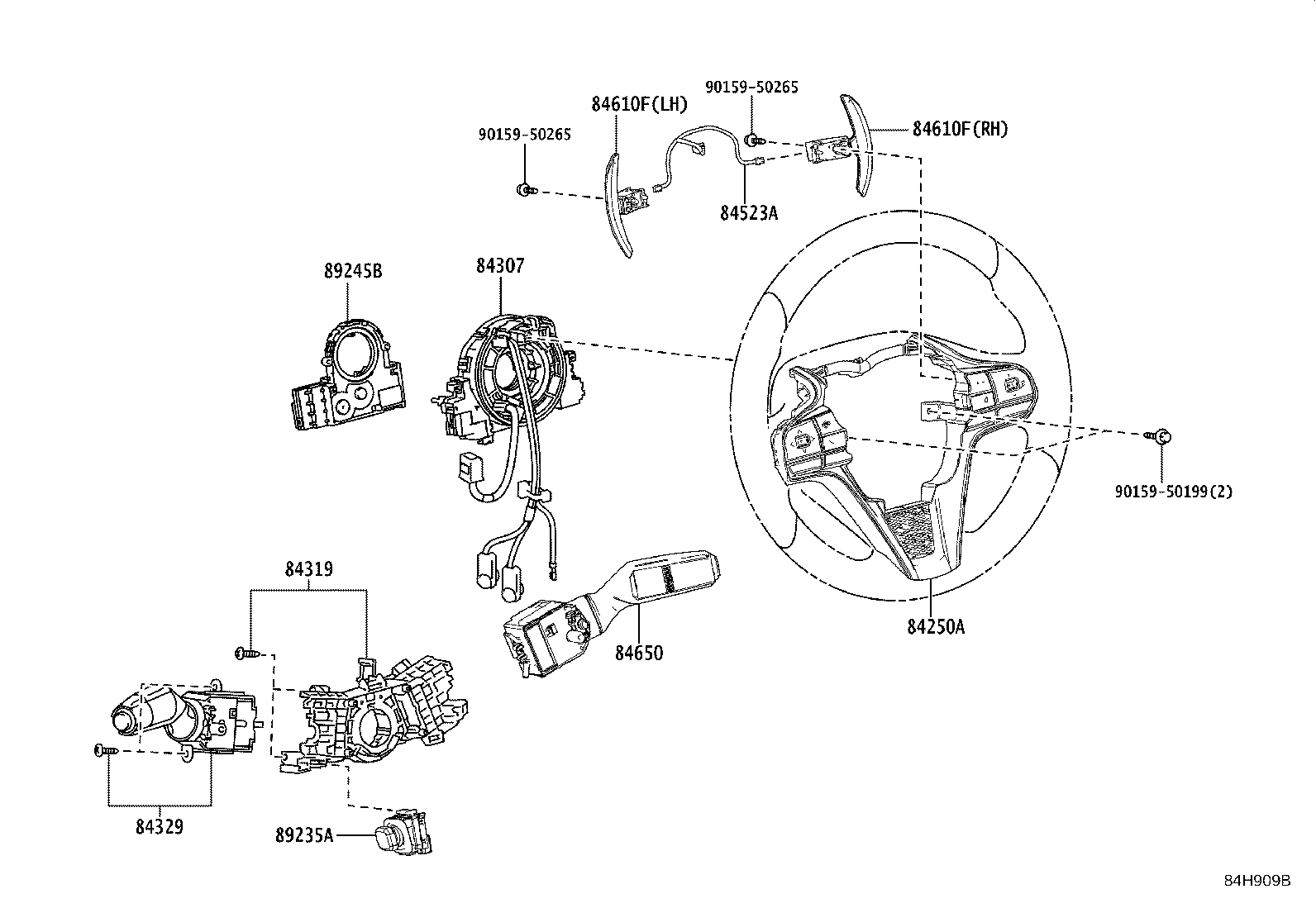

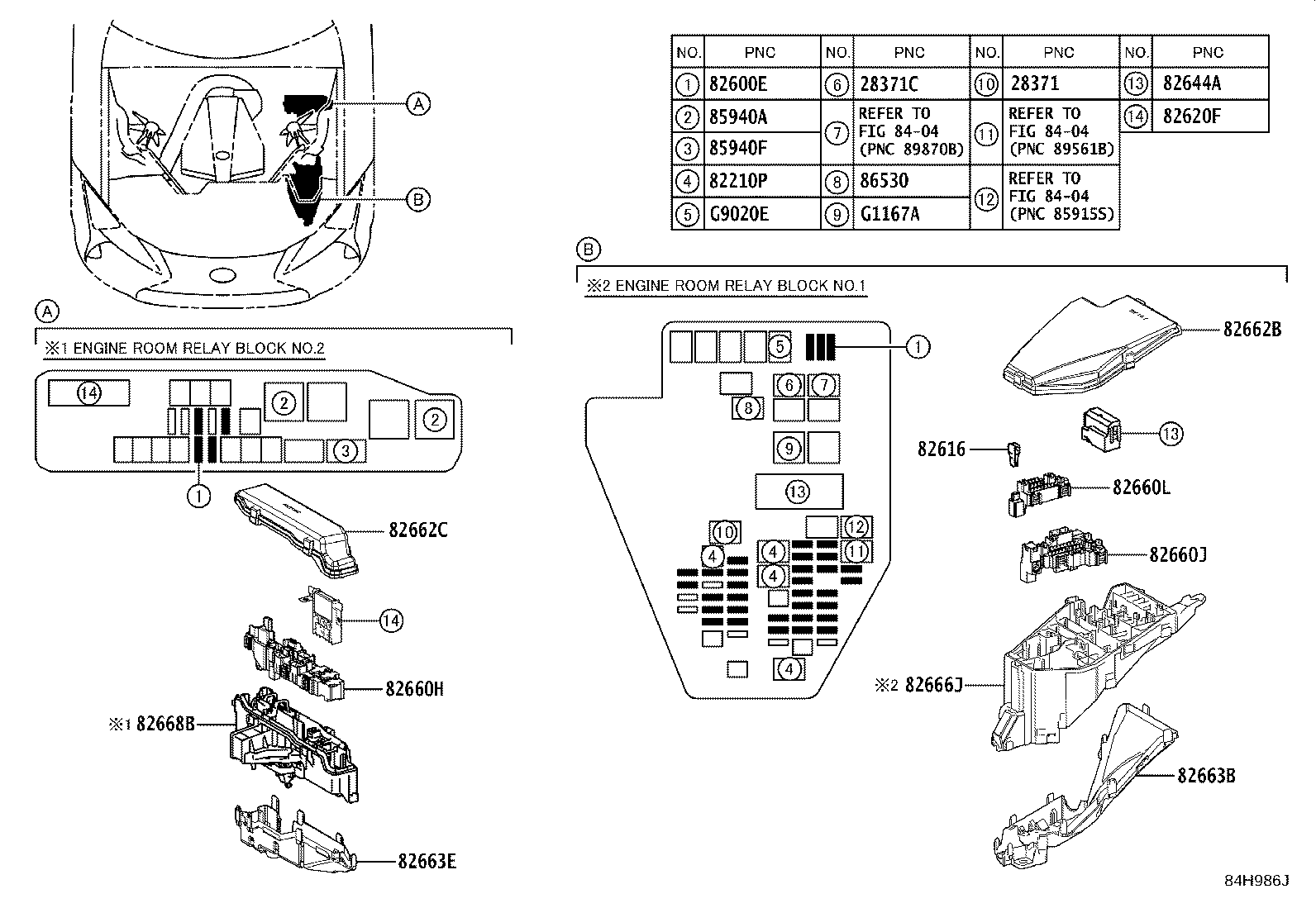

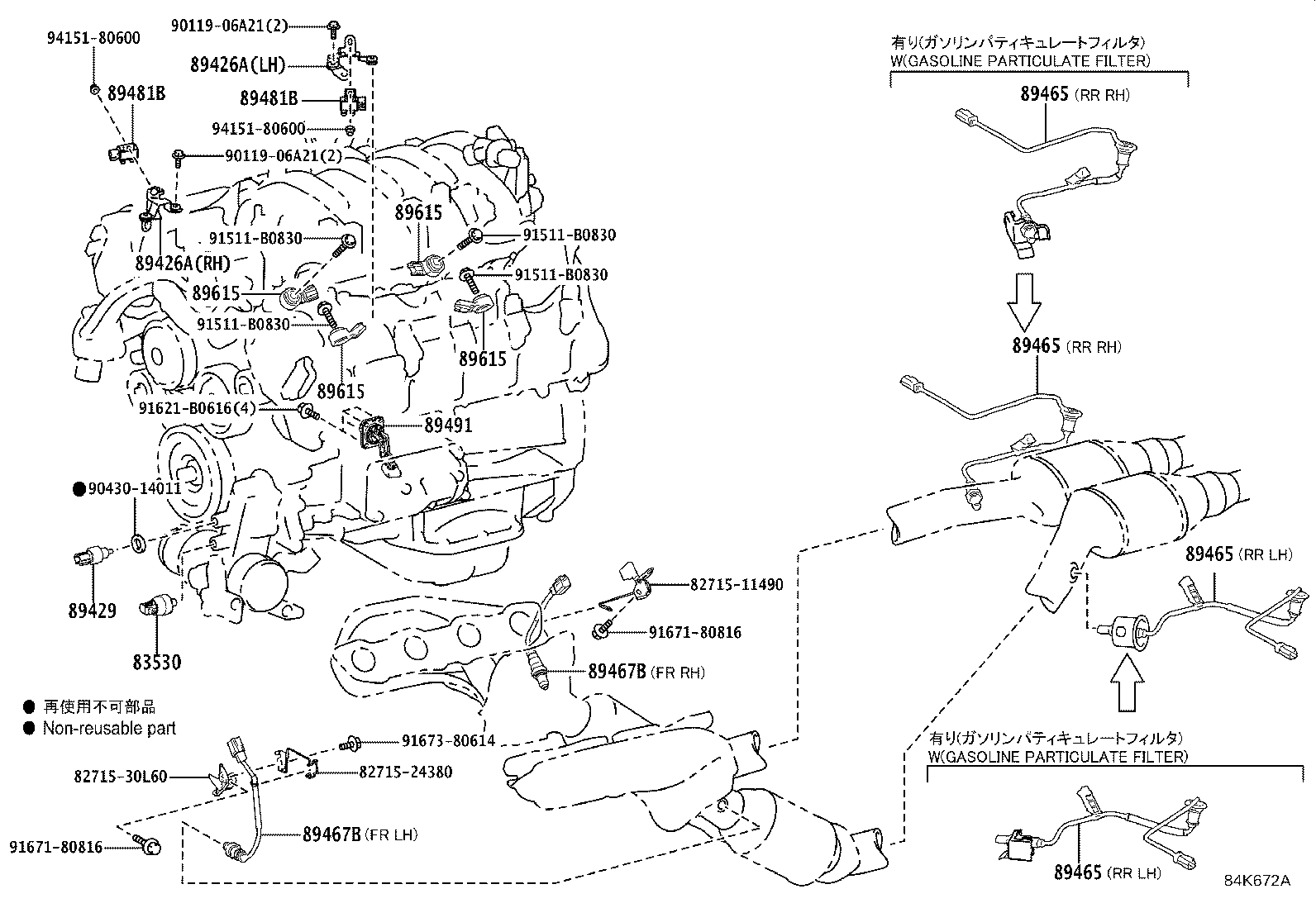

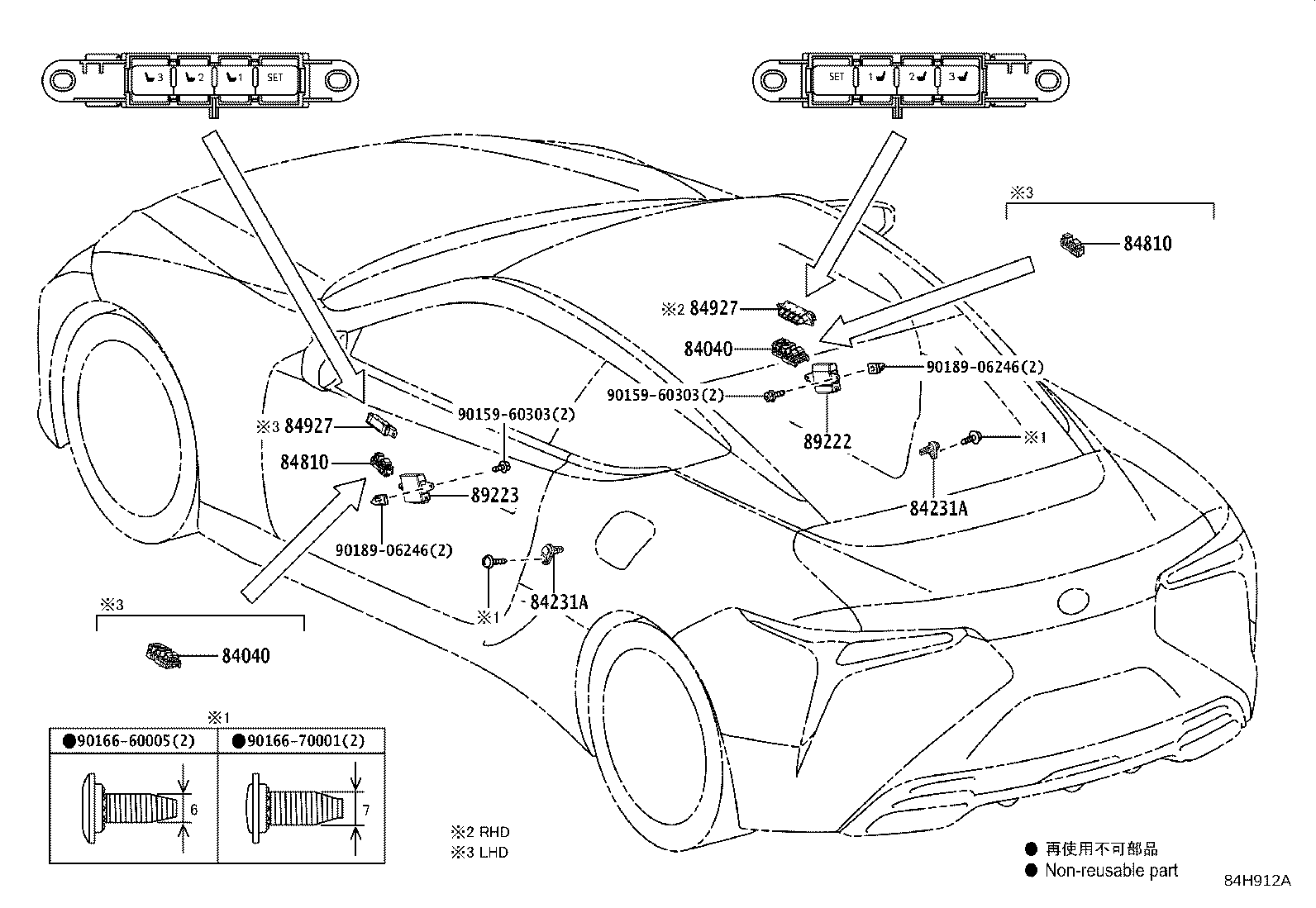

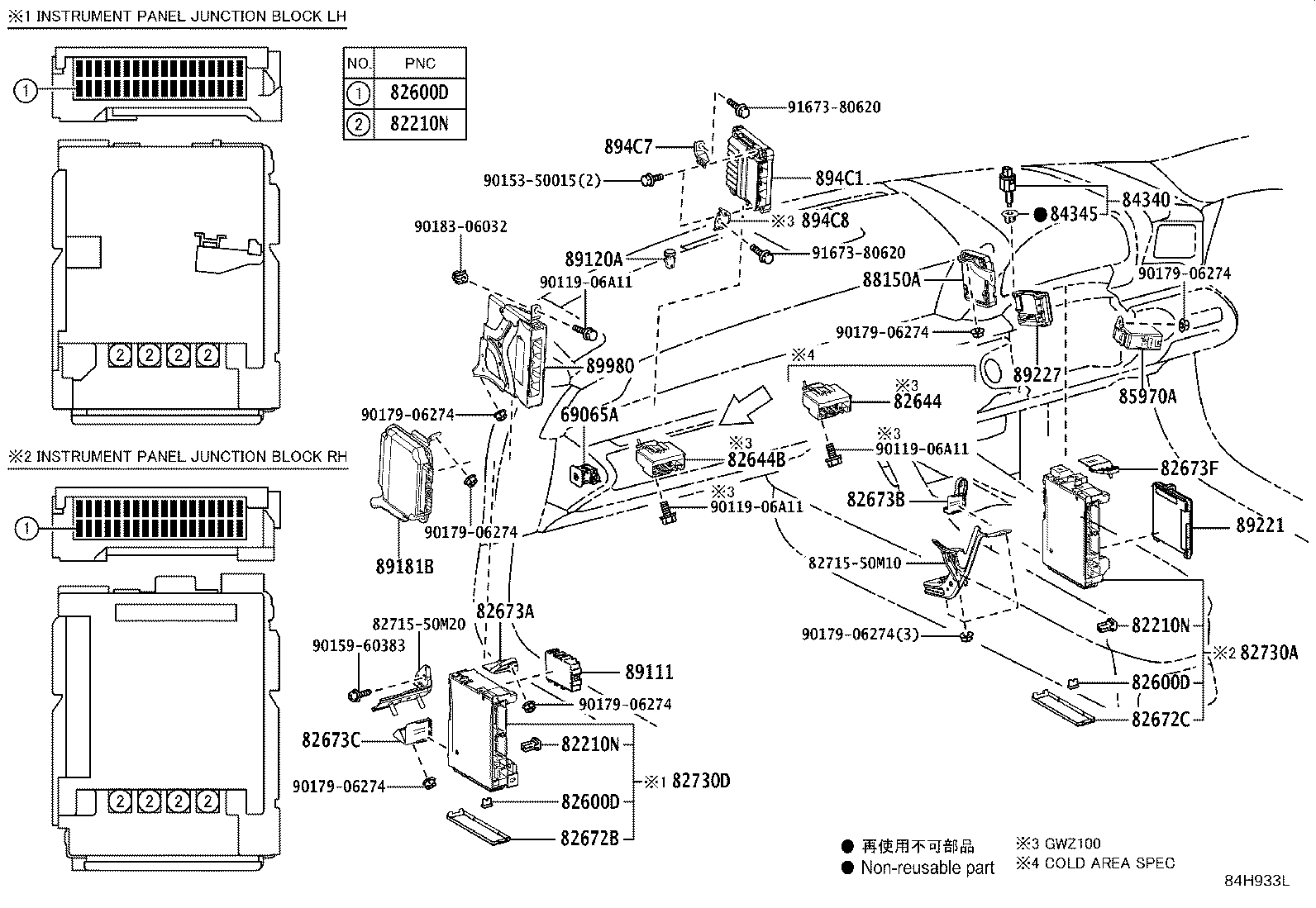

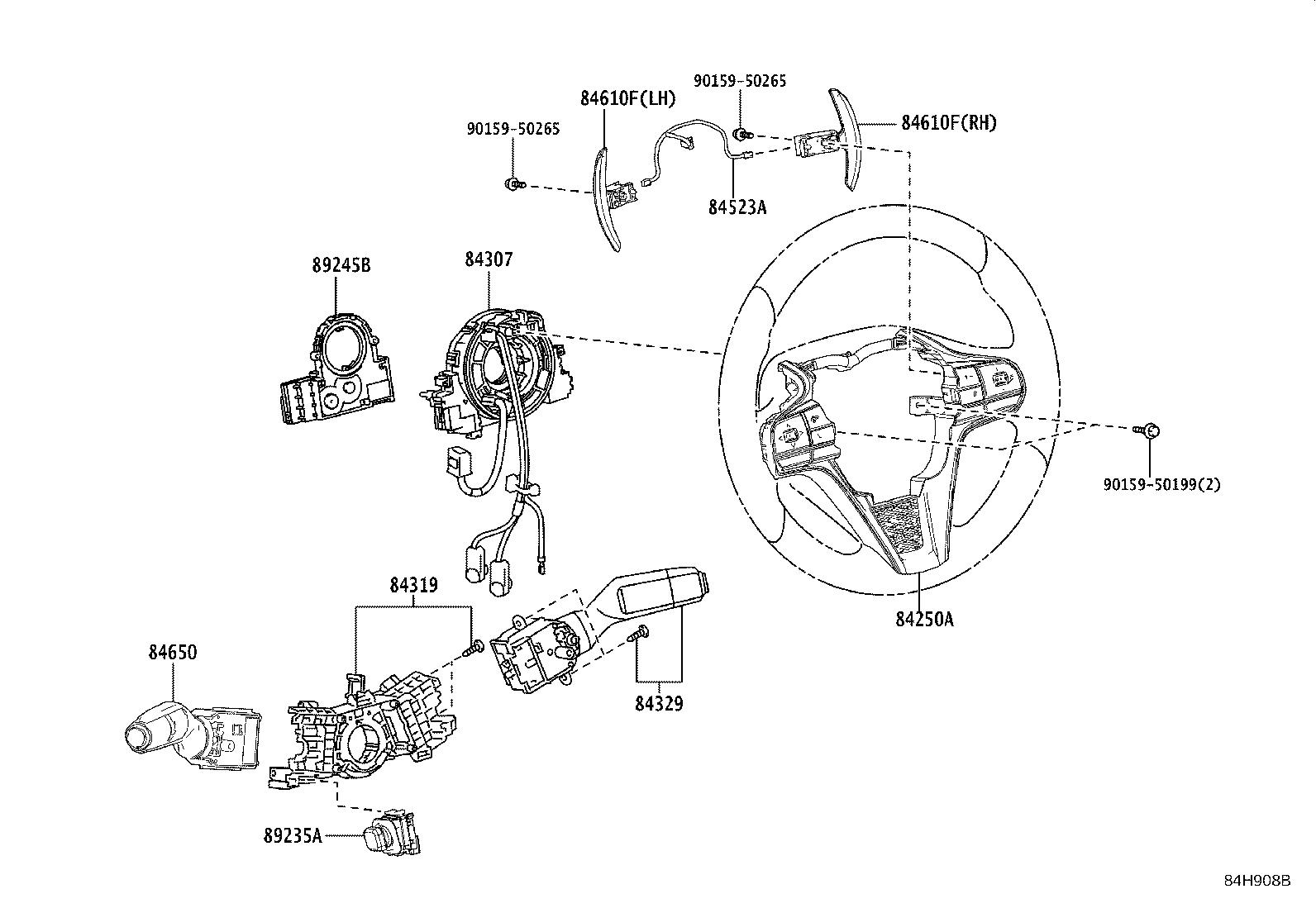

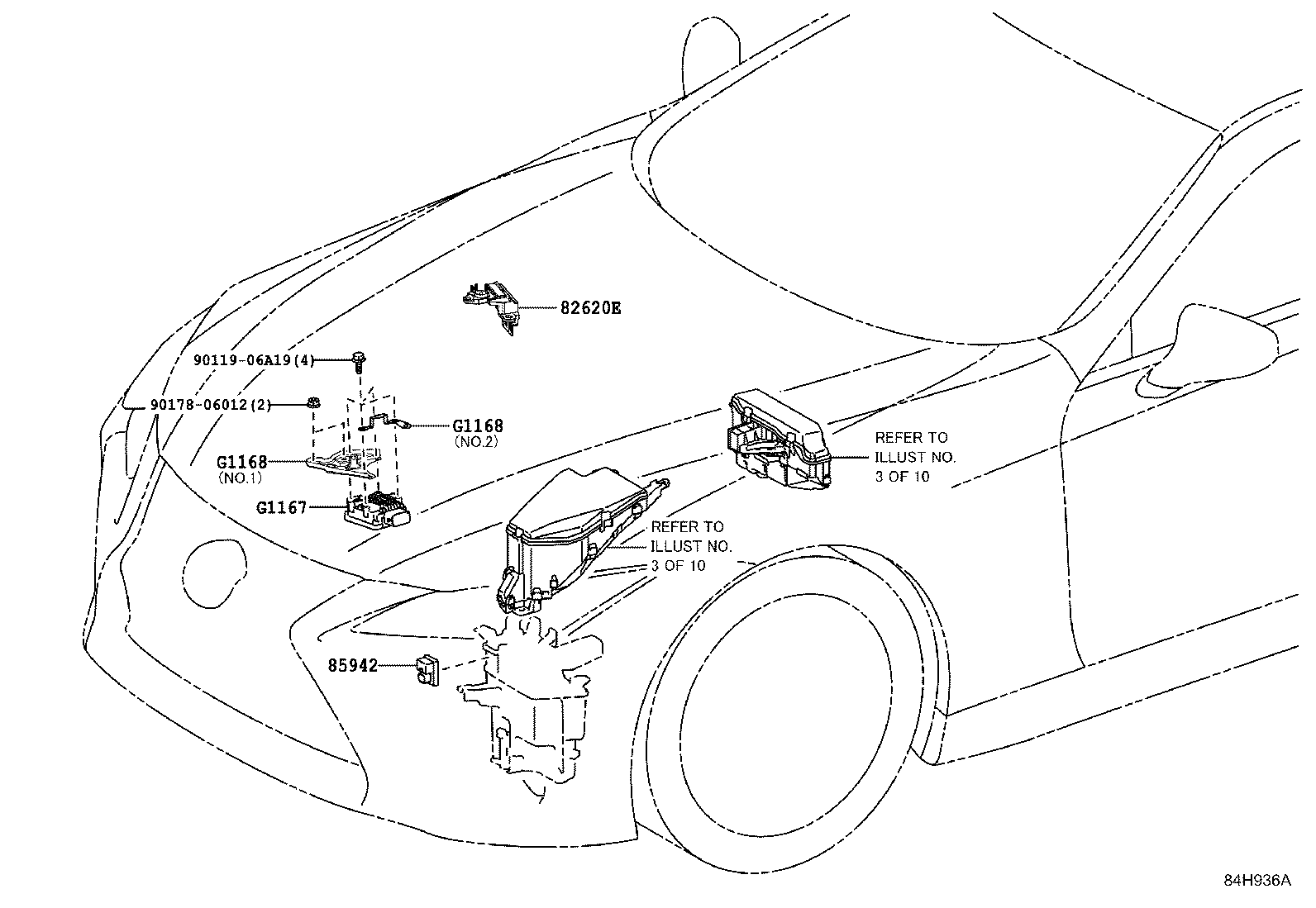

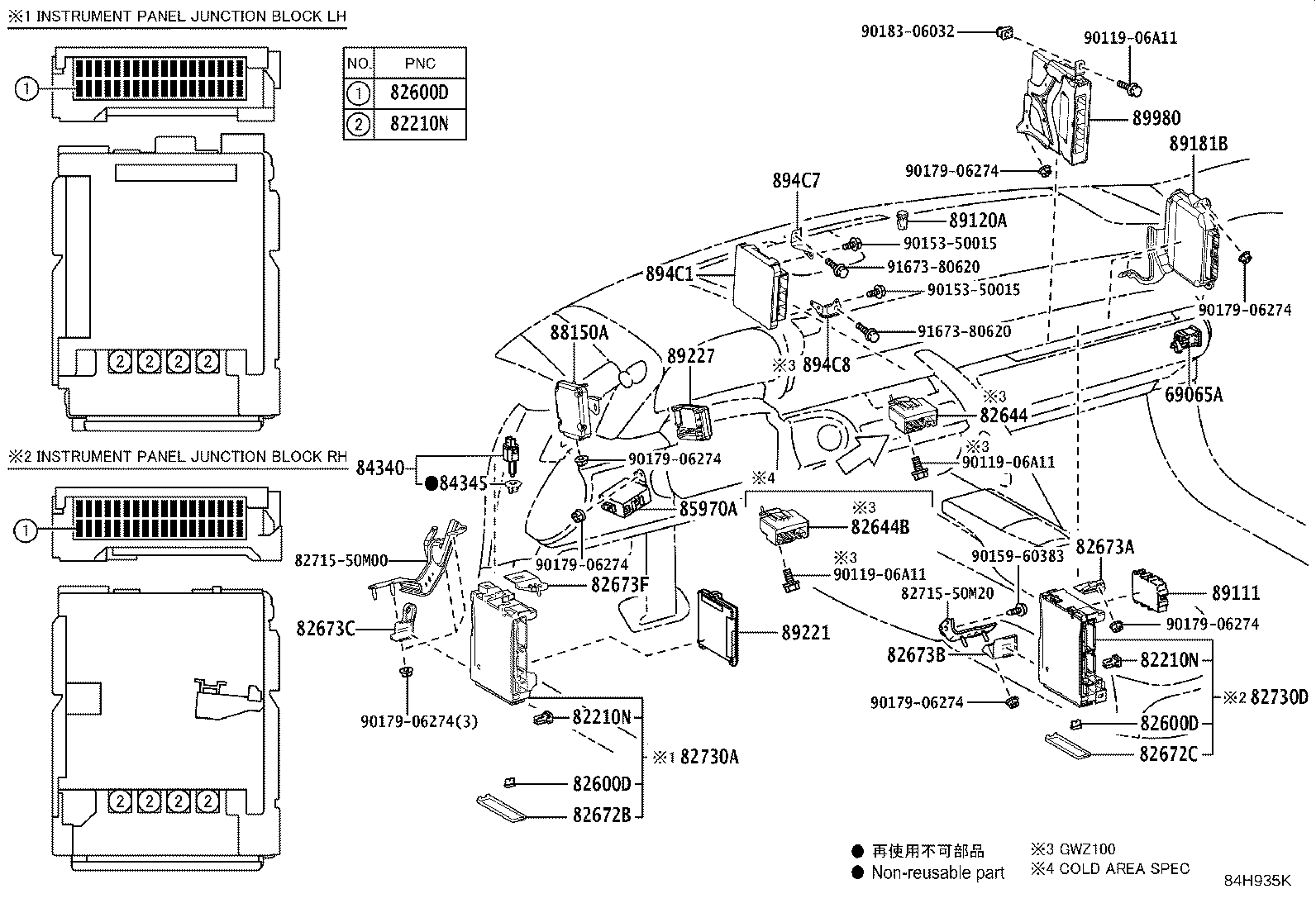

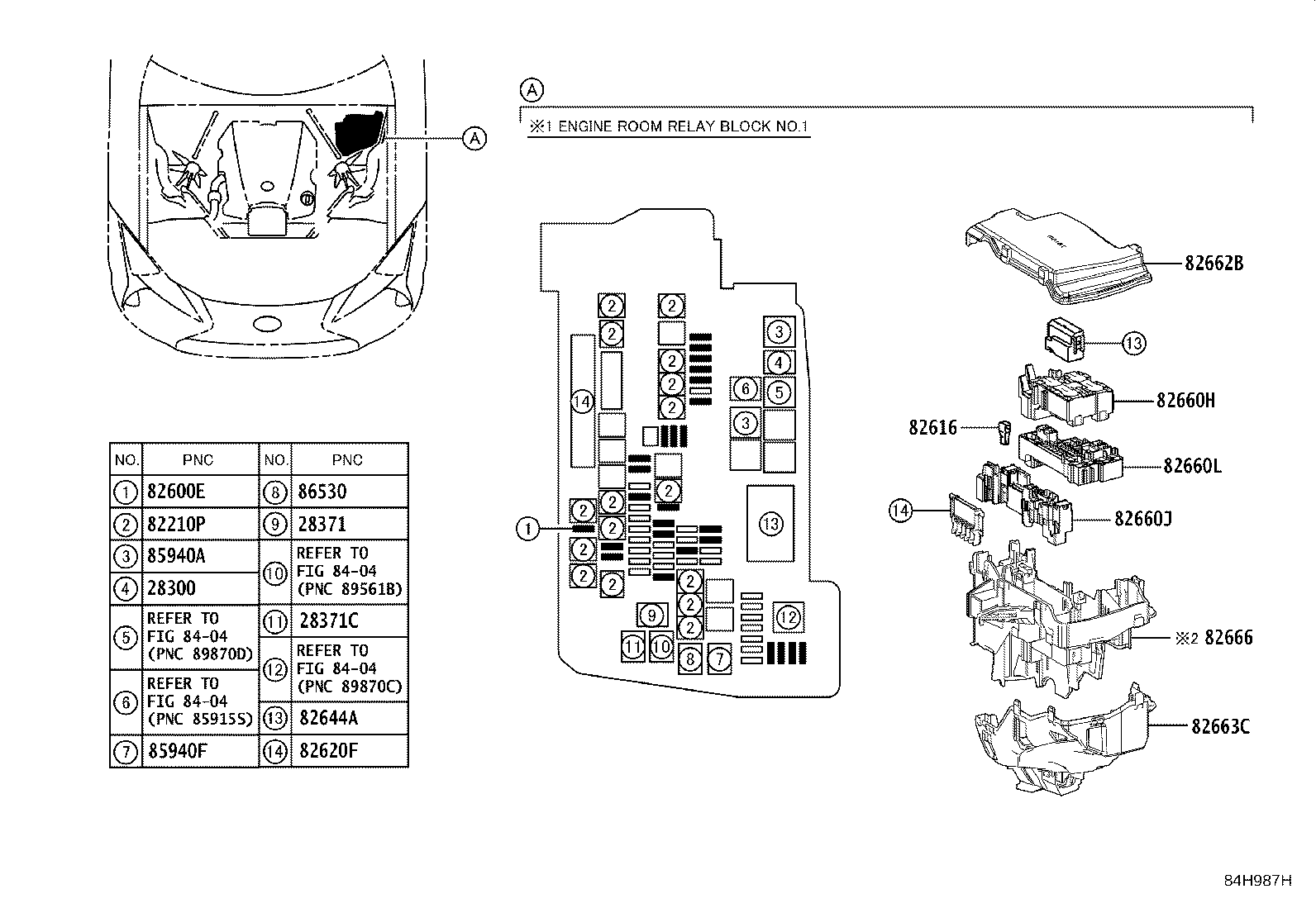

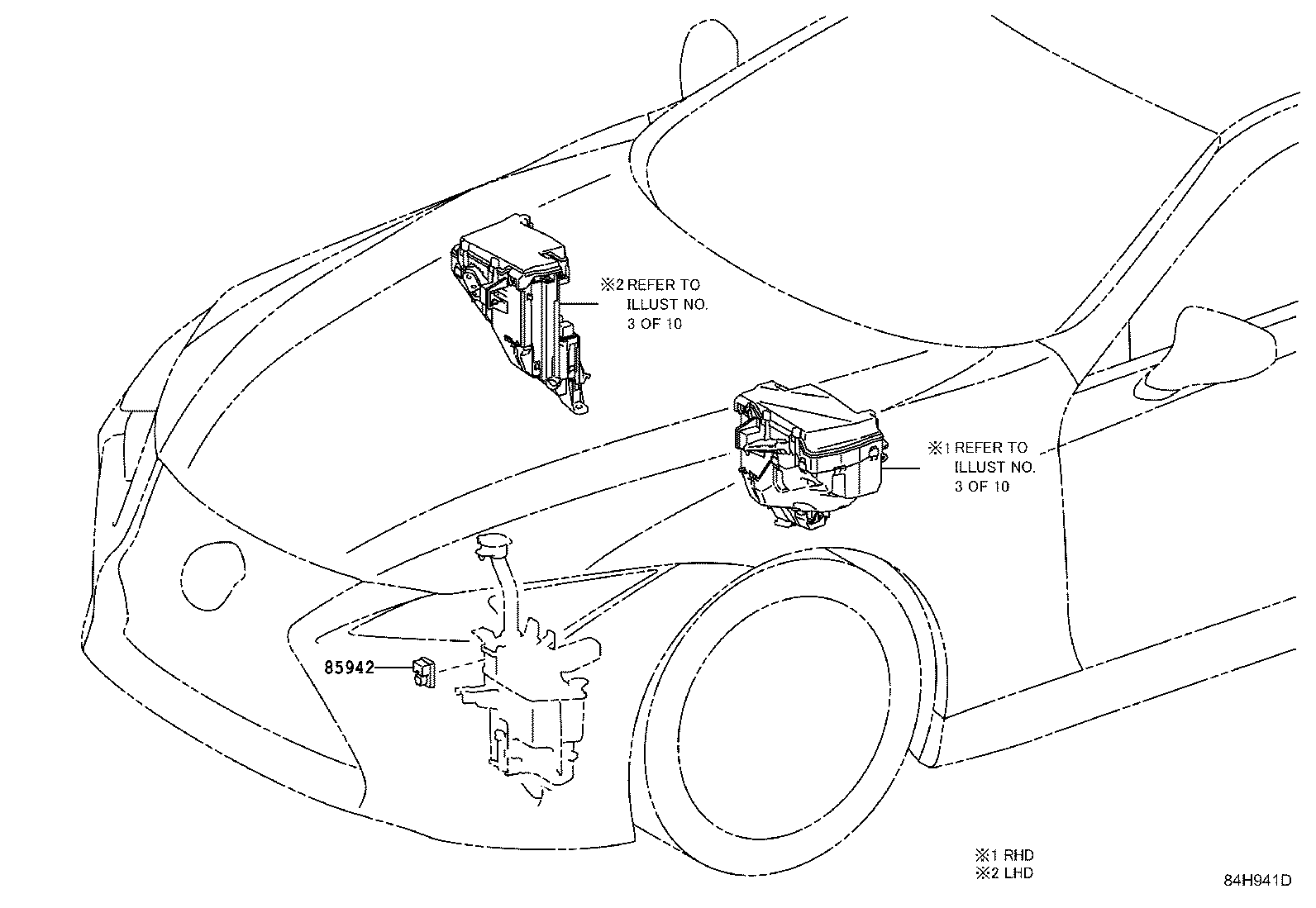

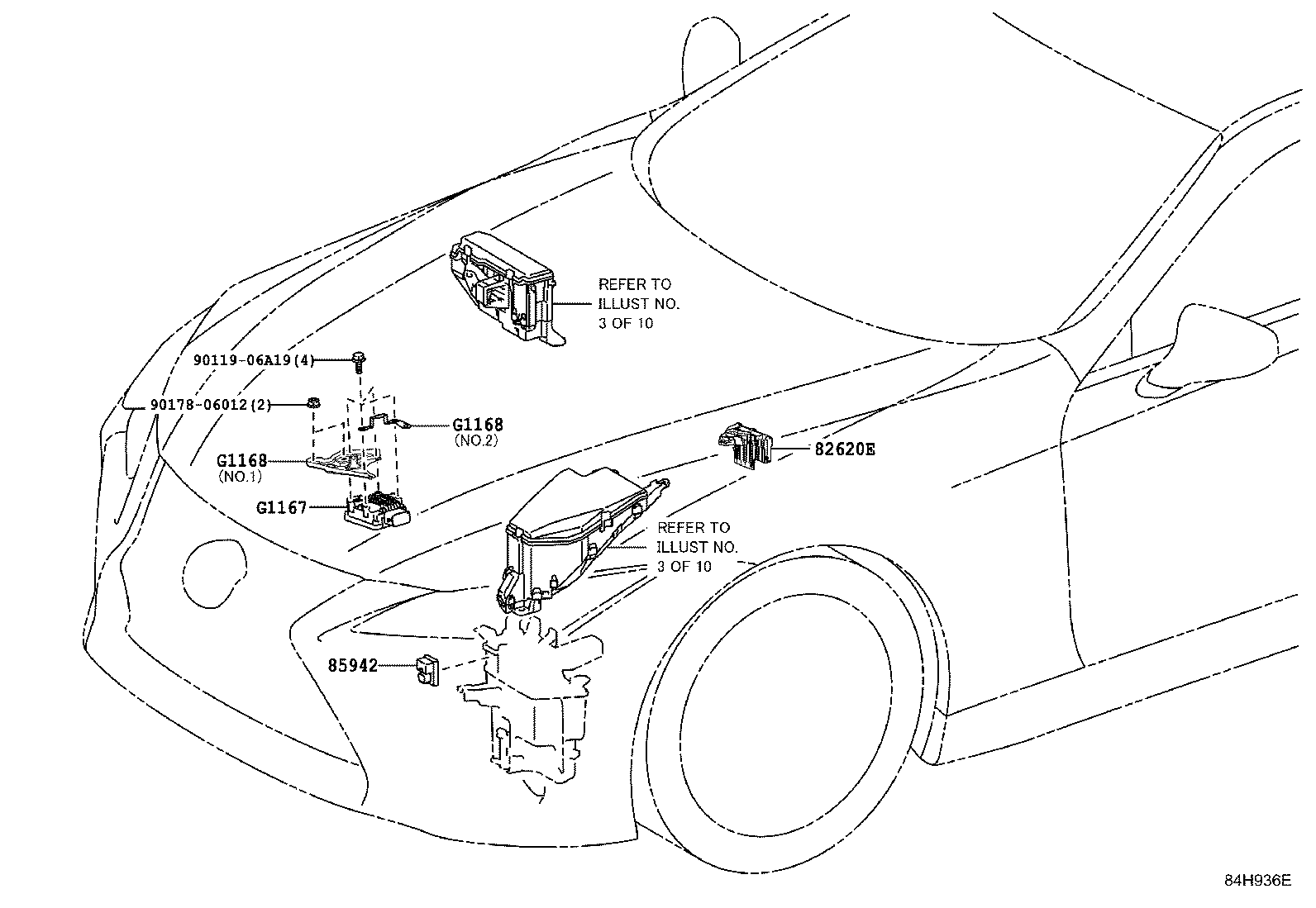

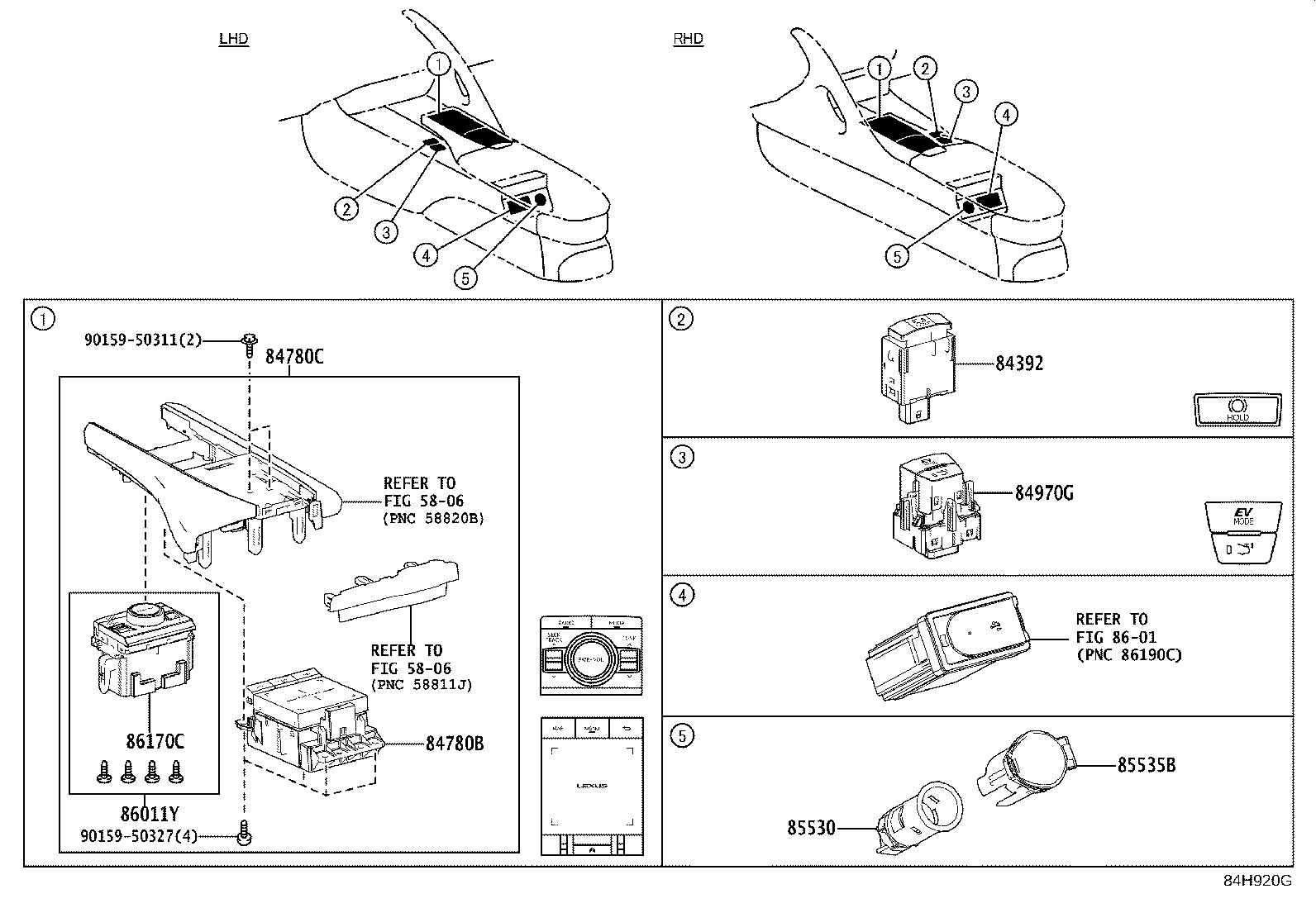

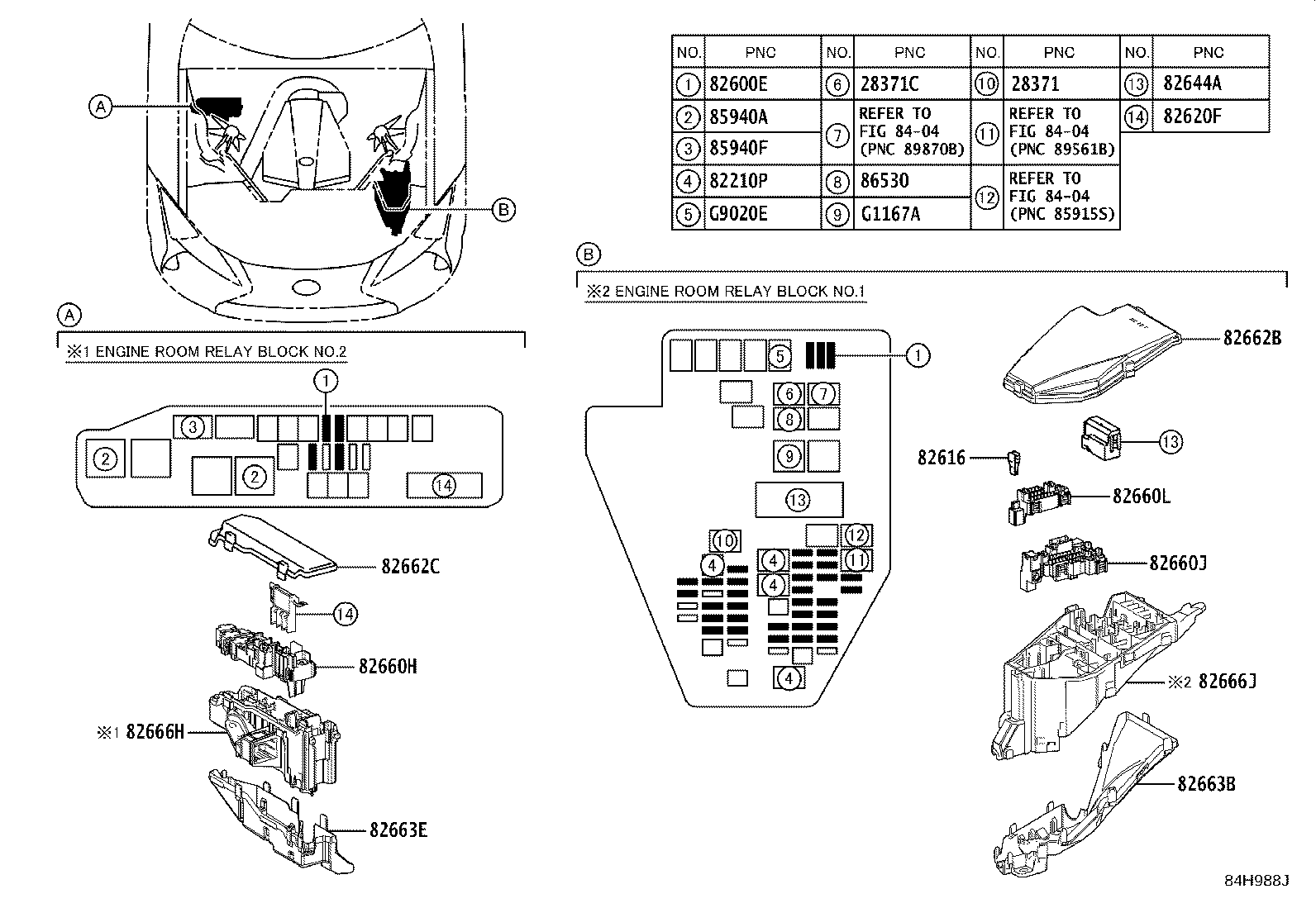

Figure 84L742A 84L742A 2017-05 → — Figure 84K672A 84K672A 2017-05 → — Figure 84H936A 84H936A 2017-05 → — Figure 84H936E 84H936E 2017-05 → — Figure 84H941D 84H941D 2017-05 → — Figure 84H986J 84H986J 2017-05 → — Figure 84H988J 84H988J 2017-05 → — Figure 84H948H 84H948H 2017-05 → — Figure 84H987H 84H987H 2017-05 → — Figure 84H935K 84H935K 2017-05 → — Figure 84H933L 84H933L 2017-05 → — Figure 84H930A 84H930A 2017-05 → — Figure 84H928A 84H928A 2017-05 → — Figure 84H920G 84H920G 2017-05 → — Figure 84H909B 84H909B 2017-05 → — Figure 84H908B 84H908B 2017-05 → — Figure 84H917A 84H917A 2017-05 → — Figure 84H912A 84H912A 2017-05 → — Figure 84I741A 84I741A 2017-05 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28371C Relay, Ignition, NO.2
28800L Relay, Sub Battery
28800T Relay, Sub-battery, NO.2
28850C Sensor Assy, Battery State
28859A Holder, Battery Current Sensor
69065A Cylinder Sub-assy, Airbag Cut Off Switch
82210J Fusible Link
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600L Luggage Room Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82620E Block Assy, Fusible Link
82620F Block Assy, Fusible Link
82644 Computer, Semiconductor Power Integration
82644A Computer, Semiconductor Power Integration, NO.1
82644B Computer, Semiconductor Power Integration, NO.2
82644C Computer, Semiconductor Power Integration, NO.3
82660D Block Assy, Relay
82660E Block Assy, Relay
82660F Block Assy, Relay
82660H Block Assy, Relay
82660J Block Assy, Relay
82660K Block Assy, Relay
82660L Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82662D Cover, Relay Block, Upper, NO.4
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82663C Cover, Relay Block Lower, NO.4
82663E Cover, Relay Block, Lower, NO.7
82666 Holder, Connector
82666H Holder, Connector, NO.2
82666J Holder, Connector, NO.3
82666K Holder, Connector, NO.4
82668B Holder, Connector, NO.5
82672B Cover, Junction Block
82672C Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673C Bracket, Junction Block
82673F Bracket, Junction Block
82730A Block Assy, Driver Side Junction
82730D Block Assy, Passenger Side Junction
82741E Block, Luggage Room Relay, NO.1
82741F Block, Luggage Room Relay, NO.2
83320 Gage Assy, Fuel Sender
83320B Gage Assy, Fuel Sender, NO.2
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83910G Clock Assy
83950M Lamp Assy, Telltale
84040 Master Switch Assy,Multiplex Network
84231A Switch, Courtesy Lamp
84250A Switch Assy, Steering Pad
84307 Cable Sub-assy, Spiral W/Sensor
84319 Housing, Steering Wheel Switch
84329 Switch, Turn Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84390B Switch Assy, Electric Parking Brake
84392 Switch, Brake Hold
84450B Relay, Luggage Accessory
84450E Relay, Luggage Ignition 1, NO.1
84450F Relay, Luggage Ignition 1, NO.2
84450G Relay, Luggage Ignition 1, NO.3
84523A Wire, Switch NO.2
84610F Switch Assy, Transmission Shift
84650 Switch Assy, Windshield Wiper
84656A Bezel, Switch
84656C Bezel, Switch NO.2
84780B Controller Assy, Remote Operation
84780C Switch Assy, Radio Remote Tuning
84810 Switch Assy, Power Window Regulator
84840C Switch Assy, Luggage Door Opening, Cancel
84921C Knob, Power Seat Switch, RH
84921D Knob, Power Seat Switch, LH
84921J Knob, Power Seat Switch, RH
84921K Knob, Power Seat Switch, LH
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84927 Switch, Seat Memory
84945A Switch, Luggage Electrical Key
84970 Switch Assy, Combination
84970E Switch Assy, Combination NO.2
84970F Switch Assy, Combination, NO.3
84970G Switch Assy, Combination, NO.4
84975 Switch, Trip
85530 Socket Assy, Power Outlet, NO.1
85535B Cover, Power Outlet Socket, NO.1
85924 Relay, Ignition Control
85940A Relay, Windshield Wiper Switch
85940F Relay Assy, Windshield Deicer
85942 Relay, Headlamp Cleaner Control
85970A Relay Assy, Double Lock Door Control
85982A Relay, Luggage Opener
86011Y Switch & Volume, Set
86170C Switch & Volume Assy
86530 Relay Assy, Horn
87130F Relay, Battery Blower, NO.1
88150A Computer Assy, Driving Support
88162 Sensor, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
89050 Computer Assy, Parking Brake
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89181B Computer, Steering Control, FR
89181C Computer, Steering Control, RR
89221 Computer, Multiplex Network Body
89222 Computer, Multiplex Network Door, Front RH
89223 Computer, Multiplex Network Door, Front LH
89227 Computer, Multiplex Tilt & Telescopic
89235A Switch, Tilt & Telescopic
89245B Sensor, Steering
89413A Sensor, Transmission Revolution
89422A Sensor, Water Temperature
89426A Bracket, Vacuum Sensor
89429 Sensor, Oil Temperature
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
894C1 Computer, Shift Control
894C7 Bracket, Shift Control Computer, NO.1
894C8 Bracket, Shift Control Computer, NO.2
89611 Switch, Push Start
89615 Sensor, Knock Control
89710 Computer Assy, Position Control
89747F Buzzer, Blind Spot Monitor
89750 Computer Assy, Spoiler Control
89980 Computer Assy, Hybrid Vehicle Control
89987F Bracket, Computer, NO.1
G1167 Controller, Oil Pump Motor
G1167A Relay (FOR OIL PUMP MOTOR)
G1168 Bracket, Oil Pump Motor Controller
G9020E Relay, Hybrid Water Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
