Toyota Lexus RX Series
2022-11 → present · chassis AALH1#,SALA15,TALA1#,TALH17 · catalogue 521260 · Europe
Supported model
Data version 2024-10

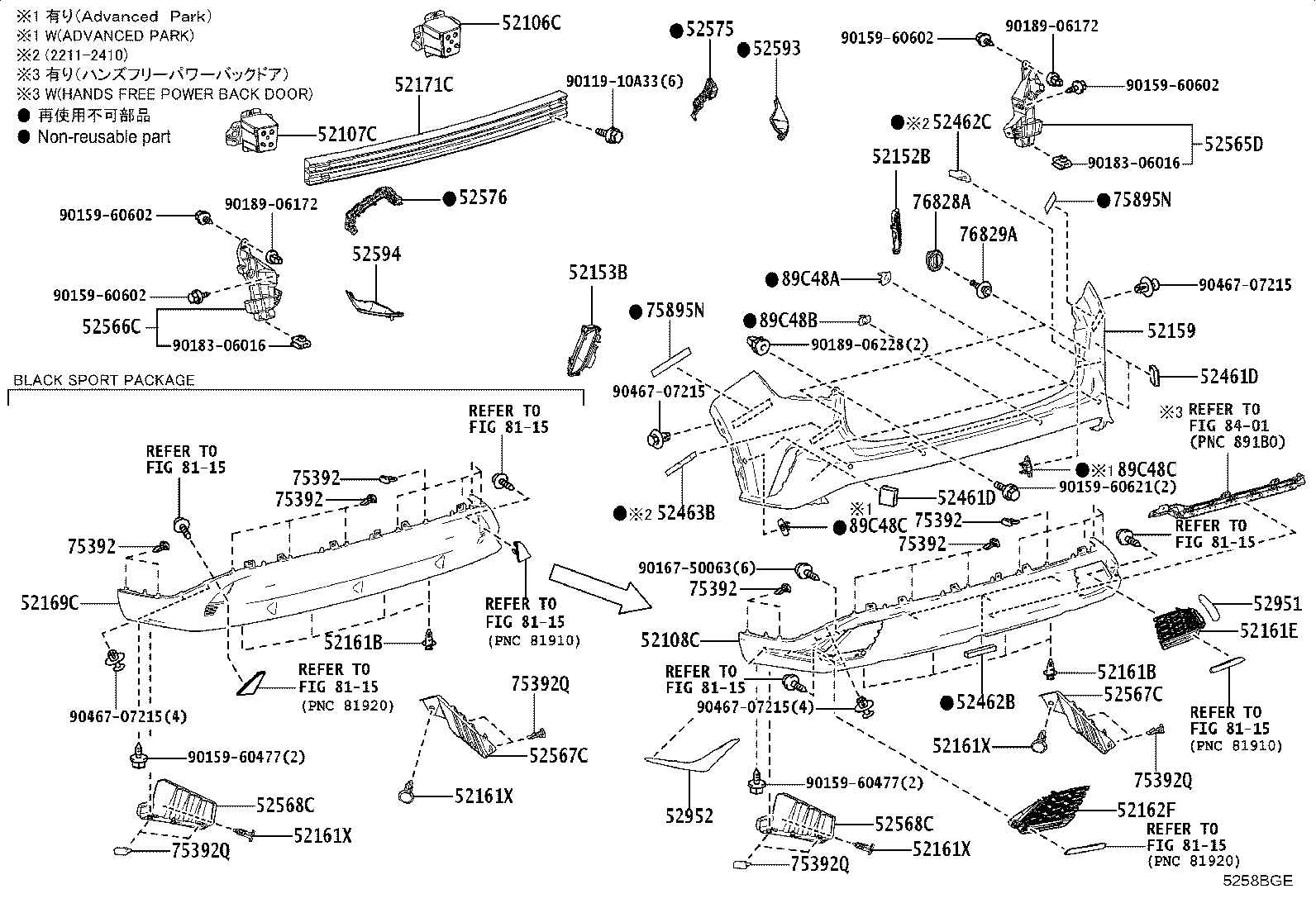

Rear Bumper & Bumper Stay
35 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52106C | Extension Sub-assy, Rear Bumper, RH |
| 52107C | Extension Sub-assy, Rear Bumper, LH |
| 52108C | Extension Sub-assy, Rear Bumper, Center |
| 52152B | Extension, Rear Bumper, RH |
| 52153B | Extension, Rear Bumper, LH |
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52161E | Extension, Rear Bumper Side, RH |
| 52161X | Piece, Rear Bumper |
| 52162F | Extension, Rear Bumper Side, LH |
| 52169C | Cover, Rear Bumper, Lower |
| 52171C | Reinforcement, Rear Bumper |
| 52461D | Cushion, Rear Bumper |
| 52462B | Pad, Rear Bumper |
| 52462C | Pad, Rear Bumper, RH |
| 52463B | Pad, Rear Bumper, LH |
| 52565D | Retainer, Rear Bumper, Lower RH |
| 52566C | Retainer, Rear Bumper, Lower LH |
| 52567C | Retainer, Rear Bumper Lower Side, RH |
| 52568C | Retainer, Rear Bumper Lower Side, LH |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52593 | Silencer, Rear Bumper, RH |
| 52594 | Silencer, Rear Bumper, LH |
| 52751 | Moulding, Rear Bumper |
| 52951 | Guard, Side Bumper, RH |
| 52952 | Guard, Side Bumper, LH |
| 75392 | Retainer, Outside Moulding |
| 75392Q | Retainer, Outside Moulding, NO.2 |
| 75895N | Tape, Moulding, NO.1 |
| 76828A | Retainer, Back Door Garnish, NO.3 |
| 76829A | Retainer, Back Door Garnish |
| 89C48A | Retainer, Ultrasonic Sensor, Rear Corner |
| 89C48B | Retainer, Ultrasonic Sensor, Rear Center |
| 89C48C | Retainer, Ultrasonic Sensor, Rear Side |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
