Toyota Lexus RX Series
2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe
Supported model
Data version 2023-09

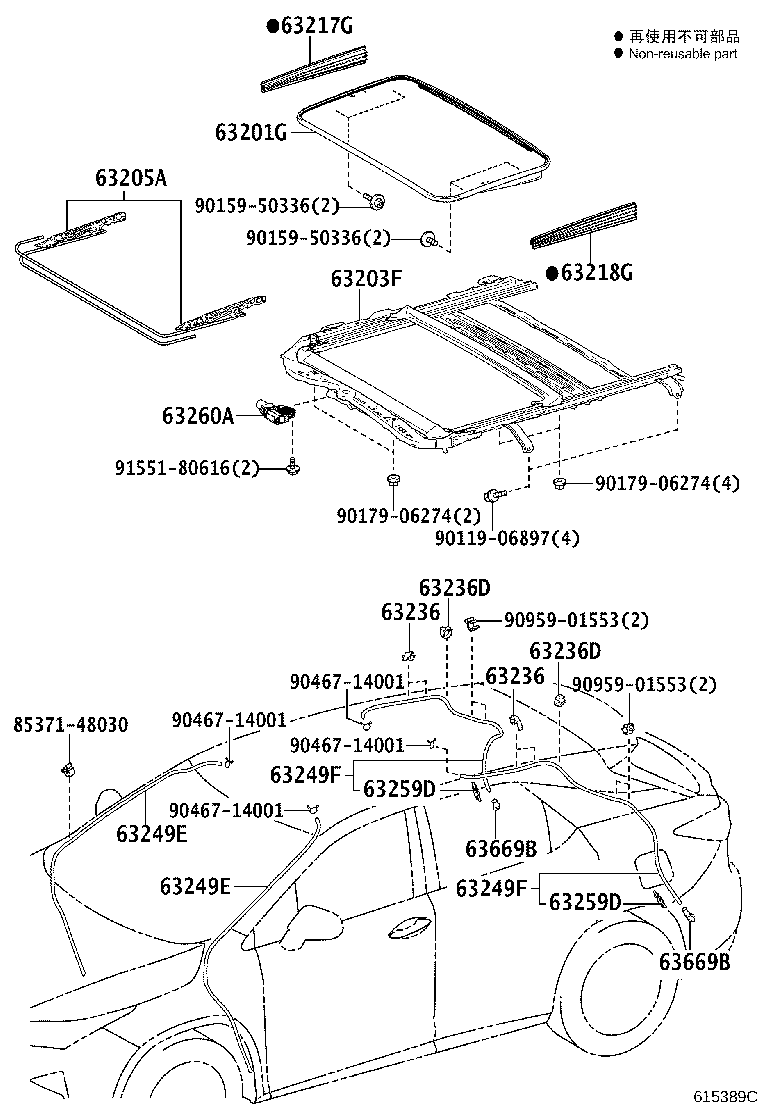

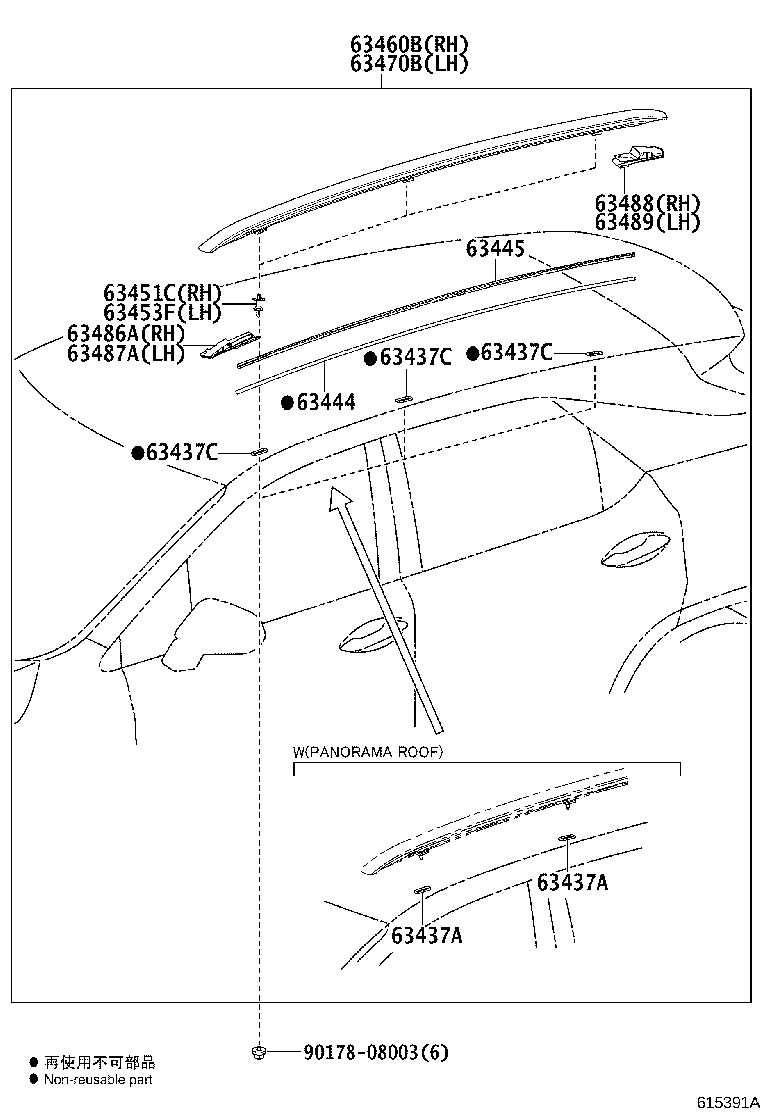

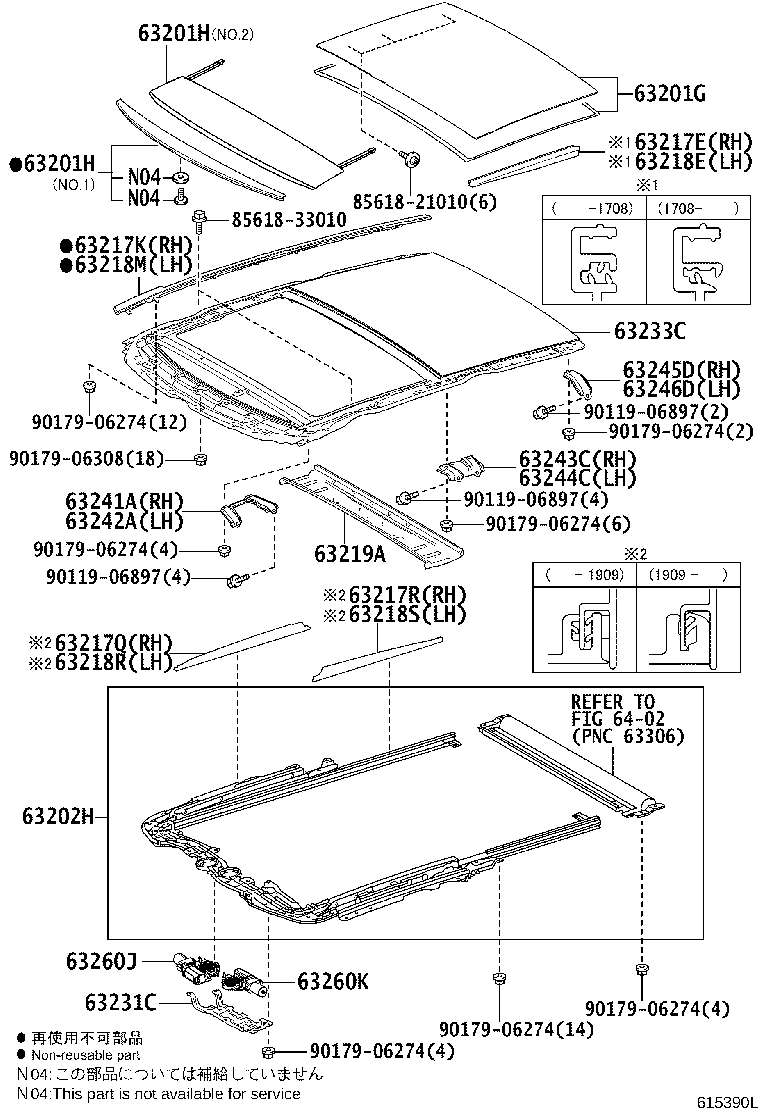

Roof Panel & Back Window Glass
56 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 63102A | Panel Sub-assy, Windshield Header |
| 63103A | Reinforcement Sub-assy, Roof Panel |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63123C | Reinforcement, Roof Panel |
| 63138 | Bracket, Dome Lamp, NO.2 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63201H | Panel Sub-assy, Slide Roof |
| 63202H | Rail Sub-assy, Slide Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63205A | Cable Sub-assy, Sliding Roof Drive |
| 63217E | Garnish, Sliding Roof, Front RH |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63217K | Garnish, Sliding Roof Side, RH |
| 63217Q | Garnish, Sliding Roof Side, RH |
| 63217R | Garnish, Sliding Roof Side, RH |
| 63218E | Garnish, Sliding Roof, Front LH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63218M | Garnish, Sliding Roof Side, LH |
| 63218R | Garnish, Sliding Roof Side, LH |
| 63218S | Garnish, Sliding Roof Side, LH |
| 63219A | Garnish, Sliding Roof, Rear |
| 63231C | Bracket, Room Lamp |
| 63233C | Panel, Sliding Roof Housing |
| 63236 | Clamp, Sliding Roof OR Removable Roof Drain Hose |
| 63236D | Clamp, Sliding Roof Drain Hose |
| 63241A | Bracket, Sliding Roof Housing Front Mounting, RH |
| 63242A | Bracket, Sliding Roof Housing Front Mounting, LH |
| 63243C | Bracket, Sliding Roof Housing Center Mounting, RH |
| 63244C | Bracket, Sliding Roof Housing Center Mounting, LH |
| 63245D | Bracket, Sliding Roof Housing Rear Mounting, RH |
| 63246D | Bracket, Sliding Roof Housing Rear Mounting, LH |
| 63249E | Hose, Sliding Roof Drain |
| 63249F | Hose, Sliding Roof Drain |
| 63259D | Seal, Sliding Roof, NO.2 |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63260J | Gear Assy, Sliding Roof Drive |
| 63260K | Gear Assy, Sliding Roof Drive |
| 63437A | Seal, Roof Carrier, NO.2 |
| 63437C | Seal, Roof Carrier |
| 63444 | Protector, Roof Carrier, NO.1 |
| 63445 | Protector, Roof Carrier, NO.2 |
| 63451C | Retainer, Roof Rack, Front RH |
| 63453F | Retainer, Roof Rack, Front LH |
| 63460B | Rack Assy, Roof, RH |
| 63470B | Rack Assy, Roof, LH |
| 63486A | Cushion, Roof Rack Leg, Front RH |
| 63487A | Cushion, Roof Rack Leg, Front LH |
| 63488 | Cushion, Roof Rack Leg, Rear RH |
| 63489 | Cushion, Roof Rack Leg, Rear LH |
| 63669B | Grommet, Sliding Roof Drain |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
