Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

11 part groups · 3 illustrations

Illustrations

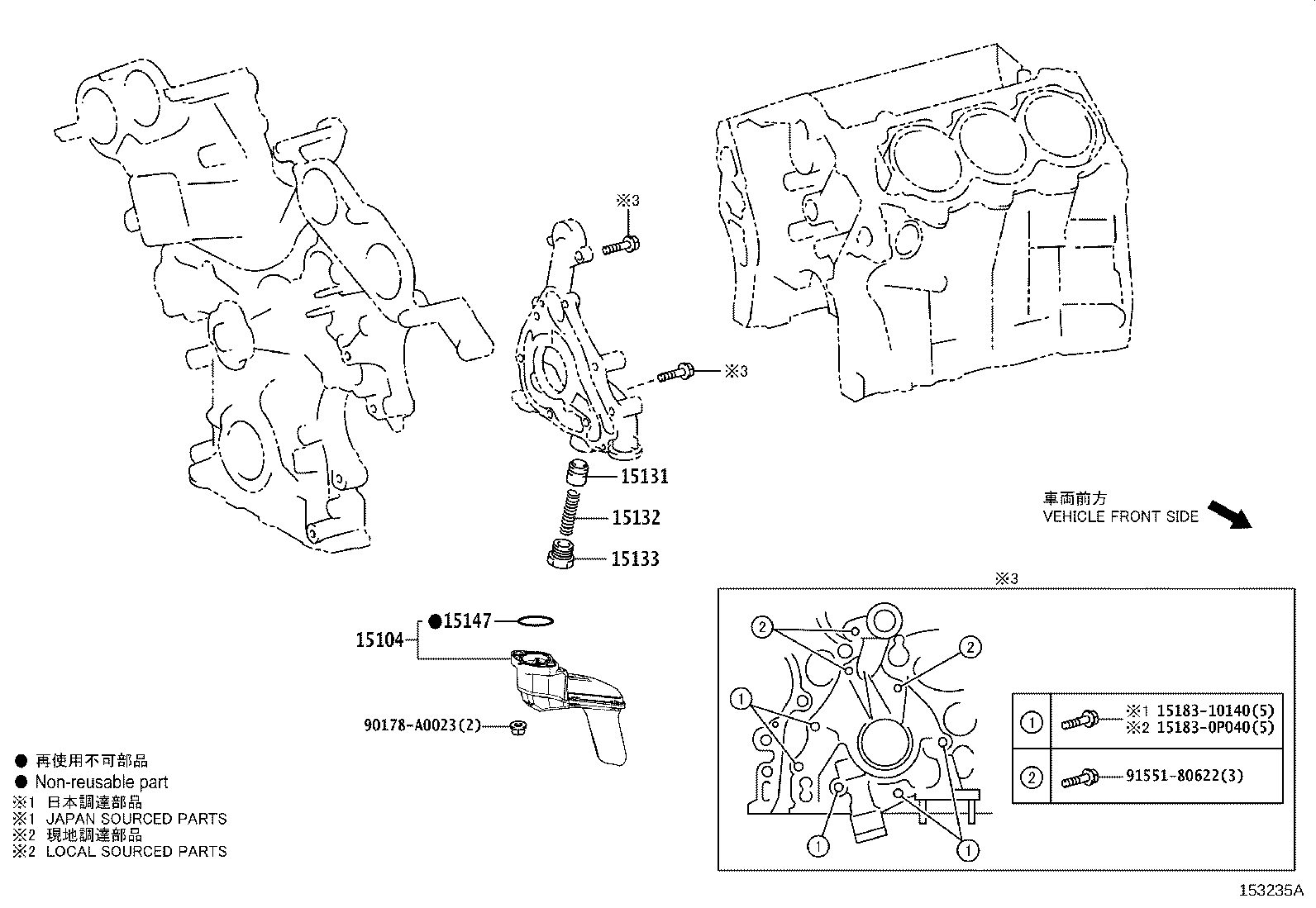

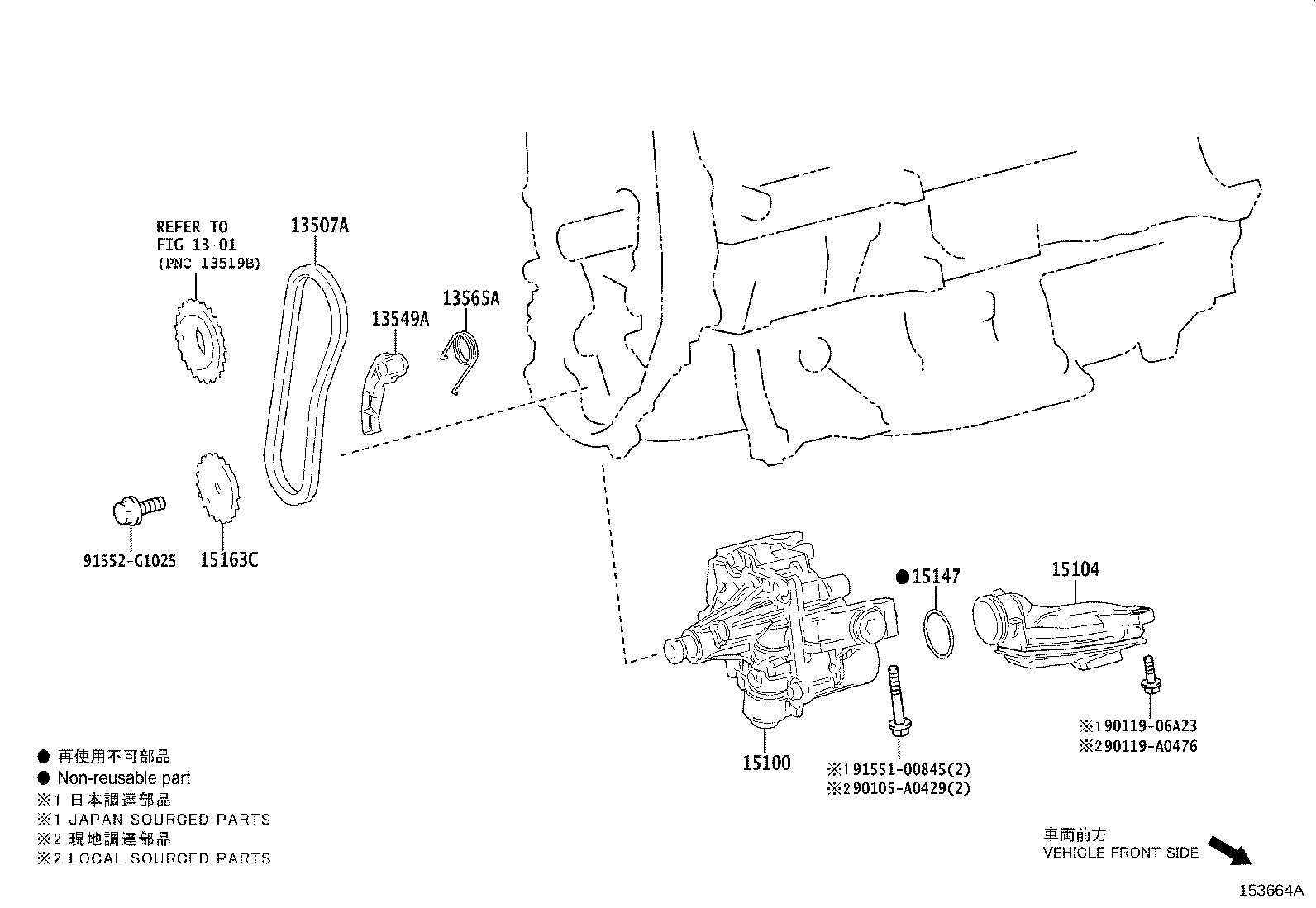

Figure 153231B 153231B 2020-02 → — Figure 153235A 153235A 2020-03 → — Figure 153664A 153664A 2022-10 → —

Part groups

PNCDescription
13507A Chain Sub-assy, Oil Pump Drive
13549A Plate, Chain Tensioner
13565A Spring, Chain Damper
15100 Pump Assy, Oil
15104 Strainer Sub-assy, Oil
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15163C Sprocket, Oil Pump Drive Shaft
15167 Bracket, Oil Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
