Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

25 part groups · 3 illustrations

Illustrations

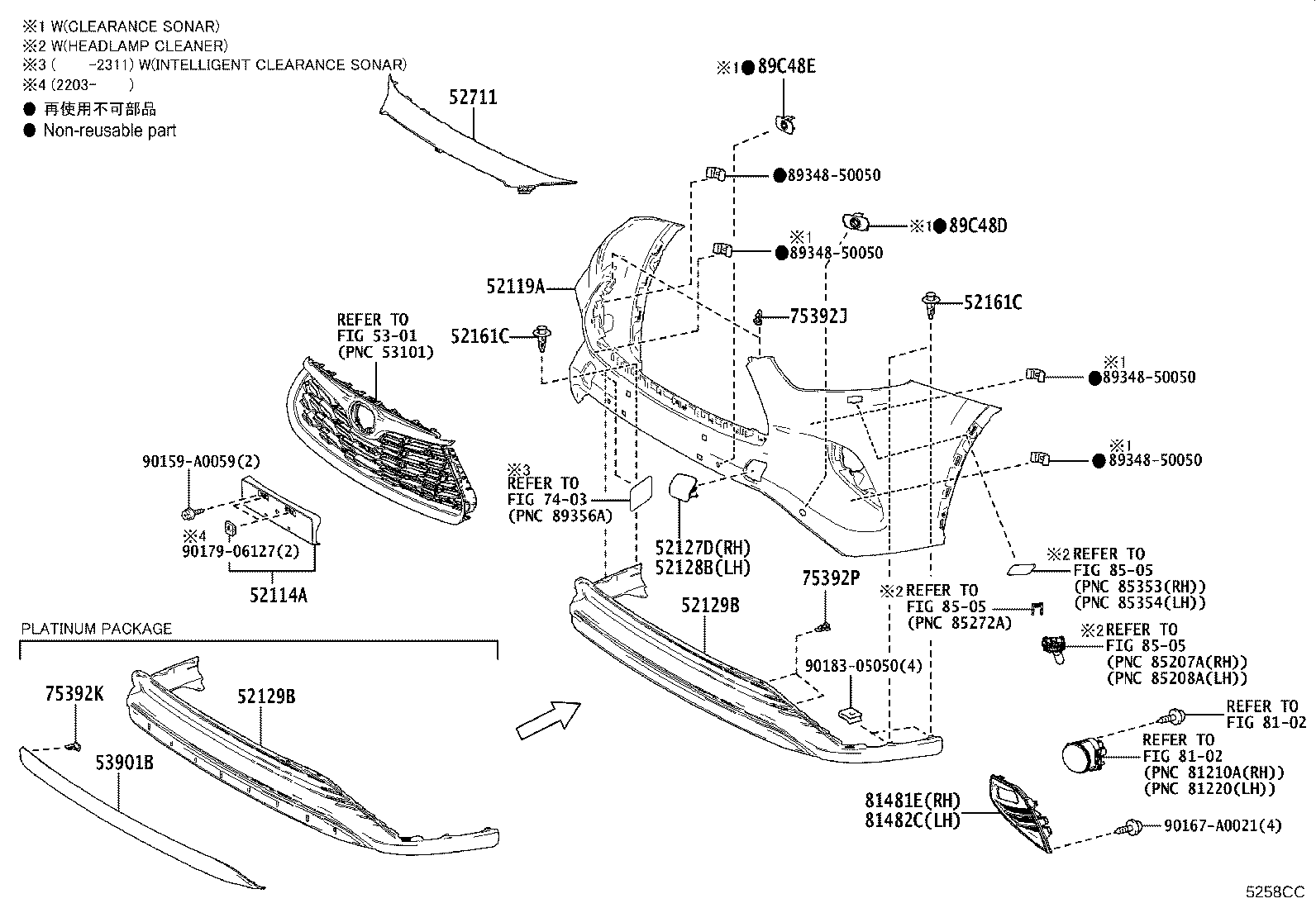

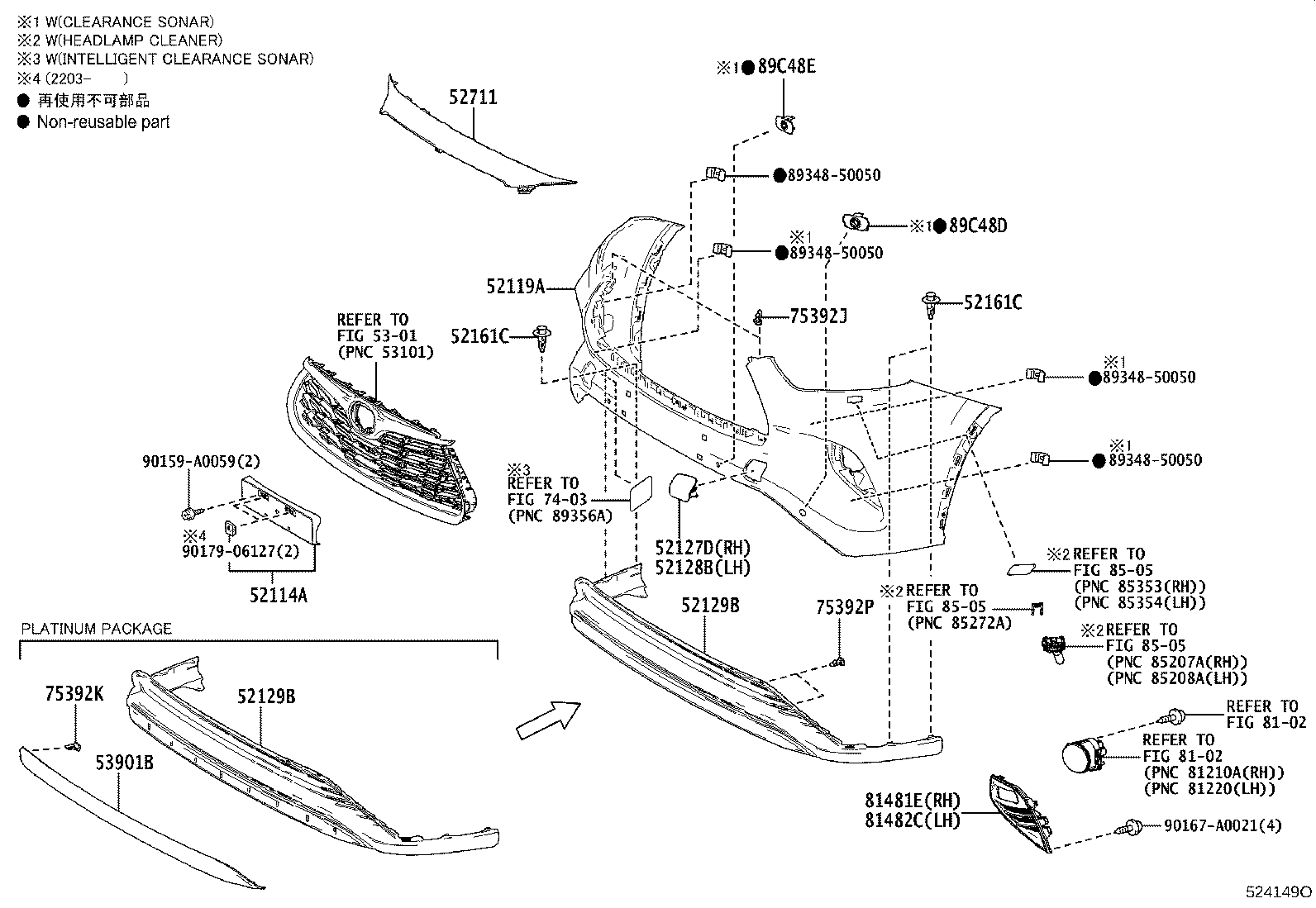

Figure 524148H 524148H 2020-02 → — Figure 524149O 524149O 2020-02 → 2023-06 Figure 5258CC 5258CC 2023-06 → —

Part groups

PNCDescription
51451F Grommet, NO.1
51451G Grommet, NO.2
52021 Reinforcement Sub-assy, Front Bumper
52102B Extension Sub-assy, Front Bumper, RH
52103A Extension Sub-assy, Front Bumper, LH
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52132A Reinforcement, Front Bumper, NO.2
52145H Stay, Front Bumper Side, RH
52146C Stay, Front Bumper Side, LH
52161C Piece, Front Bumper
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
52711 Moulding, Front Bumper
53901B Panel Sub-assy, Front Valance
75392J Retainer, Outside Moulding
75392K Retainer, Outside Moulding, NO.2
75392P Retainer, Outside Moulding, NO.3
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48E Retainer, Ultrasonic Sensor, Front Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
