Toyota Lexus NX Series
2021-11 → present · chassis AAZA2#,AAZH2#,MAZA20,TAZA25 · catalogue 527220 · Europe
Supported model
Data version 2024-05
Wiring & Clamp
187 part groups · 59 illustrations
Illustrations
82F010C

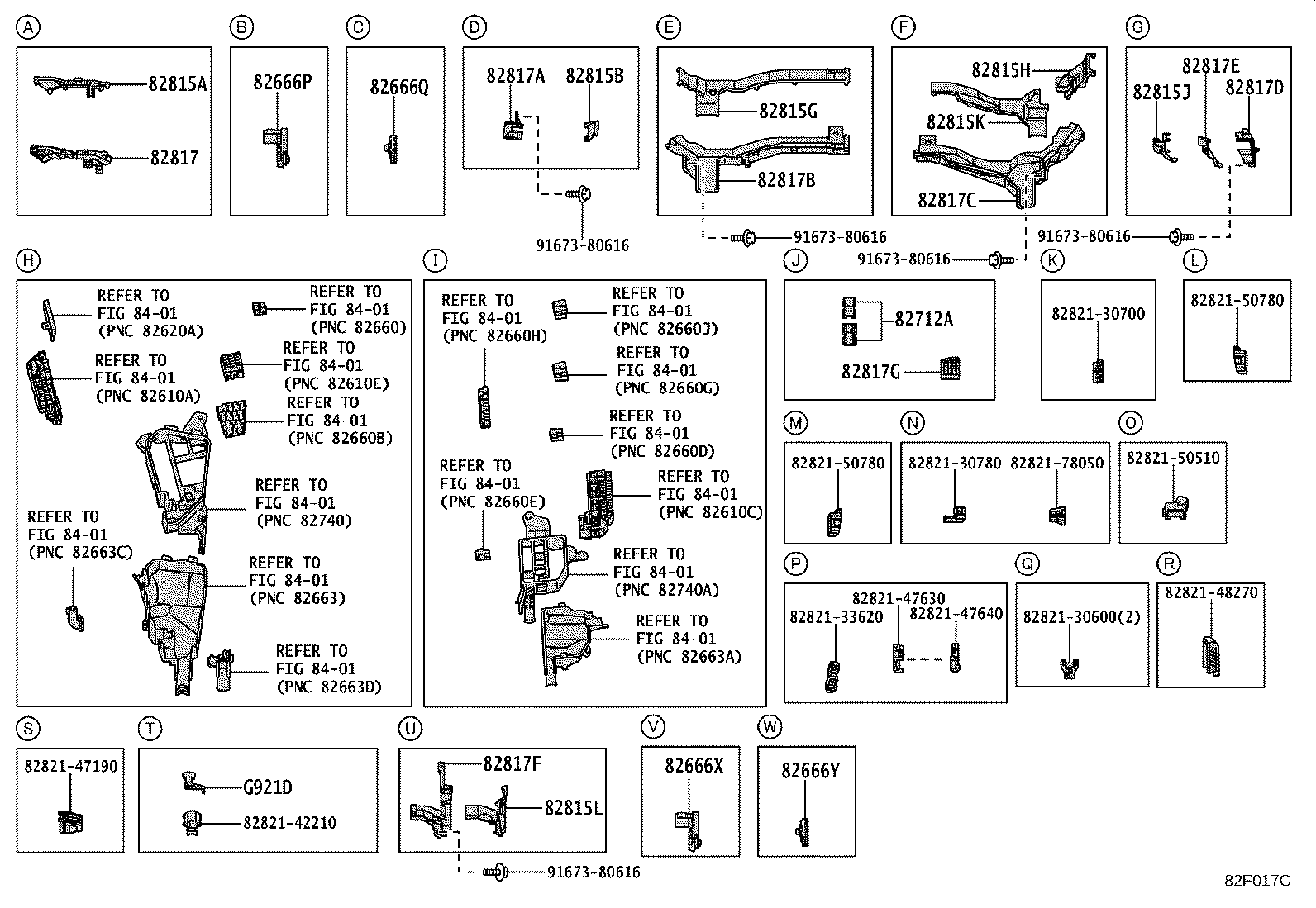

82F017C

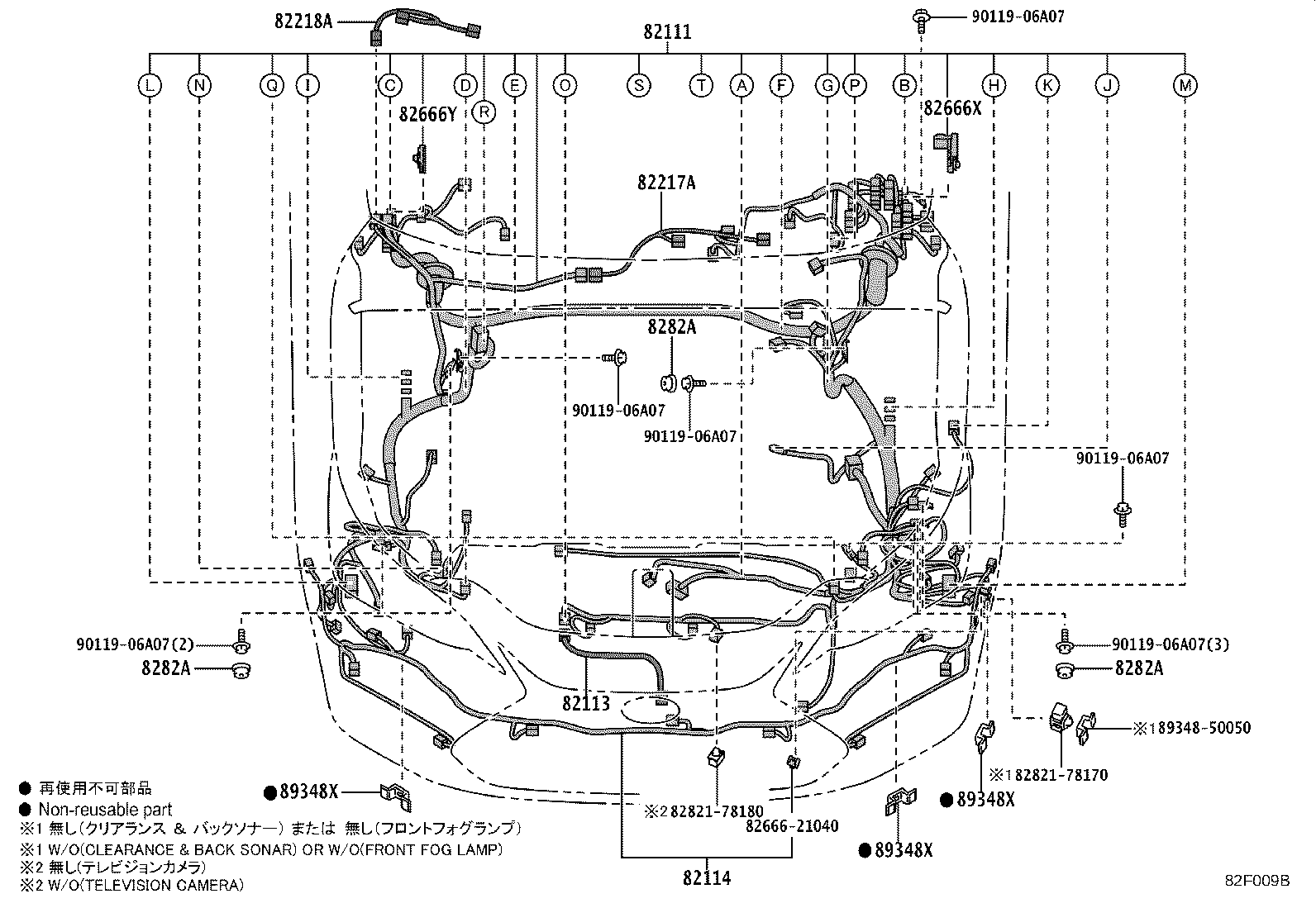

82F009B

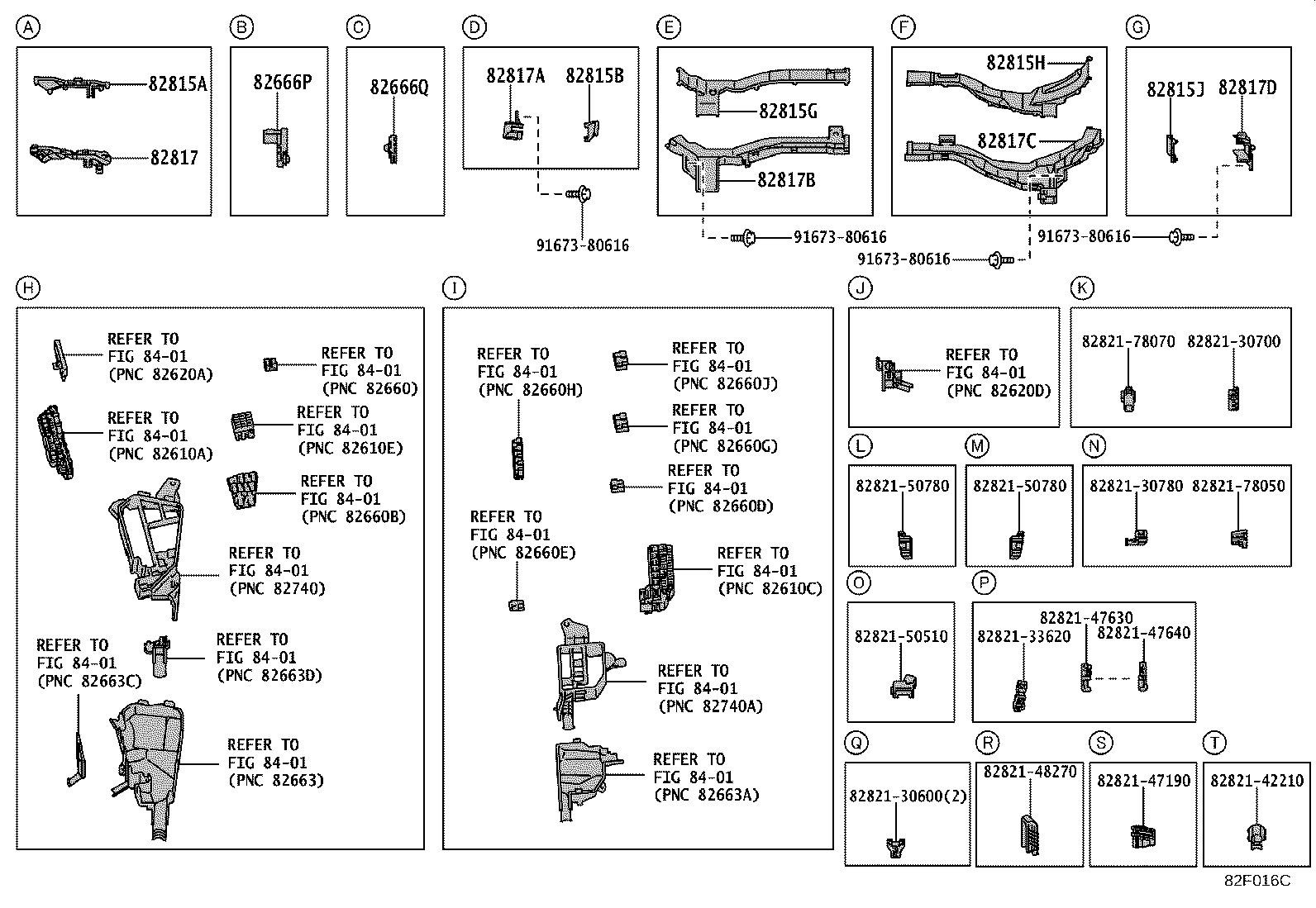

82F016C

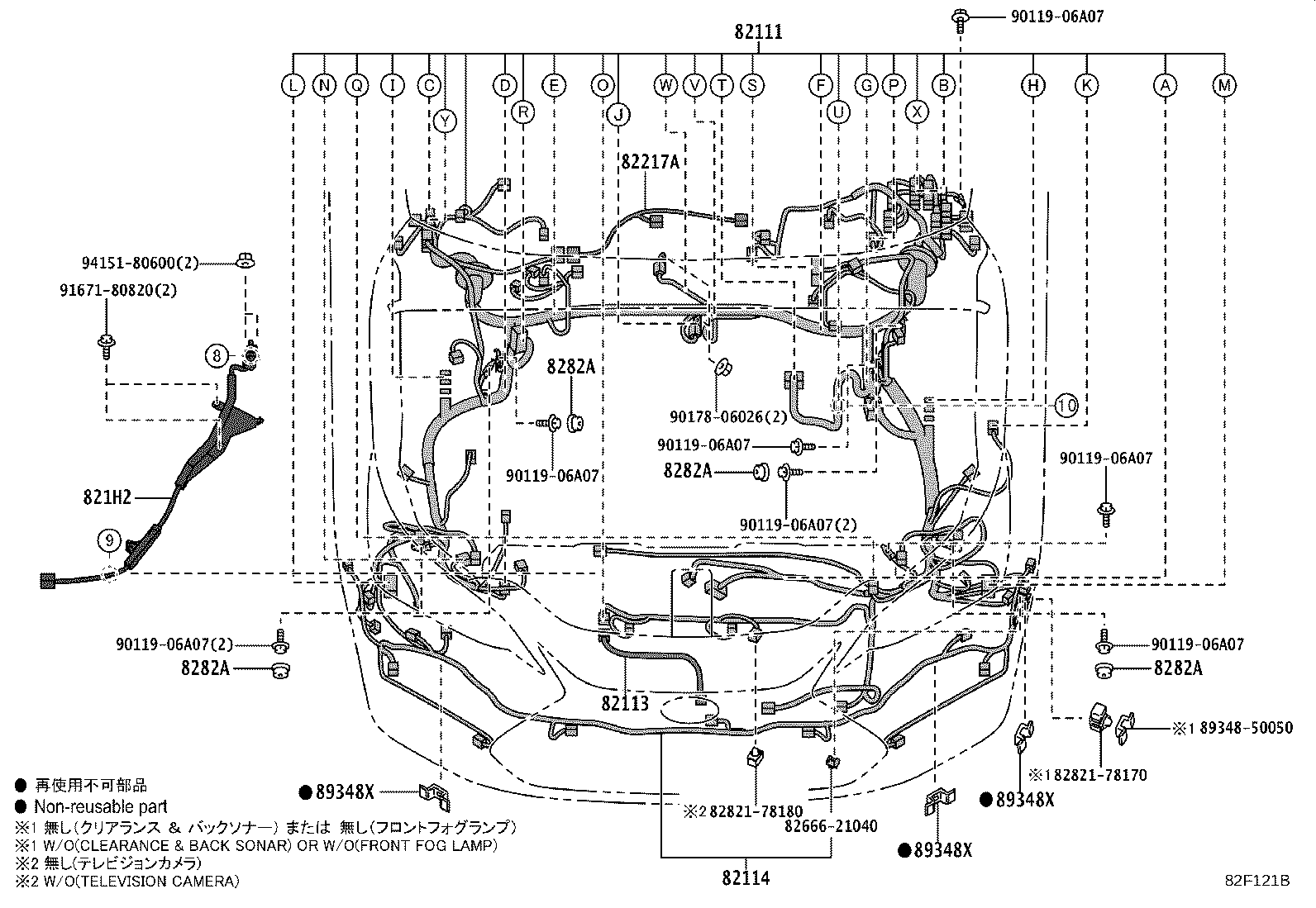

82F121B

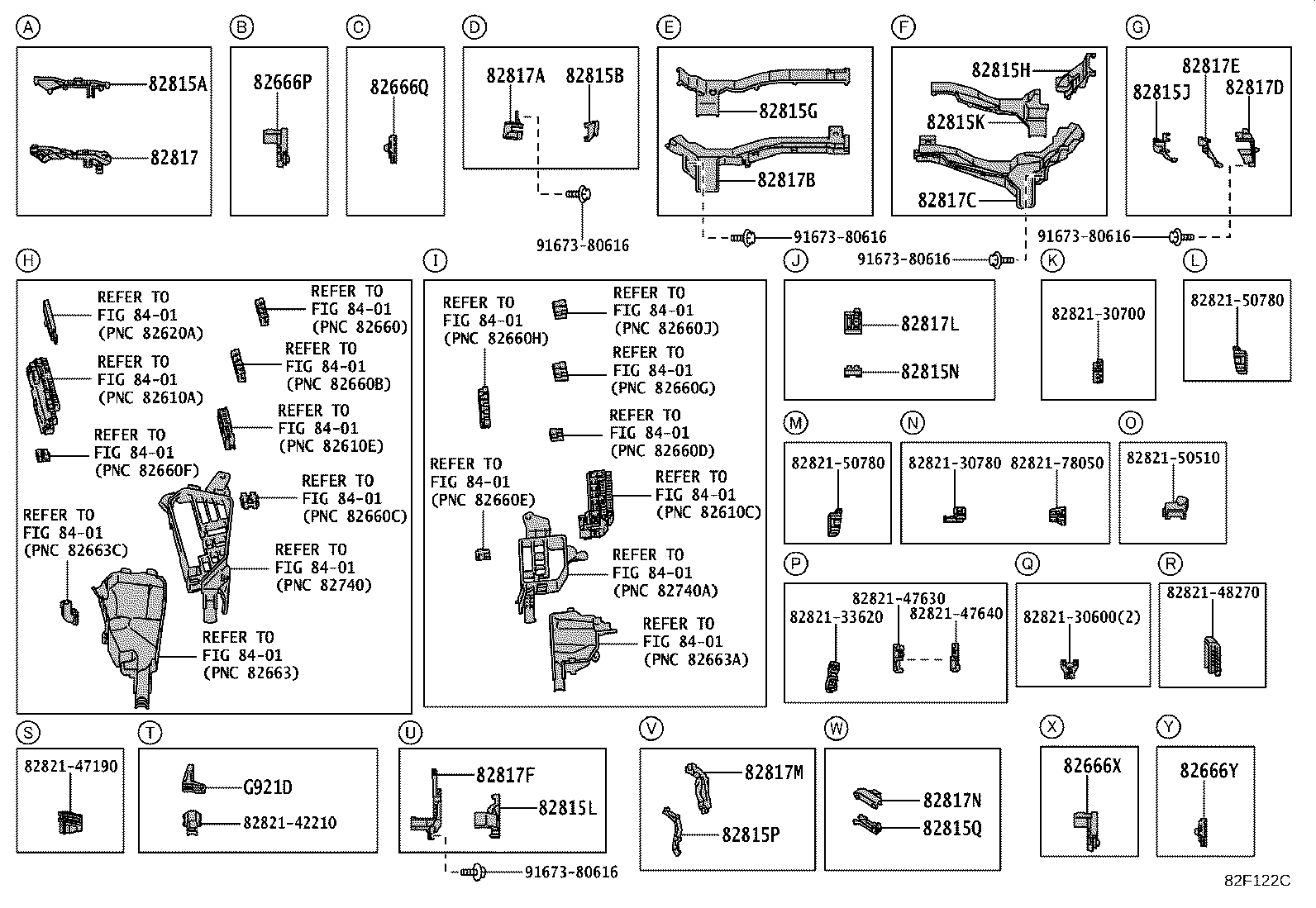

82F122C

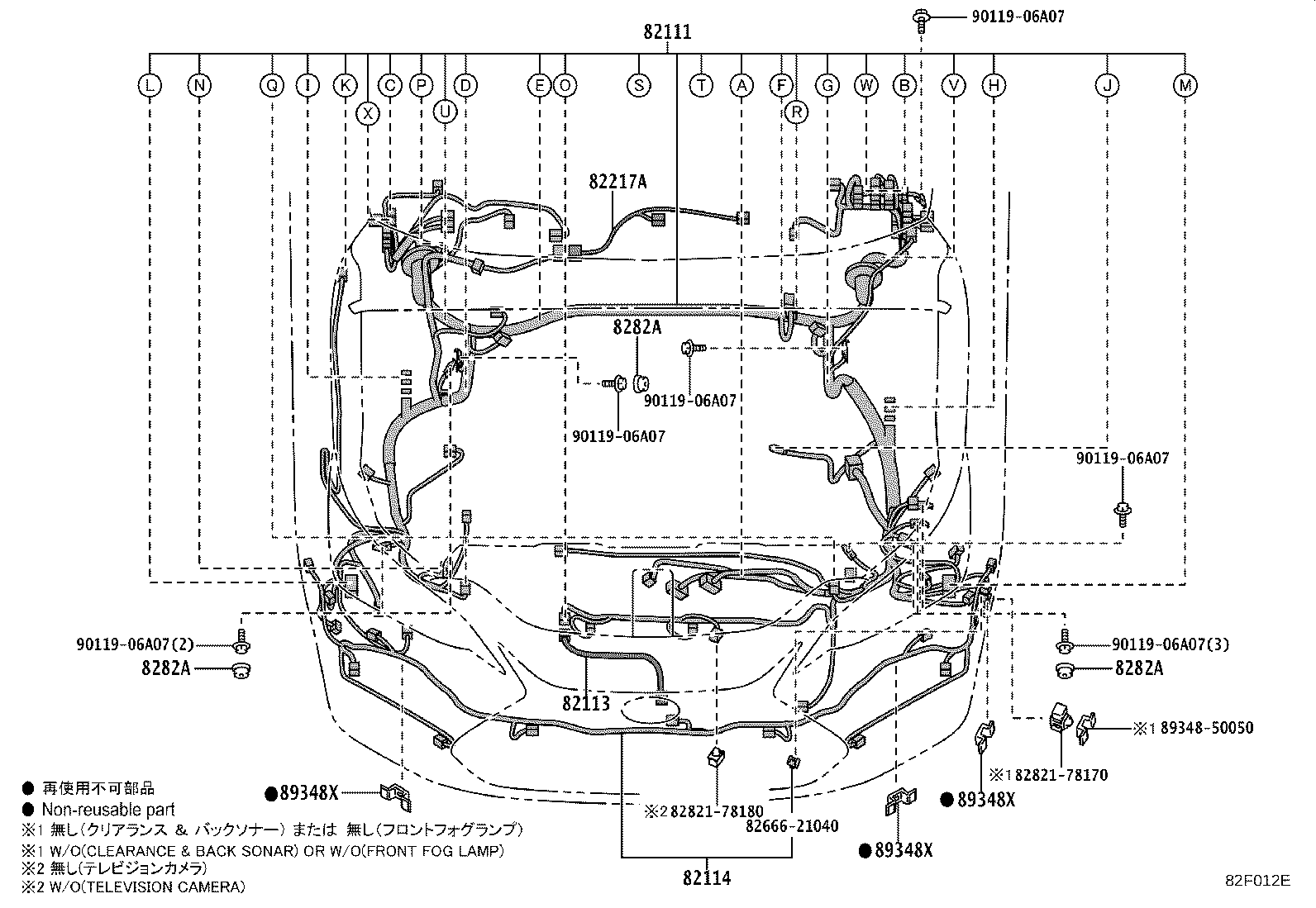

82F012E

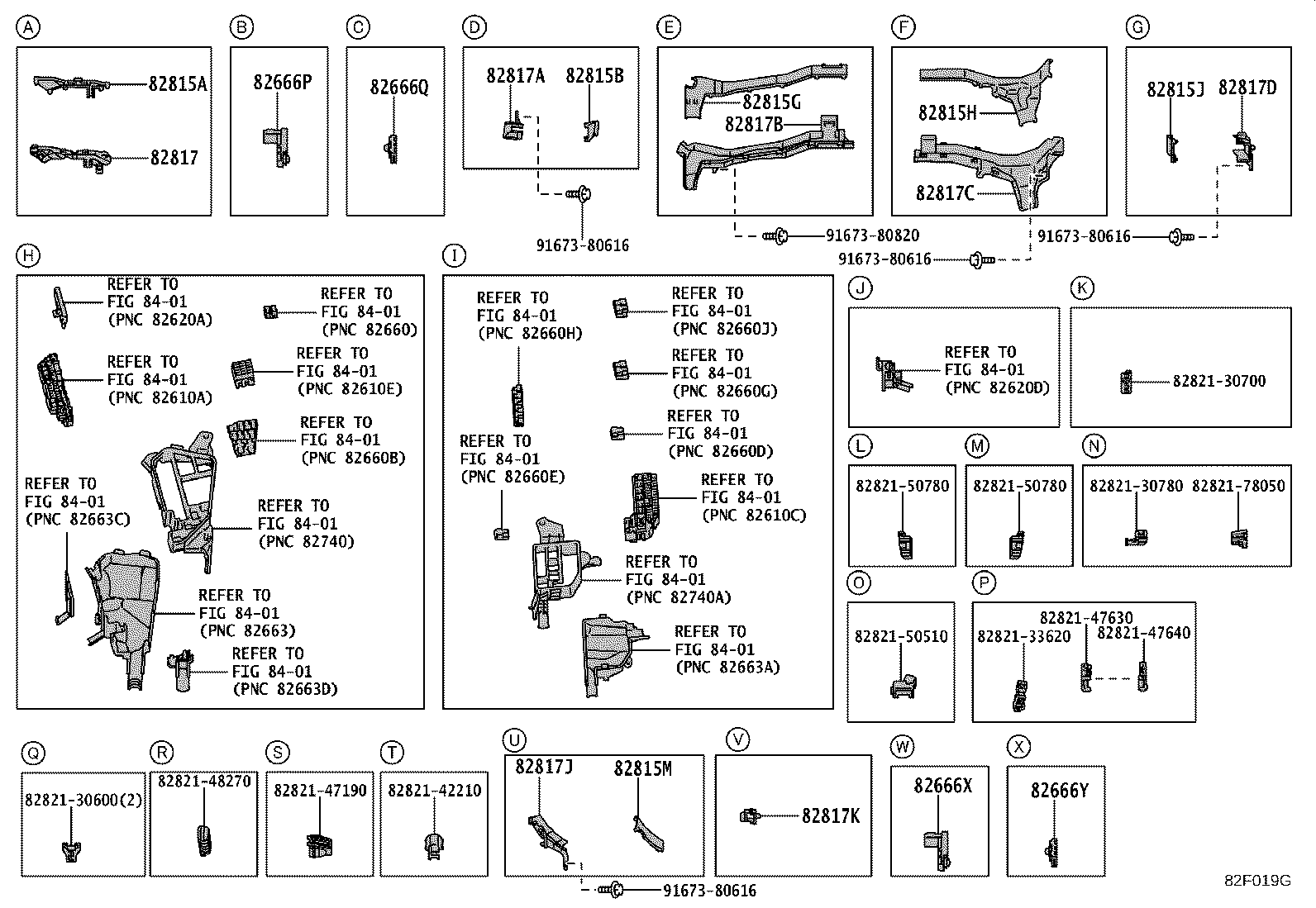

82F019G

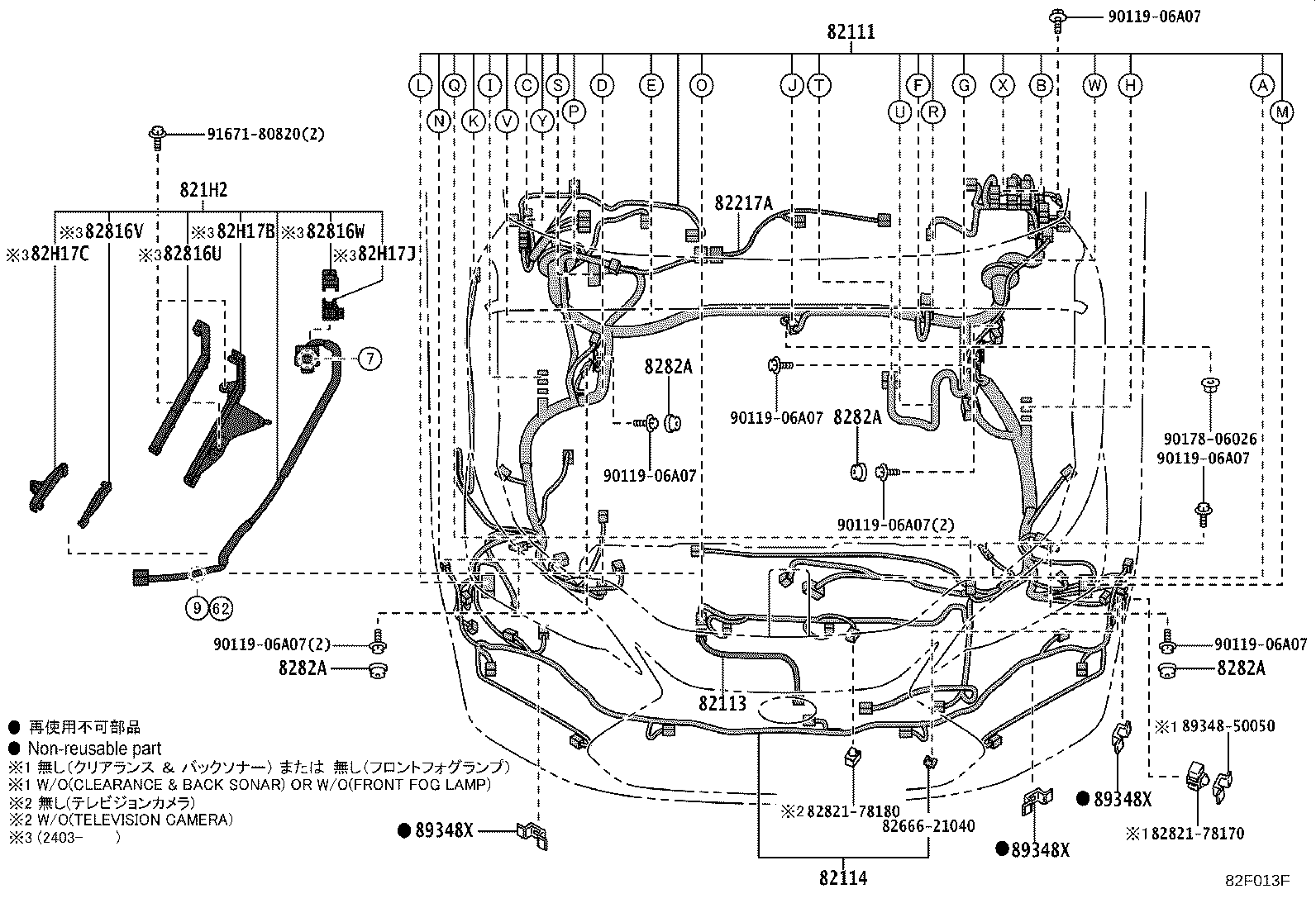

82F013F

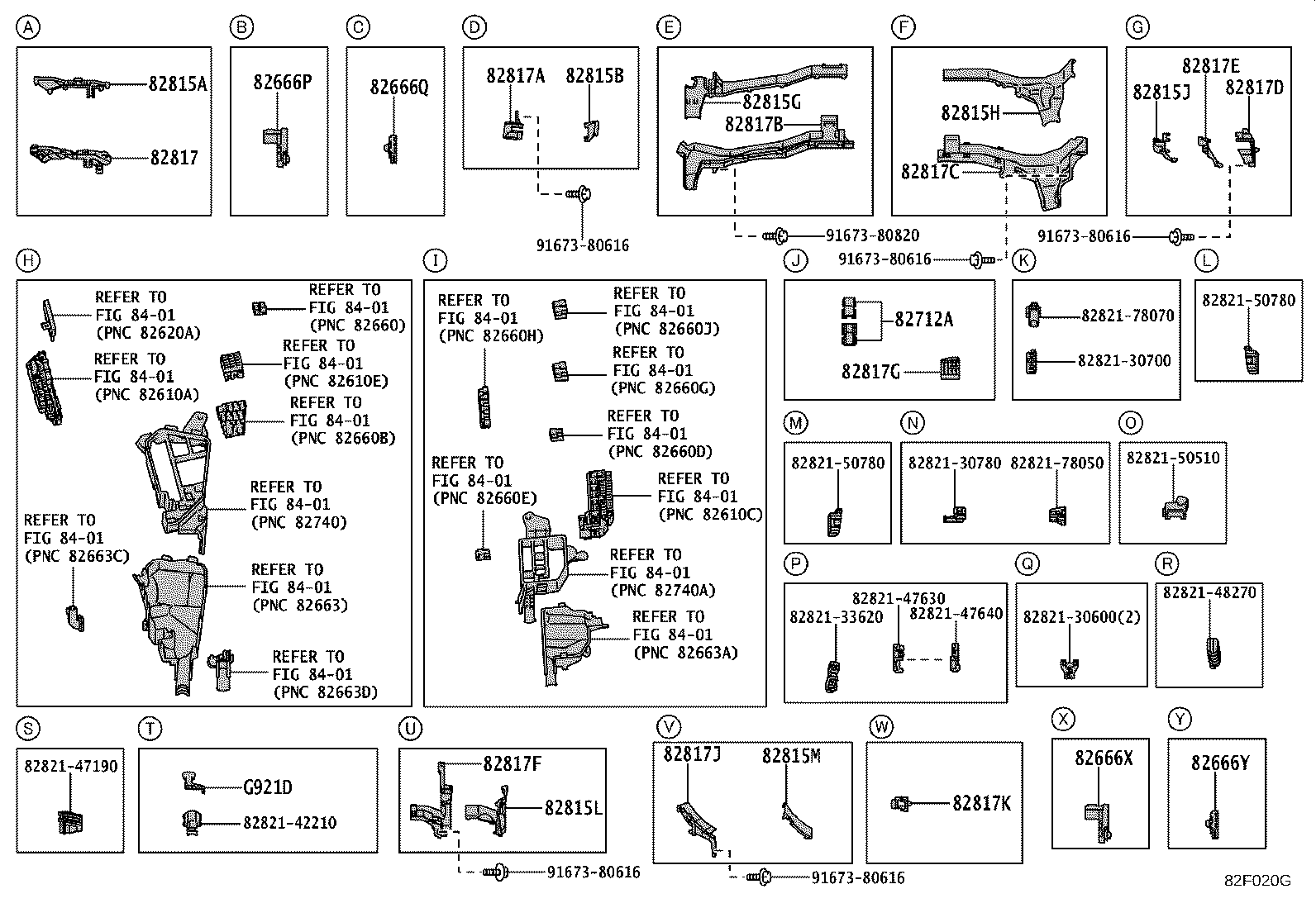

82F020G

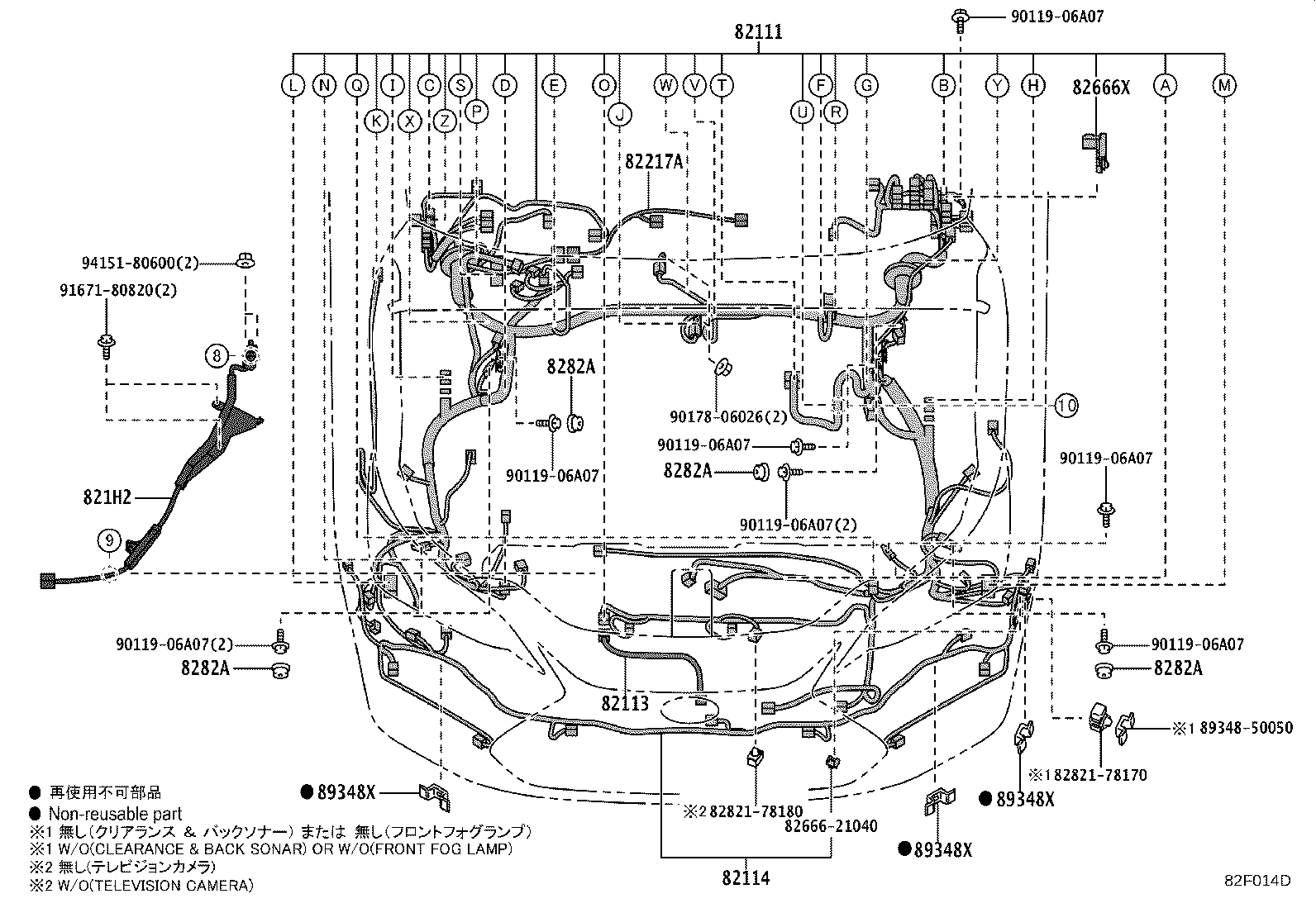

82F014E

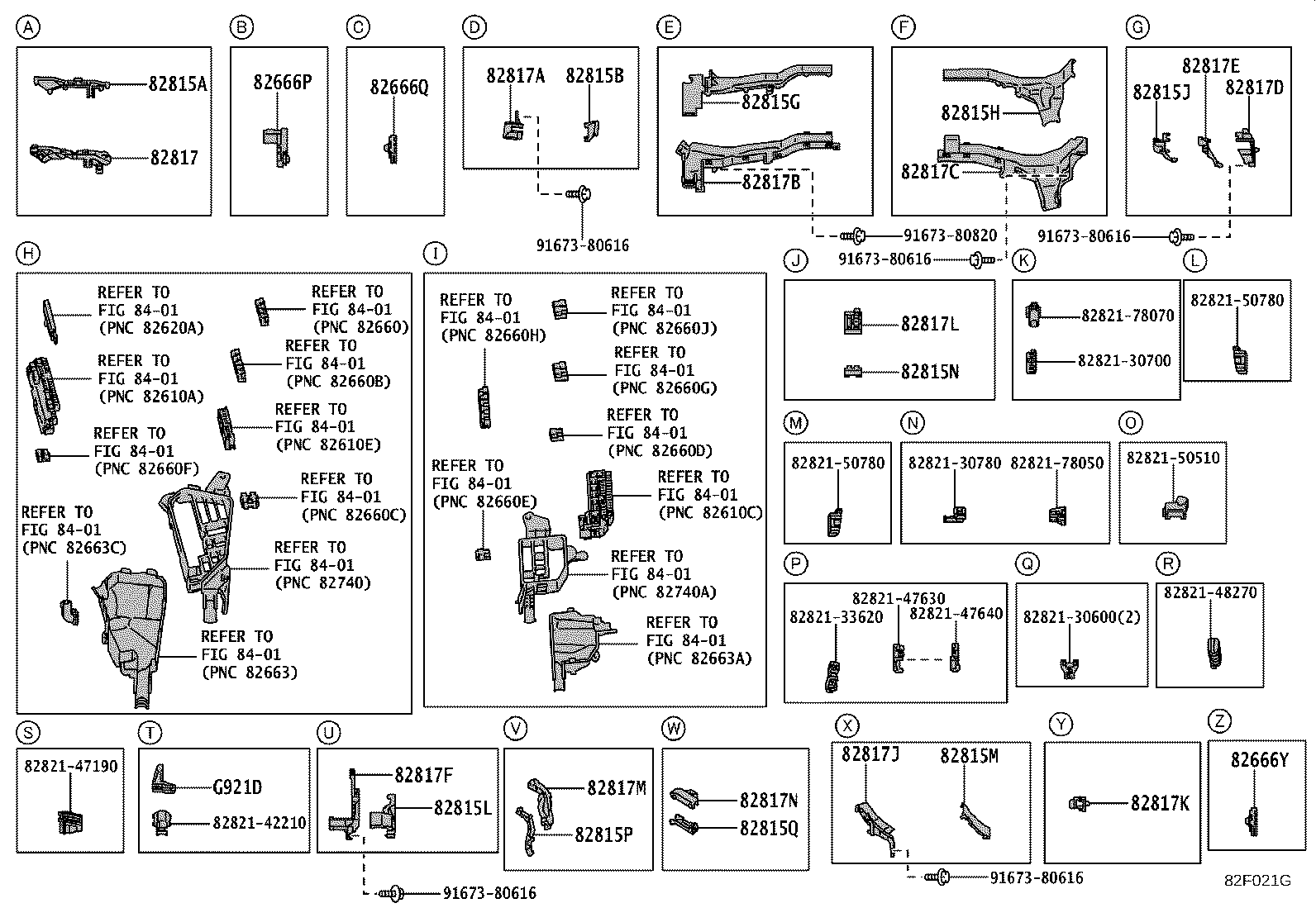

82F021G

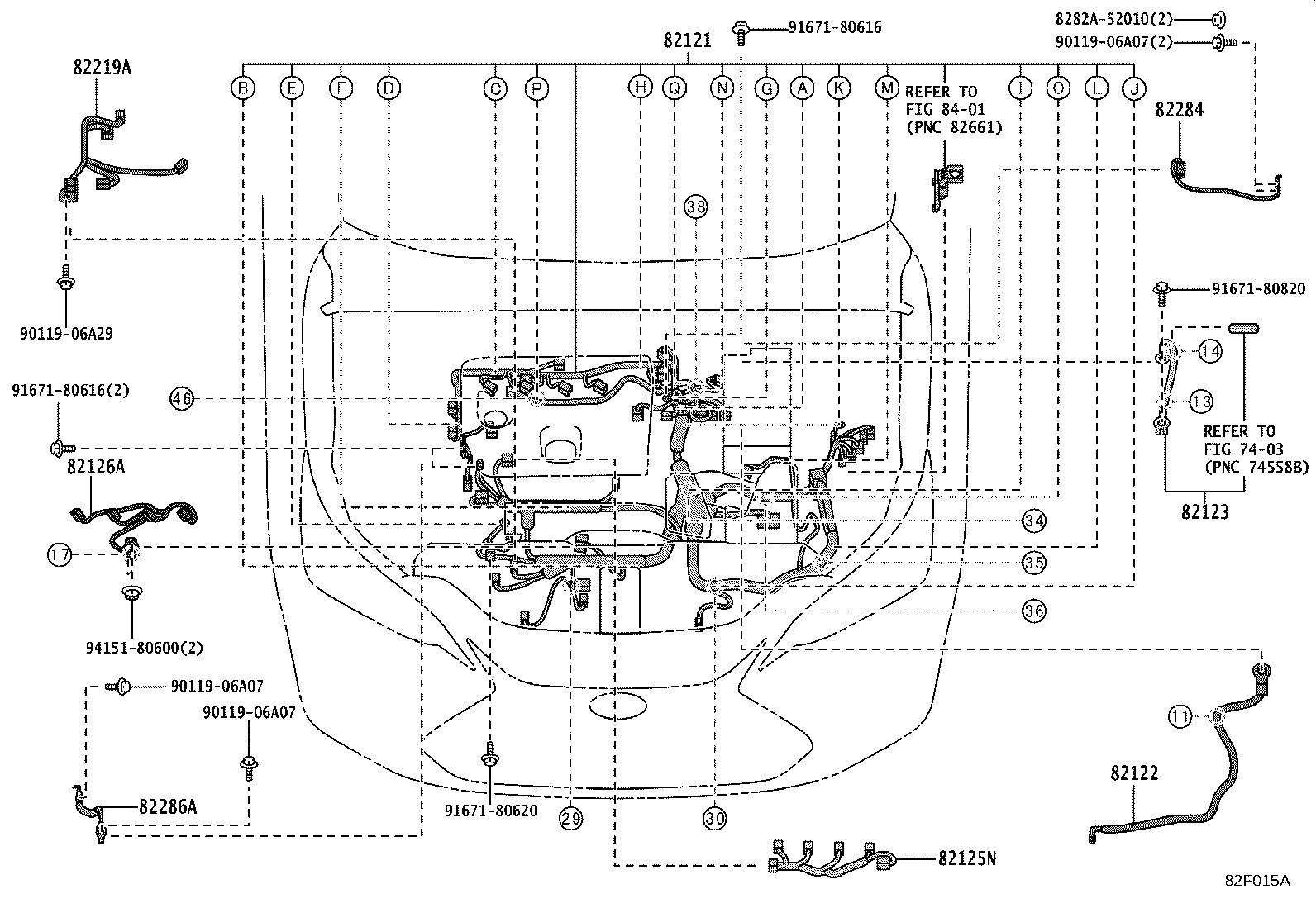

82F015A
82F022

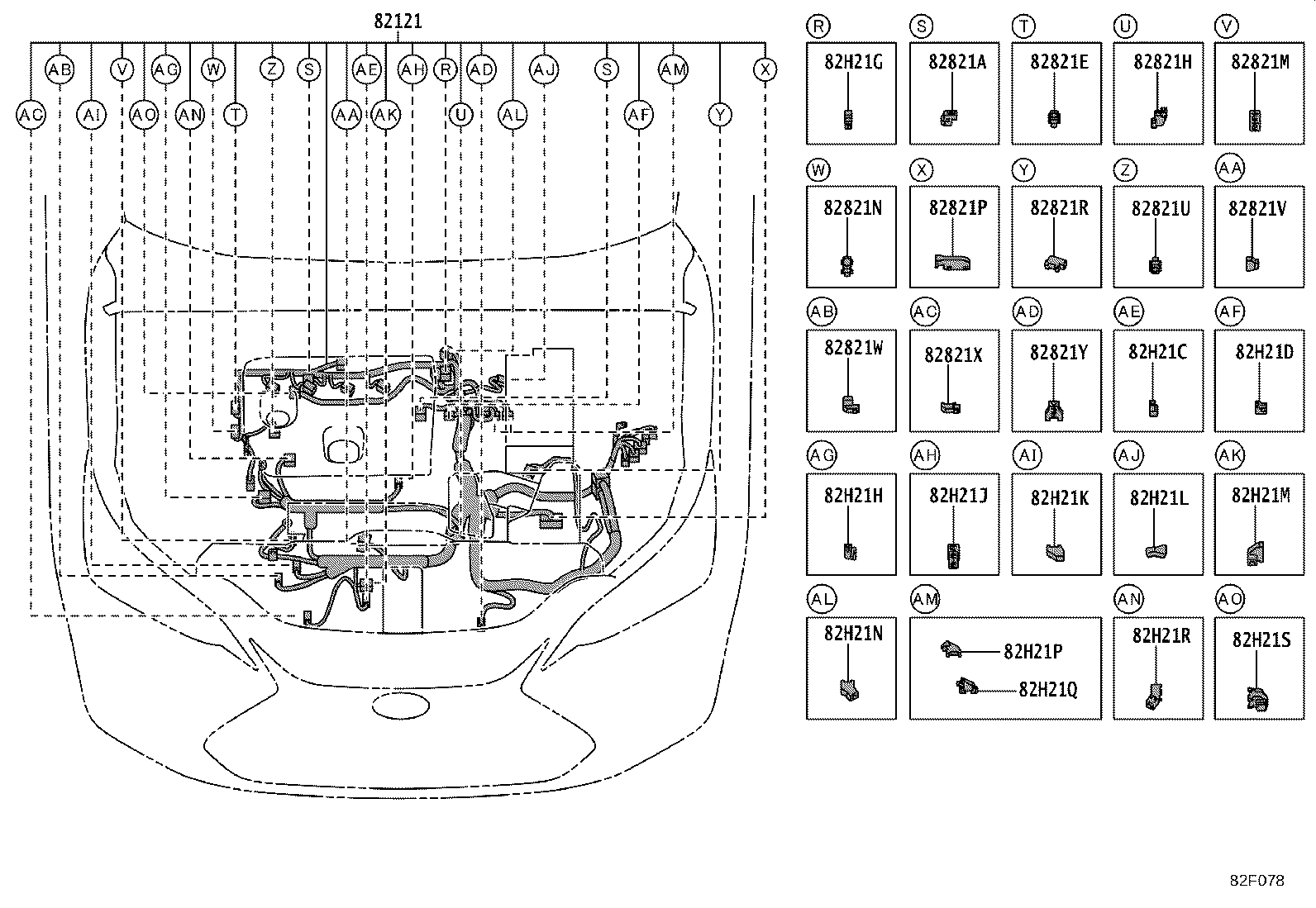

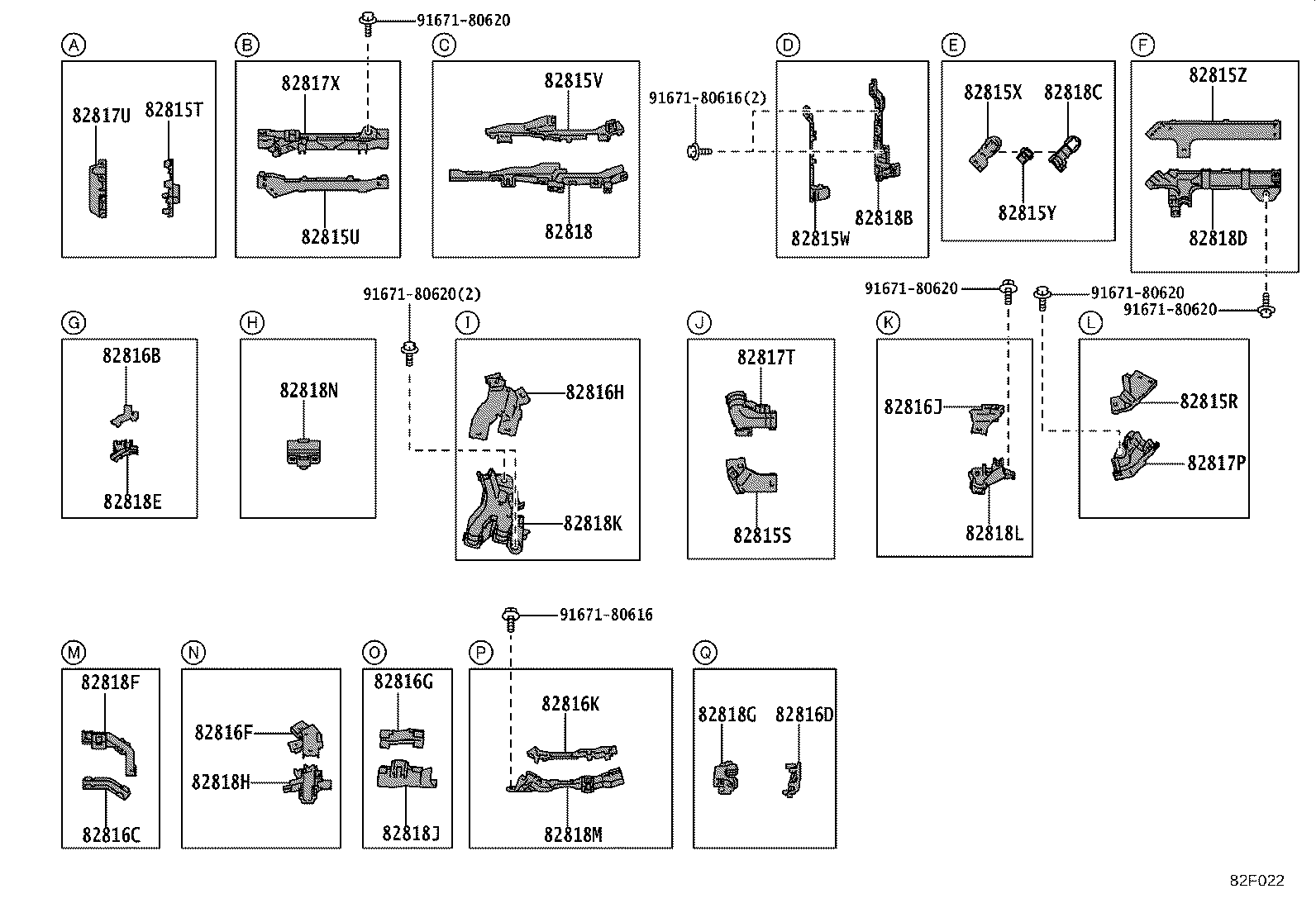

82F078

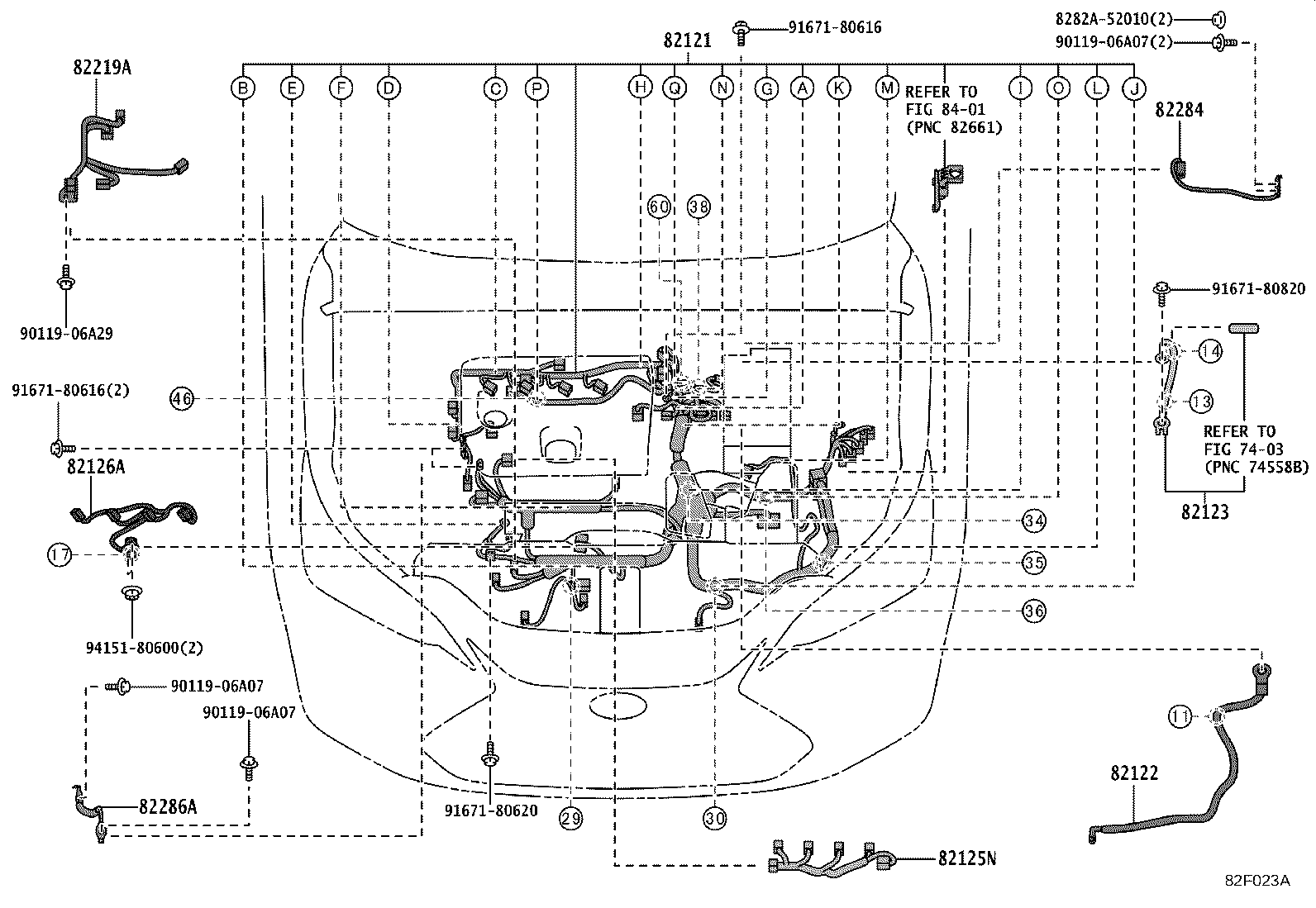

82F023A

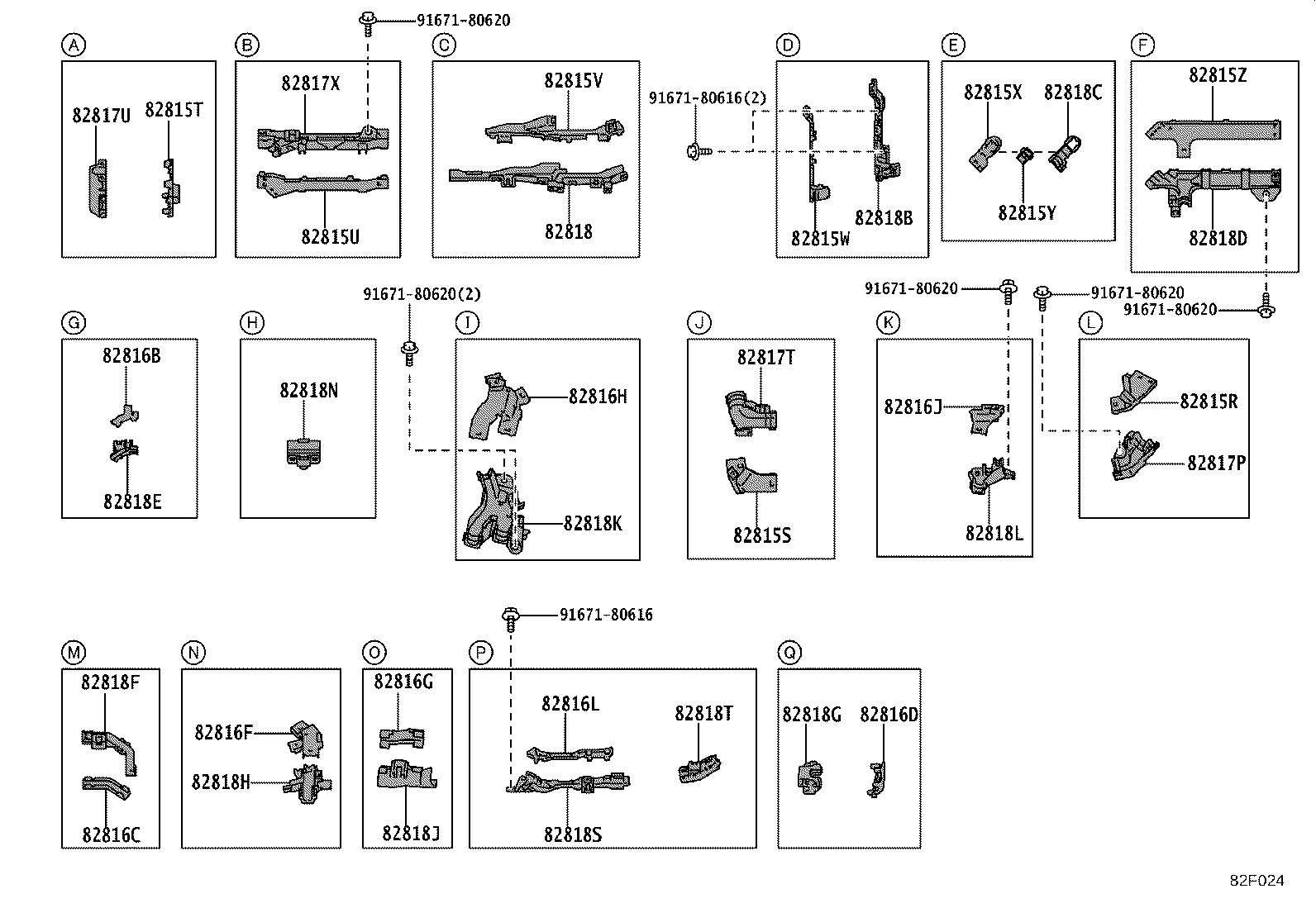

82F024
82F079

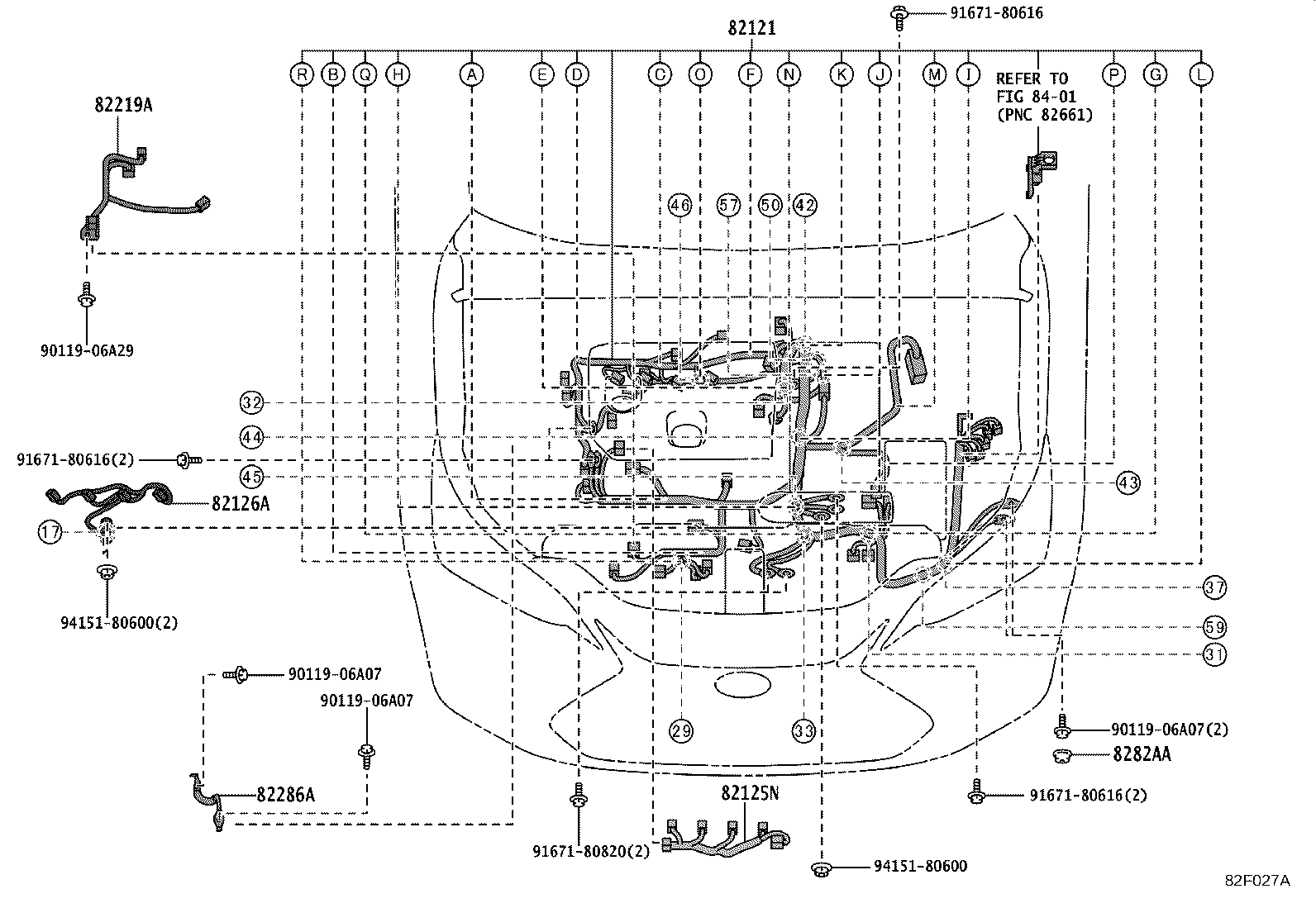

82F027A

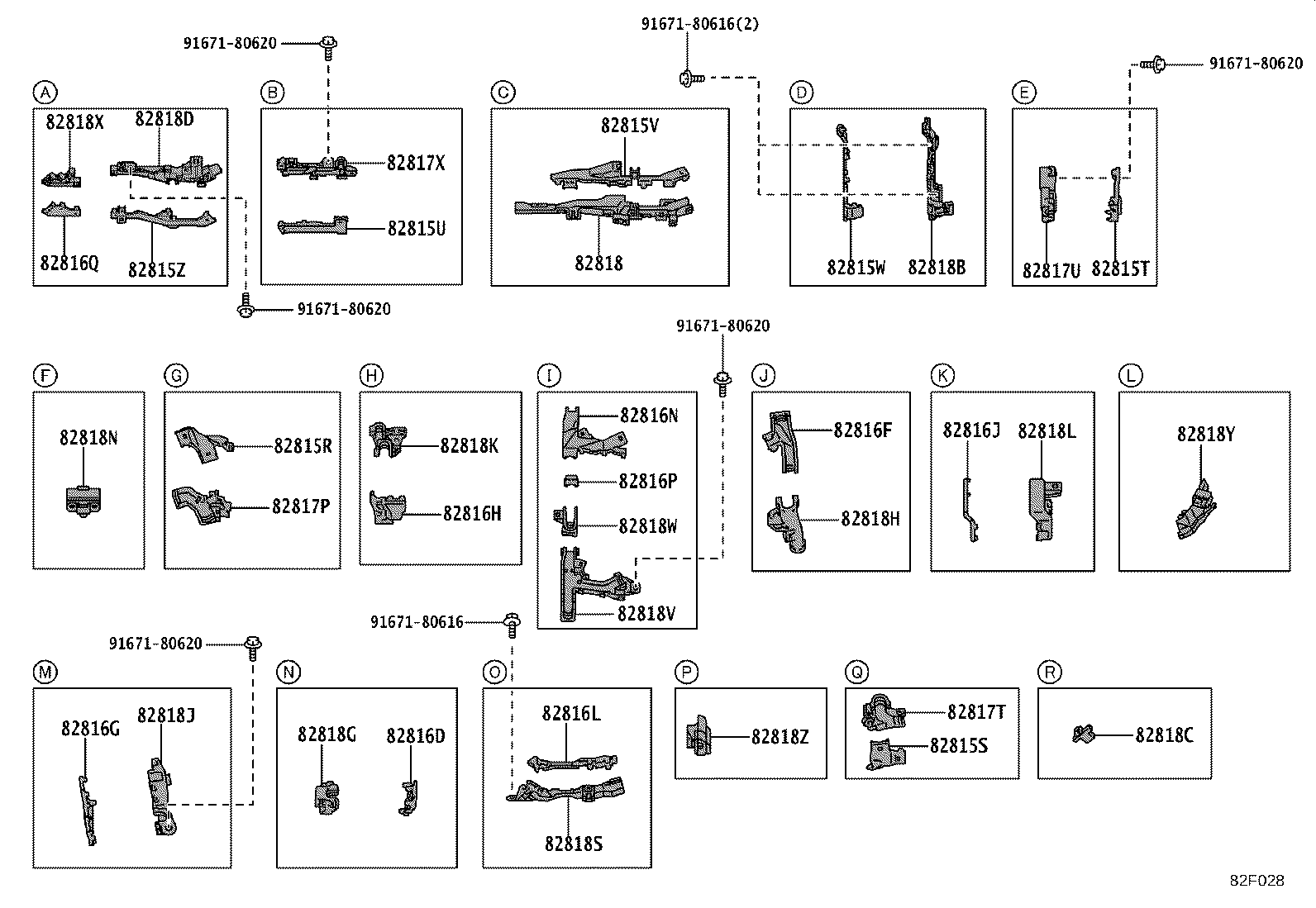

82F028

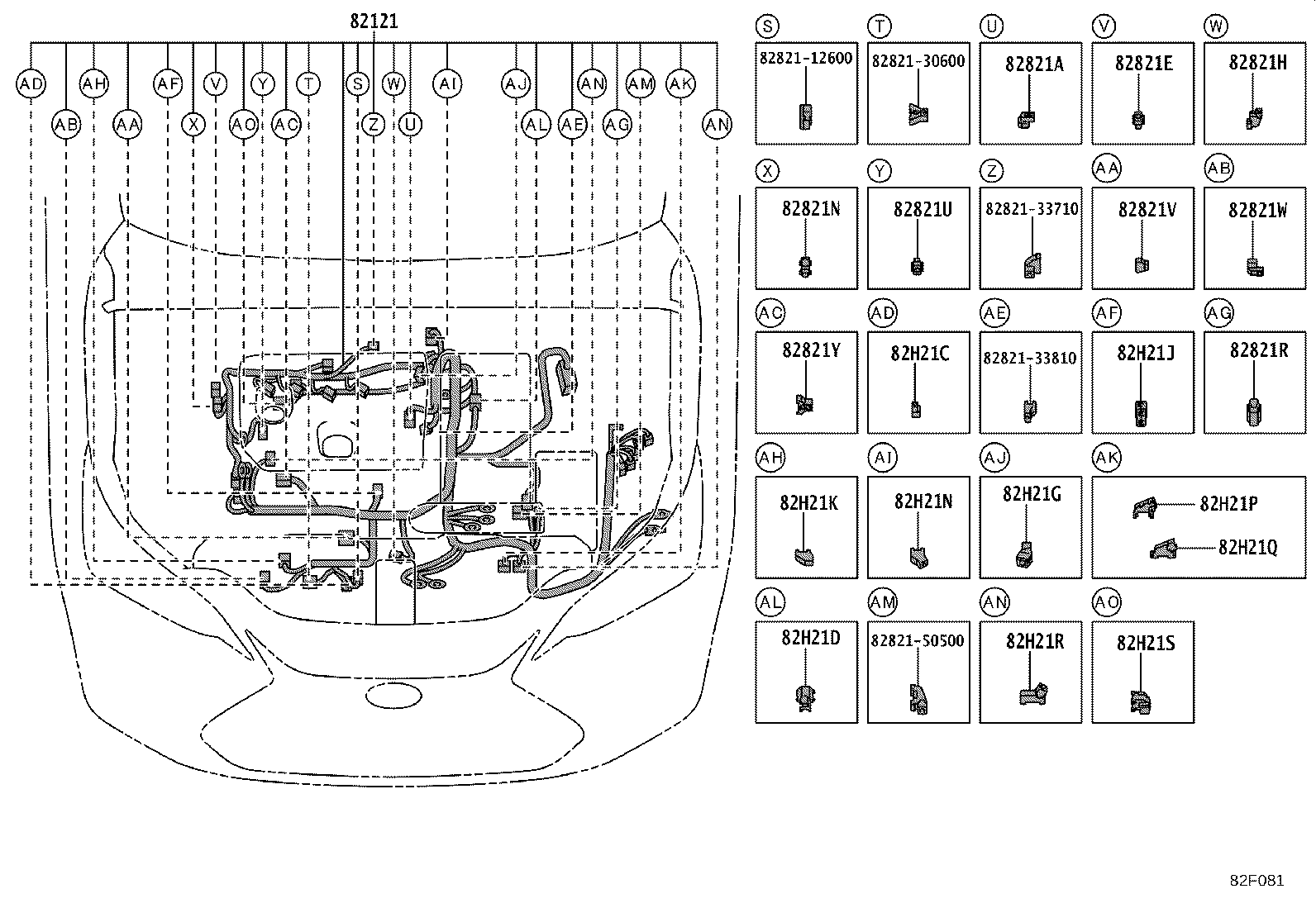

82F081

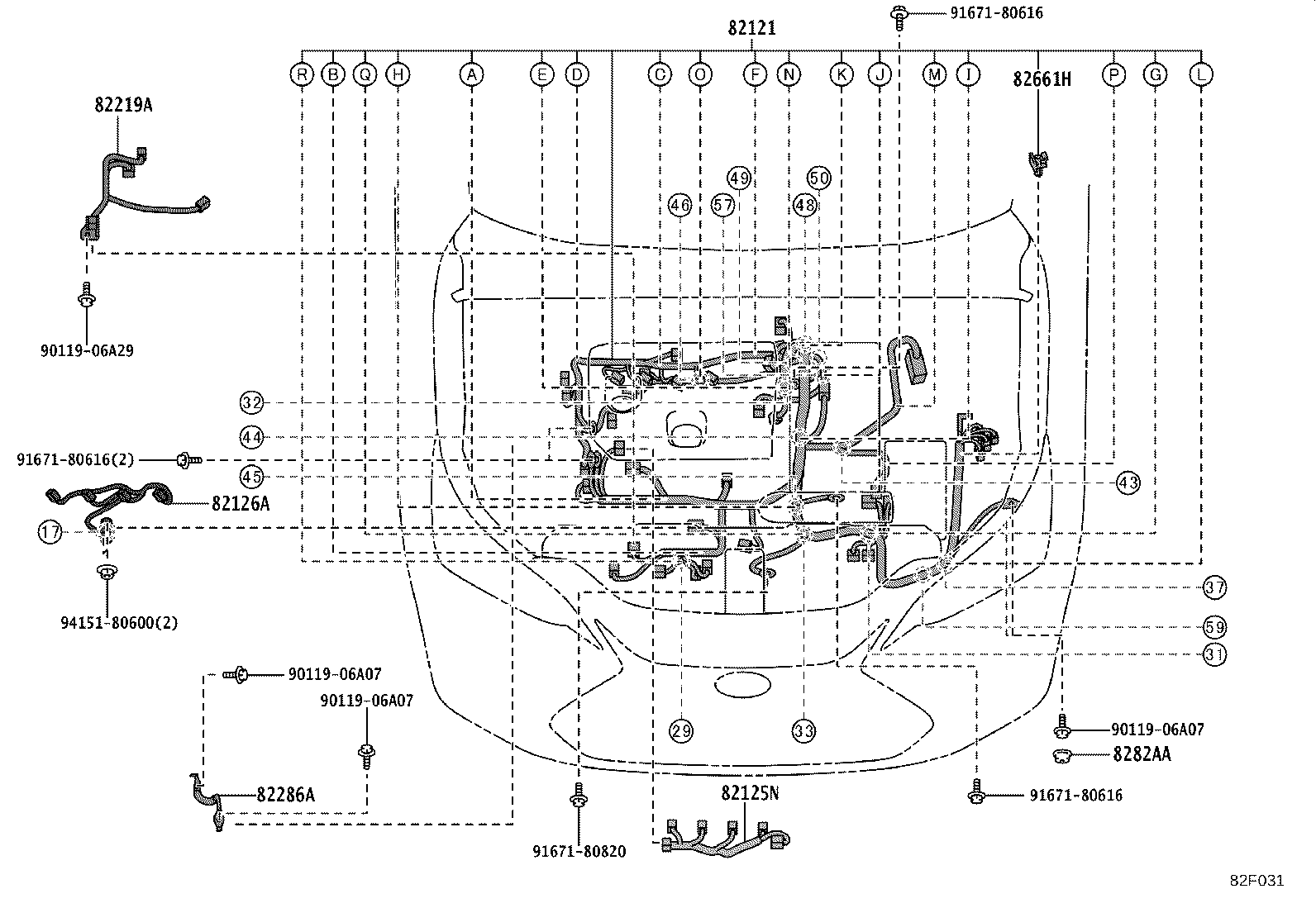

82F031

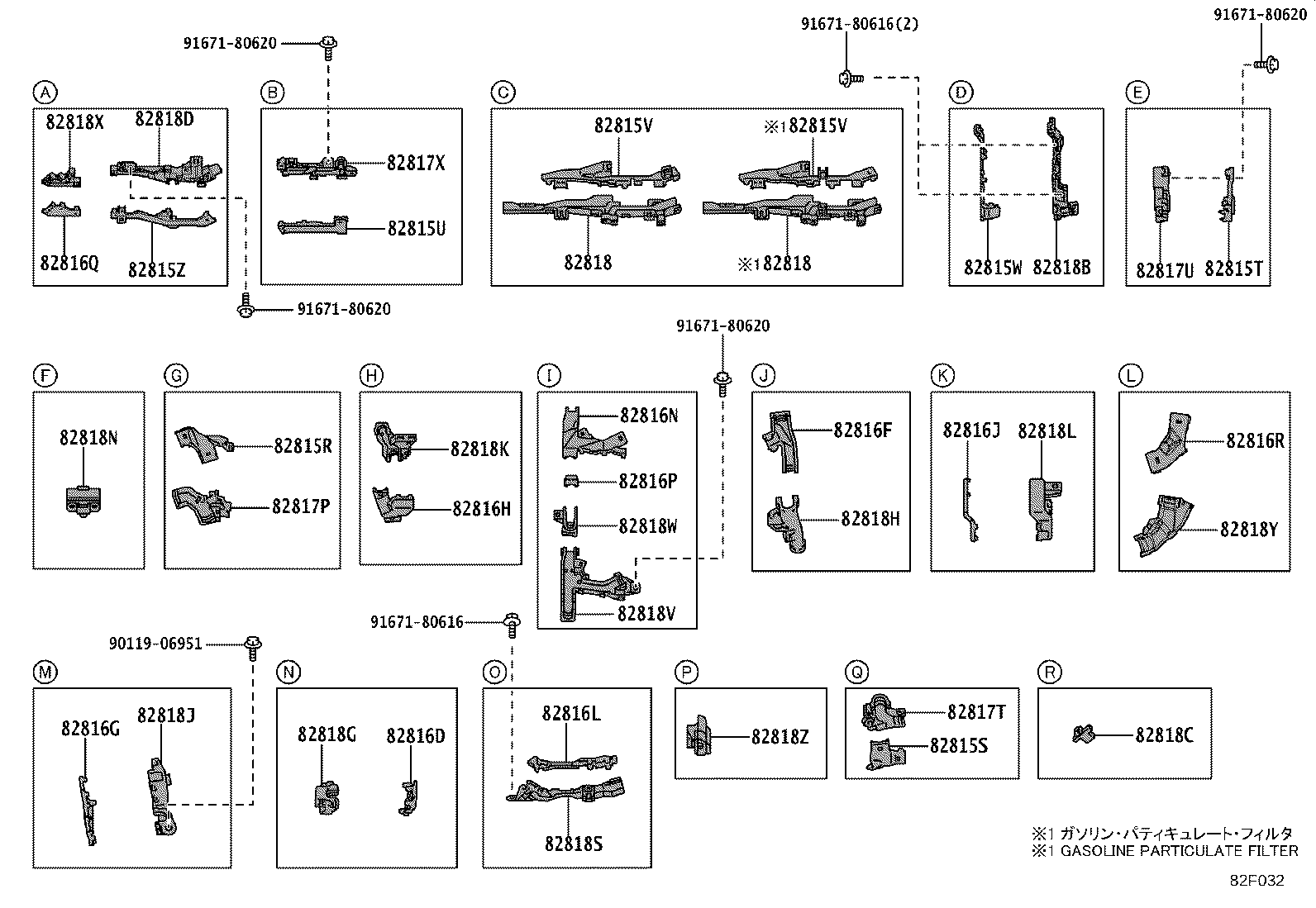

82F032

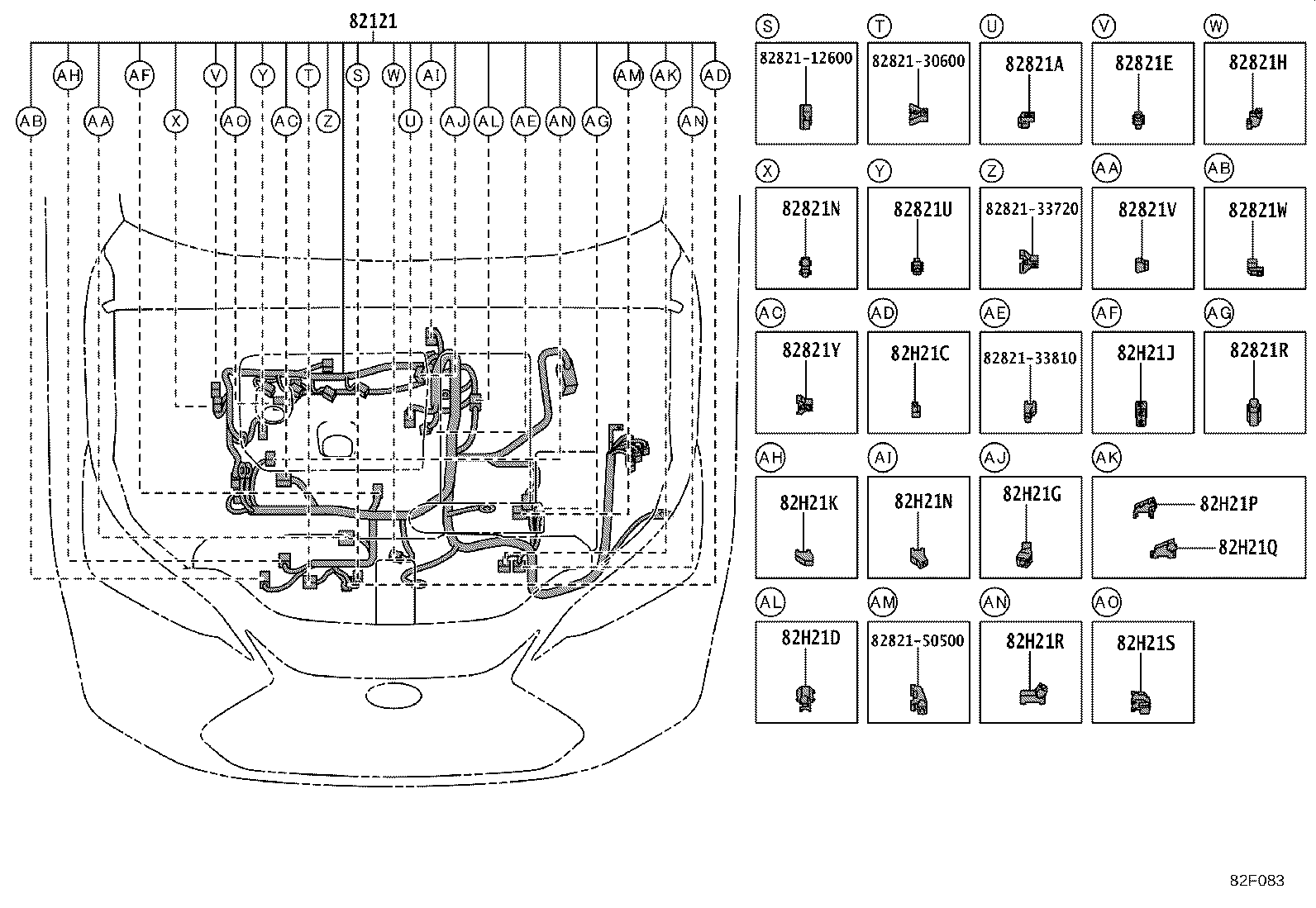

82F083

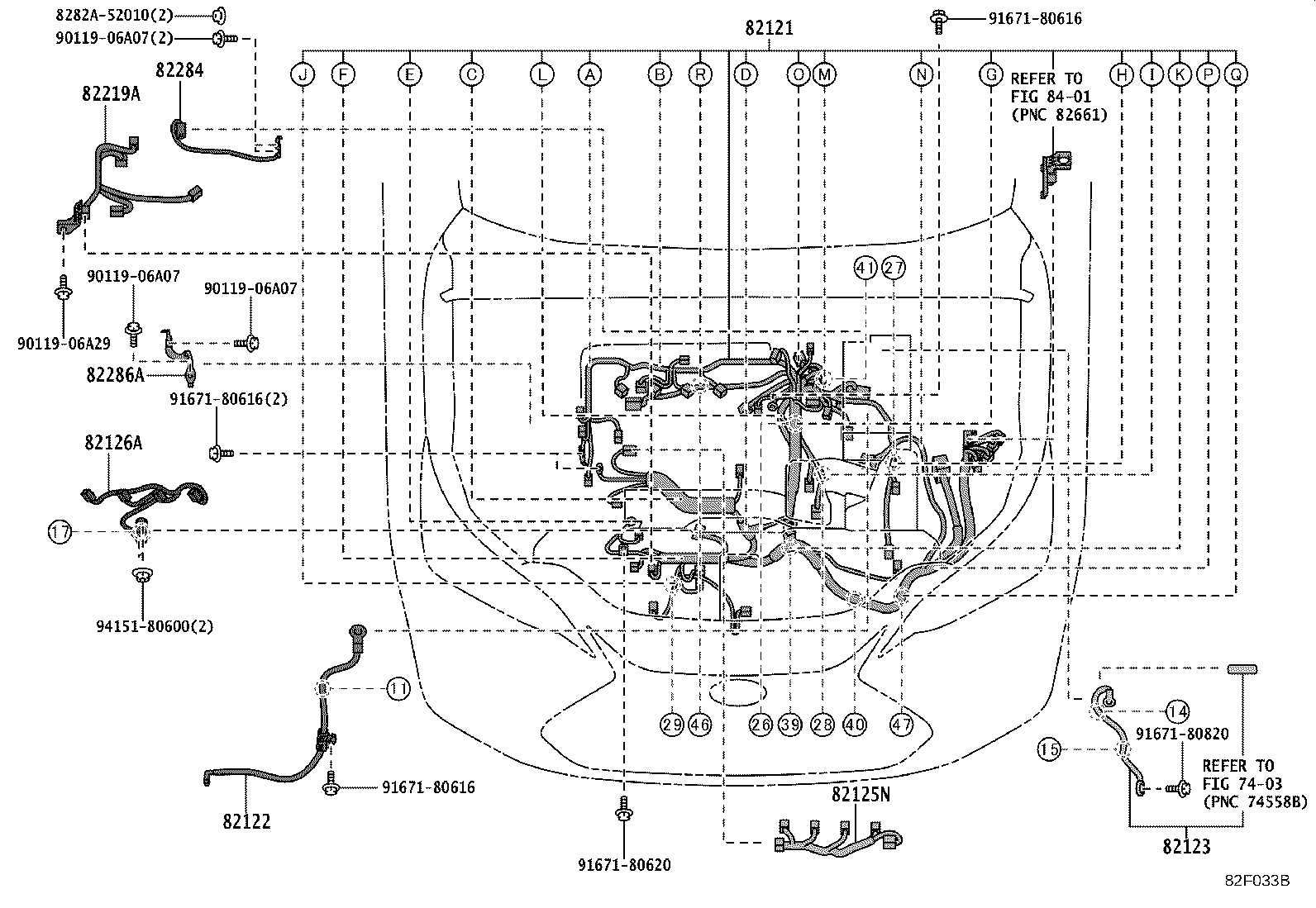

82F033B

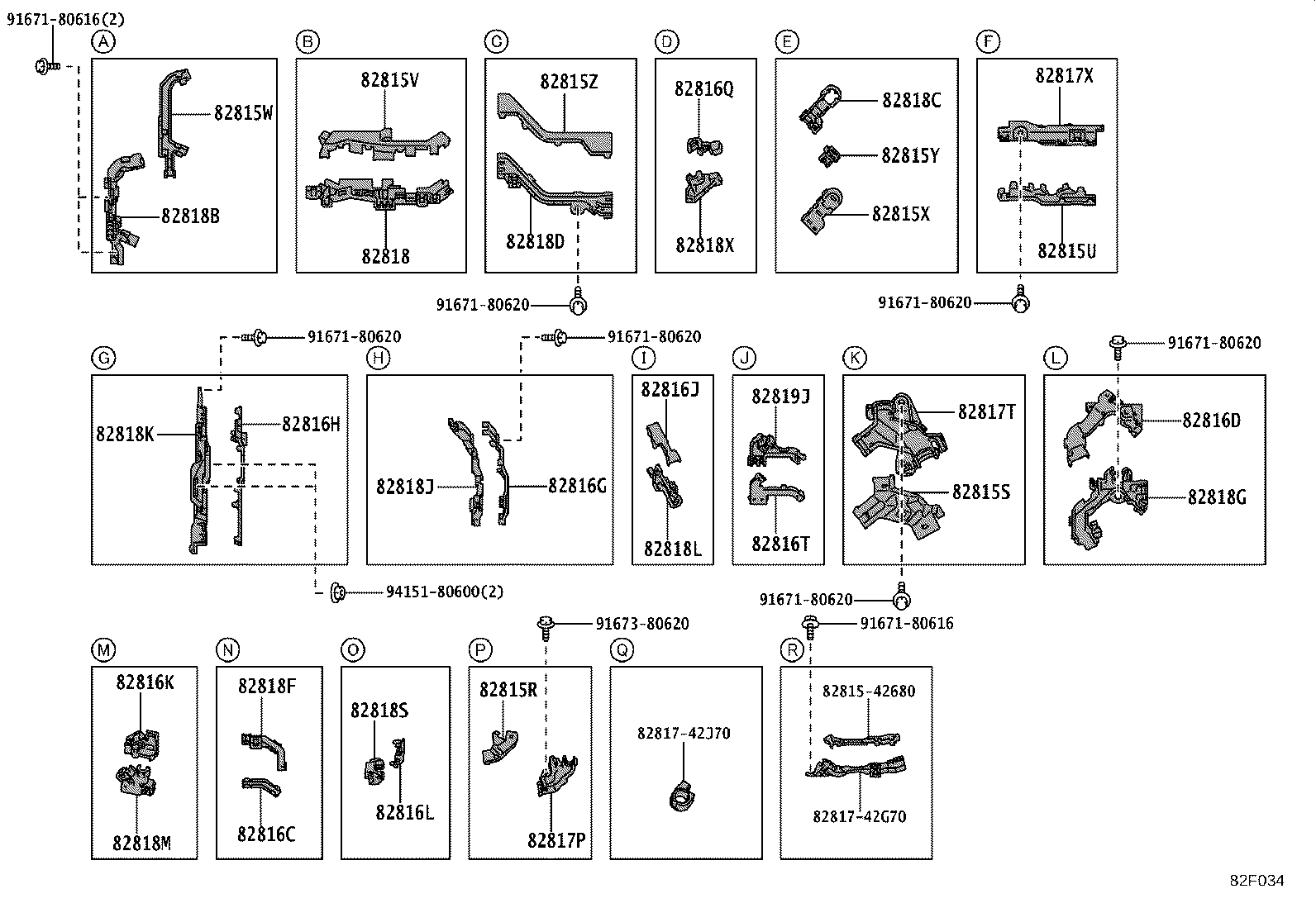

82F034

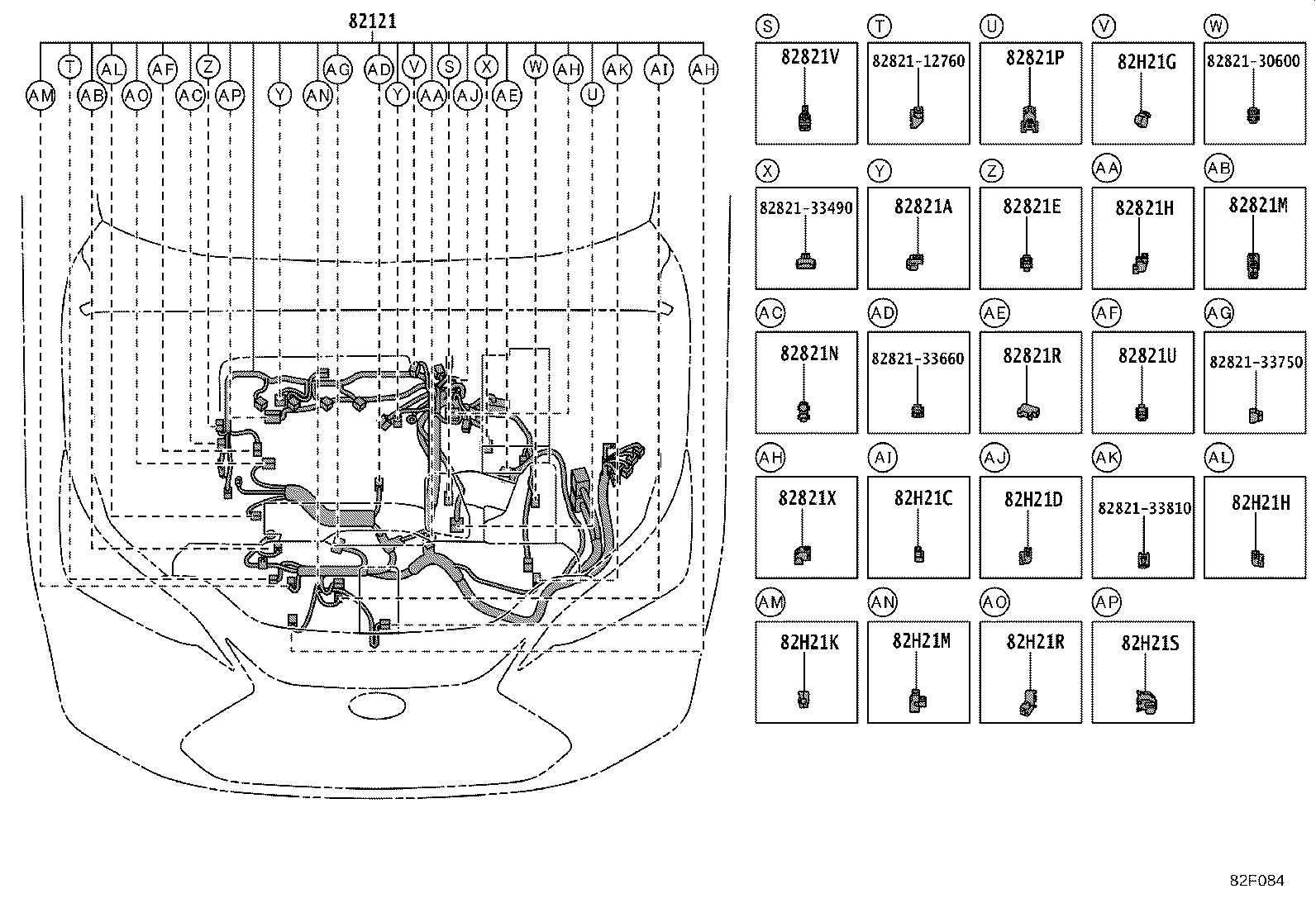

82F084

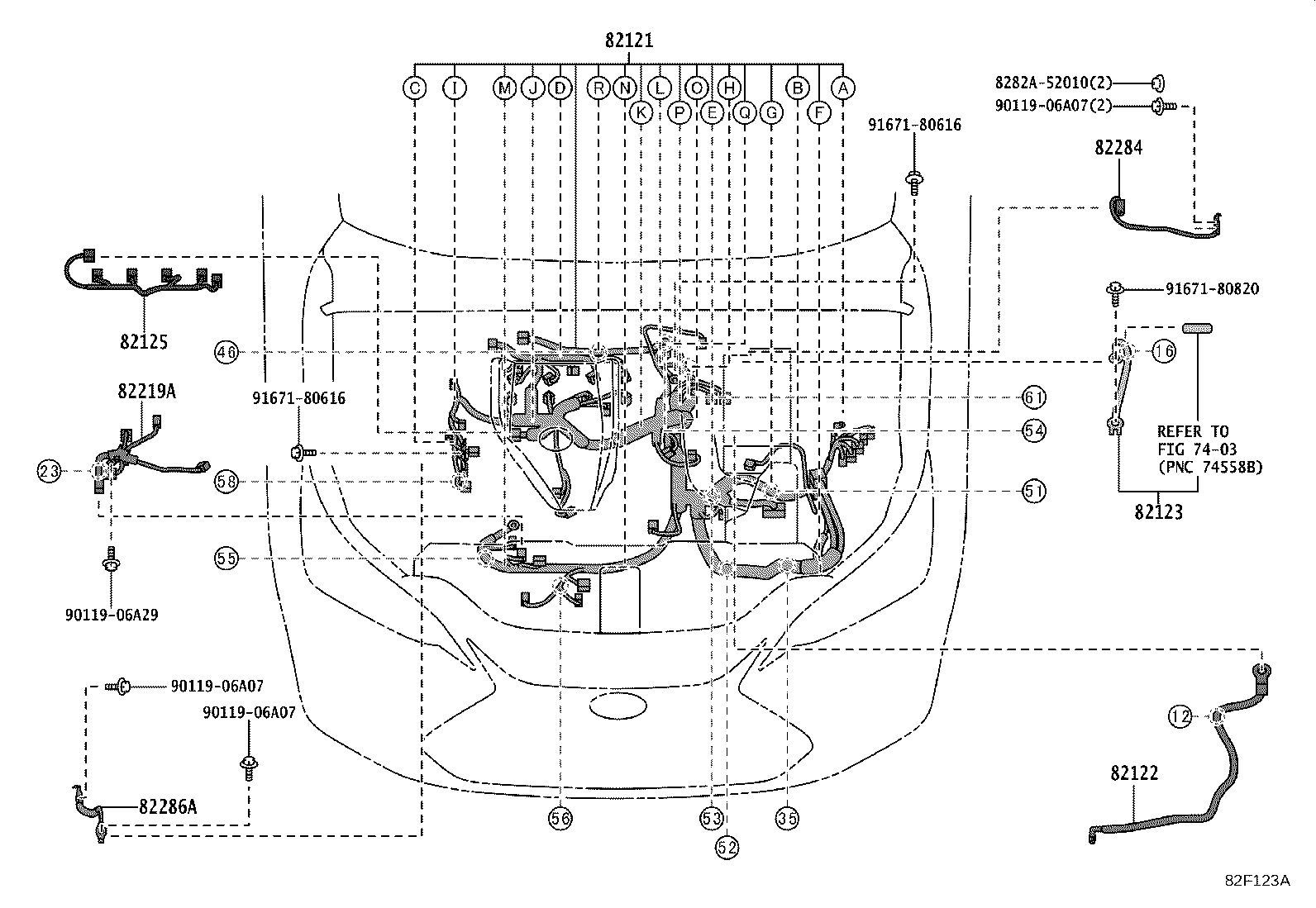

82F123A

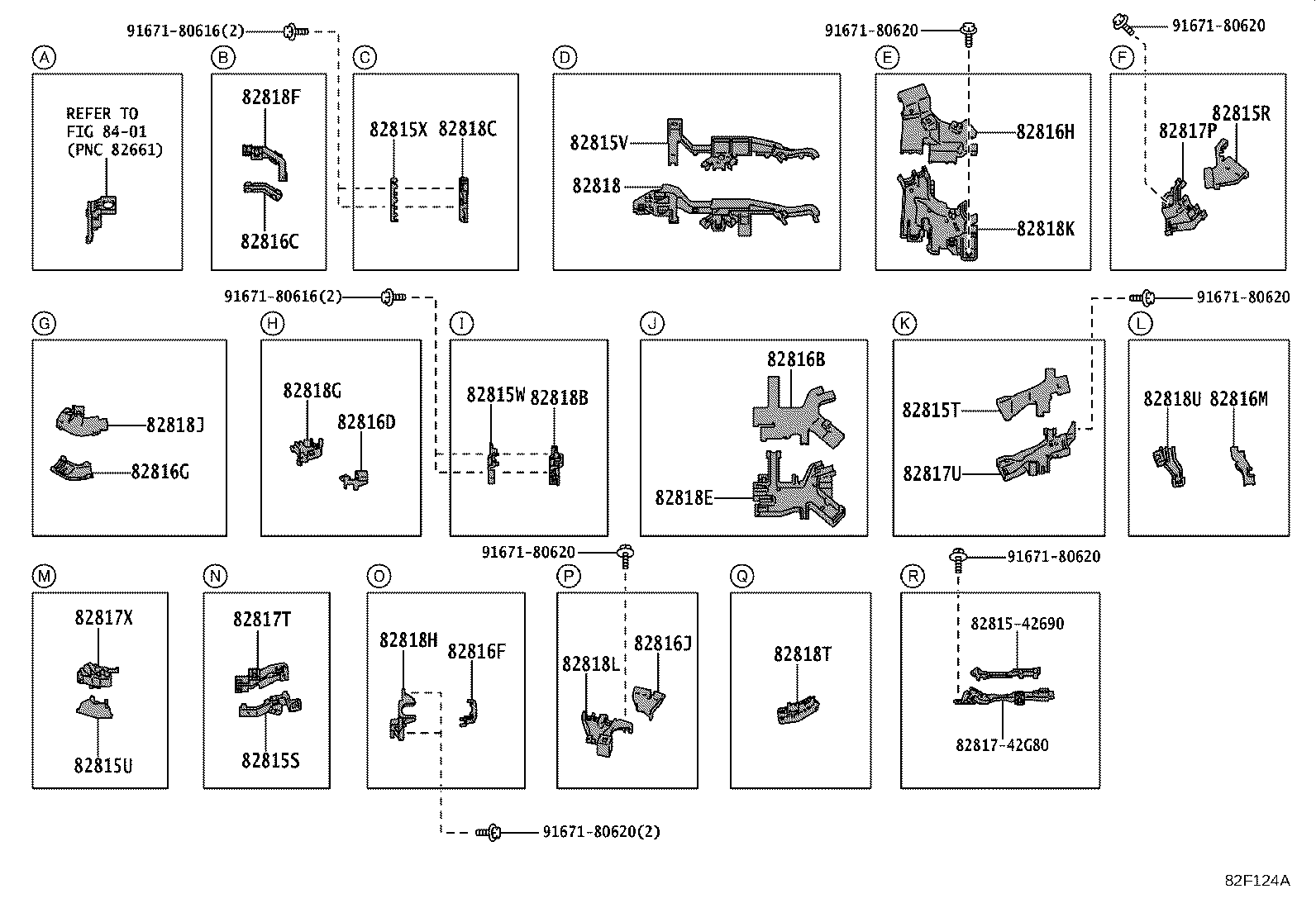

82F124A

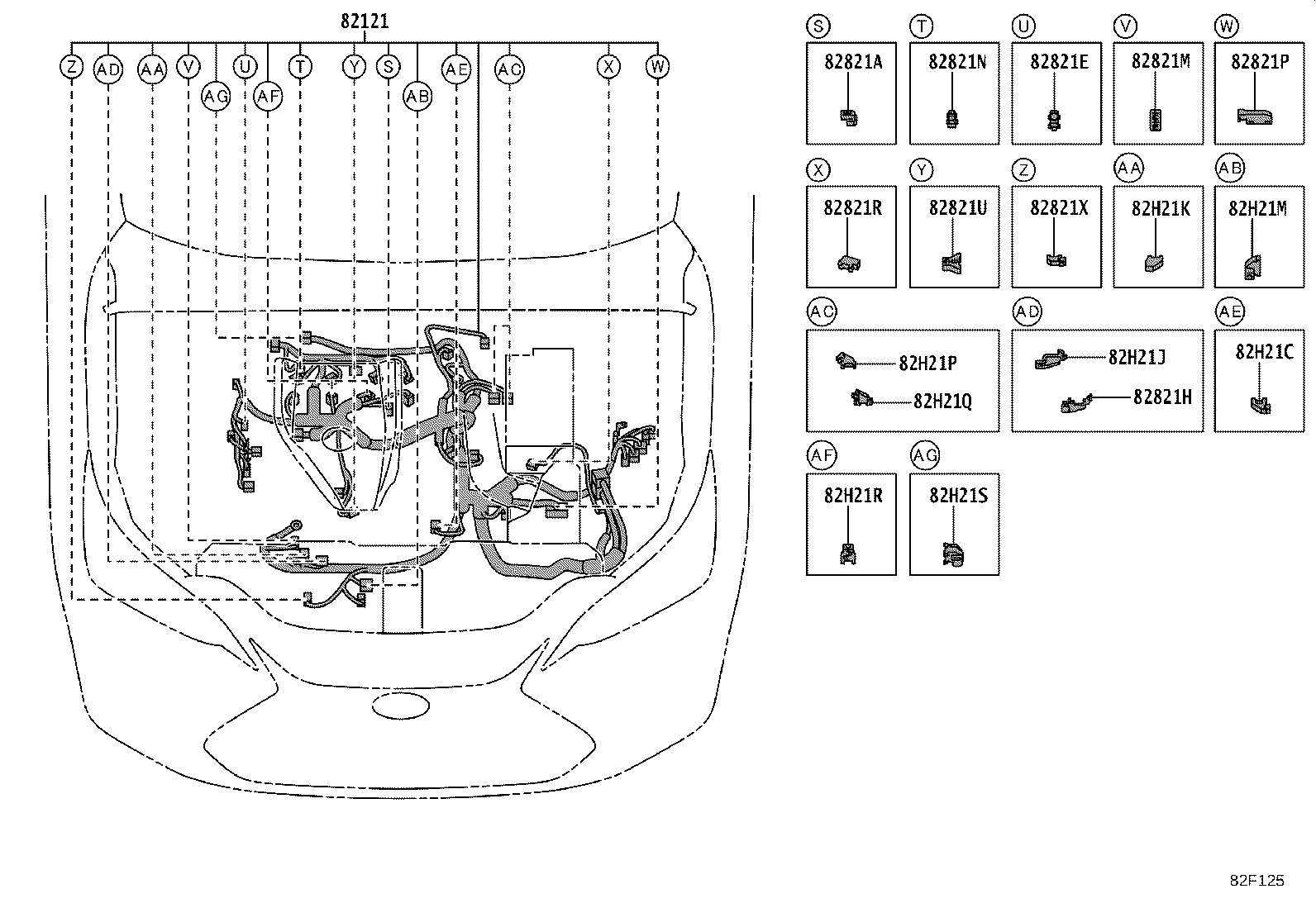

82F125

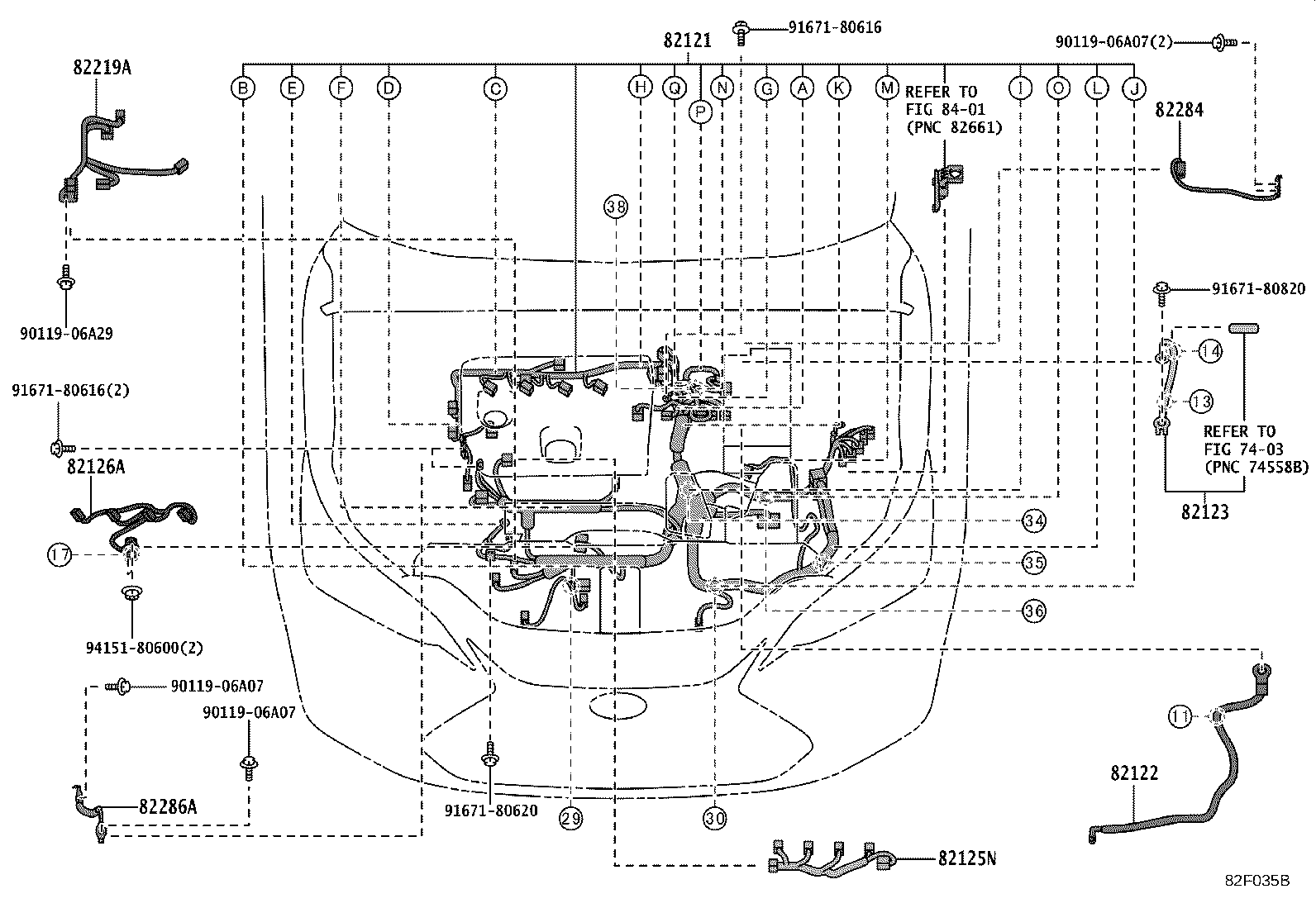

82F035B

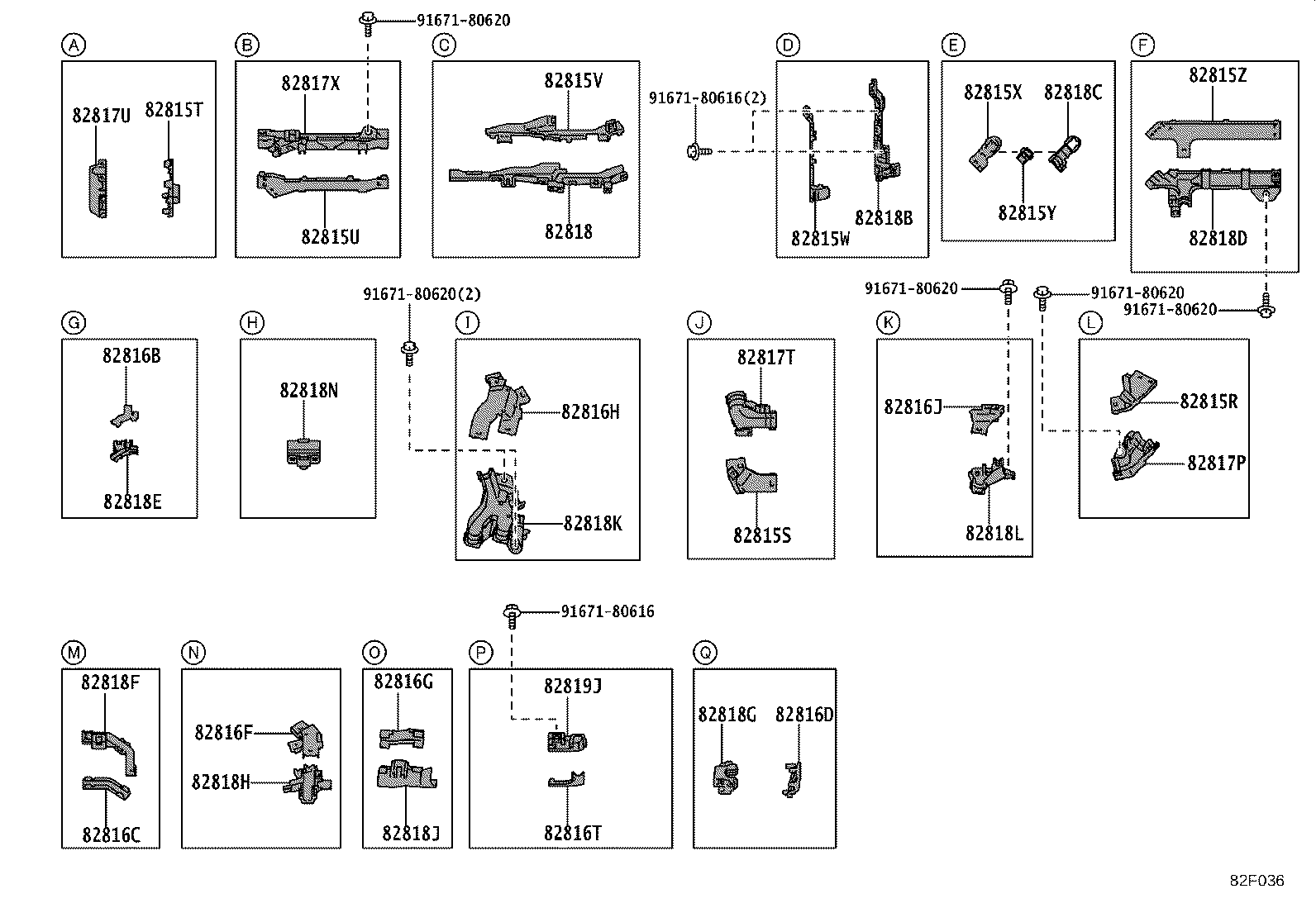

82F036

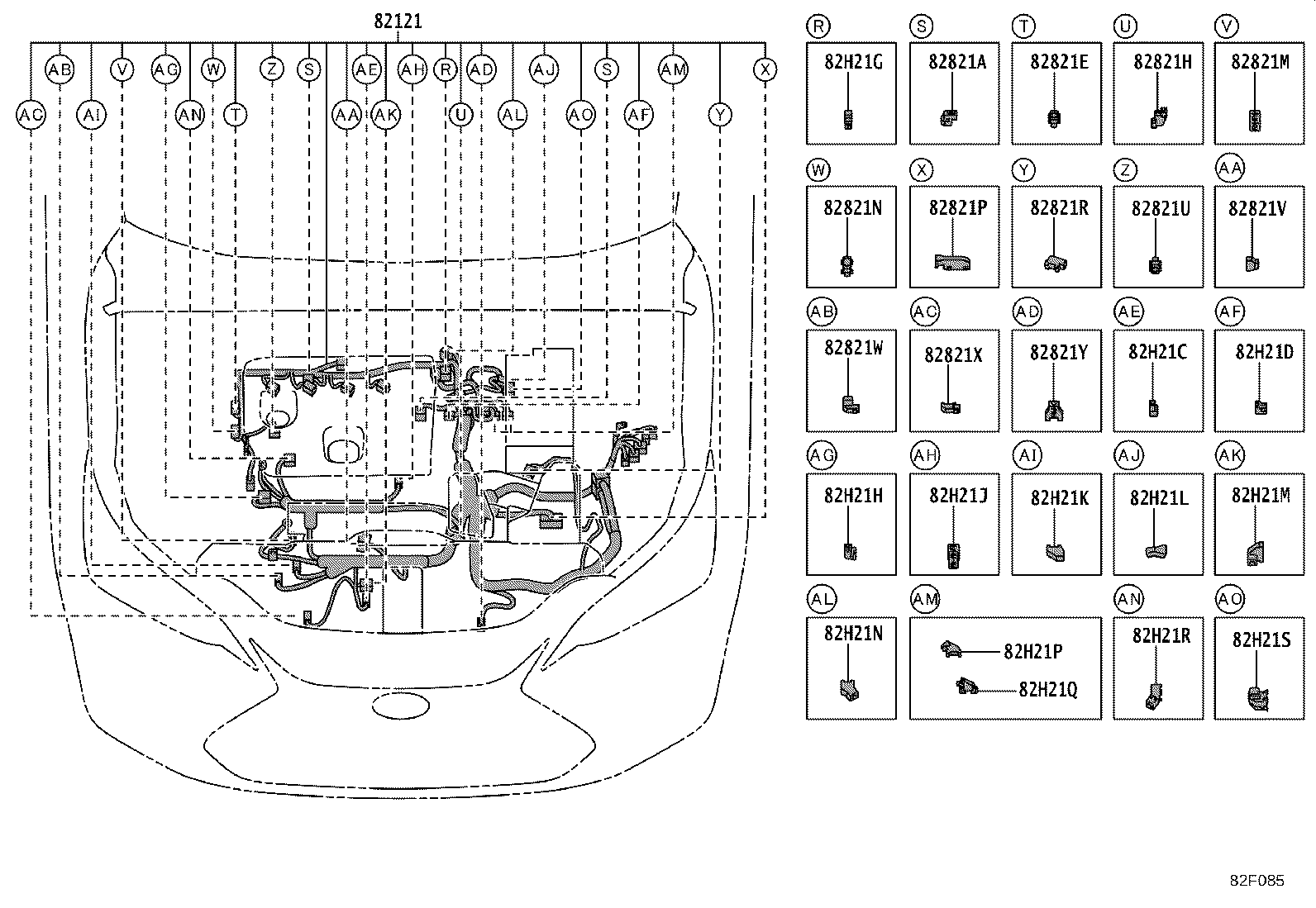

82F085

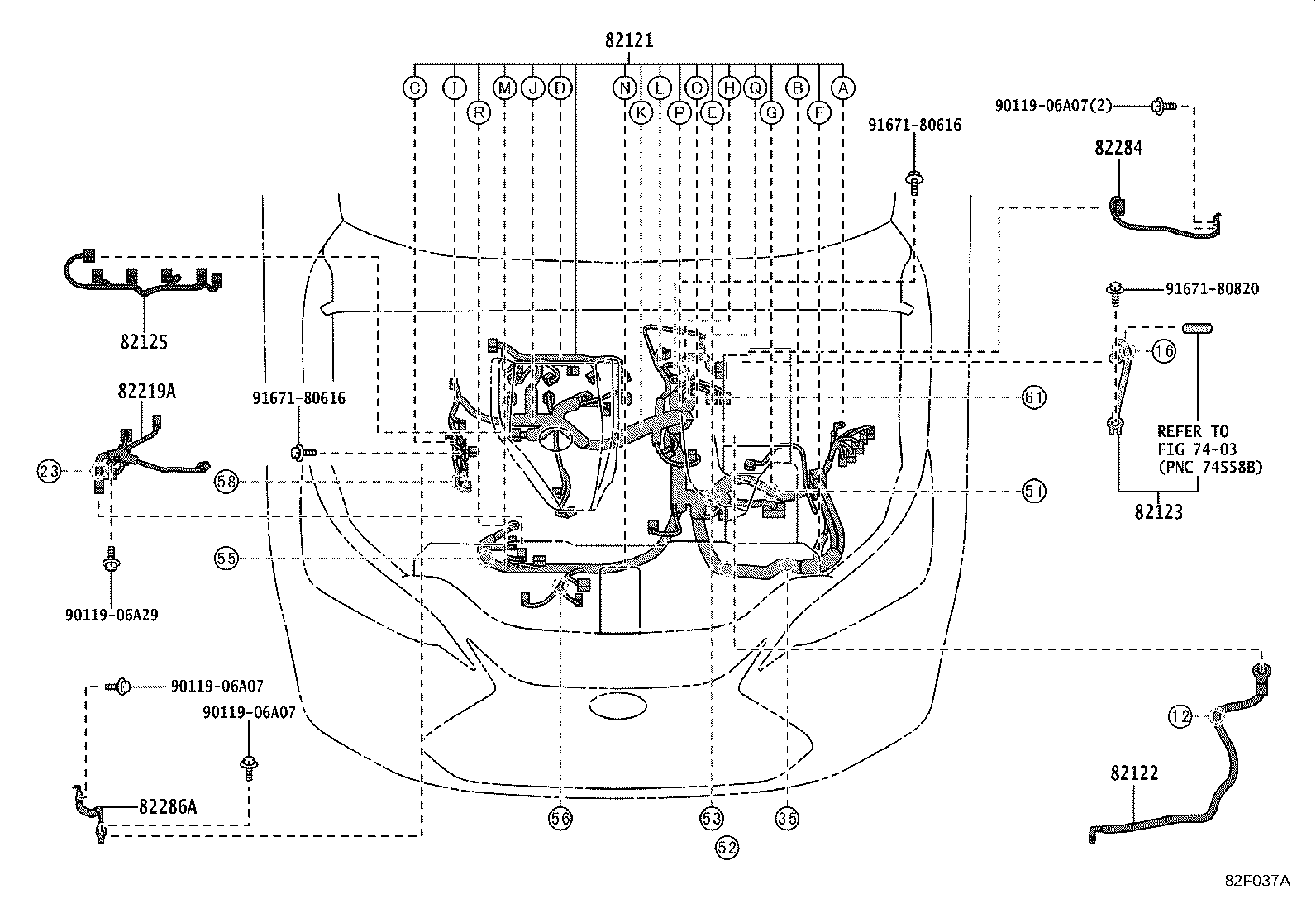

82F037A

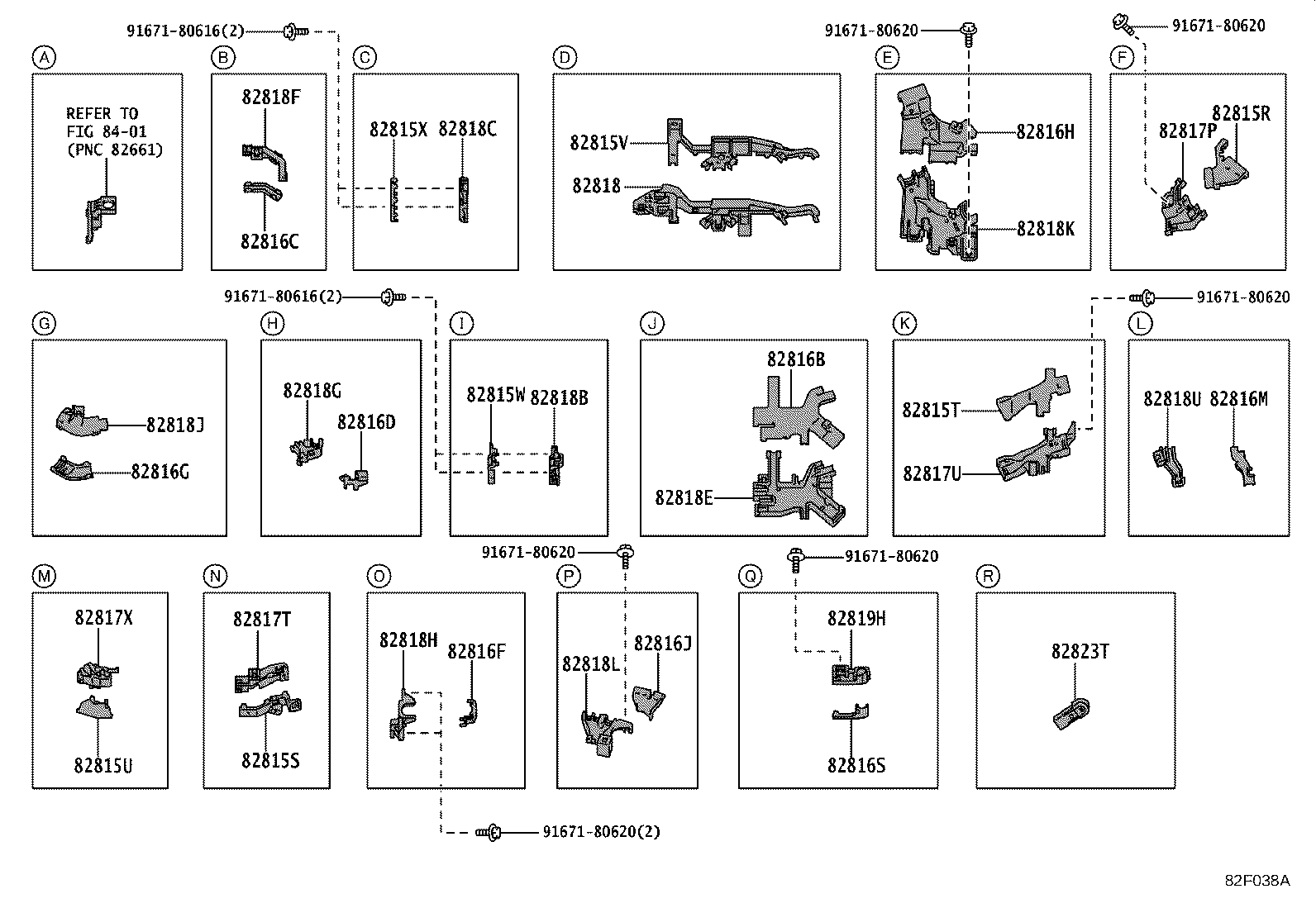

82F038A
82F086
82F039A

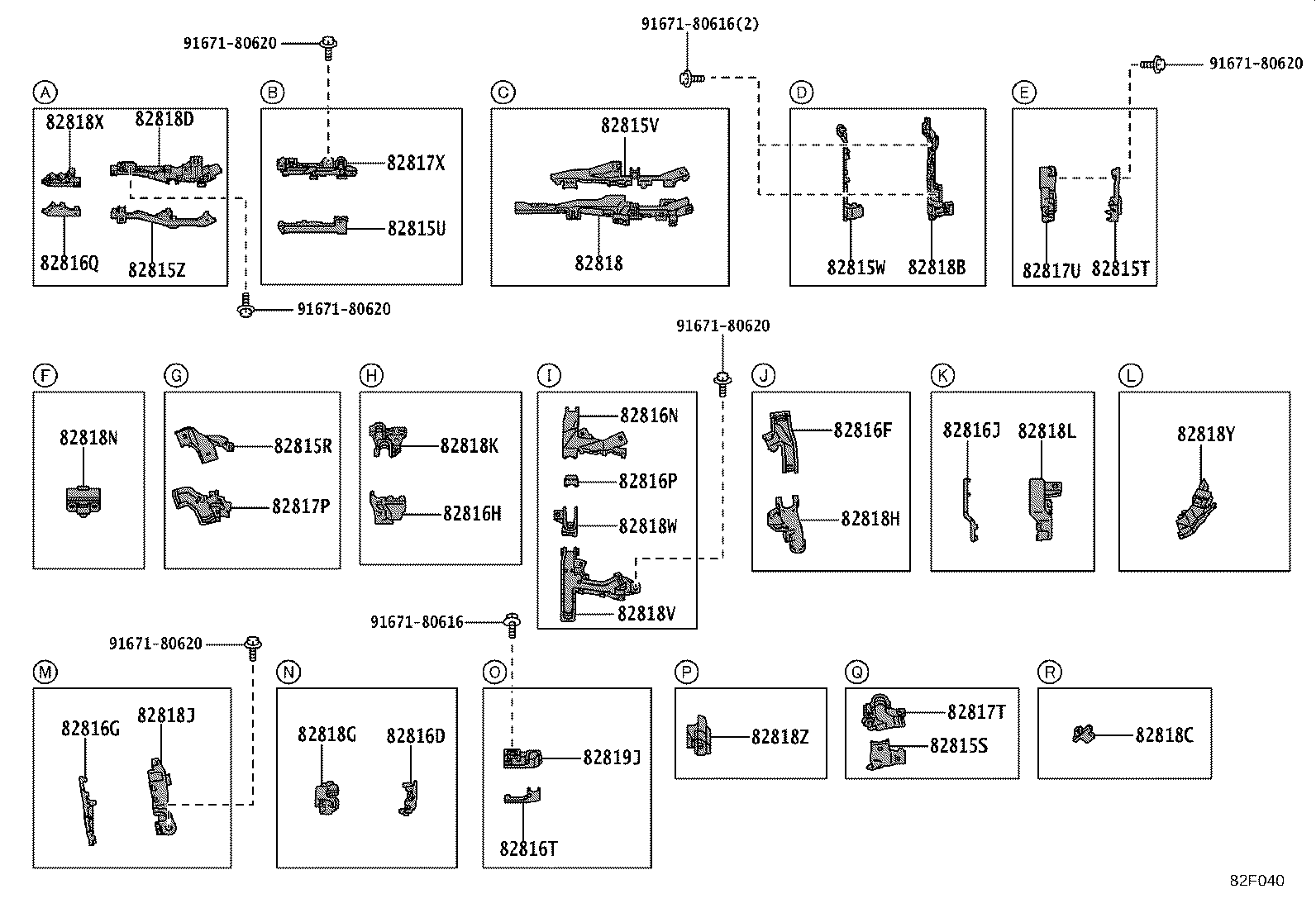

82F040

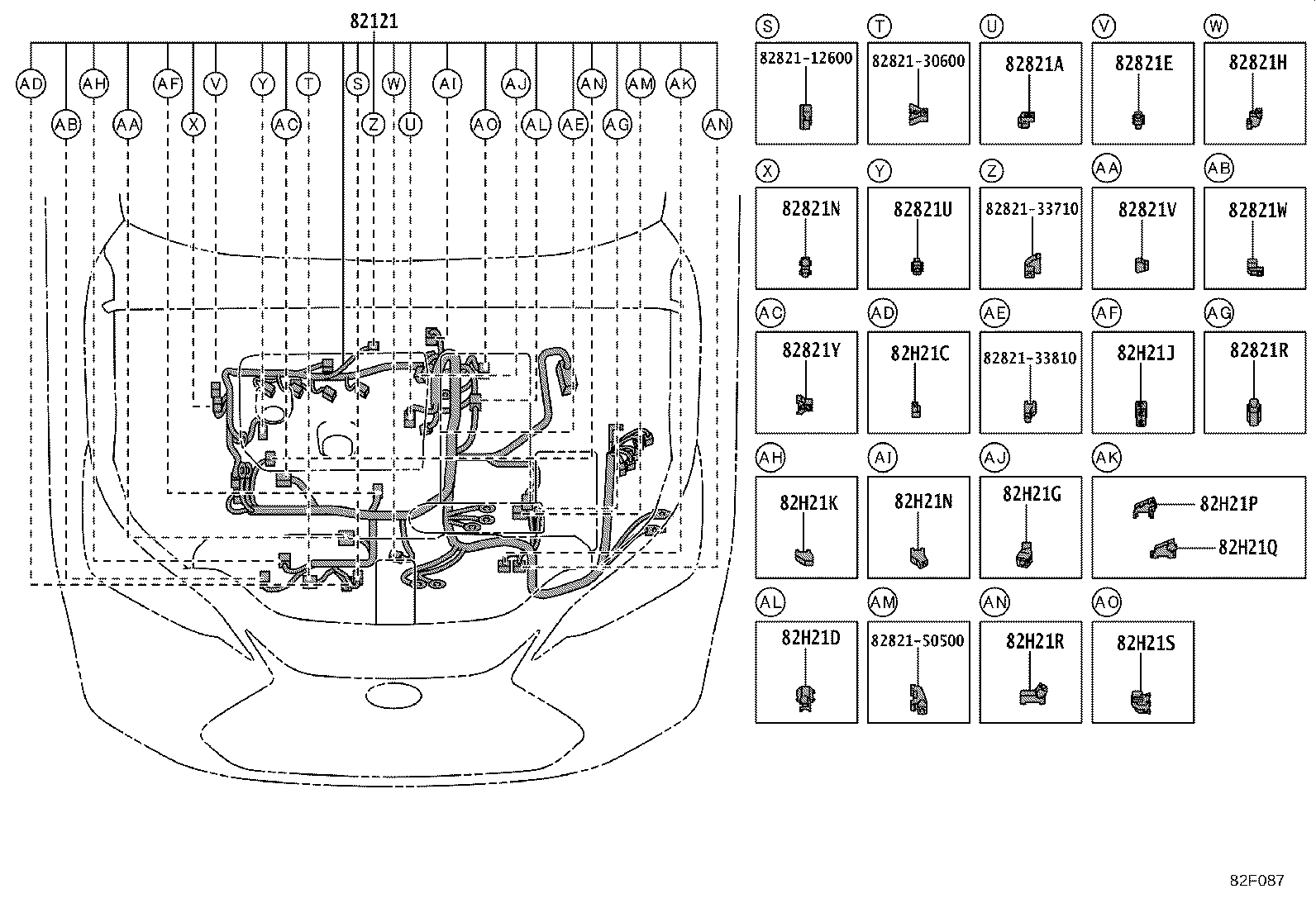

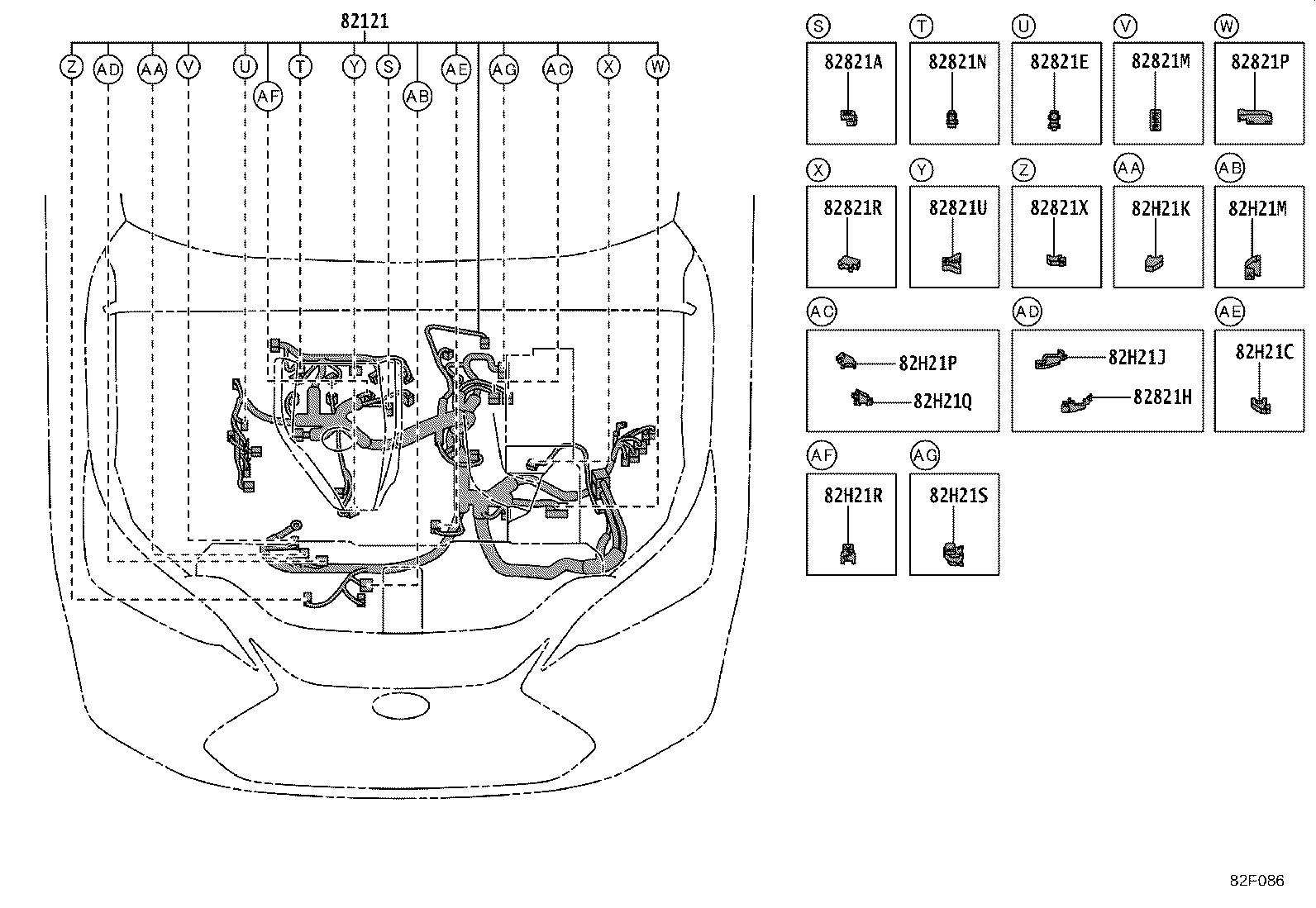

82F087

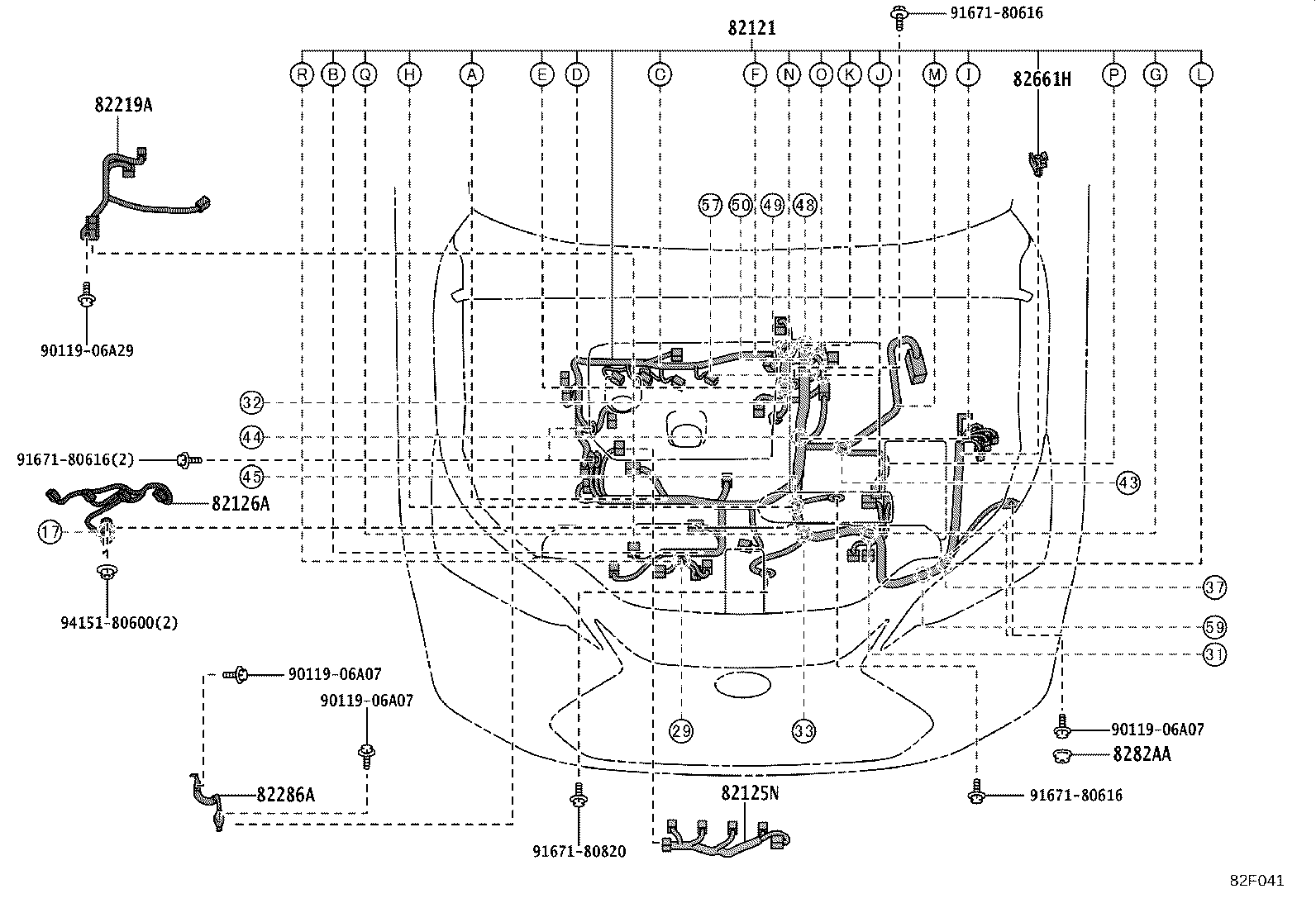

82F041

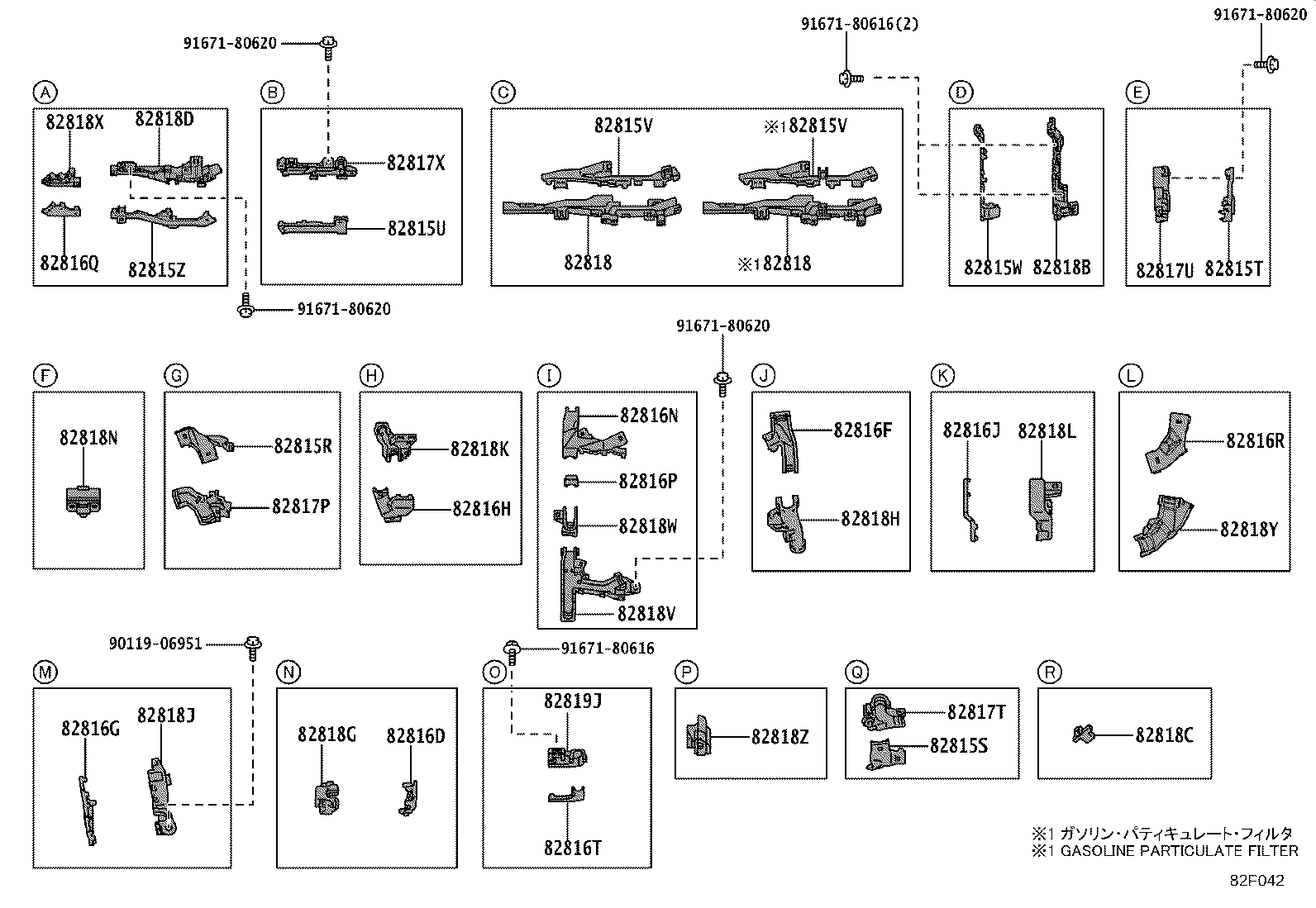

82F042

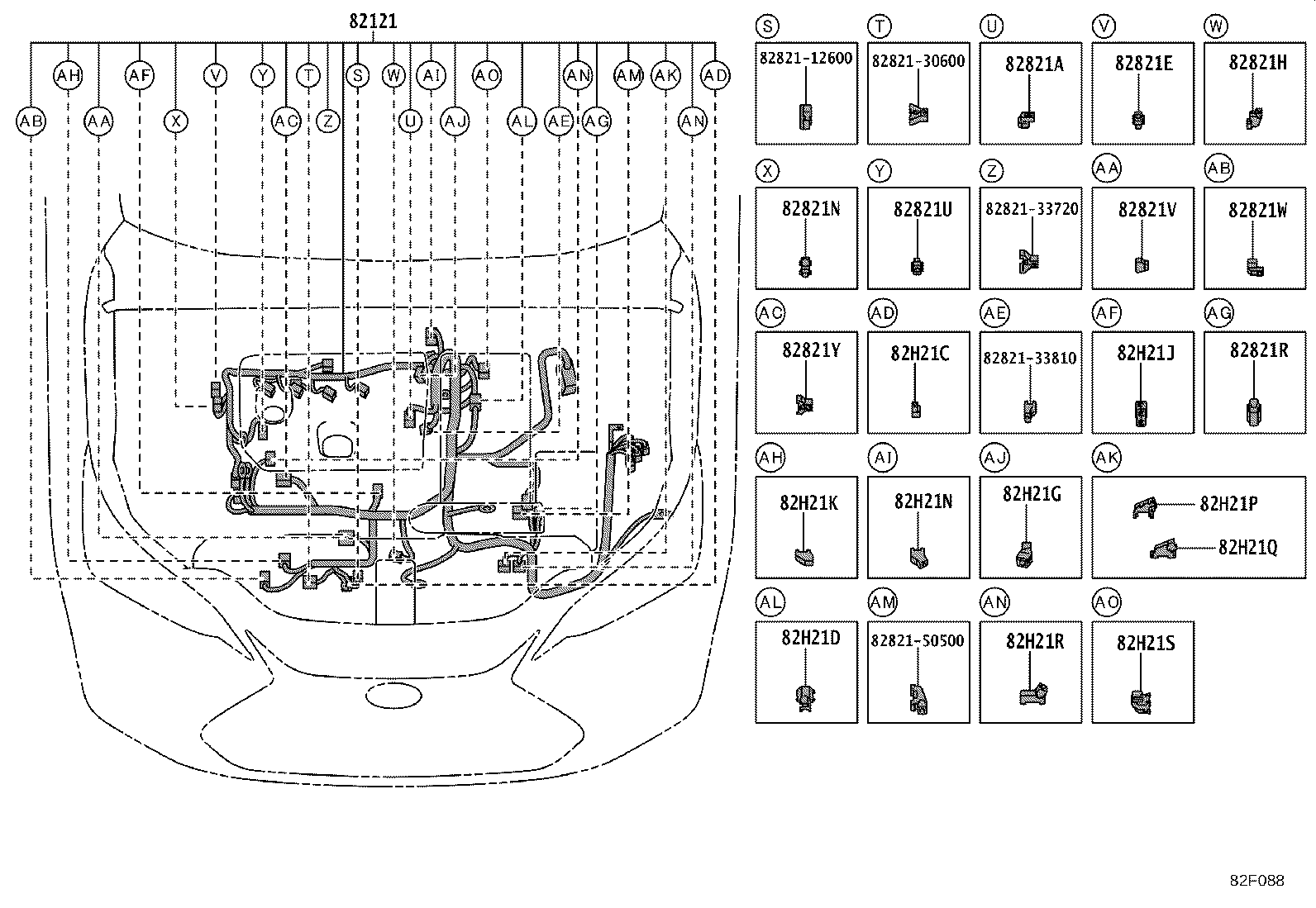

82F088

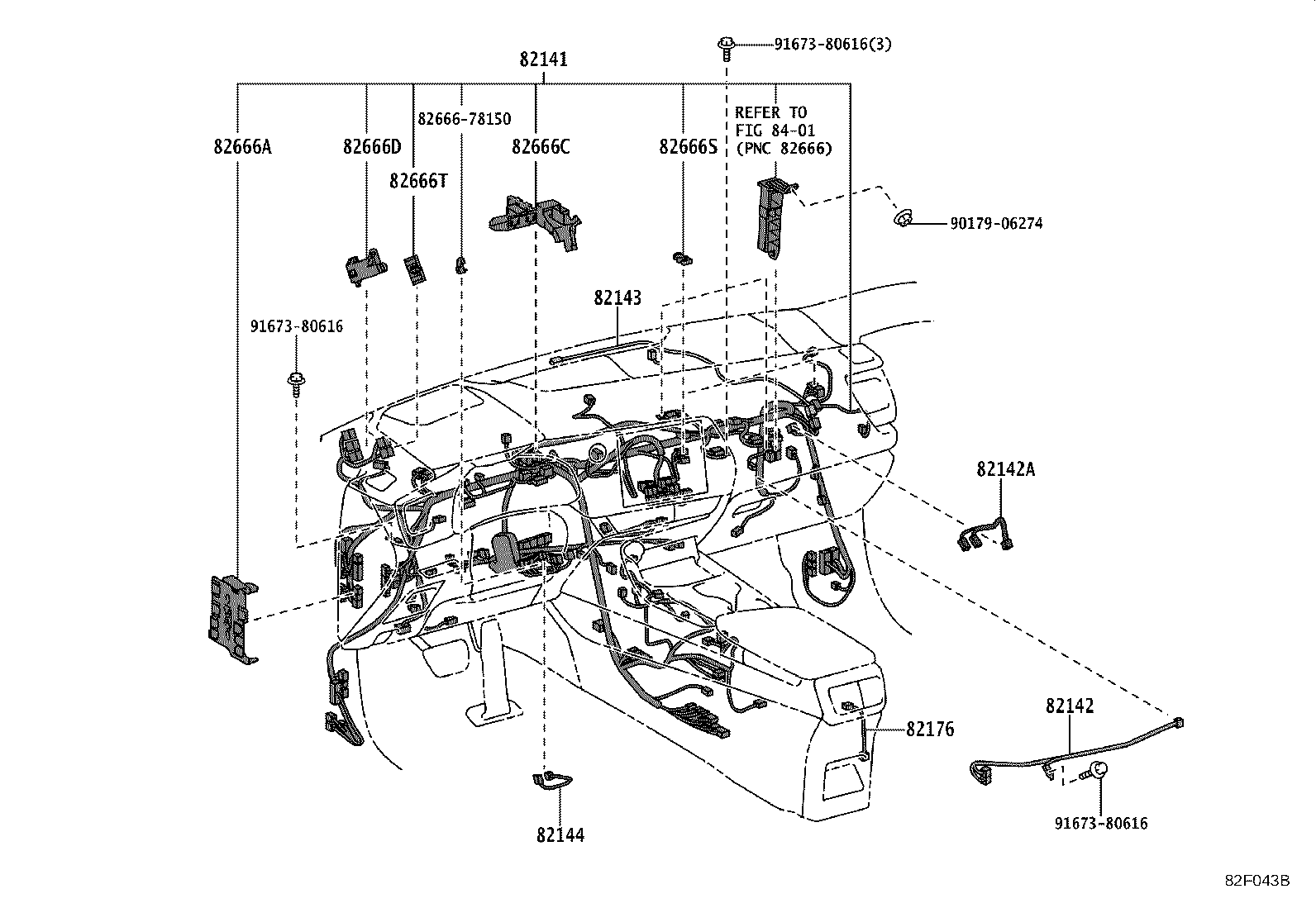

82F043B

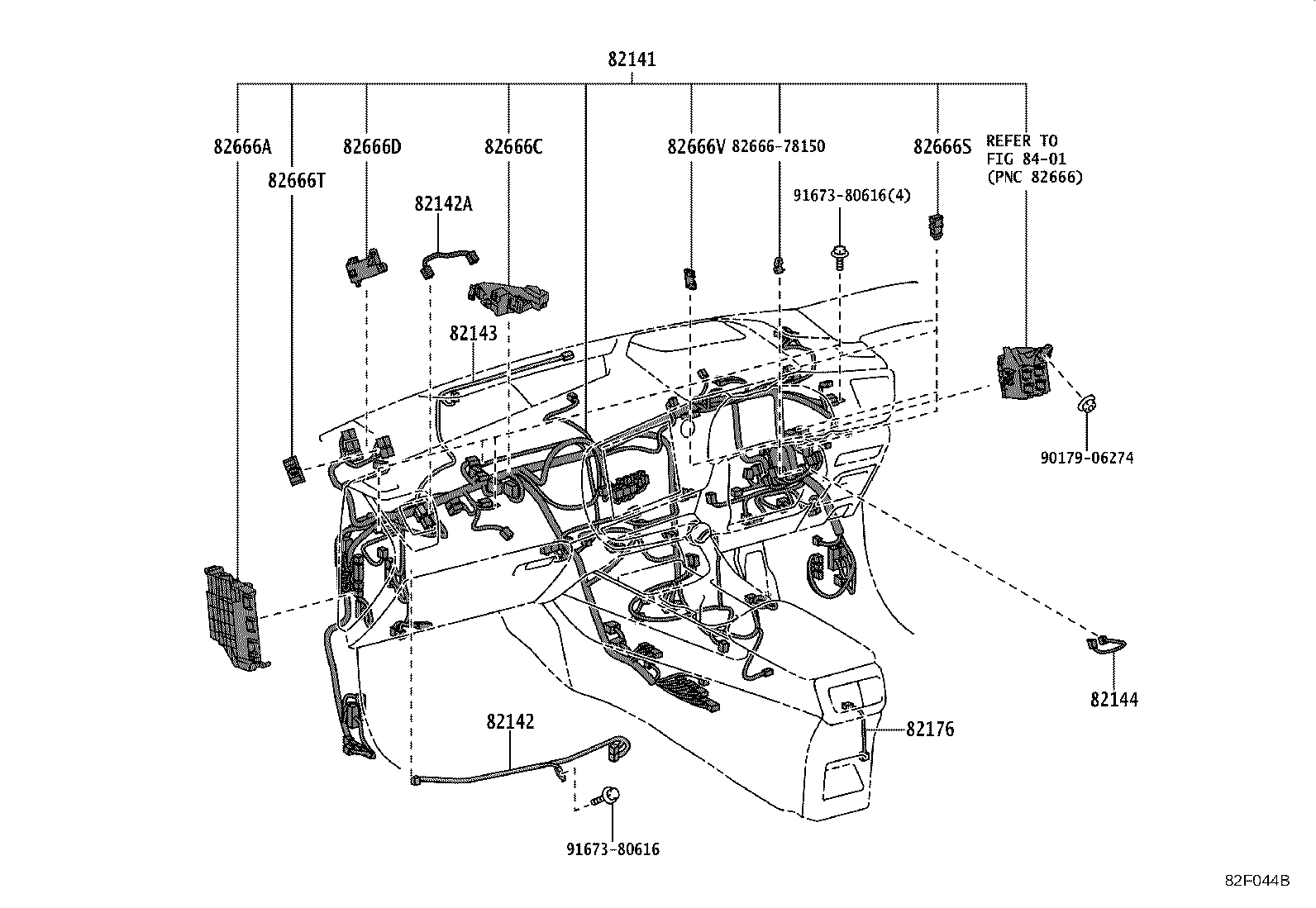

82F044B

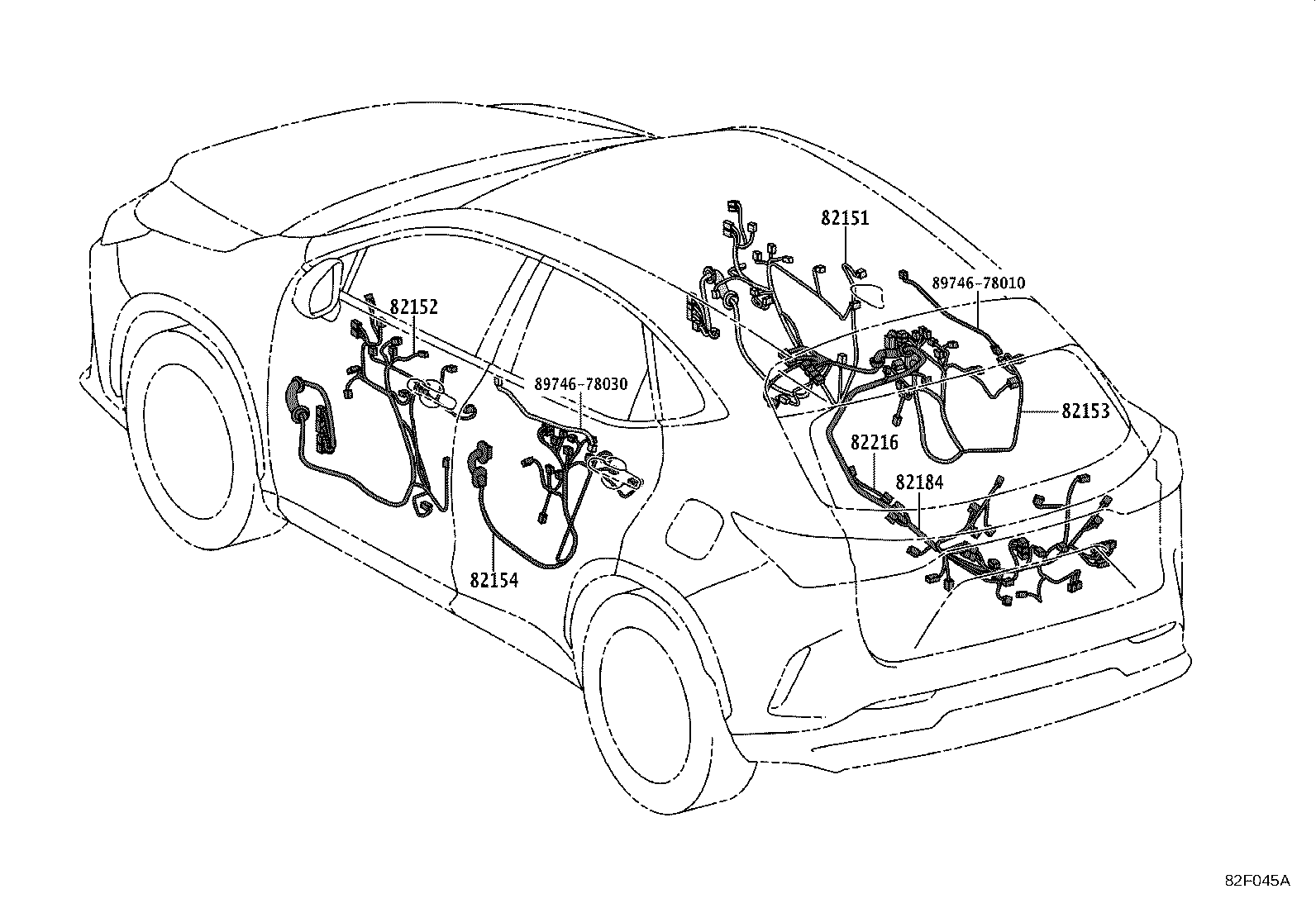

82F045A

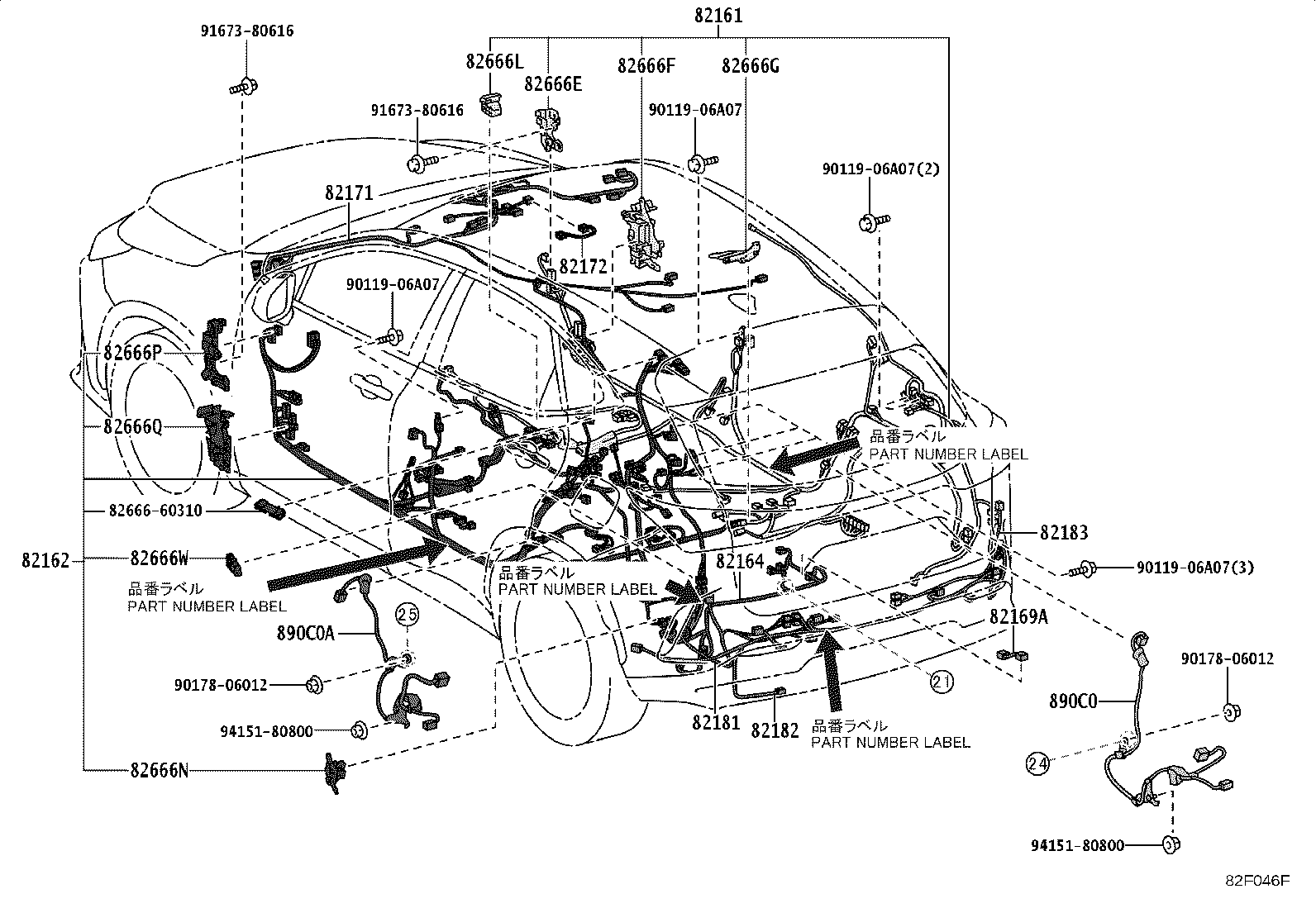

82F046F

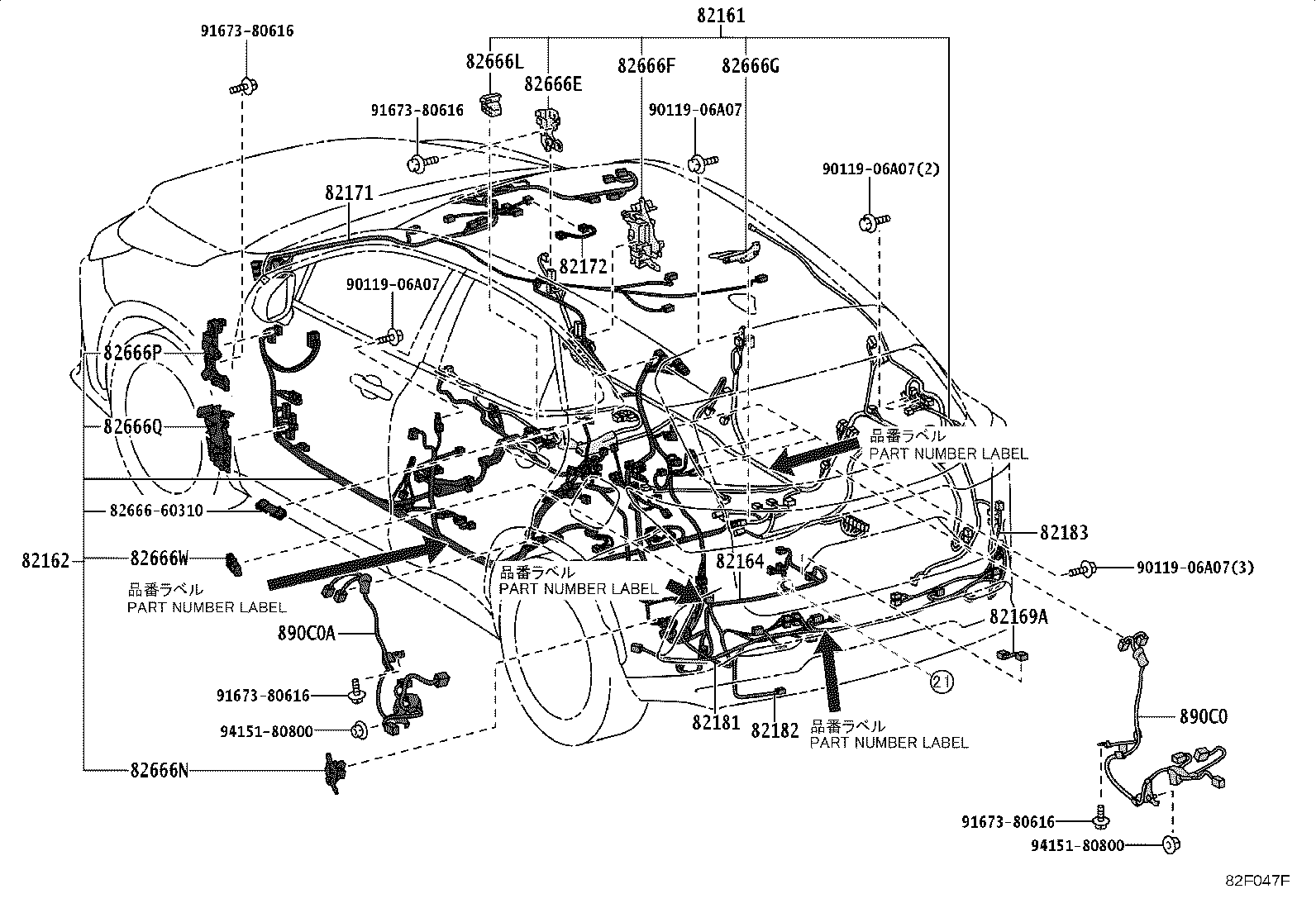

82F047F

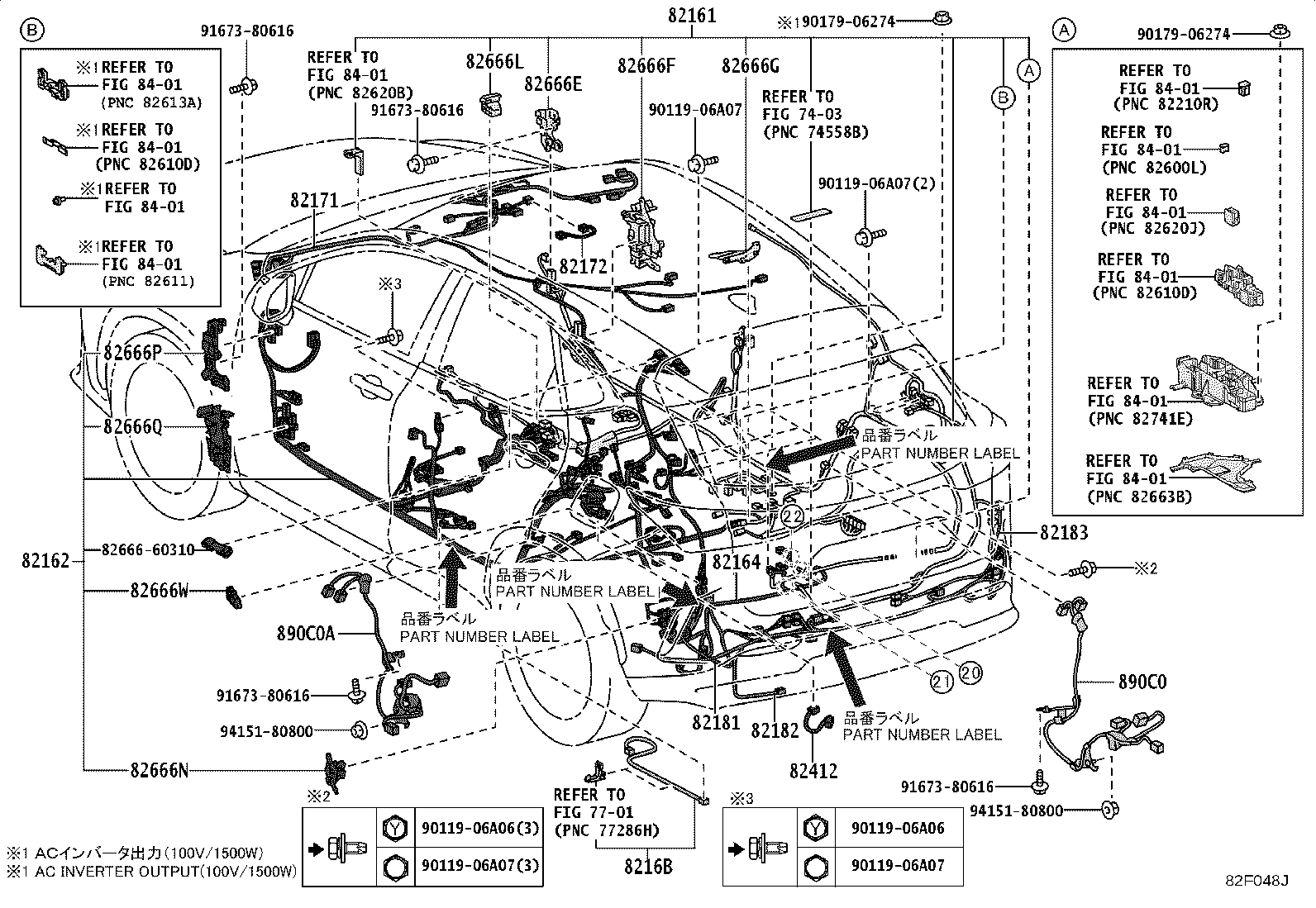

82F048J

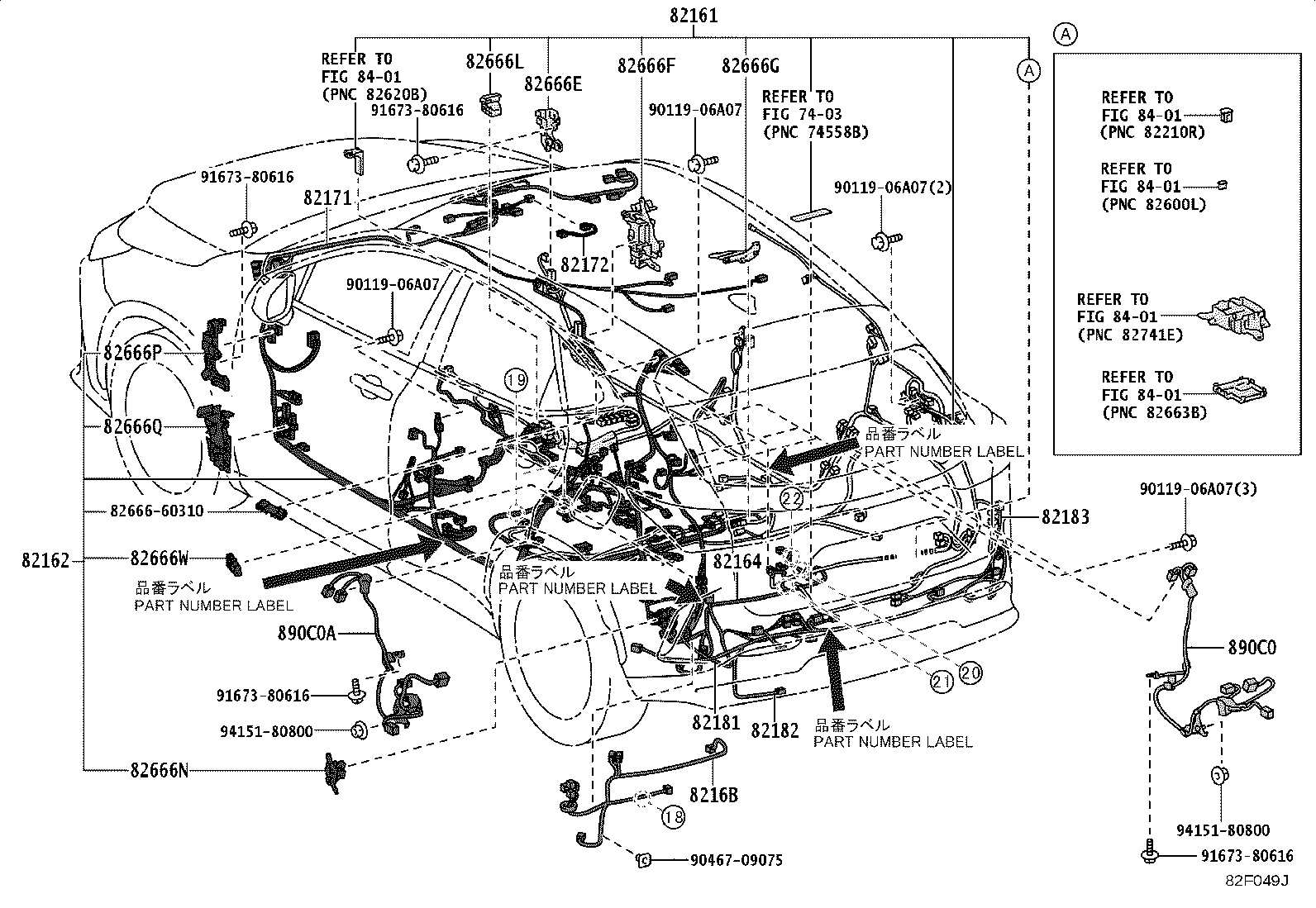

82F049J

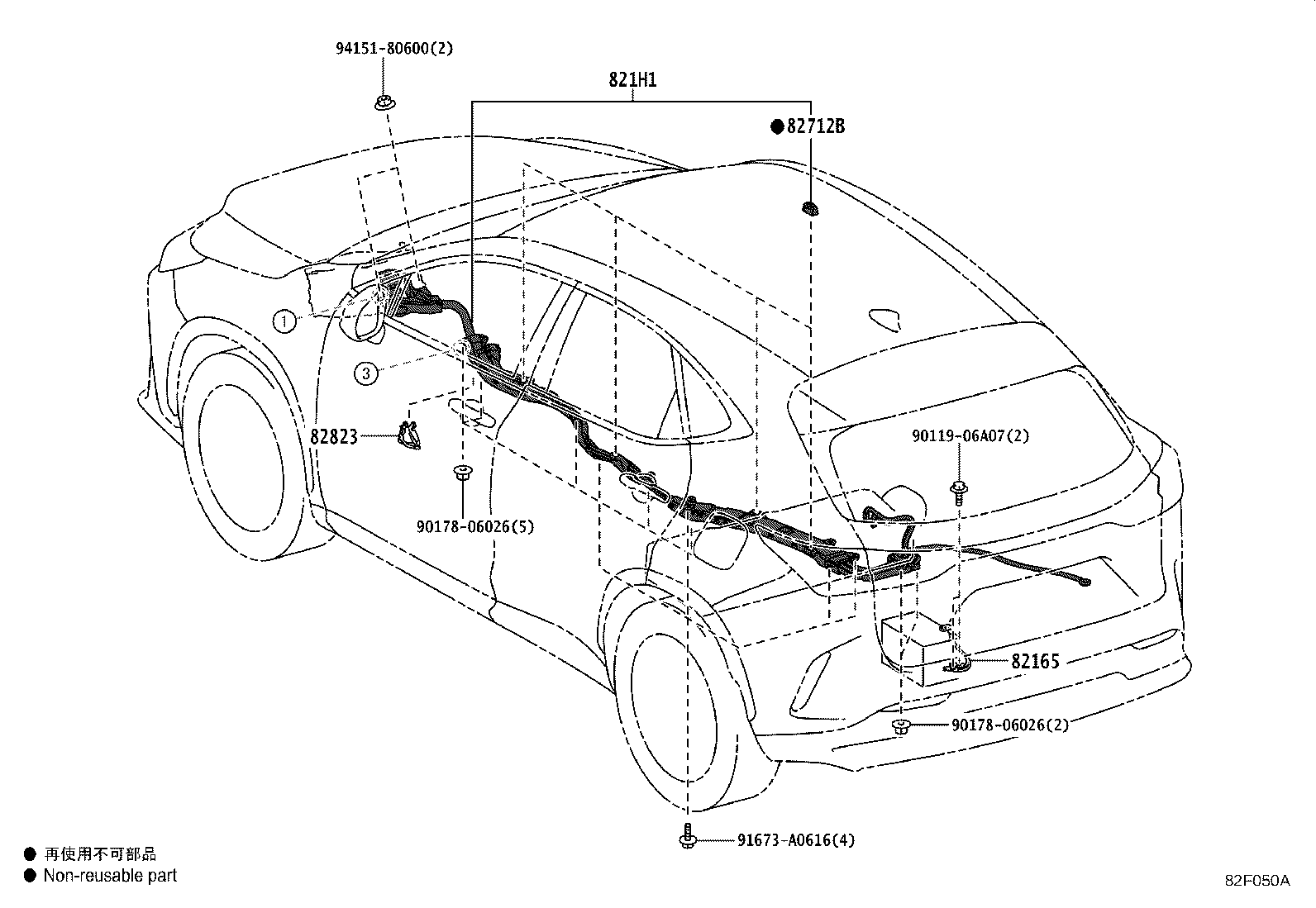

82F050A

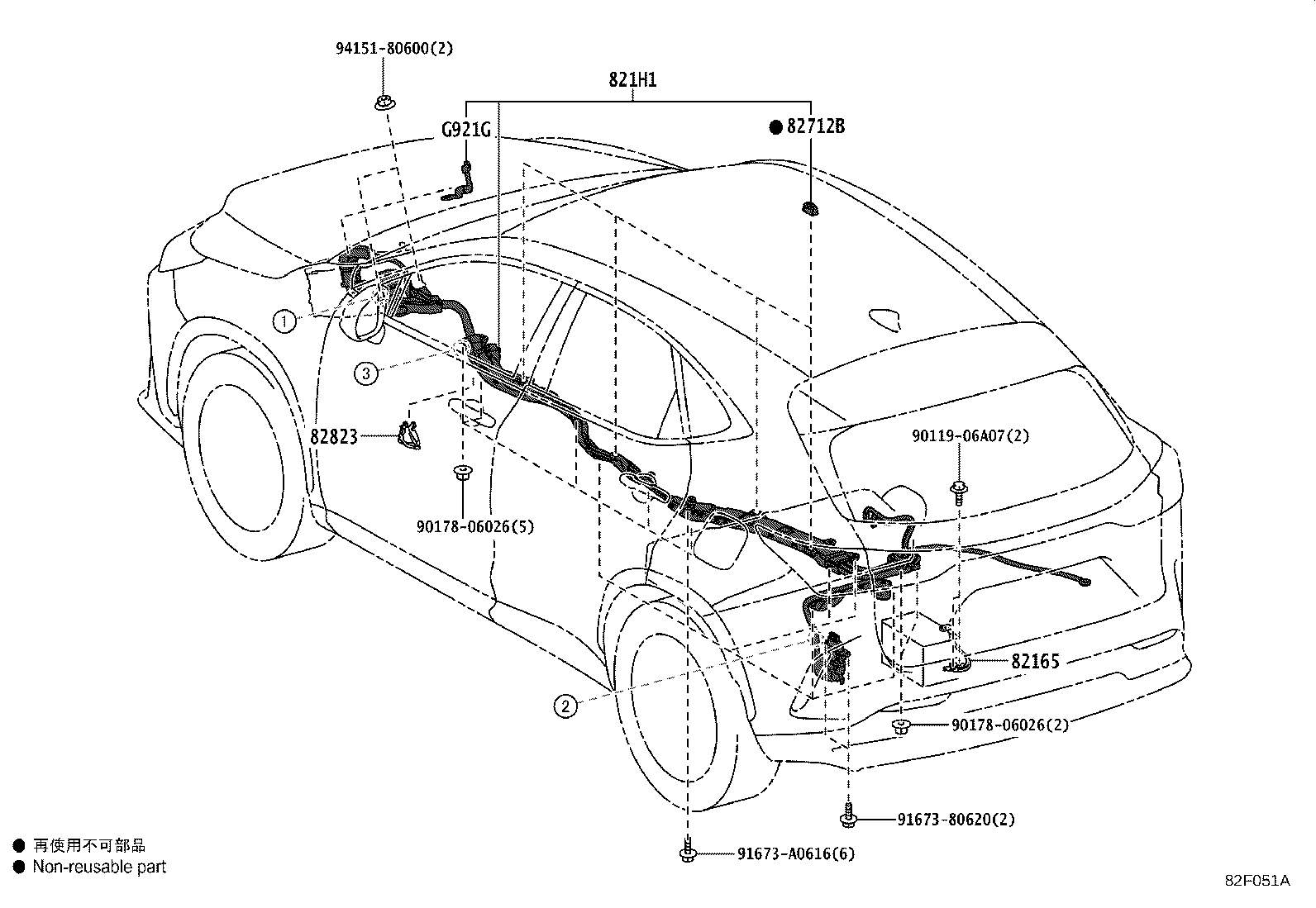

82F051A

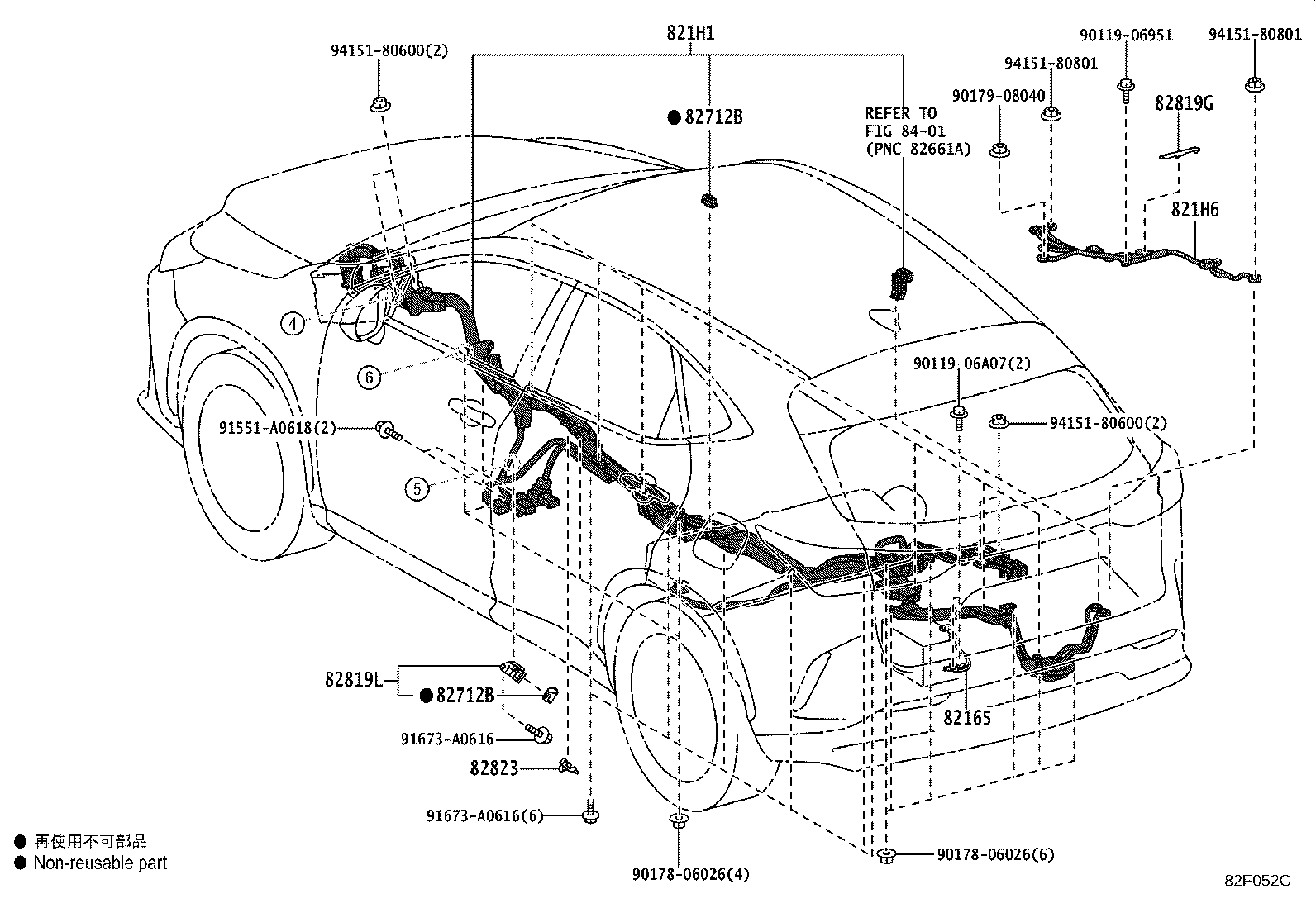

82F052C

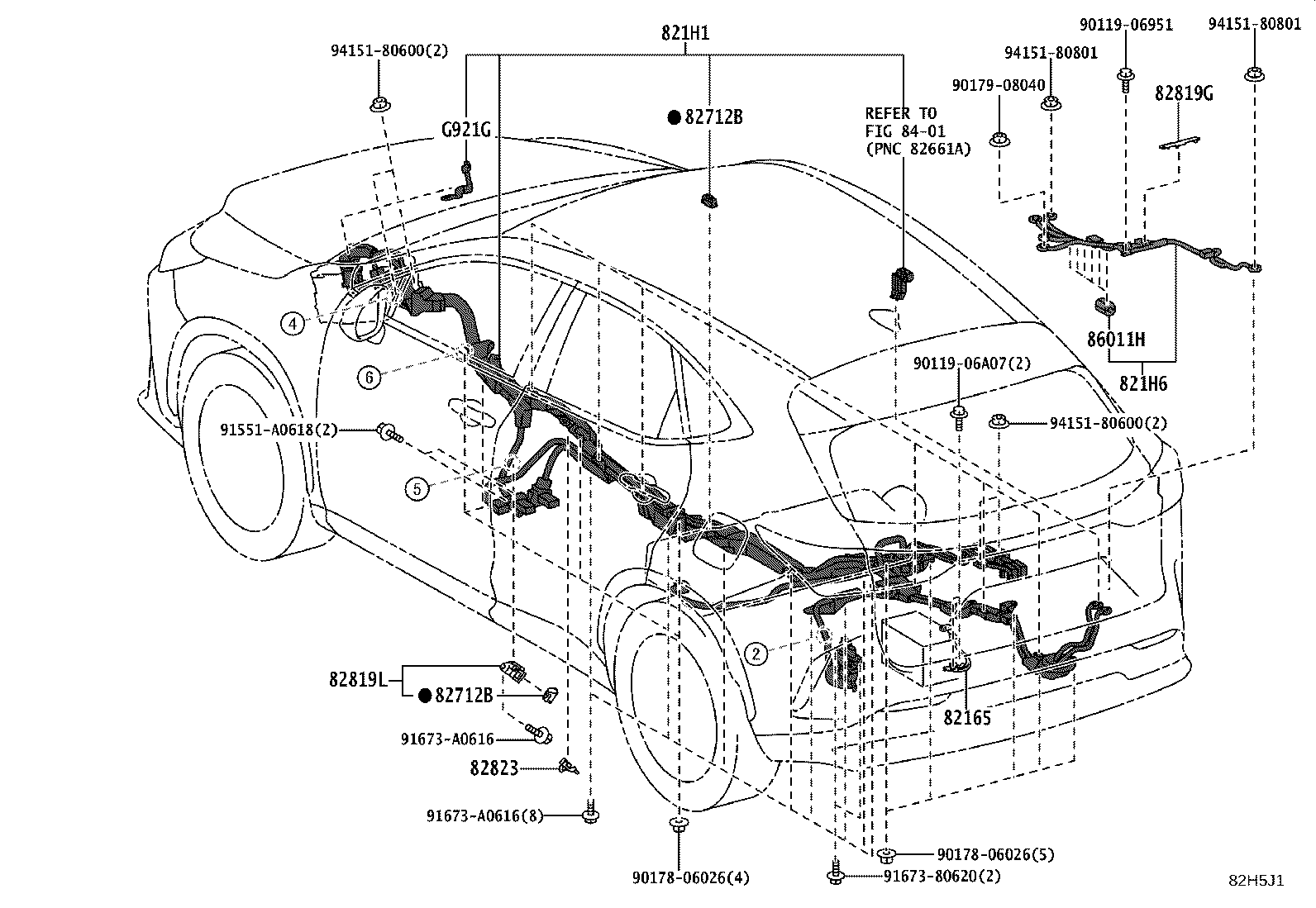

82H5J1

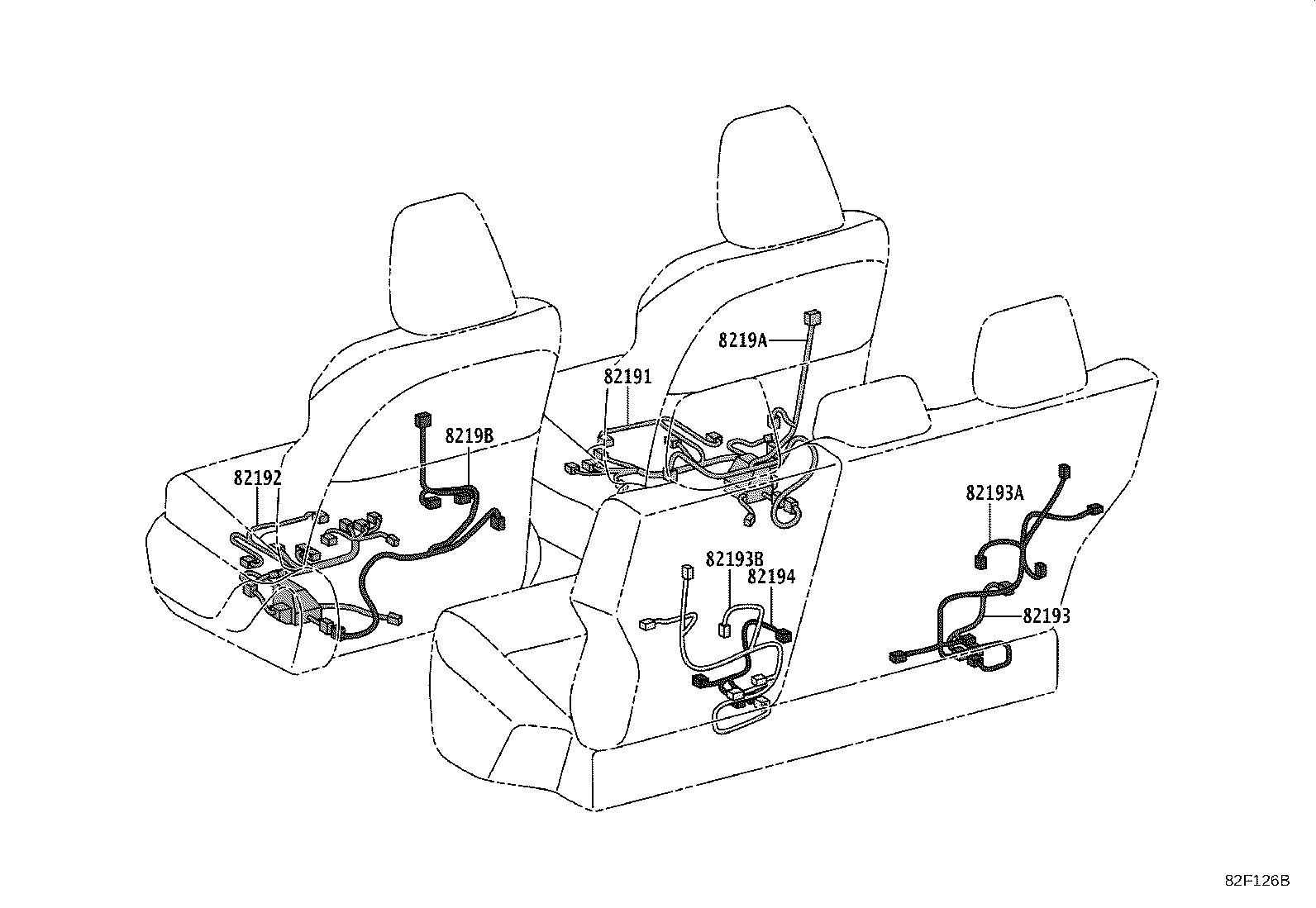

82F126B

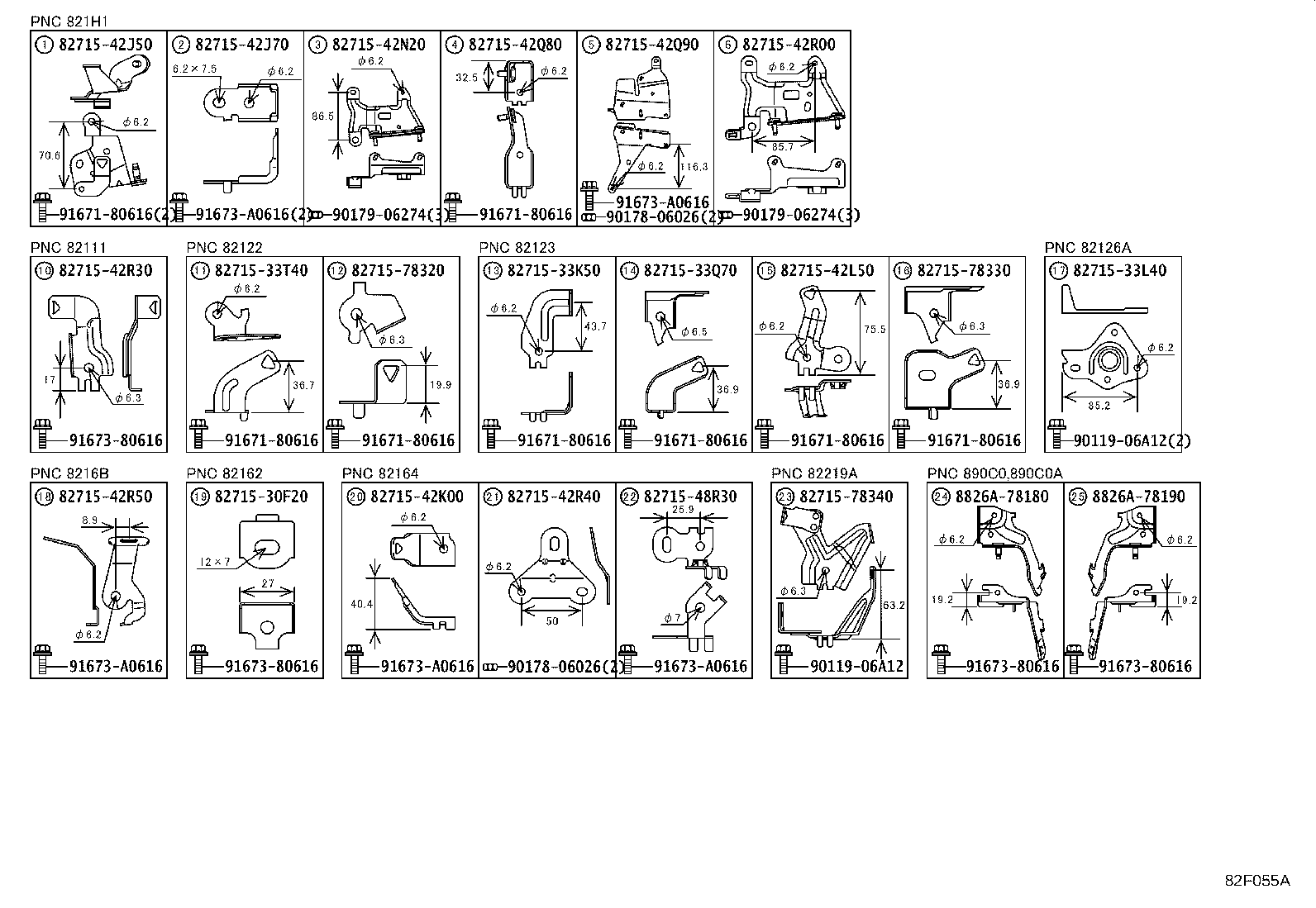

82F055A

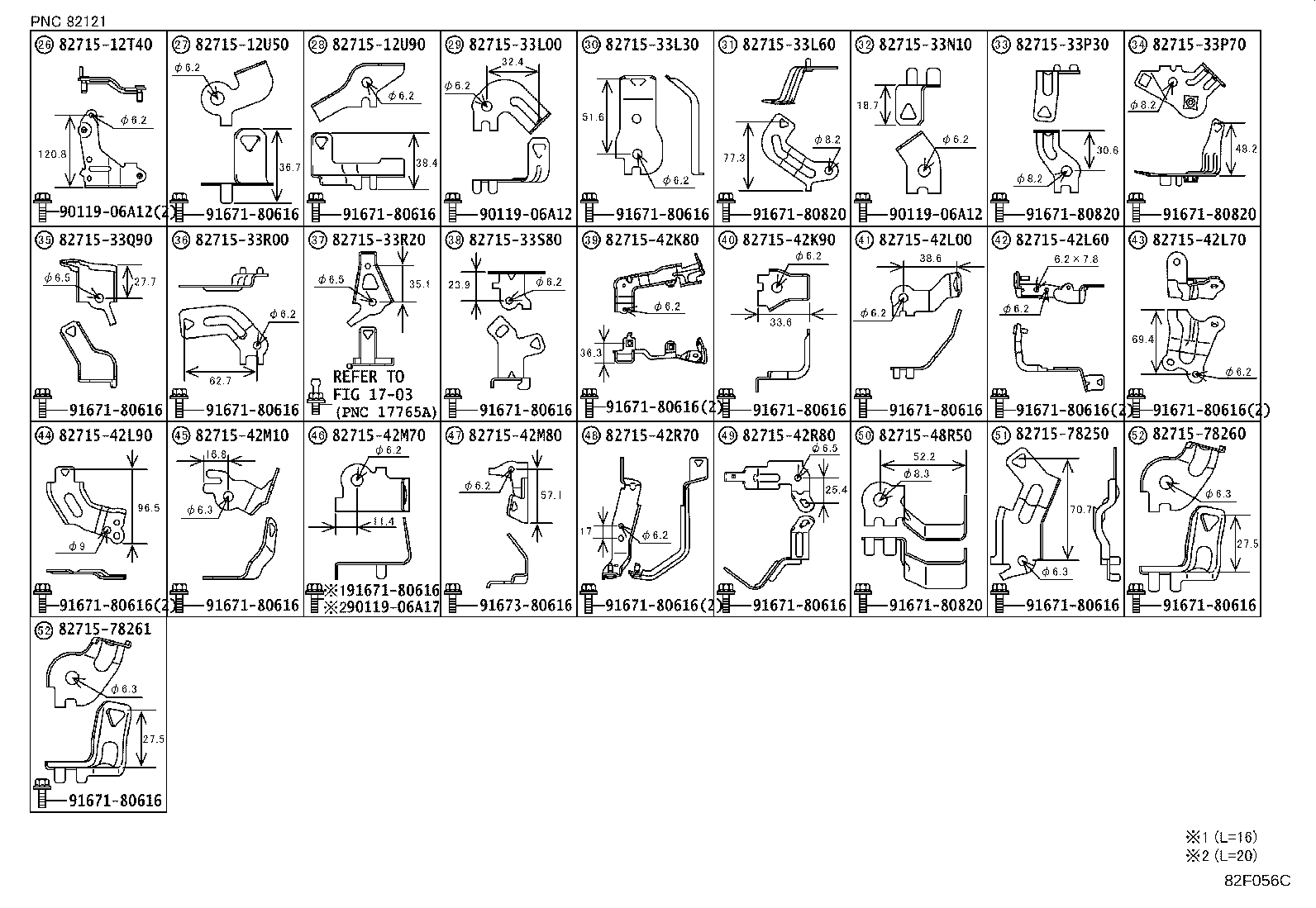

82F056C

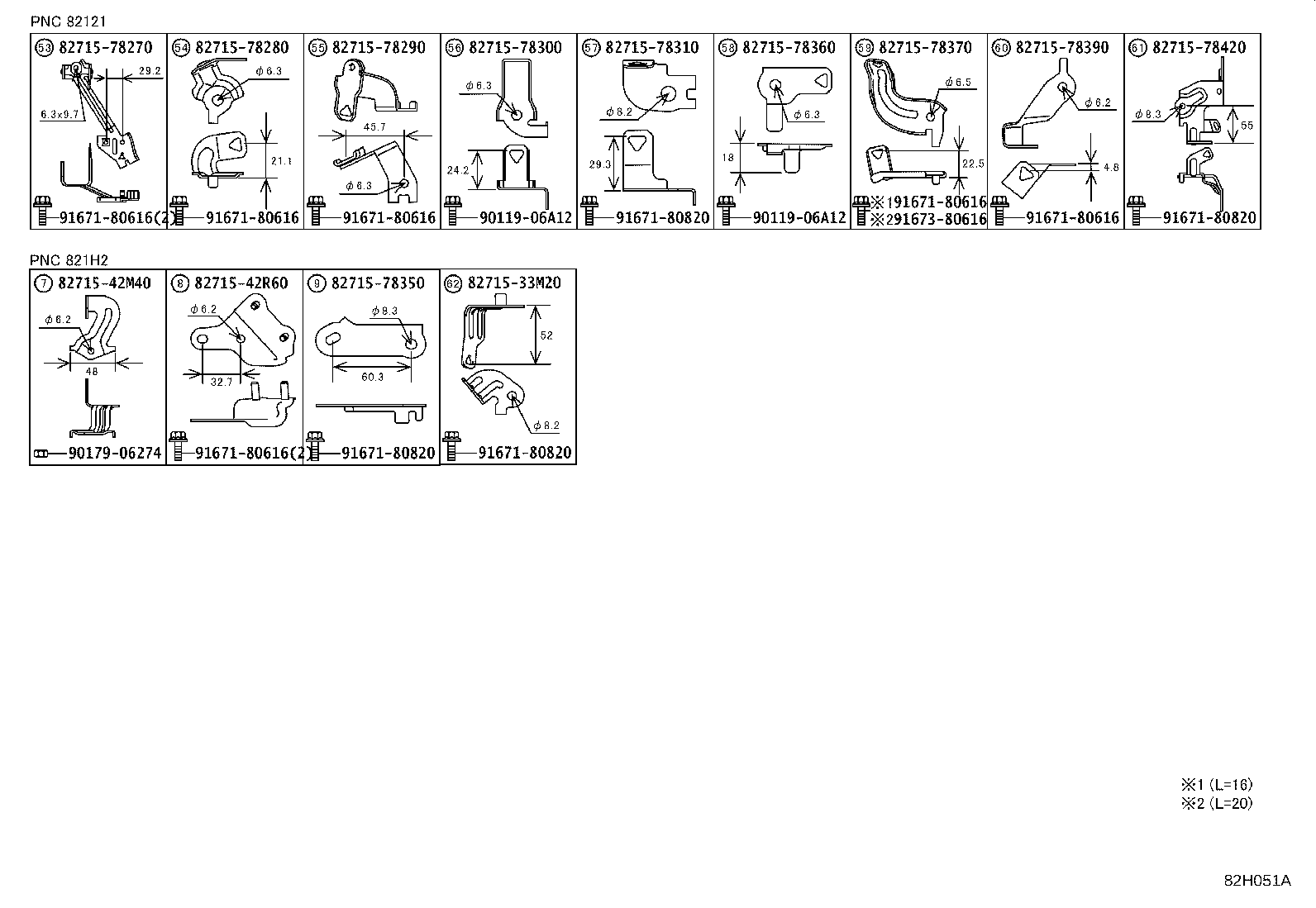

82H051A

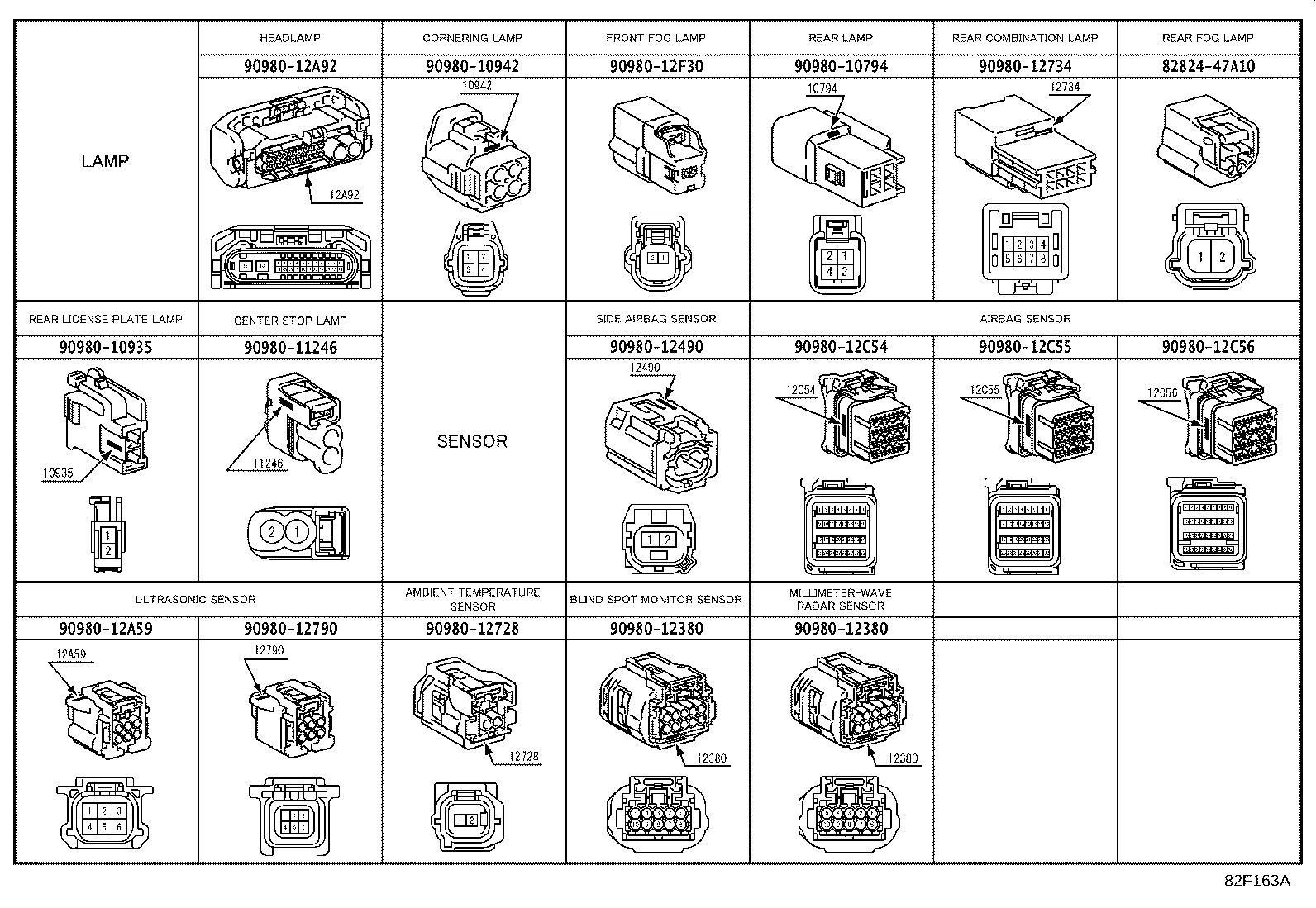

82F163A

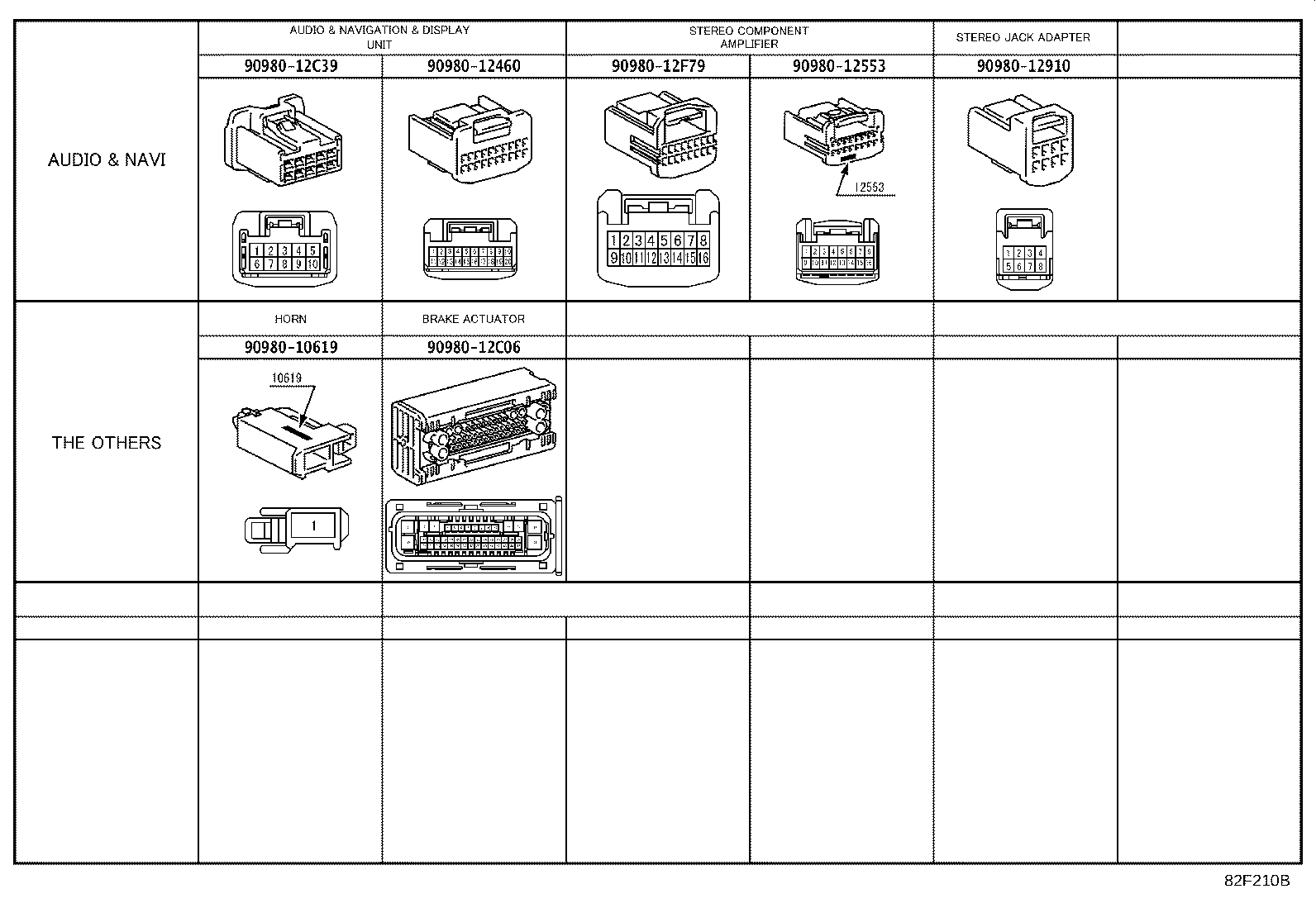

82F210B
Part groups
| PNC | Description |
|---|---|
| 82111 | Wire, Engine Room Main |
| 82113 | Wire, Engine Room, NO.3 |
| 82114 | Wire, Engine Room, NO.4 |
| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82123 | Wire, Engine, NO.3 |
| 82125 | Wire, Transmission |
| 82125N | Wire, Engine, NO.5 |
| 82126A | Wire, Engine, NO.6 |
| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |
| 82142A | Wire, Instrument Panel, NO.2 |
| 82143 | Wire, Instrument Panel, NO.3 |
| 82144 | Wire, Instrument Panel, NO.4 |
| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |
| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82164 | Wire, Frame |
| 82165 | Wire, Frame, NO.2 |
| 82169A | Wire, Floor, NO.6 |
| 8216B | Wire, Floor NO.8 |
| 82171 | Wire, Roof, NO.1 |
| 82172 | Wire, Roof, NO.2 |
| 82176 | Wire, Rear Console Box |
| 82181 | Wire, Luggage Room, NO.1 |
| 82182 | Wire, Luggage Room, NO.2 |
| 82183 | Wire, Luggage Room, NO.3 |
| 82184 | Wire, Back Door, NO.1 |
| 82191 | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 82193 | Wire, Rear Seat, RH |
| 82193A | Wire, Rear Seat, NO.1 |
| 82193B | Wire, Rear Seat, NO.2 |
| 82194 | Wire, Rear Seat, LH |
| 8219A | Wire, Front Seat, RH NO.2 |
| 8219B | Wire, Front Seat, LH NO.2 |
| 821H1 | Wire, Floor Under |
| 821H2 | Wire, HV Air Conditioner |
| 821H6 | Wire, HV Floor Under, NO.2 |
| 82216 | Wire, Rear Window Defogger |
| 82217A | Wire, Front Window Defogger |
| 82218A | Wire, Front Window Defogger |
| 82219A | Wire, Sensor |
| 82284 | Wire, Earth |
| 82286A | Wire, Earth, NO.2 |
| 82412 | Wire, Fuel Gage |
| 82661H | Cover, Relay Block |
| 82666A | Holder, Connector NO.2 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666G | Holder, Connector NO.8 |
| 82666L | Holder, Connector NO.9 |
| 82666N | Holder, Connector NO.10 |
| 82666P | Holder, Connector NO.11 |
| 82666Q | Holder, Connector NO.12 |
| 82666S | Holder, Connector NO.13 |
| 82666T | Holder, Connector NO.14 |
| 82666V | Holder, Connector NO.15 |
| 82666W | Holder, Connector NO.16 |
| 82666X | Holder, Connector NO.17 |
| 82666Y | Holder, Connector NO.18 |
| 82712A | Support, Wiring Harness |
| 82712B | Support, Wiring Harness |
| 82815A | Cover, Wiring Harness Protector |
| 82815B | Cover, Wiring Harness Protector |
| 82815G | Cover, Wiring Harness Protector NO.5 |
| 82815H | Cover, Wiring Harness Protector NO.6 |
| 82815J | Cover, Wiring Harness Protector, NO.7 |
| 82815K | Cover, Wiring Harness Protector, NO.8 |
| 82815L | Cover, Wiring Harness Protector, NO.9 |
| 82815M | Cover, Wiring Harness Protector, NO.10 |
| 82815N | Cover, Wiring Harness Protector, NO.11 |
| 82815P | Cover, Wiring Harness Protector, NO.12 |
| 82815Q | Cover, Wiring Harness Protector, NO.13 |
| 82815R | Cover, Wiring Harness Protector, NO.14 |
| 82815S | Cover, Wiring Harness Protector, NO.15 |
| 82815T | Cover, Wiring Harness Protector, NO.16 |
| 82815U | Cover, Wiring Harness Protector, NO.17 |
| 82815V | Cover, Wiring Harness Protector, NO.1 |
| 82815W | Cover, Wiring Harness Protector, NO.2 |
| 82815X | Cover, Wiring Harness Protector, NO.3 |
| 82815Y | Cover, Wiring Harness Protector, NO.4 |
| 82815Z | Cover, Wiring Harness Protector, NO.18 |
| 82816B | Cover, Wiring Harness Protector, NO.1 |
| 82816C | Cover, Wiring Harness Protector, NO.2 |
| 82816D | Cover, Wiring Harness Protector, NO.3 |
| 82816F | Cover, Wiring Harness Protector, NO.4 |
| 82816G | Cover, Wiring Harness Protector, NO.5 |
| 82816H | Cover, Wiring Harness Protector, NO.6 |
| 82816J | Cover, Wiring Harness Protector, NO.7 |
| 82816K | Cover, Wiring Harness Protector, NO.8 |
| 82816L | Cover, Wiring Harness Protector, NO.9 |
| 82816M | Cover, Wiring Harness Protector, NO.10 |
| 82816N | Cover, Wiring Harness Protector, NO.11 |
| 82816P | Cover, Wiring Harness Protector, NO.12 |
| 82816Q | Cover, Wiring Harness Protector, NO.13 |
| 82816R | Cover, Wiring Harness Protector, NO.14 |
| 82816S | Cover, Wiring Harness Protector, NO.15 |
| 82816T | Cover, Wiring Harness Protector, NO.16 |
| 82816U | Cover, Wiring Harness Protector, NO.17 |
| 82816V | Cover, Wiring Harness Protector, NO.18 |
| 82816W | Cover, Wiring Harness Protector, NO.19 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82817L | Protector, Wiring Harness, NO.11 |
| 82817M | Protector, Wiring Harness, NO.12 |
| 82817N | Protector, Wiring Harness, NO.13 |
| 82817P | Protector, Wiring Harness, NO.14 |
| 82817T | Protector, Wiring Harness, NO.15 |
| 82817U | Protector, Wiring Harness, NO.16 |
| 82817X | Protector, Wiring Harness, NO.17 |
| 82818 | Protector, Wiring Harness, NO.2 |
| 82818B | Protector, Wiring Harness, NO.3 |
| 82818C | Protector, Wiring Harness, NO.4 |
| 82818D | Protector, Wiring Harness, NO.5 |
| 82818E | Protector, Wiring Harness, NO.6 |
| 82818F | Protector, Wiring Harness, NO.7 |
| 82818G | Protector, Wiring Harness, NO.8 |
| 82818H | Protector, Wiring Harness, NO.9 |
| 82818J | Protector, Wiring Harness, NO.10 |
| 82818K | Protector, Wiring Harness, NO.11 |
| 82818L | Protector, Wiring Harness, NO.12 |
| 82818M | Protector, Wiring Harness, NO.13 |
| 82818N | Protector, Wiring Harness, NO.14 |
| 82818S | Protector, Wiring Harness, NO.15 |
| 82818T | Protector, Wiring Harness, NO.16 |
| 82818U | Protector, Wiring Harness, NO.17 |
| 82818V | Protector, Wiring Harness, NO.18 |
| 82818W | Protector, Wiring Harness, NO.19 |
| 82818X | Protector, Wiring Harness, NO.20 |
| 82818Y | Protector, Wiring Harness, NO.21 |
| 82818Z | Protector, Wiring Harness, NO.22 |
| 82819G | Protector, Wiring Harness, NO.23 |
| 82819H | Protector, Wiring Harness, NO.24 |
| 82819J | Protector, Wiring Harness, NO.25 |
| 82819L | Protector, Wiring Harness, NO.27 |
| 82821A | Cover, Connector |
| 82821E | Cover, Connector |
| 82821H | Cover, Connector |
| 82821M | Cover, Connector |
| 82821N | Cover, Connector |
| 82821P | Cover, Connector |
| 82821R | Cover, Connector |
| 82821U | Cover, Connector |
| 82821V | Cover, Connector |
| 82821W | Cover, Connector |
| 82821X | Cover, Connector |
| 82821Y | Cover, Connector |
| 82823 | Cap, Terminal, NO.1 |
| 82823T | Cap, Alternator Terminal |
| 8282A | Cap, Earth Bolt, NO.1 |
| 8282AA | Cap, Earth Bolt, NO.2 |
| 82H17B | Protector, Wiring Harness, NO.1 |
| 82H17C | Protector, Wiring Harness, NO.2 |
| 82H17J | Protector, Wiring Harness, NO.3 |
| 82H21C | Cover, Connector |
| 82H21D | Cover, Connector |
| 82H21G | Cover, Connector |
| 82H21H | Cover, Connector |
| 82H21J | Cover, Connector |
| 82H21K | Cover, Connector |
| 82H21L | Cover, Connector |
| 82H21M | Cover, Connector |
| 82H21N | Cover, Connector |
| 82H21P | Cover, Connector |
| 82H21Q | Cover, Connector |
| 82H21R | Cover, Connector |
| 82H21S | Cover, Connector |
| 86011H | Filter, Noise |
| 890C0 | Wire Assy, Parking Brake, NO.1 |
| 890C0A | Wire Assy, Parking Brake, NO.2 |
| 89348X | Clip, Ultrasonic Sensor, Front |
| G921D | Protector, Inverter Connector Cover |
| G921G | Protector, Inverter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
