Toyota Lexus NX Series

2021-11 → present · chassis AAZA2#,AAZH2#,MAZA20,TAZA25 · catalogue 527220 · Europe

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

173 part groups · 31 illustrations

Illustrations

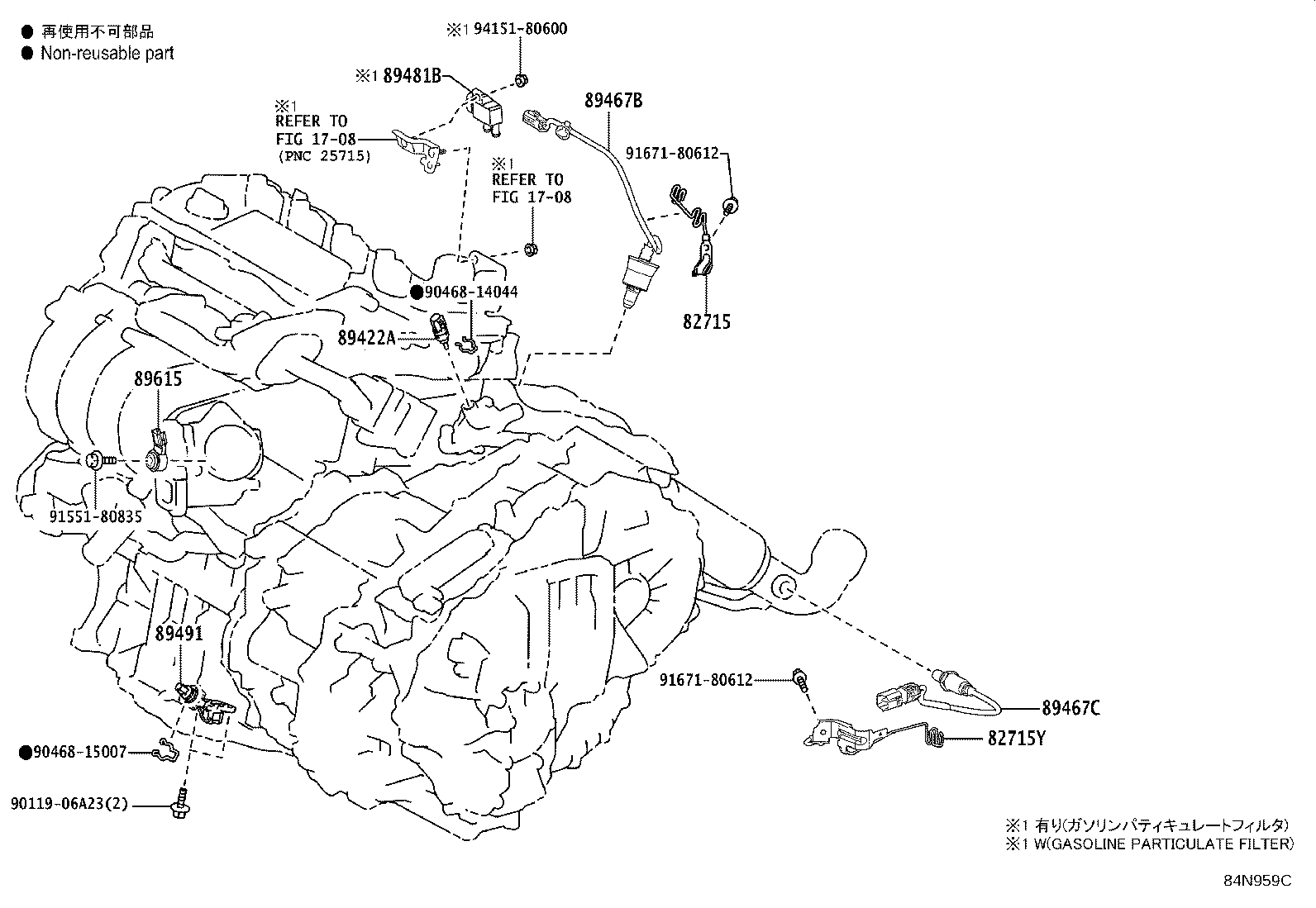

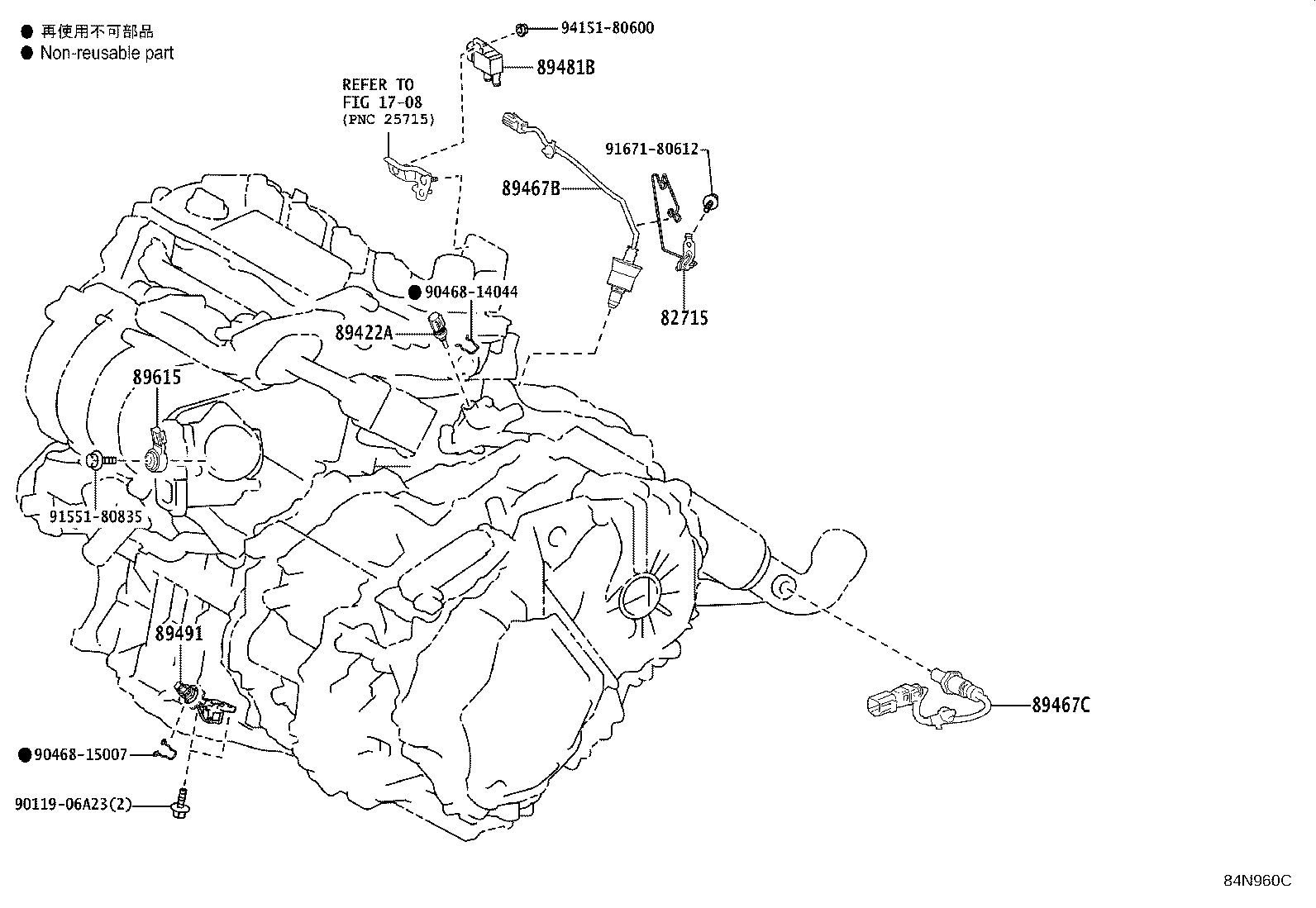

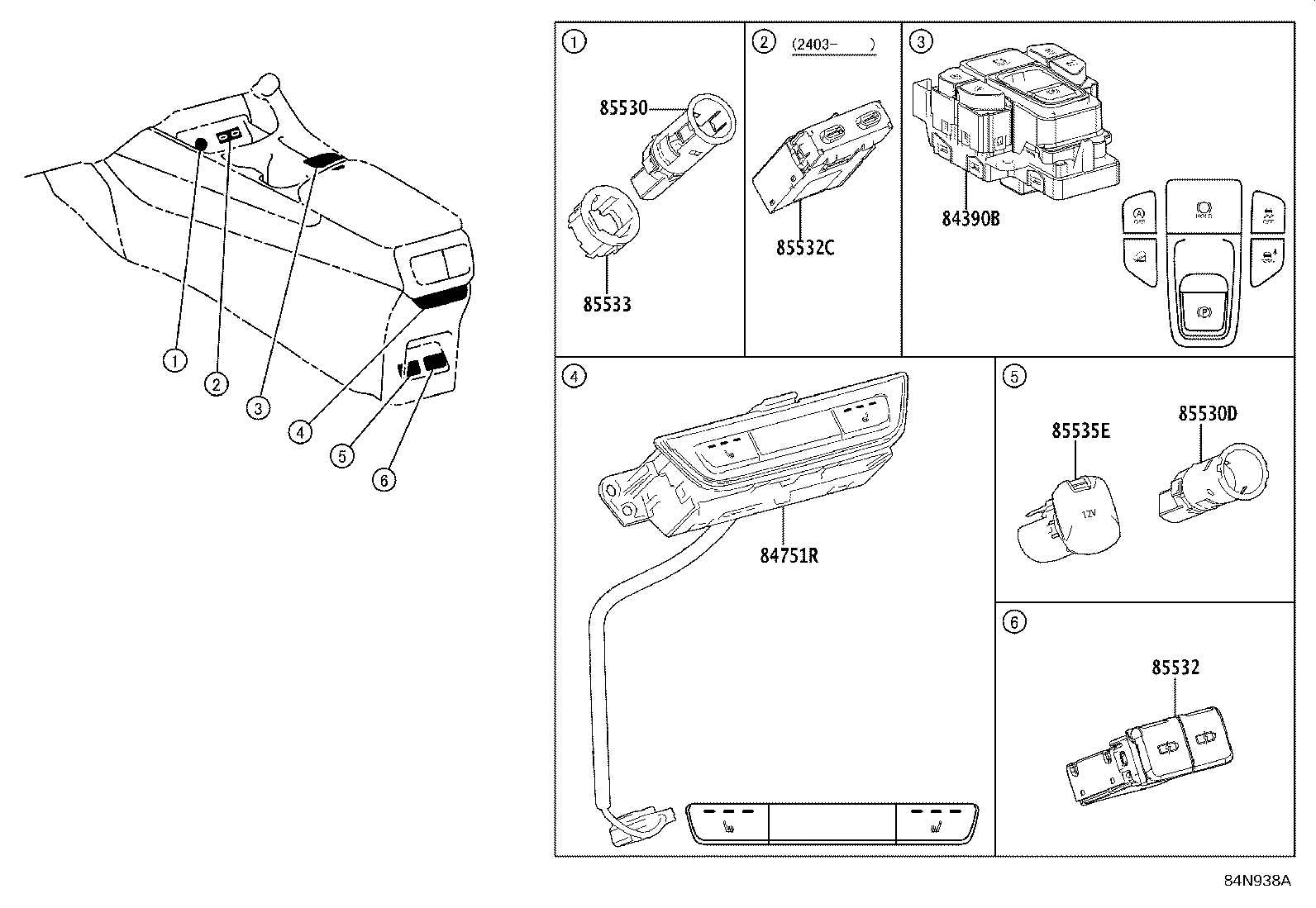

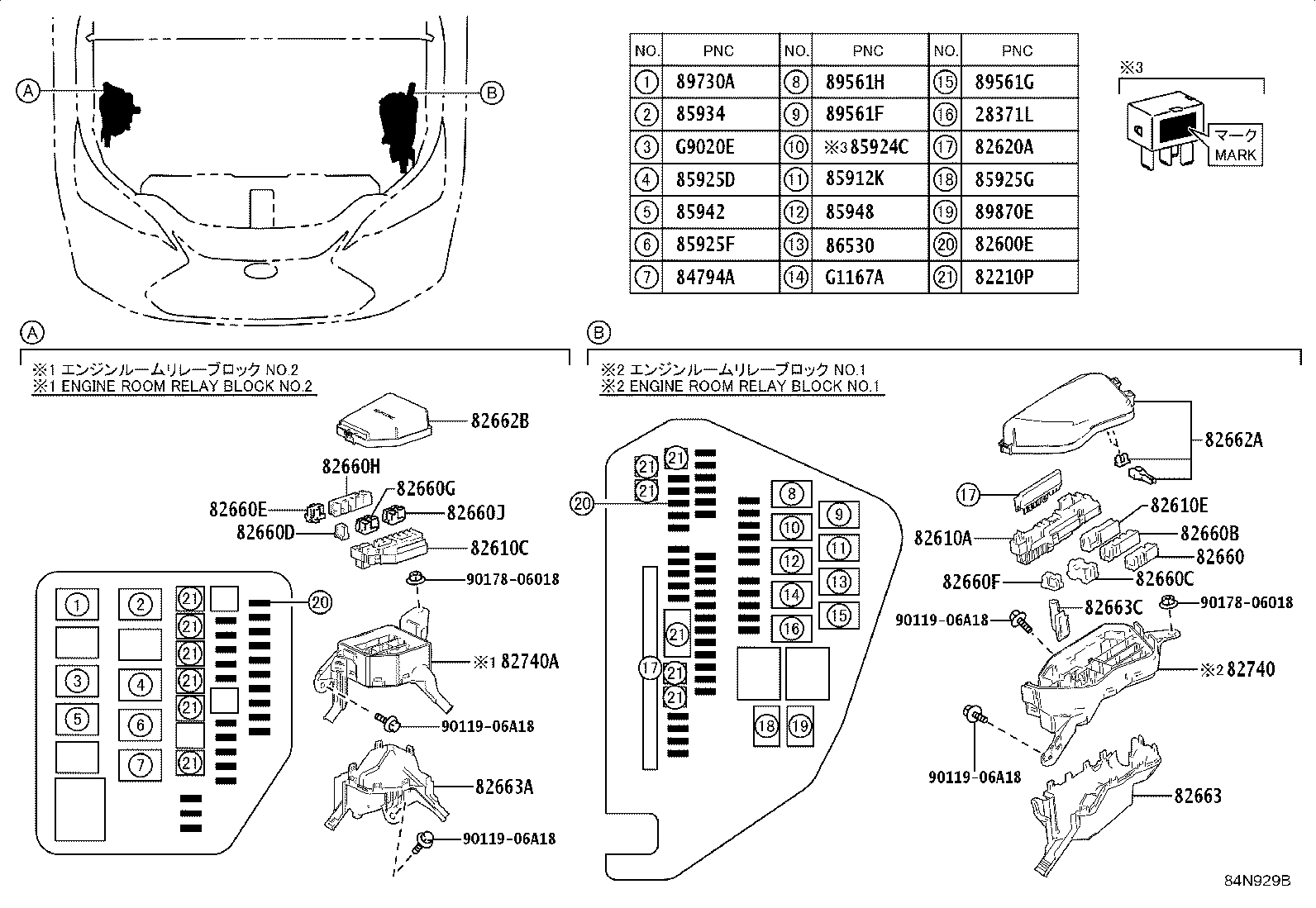

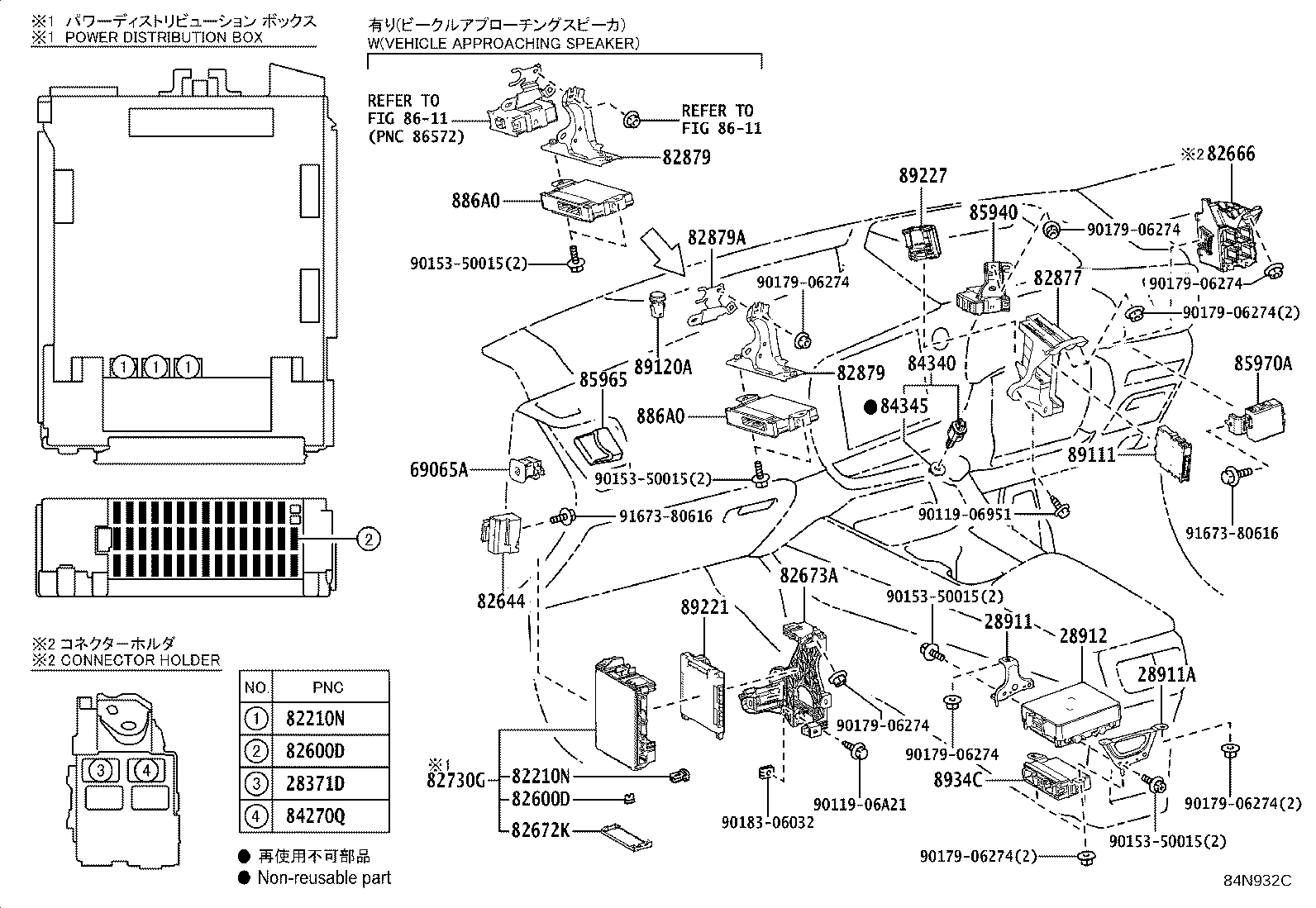

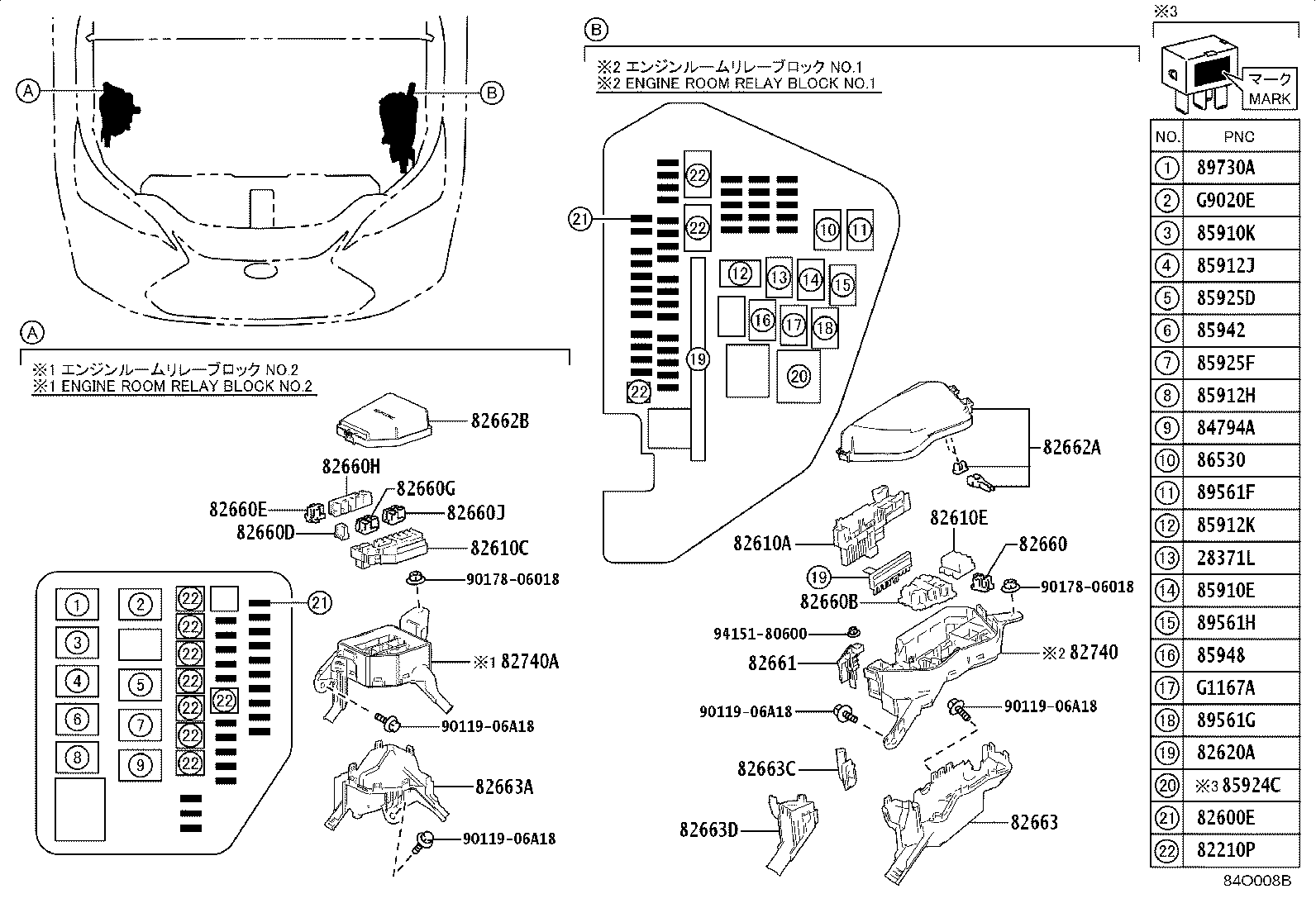

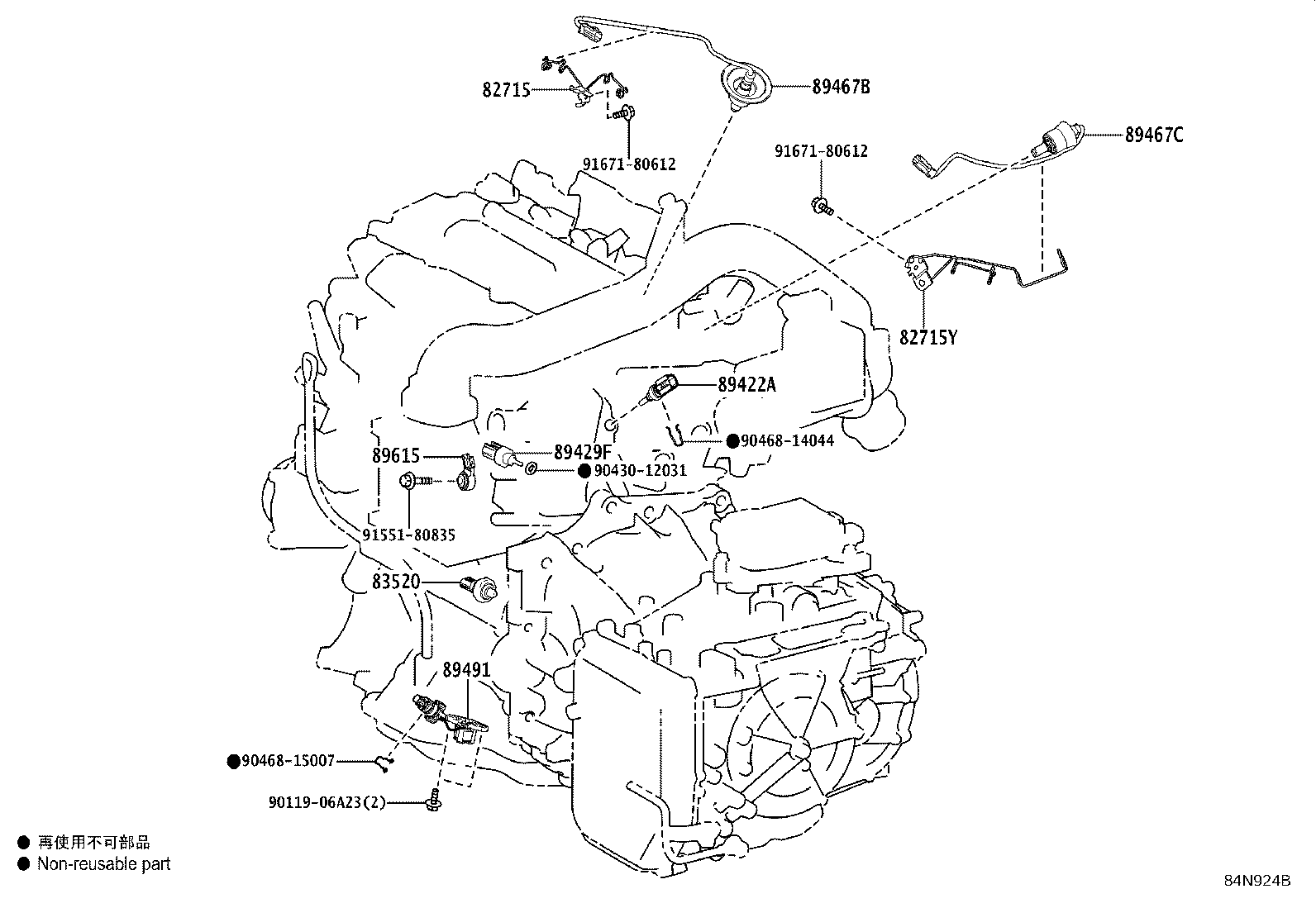

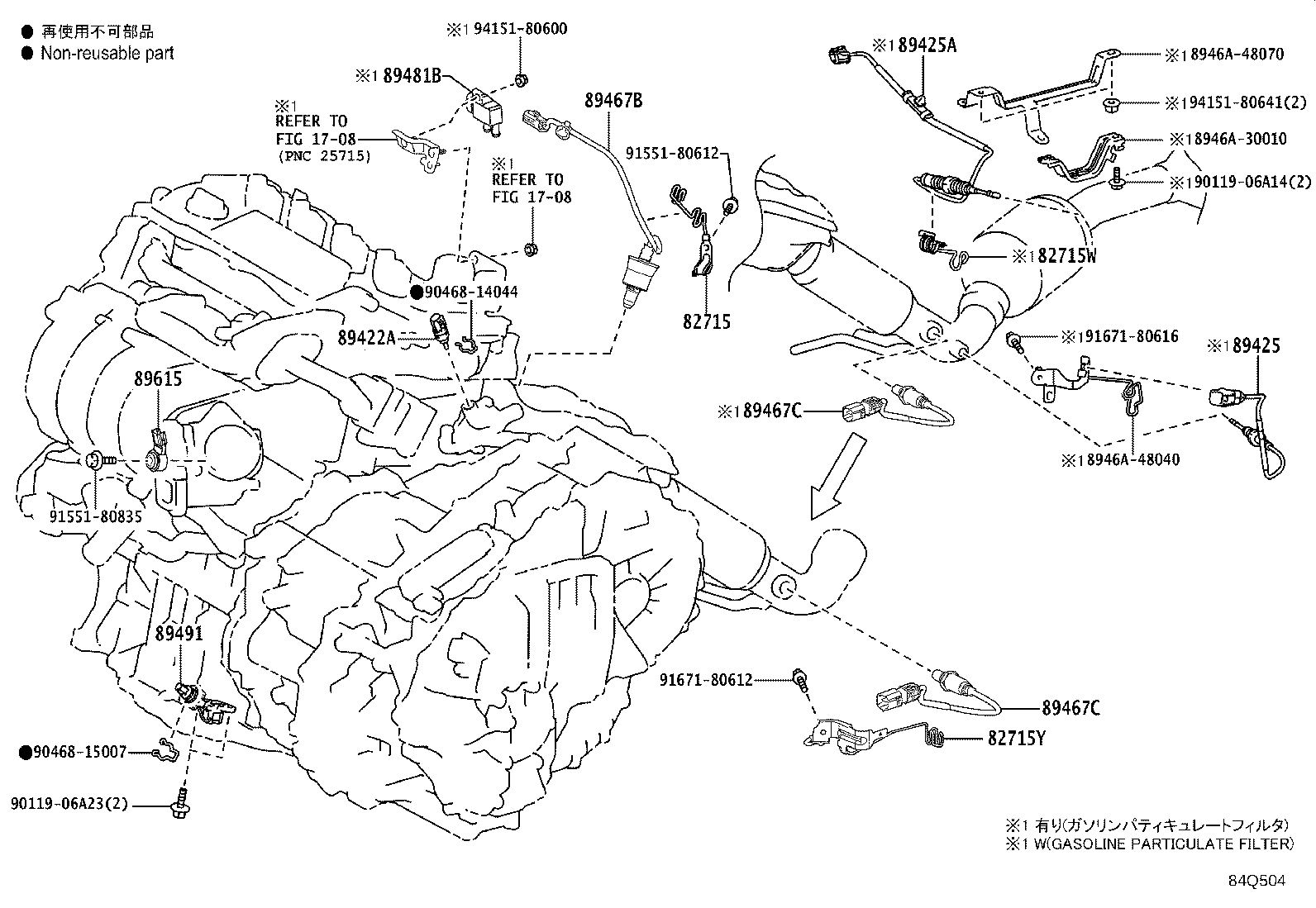

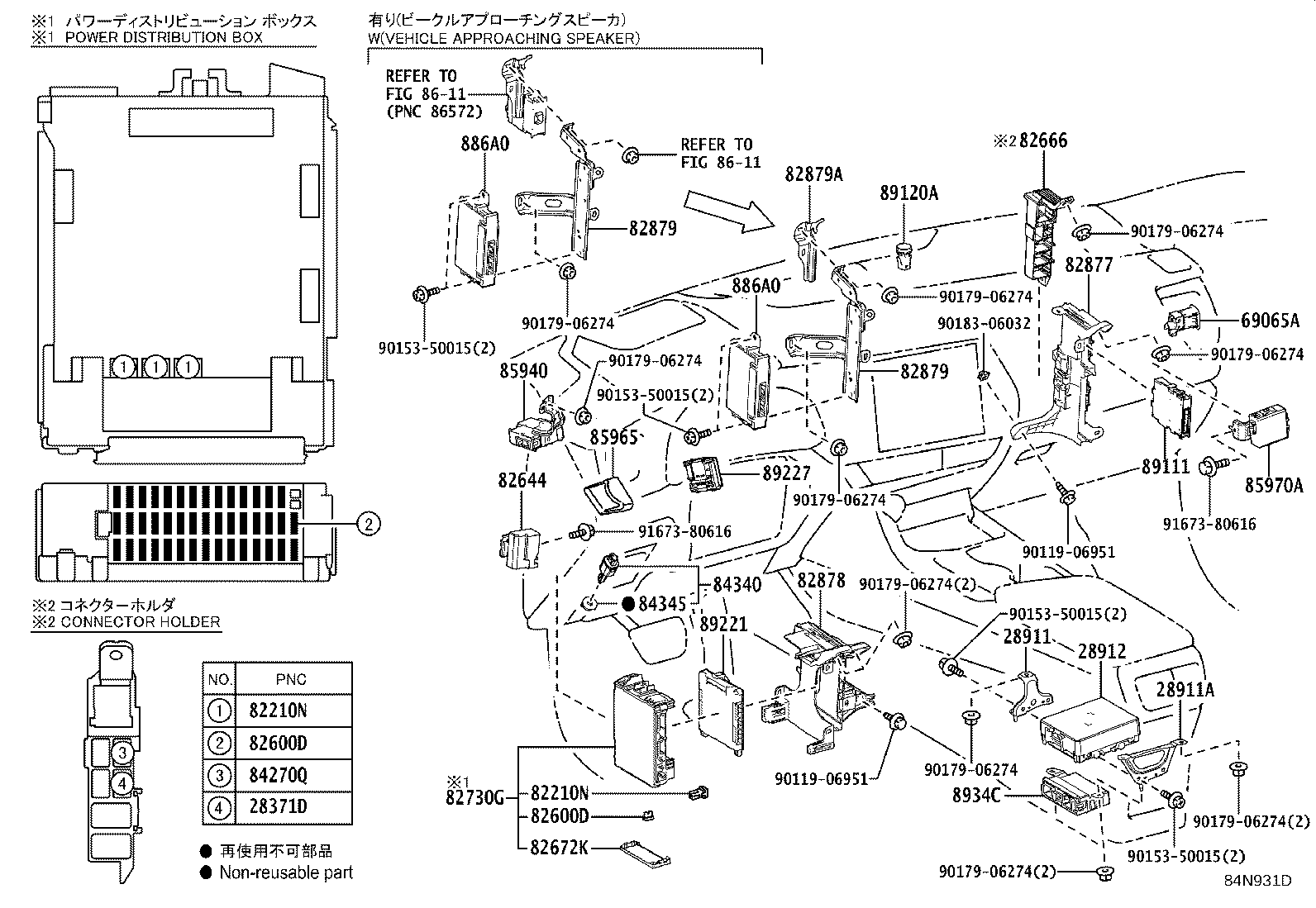

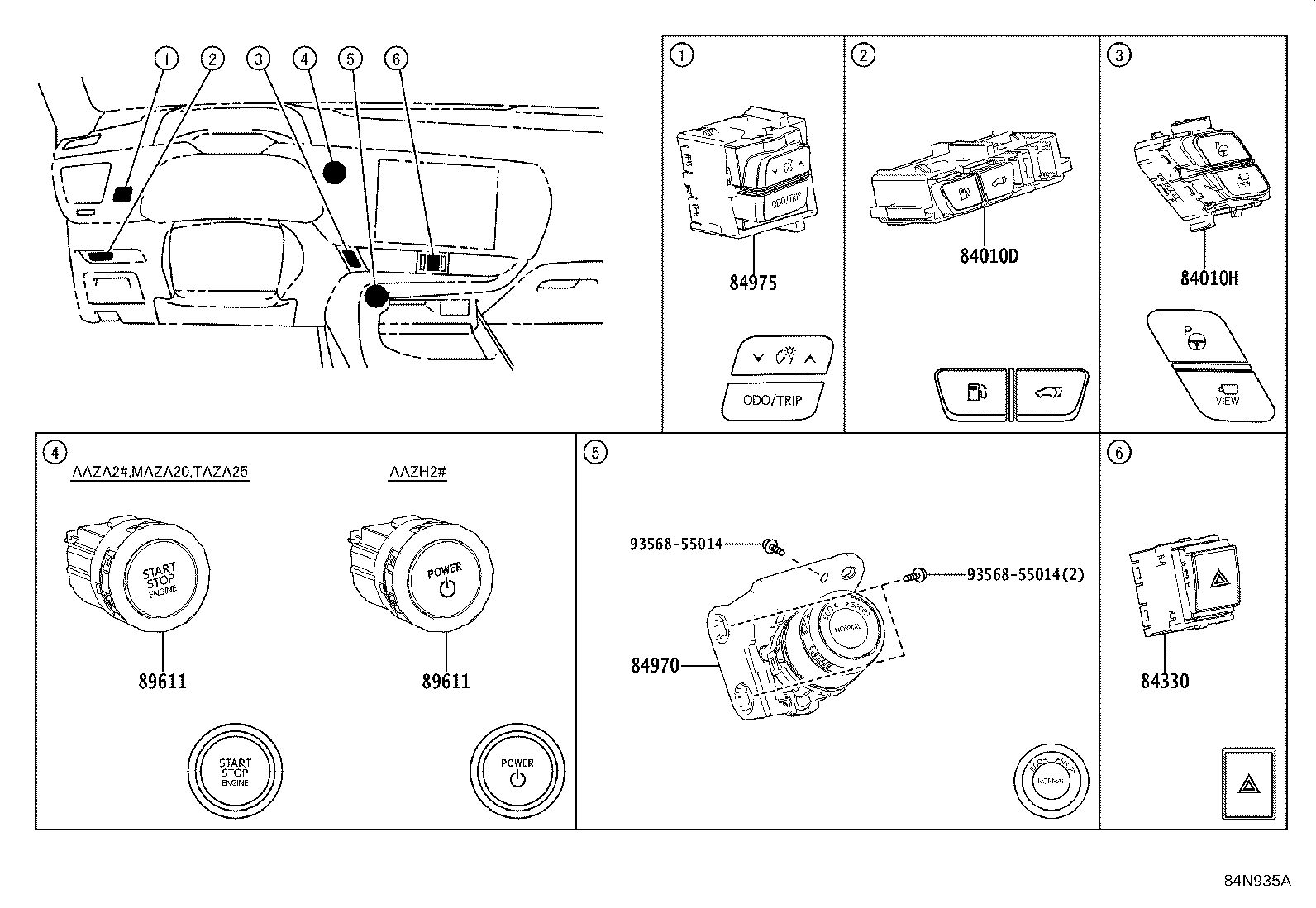

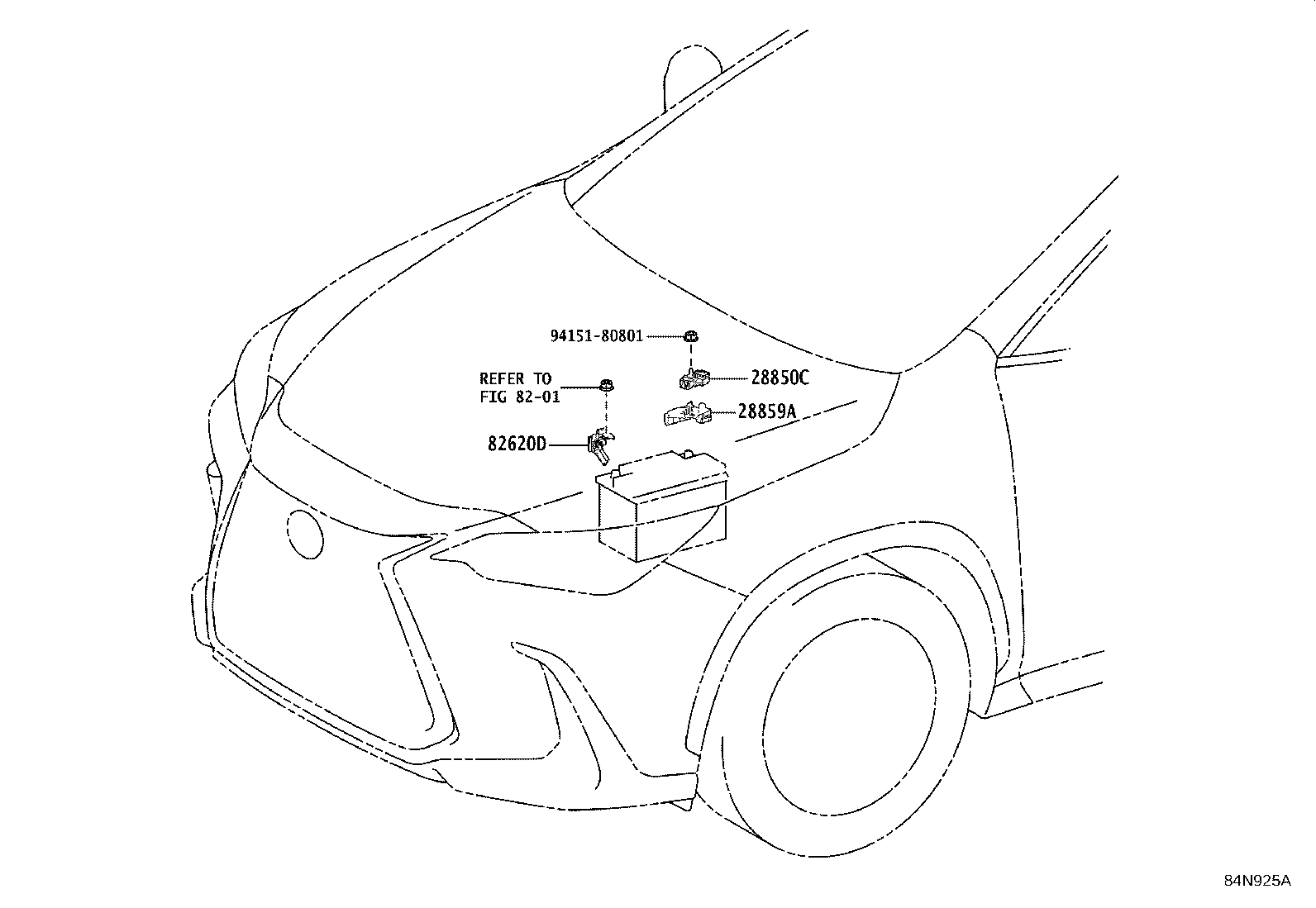

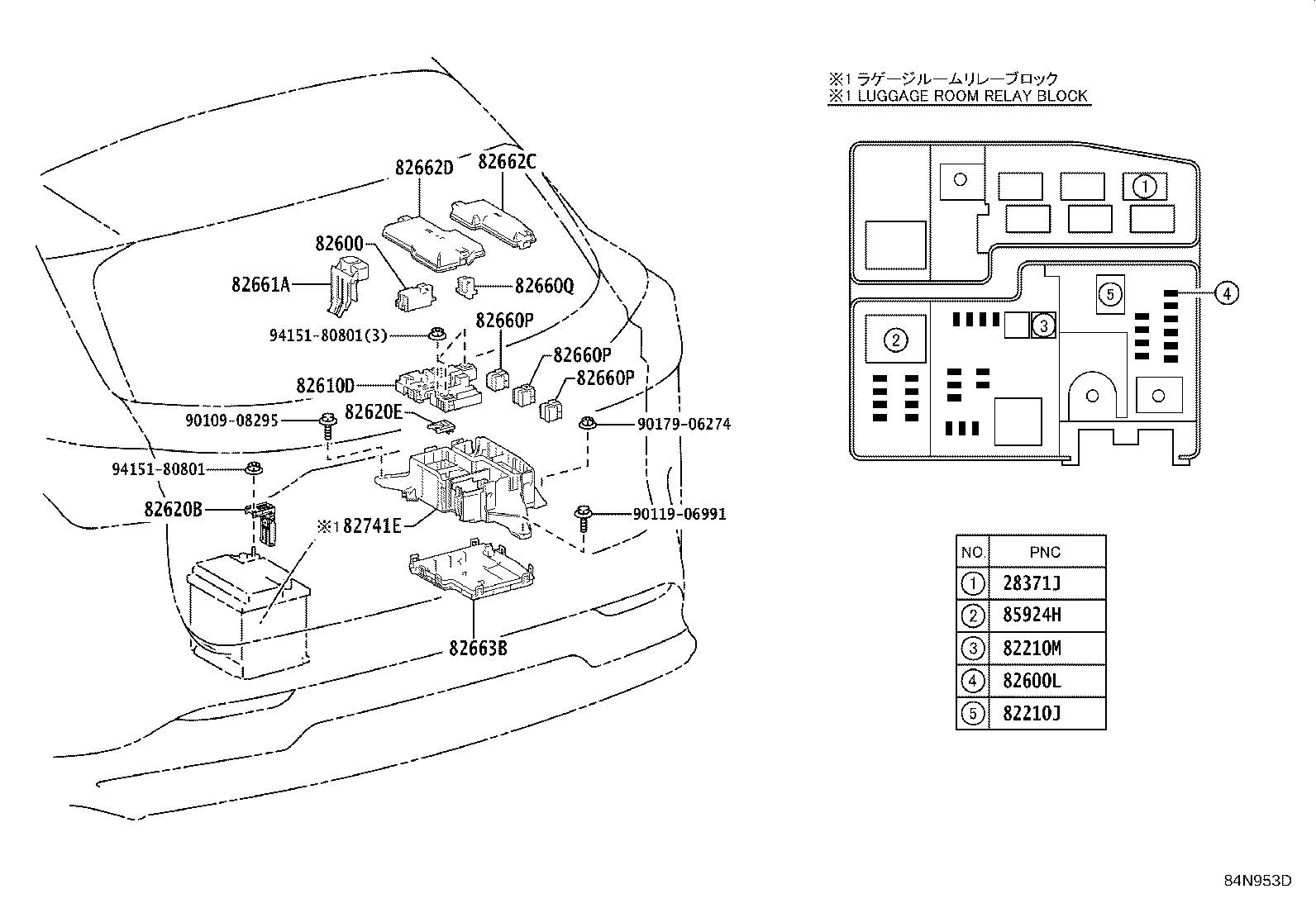

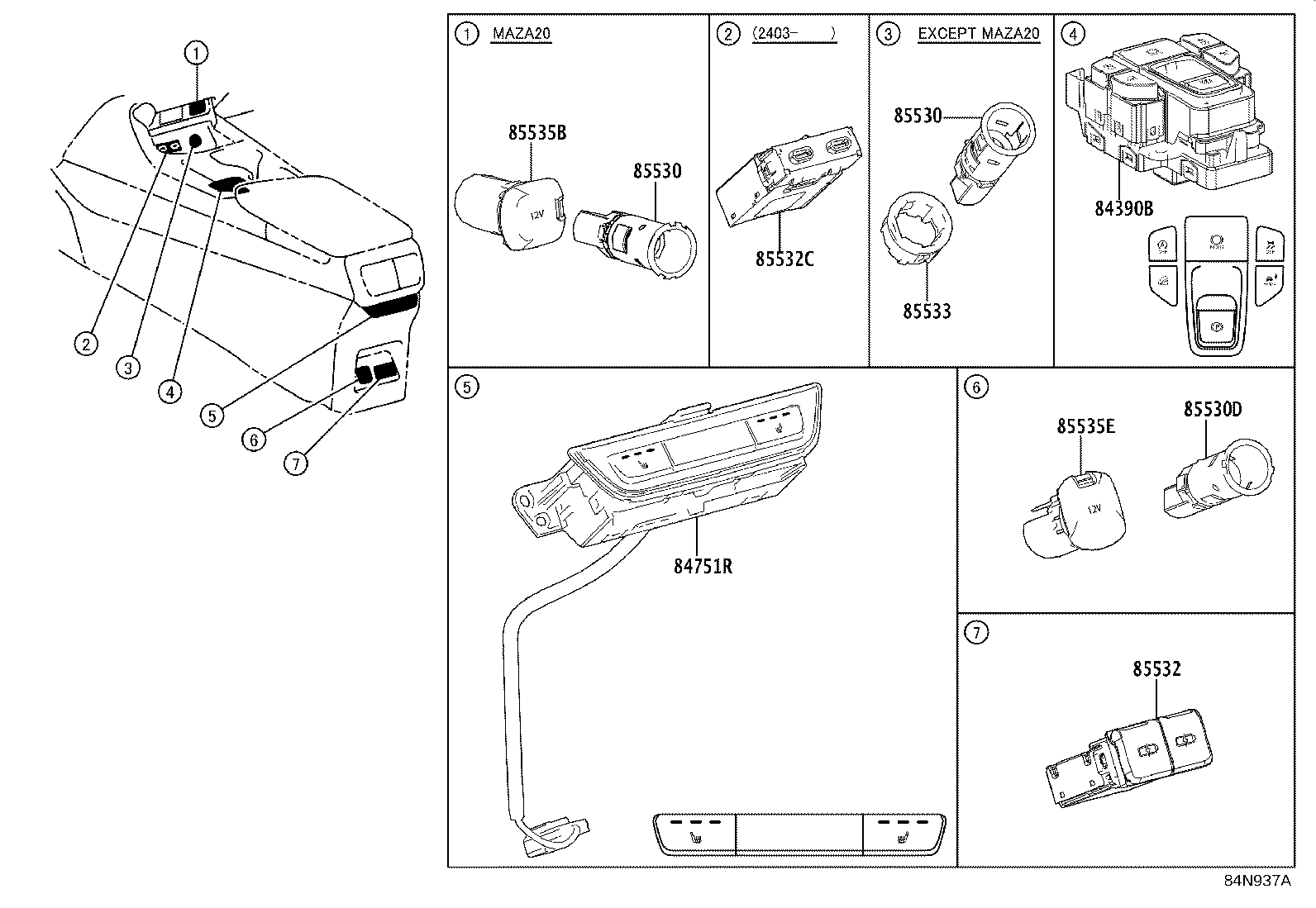

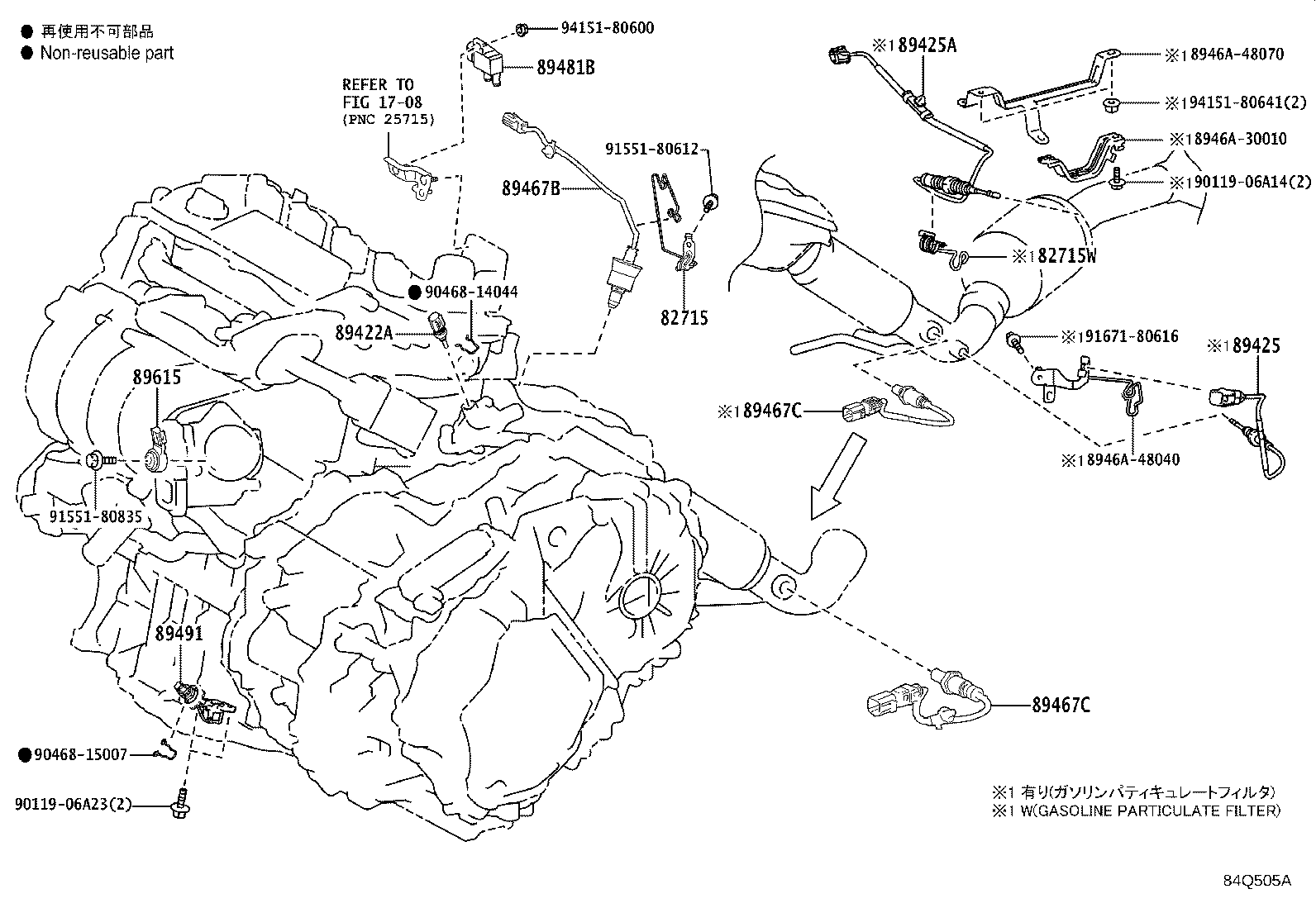

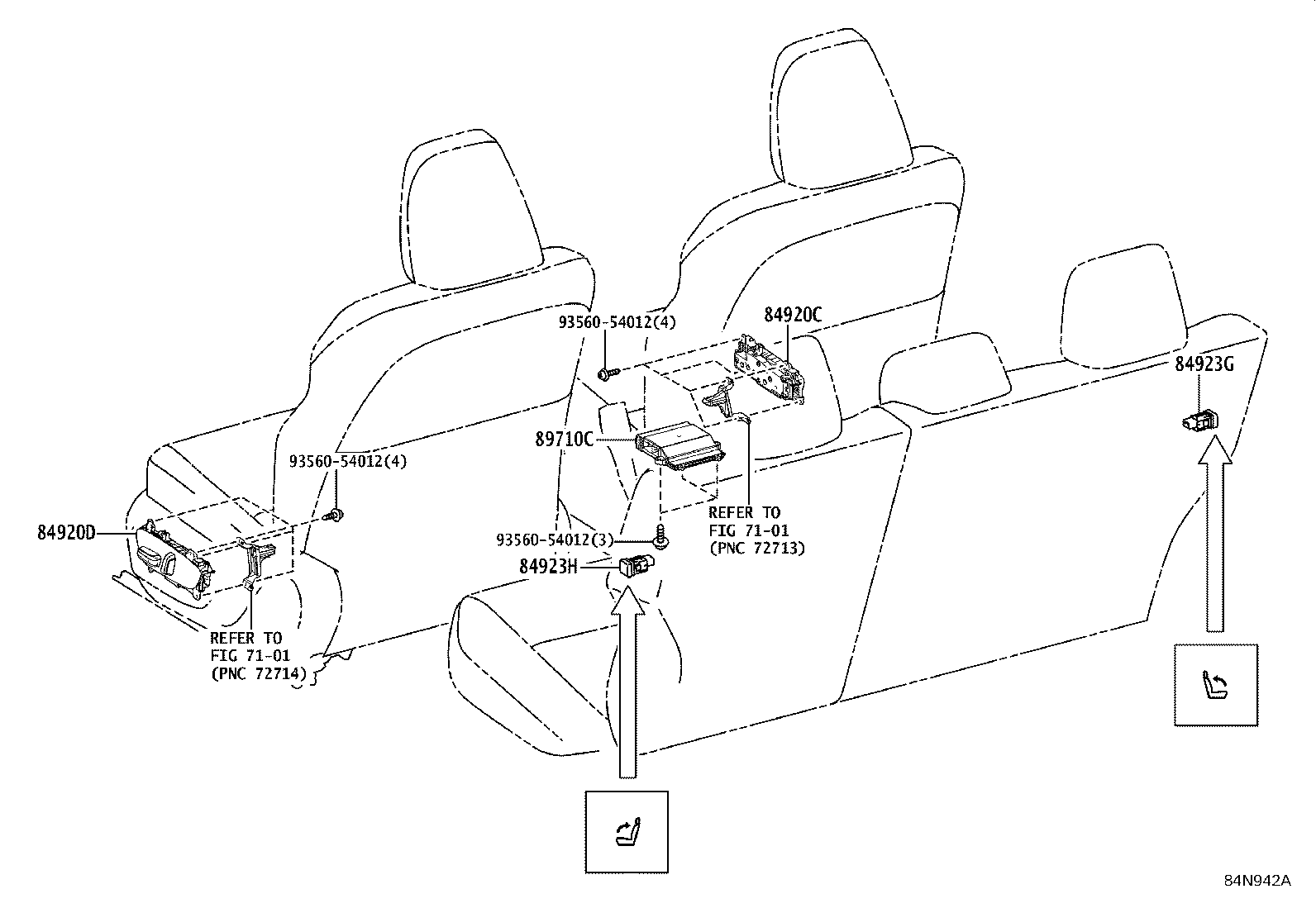

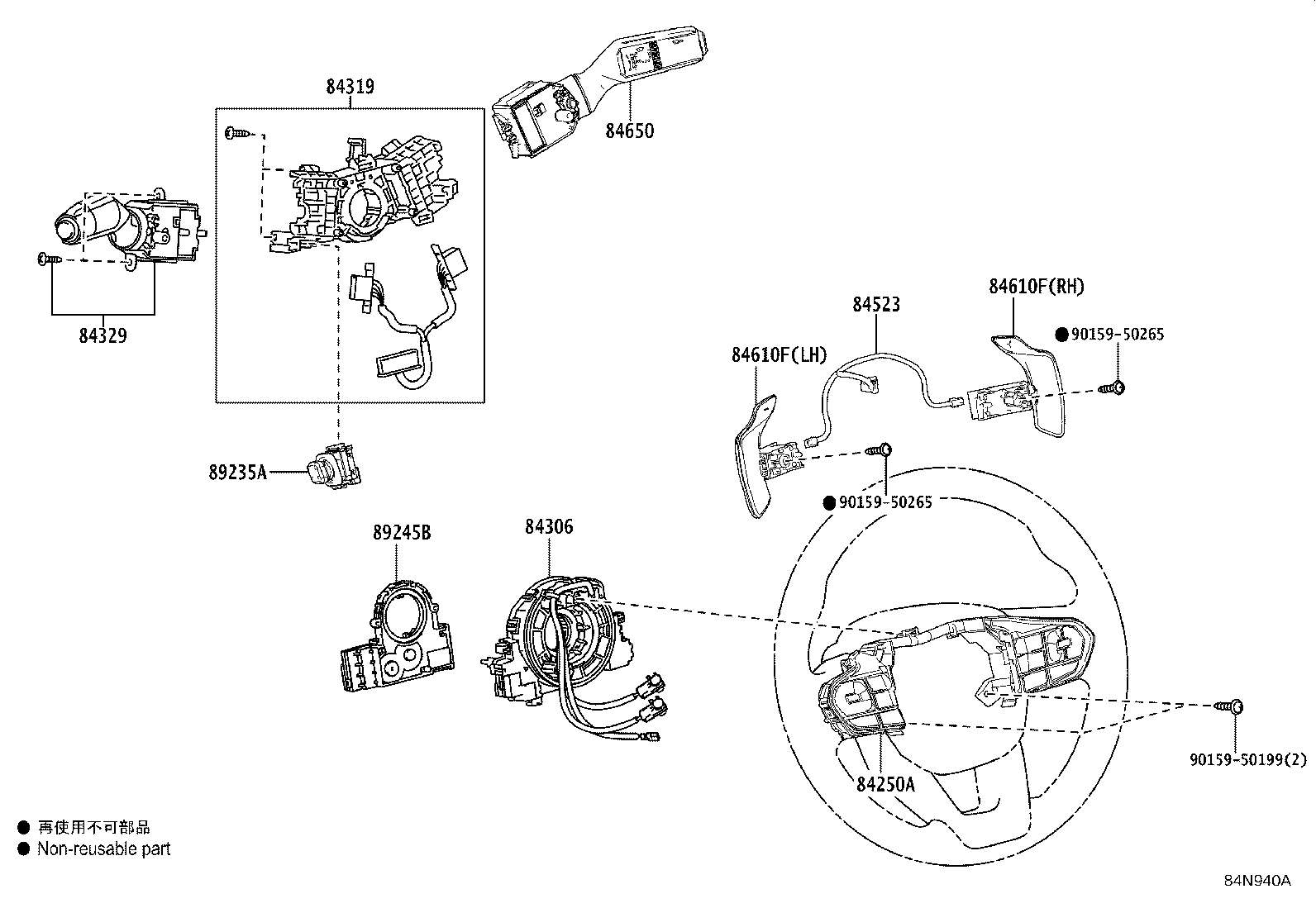

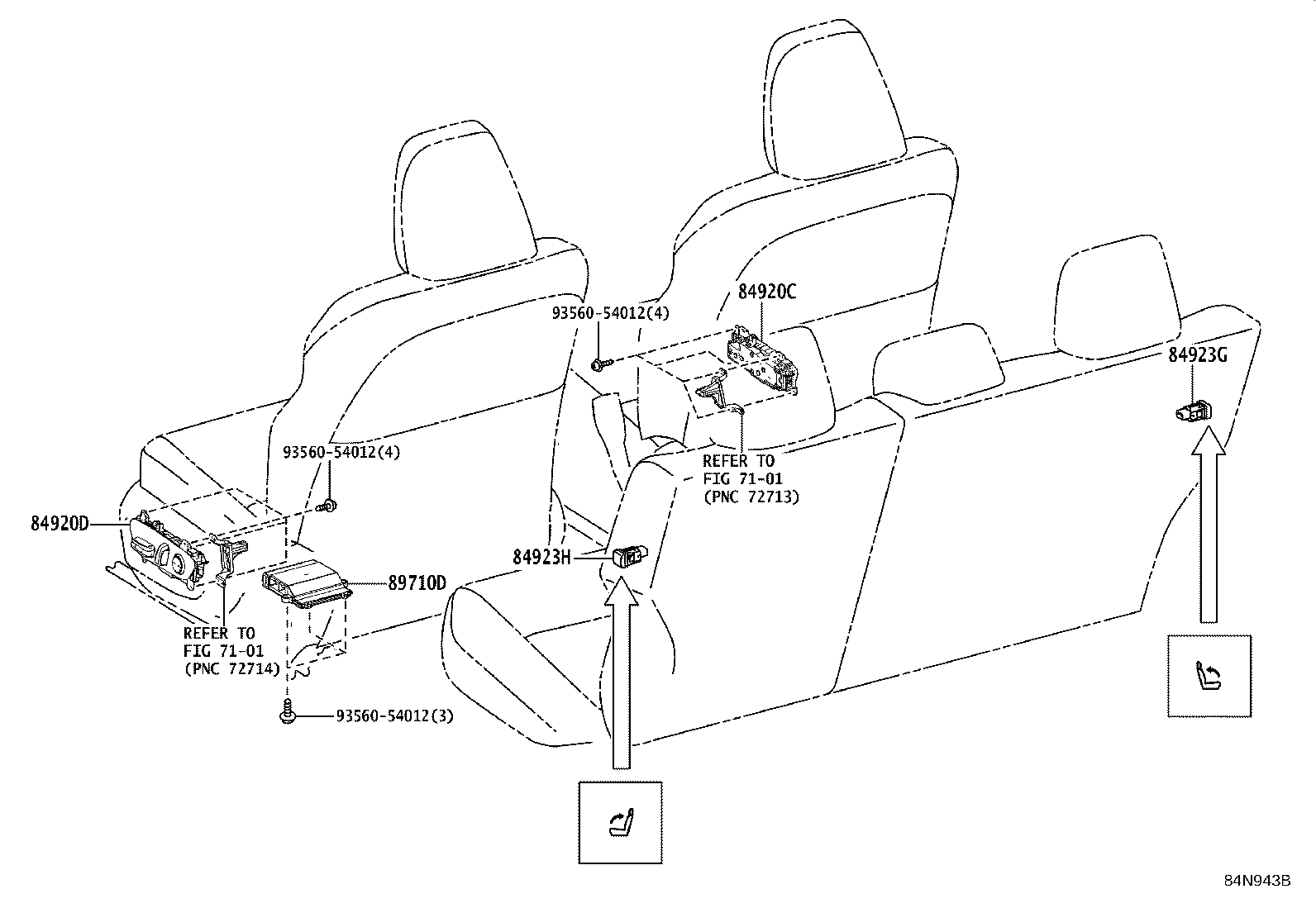

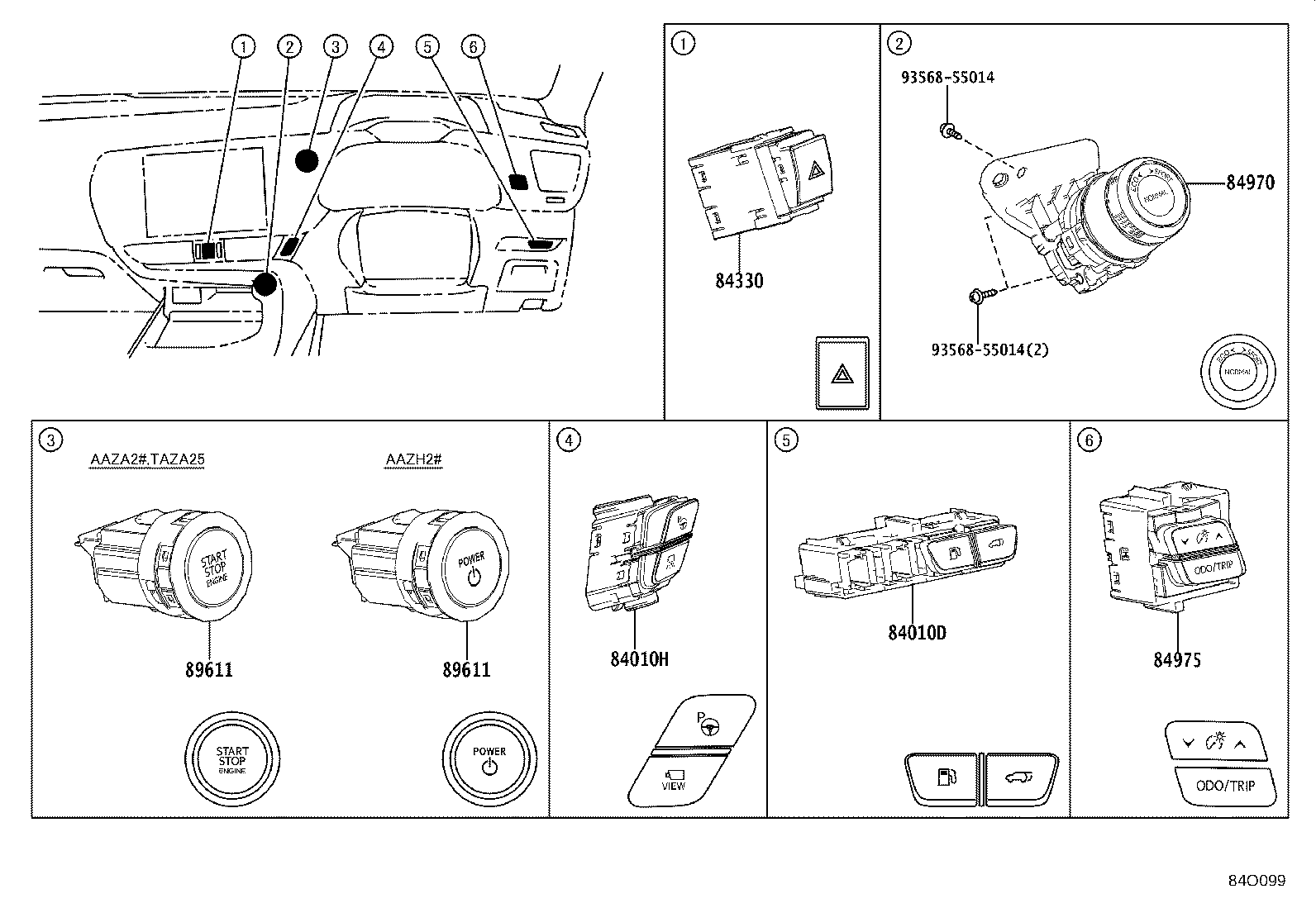

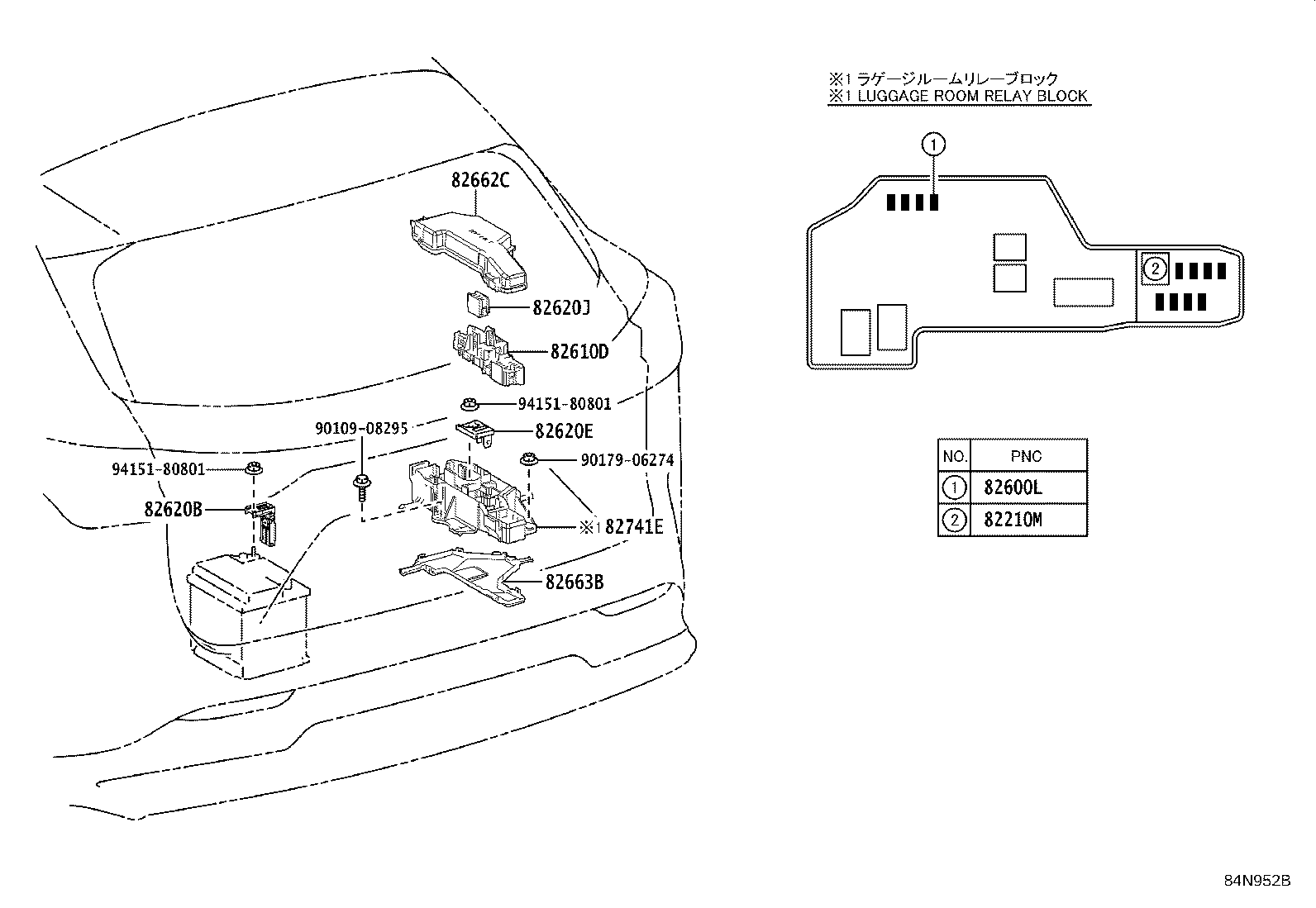

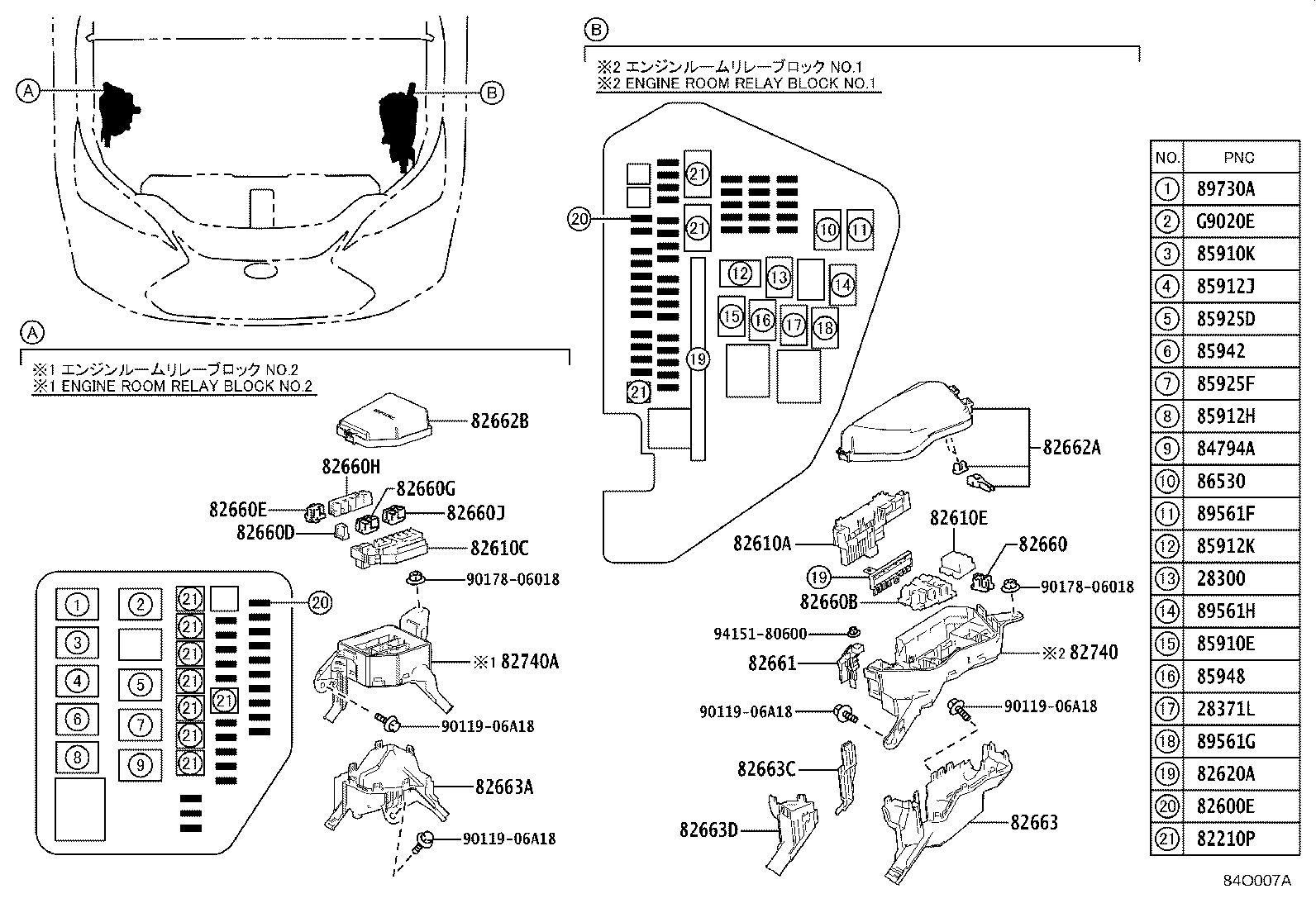

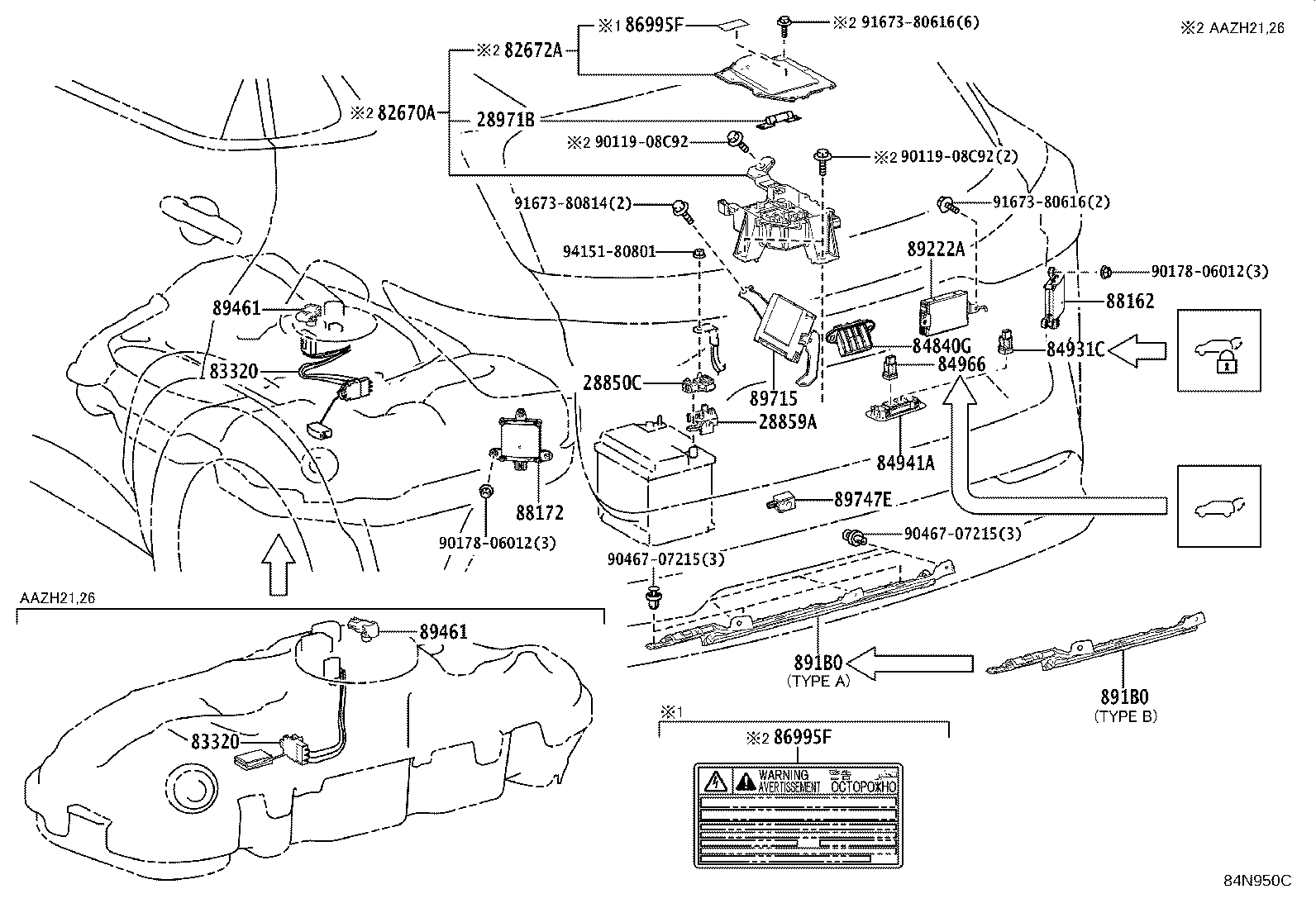

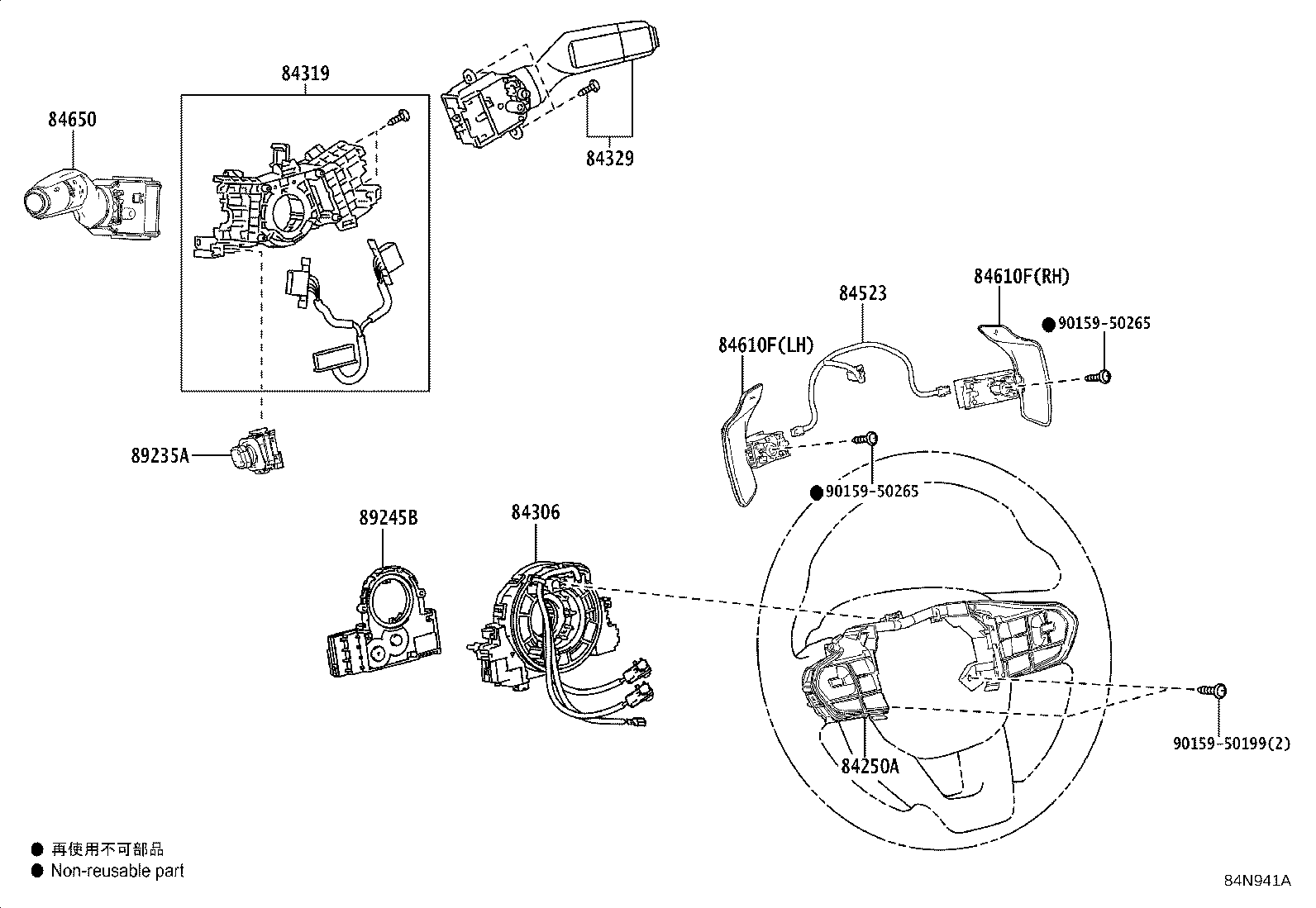

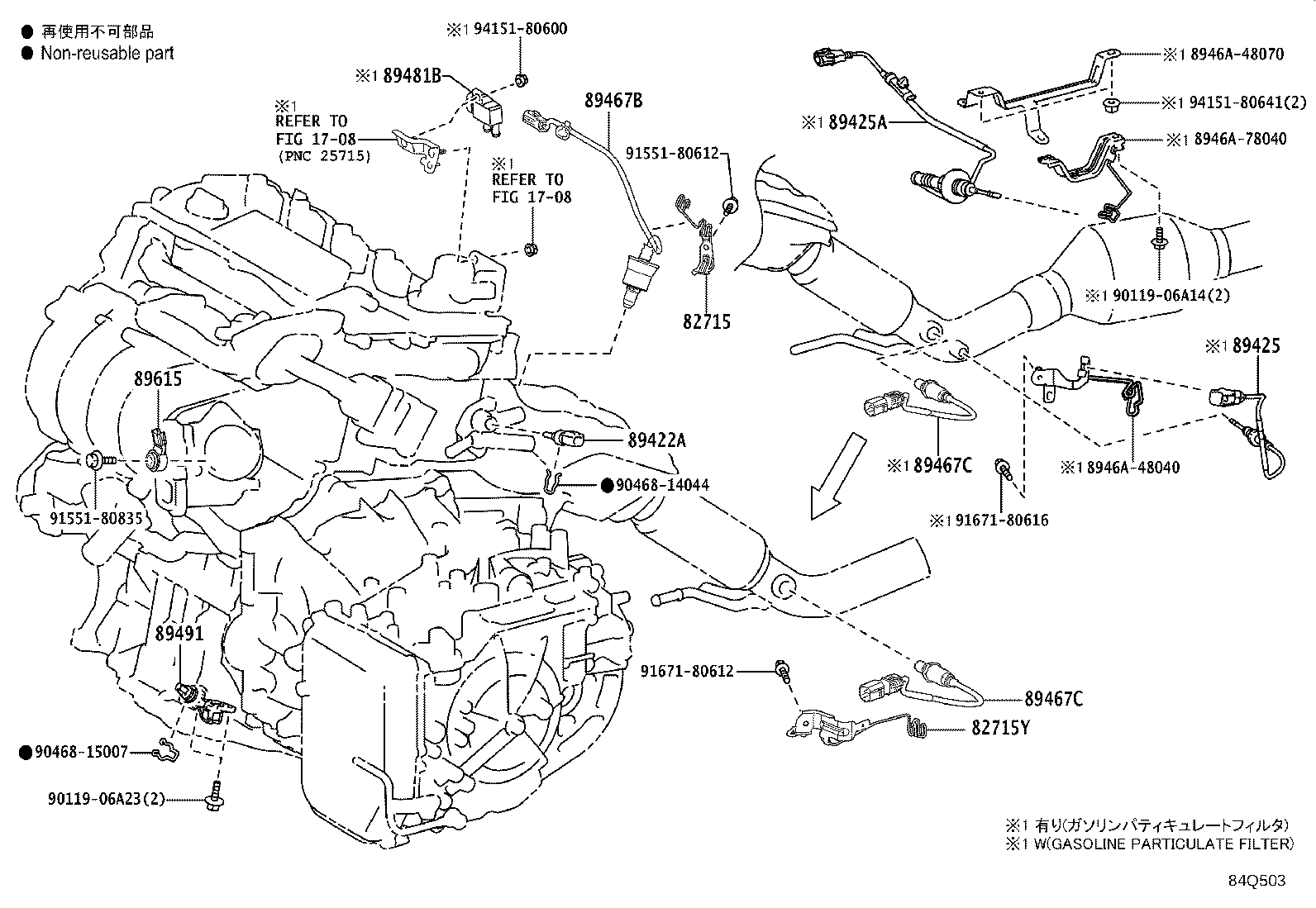

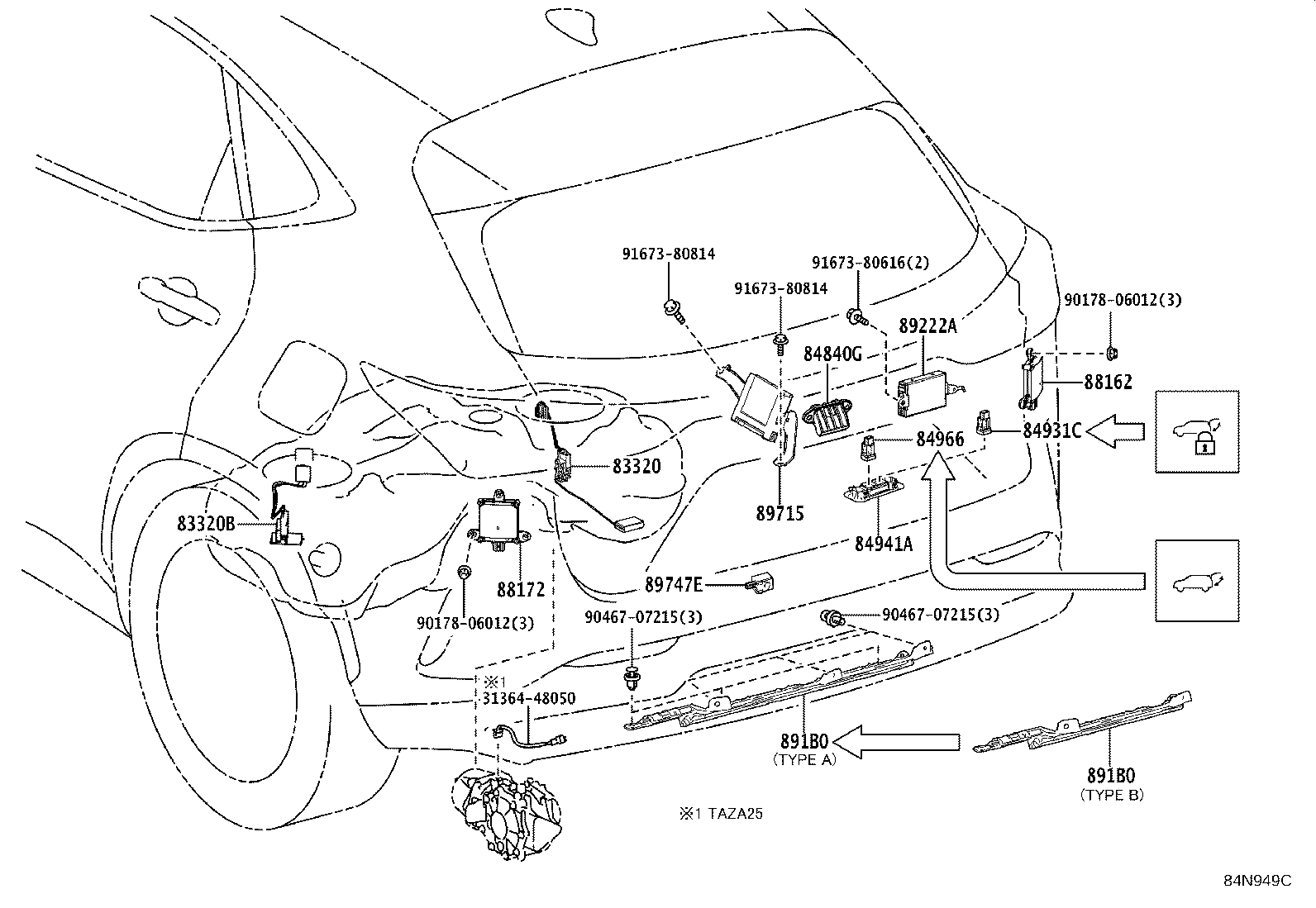

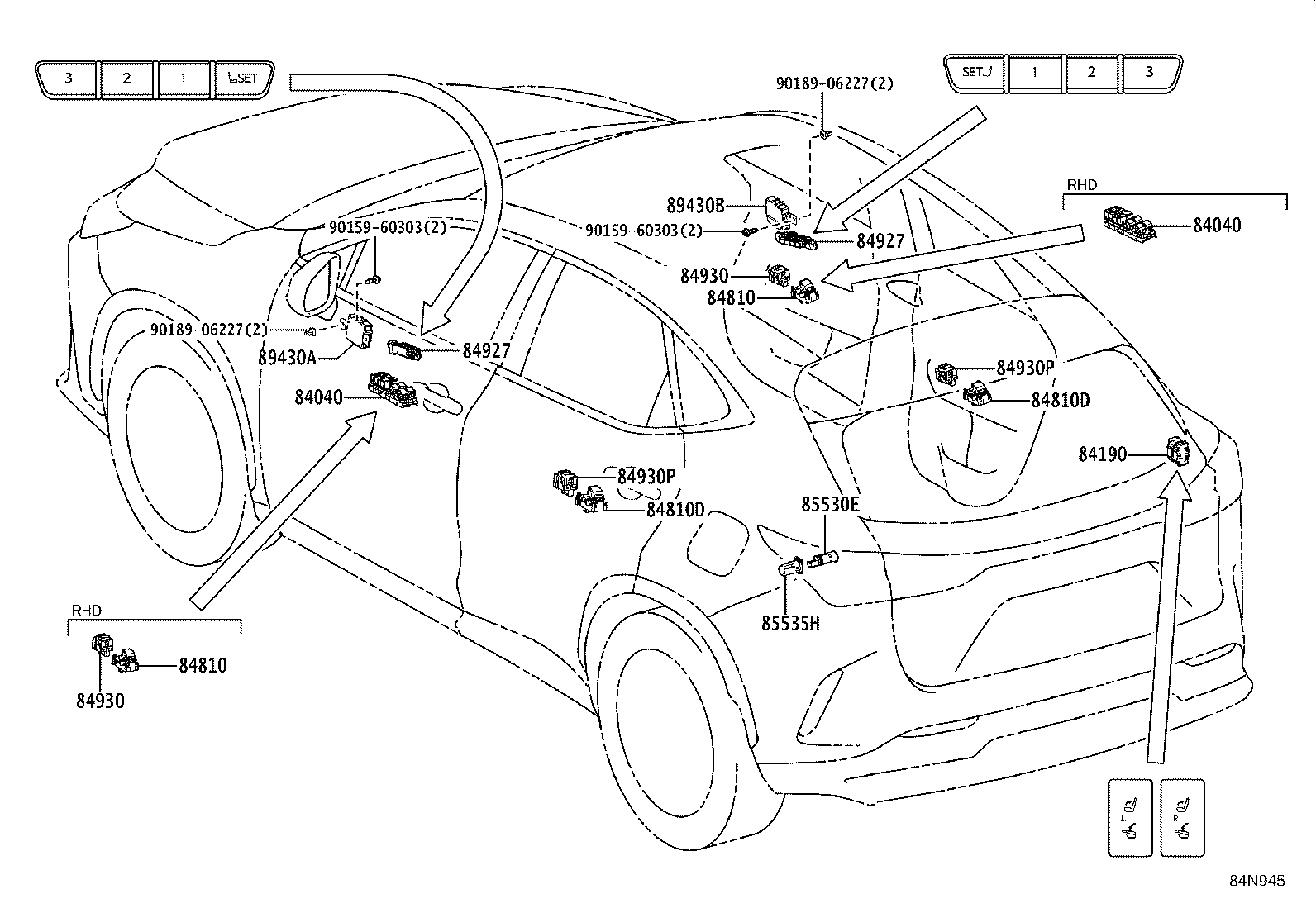

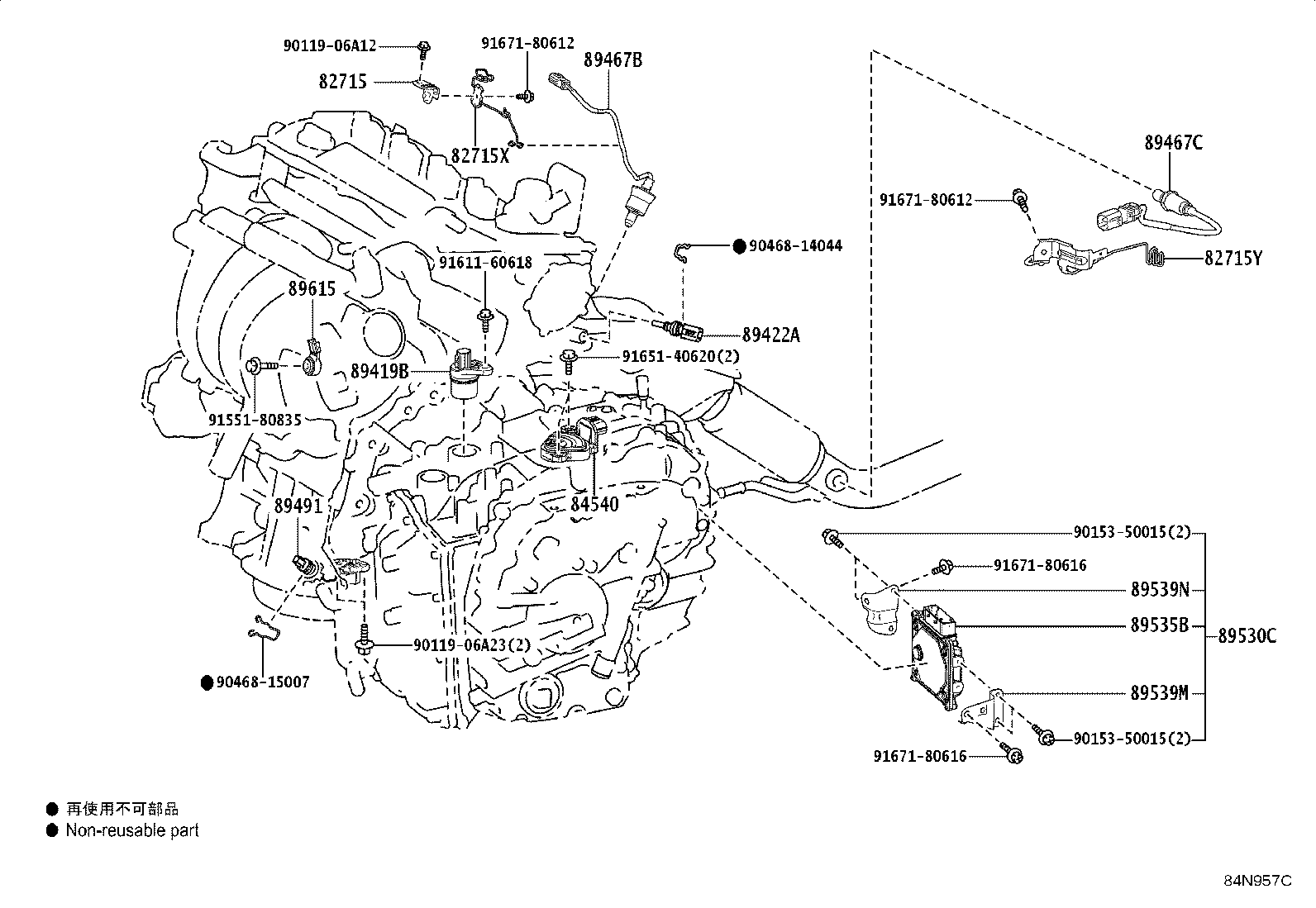

Figure 84Q473 84Q473 2021-11 → 2023-03 Figure 84Q473 84Q473 2021-11 → — Figure 84Q503 84Q503 2023-03 → — Figure 84N959C 84N959C 2021-11 → 2023-03 Figure 84N959C 84N959C 2021-11 → — Figure 84Q504 84Q504 2023-03 → — Figure 84N960C 84N960C 2021-11 → 2023-03 Figure 84N960C 84N960C 2021-11 → — Figure 84Q505A 84Q505A 2023-03 → — Figure 84N924B 84N924B 2021-11 → — Figure 84N957C 84N957C 2021-11 → — Figure 84N925A 84N925A 2021-11 → — Figure 84O007A 84O007A 2021-11 → — Figure 84O008B 84O008B 2021-11 → — Figure 84N929B 84N929B 2021-11 → — Figure 84O009A 84O009A 2021-11 → — Figure 84N931D 84N931D 2021-11 → — Figure 84N932C 84N932C 2021-11 → — Figure 84N935A 84N935A 2021-11 → — Figure 84O099 84O099 2021-11 → — Figure 84N937A 84N937A 2021-11 → — Figure 84N938A 84N938A 2021-11 → — Figure 84N940A 84N940A 2021-11 → — Figure 84N941A 84N941A 2021-11 → — Figure 84N943B 84N943B 2021-11 → — Figure 84N942A 84N942A 2021-11 → — Figure 84N945 84N945 2021-11 → — Figure 84N949C 84N949C 2021-11 → — Figure 84N950C 84N950C 2021-11 → — Figure 84N952B 84N952B 2021-11 → — Figure 84N953D 84N953D 2021-11 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371D Relay, Ignition, NO.3
28371J Relay, Igb
28371L Relay, Igp
28850C Sensor Assy, Battery State
28859A Holder, Battery Current Sensor
28911 Bracket, Integration Control Supply, NO.1
28911A Bracket, Integration Control Supply, NO.2
28912 Supply, Integration Control
28971B Fuse, High Voltage, NO.2
69065A Cylinder Sub-assy, Airbag Cut Off Switch
82210J Fusible Link
82210M Fusible Link
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600 Block Assy, Fuse
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600L Luggage Room Fuse
82610A Block Assy, Fuse
82610C Block Assy, Fuse
82610D Block Assy, Fuse
82610E Block Assy, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82620E Block Assy, Fusible Link
82620J Block Assy, Fusible Link
82644 Computer, Semiconductor Power Integration
82660 Block Assy, Relay, Engine Room
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660F Block Assy, Relay
82660G Block Assy, Relay
82660H Block Assy, Relay
82660J Block Assy, Relay
82660P Block Assy, Relay
82660Q Block Assy, Relay
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82662D Cover, Relay Block, Upper, NO.4
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82663C Cover, Relay Block Lower, NO.4
82663D Cover, Relay Block, Lower, NO.5
82666 Holder, Connector
82670A Block Assy, Junction, NO.1
82672A Cover, Junction Block
82672K Cover, Power Distribution Box
82673A Bracket, Junction Block, NO.1
82715 Bracket,Wiring Harness Clamp
82715W Bracket, Wiring Harness Clamp
82715X Bracket, Wiring Harness Clamp, NO.2
82715Y Bracket, Wiring Harness Clamp, NO.3
82730G Box Assy, Power Distribution
82740 Block Assy, Engine Room Relay
82740A Block Assy, Engine Room Relay, NO.2
82741E Block, Luggage Room Relay, NO.1
82877 Box, Computer Integration, RH
82878 Box, Computer Integration, LH
82879 Adapter, Computer Integration Box
82879A Adapter, Computer Integration Box, NO.2
83320 Gage Assy, Fuel Sender
83320B Gage Assy, Fuel Sender, NO.2
83520 Gage Assy,Oil Pressure Sender
84010D Control & Panel Assy, Integration
84010H Control & Panel Assy, Integration
84040 Master Switch Assy,Multiplex Network
84190 Switch Assy, Fold Seat
84250A Switch Assy, Steering Pad
84270Q Relay, Lamp Cut
84306 Cable Sub-assy, Spiral
84319 Housing, Steering Wheel Switch
84329 Switch, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84390B Switch Assy, Electric Parking Brake
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84610F Switch Assy, Transmission Shift
84650 Switch Assy, Windshield Wiper
84751R Switch, Seat Heater(REAR)
84794A Relay, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840G Switch Assy, Back Door Opener
84920C Switch Assy, Power Seat Front, RH
84920D Switch Assy, Power Seat Front, LH
84923G Switch, Rear Power Seat, NO.1, RH
84923H Switch, Rear Power Seat, NO.1, LH
84927 Switch, Seat Memory
84930 Switch Assy, Door Control
84930P Switch Assy, Door Control
84931C Switch, Back Door Control
84941A Base, Switch
84966 Switch, Power Back Door Control
84970 Switch Assy, Combination
84975 Switch, Trip
85530 Socket Assy, Power Outlet, NO.1
85530D Socket Assy, Power Outlet, NO.2
85530E Socket Assy, Power Outlet, NO.3
85532 Socket, Usb Charger
85532C Socket, Usb Charger, NO.2
85533 Lens, Cigarette Lighter Indicator
85535B Cover, Power Outlet Socket, NO.1
85535E Cover, Power Outlet Socket, NO.2
85535H Cover, Power Outlet Socket, NO.3
85910E Relay, Injector
85910K Relay, Rear Seat Heater
85912H Relay, Hwd, NO.1
85912J Relay, Hwd, NO.2
85912K Relay, Vvt
85924C Relay, Igct
85924H Relay, Igct-scene
85925D Relay, Ptc Heater
85925F Relay, Ptc Heater NO.2
85925G Relay, Ptc Heater NO.3
85934 Relay, Magnet-clutch
85940 Relay Assy, Windshield Wiper
85942 Relay, Headlamp Cleaner Control
85948 Relay, Windshield Wiper
85965 Relay, Room Lamp Control
85970A Relay Assy, Double Lock Door Control
86530 Relay Assy, Horn
86995F Label, Caution
88162 Sensor, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
886A0 Computer Assy, Heat Pump
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
891B0 Sensor Assy, Kick Door Control
89221 Computer, Multiplex Network Body
89222A Computer, Multiplex Network Door
89227 Computer, Multiplex Tilt & Telescopic
89235A Switch, Tilt & Telescopic
89245B Sensor, Steering
8934C Circuit, Second Power Supply Remote Parking
89419B Sensor, Shift Stroke
89422A Sensor, Water Temperature
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89429F Sensor, Temperature
89430A Computer Assy, Outer Mirror Control, LH
89430B Computer Assy, Outer Mirror Control, RH
89461 Sensor, Vapor Pressure
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
89530C Computer Assy, Transmission Control
89535B Computer, Transmission Control
89539M Bracket, Transmission Control Computer, NO.1
89539N Bracket, Transmission Control Computer, NO.2
89561F Relay, Electronic Fuel Injection Main, NO.1
89561G Relay, Electronic Fuel Injection Main, NO.2
89561H Relay, Electronic Fuel Injection Main, NO.3
89611 Switch, Push Start
89615 Sensor, Knock Control
89710C Computer Assy, Position Control, RH
89710D Computer Assy, Position Control, LH
89715 Computer, Fold Seat Control
89730A Relay(FOR SECURITY WARNING)
89747E Buzzer, Power Back Door Warning
89870E Relay, Electronic Driver Unit
G1167A Relay (FOR OIL PUMP MOTOR)
G9020E Relay, Hybrid Water Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
