Toyota C-hr
2023-10 → present · chassis MAXH2#,ZYX20 · catalogue 528220 · Europe
Supported model
Data version 2023-12

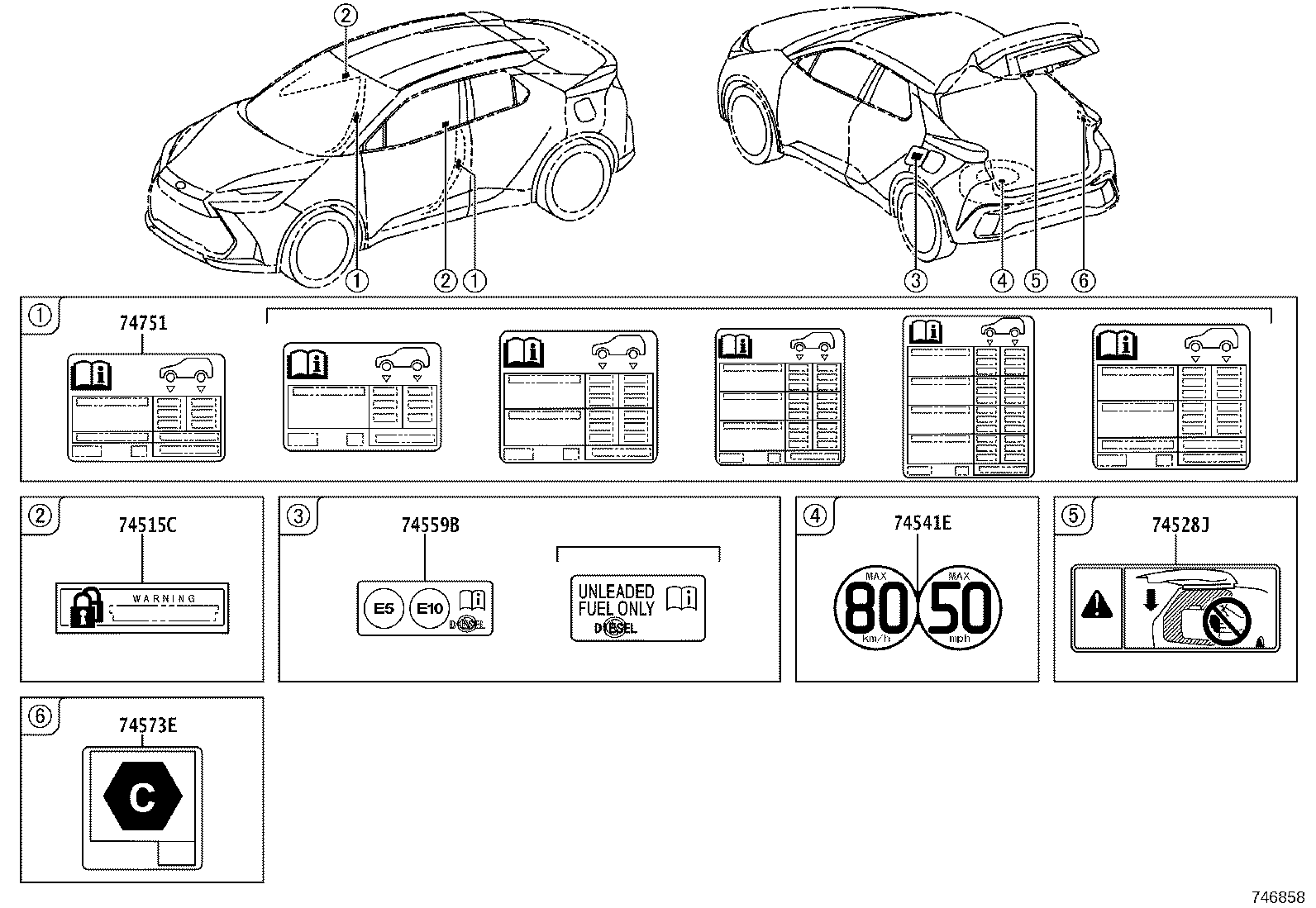

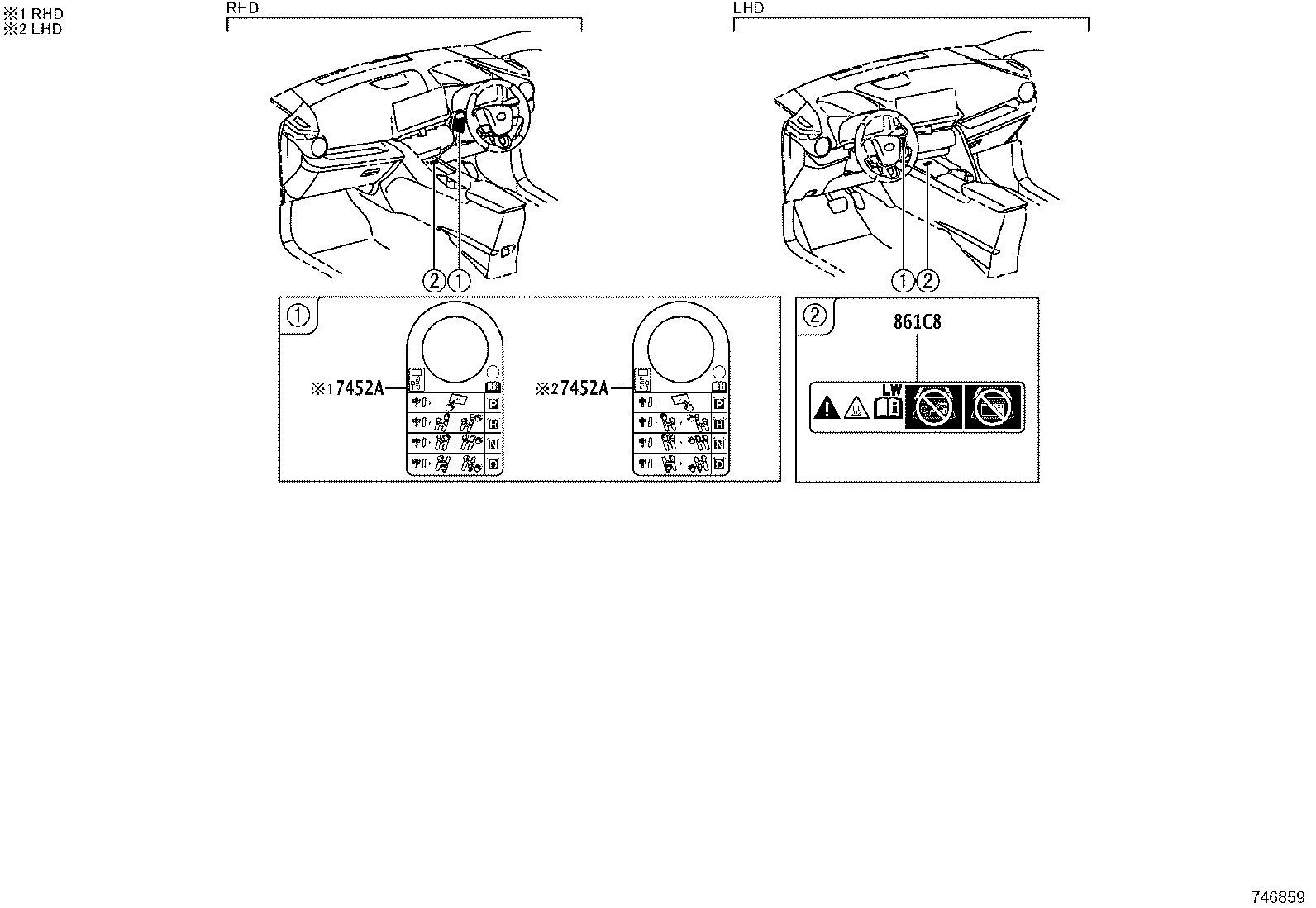

Caution Plate (EXTERIOR & INTERIOR)
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11291B | Plate, Engine Name |
| 288A2 | Label, Battery Location |
| 74515C | Label, Theft Warning Information |
| 74528J | Label, Power Back Door Caution |
| 7452A | Label, Shift Control Information |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559B | Label, Fuel Information |
| 74571 | Plate, Brake Fluid Caution |
| 74573E | Label, Electric Vehicle Battery Caution, NO.2 |
| 74751 | Label, Tire Pressure Information |
| 82685D | Plate, Caution |
| 861C8 | Label, Mobile Wireless Charger Caution |
| 88723H | Label, Cooler Service Caution |
| 88723J | Label, Cooler Service Caution, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
