Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

11 part groups · 4 illustrations

Illustrations

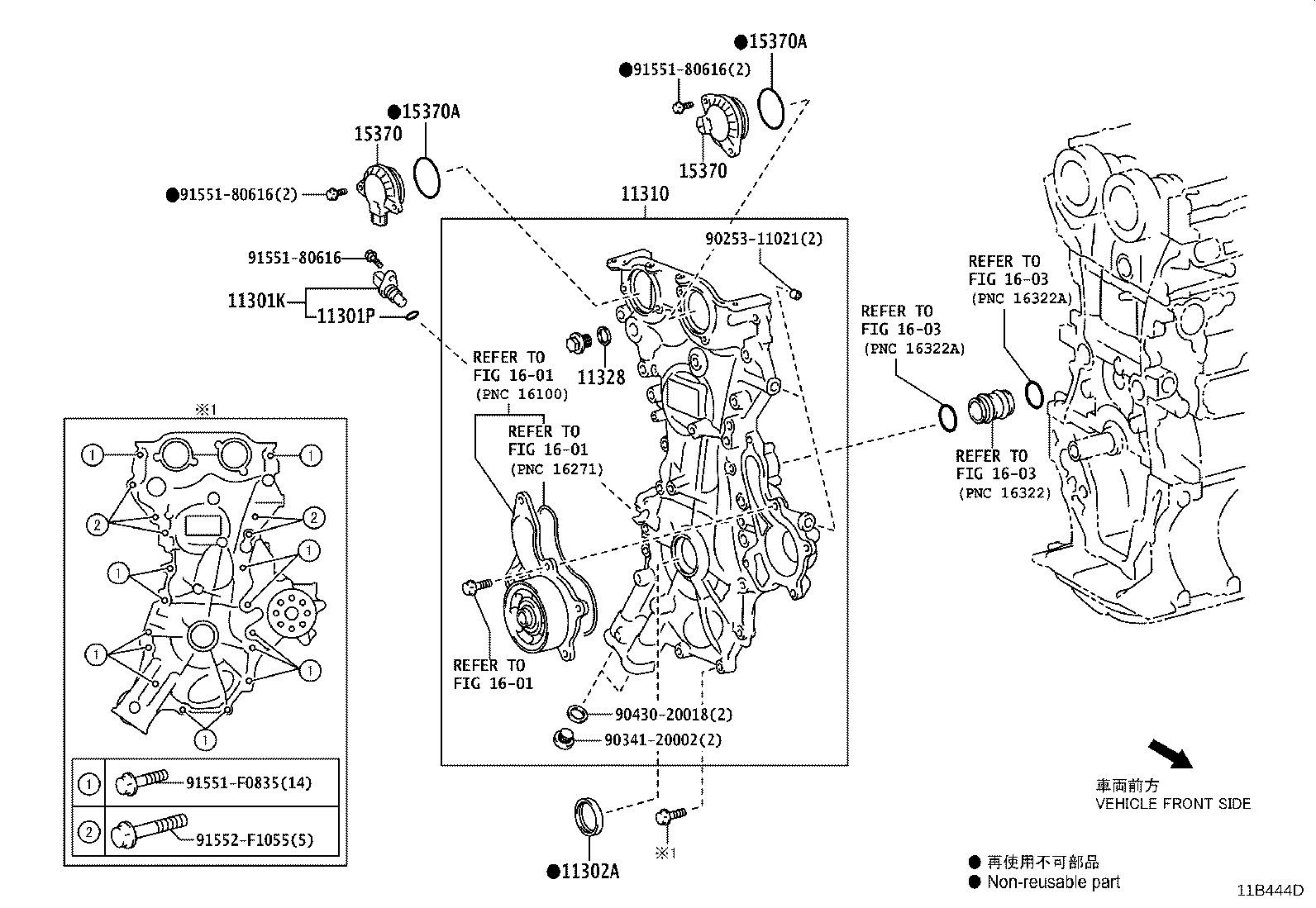

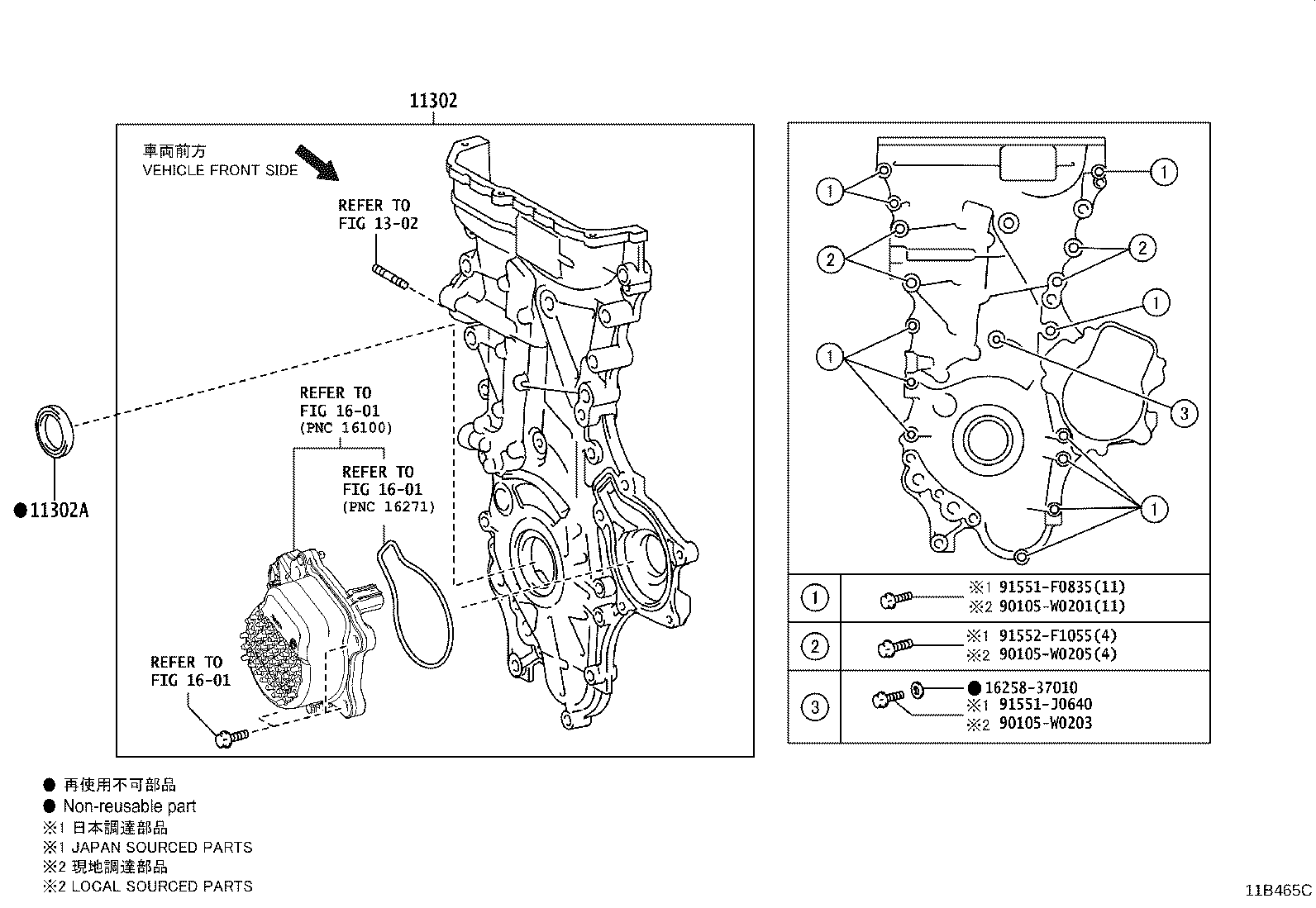

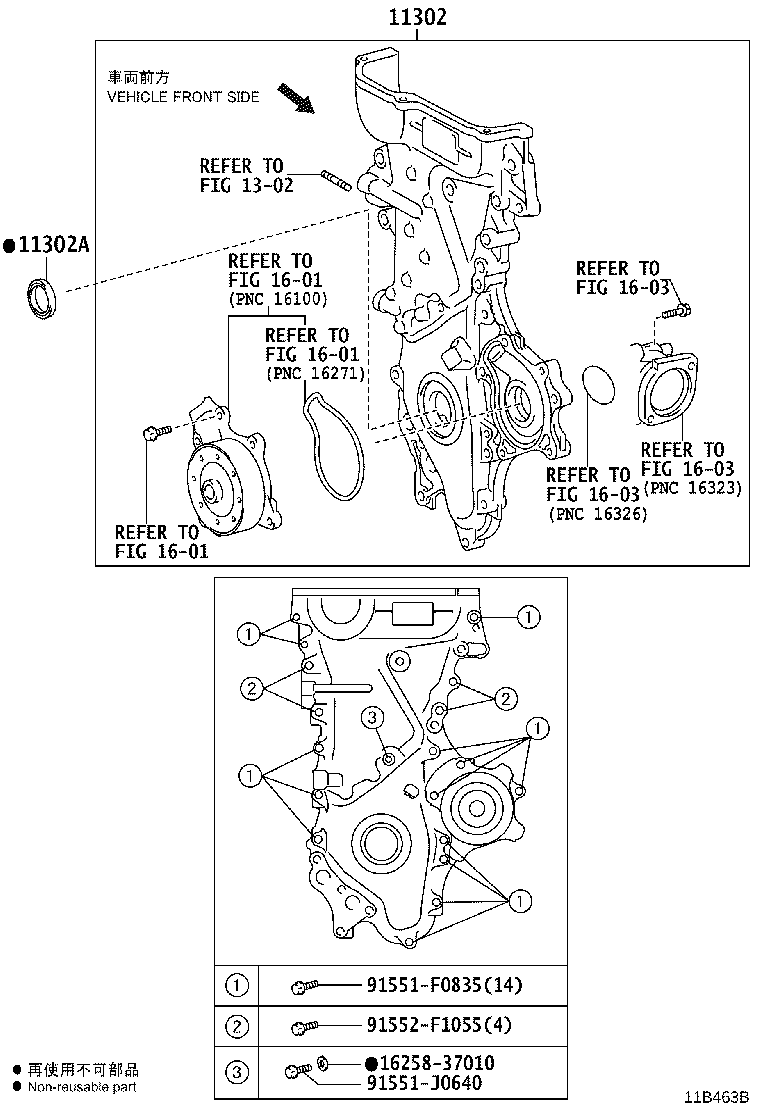

Figure 11E615C 11E615C 2019-09 → — Figure 11B444D 11B444D 2016-10 → — Figure 11B463B 11B463B 2016-10 → — Figure 11B465C 11B465C 2016-10 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11301P O Ring, Crank Position Sensor
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302J Pin, Straight(FOR TIMING CHAIN COVER)
11310 Cover Assy, Timing Chain
11320B Cover Assy, Timing Chain, NO.2
11328 Gasket, Timing Gear OR Chain Cover
15370 Solenoid Assy, Cam Timing Oil Control
15370A Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
