Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

17 part groups · 6 illustrations

Illustrations

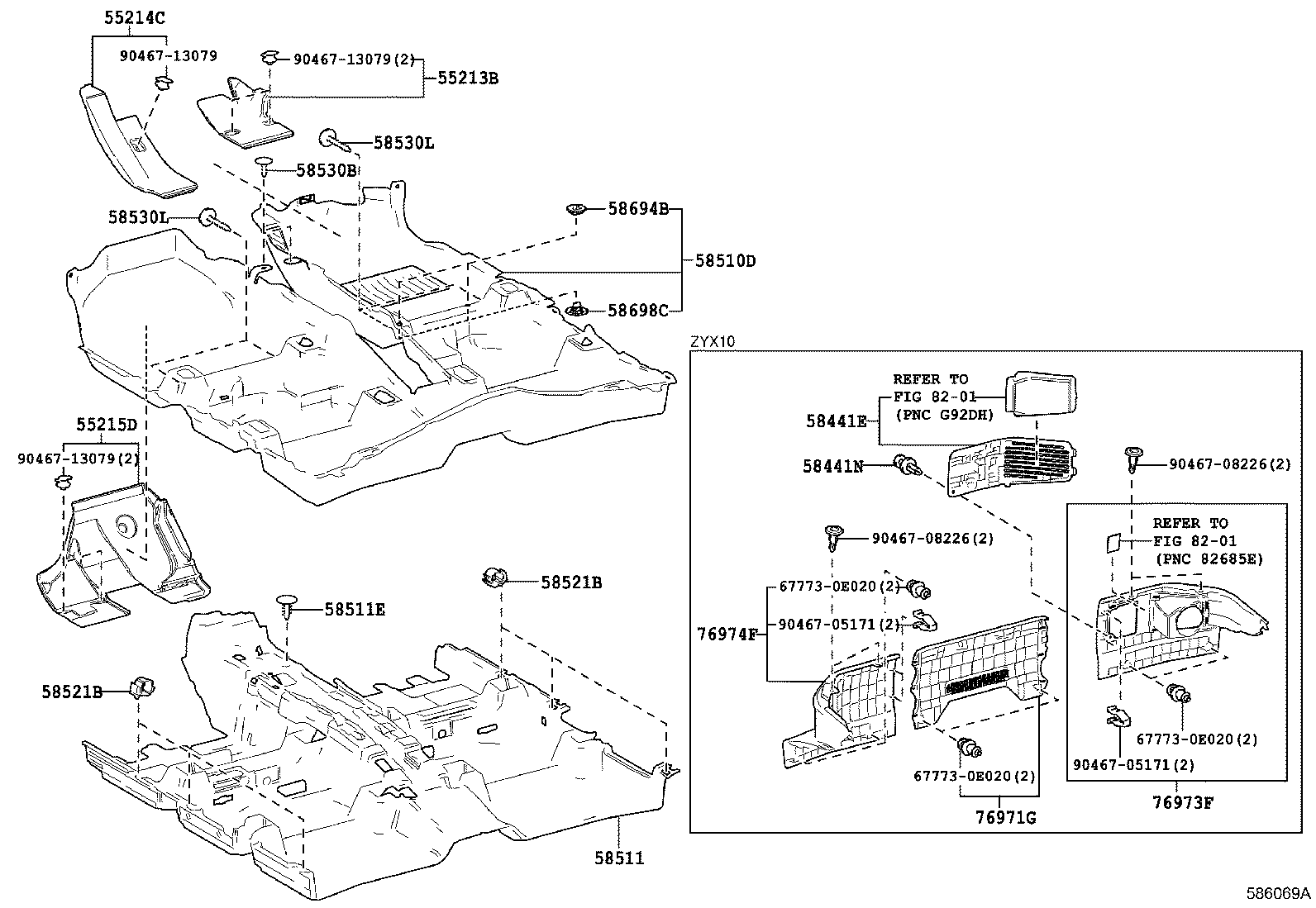

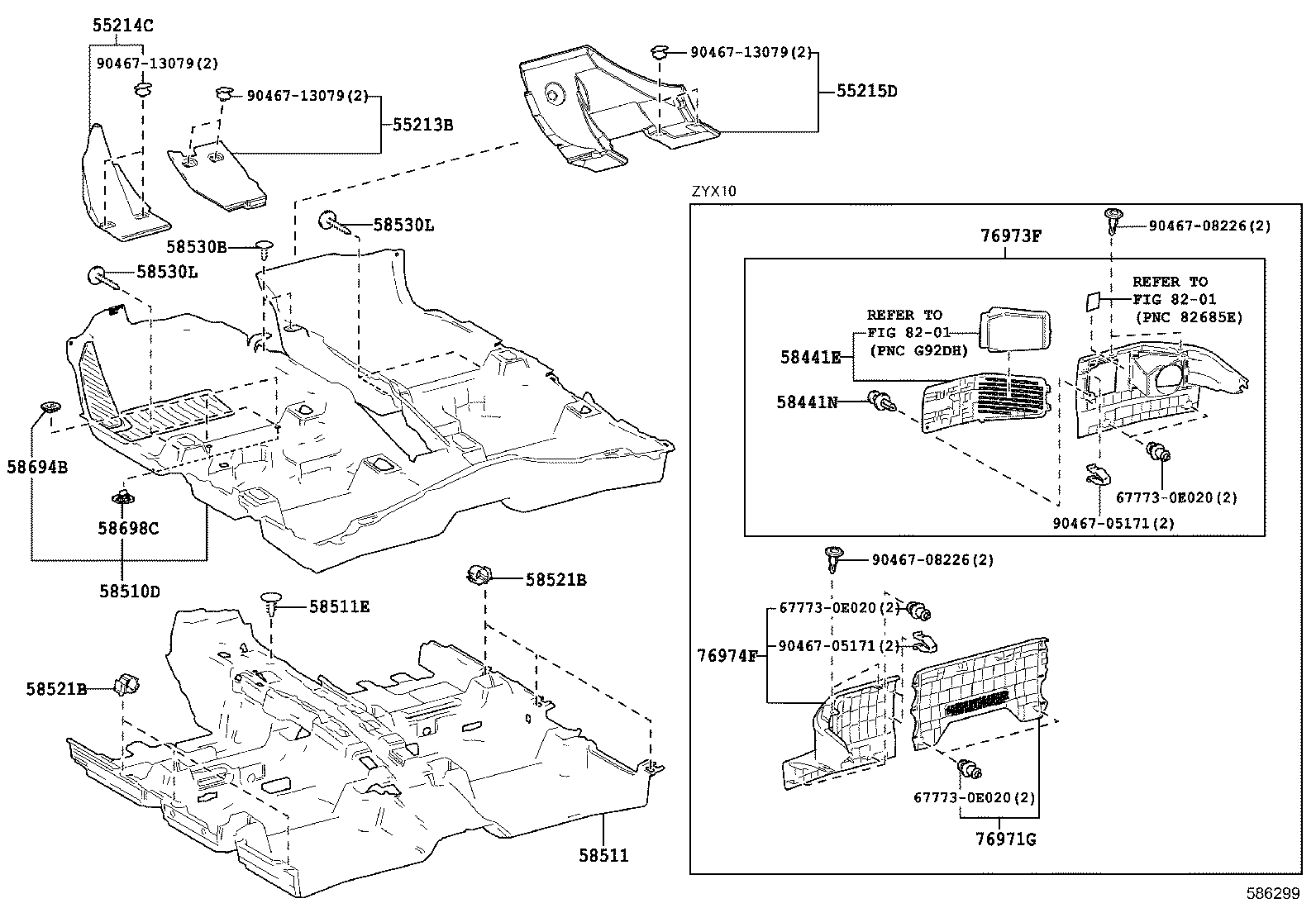

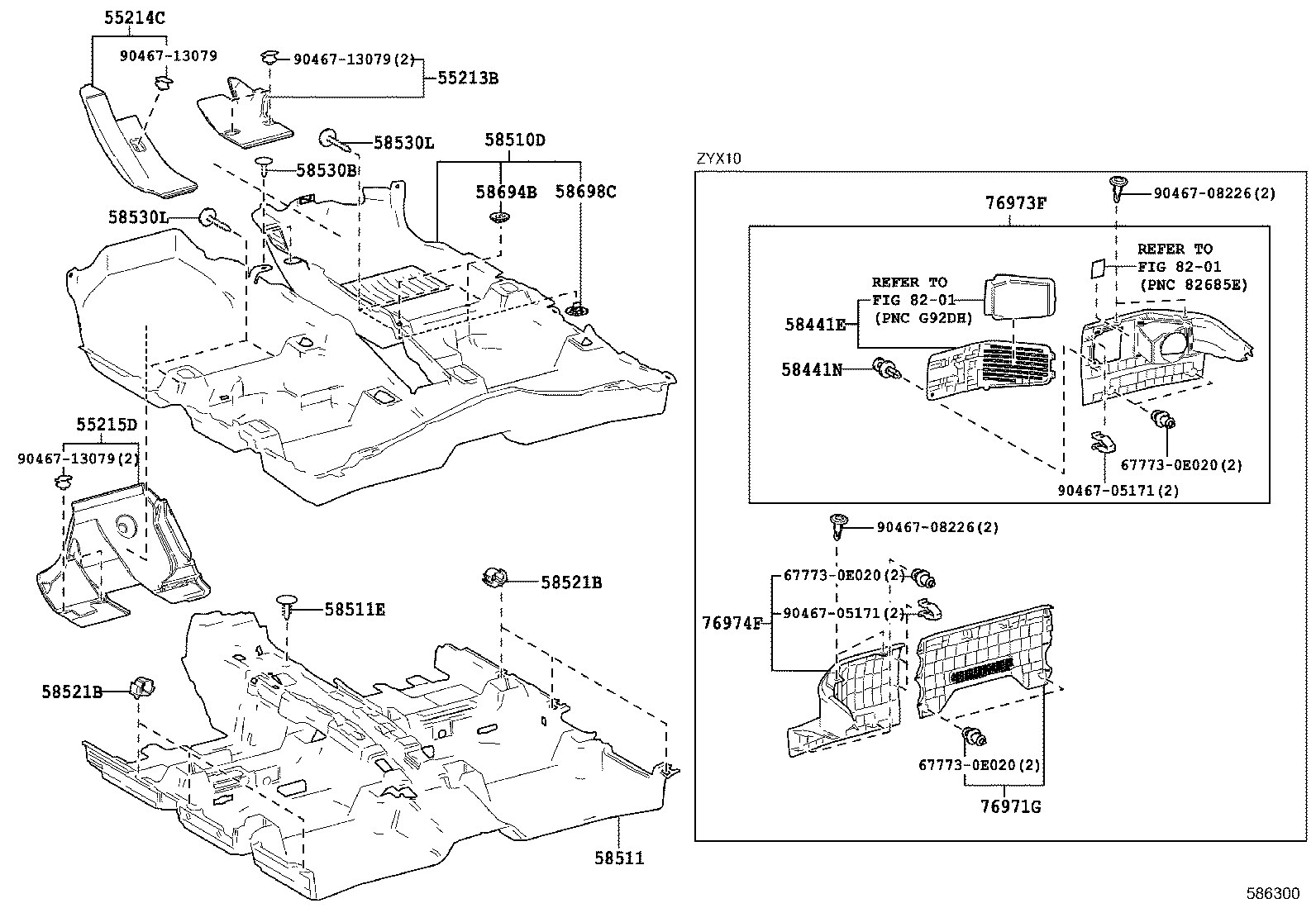

Figure 586068B 586068B 2016-10 → 2017-03 Figure 586299 586299 2017-03 → — Figure 586069A 586069A 2016-10 → 2017-03 Figure 586300 586300 2017-03 → — Figure 587256 587256 2018-05 → — Figure 587257 587257 2018-05 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58441E Cover, Battery Service Hole
58441N Clip(FOR BATTERY SERVICE HOLE COVER)
58510D Carpet Assy, Floor, Front
58510H Mat Assy, Floor
58511 Mat, Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58521B Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58530L Clip, Floor Carpet, Center
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
76971G Cover, Rear Under
76973F Cover, Rear Under Side, RH
76974F Cover, Rear Under Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
