Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

19 part groups · 4 illustrations

Illustrations

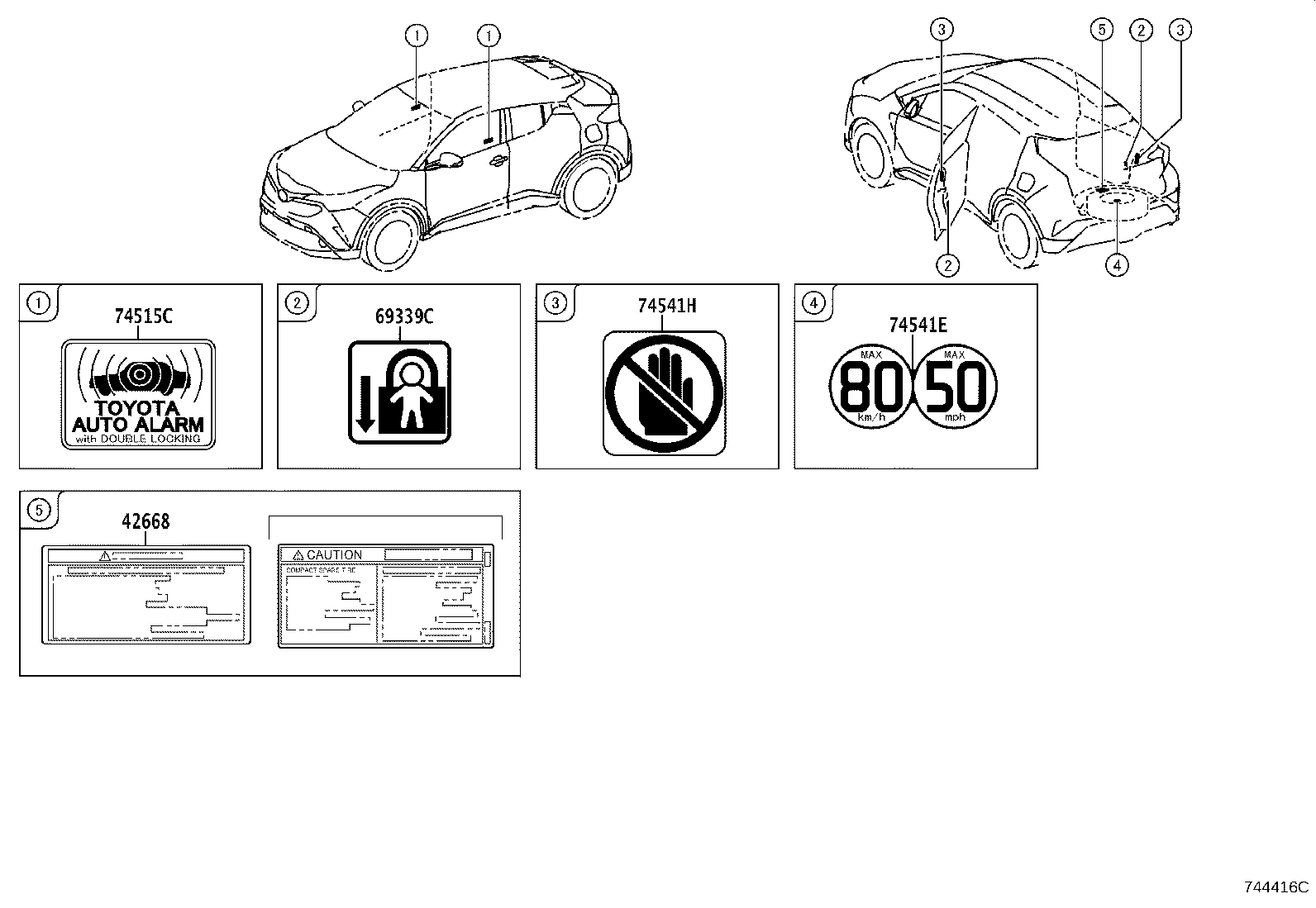

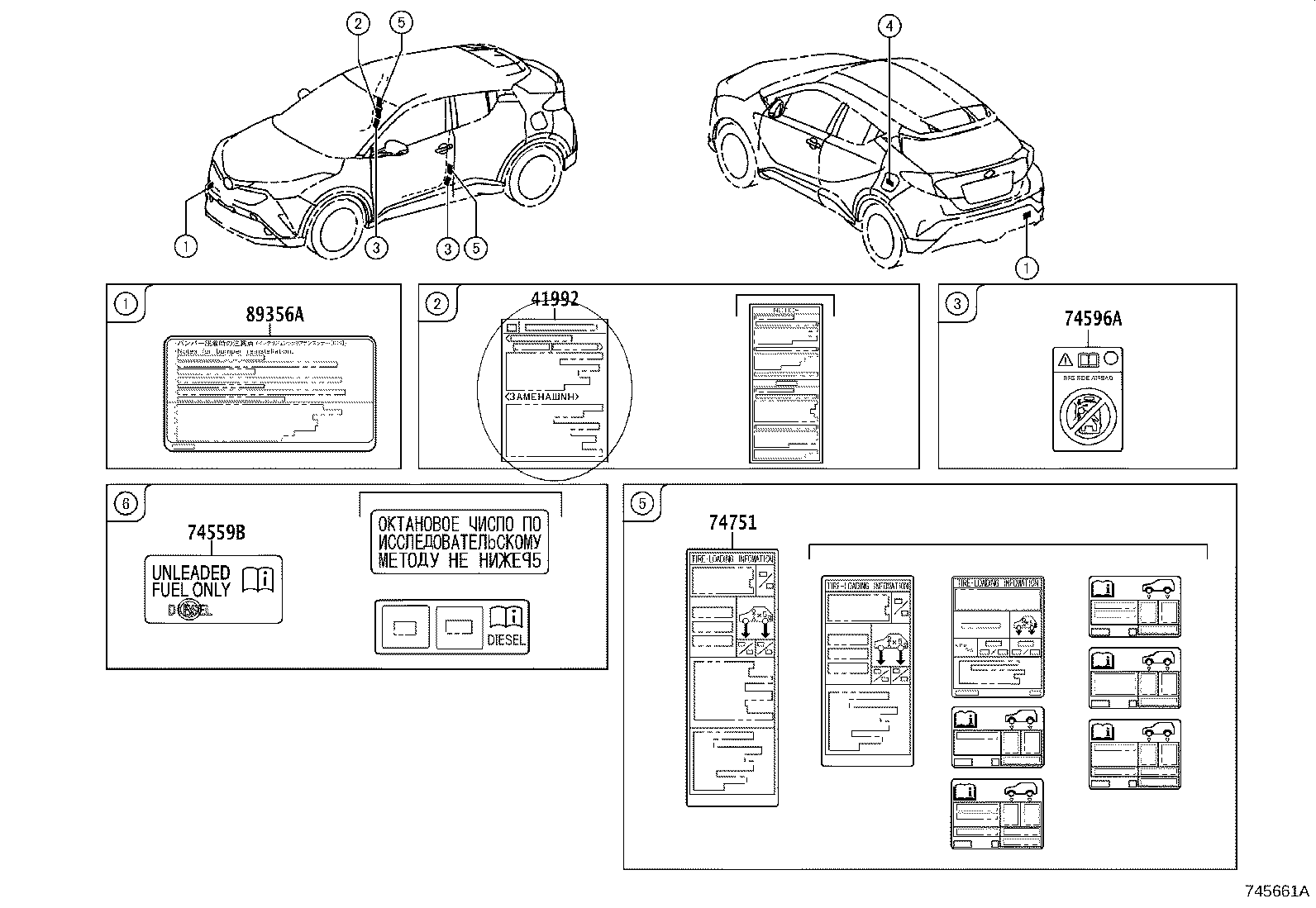

Figure 744396I 744396I 2016-10 → — Figure 745661A 745661A 2016-10 → — Figure 744416C 744416C 2016-10 → — Figure 744399A 744399A 2016-10 → 2016-12

Part groups

PNCDescription
11285A Label, Coolant System Notice
11291B Plate, Engine Name
11293D Label, Engine Caution
16793B Label, Cooling Fan Information
41992 Label, Differential Notice
42668 Label, Compact Spare Tire Caution
47288 Label, Brake Fluid Notice
47997C Label, Accumulator Caution, NO.1
69339C Label, Child Protector Information
74501B Label Set, Caution
74515C Label, Theft Warning Information
74541E Plate, Compact Spare Tire Caution
74541H Plate, Body Caution
74559B Label, Fuel Information
74596A Label, Side Airbag Caution
74751 Label, Tire Pressure Information
88723H Label, Cooler Service Caution
89356A Label, Clearance Warning Information
G9275 Label, Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
