Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

129 part groups · 19 illustrations

Illustrations

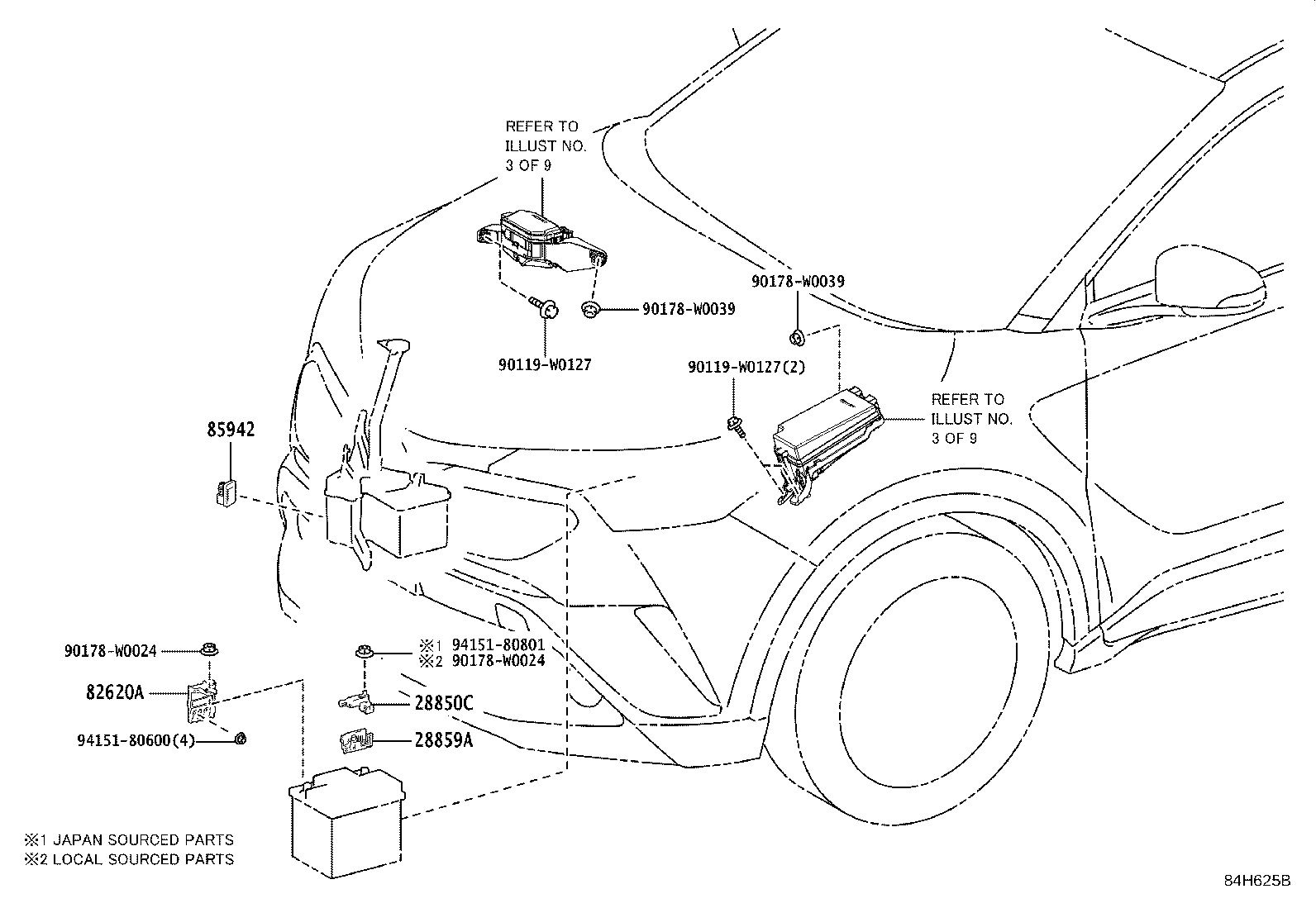

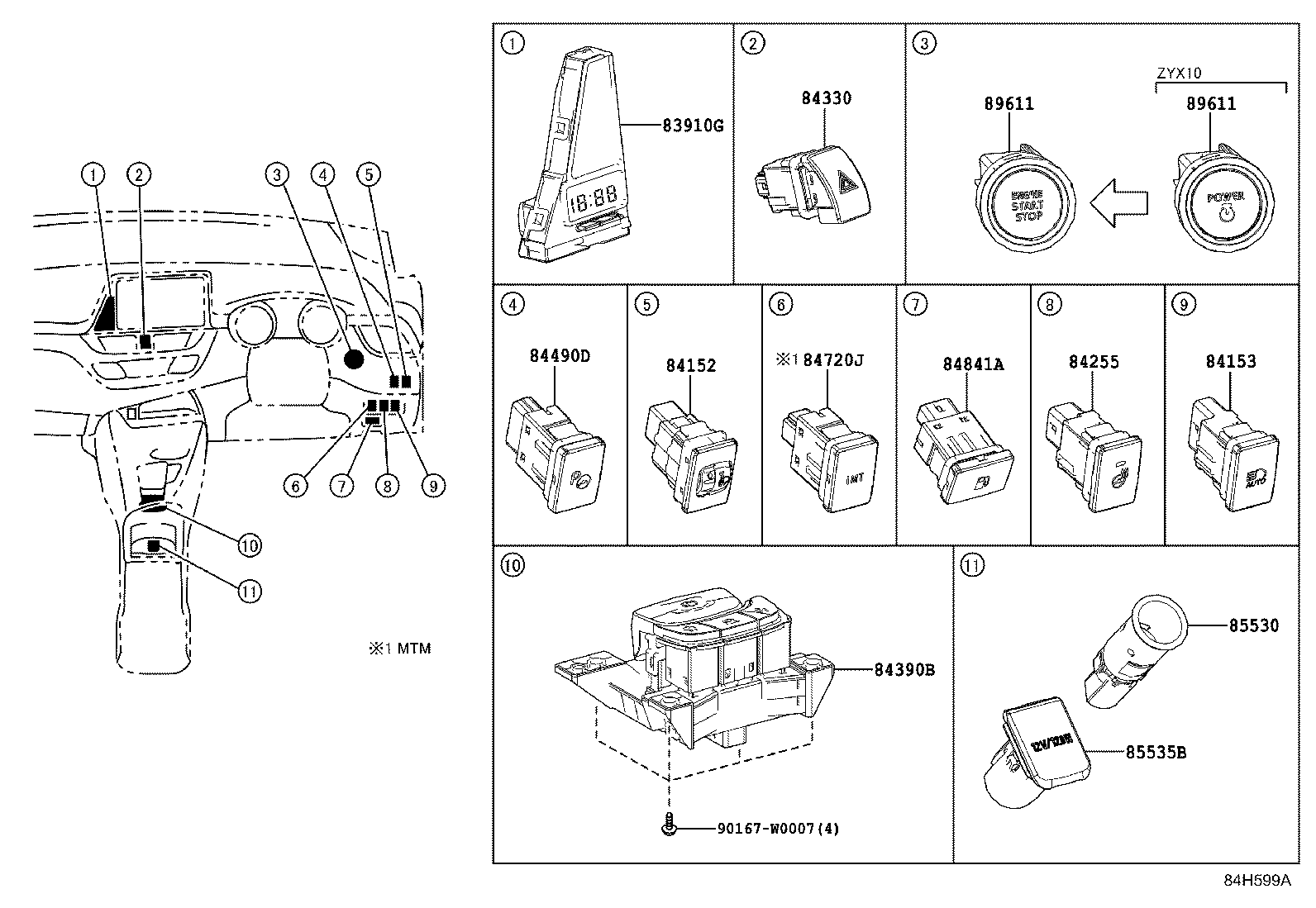

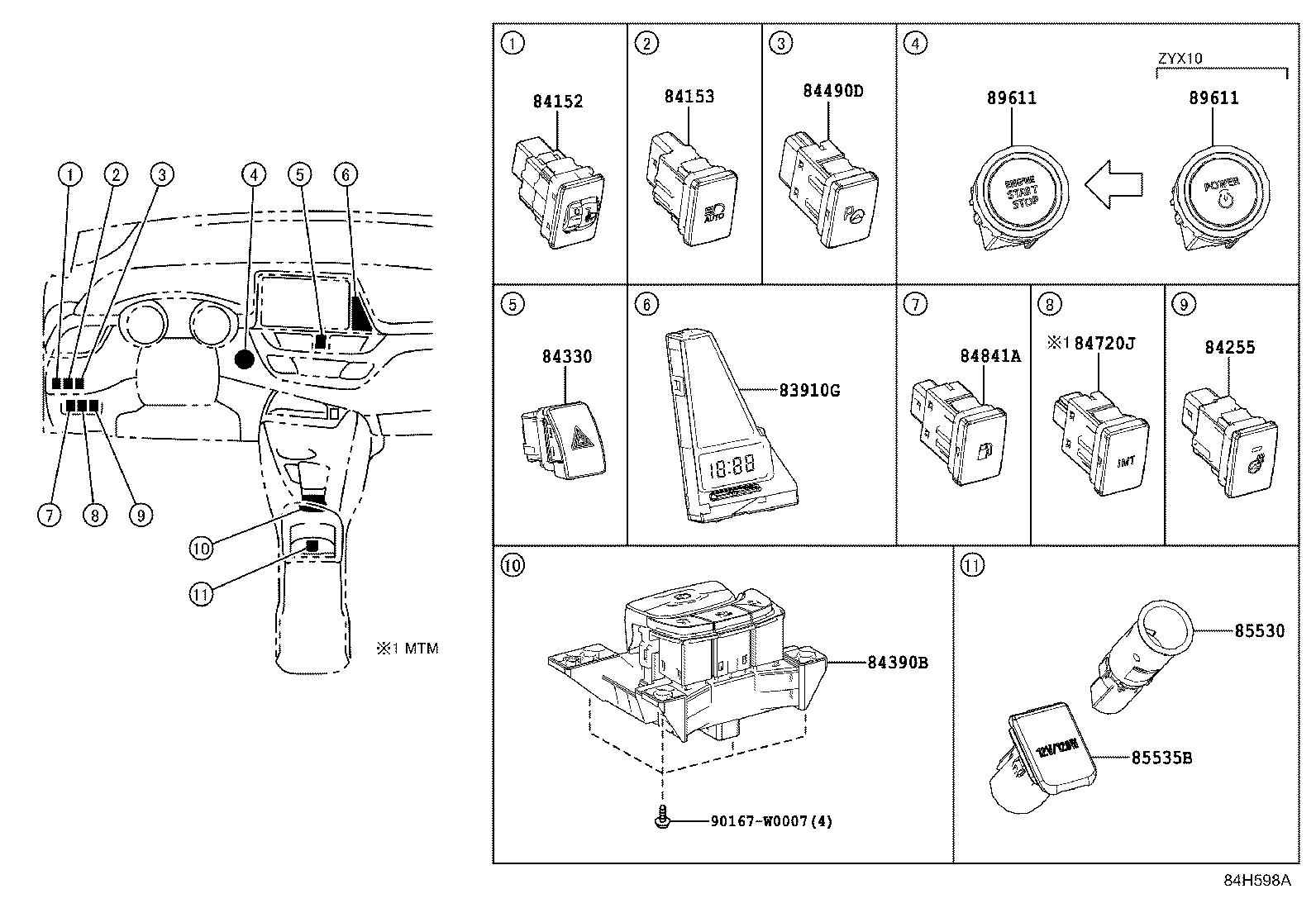

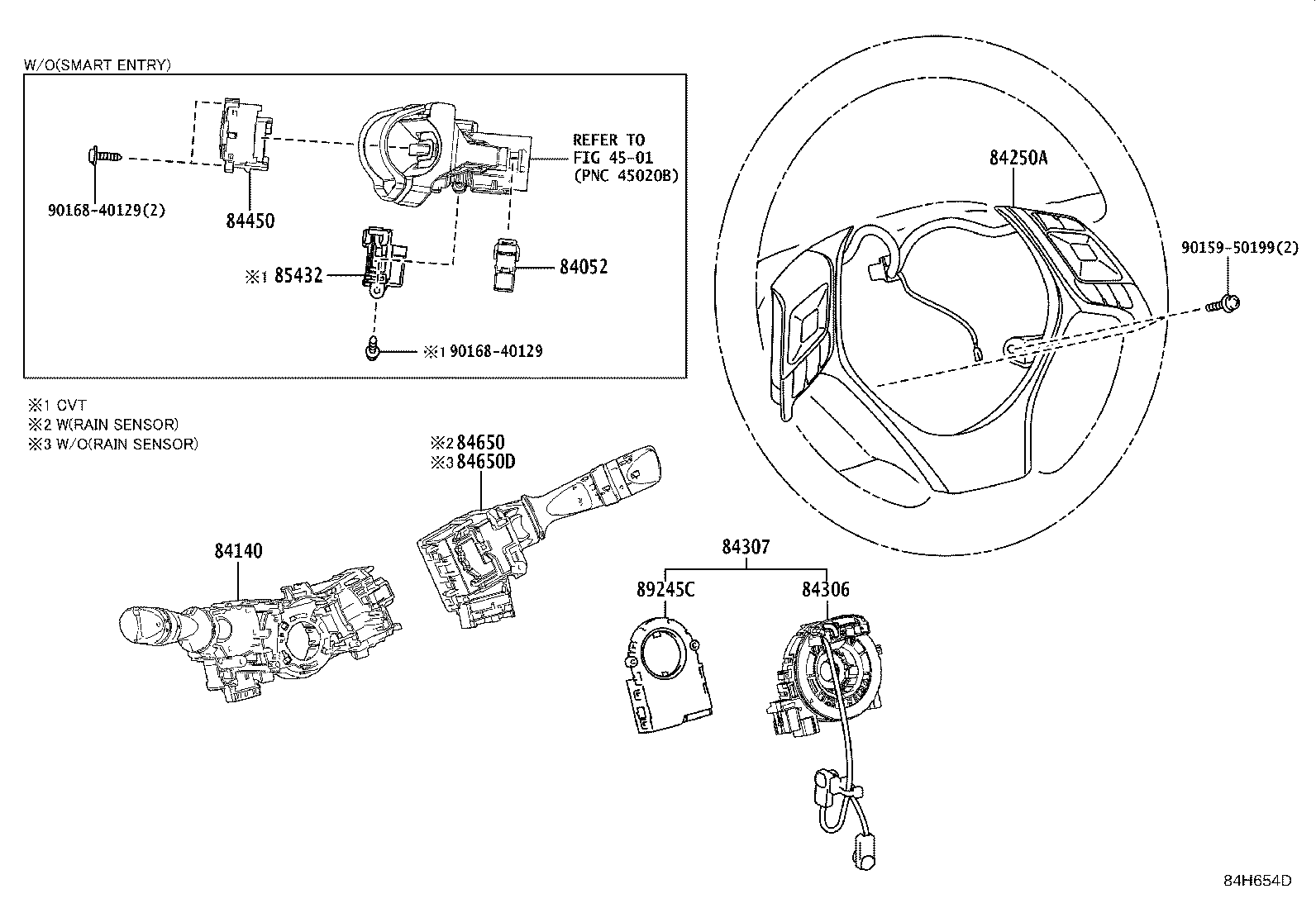

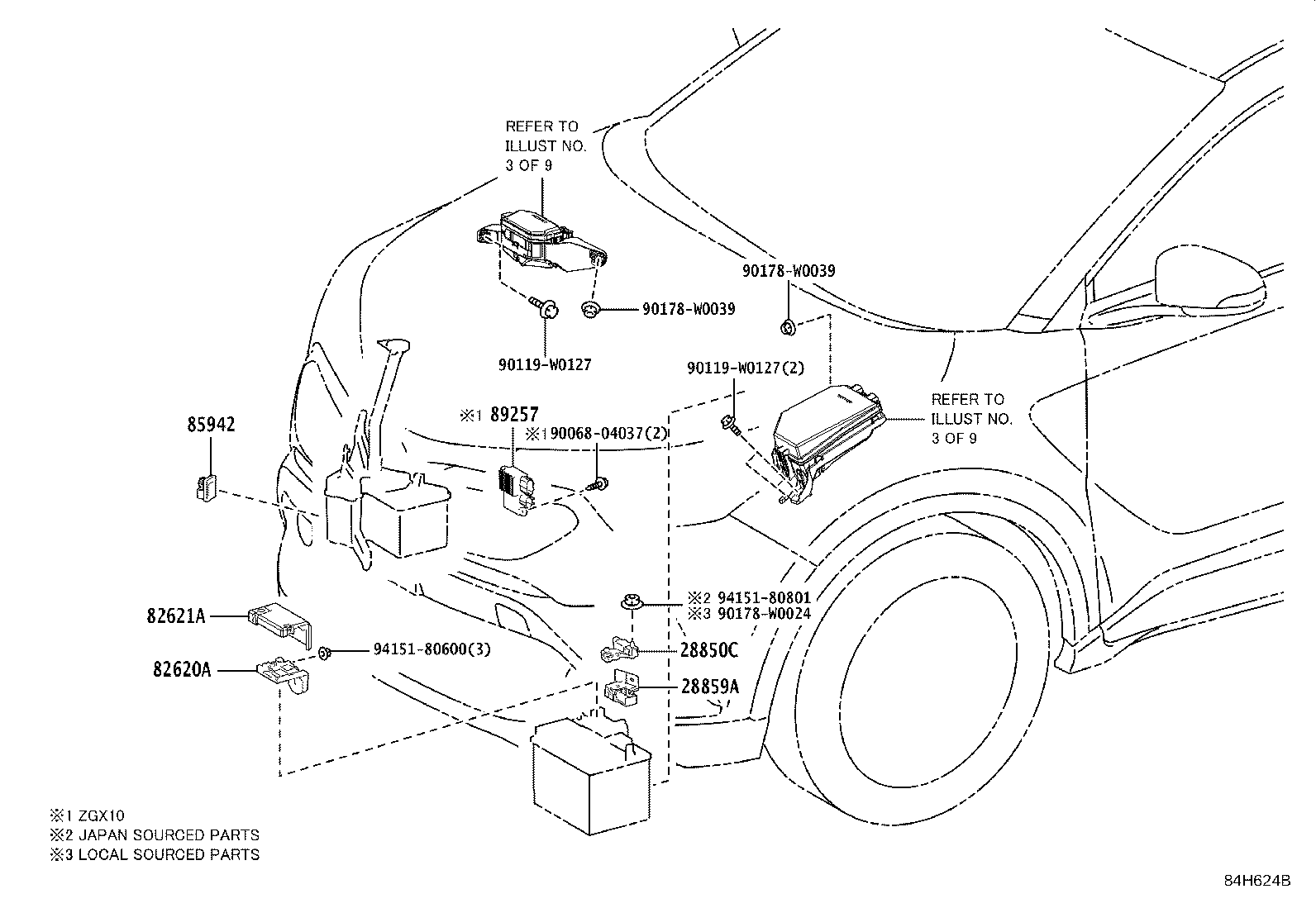

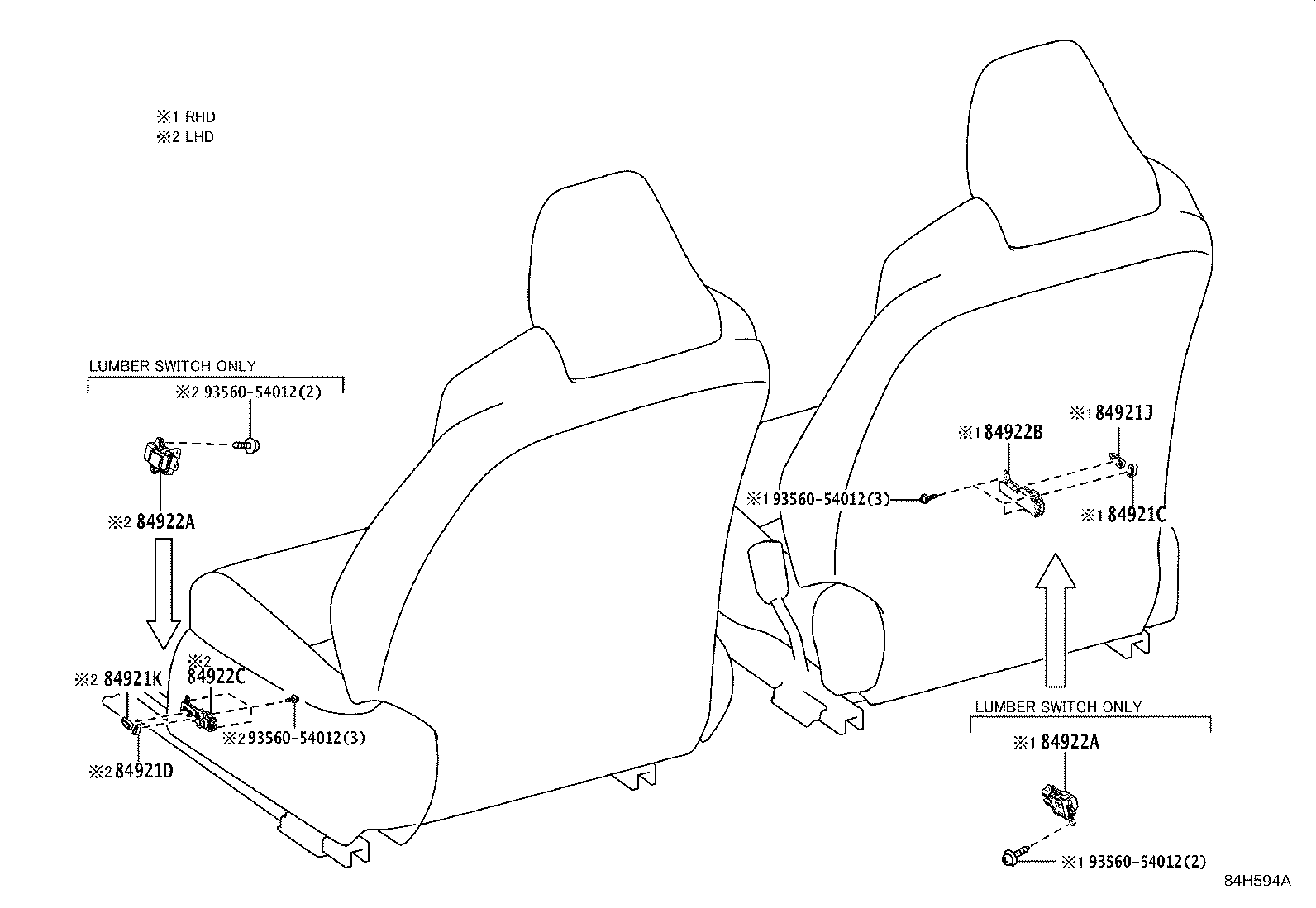

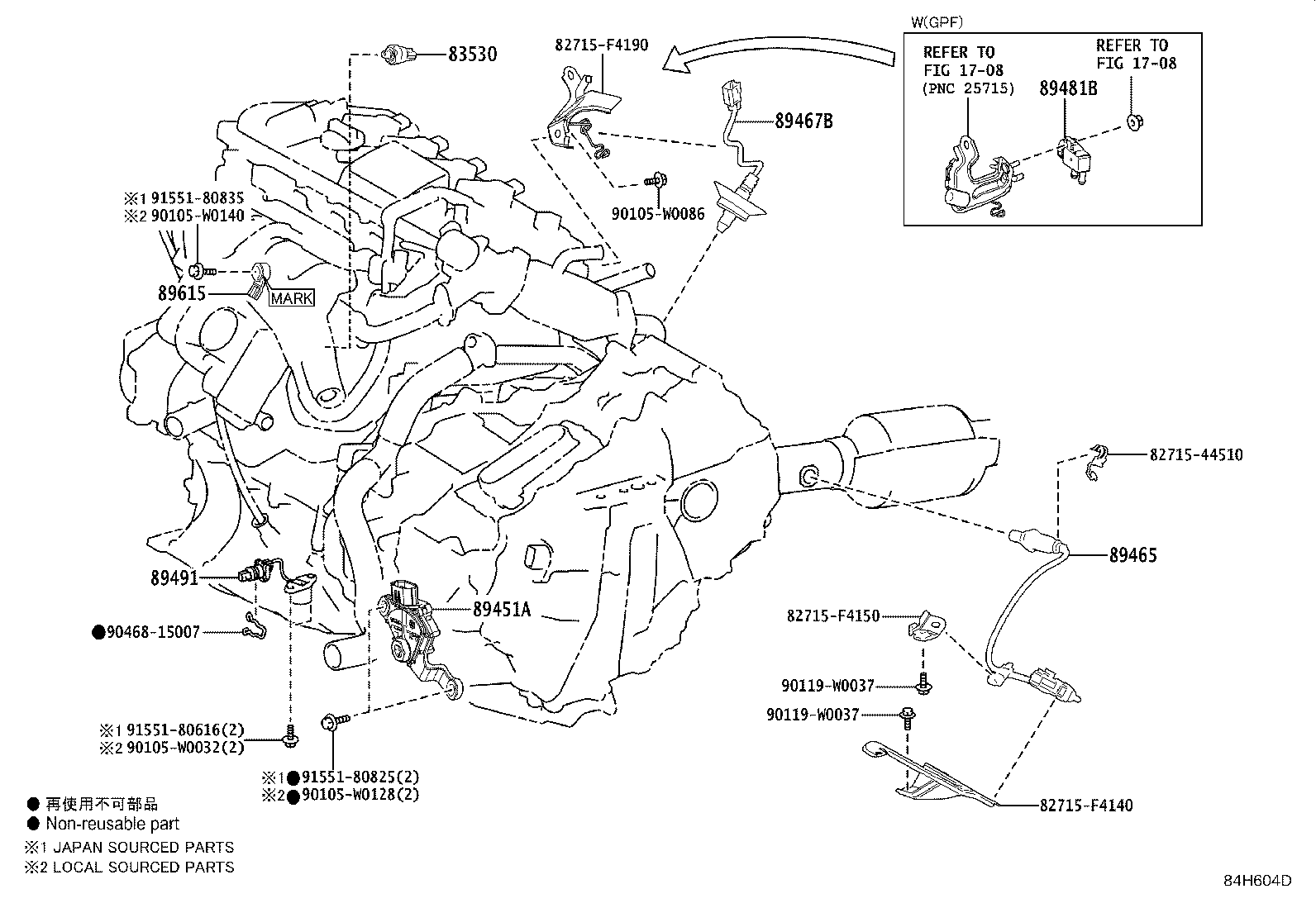

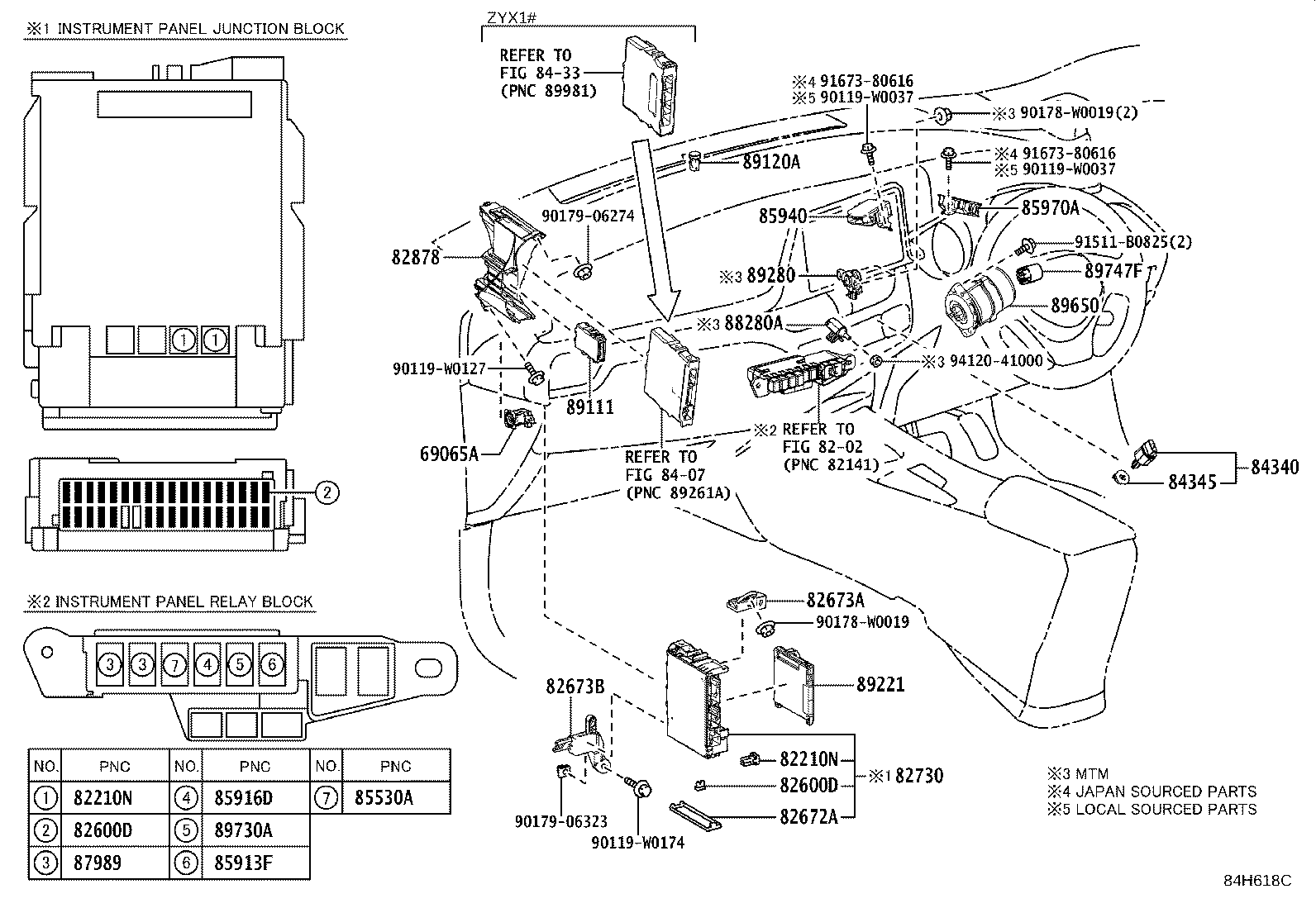

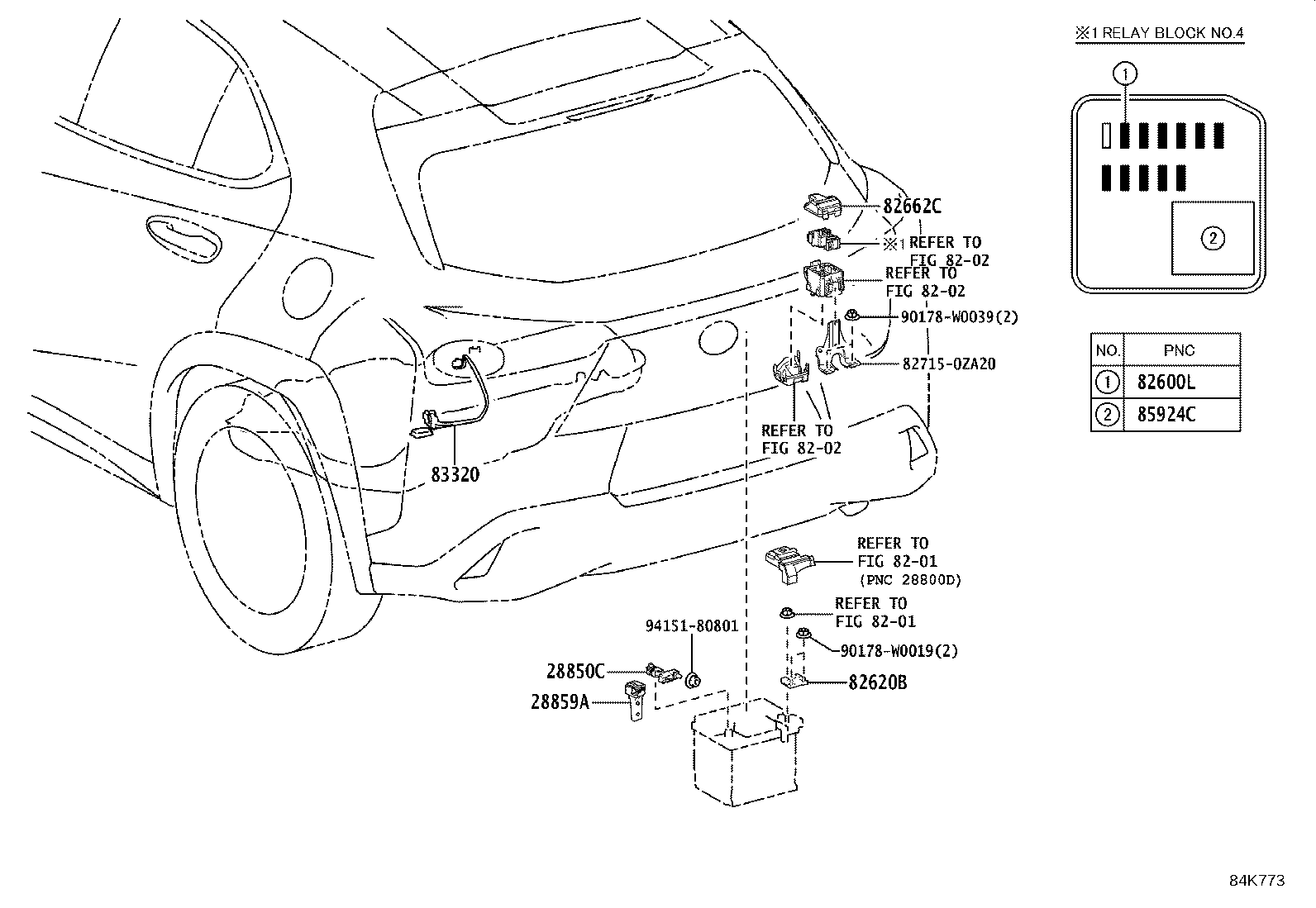

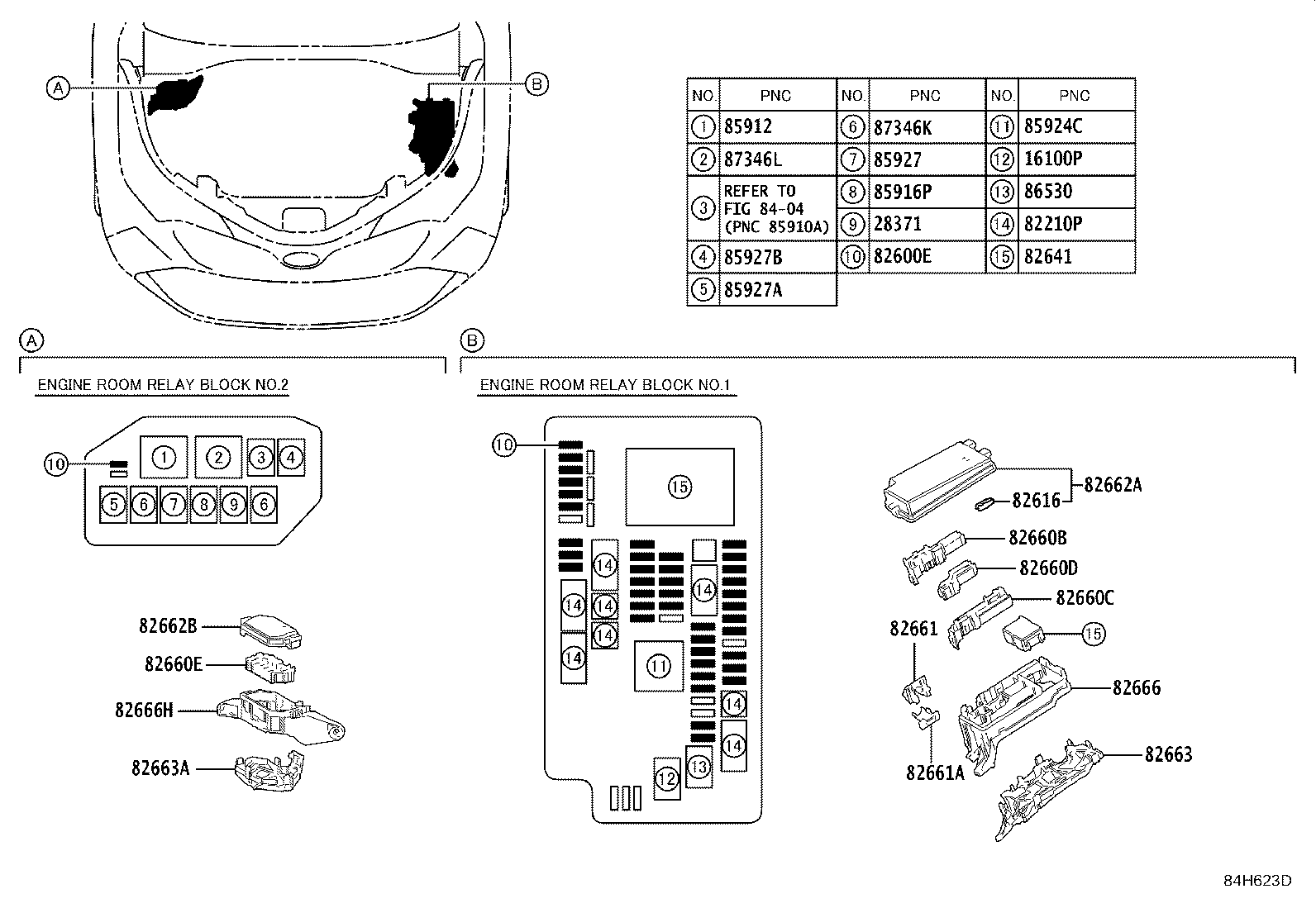

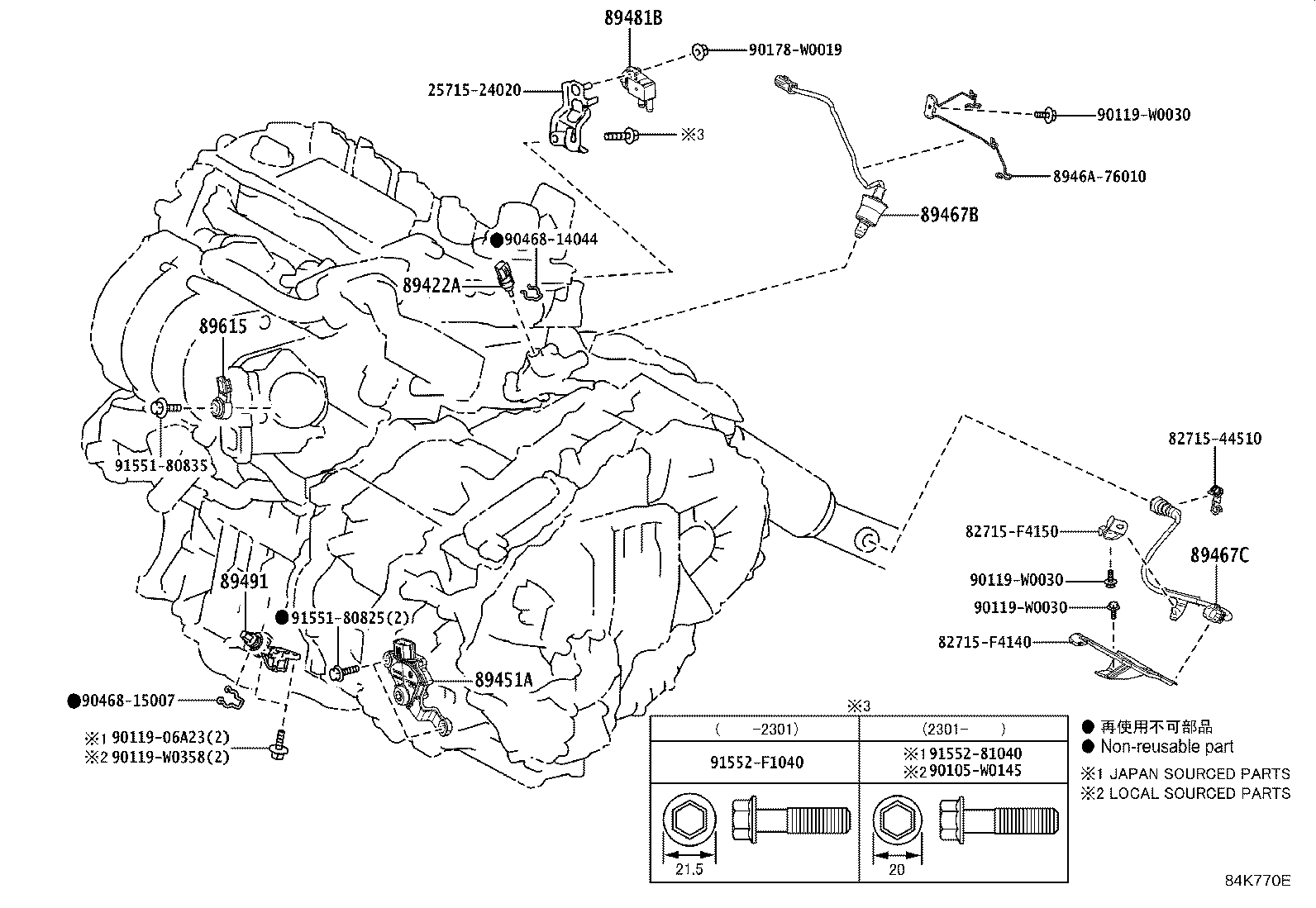

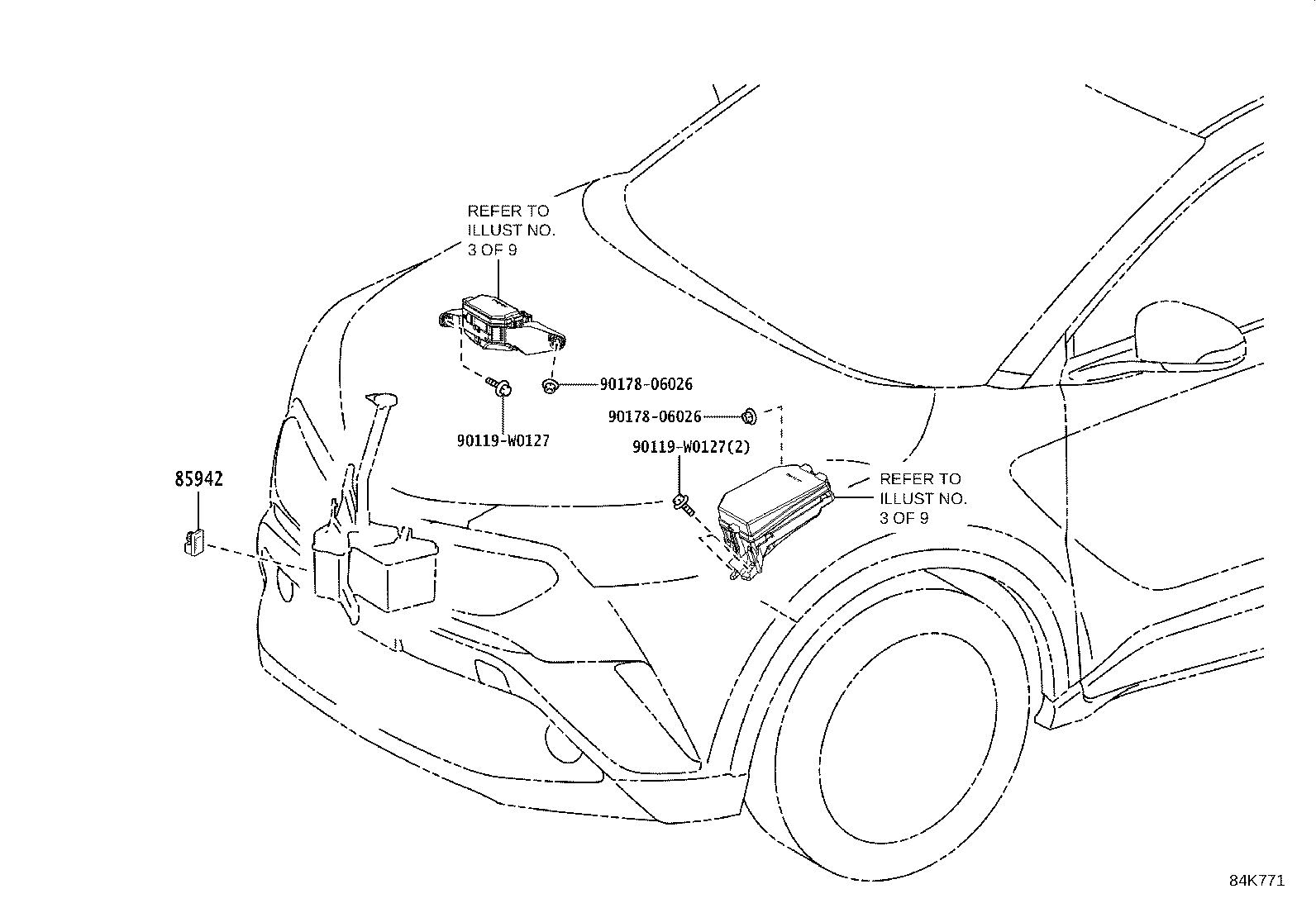

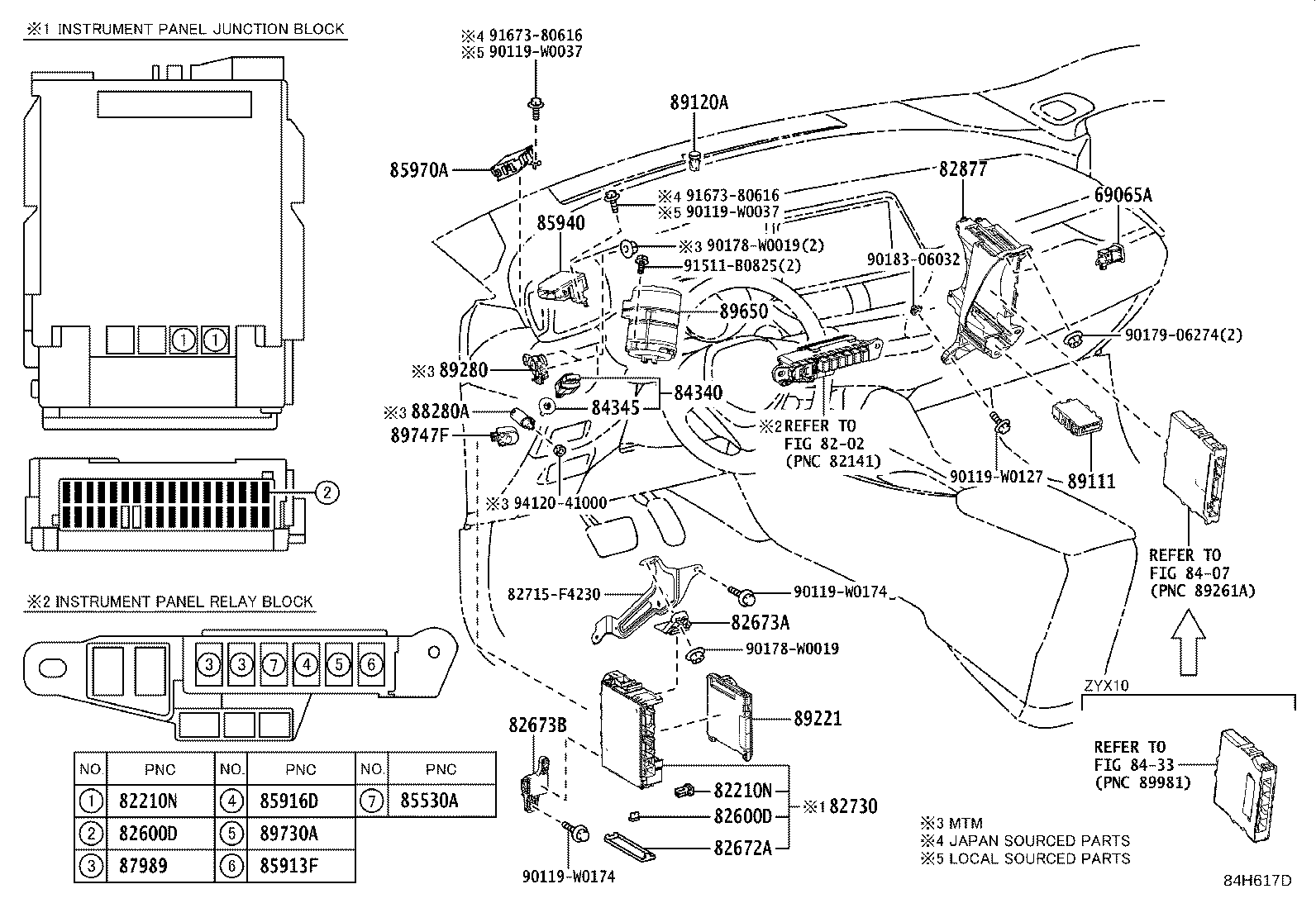

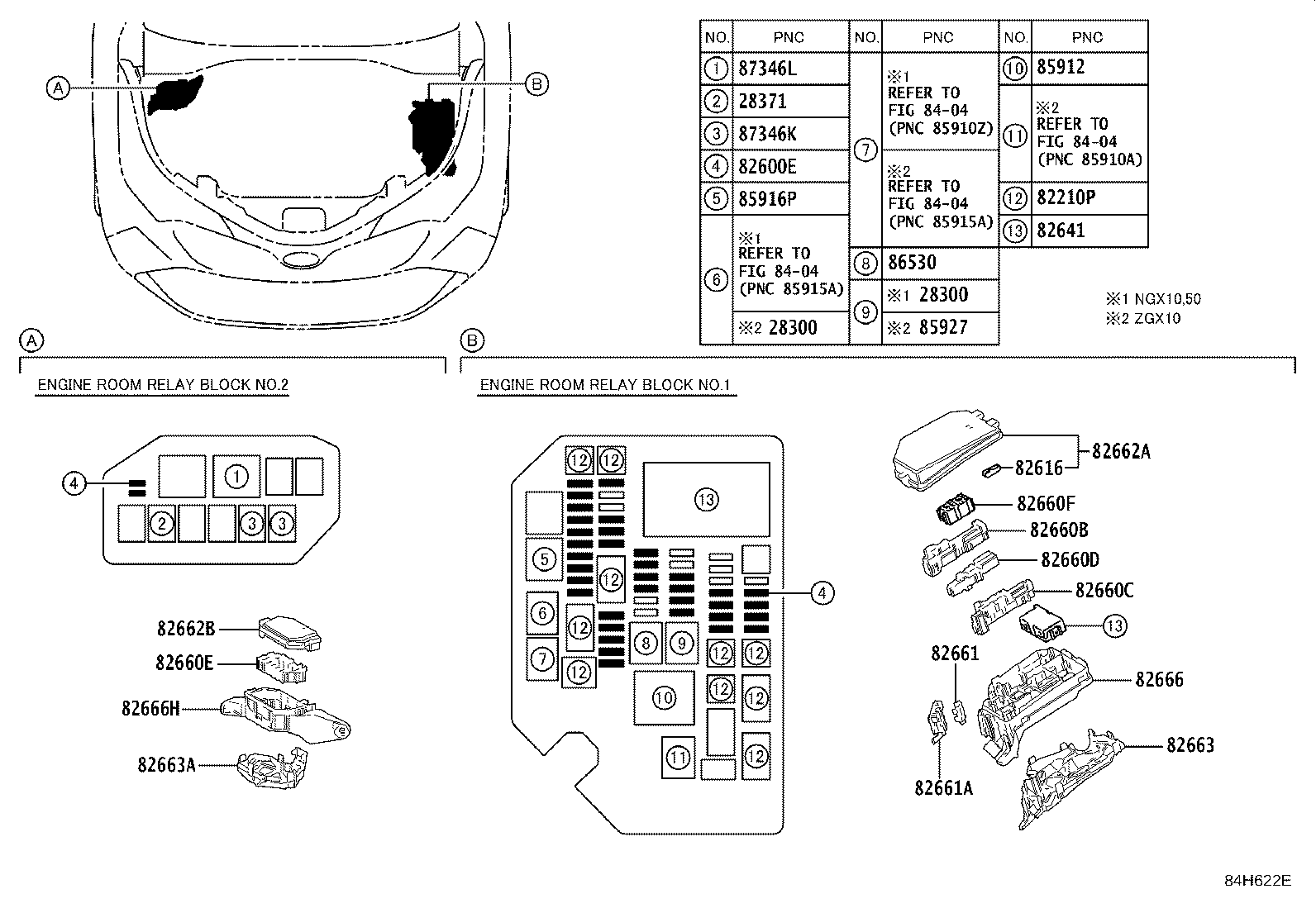

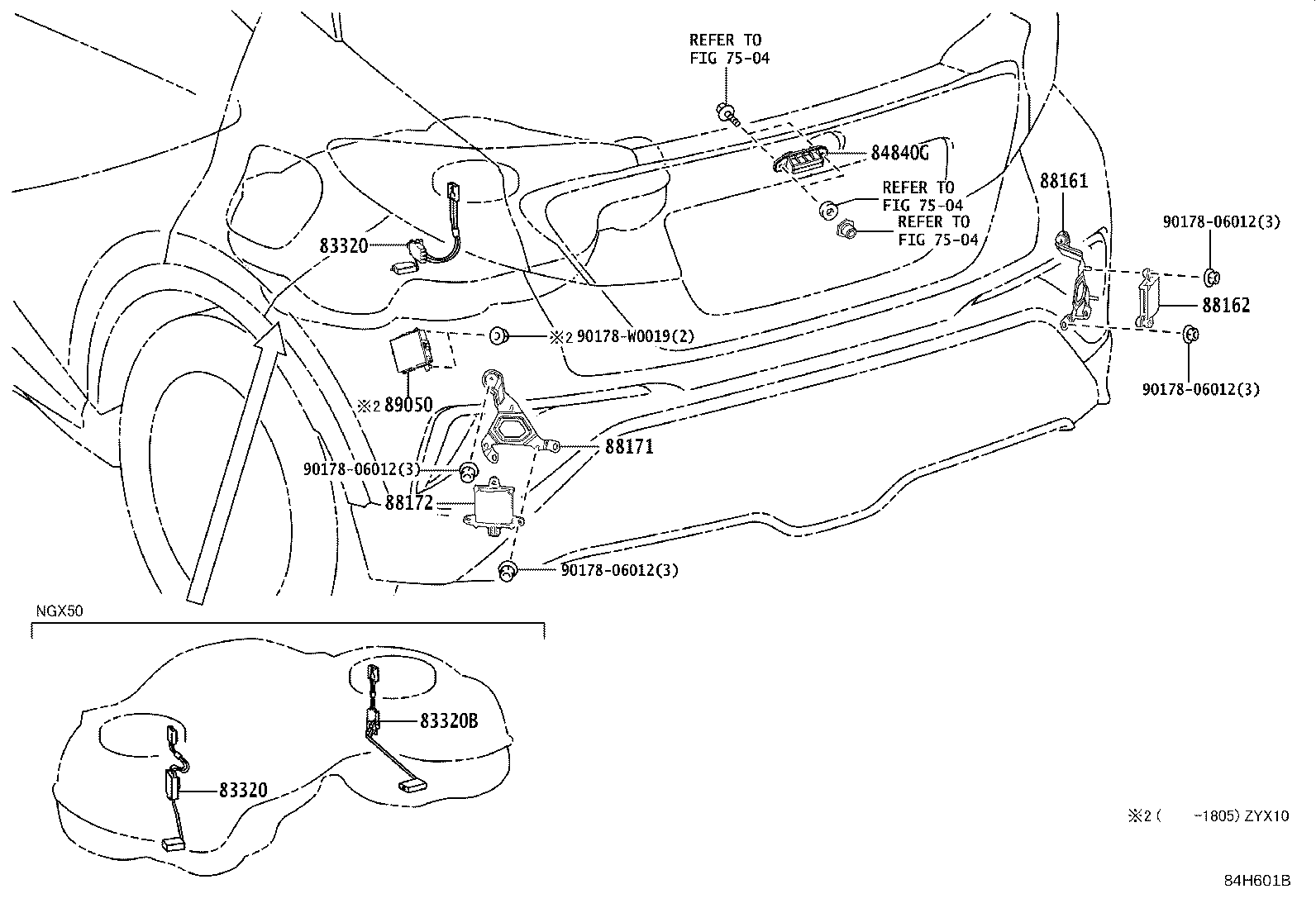

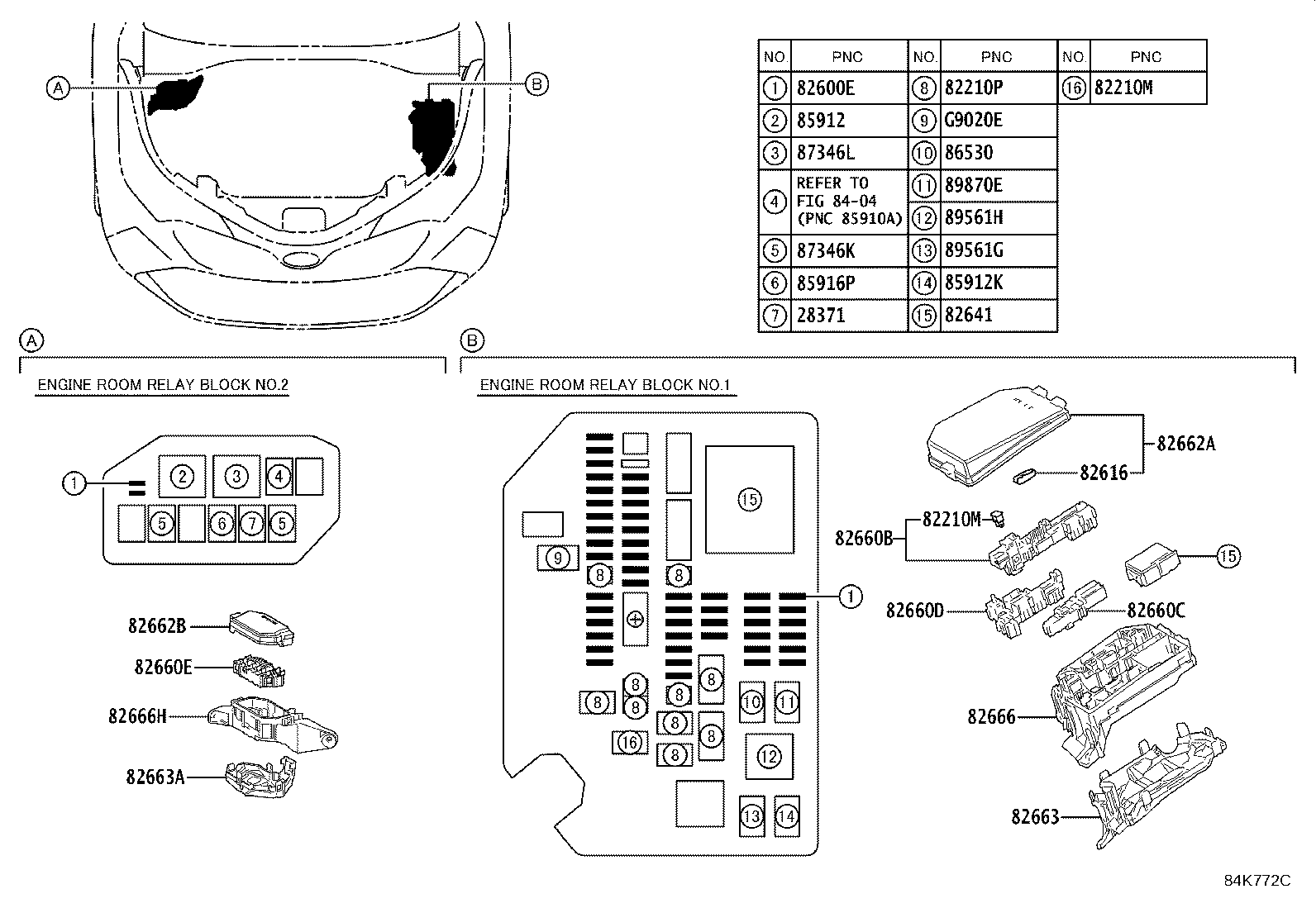

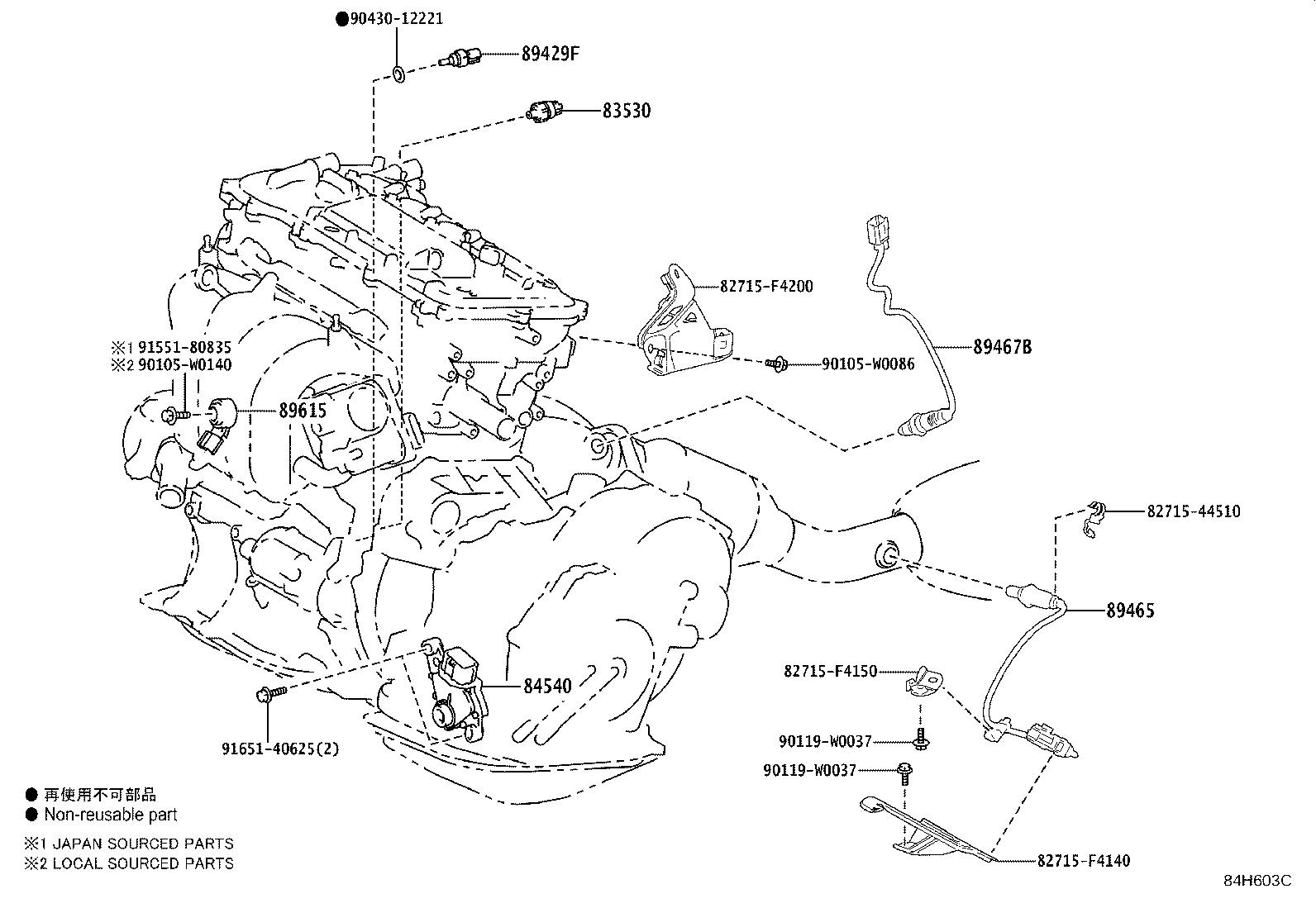

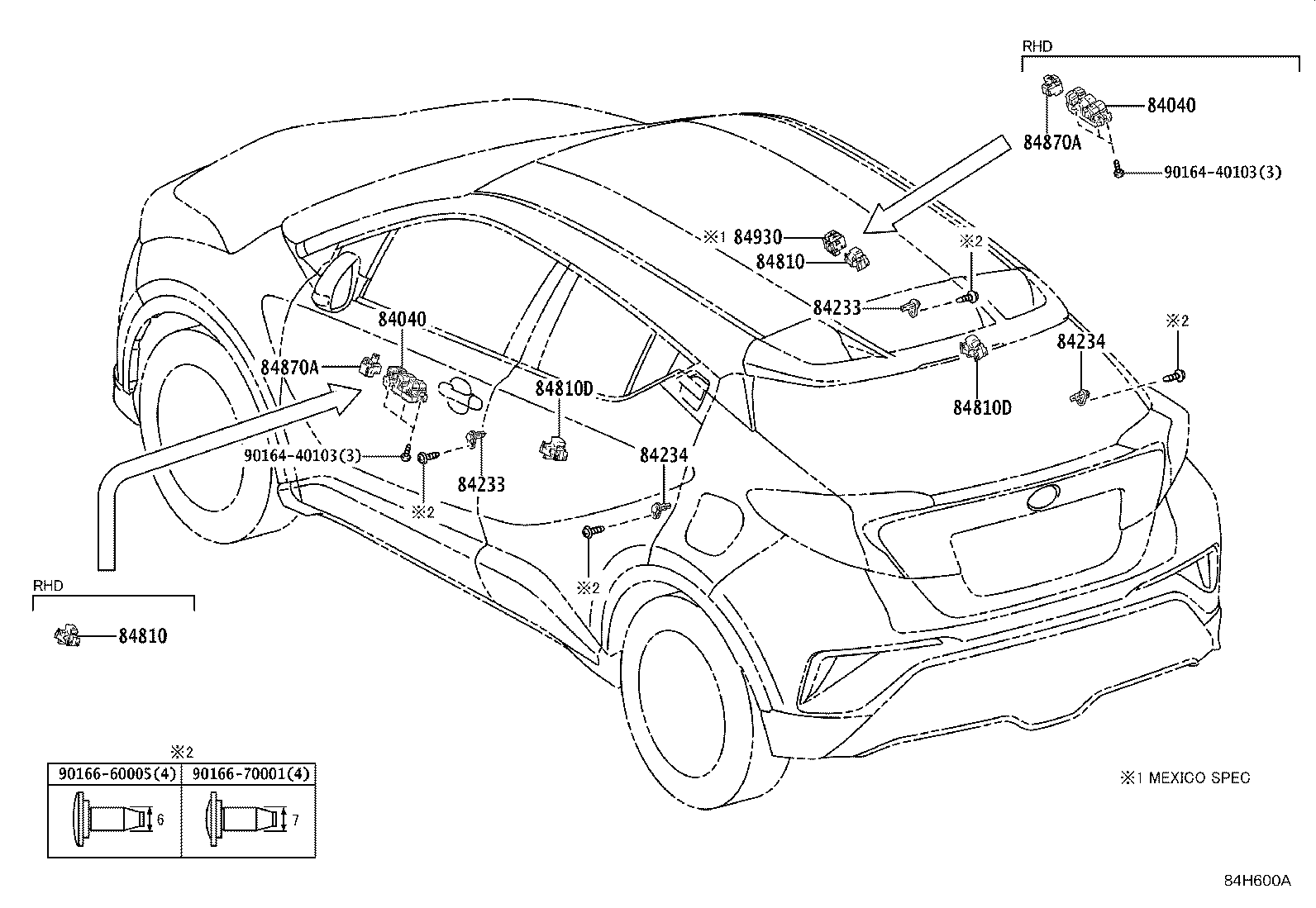

Figure 84J292B 84J292B 2016-10 → — Figure 84H603C 84H603C 2016-10 → — Figure 84H604D 84H604D 2016-10 → — Figure 84K770E 84K770E 2019-09 → — Figure 84H624B 84H624B 2016-10 → — Figure 84H625B 84H625B 2016-10 → — Figure 84K771 84K771 2019-09 → — Figure 84H622E 84H622E 2016-10 → — Figure 84H623D 84H623D 2016-10 → — Figure 84K772C 84K772C 2019-09 → — Figure 84H617D 84H617D 2016-10 → — Figure 84H618C 84H618C 2016-10 → — Figure 84H598A 84H598A 2016-10 → — Figure 84H599A 84H599A 2016-10 → — Figure 84H654D 84H654D 2016-10 → — Figure 84H594A 84H594A 2016-10 → — Figure 84H600A 84H600A 2016-10 → — Figure 84H601B 84H601B 2016-10 → — Figure 84K773 84K773 2019-09 → —

Part groups

PNCDescription
16100P Relay, Water Pump
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28850C Sensor Assy, Battery State
28859A Holder, Battery Current Sensor
69065A Cylinder Sub-assy, Airbag Cut Off Switch
82210M Fusible Link
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600L Luggage Room Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82621A Cover, Fusible Link
82641 Relay, Integration NO.1
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660F Block Assy, Relay
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82666 Holder, Connector
82666H Holder, Connector, NO.2
82672A Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82730 Block Assy, Instrument Panel Junction
82877 Box, Computer Integration, RH
82878 Box, Computer Integration, LH
83320 Gage Assy, Fuel Sender
83320B Gage Assy, Fuel Sender, NO.2
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83910G Clock Assy
84040 Master Switch Assy,Multiplex Network
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84153 Switch, Auto High Beam
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84255 Switch, Steering Heater
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84390B Switch Assy, Electric Parking Brake
84450 Switch Assy, Ignition OR Starter
84490D Switch Assy, Ipa Main
84540 Switch Assy, Neutral Start
84545 Switch, Neutral Position
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84720J Switch Assy, Pattern Select
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840G Switch Assy, Back Door Opener
84841A Switch, Fuel Lid Opener
84870A Switch Assy, Outer Mirror
84921C Knob, Power Seat Switch, RH
84921D Knob, Power Seat Switch, LH
84921J Knob, Power Seat Switch, RH
84921K Knob, Power Seat Switch, LH
84922A Switch, Front Power Seat(FOR LUMBAR)
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84930 Switch Assy, Door Control
85432 Solenoid, Key Interlock
85530 Socket Assy, Power Outlet, NO.1
85530A Relay, Power Outlet Socket
85535B Cover, Power Outlet Socket, NO.1
85912 Relay, Defogger
85912K Relay, Vvt
85913F Relay, Steering Heater
85916D Relay, Fog Lamp
85916P Relay, Headlamp
85924C Relay, Igct
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85940 Relay Assy, Windshield Wiper
85942 Relay, Headlamp Cleaner Control
85970A Relay Assy, Double Lock Door Control
86530 Relay Assy, Horn
87346K Relay, Ptc Heater
87346L Relay, Ptc Heater
87989 Relay, Mirror Control
88161 Bracket, Blind Spot Monitor, RH
88162 Sensor, Blind Spot Monitor, RH
88171 Bracket, Blind Spot Monitor, LH
88172 Sensor, Blind Spot Monitor, LH
88280A Switch Assy, Clutch
89050 Computer Assy, Parking Brake
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89245C Sensor, Steering
89257 Computer, Cooling Fan
89280 Sensor Assy, Clutch Pedal Stroke
89422A Sensor, Water Temperature
89429F Sensor, Temperature
89437 Cover, Sensor
89439 Bracket, Sensor
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
89561G Relay, Electronic Fuel Injection Main, NO.2
89561H Relay, Electronic Fuel Injection Main, NO.3
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89730A Relay(FOR SECURITY WARNING)
89747F Buzzer, Blind Spot Monitor
89870E Relay, Electronic Driver Unit
G9020E Relay, Hybrid Water Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
