Toyota Corolla (JPP)
2022-07 → present · chassis MXGA10,MXGH1#,ZVG1# · catalogue 553210 · Europe
Supported model
Data version 2023-03

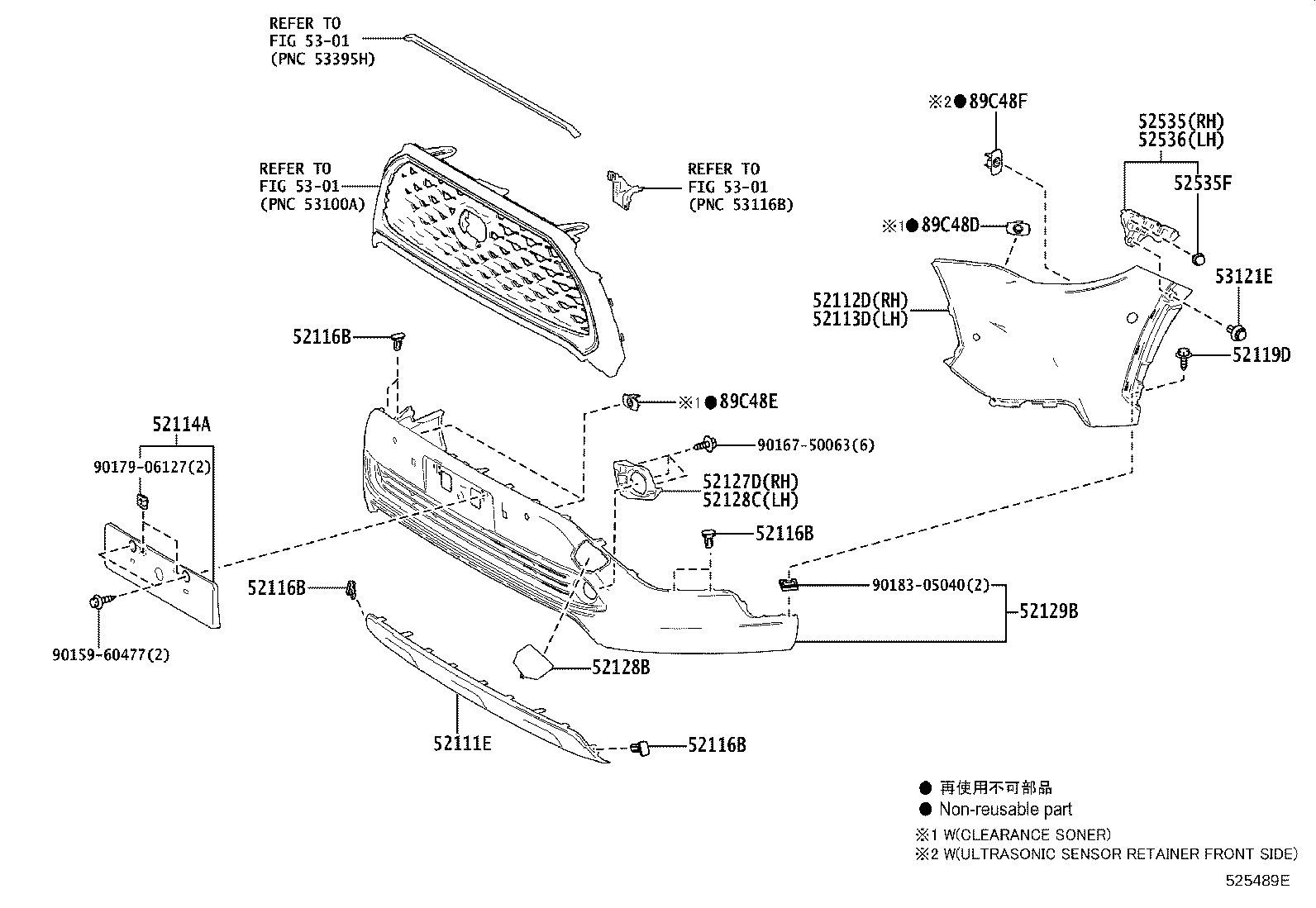

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52111E — Bar, Front Bumper | ||||
| 52111-16902 note |
Bar, Front Bumper
2022-07 → —
|
MXGA10,MXGH1#,ZVG1# | — | |
| 52112D — Extension, Front Bumper, RH | ||||
| 52112-16900 note |
Extension, Front Bumper, RH
2022-07 → 2024-01
ended
|
MXGH12,15,ZVG12 E EUR | — | |
| 52112-16900 note |
Extension, Front Bumper, RH
2022-07 → —
|
MXGA10,MXGH10 J;MXGH12,15,ZVG1# (G,N) EUR | — | |
| 52112-16901 note |
Extension, Front Bumper, RH
2022-07 → —
|
MXGA10 E,N;MXGH10,15 N ARL;MXGH12,15,ZVG12 +2 | — | |
| 52112-16901 note |
Extension, Front Bumper, RH
2022-07 → 2024-01
ended
|
MXGH12,15,ZVG13 N EUR | — | |
| 52112-16901 note |
Extension, Front Bumper, RH
2022-11 → —
|
MXGH10 E | — | |
| 52112-16901 note |
Extension, Front Bumper, RH
2022-07 → —
|
MXGH12,15,ZVG1# (G,N) EUR | — | |
| 52112-16901 note |
Extension, Front Bumper, RH
2022-07 → —
|
MXGA10,MXGH10 J | — | |
| 52112-16901 note |
Extension, Front Bumper, RH
2022-07 → —
|
ZVG12 N | — | |
| 52112-16901 note |
Extension, Front Bumper, RH
2022-07 → —
|
MXGH12 RHD G | — | |
| 52112-16902 note |
Extension, Front Bumper, RH
2022-07 → —
|
MXGH10,15 E ARL | — | |
| 52112-16902 note |
Extension, Front Bumper, RH
2022-07 → —
|
MXGH12,15 LHD E | — | |
| 52113D — Extension, Front Bumper, LH | ||||
| 52113-16900 note |
Extension, Front Bumper, LH
2022-07 → 2024-01
ended
|
MXGH12,15,ZVG12 E EUR | — | |
| 52113-16900 note |
Extension, Front Bumper, LH
2022-07 → —
|
MXGA10,MXGH10 J;MXGH12,15,ZVG1# (G,N) EUR | — | |
| 52113-16901 note |
Extension, Front Bumper, LH
2022-07 → 2024-01
ended
|
MXGH12,15,ZVG13 N EUR | — | |
| 52113-16901 note |
Extension, Front Bumper, LH
2022-07 → —
|
MXGA10 E,N;MXGH10,15 N ARL;MXGH12,15,ZVG12 +2 | — | |
| 52113-16901 note |
Extension, Front Bumper, LH
2022-07 → —
|
MXGH12 RHD G | — | |
| 52113-16901 note |
Extension, Front Bumper, LH
2022-07 → —
|
ZVG12 N | — | |
| 52113-16901 note |
Extension, Front Bumper, LH
2022-07 → —
|
MXGA10,MXGH10 J | — | |
| 52113-16901 note |
Extension, Front Bumper, LH
2022-07 → —
|
MXGH12,15,ZVG1# (G,N) EUR | — | |
| 52113-16901 note |
Extension, Front Bumper, LH
2022-11 → —
|
MXGH10 E | — | |
| 52113-16902 note |
Extension, Front Bumper, LH
2022-07 → —
|
MXGH12,15 LHD E | — | |
| 52113-16902 note |
Extension, Front Bumper, LH
2022-07 → —
|
MXGH10,15 E ARL | — | |
| 52114A — Bracket, Front Bumper Extension Mounting | ||||
| 52114-16020 |
Bracket, Front Bumper Extension Mounting
2022-07 → —
|
MXGA10,MXGH1#,ZVG1# | — | |
| 52116B — Retainer, Front Bumper | ||||
| 75392-35220 |
Retainer, Front Bumper
2022-07 → —
|
MXGA10,MXGH1#,ZVG1# | — | |
| 52119D — Screw, NO.1 | ||||
| 90167-50063 |
Screw, NO.1
2022-07 → —
|
MXGA10,MXGH1#,ZVG1# | — | |
| 52127D — Cover, Front Bumper Hole, RH | ||||
| 81481-16040 note |
Cover, Front Bumper Hole, RH
2022-07 → —
|
ZVG12 N | — | |
| 81481-16040 note |
Cover, Front Bumper Hole, RH
2022-07 → —
|
ZVG12 N | — | |
| 81481-16040 note |
Cover, Front Bumper Hole, RH
2022-07 → —
|
MXGA10,MXGH10 J | — | |
| 81481-16040 note |
Cover, Front Bumper Hole, RH
2022-07 → 2024-01
ended
|
MXGH12,15,ZVG13 N EUR | — | |
| 81481-16040 note |
Cover, Front Bumper Hole, RH
2022-07 → 2024-01
ended
|
MXGH12,15,ZVG13 N EUR | — | |
| 81481-16050 note |
Cover, Front Bumper Hole, RH
2022-07 → —
|
MXGA10,MXGH1#,ZVG1# E,G,N | — | |
| 52128B — Cover, Front Bumper Hole, LH | ||||
| 53128-16020 |
Cover, Front Bumper Hole, LH
2022-07 → —
|
MXGA10,MXGH1#,ZVG1# | — | |
| 52128C — Cover, Front Bumper Hole, LH | ||||
| 81482-16040 note |
Cover, Front Bumper Hole, LH
2022-07 → 2024-01
ended
|
MXGH12,15,ZVG13 N EUR | — | |
| 81482-16040 note |
Cover, Front Bumper Hole, LH
2022-07 → 2024-01
ended
|
MXGH12,15,ZVG13 N EUR | — | |
| 81482-16040 note |
Cover, Front Bumper Hole, LH
2022-07 → —
|
MXGA10,MXGH10 J | — | |
| 81482-16040 note |
Cover, Front Bumper Hole, LH
2022-07 → —
|
ZVG12 N | — | |
| 81482-16040 note |
Cover, Front Bumper Hole, LH
2022-07 → —
|
ZVG12 N | — | |
| 81482-16050 note |
Cover, Front Bumper Hole, LH
2022-07 → —
|
MXGA10,MXGH1#,ZVG1# E,G,N | — | |
| 52129B — Cover, Front Bumper, Lower | ||||
| 52129-16902 note |
Cover, Front Bumper, Lower
2022-07 → 2024-01
ended
|
MXGH12,15,ZVG12 E EUR | — | |
| 52129-16902 |
Cover, Front Bumper, Lower
2022-07 → —
|
MXGA10,MXGH10 J;MXGH12,15,ZVG1# (G,N) EUR | — | |
| 52129-16903 note |
Cover, Front Bumper, Lower
2022-07 → 2024-01
ended
|
MXGH12,15,ZVG13 N EUR | — | |
| 52129-16903 note |
Cover, Front Bumper, Lower
2022-07 → —
|
MXGH12,15,ZVG1# (G,N) EUR | — | |
| 52129-16903 note |
Cover, Front Bumper, Lower
2022-07 → —
|
MXGA10,MXGH10 J | — | |
| 52129-16903 note |
Cover, Front Bumper, Lower
2022-07 → —
|
ZVG12 N | — | |
| 52129-16903 note |
Cover, Front Bumper, Lower
2022-07 → —
|
MXGH12 RHD G | — | |
| 52129-16903 |
Cover, Front Bumper, Lower
2022-07 → —
|
MXGH15 N ARL;MXGH12,15,ZVG12 E;MXGA10,MXGH10 +1 | — | |
| 52535 — Retainer, Front Bumper Side, RH | ||||
| 52535-16050 |
Retainer, Front Bumper Side, RH
2022-07 → —
|
MXGA10,MXGH1#,ZVG1# | — | |
| 52535F — Clip, Front Bumper Side Retainer | ||||
| 90467-09237 |
Clip, Front Bumper Side Retainer
2022-07 → —
|
MXGA10,MXGH1#,ZVG1# | — | |
| 52536 — Retainer, Front Bumper Side, LH | ||||
| 52536-16040 |
Retainer, Front Bumper Side, LH
2022-07 → —
|
MXGA10,MXGH1#,ZVG1# | — | |
| 53121E — Clip(FOR FRONT BUMPER), NO.1 | ||||
| 90467-07220 |
Clip(FOR FRONT BUMPER), NO.1
2022-07 → —
|
MXGA10,MXGH1#,ZVG1# | — | |
| 89C48D — Retainer, Ultrasonic Sensor, Front Corner | ||||
| 89348-48311 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-07 → 2023-02
ended
|
MXGH12,15,ZVG12 E EUR | — | |
| 89348-48311 |
Retainer, Ultrasonic Sensor, Front Corner
2022-07 → —
|
MXGH15 N ARL;MXGH12,15,ZVG12 E;MXGA10,MXGH10 +1 | — | |
| 89348-48311 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-07 → —
|
MXGH12 RHD G | — | |
| 89348-48311 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-07 → —
|
MXGA10,MXGH10 J | — | |
| 89348-48311 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-07 → —
|
MXGH12,15,ZVG1# (G,N) EUR | — | |
| 89C48E — Retainer, Ultrasonic Sensor, Front Center | ||||
| 89348-48311 note |
Retainer, Ultrasonic Sensor, Front Center
2022-07 → —
|
MXGH12,15,ZVG1# (G,N) EUR | — | |
| 89348-48311 note |
Retainer, Ultrasonic Sensor, Front Center
2022-07 → —
|
MXGA10,MXGH10 J | — | |
| 89348-48311 note |
Retainer, Ultrasonic Sensor, Front Center
2022-07 → —
|
MXGH12 RHD G | — | |
| 89348-48311 note |
Retainer, Ultrasonic Sensor, Front Center
2022-07 → 2023-02
ended
|
MXGH12,15,ZVG12 E EUR | — | |
| 89348-48311 |
Retainer, Ultrasonic Sensor, Front Center
2022-07 → —
|
MXGH15 N ARL;MXGH12,15,ZVG12 E;MXGA10,MXGH10 +1 | — | |
| 89C48F — Retainer, Ultrasonic Sensor, Front Side | ||||
| 89348-16170-A0 note |
Retainer, Ultrasonic Sensor, Front Side
2022-07 → —
|
MXGH10,15 E ARL | — | |
| 89348-16170-A0 note |
Retainer, Ultrasonic Sensor, Front Side
2022-07 → —
|
MXGH12,15 LHD E | — | |
| 89348-16170-A1 note |
Retainer, Ultrasonic Sensor, Front Side
2022-07 → —
|
MXGH10,15 E ARL | — | |
| 89348-16170-A1 note |
Retainer, Ultrasonic Sensor, Front Side
2022-07 → —
|
MXGH12,15 LHD E | — | |
| 89348-16170-B0 note |
Retainer, Ultrasonic Sensor, Front Side
2022-07 → —
|
MXGH10,15 E ARL | — | |
| 89348-16170-B0 note |
Retainer, Ultrasonic Sensor, Front Side
2022-07 → —
|
MXGH12,15 LHD E | — | |
| 89348-16170-B1 note |
Retainer, Ultrasonic Sensor, Front Side
2022-07 → —
|
MXGH12,15 LHD E | — | |
| 89348-16170-B1 note |
Retainer, Ultrasonic Sensor, Front Side
2022-07 → —
|
MXGH10,15 E ARL | — | |
| 89348-16170-C1 note |
Retainer, Ultrasonic Sensor, Front Side
2022-07 → —
|
MXGH10,15 E ARL | — | |
| 89348-16170-C1 note |
Retainer, Ultrasonic Sensor, Front Side
2022-07 → —
|
MXGH12,15 LHD E | — | |
| 89348-16170-D0 note |
Retainer, Ultrasonic Sensor, Front Side
2022-07 → —
|
MXGH10,15 E ARL | — | |
| 89348-16170-D0 note |
Retainer, Ultrasonic Sensor, Front Side
2022-07 → —
|
MXGH12,15 LHD E | — | |
| 89348-16170-G0 note |
Retainer, Ultrasonic Sensor, Front Side
2022-07 → —
|
MXGH10,15 E ARL | — | |
| 89348-16170-G0 note |
Retainer, Ultrasonic Sensor, Front Side
2022-07 → —
|
MXGH12,15 LHD E | — | |
| 89348-16170-J0 note |
Retainer, Ultrasonic Sensor, Front Side
2022-07 → —
|
MXGH10,15 E ARL | — | |
| 89348-16170-J0 note |
Retainer, Ultrasonic Sensor, Front Side
2022-07 → —
|
MXGH12,15 LHD E | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
