Toyota Corolla (JPP)

2022-07 → present · chassis MXGA10,MXGH1#,ZVG1# · catalogue 553210 · Europe

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

7 part groups · 5 illustrations

Illustrations

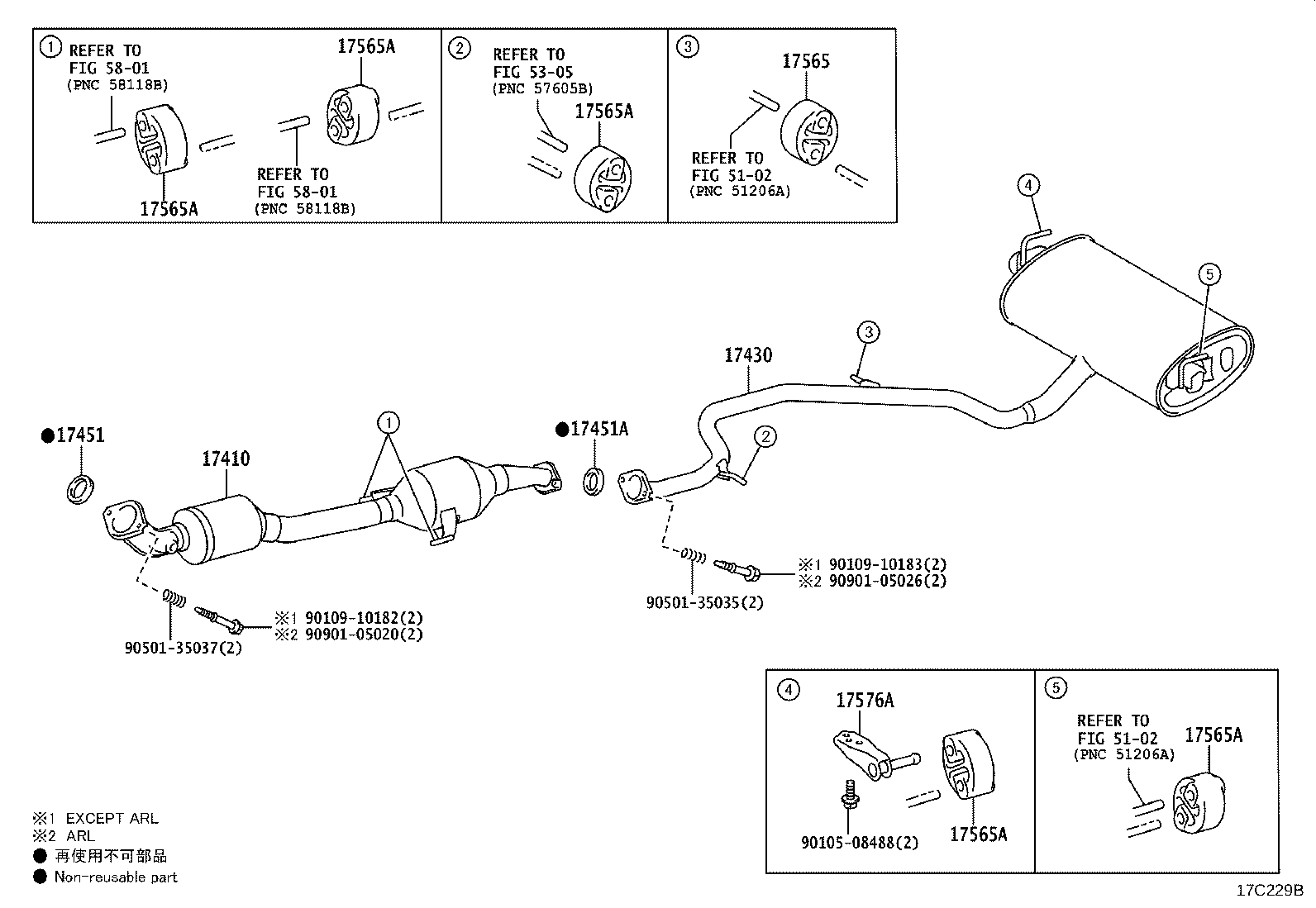

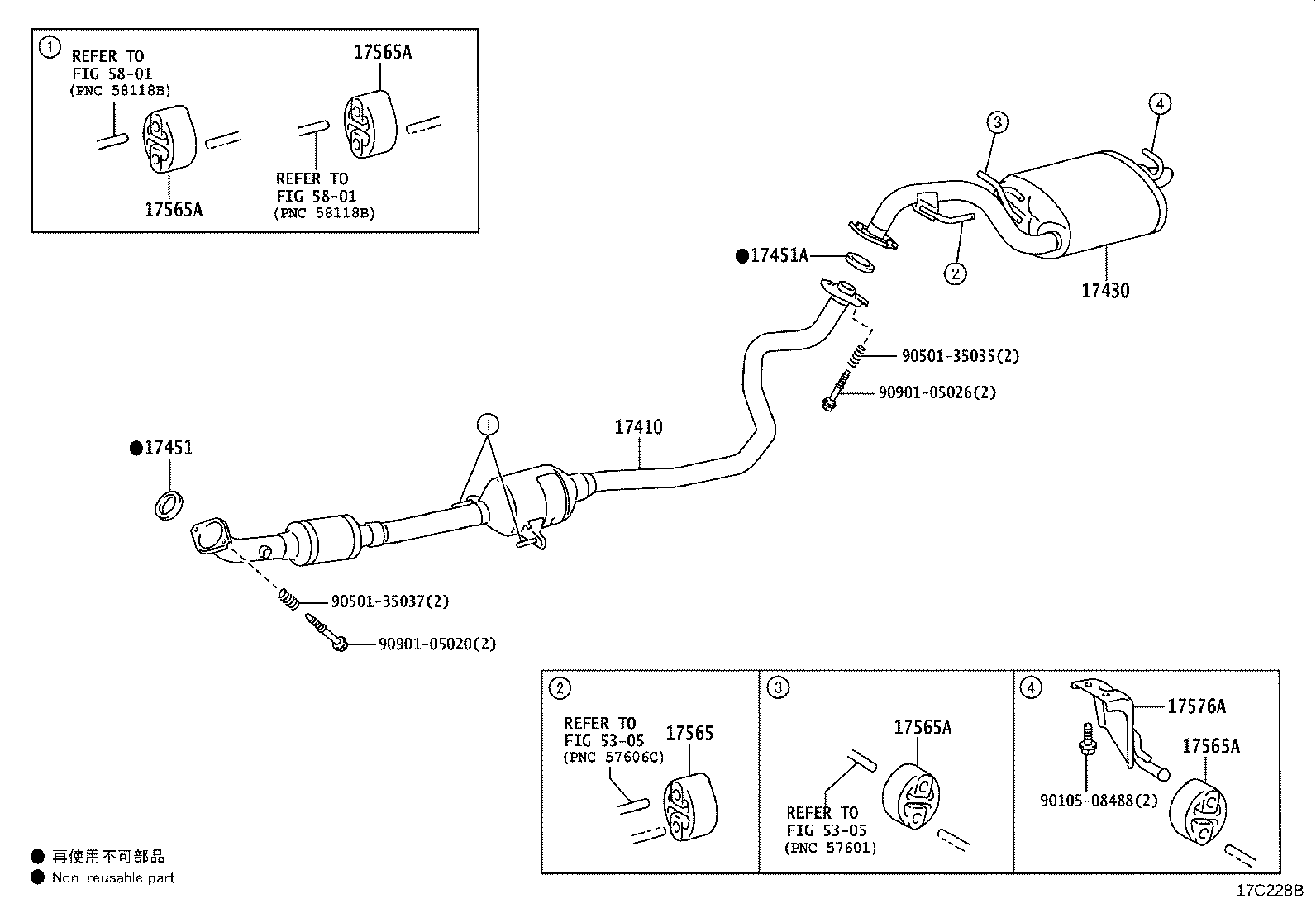

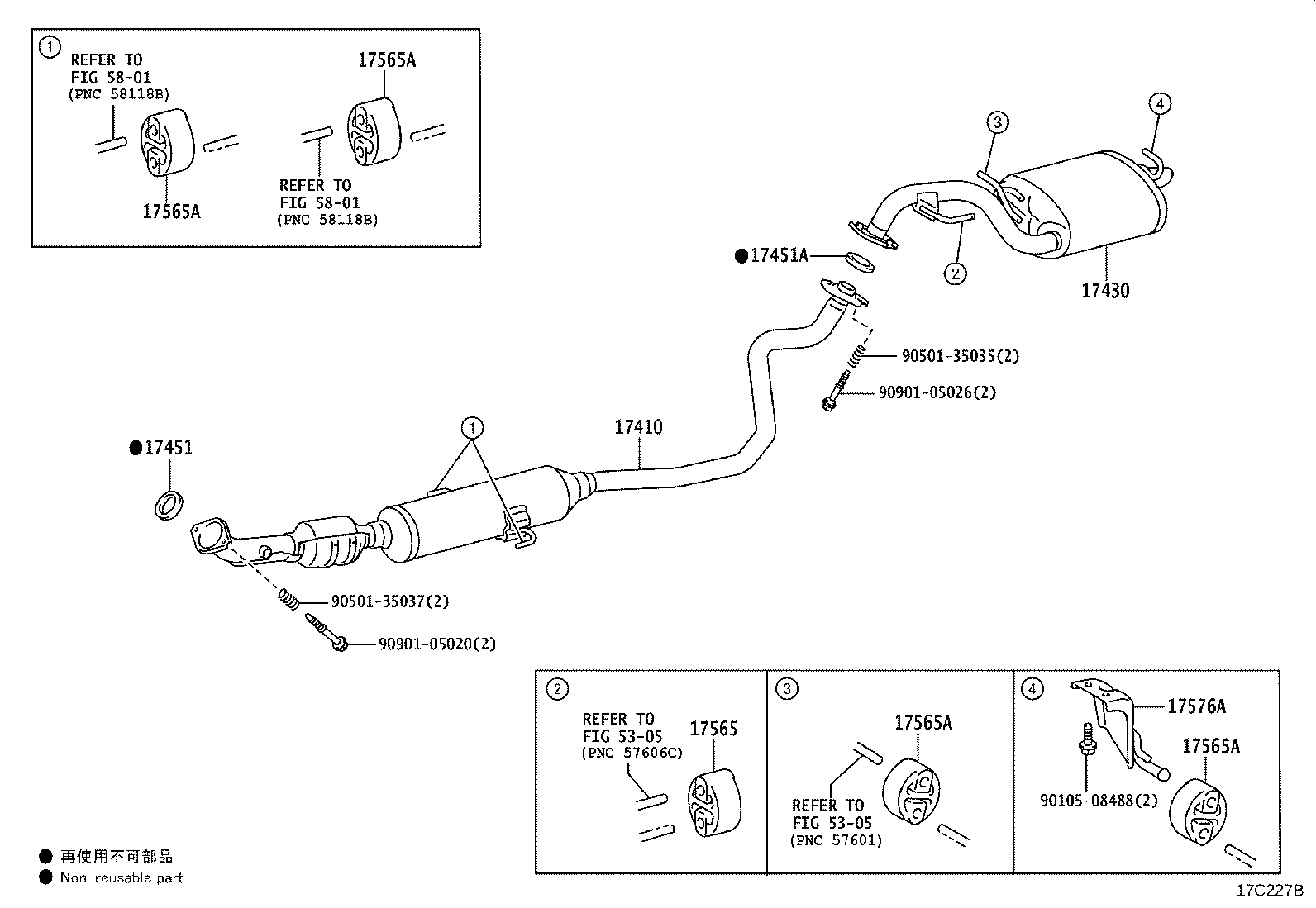

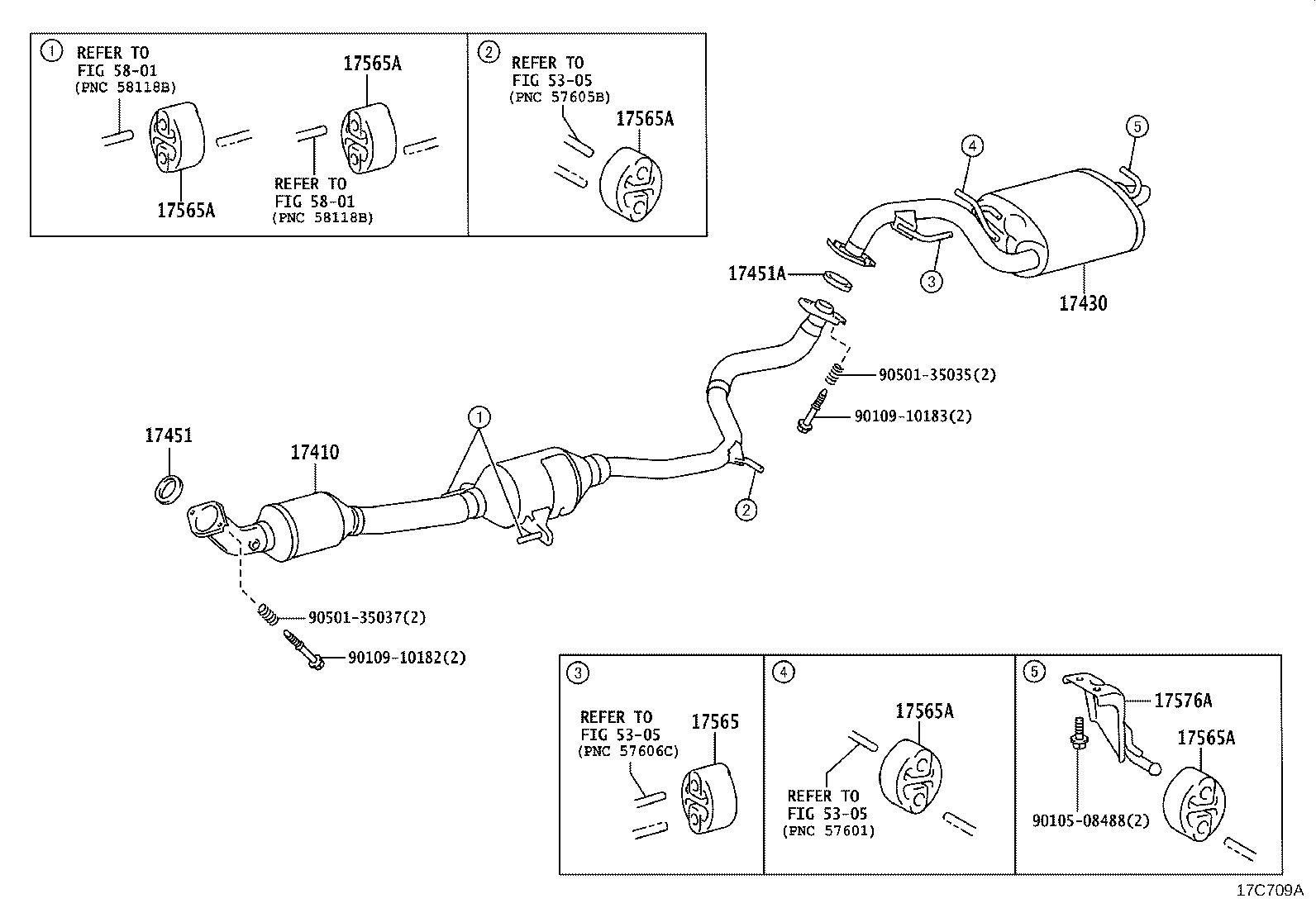

Figure 17C226B 17C226B 2022-07 → — Figure 17C227B 17C227B 2022-07 → — Figure 17C228B 17C228B 2022-07 → — Figure 17C229B 17C229B 2022-07 → — Figure 17C709A 17C709A 2023-03 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17576A Bracket, Exhaust Pipe Support, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
