Toyota Model-f

1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

34 part groups · 7 illustrations

Illustrations

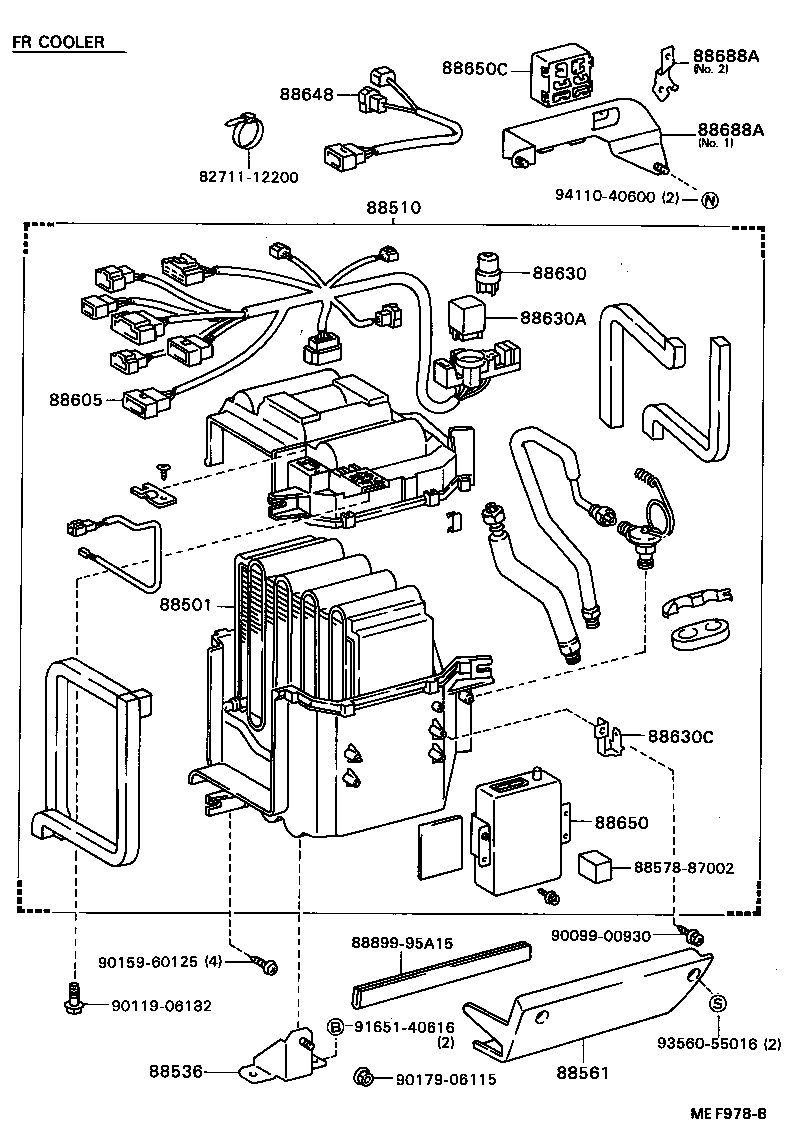

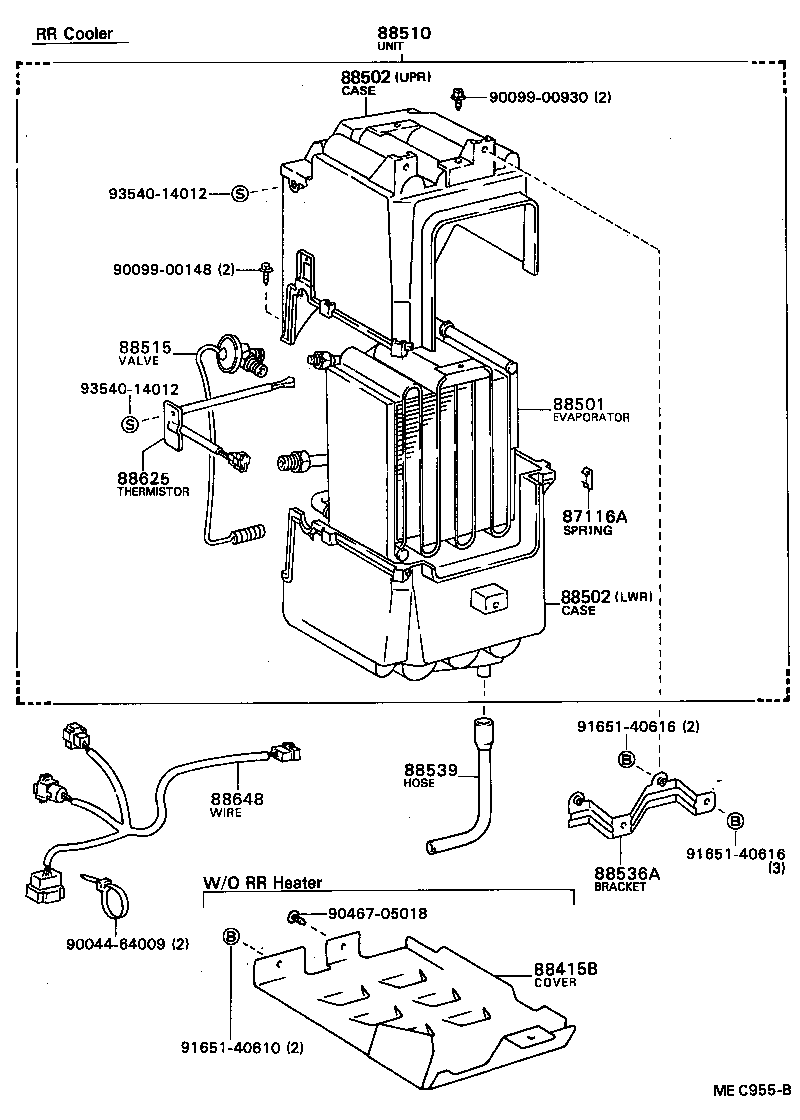

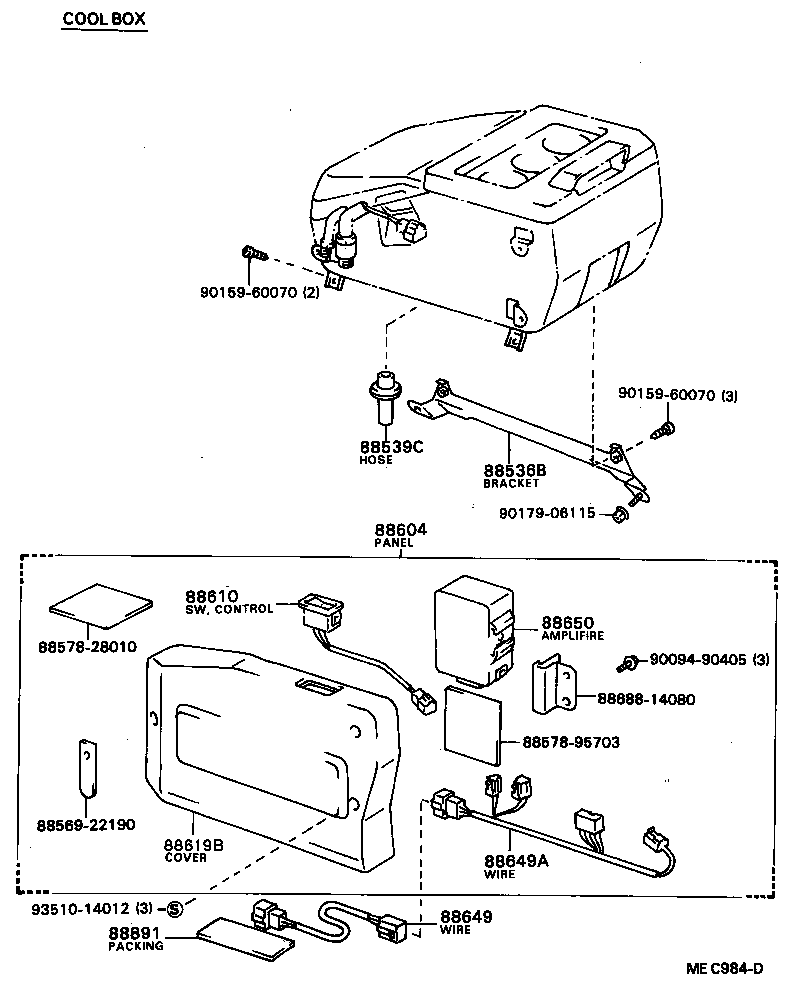

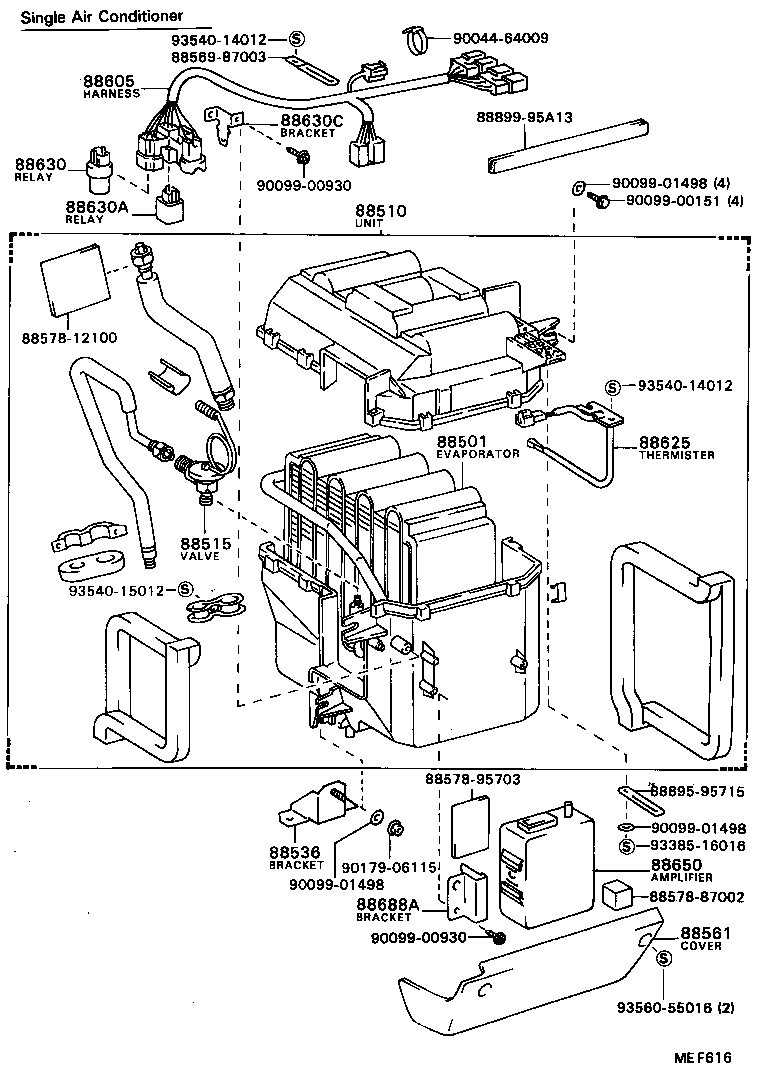

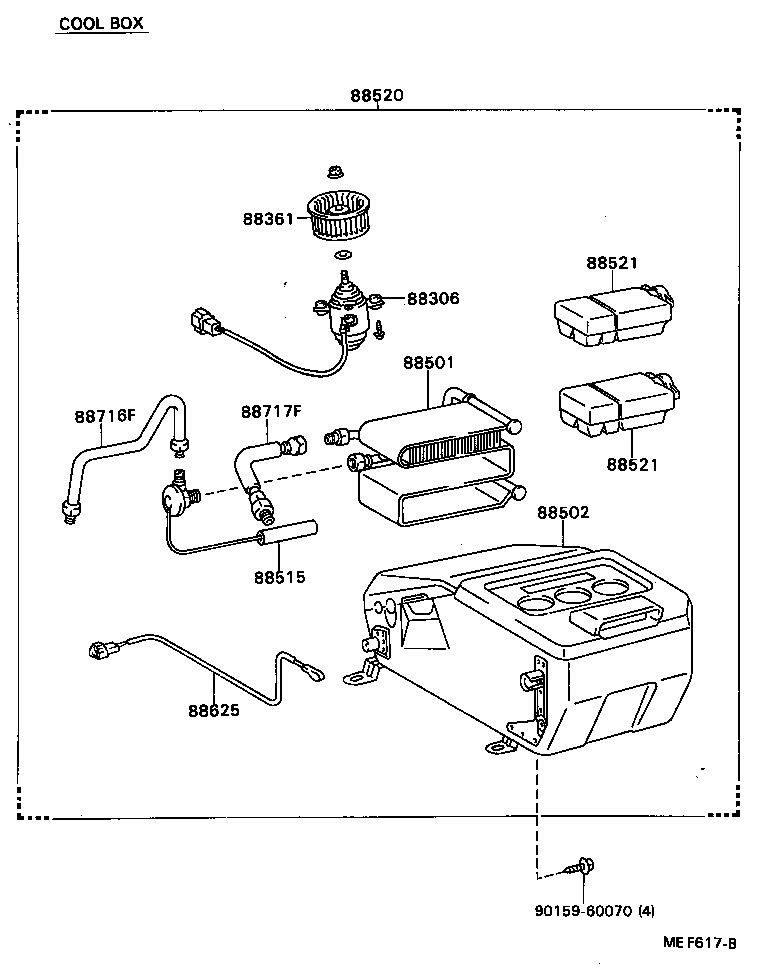

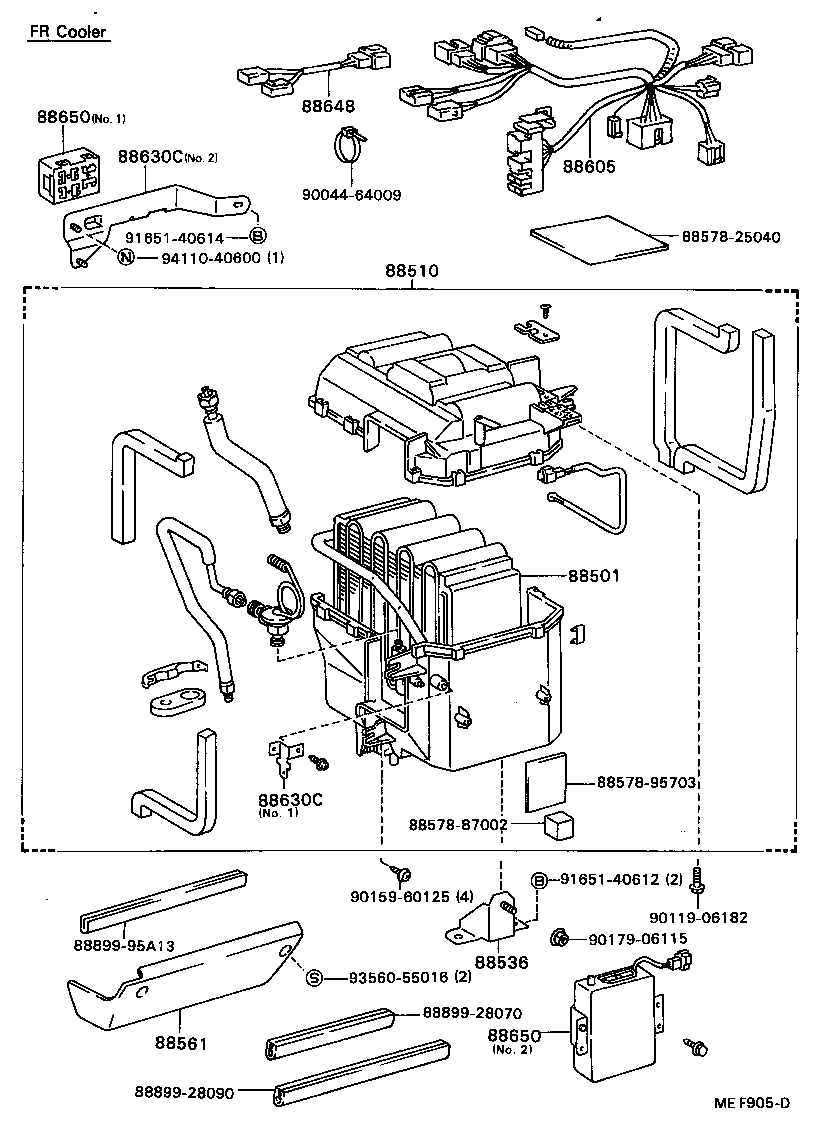

Figure MEC954B MEC954B 1982-11 → 1985-08 Figure MEF905D MEF905D 1985-08 → — Figure MEF978B MEF978B 1985-08 → — Figure MEF616 MEF616 1984-08 → — Figure MEC955B MEC955B 1982-11 → — Figure MEC984D MEC984D 1982-11 → — Figure MEF617B MEF617B 1982-11 → —

Part groups

PNCDescription
82650E Breaker Assy, Wiring Circuit
87116A Spring, Holding (FOR COOLER UNIT CASE)
88306 Motor Sub-assy, Cooler Blower, NO.1
88361 Fan, Cooler Blower, NO.1
88415B Cover, Dust
88501 Evaporator Sub-assy, Cooler, NO.1
88502 Case Sub-assy, Cooling Unit
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88520 Box Assy, Cooling
88521 Case, Cooler Unit
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88536B Bracket, Cooling Unit, NO.3
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88561 Cover, Cooler Unit
88604 Panel Sub-assy, Cooler Control
88605 Harness Sub-assy, Cooler Wiring, NO.1
88610 Switch Assy, Cooler Control
88619B Cover, Control
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88630C Bracket, Cooler Relay
88648 Wiring, Cooler, NO.1
88649 Wiring, Cooler, NO.2
88649A Wiring, Cooler, NO.3
88650 Amplifier Assy, Cooler Stabilizer
88650C Amplifier Sub-assy, Airconditioner
88688A Bracket, Cooler Stabilizer Amplifier
88716F Pipe, Cooler Refrigerant Liquid, F
88717F Pipe, Cooler Refrigerant Suction, F
88891 Packing (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
