Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

98 part groups · 23 illustrations

Illustrations

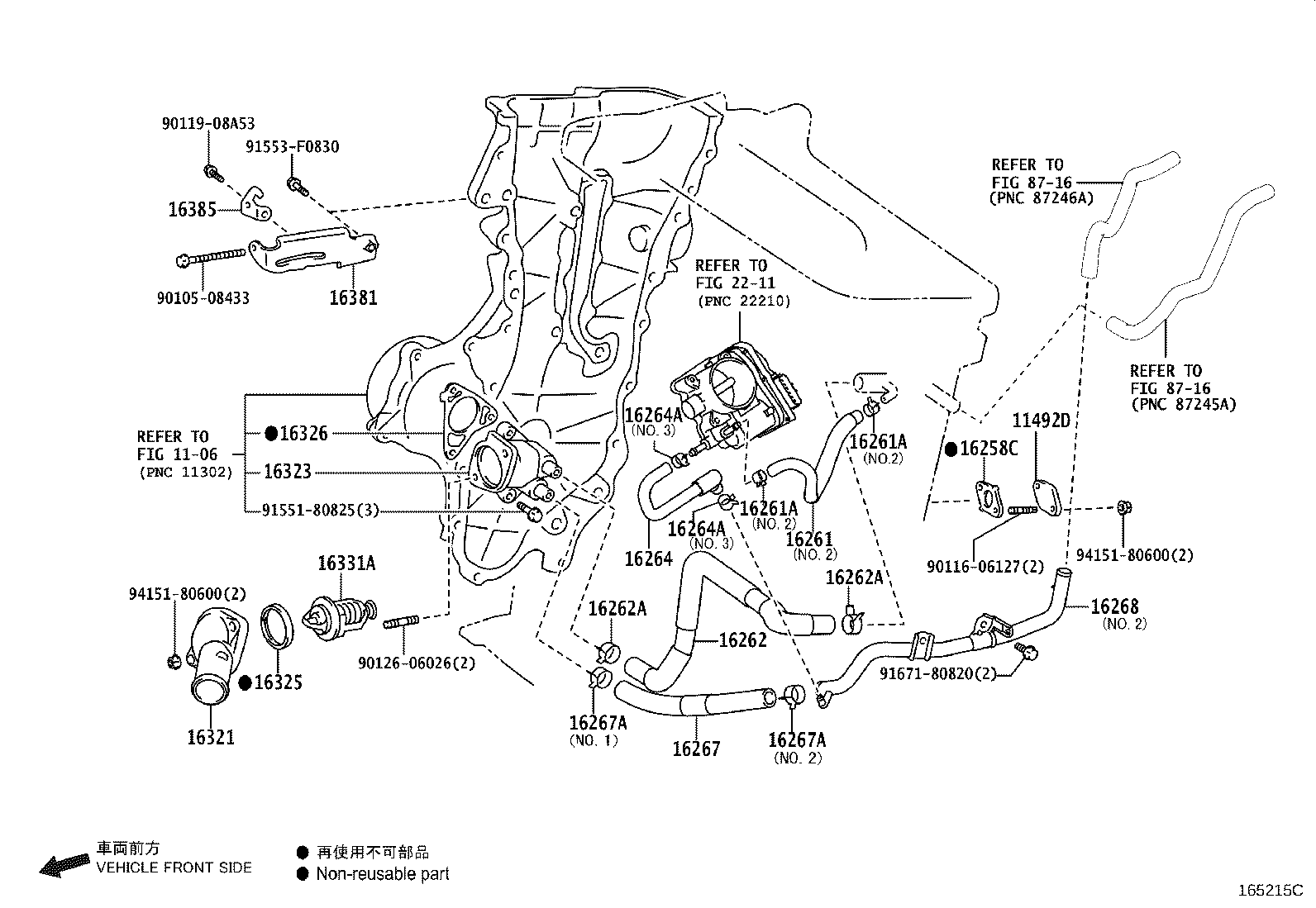

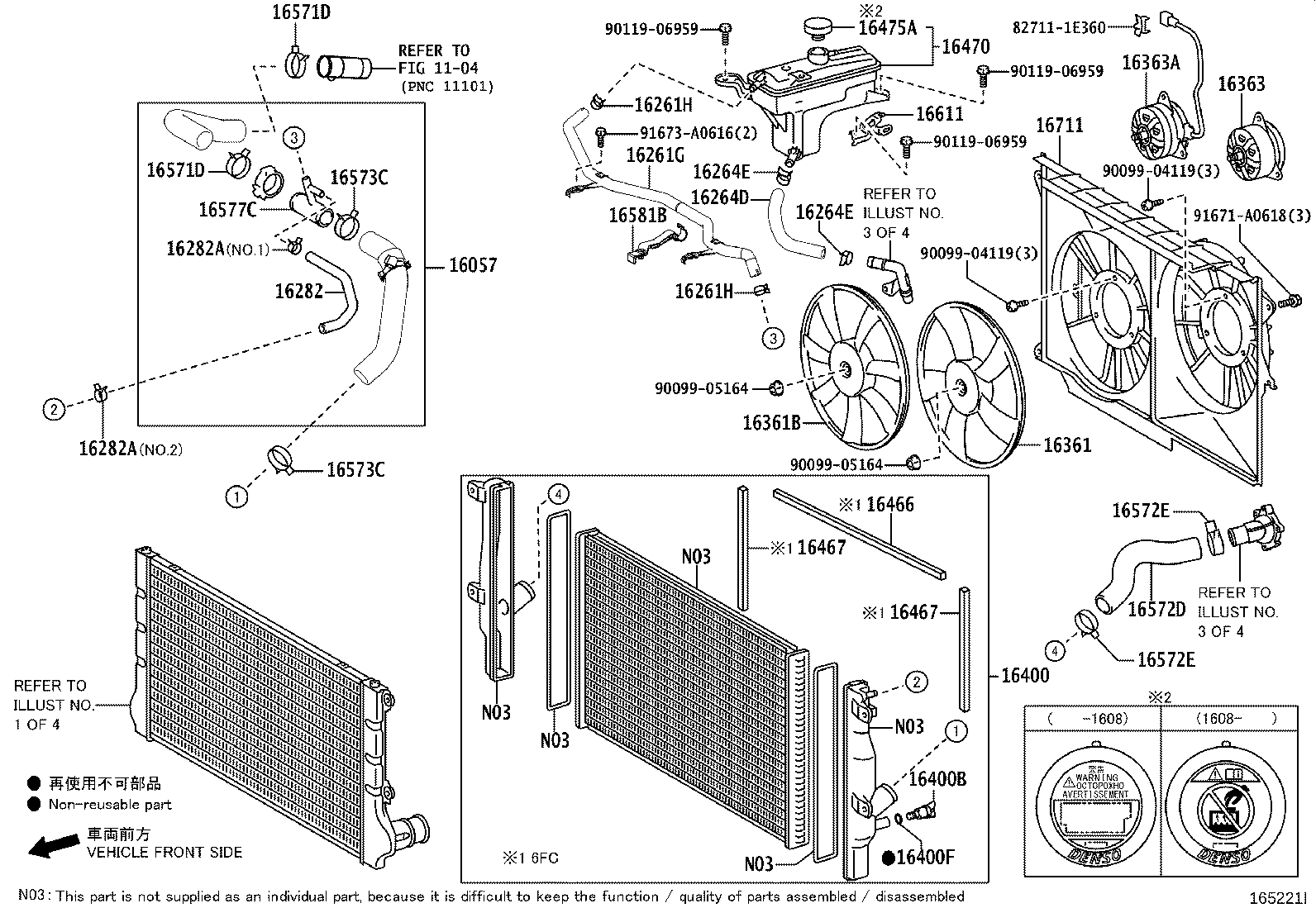

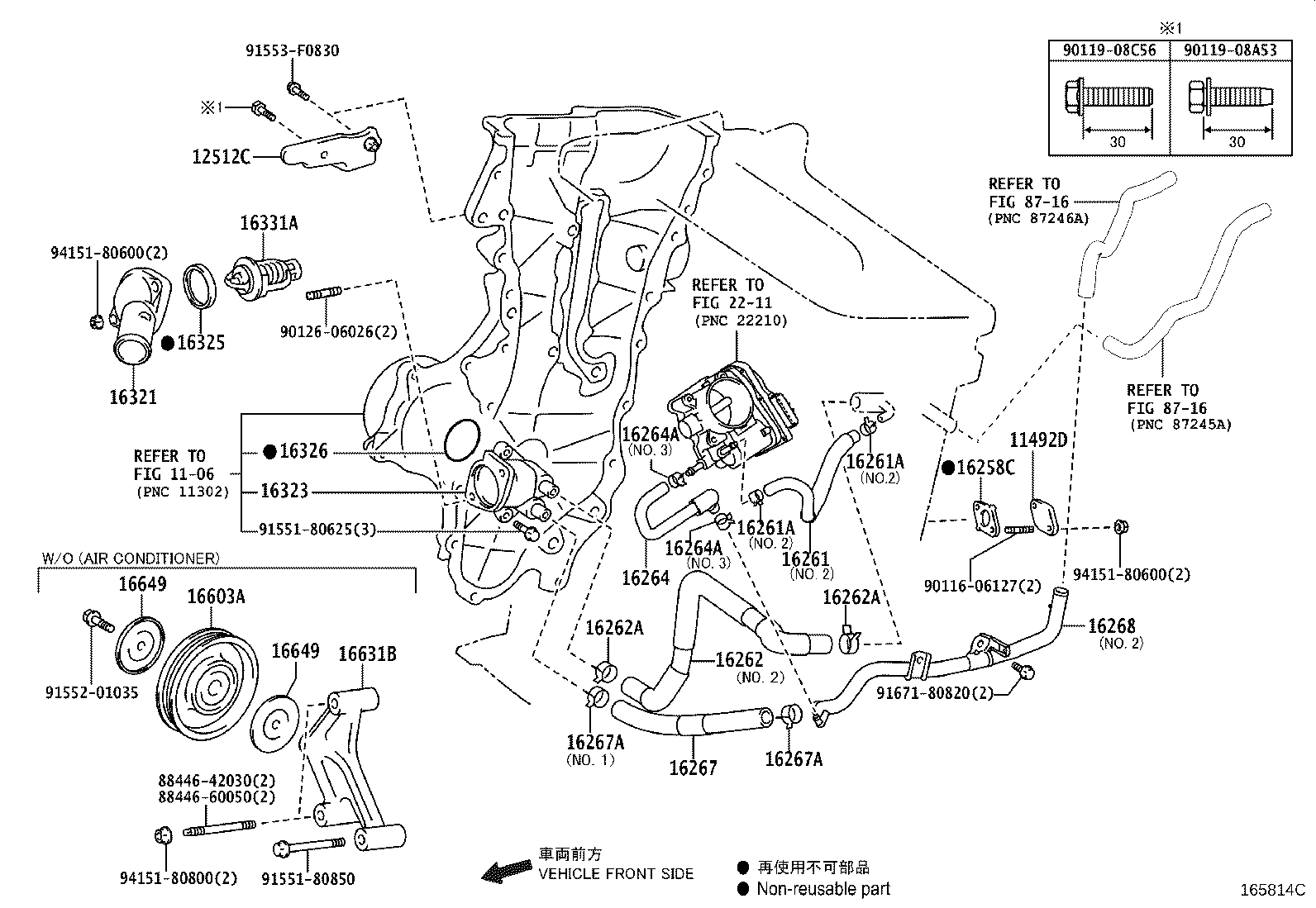

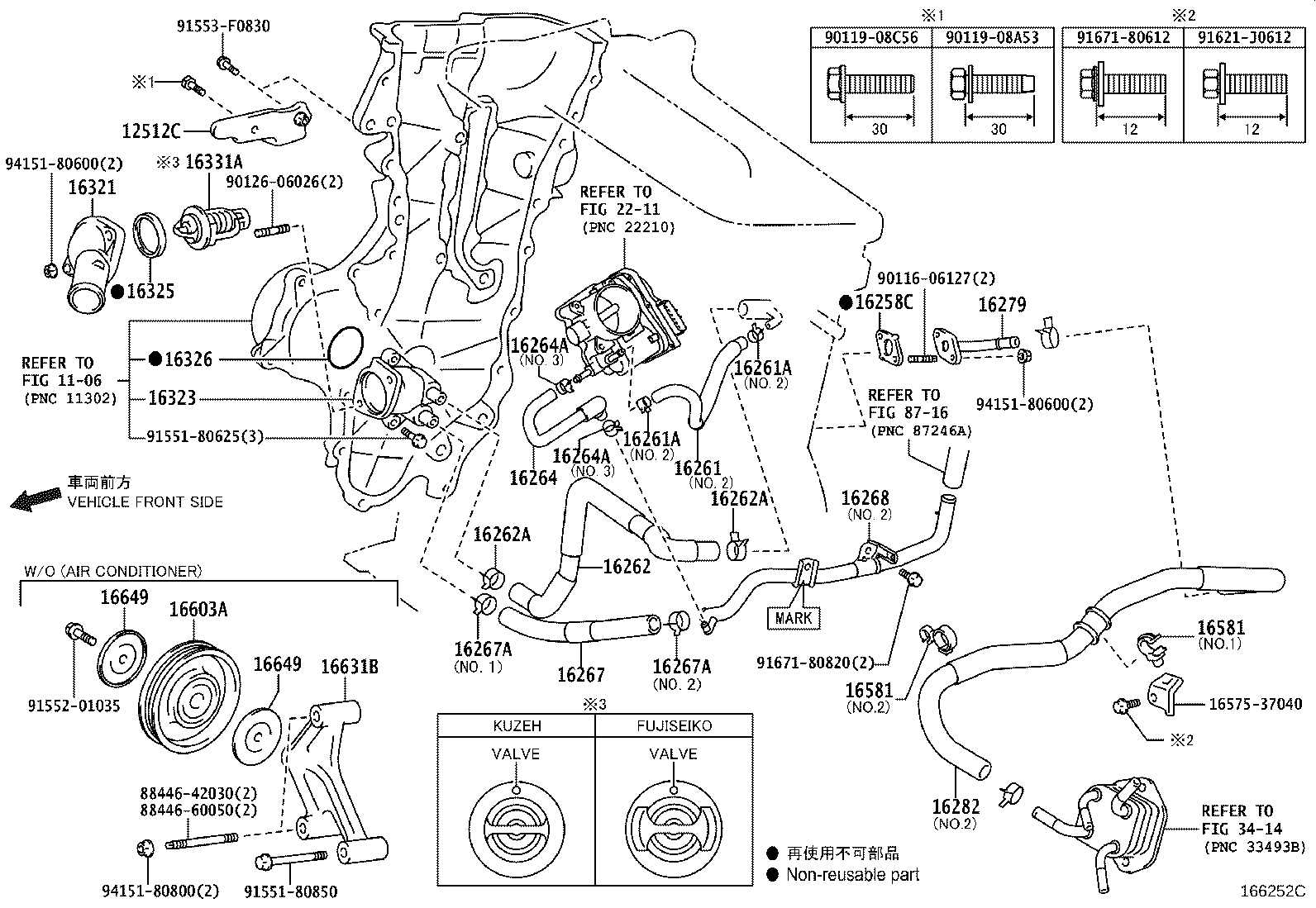

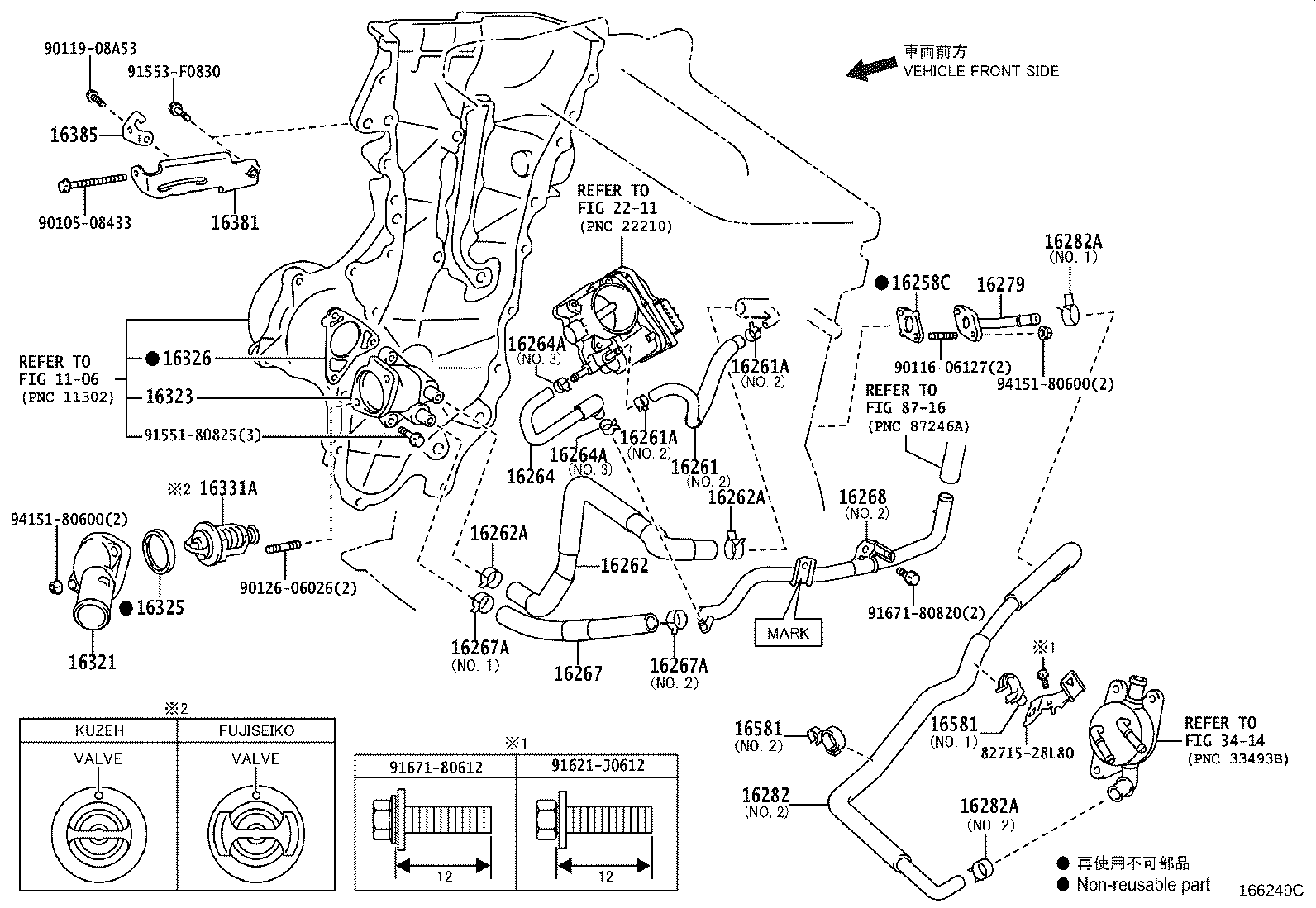

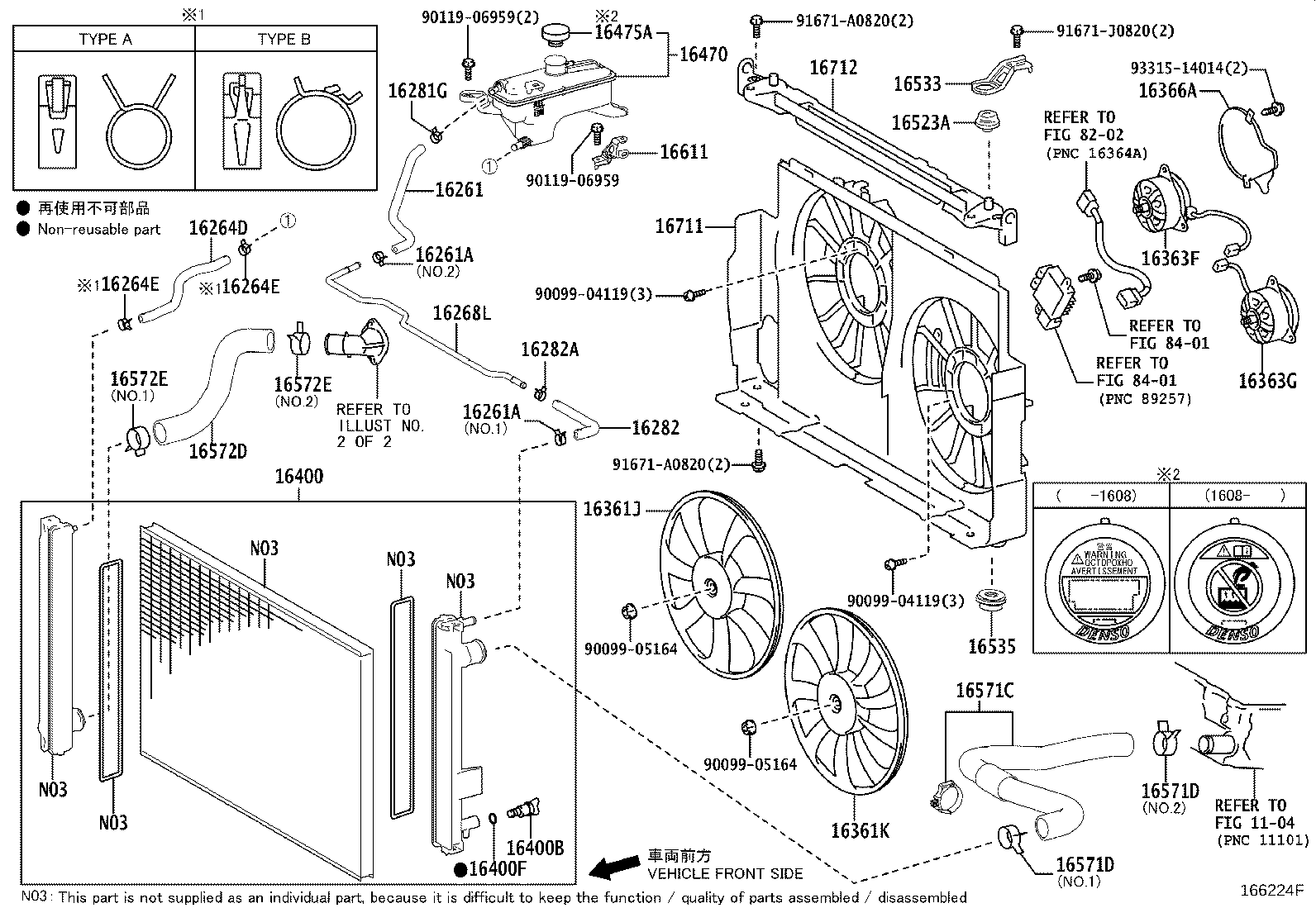

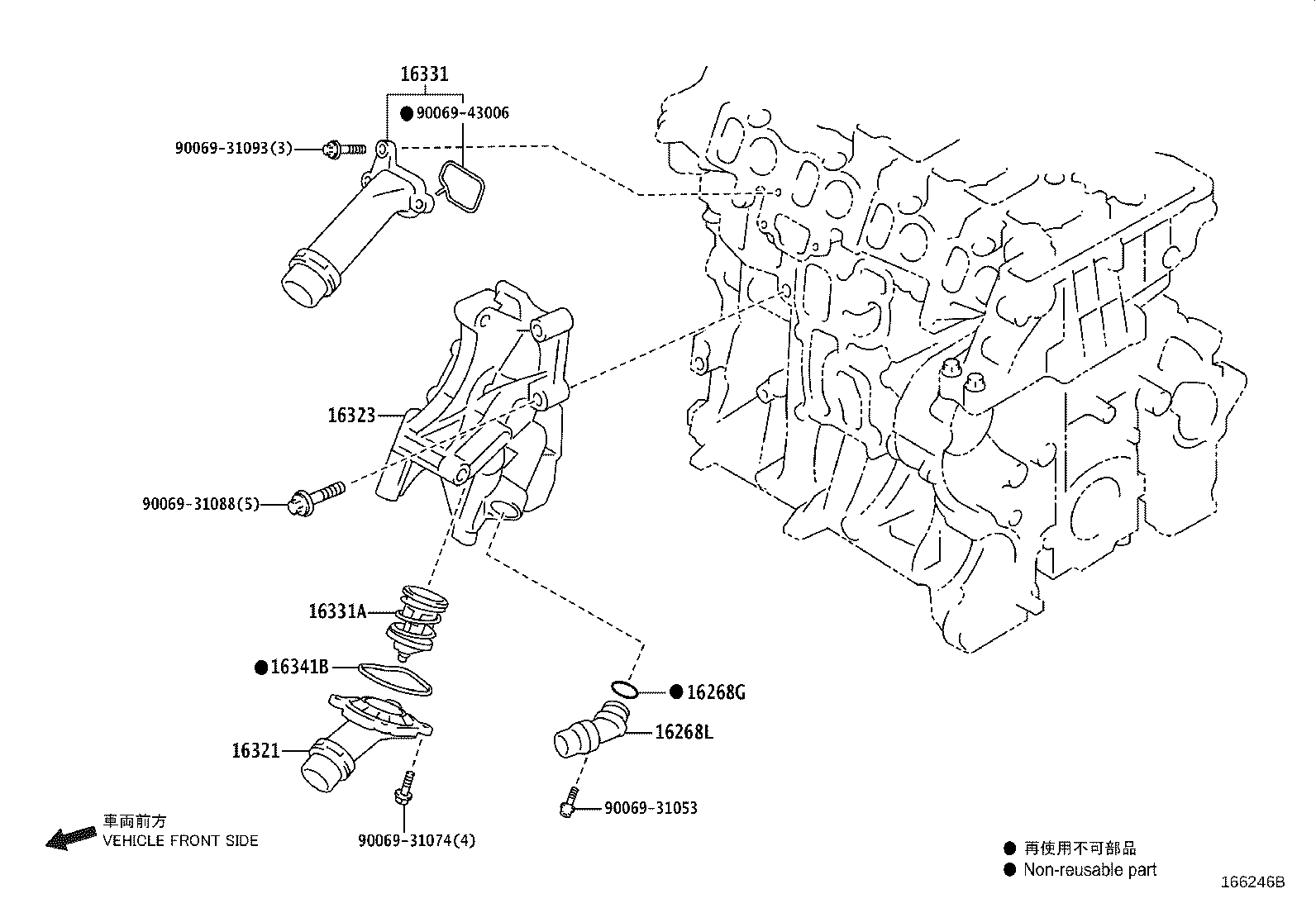

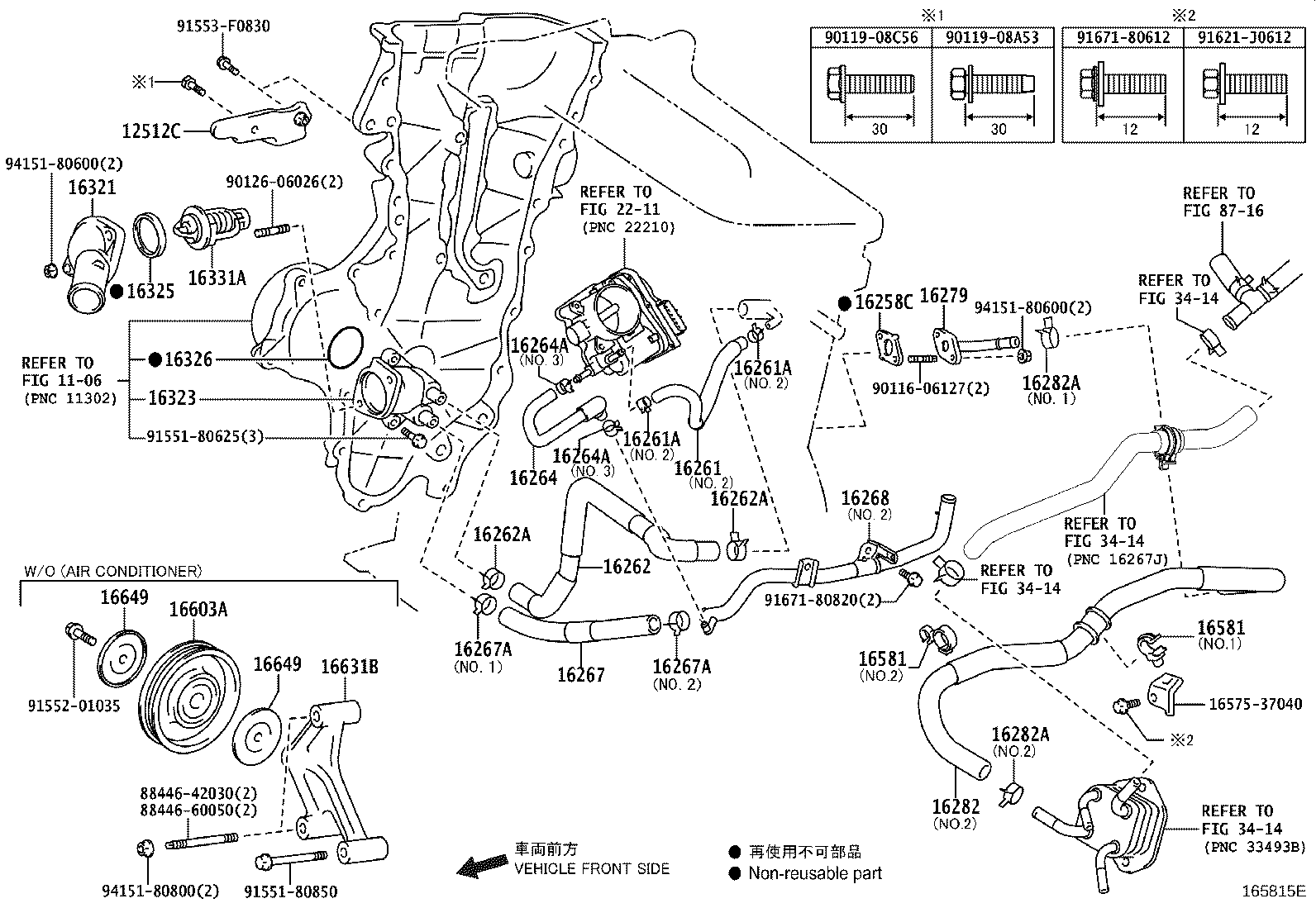

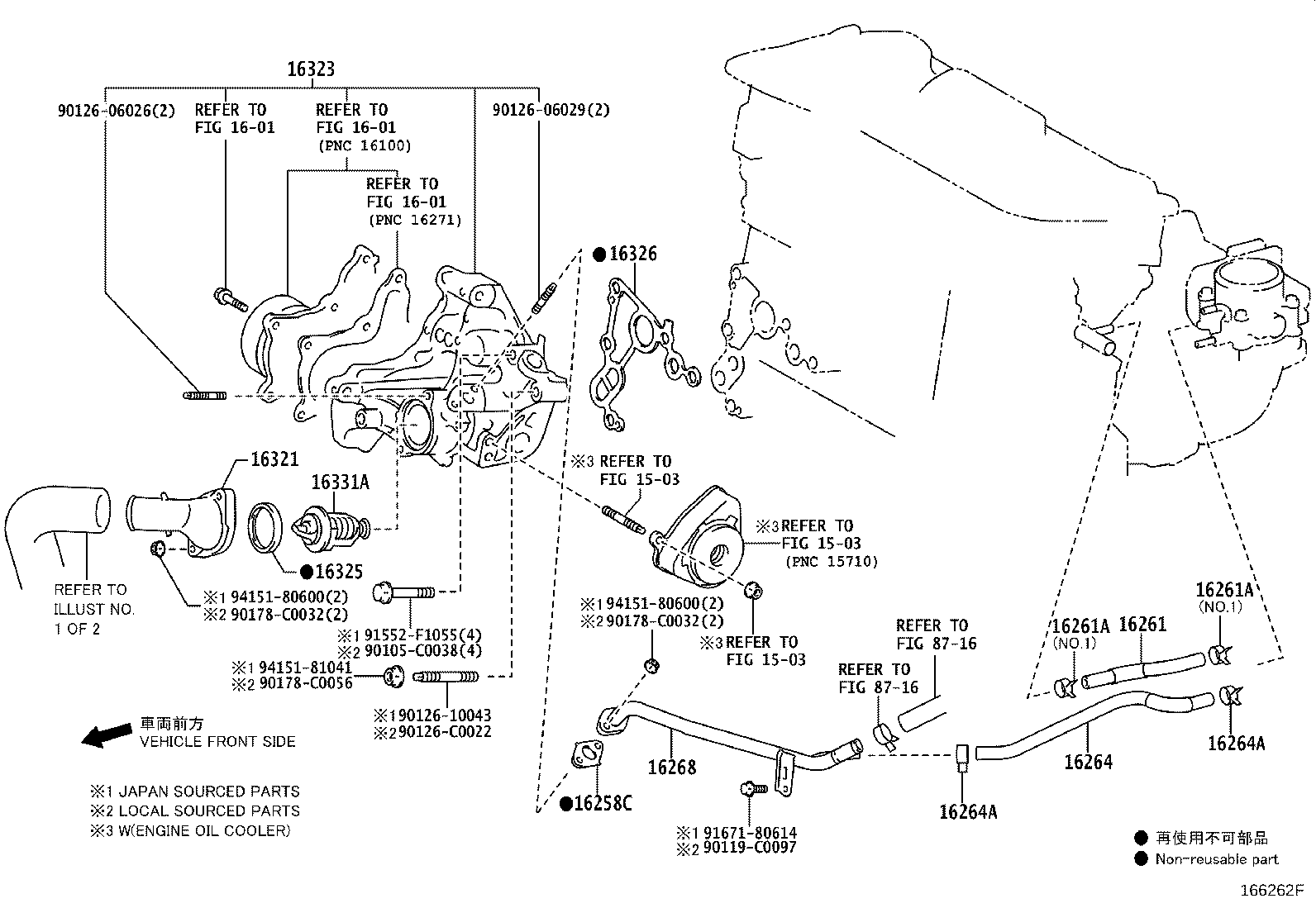

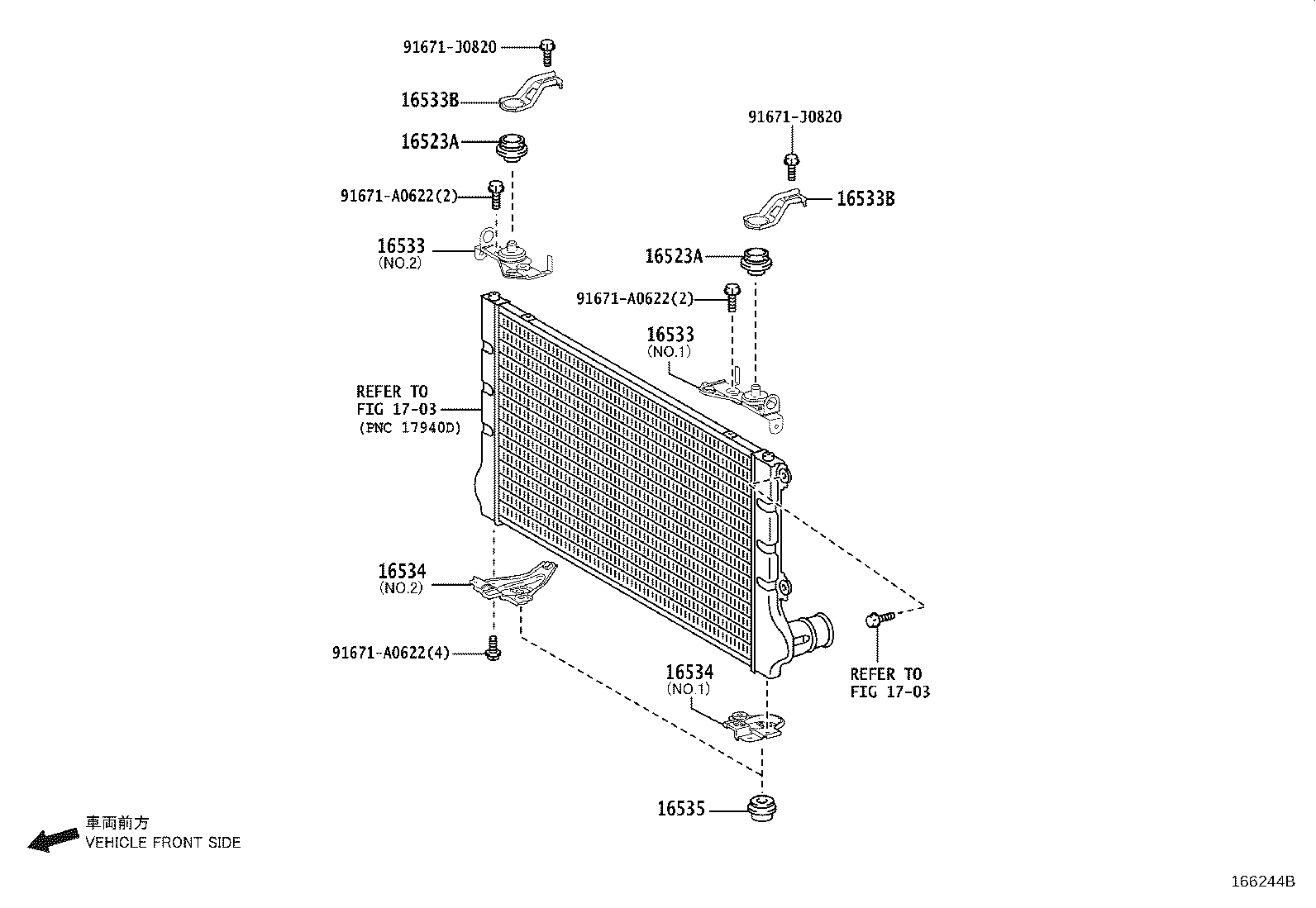

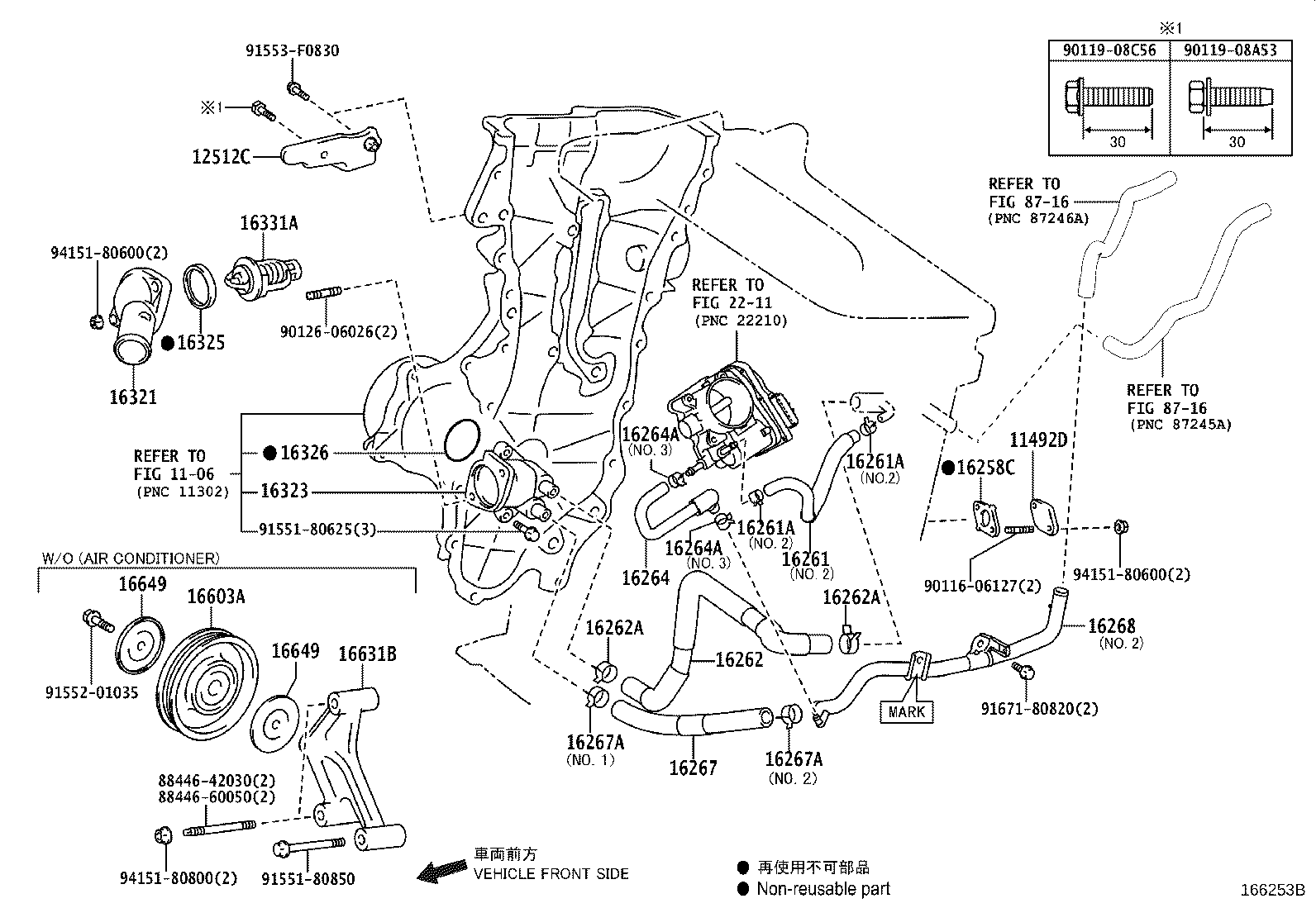

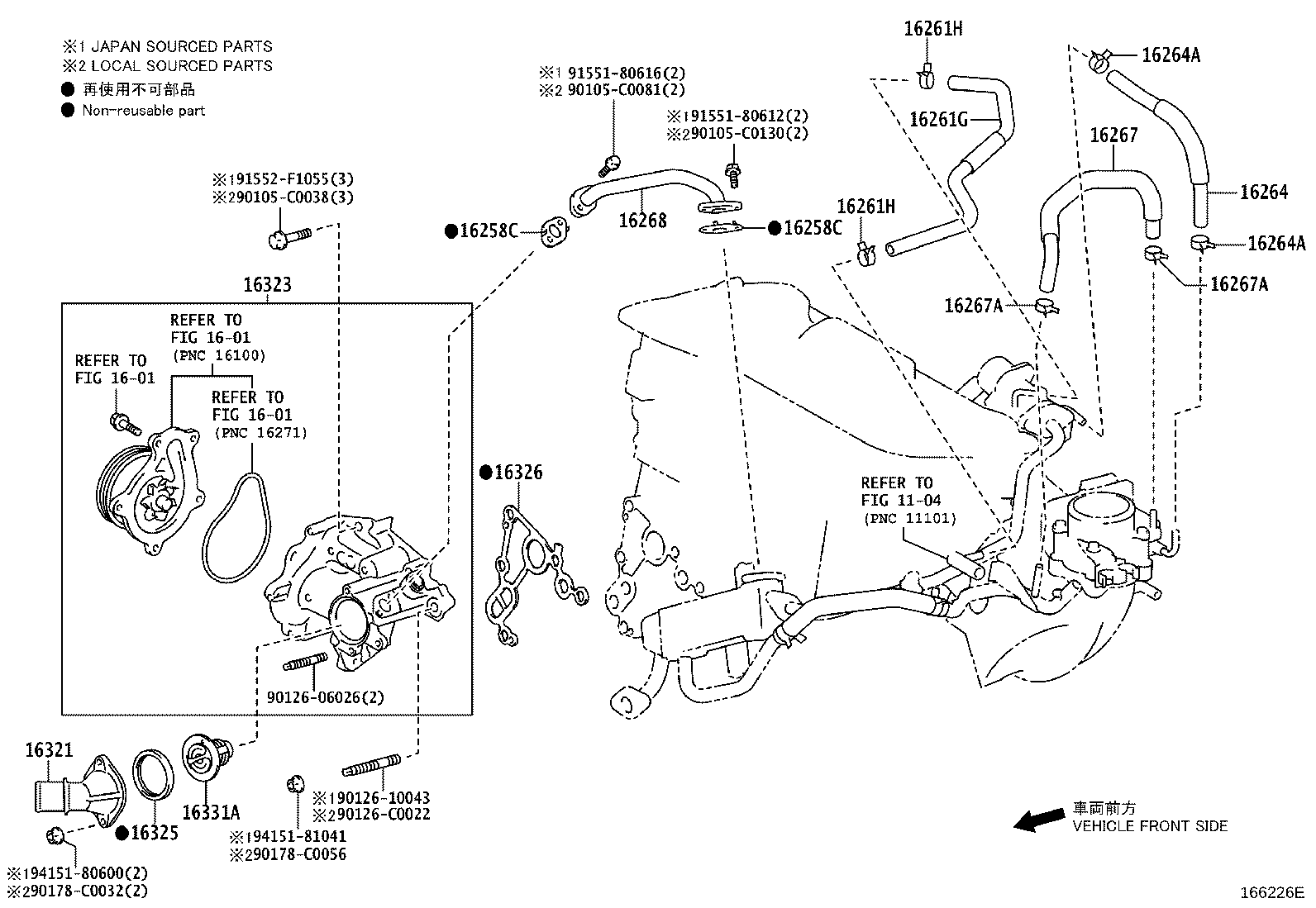

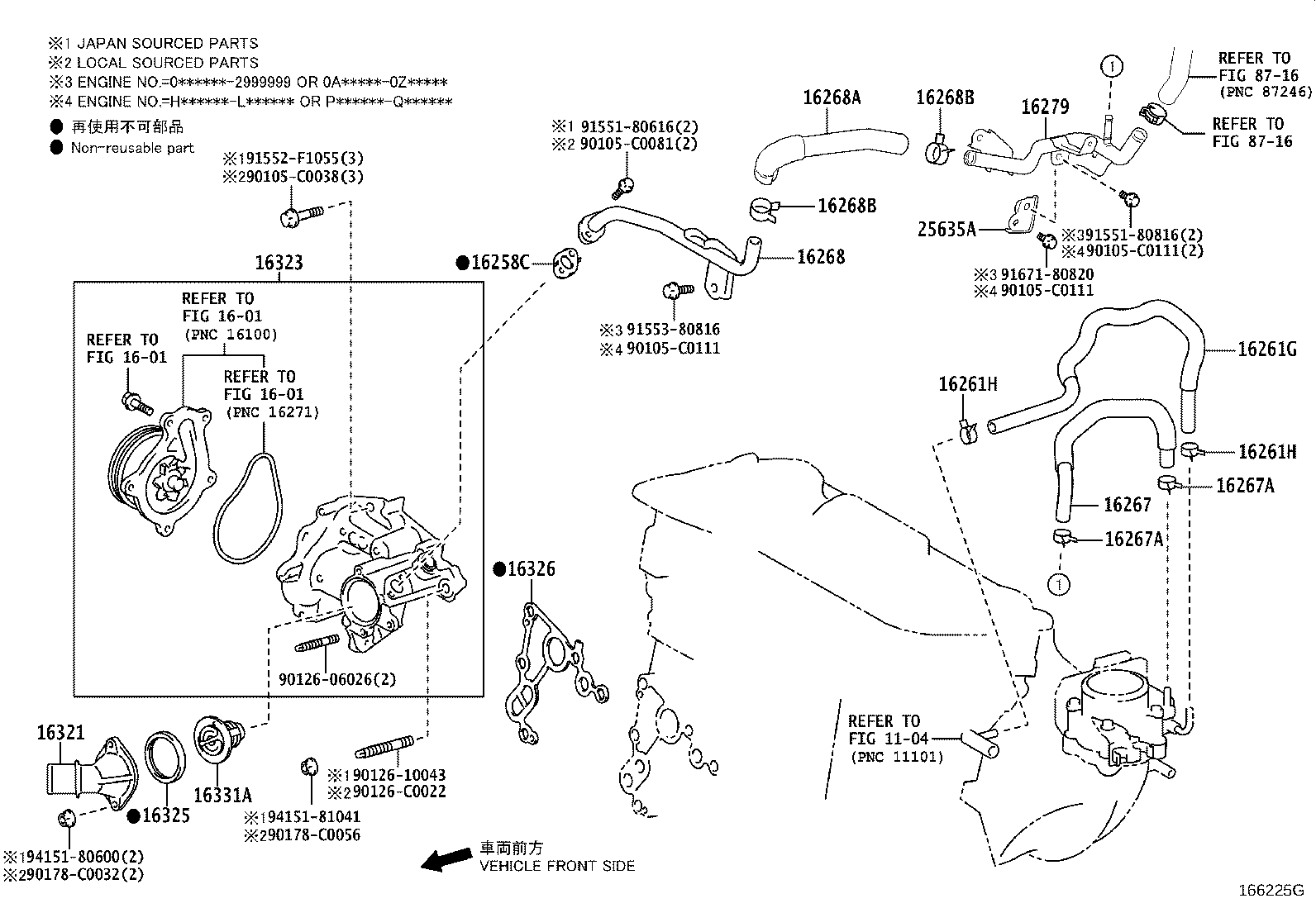

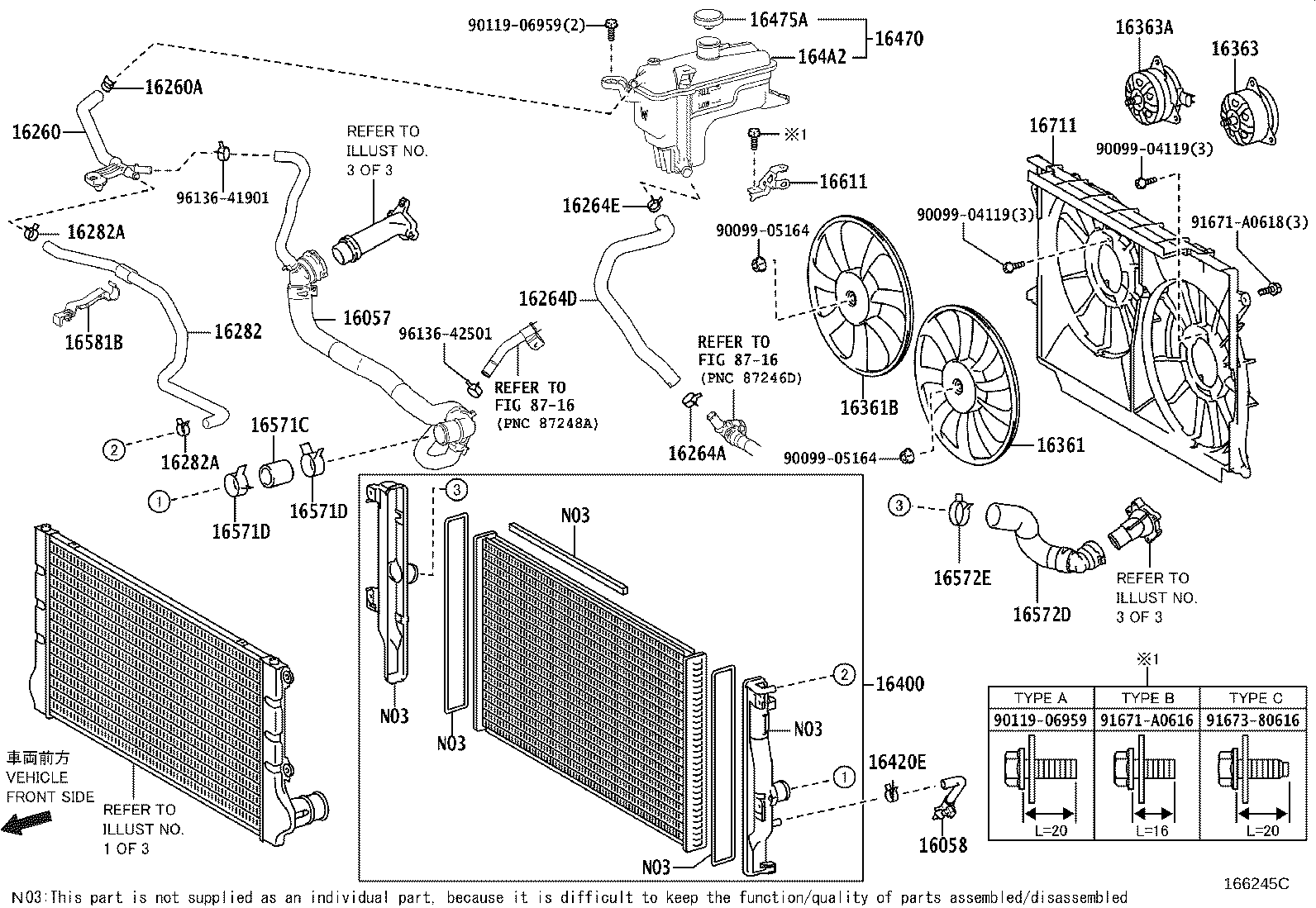

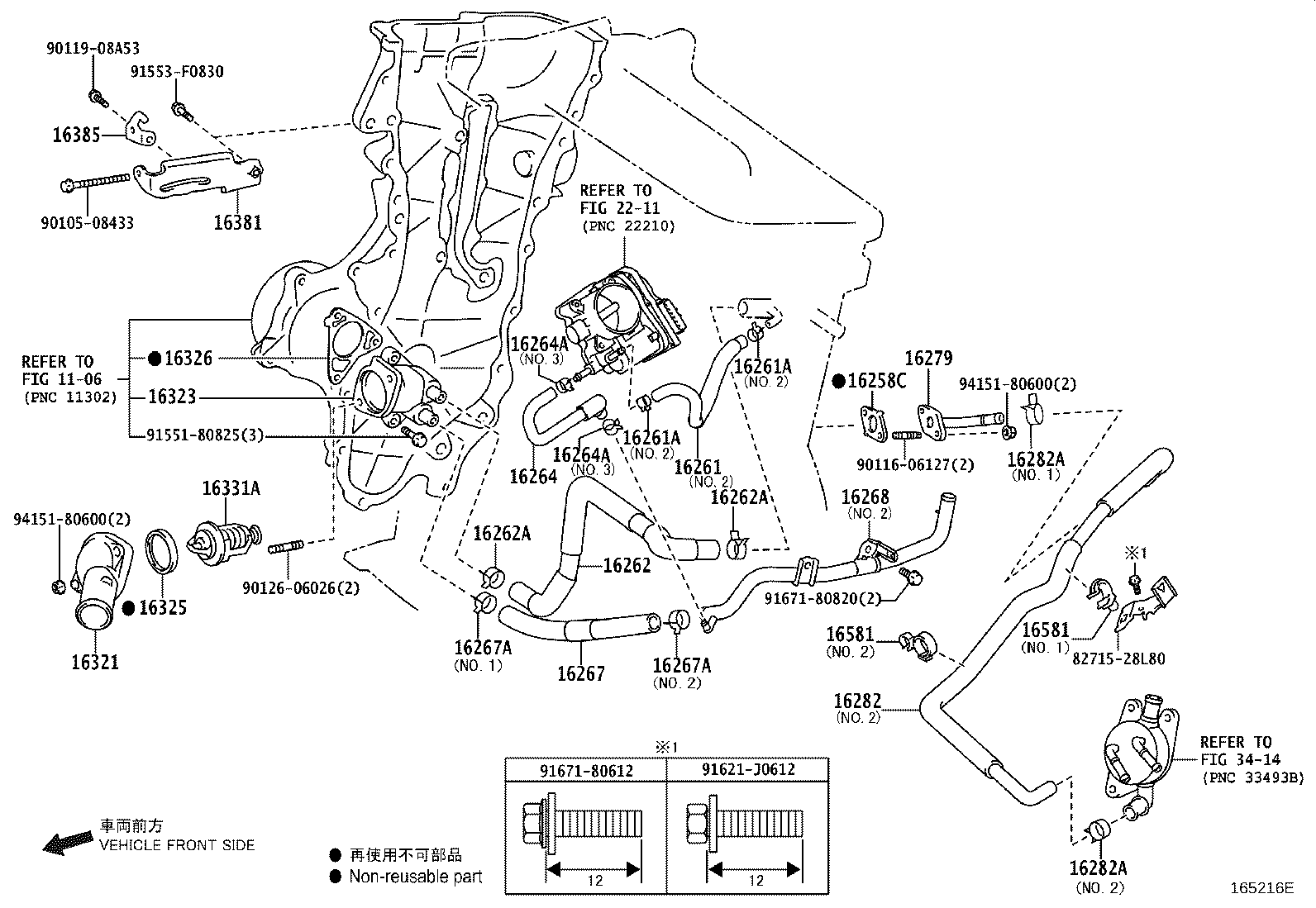

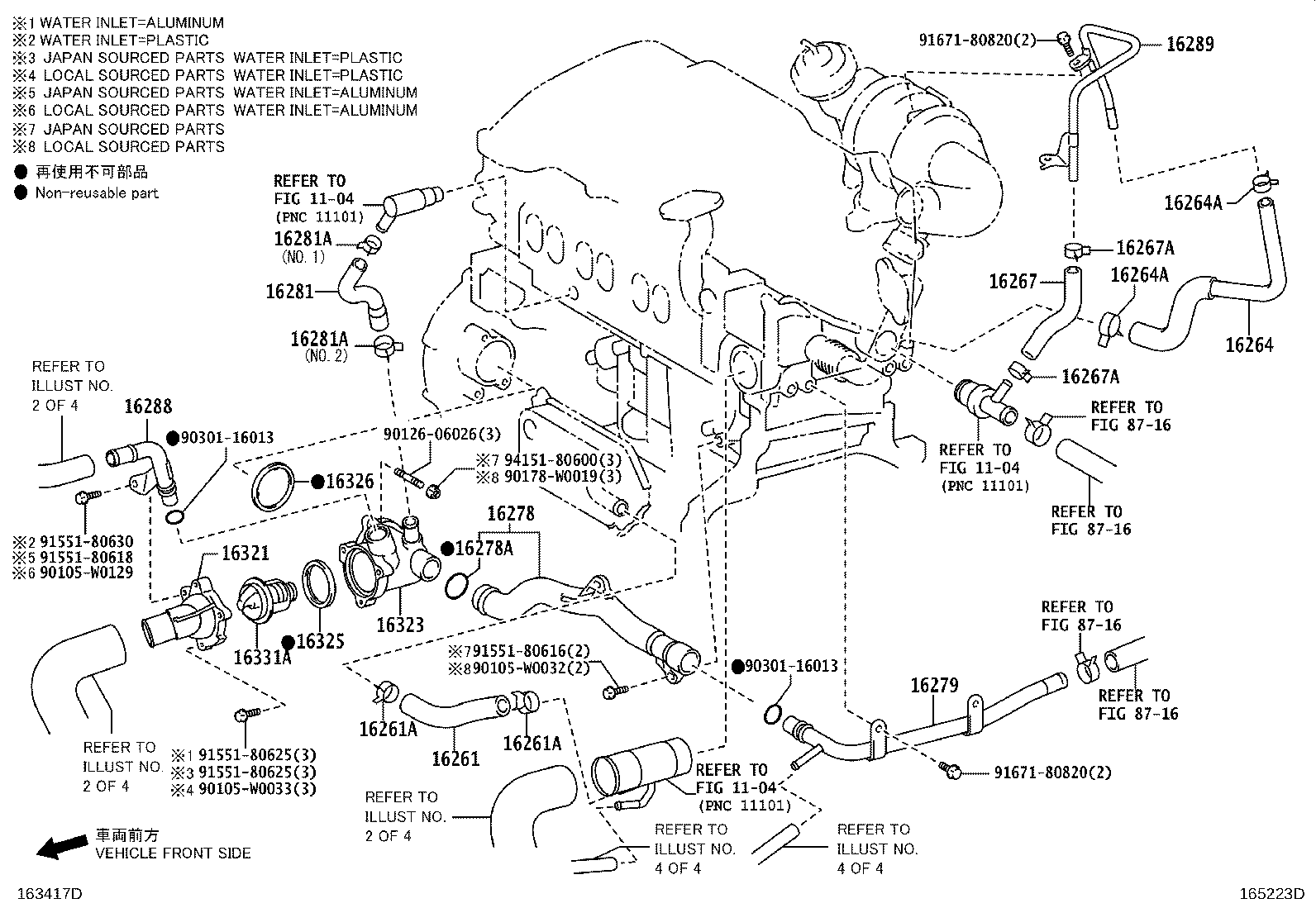

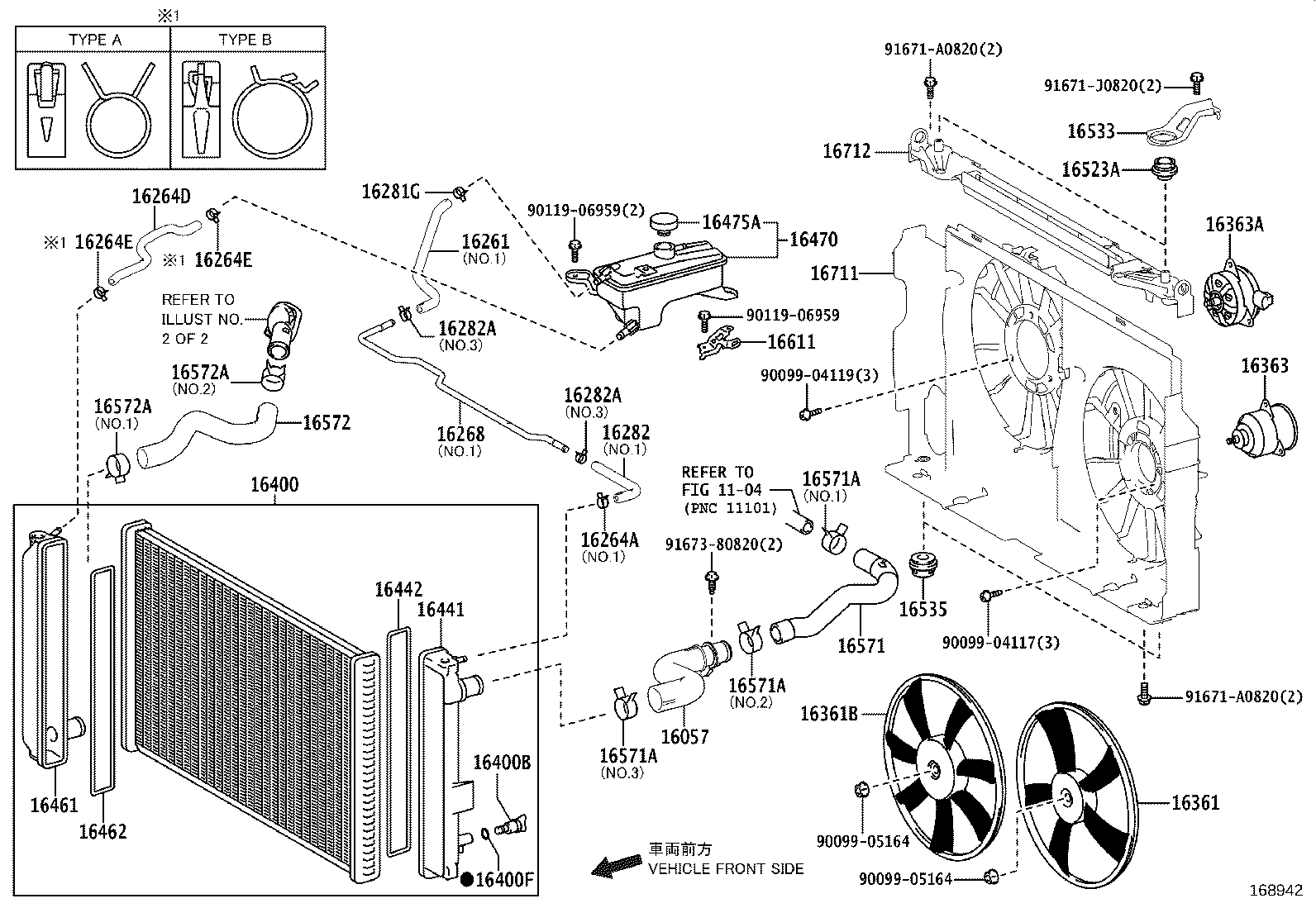

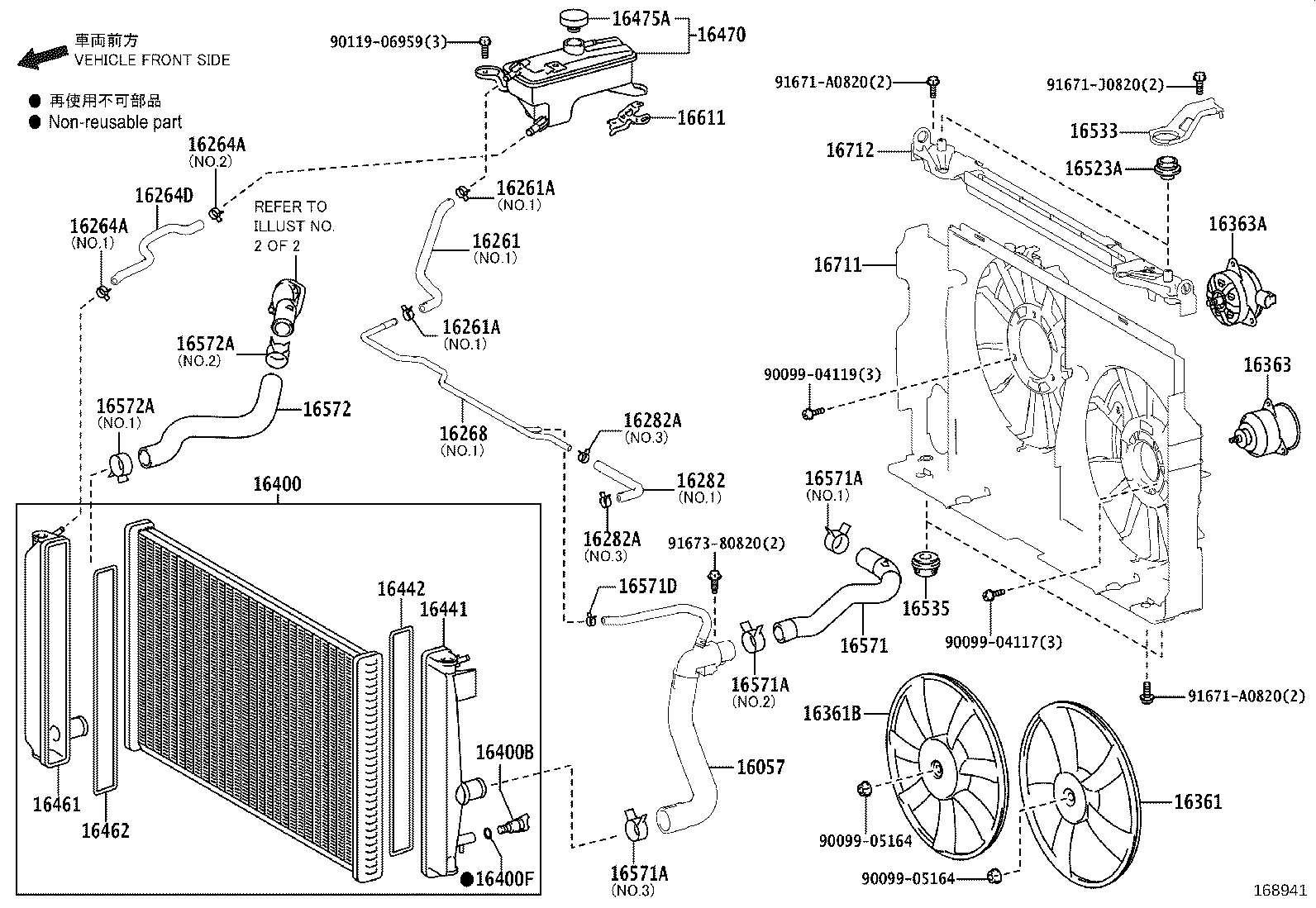

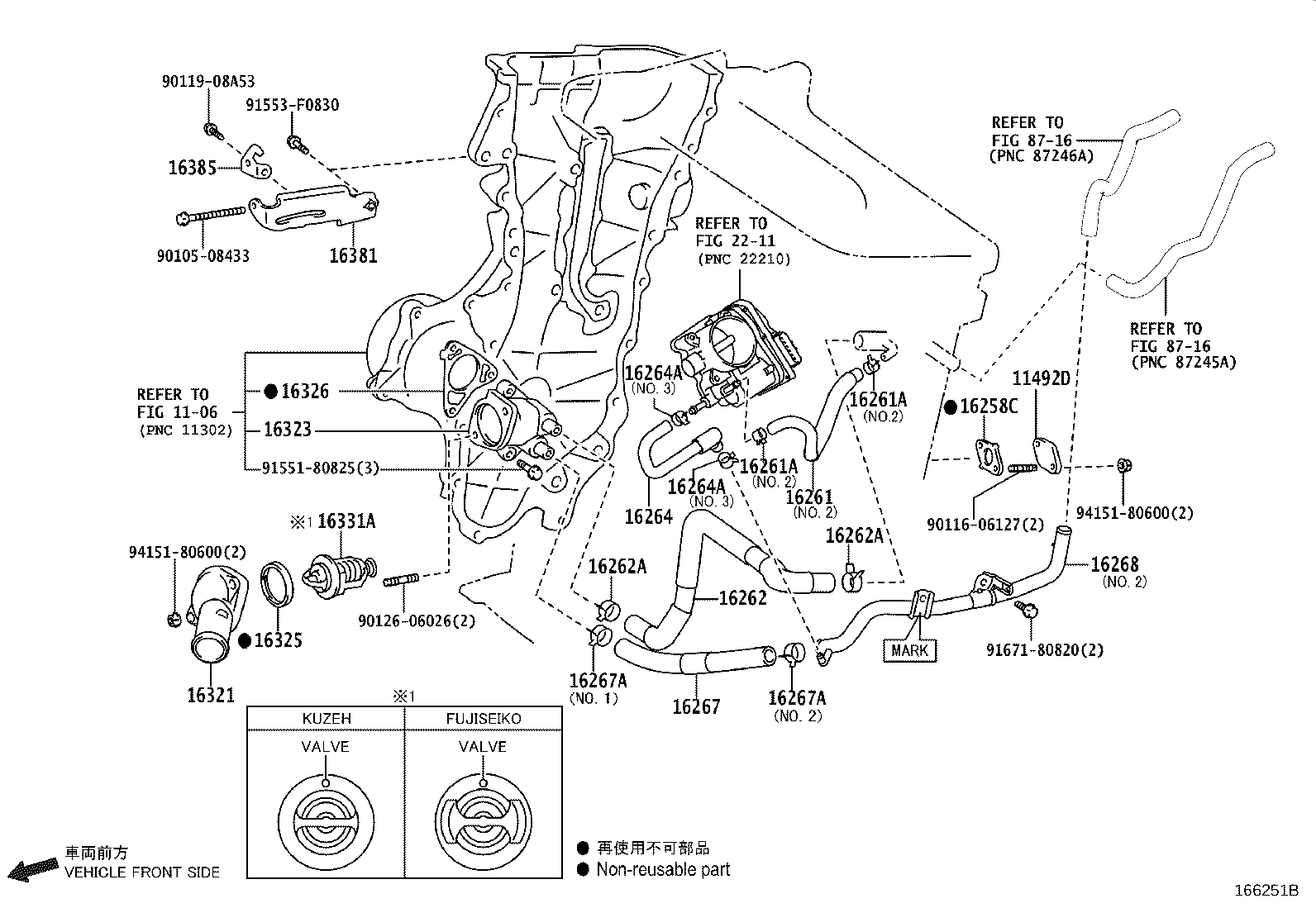

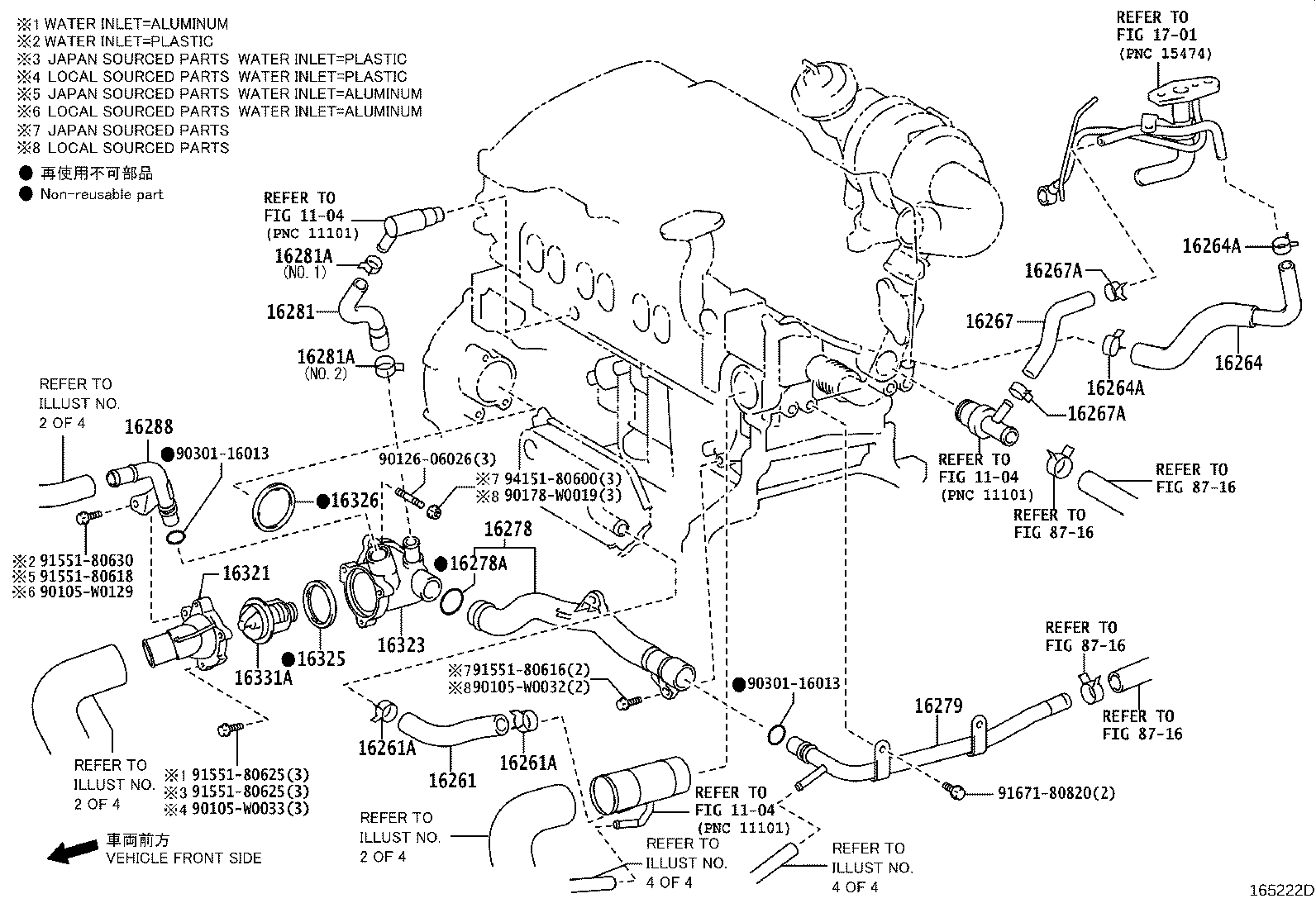

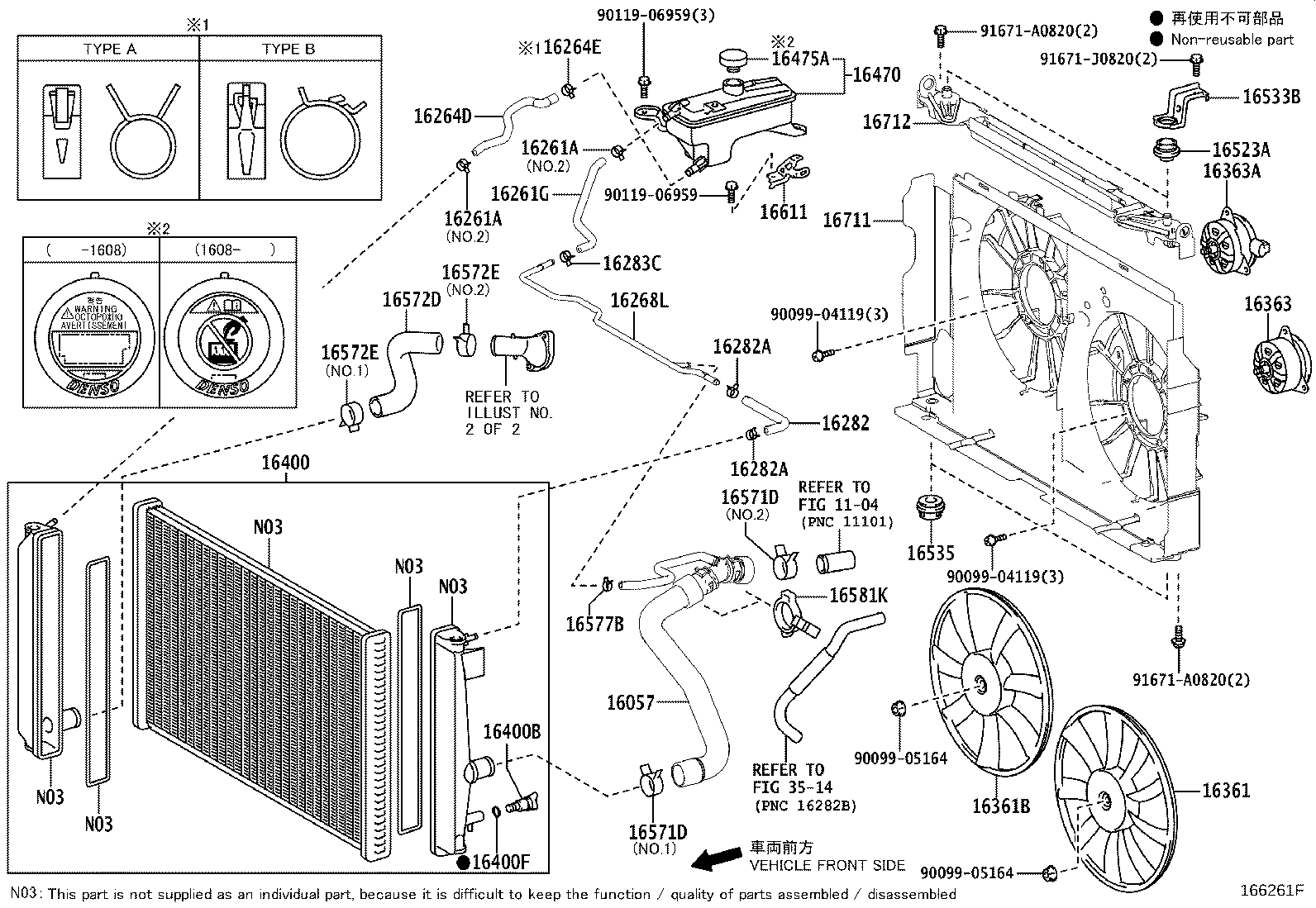

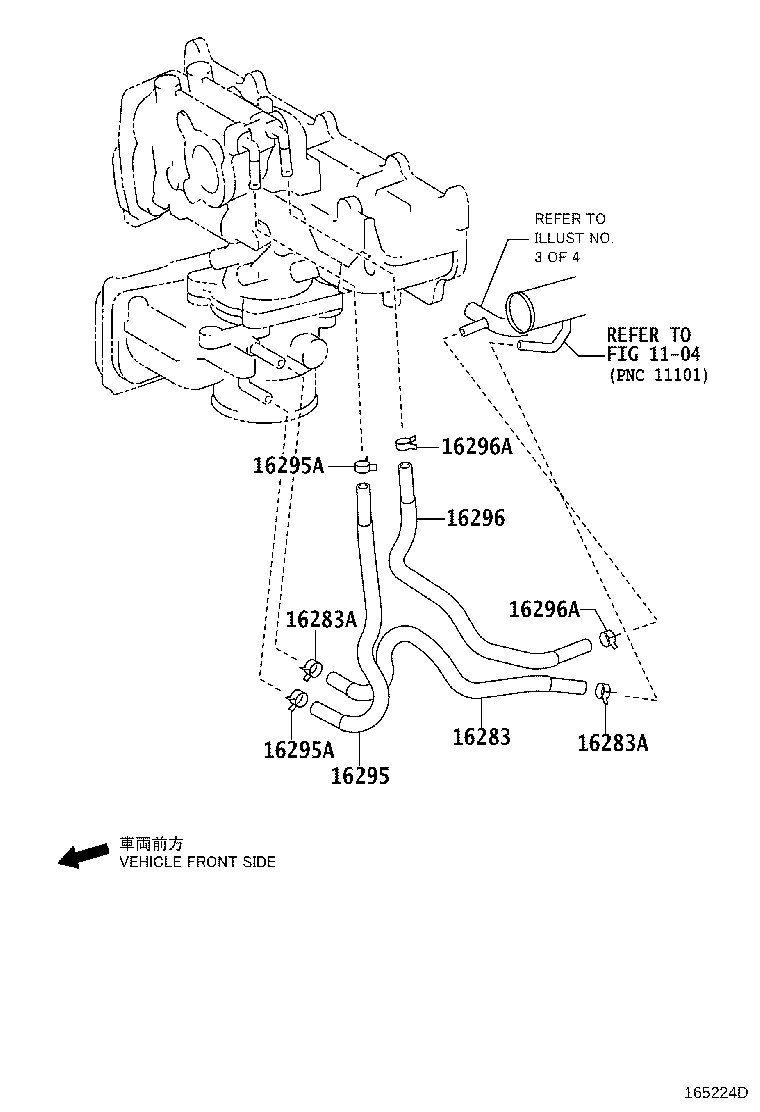

Figure 166121A 166121A 2012-12 → — Figure 165221I 165221I 2012-12 → — Figure 165222D 165222D 2012-12 → — Figure 165223D 165223D 2012-12 → — Figure 165224D 165224D 2012-12 → — Figure 166261F 166261F 2015-10 → — Figure 166262F 166262F 2015-10 → — Figure 166224F 166224F 2015-10 → — Figure 166225G 166225G 2015-10 → — Figure 166226E 166226E 2015-10 → — Figure 166244B 166244B 2015-10 → 2018-05 Figure 166245C 166245C 2015-10 → 2018-05 Figure 166246B 166246B 2015-10 → 2018-05 Figure 168941 168941 2012-12 → 2015-10 Figure 168942 168942 2015-10 → — Figure 165215C 165215C 2012-12 → 2015-04 Figure 165814C 165814C 2015-04 → 2015-10 Figure 165216E 165216E 2012-12 → 2015-04 Figure 165815E 165815E 2015-04 → 2015-10 Figure 166251B 166251B 2015-10 → — Figure 166253B 166253B 2015-10 → — Figure 166252C 166252C 2015-10 → — Figure 166249C 166249C 2015-10 → —

Part groups

PNCDescription
11492D Plate, Seal, NO.1
12512C Bracket, Alternator, NO.2
16057 Hose Sub-assy, Radiator
16058 Hose Sub-assy, Radiator, NO.2
16258C Gasket(FOR WATER BY-PASS PIPE)
16260 Hose Assy, Water By-pass
16260A Clip(FOR WATER BY-PASS HOSE ASSY)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16262 Hose, Water Inlet
16262A Clip(FOR WATER INLET HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16268 Pipe, Water By-pass, NO.1
16268A Hose(FOR WATER BY-PASS PIPE)
16268B Clamp OR Clip, Hose(FOR WATER BY-PASS PIPE)
16268G Gasket(FOR WATER BY-PASS PIPE)
16268L Pipe, Water By-pass
16278 Pipe, Water By-pass, NO.2
16278A Gasket, Water By-pass
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16281G Clip(FOR WATER BY-PASS HOSE NO.5)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16283C Clamp OR Clip(FOR WATER BY-PASS HOSE)
16288 Pipe, Water By-pass, NO.4
16289 Pipe, Water By-pass, NO.5
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16321 Inlet, Water
16323 Housing, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16331 Outlet, Water
16331A Thermostat
16341B Gasket, Water Inlet
16361 Fan
16361B Fan, NO.2
16361J Fan, RH
16361K Fan, LH
16363 Motor, Cooling Fan
16363A Motor, Cooling Fan, NO.2
16363F Motor, Cooling Fan, RH
16363G Motor, Cooling Fan, LH
16366A Insulator, Cooling Fan Motor
16381 Bar, Fan Belt Adjusting
16385 Slider, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16420E Clamp OR Clip, Sub Radiator Hose
16441 Tank, Radiator, Upper
16442 Ring, O(FOR RADIATOR UPPER TANK)
16461 Tank, Radiator, Lower
16462 Ring, O(FOR RADIATOR LOWER TANK)
16466 Seal, Radiator
16467 Side Seal
16470 Tank Assy, Radiator Reserve
16475A Cap, Reserve Tank
164A2 Tank, Reserve Sealed W/O Cap
16523A Cushion, Radiator Support
16533 Support, Radiator, Upper
16533B Support, Radiator, NO.1
16534 Support, Radiator, NO.2
16535 Support, Radiator, Lower
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16573C Clamp OR Clip, Radiator Hose, NO.3
16577B Clamp OR Clip, Hose(FOR RADIATOR PIPE)
16577C Pipe, Radiator
16581 Clamp, Hose(FOR WATER HOSE)
16581B Clamp, Hose(FOR RADIATOR HOSE)
16581K Clamp, Sub-radiator Hose, NO.1
16603A Pulley Sub-assy, Idler, NO.1
16611 Bracket, Radiator Reserve Tank
16631B Bracket, Idler Pulley
16649 Plate, Idler Pulley Cover
16711 Shroud, Fan
16712 Shroud, Fan, NO.2
25635A Bracket, Egr Pipe, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
