Toyota RAV4

2020-06 → present · chassis AXAP54 · catalogue 666210 · Europe

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

44 part groups · 8 illustrations

Illustrations

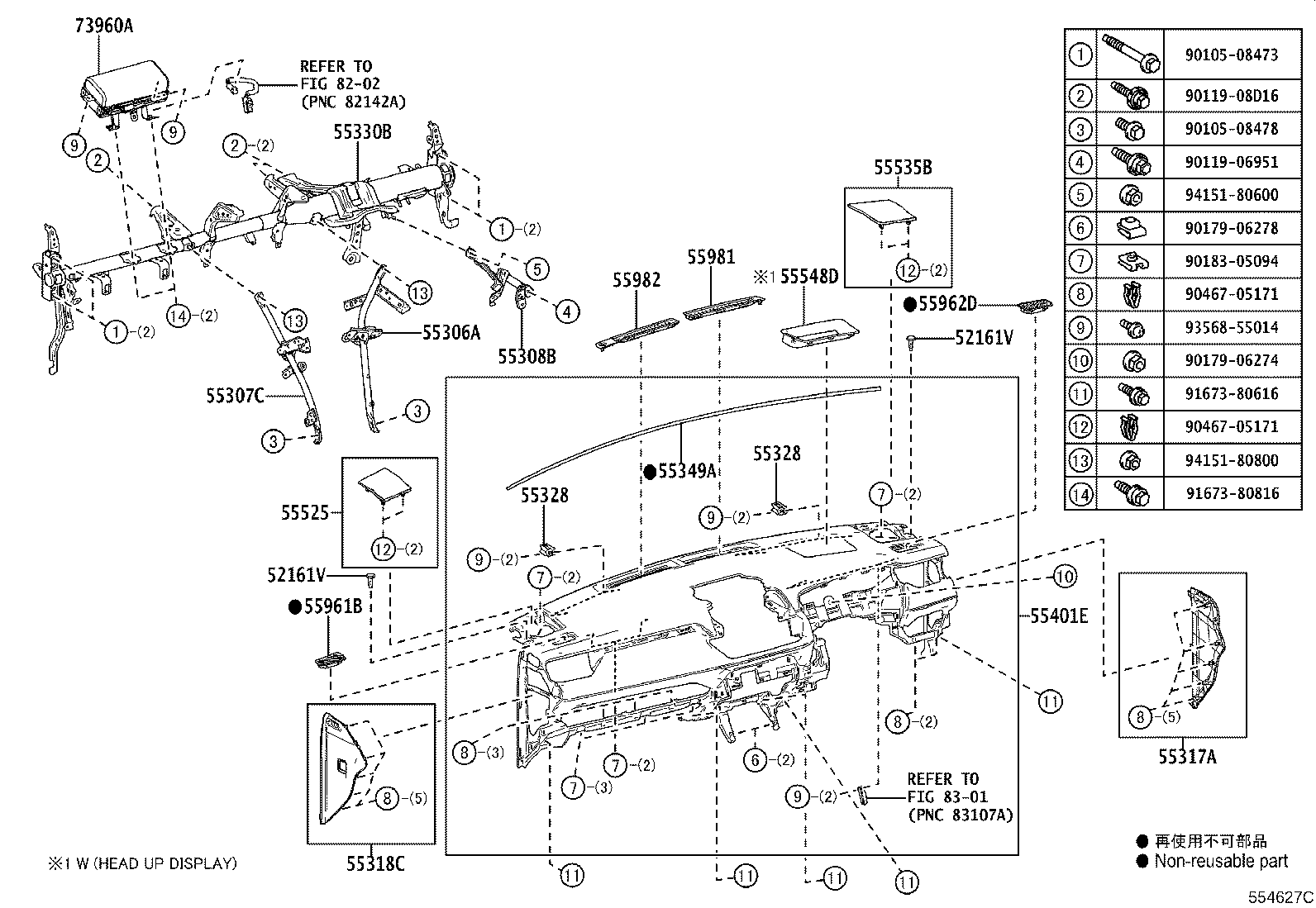

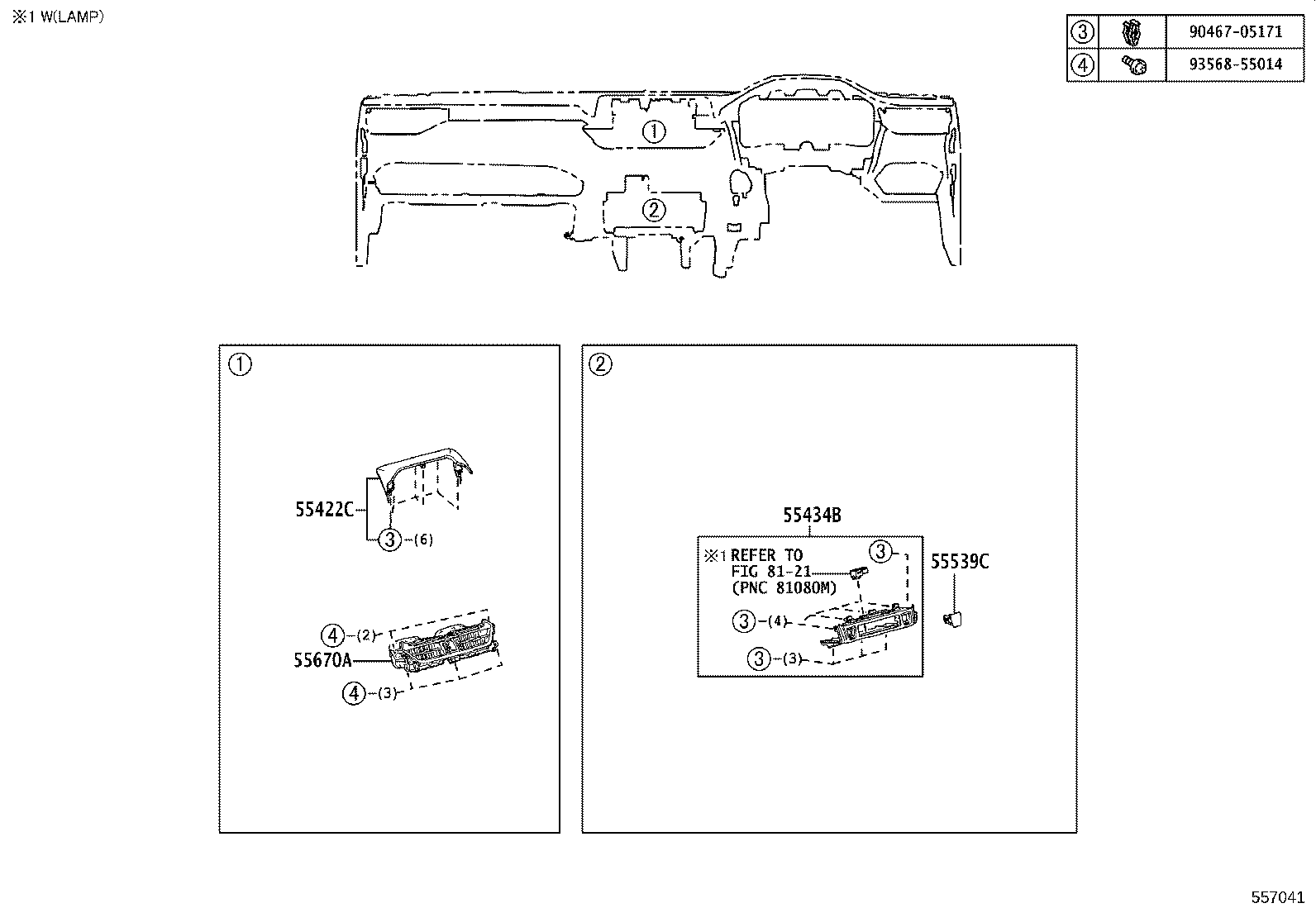

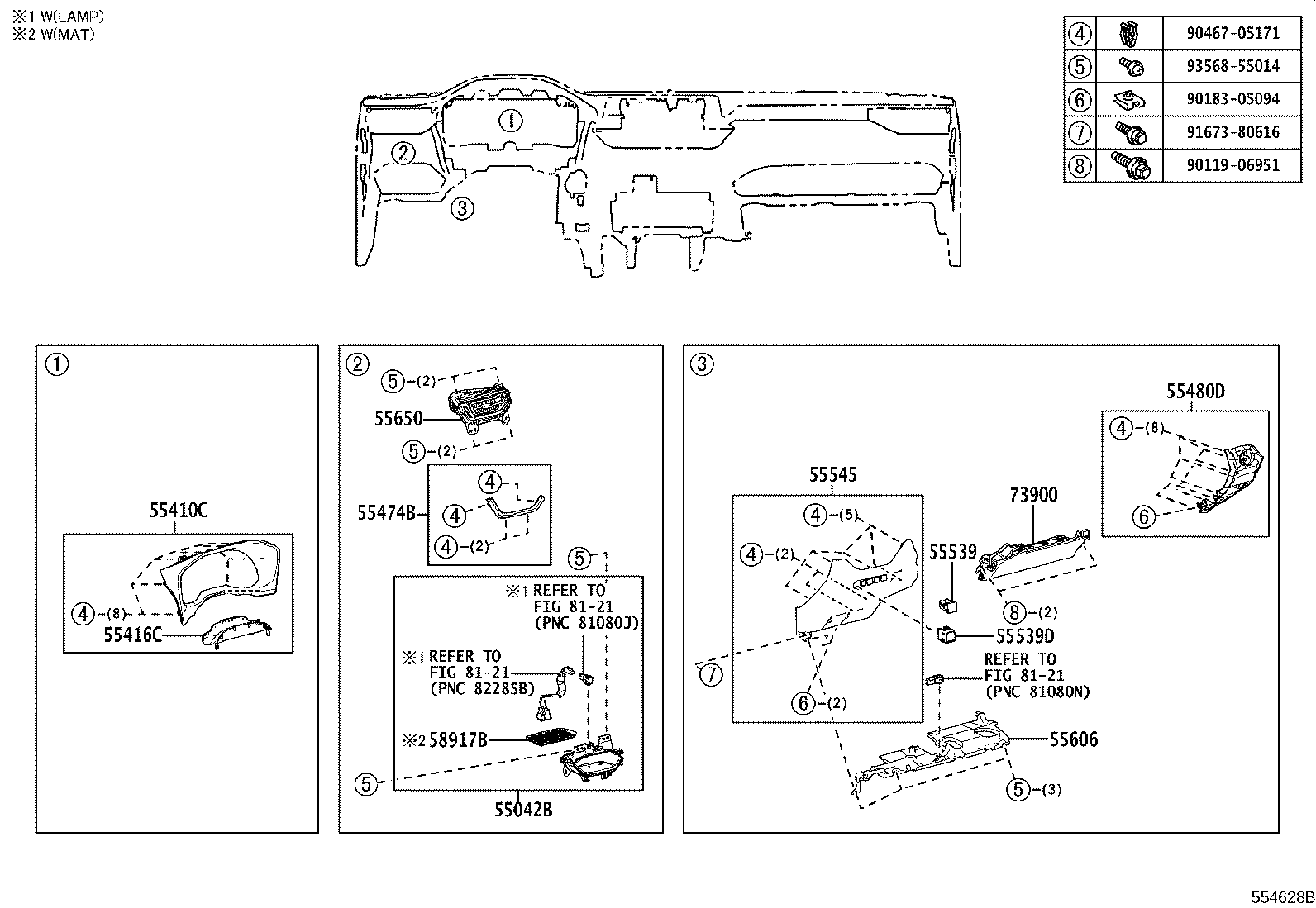

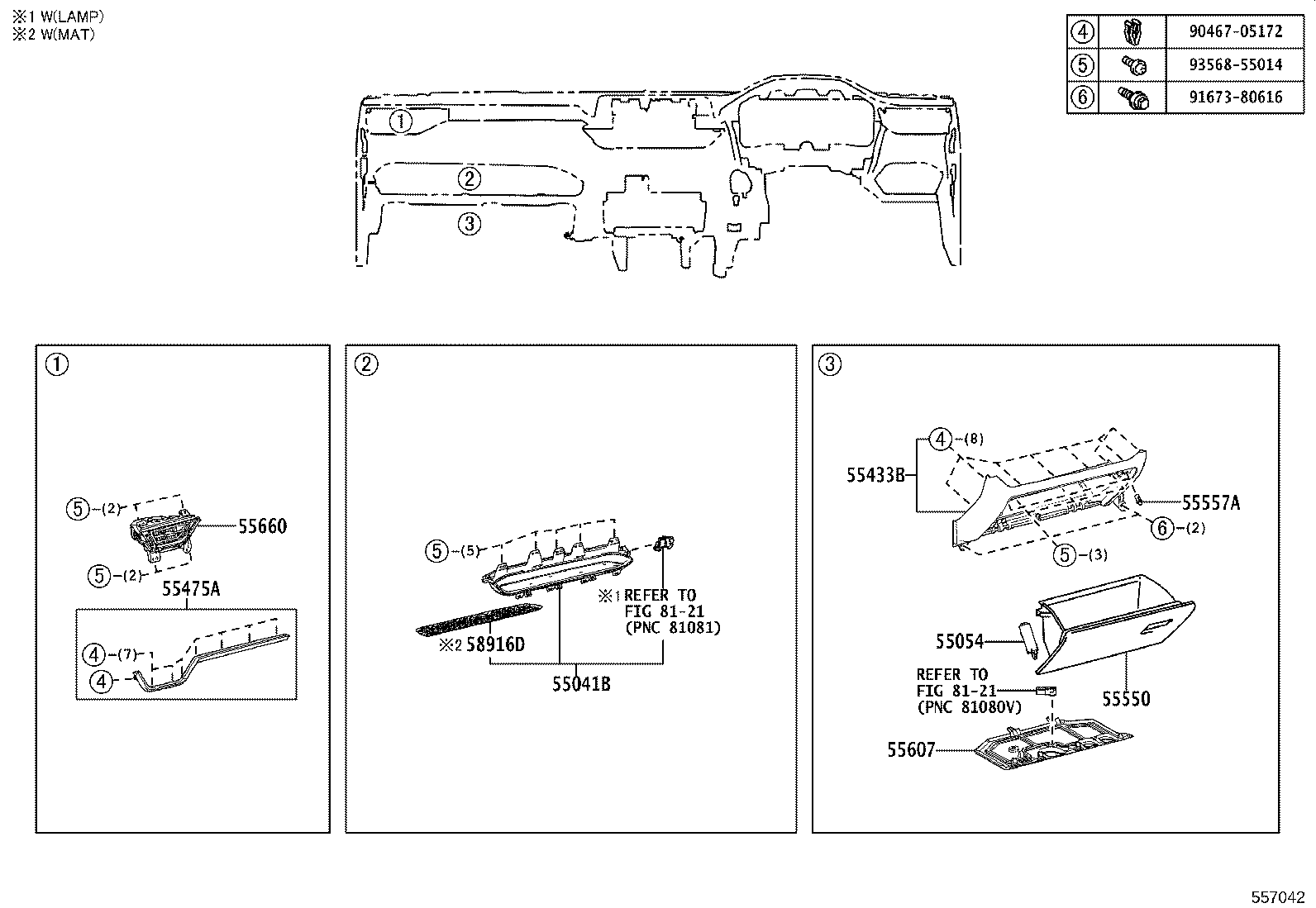

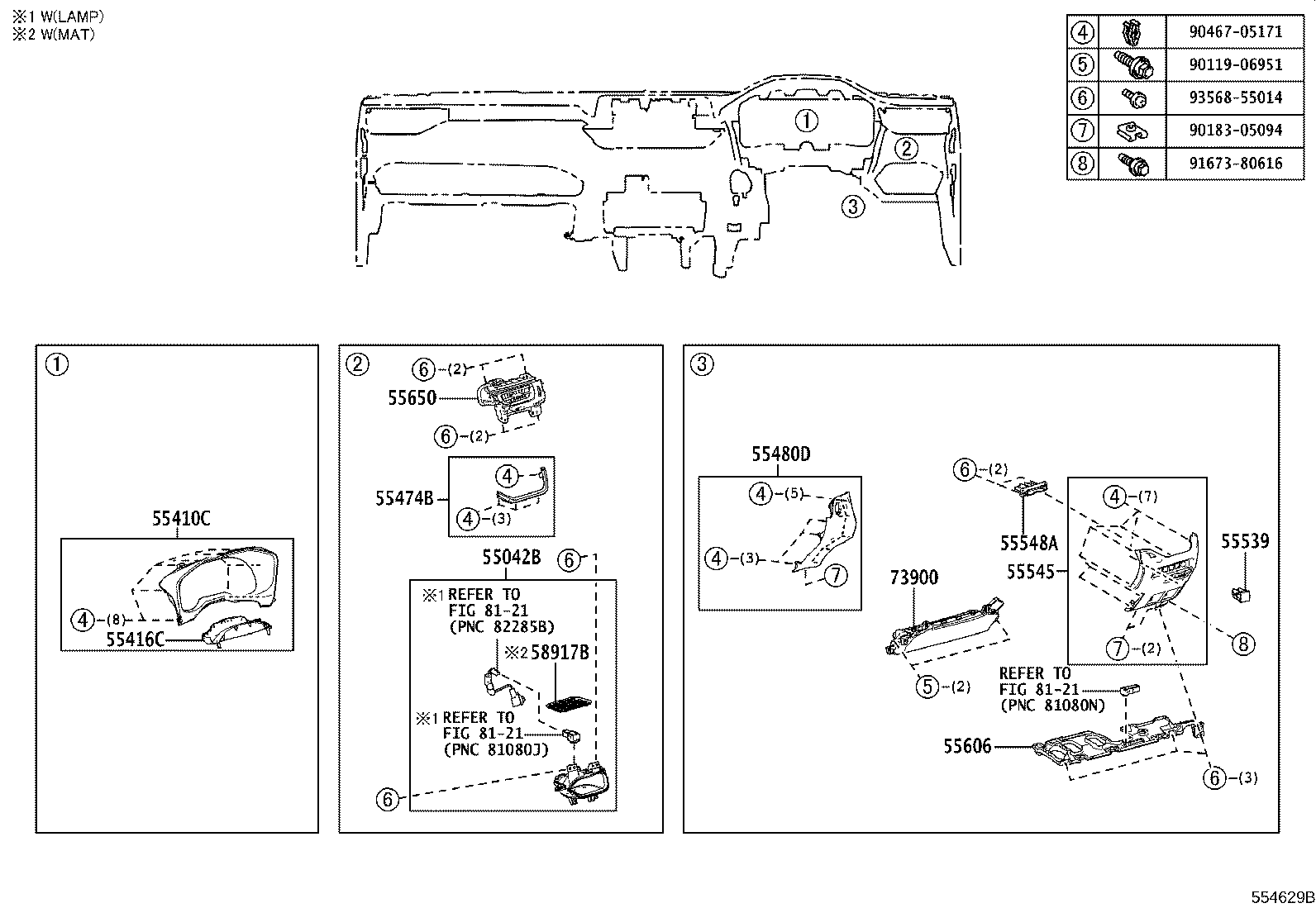

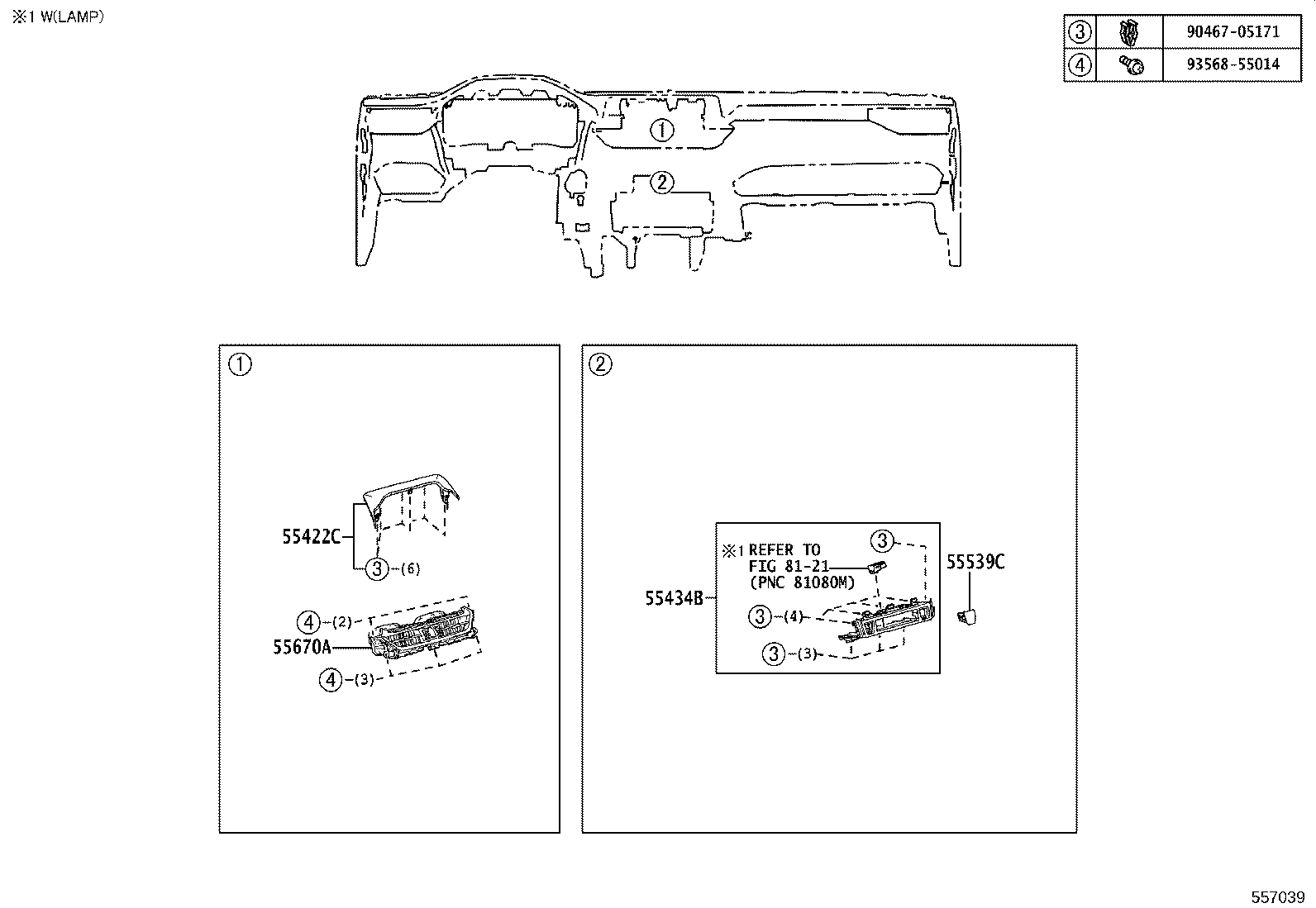

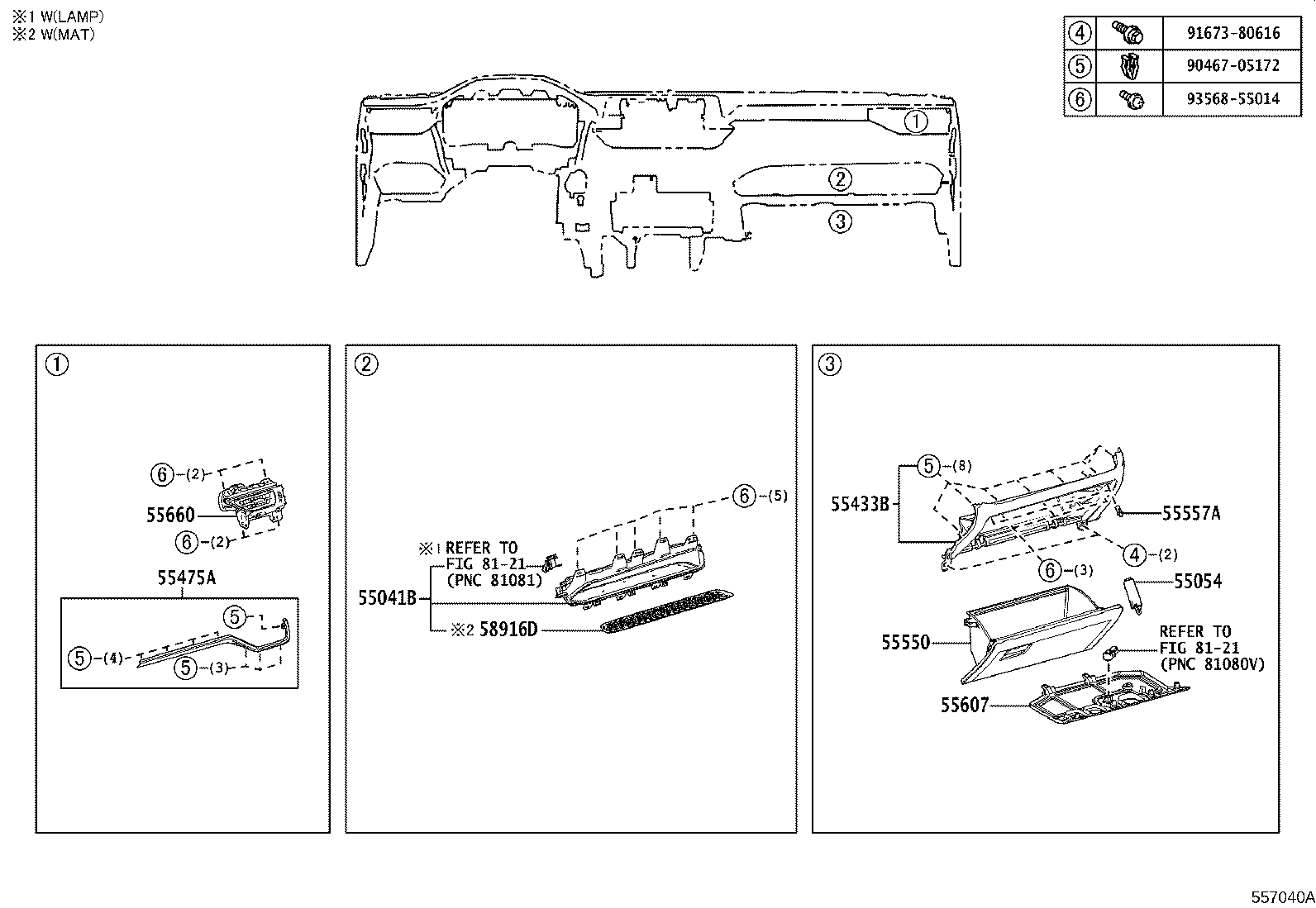

Figure 554626C 554626C 2020-06 → — Figure 554628B 554628B 2020-06 → — Figure 557039 557039 2020-06 → — Figure 557040A 557040A 2020-06 → — Figure 554627C 554627C 2020-06 → — Figure 554629B 554629B 2020-06 → — Figure 557041 557041 2020-06 → — Figure 557042 557042 2020-06 → —

Part groups

PNCDescription
52161V Piece, Instrument Panel
55041B Door Sub-assy, Instrument Panel Box, NO.1
55042B Door Sub-assy, Instrument Panel Box, NO.2
55054 Stopper Sub-assy, Glove Compartment Door
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55308B Brace Sub-assy, Instrument Panel TO Cowl, NO.3
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55328 Pin, Instrument Panel, NO.1
55330B Reinforcement Assy, Instrument Panel
55349A Cushion, Instrument Panel
55401E Pad Sub-assy, Instrument Panel Safety
55410C Panel Assy, Instrument Cluster Finish
55416C Retainer, Instrument Cluster Finish Panel
55422C Panel, Instrument Cluster Finish, Center Upper
55433B Panel, Instrument Panel Finish, Lower NO.2
55434B Panel, Instrument Panel Finish, Lower Center
55474B Garnish, Instrument Cluster Finish Panel
55475A Garnish, Instrument Cluster Finish Panel, NO.2
55480D Panel Assy, Instrument Panel Finish, Lwr
55525 Cover, Speaker Hole, NO.1
55535B Cover, Speaker Hole, NO.2
55539 Cover, Spare Switch Hole
55539C Cover, Spare Switch Hole
55539D Cover, Spare Switch Hole
55545 Cover, Fuse Box Opening
55548A Cover, Instrument Panel Hole
55548D Cover, Instrument Panel Hole
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670A Register Assy, Instrument Panel, Center
55961B Nozzle, Side Defroster, NO.1
55962D Nozzle, Side Defroster, NO.2
55981 Garnish, Defroster Nozzle, NO.1
55982 Garnish, Defroster Nozzle, NO.2
58916D Mat, Box Bottom
58917B Mat, Box Bottom
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
