Toyota Hilux
1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe
Discontinued model
Data version 1984-05

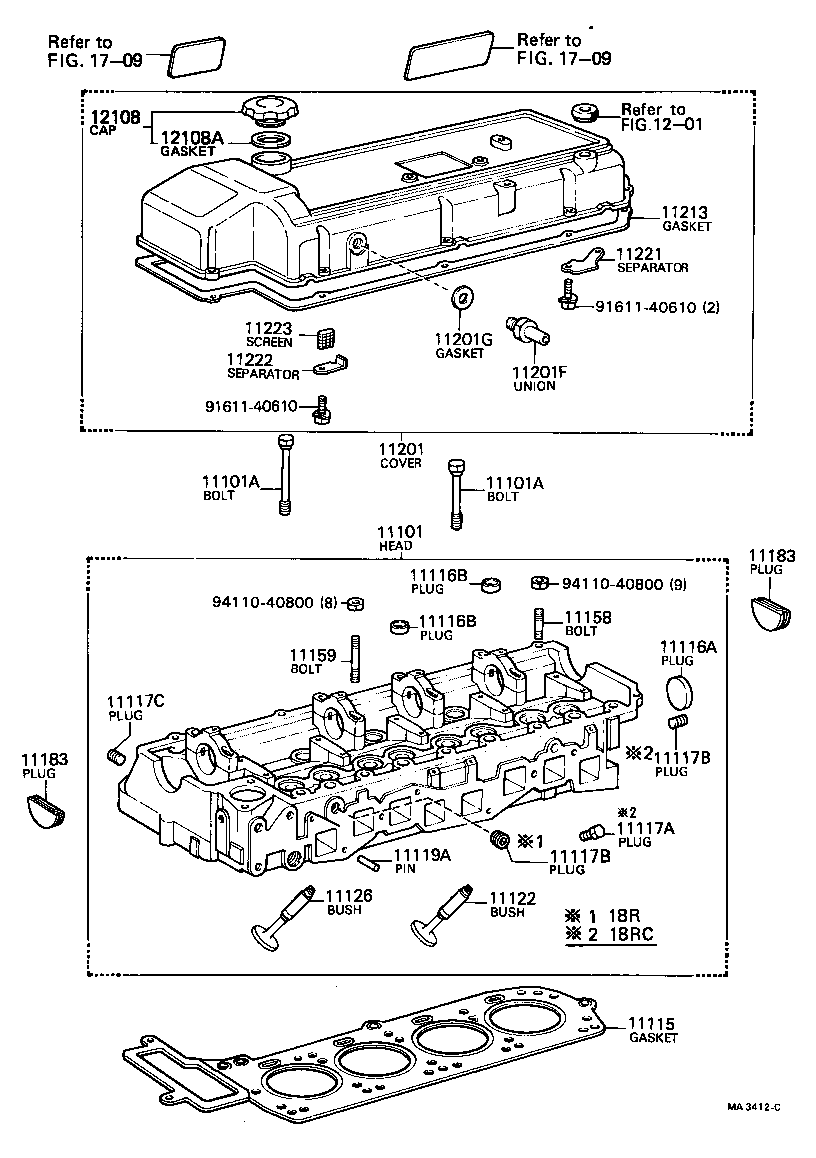

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101 — Head Sub-assy, Cylinder | ||||
| 11101-39177 |
Head Sub-assy, Cylinder
1978-08 → 1984-03
ended
|
12R RN30,40 | — | |
| 11101-39305 |
Head Sub-assy, Cylinder
1978-08 → 1980-07
ended
|
18R RN31,36,41,46 | — | |
| 11101-39315 |
Head Sub-assy, Cylinder
1978-08 → 1980-07
ended
|
18R RN31,36,41,46 | — | |
| 11101-39326 note |
Head Sub-assy, Cylinder
1978-08 → 1983-07
ended
|
12R RN30,40 ARL | — | |
| 11101-39426 |
Head Sub-assy, Cylinder
1980-07 → 1980-08
ended
|
18R RN31,36,41,46 | — | |
| 11101-39427 |
Head Sub-assy, Cylinder
1980-08 → 1980-10
ended
|
18R RN31,36,41,46 | — | |
| 11101-39427 |
Head Sub-assy, Cylinder
1980-10 → 1981-08
ended
|
18R RN36,41,46 | — | |
| 11101-39427 |
Head Sub-assy, Cylinder
1980-10 → 1981-08
ended
|
18R RN31 4F SA | — | |
| 11101-39427 |
Head Sub-assy, Cylinder
1980-10 → 1981-08
ended
|
18R RN31 ARL,GEN | — | |
| 11101-39427 |
Head Sub-assy, Cylinder
1982-09 → 1983-12
ended
|
18R RN46 ARL IV3;18R +4 | — | |
| 11101-39427 |
Head Sub-assy, Cylinder
1982-09 → 1983-12
ended
|
L LN46 T1 ARL +1 | — | |
| 11101-39427 |
Head Sub-assy, Cylinder
1981-08 → 1982-09
ended
|
L LN46 T1 ARL +1 | — | |
| 11101-39427 |
Head Sub-assy, Cylinder
1981-08 → 1982-09
ended
|
18R RN46 ARL IV3;18R +4 | — | |
| 11101-39436 |
Head Sub-assy, Cylinder
1980-07 → 1980-08
ended
|
18R RN31,36,41,46 | — | |
| 11101-39437 |
Head Sub-assy, Cylinder
1980-08 → 1983-07
ended
|
L LN46 T1 ARL +1 | — | |
| 11101-39437 |
Head Sub-assy, Cylinder
1980-08 → 1983-07
ended
|
18R RN46 ARL IV3;18R +3 | — | |
| 11101-54024 |
Head Sub-assy, Cylinder
1982-04 → 1983-08
ended
|
L LN3#,40;L LN46 TW;L +6 | — | |
| 11101-54024 |
Head Sub-assy, Cylinder
1982-04 → 1983-08
ended
|
18R RN46 ARL CBU | — | |
| 11101-54040 |
Head Sub-assy, Cylinder
1983-08 → 1984-03
ended
|
L LN30,40 | — | |
| 11101-59075 |
Head Sub-assy, Cylinder
1979-09 → 1980-08
ended
|
L LN30,40 | — | |
| 11101-59077 |
Head Sub-assy, Cylinder
1980-08 → 1981-07
ended
|
L LN3#,4# | — | |
| 11101-59078 |
Head Sub-assy, Cylinder
1981-07 → 1982-04
ended
|
L LN3#,40;L LN46 TW;L +6 | — | |
| 11101-59078 |
Head Sub-assy, Cylinder
1981-07 → 1982-04
ended
|
18R RN46 ARL CBU | — | |
| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90910-02060 note |
Bolt(FOR CYLINDER HEAD SET)
1979-09 → 1984-03
ended
|
18R RN46 ARL CBU | — | |
| 90910-02060 note |
Bolt(FOR CYLINDER HEAD SET)
1979-09 → 1984-03
ended
|
L LN3#,40;L LN46 TW;L +6 | — | |
| 90910-02060 note |
Bolt(FOR CYLINDER HEAD SET)
1978-08 → 1983-12
ended
|
18R RN31,36,41;18R RN46 ARL +3 | — | |
| 90910-02060 note |
Bolt(FOR CYLINDER HEAD SET)
1978-08 → 1983-12
ended
|
L LN46 T1 ARL +1 | — | |
| 90910-02061 note |
Bolt(FOR CYLINDER HEAD SET)
1978-08 → 1983-12
ended
|
L LN46 T1 ARL +1 | — | |
| 90910-02061 note |
Bolt(FOR CYLINDER HEAD SET)
1978-08 → 1983-12
ended
|
18R RN31,36,41;18R RN46 ARL +3 | — | |
| 90910-02065 note |
Bolt(FOR CYLINDER HEAD SET)
1978-08 → 1984-03
ended
|
12R# RN30,40 | — | |
| 90910-02066 note |
Bolt(FOR CYLINDER HEAD SET)
1978-08 → 1984-03
ended
|
12R# RN30,40 | — | |
| 11115 — Gasket, Cylinder Head | ||||
| 11115-31023 |
Gasket, Cylinder Head
1978-08 → 1984-03
ended
|
12R# RN30,40 | — | |
| 11115-36020 |
Gasket, Cylinder Head
1978-08 → 1983-12
ended
|
L LN46 T1 ARL +1 | — | |
| 11115-36020 |
Gasket, Cylinder Head
1978-08 → 1983-12
ended
|
18R RN31,36,41;18R RN46 ARL +3 | — | |
| 11115-54010 |
Gasket, Cylinder Head
1979-09 → 1981-11
ended
|
L LN3#,40;L LN46 TW;L +6 | — | |
| 11115-54010 |
Gasket, Cylinder Head
1979-09 → 1981-11
ended
|
18R RN46 ARL CBU | — | |
| 11115-54011 |
Gasket, Cylinder Head
1981-11 → 1984-03
ended
|
L LN3#,40;L LN46 TW;L +6 | — | |
| 11115-54011 |
Gasket, Cylinder Head
1981-11 → 1984-03
ended
|
18R RN46 ARL CBU | — | |
| 11116A — Plug, Tight, NO.1 | ||||
| 96411-42500 note |
Plug, Tight, NO.1
1979-09 → 1984-03
ended
|
18R RN46 ARL CBU | — | |
| 96411-42500 note |
Plug, Tight, NO.1
1979-09 → 1984-03
ended
|
L LN3#,40;L LN46 TW;L +6 | — | |
| 96411-43500 note |
Plug, Tight, NO.1
1978-08 → 1983-12
ended
|
18R RN31,36,41;18R RN46 ARL +3 | — | |
| 96411-43500 note |
Plug, Tight, NO.1
1978-08 → 1983-12
ended
|
L LN46 T1 ARL +1 | — | |
| 96411-45000 note |
Plug, Tight, NO.1
1978-08 → 1984-03
ended
|
12R# RN30,40 | — | |
| 11116B — Plug, Tight, NO.2 | ||||
| 96411-41200 note |
Plug, Tight, NO.2
1979-09 → 1984-03
ended
|
L LN3#,40;L LN46 TW;L +6 | — | |
| 96411-41200 note |
Plug, Tight, NO.2
1979-09 → 1984-03
ended
|
18R RN46 ARL CBU | — | |
| 96411-42000 note |
Plug, Tight, NO.2
1978-08 → 1983-12
ended
|
L LN46 T1 ARL +1 | — | |
| 96411-42000 note |
Plug, Tight, NO.2
1978-08 → 1983-12
ended
|
18R RN31,36,41;18R RN46 ARL +3 | — | |
| 96411-42200 note |
Plug, Tight, NO.2
1978-08 → 1984-03
ended
|
12R# RN30,40 | — | |
| 11117A — Plug, W/Head Taper Screw, NO.1 | ||||
| 90072-34107 |
Plug, W/Head Taper Screw, NO.1
1978-08 → 1980-08
ended
|
18R RN31,36,41,46 | — | |
| 90344-52003 |
Plug, W/Head Taper Screw, NO.1
1980-08 → 1983-07
ended
|
L LN46 T1 ARL +1 | — | |
| 90344-52003 |
Plug, W/Head Taper Screw, NO.1
1980-08 → 1983-07
ended
|
18R RN46 ARL IV3;18R +3 | — | |
| 90345-53028 note |
Plug, W/Head Taper Screw, NO.1
1978-08 → 1979-08
ended
|
12R RN30,40 GEN,SA | — | |
| 90345-53030 note |
Plug, W/Head Taper Screw, NO.1
1979-08 → 1983-08
ended
|
12R RN30,40 GEN,ME,SA | — | |
| 90345-53030 note |
Plug, W/Head Taper Screw, NO.1
1983-08 → 1984-03
ended
|
12R RN40;12R RN30 4H;12R +2 | — | |
| 11117B — Plug, W/Head Taper Screw, NO.2 | ||||
| 90344-53002 |
Plug, W/Head Taper Screw, NO.2
1982-09 → 1983-12
ended
|
18R RN46 ARL IV3;18R +4 | — | |
| 90344-53002 |
Plug, W/Head Taper Screw, NO.2
1982-09 → 1983-12
ended
|
L LN46 T1 ARL +1 | — | |
| 90344-53002 |
Plug, W/Head Taper Screw, NO.2
1981-08 → 1982-09
ended
|
18R RN46 ARL IV3;18R +4 | — | |
| 90344-53002 |
Plug, W/Head Taper Screw, NO.2
1981-08 → 1982-09
ended
|
L LN46 T1 ARL +1 | — | |
| 90344-53002 |
Plug, W/Head Taper Screw, NO.2
1980-10 → 1981-08
ended
|
18R RN31,36,41,46 ARL,GEN | — | |
| 90344-53002 |
Plug, W/Head Taper Screw, NO.2
1980-10 → 1981-08
ended
|
18R RN31 4F SA | — | |
| 90344-53002 |
Plug, W/Head Taper Screw, NO.2
1980-03 → 1980-10
ended
|
18R RN31,36,41,46 ARL,GEN,SA | — | |
| 90344-53008 |
Plug, W/Head Taper Screw, NO.2
1980-02 → 1980-03
ended
|
18R RN31,36,41,46 ARL,GEN,SA | — | |
| 90344-53011 |
Plug, W/Head Taper Screw, NO.2
1978-08 → 1980-02
ended
|
18R RN31,36,41,46 ARL,GEN,SA | — | |
| 90345-51006 |
Plug, W/Head Taper Screw, NO.2
1982-10 → 1984-03
ended
|
12R# RN30,40 | — | |
| 90345-51025 |
Plug, W/Head Taper Screw, NO.2
1978-08 → 1982-10
ended
|
12R# RN30,40 | — | |
| 11117C — Plug, W/Head Taper Screw, NO.3 | ||||
| 90344-51001 |
Plug, W/Head Taper Screw, NO.3
1978-08 → 1980-02
ended
|
18R RN31,36,41,46 | — | |
| 90344-51010 |
Plug, W/Head Taper Screw, NO.3
1980-02 → 1980-03
ended
|
18R RN31,36,41,46 | — | |
| 90344-51014 |
Plug, W/Head Taper Screw, NO.3
1980-03 → 1983-12
ended
|
L LN46 T1 ARL +1 | — | |
| 90344-51014 |
Plug, W/Head Taper Screw, NO.3
1980-03 → 1983-12
ended
|
18R RN31,36,41;18R RN46 ARL +3 | — | |
| 11119A — Pin, Straight, NO.1 | ||||
| 90250-08054 note |
Pin, Straight, NO.1
1978-08 → 1984-03
ended
|
L LN46 T1 ARL +1 | — | |
| 90250-08054 note |
Pin, Straight, NO.1
1978-08 → 1984-03
ended
|
18R RN46 ARL IV3;12R#,18R +3 | — | |
| 11122 — Bush, Intake Valve Guide | ||||
| 11122-23010 note |
Bush, Intake Valve Guide
1978-08 → 1984-03
ended
|
12R# RN30,40 | — | |
| 11122-33011 note |
Bush, Intake Valve Guide
1978-08 → 1980-07
ended
|
18R RN31,36,41,46 | — | |
| 11122-34010 note |
Bush, Intake Valve Guide
1980-07 → 1983-12
ended
|
18R RN31,36,41;18R RN46 ARL +3 | — | |
| 11122-34010 note |
Bush, Intake Valve Guide
1980-07 → 1983-12
ended
|
L LN46 T1 ARL +1 | — | |
| 11122-54010 note |
Bush, Intake Valve Guide
1979-09 → 1981-07
ended
|
L LN3#,4# | — | |
| 11122-54011 note |
Bush, Intake Valve Guide
1981-07 → 1984-03
ended
|
L LN3#,40;L LN46 TW;L +6 | — | |
| 11122-54011 note |
Bush, Intake Valve Guide
1981-07 → 1984-03
ended
|
18R RN46 ARL CBU | — | |
| 11123-23010 note |
Bush, Intake Valve Guide
1978-08 → 1984-03
ended
|
12R# RN30,40 | — | |
| 11123-33011 note |
Bush, Intake Valve Guide
1978-08 → 1980-07
ended
|
18R RN31,36,41,46 | — | |
| 11123-34010 note |
Bush, Intake Valve Guide
1980-07 → 1983-12
ended
|
L LN46 T1 ARL +1 | — | |
| 11123-34010 note |
Bush, Intake Valve Guide
1980-07 → 1983-12
ended
|
18R RN31,36,41;18R RN46 ARL +3 | — | |
| 11123-54010 note |
Bush, Intake Valve Guide
1979-09 → 1981-07
ended
|
L LN3#,4# | — | |
| 11123-54011 note |
Bush, Intake Valve Guide
1981-07 → 1984-03
ended
|
L LN3#,40;L LN46 TW;L +6 | — | |
| 11123-54011 note |
Bush, Intake Valve Guide
1981-07 → 1984-03
ended
|
18R RN46 ARL CBU | — | |
| 11126 — Bush, Exhaust Valve Guide | ||||
| 11122-23010 note |
Bush, Exhaust Valve Guide
1978-08 → 1984-03
ended
|
12R# RN30,40 | — | |
| 11122-34010 note |
Bush, Exhaust Valve Guide
1980-07 → 1983-12
ended
|
L LN46 T1 ARL +1 | — | |
| 11122-34010 note |
Bush, Exhaust Valve Guide
1980-07 → 1983-12
ended
|
18R RN31,36,41;18R RN46 ARL +3 | — | |
| 11122-54010 note |
Bush, Exhaust Valve Guide
1979-09 → 1981-07
ended
|
L LN3#,4# | — | |
| 11122-54011 note |
Bush, Exhaust Valve Guide
1981-07 → 1984-03
ended
|
18R RN46 ARL CBU | — | |
| 11122-54011 note |
Bush, Exhaust Valve Guide
1981-07 → 1984-03
ended
|
L LN3#,40;L LN46 TW;L +6 | — | |
| 11123-23010 note |
Bush, Exhaust Valve Guide
1978-08 → 1984-03
ended
|
12R# RN30,40 | — | |
| 11123-34010 note |
Bush, Exhaust Valve Guide
1980-07 → 1983-12
ended
|
18R RN31,36,41;18R RN46 ARL +3 | — | |
| 11123-34010 note |
Bush, Exhaust Valve Guide
1980-07 → 1983-12
ended
|
L LN46 T1 ARL +1 | — | |
| 11123-54010 note |
Bush, Exhaust Valve Guide
1979-09 → 1981-07
ended
|
L LN3#,4# | — | |
| 11123-54011 note |
Bush, Exhaust Valve Guide
1981-07 → 1984-03
ended
|
L LN3#,40;L LN46 TW;L +6 | — | |
| 11123-54011 note |
Bush, Exhaust Valve Guide
1981-07 → 1984-03
ended
|
18R RN46 ARL CBU | — | |
| 11126-33011 note |
Bush, Exhaust Valve Guide
1978-08 → 1980-07
ended
|
18R RN31,36,41,46 | — | |
| 11127-33011 note |
Bush, Exhaust Valve Guide
1978-08 → 1980-07
ended
|
18R RN31,36,41,46 | — | |
| 11158 — Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 90116-08084 note |
Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER)
1979-08 → 1983-12
ended
|
L LN46 T1 ARL +1 | — | |
| 90116-08084 note |
Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER)
1979-08 → 1983-12
ended
|
18R RN31,36,41;18R RN46 ARL +3 | — | |
| 90116-08207 note |
Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER)
1978-08 → 1979-08
ended
|
18R RN31,36,41,46 | — | |
| 11159 — Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90116-08054 note |
Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP)
1979-09 → 1980-10
ended
|
L LN30,40 | — | |
| 90116-08137 note |
Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP)
1980-10 → 1984-03
ended
|
18R RN46 ARL CBU | — | |
| 90116-08137 note |
Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP)
1980-10 → 1984-03
ended
|
L LN3#,40;L LN46 TW;L +6 | — | |
| 90116-08201 note |
Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP)
1978-08 → 1983-12
ended
|
18R RN31,36,41;18R RN46 ARL +3 | — | |
| 90116-08201 note |
Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP)
1978-08 → 1983-12
ended
|
L LN46 T1 ARL +1 | — | |
| 11183 — Plug, Semicircular | ||||
| 11183-33010 |
Plug, Semicircular
1978-08 → 1983-12
ended
|
L LN46 T1 ARL +1 | — | |
| 11183-33010 |
Plug, Semicircular
1978-08 → 1983-12
ended
|
18R RN31,36,41;18R RN46 ARL +3 | — | |
| 11183-54011 |
Plug, Semicircular
1979-09 → 1984-03
ended
|
L LN3#,40;L LN46 TW;L +6 | — | |
| 11183-54011 |
Plug, Semicircular
1979-09 → 1984-03
ended
|
18R RN46 ARL CBU | — | |
| 11201 — Cover Sub-assy, Cylinder Head | ||||
| 11201-39177 |
Cover Sub-assy, Cylinder Head
1978-08 → 1979-08
ended
|
18R RN31,36,41,46 | — | |
| 11201-39178 |
Cover Sub-assy, Cylinder Head
1979-08 → 1983-12
ended
|
L LN46 T1 ARL +1 | — | |
| 11201-39178 |
Cover Sub-assy, Cylinder Head
1979-08 → 1983-12
ended
|
18R RN31,36,41;18R RN46 ARL +3 | — | |
| 11201-39195 |
Cover Sub-assy, Cylinder Head
1978-08 → 1979-11
ended
|
12R# RN30,40 | — | |
| 11201-39196 |
Cover Sub-assy, Cylinder Head
1979-11 → 1984-03
ended
|
12R# RN30,40 | — | |
| 11201-54050 |
Cover Sub-assy, Cylinder Head
1983-07 → 1984-03
ended
|
L LN30,40 | — | |
| 11201-59016 |
Cover Sub-assy, Cylinder Head
1979-09 → 1980-08
ended
|
L LN30,40 | — | |
| 11201-59045 |
Cover Sub-assy, Cylinder Head
1980-08 → 1983-07
ended
|
L LN3#,40;L LN46 TW;L +6 | — | |
| 11201-59045 |
Cover Sub-assy, Cylinder Head
1980-08 → 1983-07
ended
|
18R RN46 ARL CBU | — | |
| 11201F — Union(FOR POSITIVE CRANKCASE VENTILATION) | ||||
| 90404-16108 |
Union(FOR POSITIVE CRANKCASE VENTILATION)
1978-08 → 1983-12
ended
|
L LN46 T1 ARL +1 | — | |
| 90404-16108 |
Union(FOR POSITIVE CRANKCASE VENTILATION)
1978-08 → 1983-12
ended
|
18R RN31,36,41;18R RN46 ARL +3 | — | |
| 11201G — Gasket(FOR POSITIVE CRANKCASE VENTILATION) | ||||
| 90430-16175 |
Gasket(FOR POSITIVE CRANKCASE VENTILATION)
1978-08 → 1983-12
ended
|
L LN46 T1 ARL +1 | — | |
| 90430-16175 |
Gasket(FOR POSITIVE CRANKCASE VENTILATION)
1978-08 → 1983-12
ended
|
18R RN31,36,41;18R RN46 ARL +3 | — | |
| 11213 — Gasket, Cylinder Head Cover | ||||
| 11213-31020 |
Gasket, Cylinder Head Cover
1978-08 → 1984-03
ended
|
12R# RN30,40 | — | |
| 11213-33010 |
Gasket, Cylinder Head Cover
1978-08 → 1983-12
ended
|
L LN46 T1 ARL +1 | — | |
| 11213-33010 |
Gasket, Cylinder Head Cover
1978-08 → 1983-12
ended
|
18R RN31,36,41;18R RN46 ARL +3 | — | |
| 11213-34020 |
Gasket, Cylinder Head Cover
1978-08 → 1983-07
ended
|
L LN46 T1 ARL +1 | — | |
| 11213-34020 |
Gasket, Cylinder Head Cover
1978-08 → 1983-07
ended
|
18R RN46 ARL IV3;18R +3 | — | |
| 11213-54010 |
Gasket, Cylinder Head Cover
1979-09 → 1983-04
ended
|
L LN3#,40;L LN46 TW;L +6 | — | |
| 11213-54010 |
Gasket, Cylinder Head Cover
1979-09 → 1983-04
ended
|
18R RN46 ARL CBU | — | |
| 11213-54030 |
Gasket, Cylinder Head Cover
1983-04 → 1984-03
ended
|
L LN3#,40;L LN46 TW;L +6 | — | |
| 11213-54030 |
Gasket, Cylinder Head Cover
1983-04 → 1984-03
ended
|
18R RN46 ARL CBU | — | |
| 11221 — Separator, Cylinder Head Cover, NO.1 | ||||
| 11221-34010 |
Separator, Cylinder Head Cover, NO.1
1978-08 → 1983-12
ended
|
18R RN31,36,41;18R RN46 ARL +3 | — | |
| 11221-34010 |
Separator, Cylinder Head Cover, NO.1
1978-08 → 1983-12
ended
|
L LN46 T1 ARL +1 | — | |
| 11222 — Separator, Cylinder Head Cover, NO.2 | ||||
| 11222-34010 |
Separator, Cylinder Head Cover, NO.2
1978-08 → 1983-12
ended
|
L LN46 T1 ARL +1 | — | |
| 11222-34010 |
Separator, Cylinder Head Cover, NO.2
1978-08 → 1983-12
ended
|
18R RN31,36,41;18R RN46 ARL +3 | — | |
| 11223 — Screen,Cylinder Head Cover | ||||
| 11223-33010 |
Screen,Cylinder Head Cover
1978-08 → 1983-12
ended
|
L LN46 T1 ARL +1 | — | |
| 11223-33010 |
Screen,Cylinder Head Cover
1978-08 → 1983-12
ended
|
18R RN31,36,41;18R RN46 ARL +3 | — | |
| 12108 — Cap Sub-assy, Oil Filler | ||||
| 12180-13010 |
Cap Sub-assy, Oil Filler
1979-09 → 1983-06
ended
|
18R RN46 ARL CBU | — | |
| 12180-13010 |
Cap Sub-assy, Oil Filler
1979-11 → 1984-03
ended
|
12R# RN30,40 | — | |
| 12180-13010 |
Cap Sub-assy, Oil Filler
1979-08 → 1983-12
ended
|
18R RN31,36,41;18R RN46 ARL +3 | — | |
| 12180-13010 |
Cap Sub-assy, Oil Filler
1979-08 → 1983-12
ended
|
L LN46 T1 ARL +1 | — | |
| 12180-13010 |
Cap Sub-assy, Oil Filler
1979-09 → 1983-06
ended
|
L LN3#,40;L LN46 TW;L +6 | — | |
| 12180-70010 |
Cap Sub-assy, Oil Filler
1983-06 → 1984-03
ended
|
L LN3#,40;L LN46 TW;L +6 | — | |
| 12180-70010 |
Cap Sub-assy, Oil Filler
1983-06 → 1984-03
ended
|
18R RN46 ARL CBU | — | |
| 12181-12904 |
Cap Sub-assy, Oil Filler
1978-08 → 1979-08
ended
|
18R RN31,36,41,46 | — | |
| 12181-31020 |
Cap Sub-assy, Oil Filler
1978-08 → 1979-11
ended
|
12R# RN30,40 | — | |
| 12108A — Gasket(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
Gasket(FOR OIL FILLER CAP)
1978-08 → 1984-03
ended
|
L LN3#,4# | — | |
| 90430-37140 |
Gasket(FOR OIL FILLER CAP)
1978-08 → 1984-03
ended
|
18R RN31,36,41,46 | — | |
| 90430-37140 |
Gasket(FOR OIL FILLER CAP)
1979-11 → 1984-03
ended
|
12R# RN30,40 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
