Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 8 illustrations

Illustrations

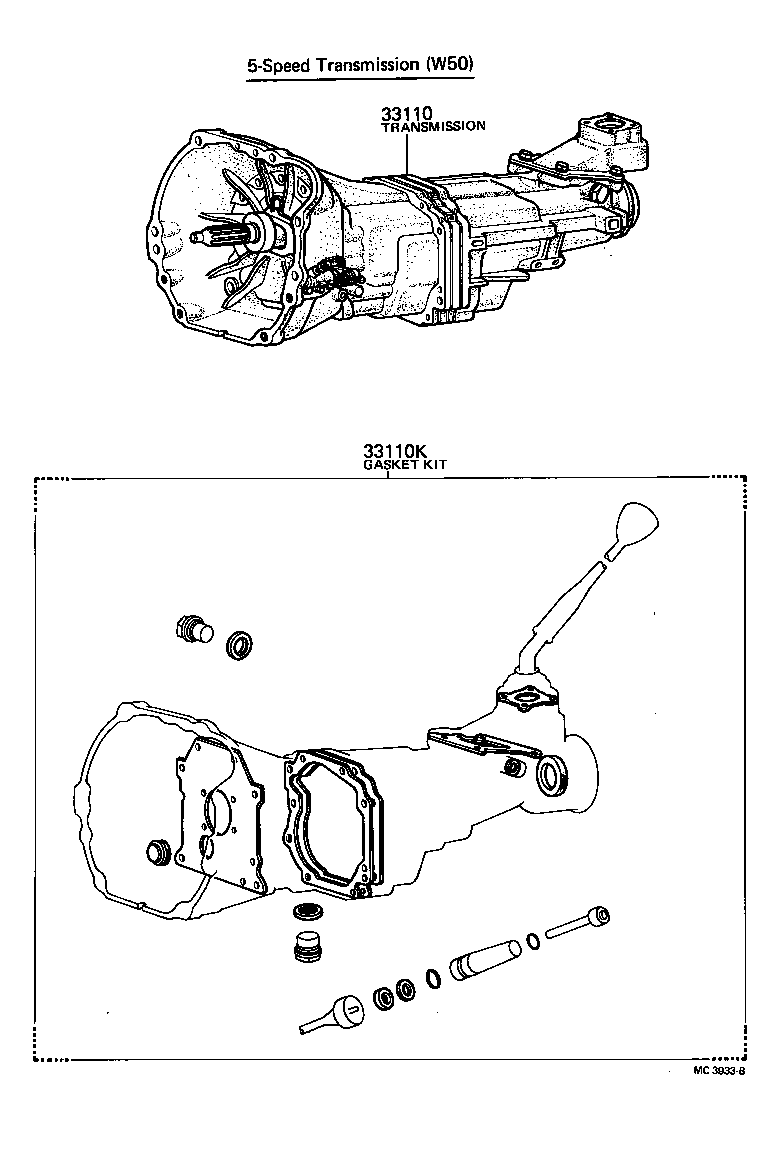

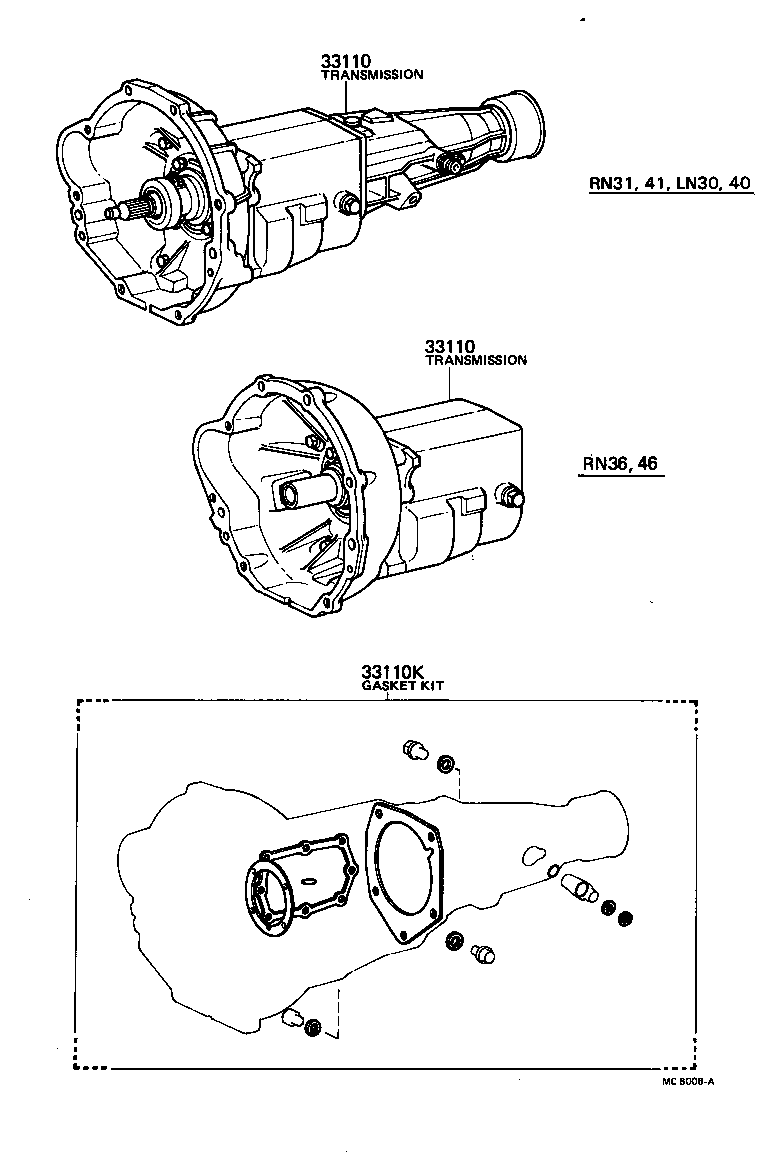

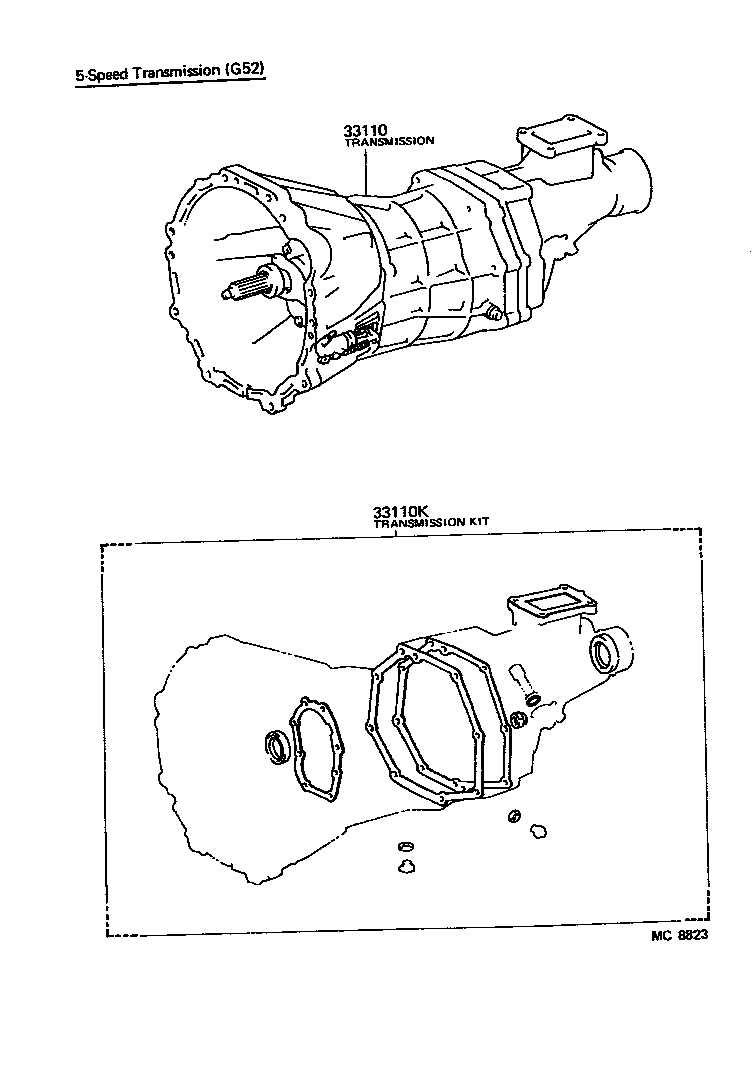

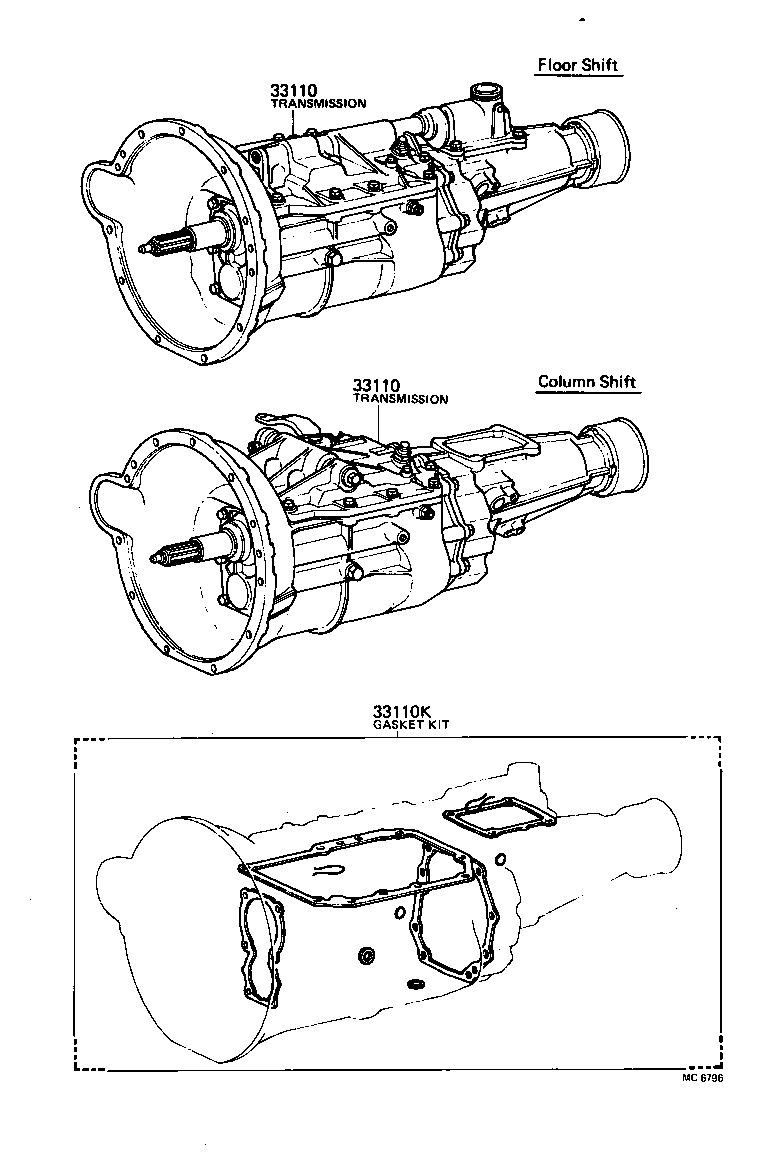

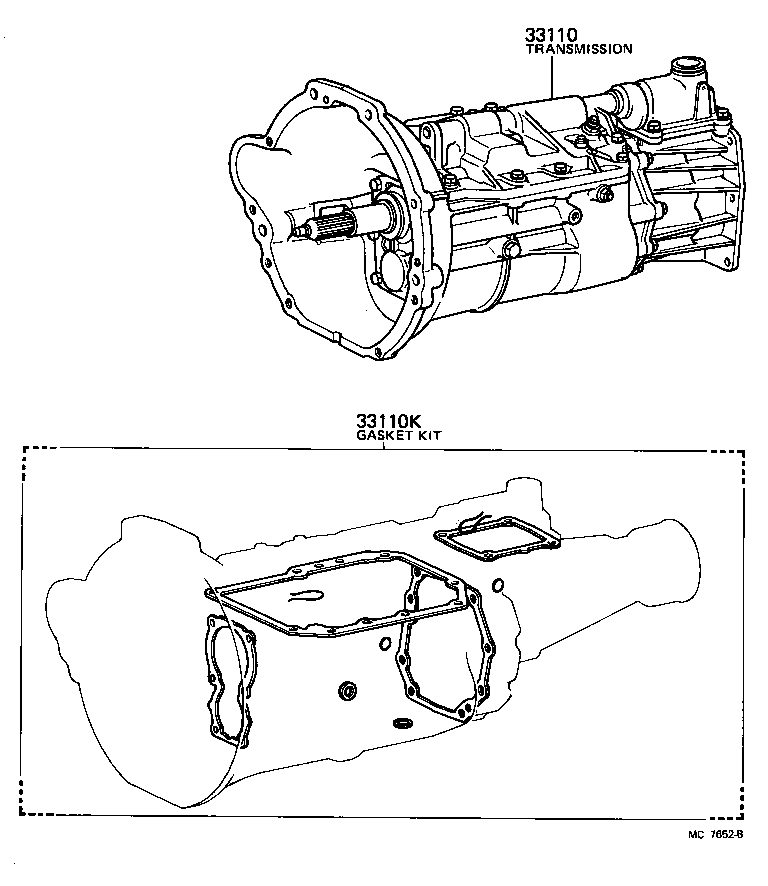

Figure MC1812B MC1812B 1978-08 → — Figure MC6006A MC6006A 1978-08 → — Figure MC3933B MC3933B 1978-08 → 1983-12 Figure MC6796 MC6796 1979-11 → 1983-10 Figure MC6796 MC6796 1983-10 → 1983-12 Figure MC8823 MC8823 1978-08 → — Figure MC8823 MC8823 1983-10 → — Figure MC7652B MC7652B 1981-03 → 1983-07

Part groups

PNCDescription
33110 Transmission Assy, Manual
33110K Gasket Kit, Manual Transmission Overhaul
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
