Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

16 part groups · 6 illustrations

Illustrations

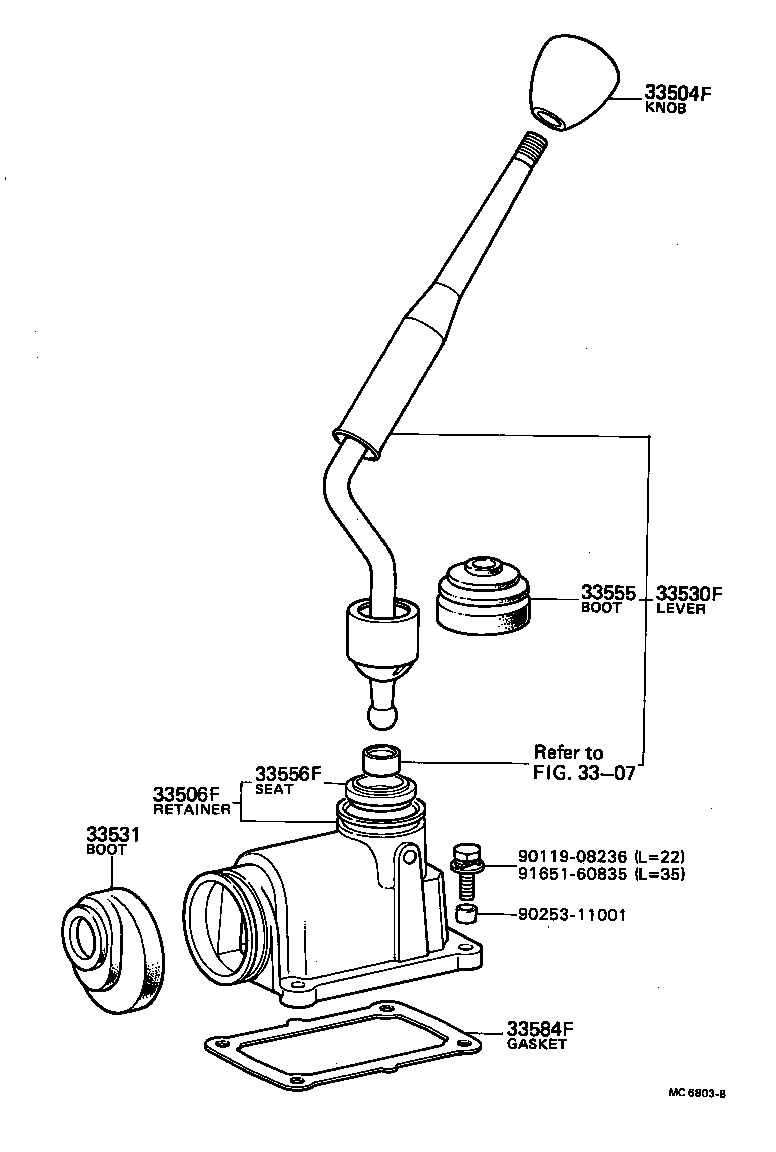

Figure MC5730F MC5730F 1978-08 → — Figure MC5690B MC5690B 1978-08 → 1983-12 Figure MC6803B MC6803B 1979-11 → 1983-10 Figure MC6803B MC6803B 1983-10 → 1983-12 Figure MC8828 MC8828 1983-10 → — Figure MC7061 MC7061 1981-03 → 1983-07

Part groups

PNCDescription
33143 Plate, Extension Housing Oil Baffle
33504F Knob Sub-assy, Shift Lever
33506A Bolt (FOR CONTROL SHIFT LEVER RETAINER)
33506B Washer, Plate (FOR CONTROL SHIFT LEVER RETAINER)
33506F Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
33530A Spring, Compression (FOR SHIFT LEVER)
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33531 Boot, Dust (FOR CONTROL SHIFT LEVER)
33553 Seat, Shift Lever Spring
33554 Cap, Shift Lever
33555 Boot, Shift Lever
33556F Seat, Transmission Shift Lever Ball
33584F Gasket, Control Shift Lever Retainer (FOR FLOOR SHIFT)
33599 Gasket, Control Shift Lever Retainer, NO.2
33615 Bush, Control Shift Lever Retainer
33686F Boot, Control Shaft Dust (FOR FLOOR SHIFT RETAINER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
