Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

13 part groups · 2 illustrations

Illustrations

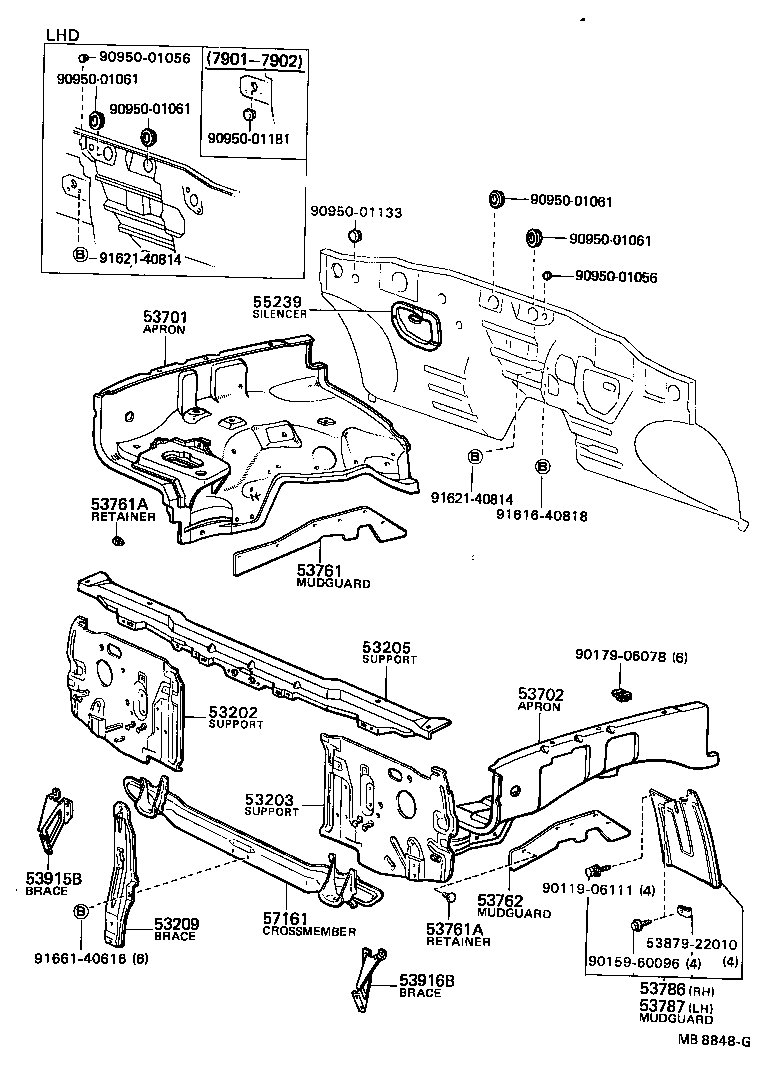

Figure MB8070K MB8070K 1978-08 → — Figure MB8848G MB8848G 1979-01 → 1983-07

Part groups

PNCDescription
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53205 Support Sub-assy, Radiator, Upper
53209 Brace Sub-assy, Hood Lock
53465 Bracket,Washer Tank
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53761 Mudguard, RH
53761A Retainer(FOR MUDGUARD)
53762 Mudguard, LH
53915B Brace, Valance Panel TO Radiator Support, RH
53916B Brace, Valance Panel TO Radiator Support, LH
55239 Silencer, Steering Column Hole Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
