Toyota Hilux
1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe
Discontinued model
Data version 1999-01

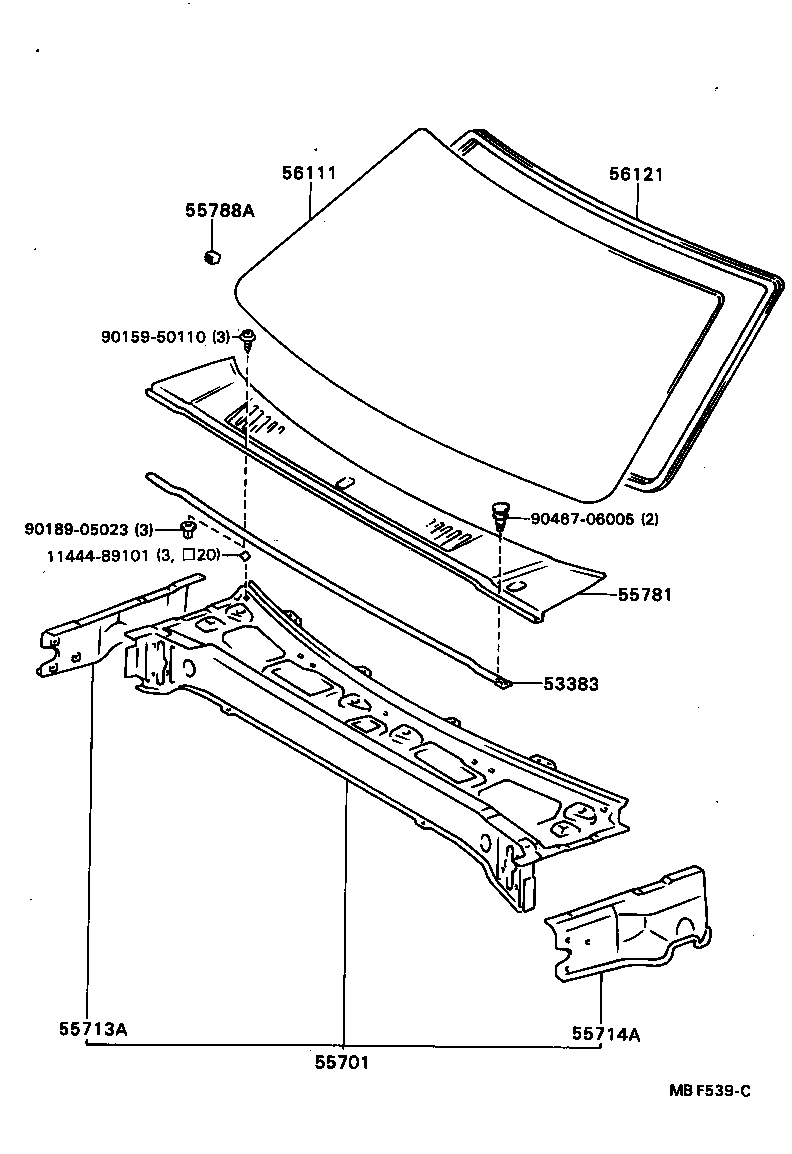

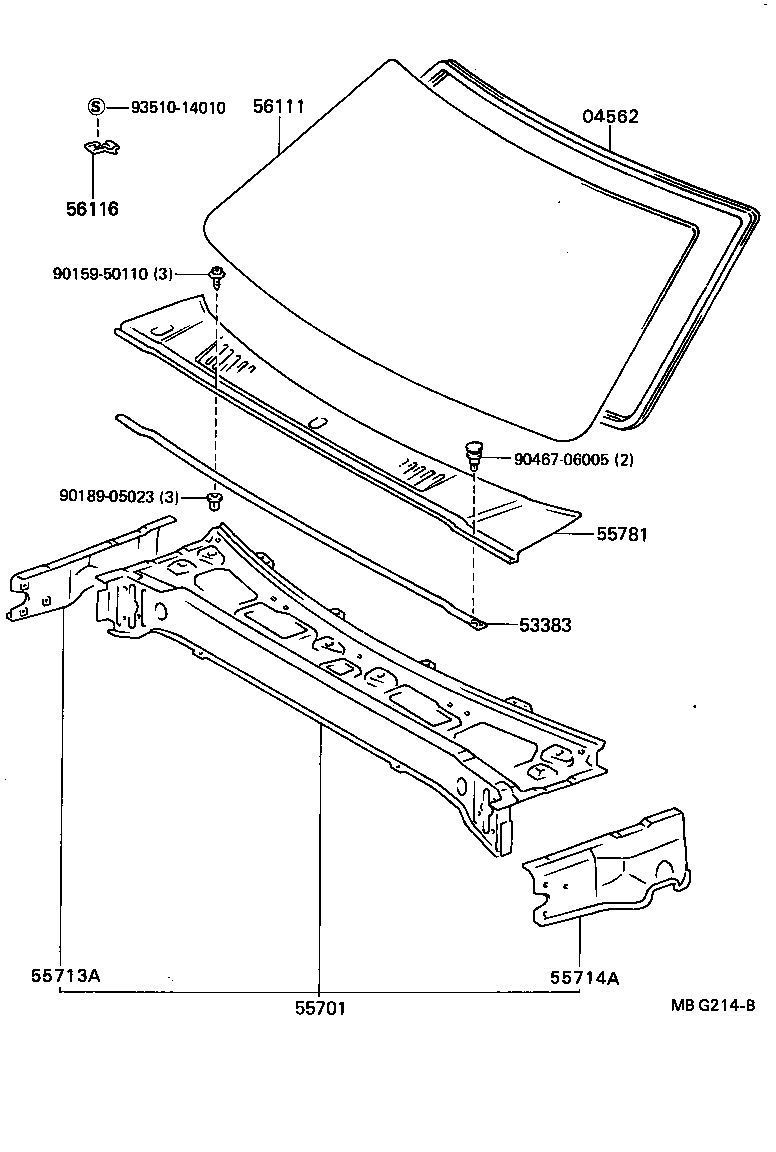

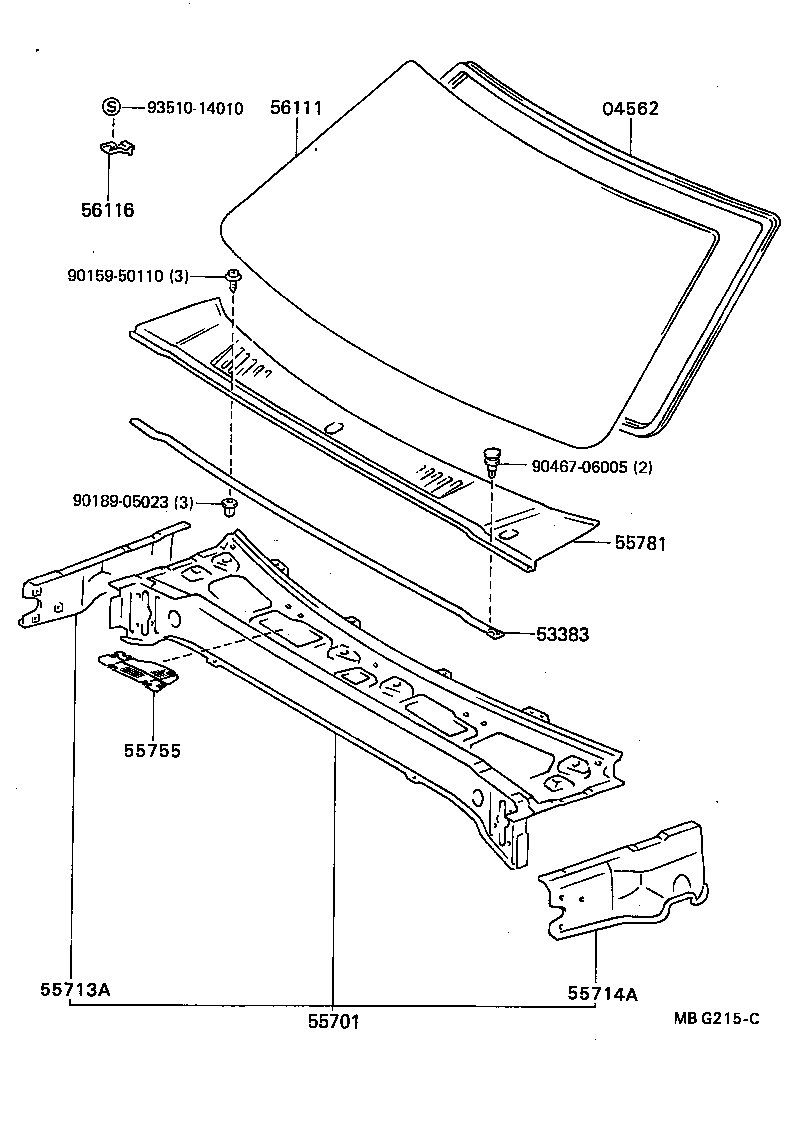

Cowl Panel & Windshield Glass
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04562 | Dam Kit, Windshield Glass |
| 53383 | Seal, Hood TO Cowl Top |
| 55701 | Panel Sub-assy, Cowl |
| 55713A | Panel, Cowl Top Side, RH |
| 55714A | Panel, Cowl Top Side, LH |
| 55755 | Screen, Heater Air Duct |
| 55781 | Louver, Cowl Ventilator |
| 55788A | Protector, Cowl Top Ventilator Louver |
| 56111 | Glass, Windshield |
| 56116 | Spacer, Windshield Glass |
| 56121 | Weatherstrip, Windshield |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
