Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

56 part groups · 6 illustrations

Illustrations

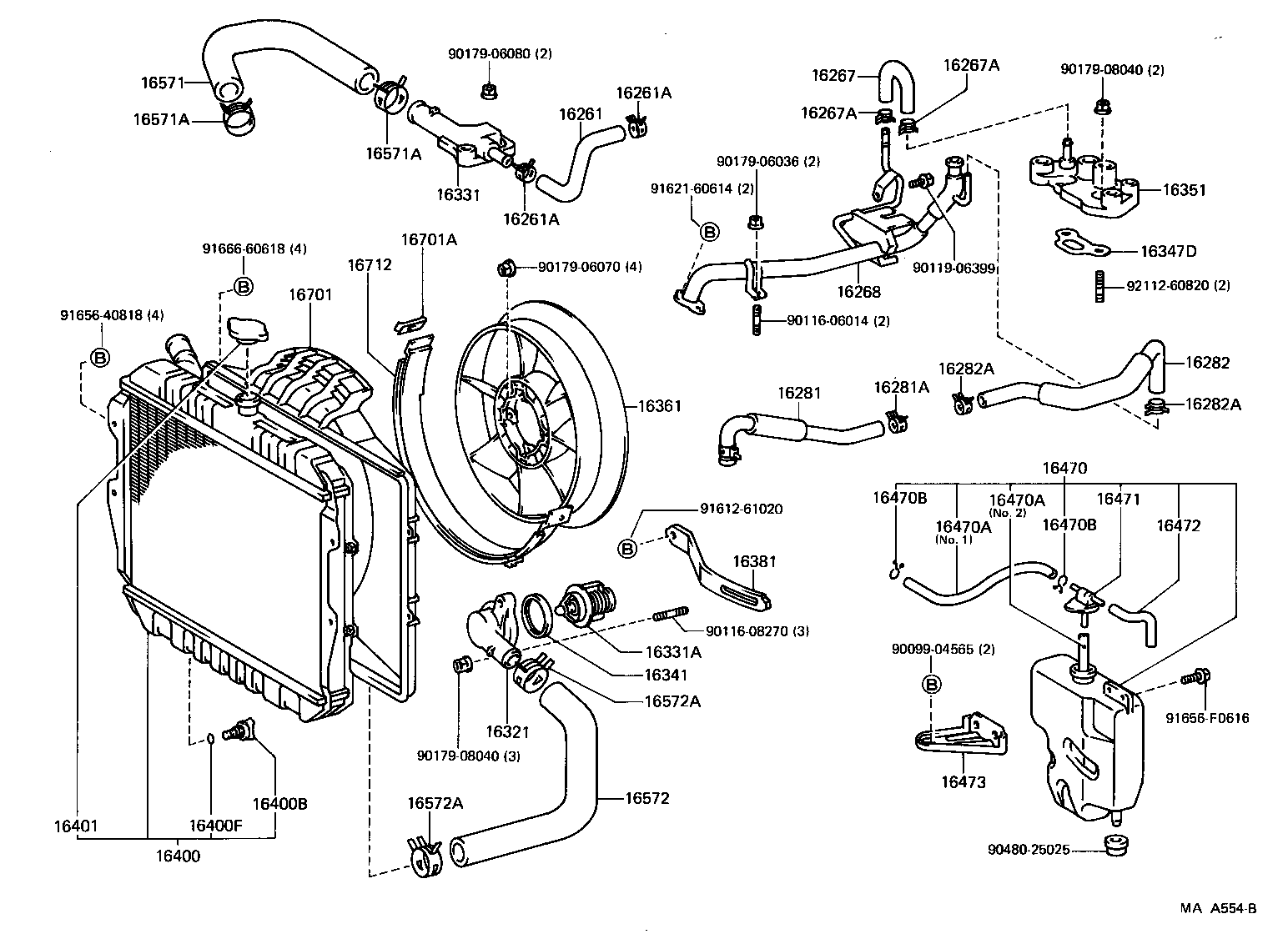

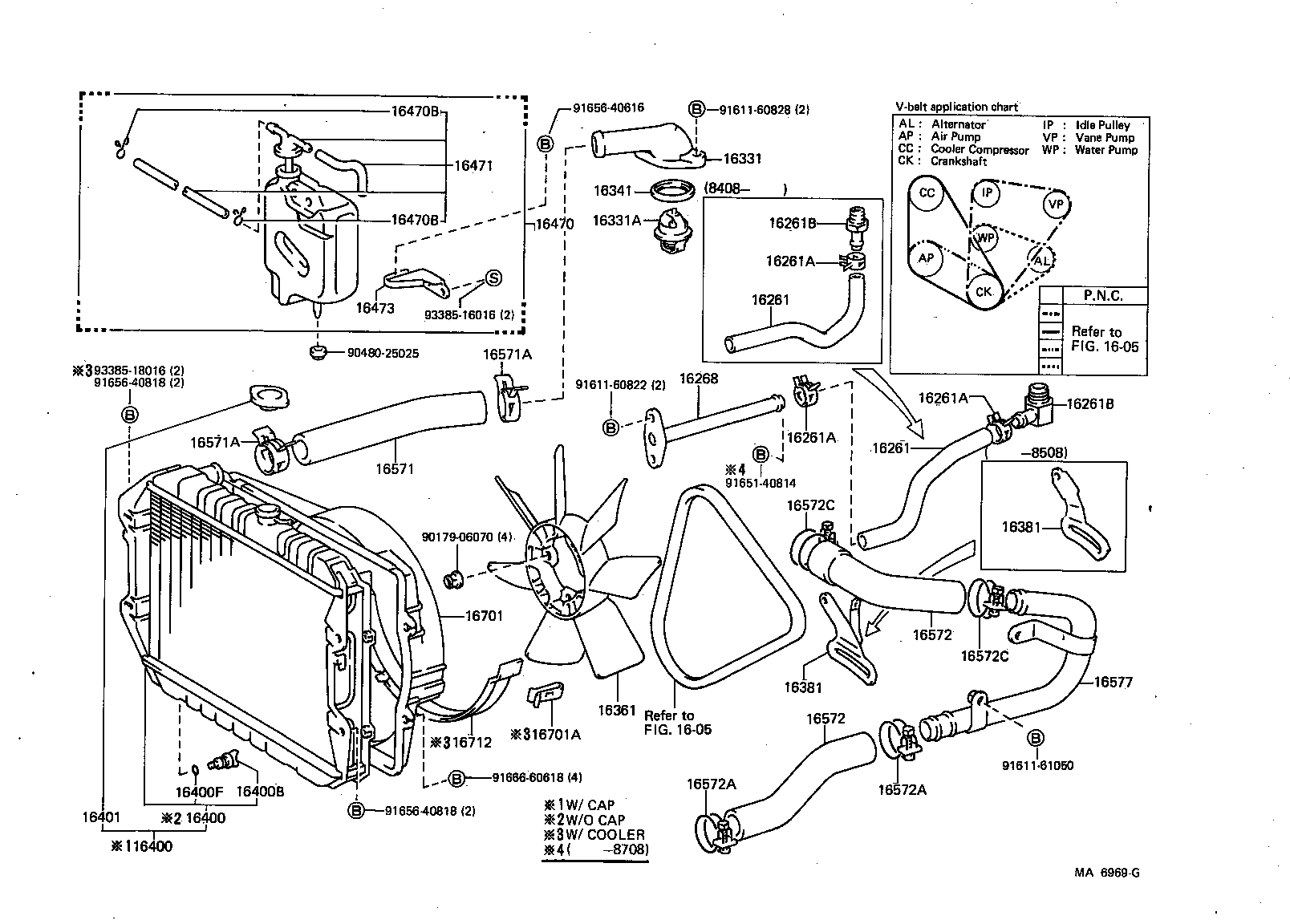

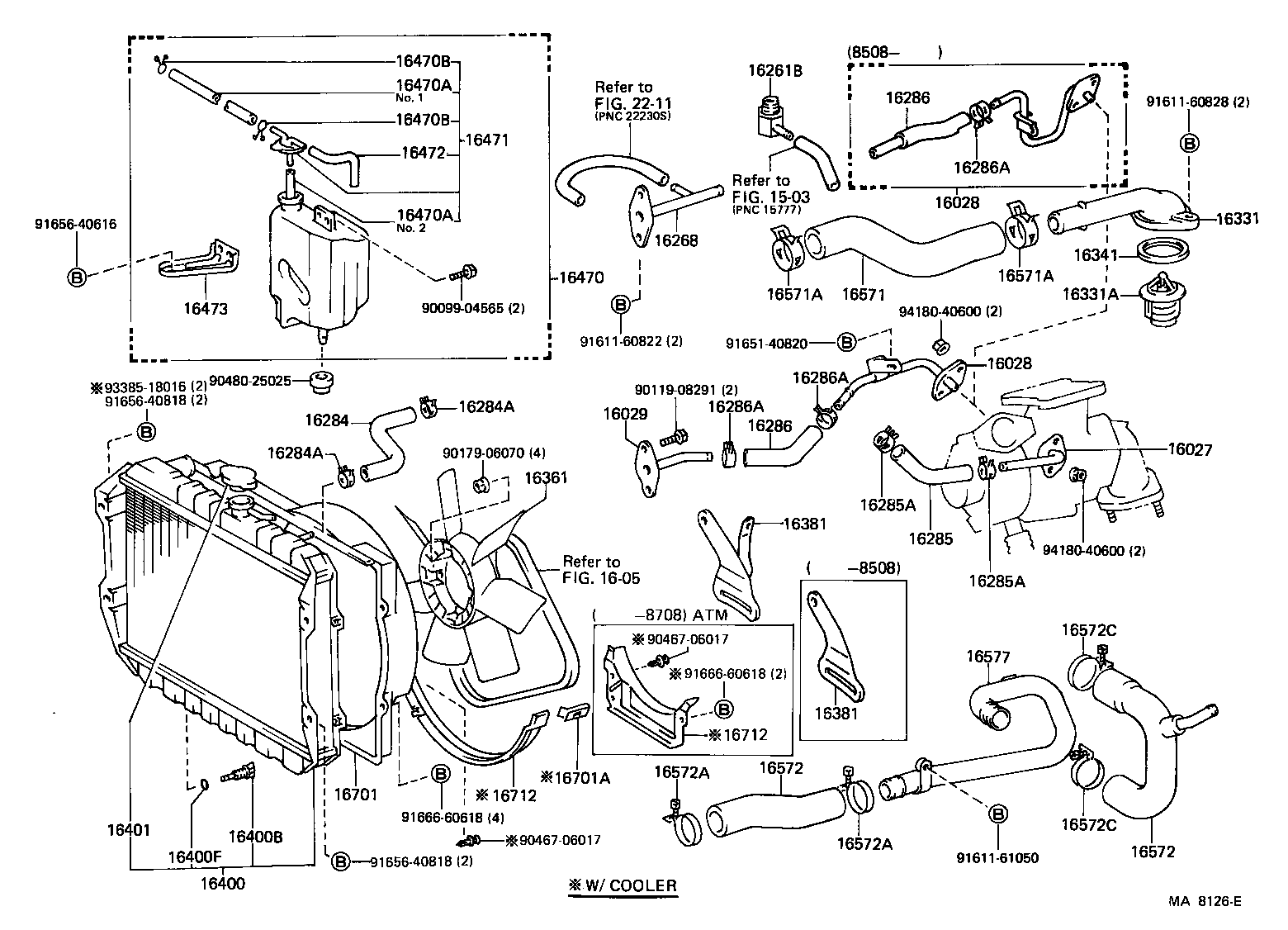

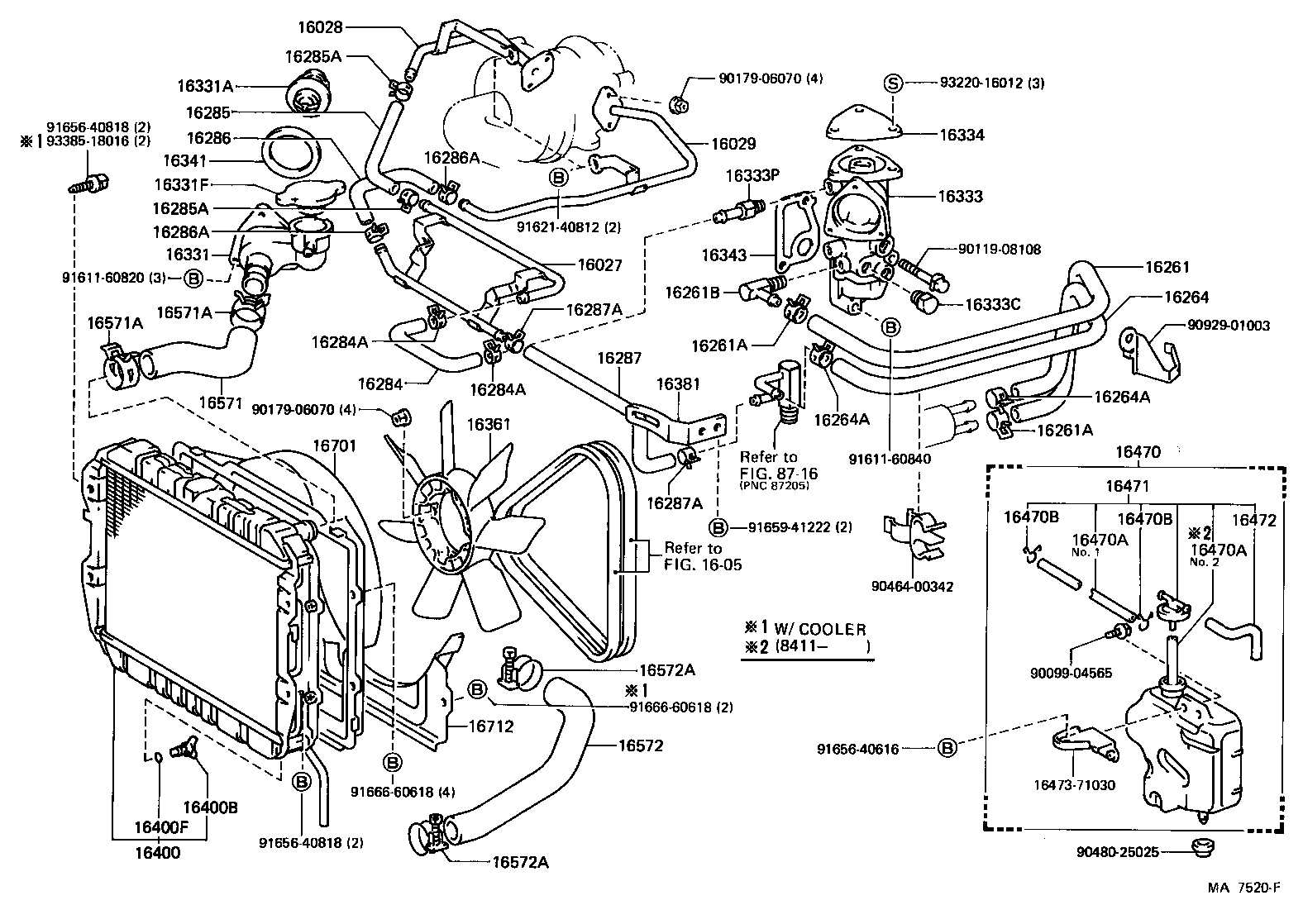

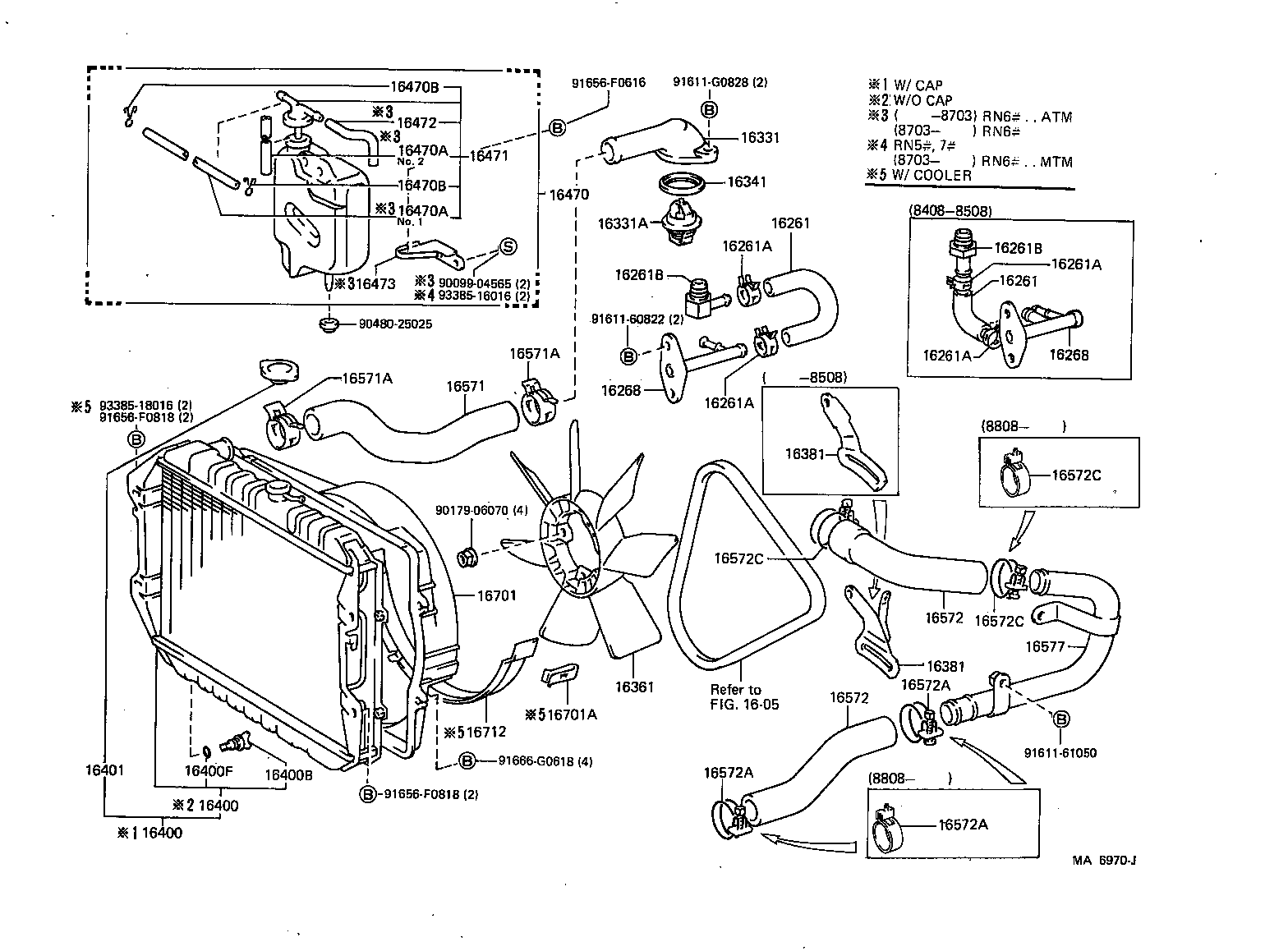

Figure MA7075H MA7075H 1983-08 → 1987-08 Figure MA7520F MA7520F 1984-08 → 1987-08 Figure MA6969G MA6969G 1983-08 → 1988-08 Figure MA6970J MA6970J 1983-08 → — Figure MA8126E MA8126E 1985-01 → 1988-08 Figure MAA554B MAA554B 1987-11 → —

Part groups

PNCDescription
16027 Pipe Sub-assy, Turbo Water, NO.1
16028 Pipe Sub-assy, Turbo Water, NO.2
16029 Pipe Sub-assy, Turbo Water, NO.3
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261B Union(FOR WATER BY-PASS HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16268 Pipe, Water By-pass, NO.1
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16287 Hose, Turbo Water, NO.4
16287A Clip(FOR TURBO WATER HOSE NO.4)
16321 Inlet, Water
16331 Outlet, Water
16331A Thermostat
16331F Cap Sub-assy(FOR WATER OUTLET)
16333 Housing, Water Outlet
16333C Plug, W/Head Taper Screw
16333P Union(FOR WATER OUTLET HOUSING)
16334 Cover, Water Outlet Housing
16341 Gasket, Water Outlet
16343 Gasket, Water Outlet Housing
16347D Gasket, Water By-pass
16351 Outlet, Water By-pass
16361 Fan
16381 Bar, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16470 Tank Assy, Radiator Reserve
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16470B Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
16471 Cap Sub-assy, Reserve Tank
16472 Hose, Breather
16473 Support(FOR RADIATOR RESERVE TANK)
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572C Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.2)
16577 Pipe, Radiator, NO.7
16701 Shroud Sub-assy, Fan
16701A Clip(FOR FAN SHROUD)
16712 Shroud, Fan, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
