Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN10#,110,13#,VZN10#,110,13# · catalogue 671450 · Europe

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

16 part groups · 7 illustrations

Illustrations

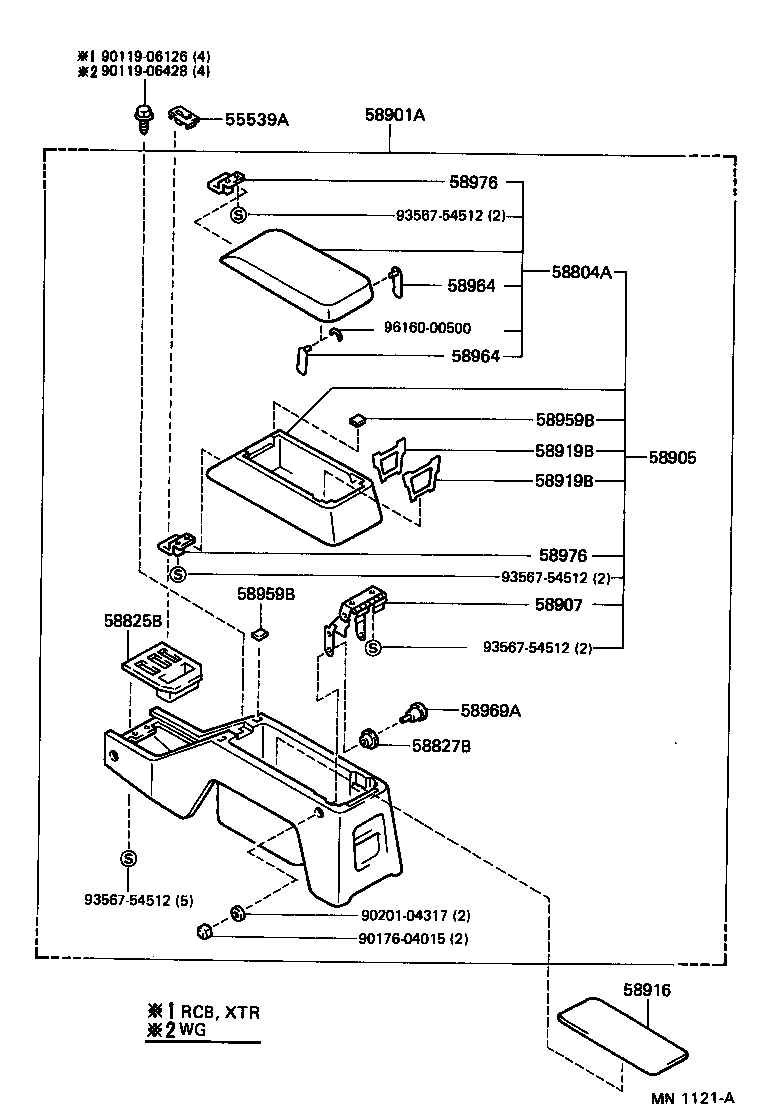

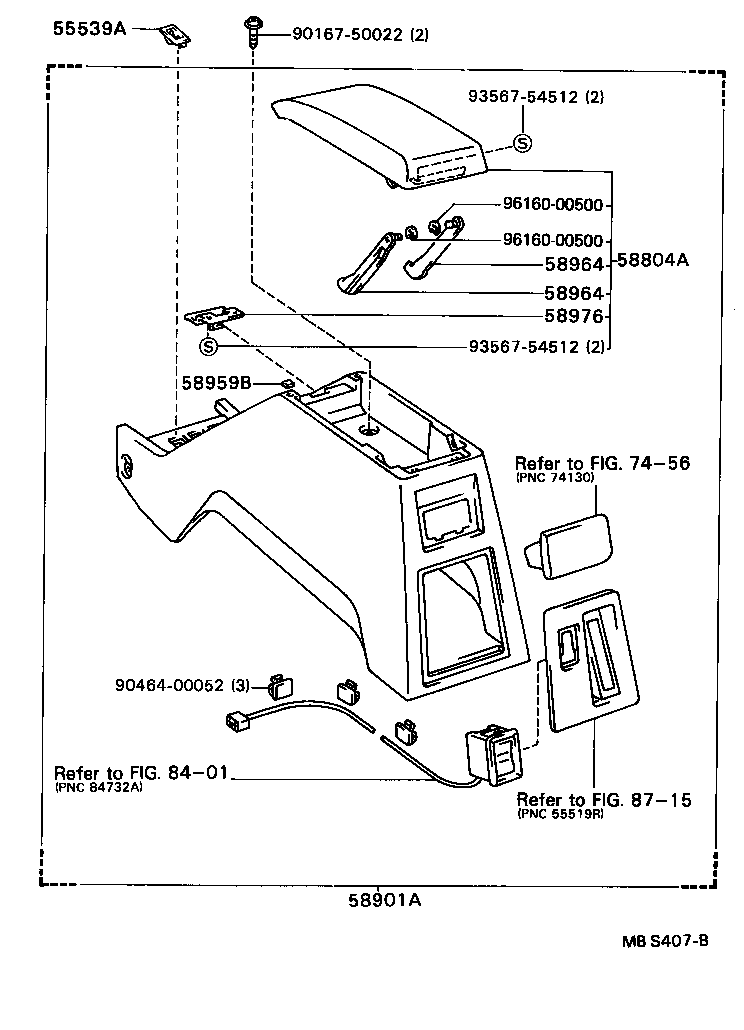

Figure MN1118 MN1118 1988-08 → — Figure MN1119 MN1119 1988-08 → 1989-08 Figure MN1119 MN1119 1989-08 → — Figure MBT032 MBT032 1989-08 → — Figure MN1120B MN1120B 1988-08 → — Figure MN1121A MN1121A 1988-08 → — Figure MBS407B MBS407B 1989-04 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58811A Box, Console, Front
58825B Pocket, Console Box
58827B Spacer, Console Compartment Door Stopper
58901A Box Sub-assy, Console, Rear
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58916 Mat, Box Bottom
58919B Plate, Console Box
58959B Cushion, Console Compartment Door
58964 Stopper, Console Compartment Door, NO.1
58969A Retainer, Console Compartment Door Stopper
58976 Striker, Console Compartment Door Lock
58991 Bracket, Console Box Mounting, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
