Toyota Hilux (JPP)

1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe

Discontinued model Data version 1998-04

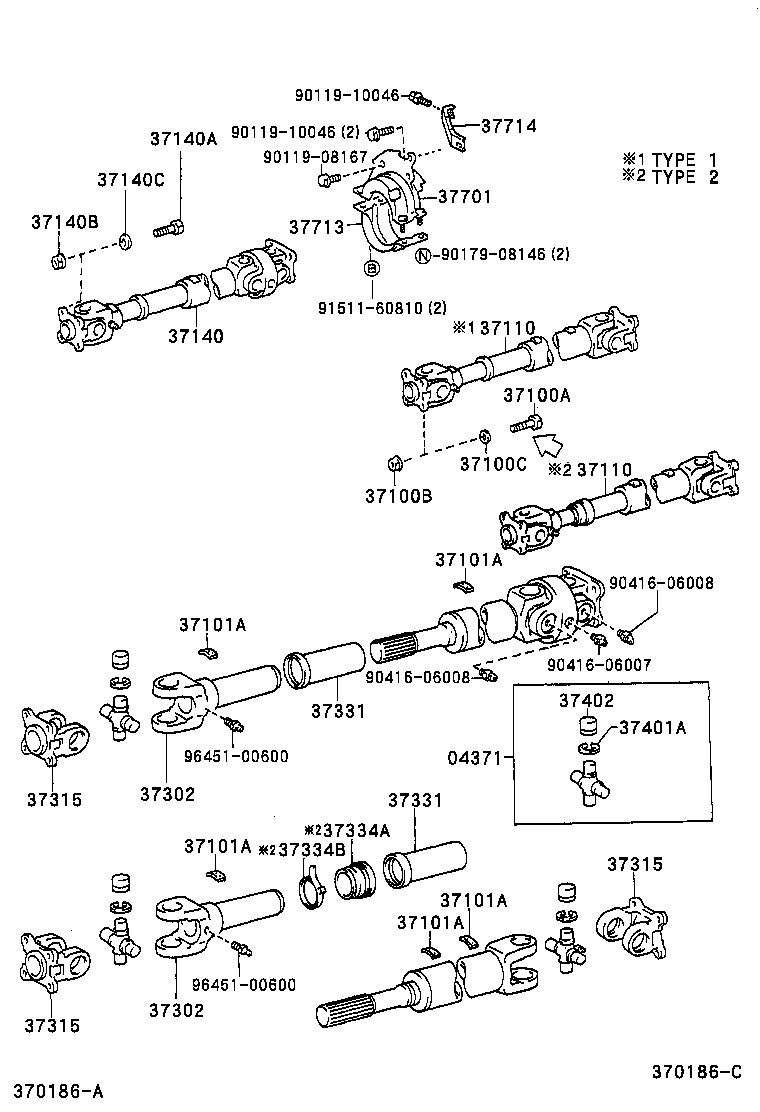

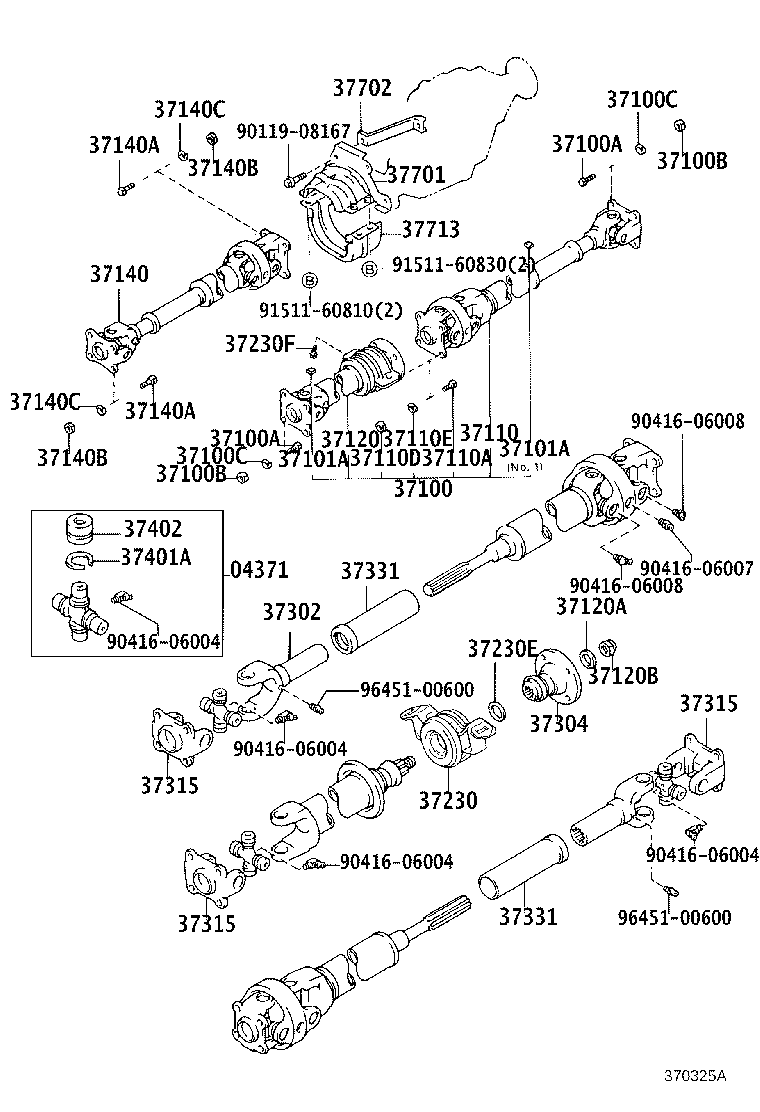

Propeller Shaft & Universal Joint

34 part groups · 3 illustrations

PNC	Description
04371	Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
37100	Shaft Assy, Propeller W/Center Bearing
37100A	Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100B	Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100C	Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37101A	Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37110	Shaft Assy, Propeller
37110A	Bolt (FOR PROPELLER SHAFT)
37110D	Nut (FOR PROPELLER SHAFT)
37110E	Washer (FOR PROPELLER SHAFT)
37120	Shaft Assy, Propeller Intermediate
37120A	Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120B	Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37140	Shaft Assy, Propeller, Front
37140A	Bolt (F0R FRONT PROPELLER SHAFT)
37140B	Nut (F0R FRONT PROPELLER SHAFT)
37140C	Washer (F0R FRONT PROPELLER SHAFT)
37230	Bearing Assy, Center Support, NO.1
37230E	Washer, NO.1 (FOR CENTER SUPPORT BEARING)
37230F	Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
37302	Yoke Sub-assy, Universal Joint Sleeve
37304	Flange Sub-assy, Universal Joint
37315	Yoke, Universal Joint Flange
37331	Cover, Sliding Shaft Dust
37334A	Boot, Sliding Shaft
37334B	Clamp (FOR SLIDING SHAFT BOOT)
37342	Deflector, Propeller Shaft Dust, NO.2
37344	Deflector, Propeller Shaft Dust, NO.3
37401A	Ring, Hole Snap (FOR SPIDER BEARING)
37402	Bearing Sub-assy, Universal Joint Spider
37701	Cover Sub-assy, Propeller Shaft Dust
37702	Stay Sub-assy, Propeller Shaft Dust Cover
37713	Cover, Propeller Shaft Dust, NO.2
37714	Stay, Propeller Shaft Dust Cover

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
