Toyota Hilux

2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

21 part groups · 3 illustrations

Illustrations

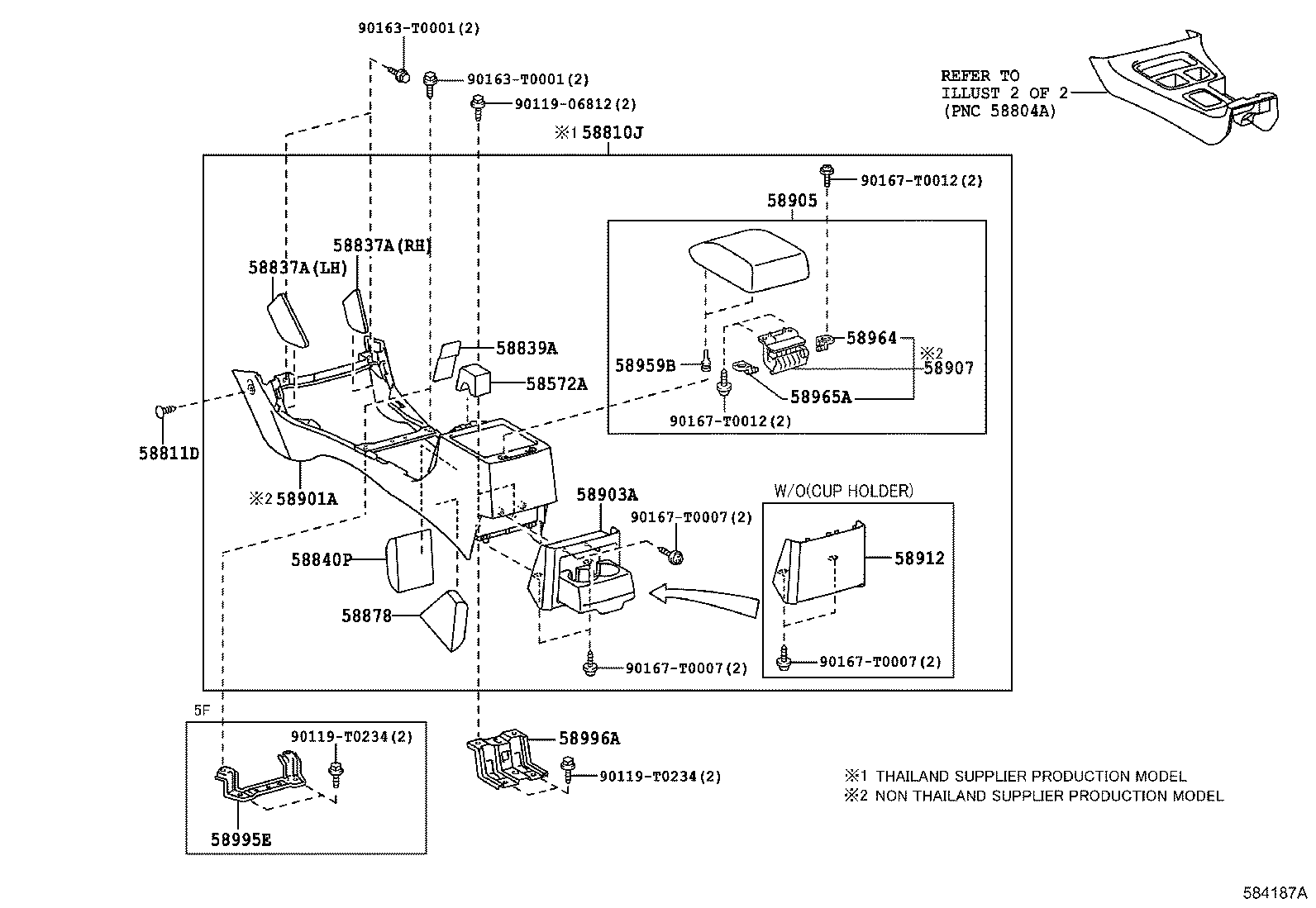

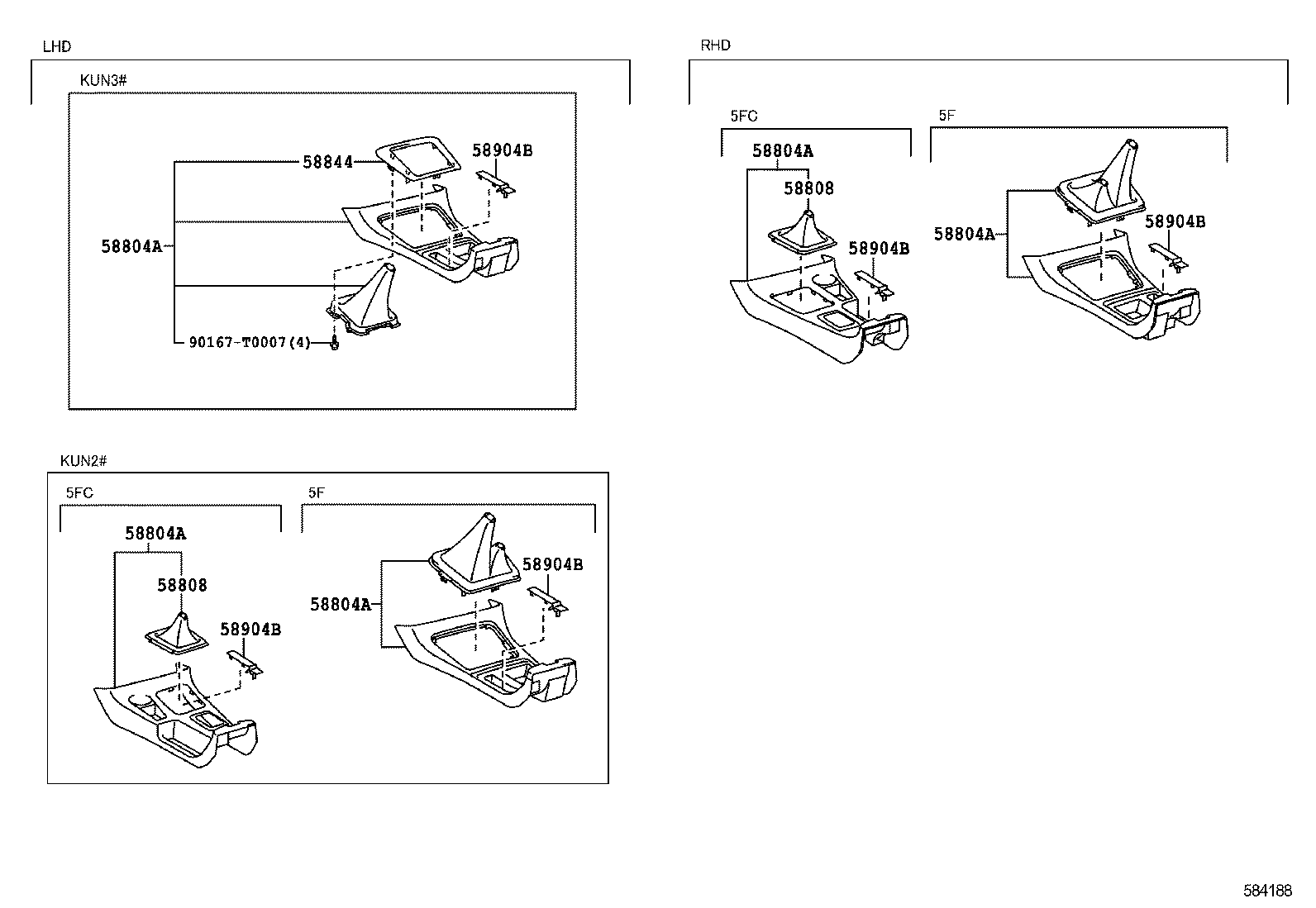

Figure 584186A 584186A 2011-07 → — Figure 584187A 584187A 2011-07 → — Figure 584188 584188 2011-07 → —

Part groups

PNCDescription
58572A Cushion, Console Box
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58810J Box Assy, Console
58811D Clip(FOR CONSOLE BOX)
58837A Pad, Console Box Silencer, NO.2
58839A Cover, Console Box Hole
58840P Pad, Console Box Silencer, NO.3
58844 Bezel, Console Box
58878 Pad, Console Box Silencer, NO.4
58901A Box Sub-assy, Console, Rear
58903A Panel Sub-assy, Console Rear End
58904B Cover Sub-assy, Parking Brake Hole
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58912 Box, Rear Console, NO.2
58959B Cushion, Console Compartment Door
58964 Stopper, Console Compartment Door, NO.1
58965A Stopper, Console Compartment Door, NO.2
58995E Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
