Toyota Hilux (DCB/SCB/XTR)

2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

121 part groups · 18 illustrations

Illustrations

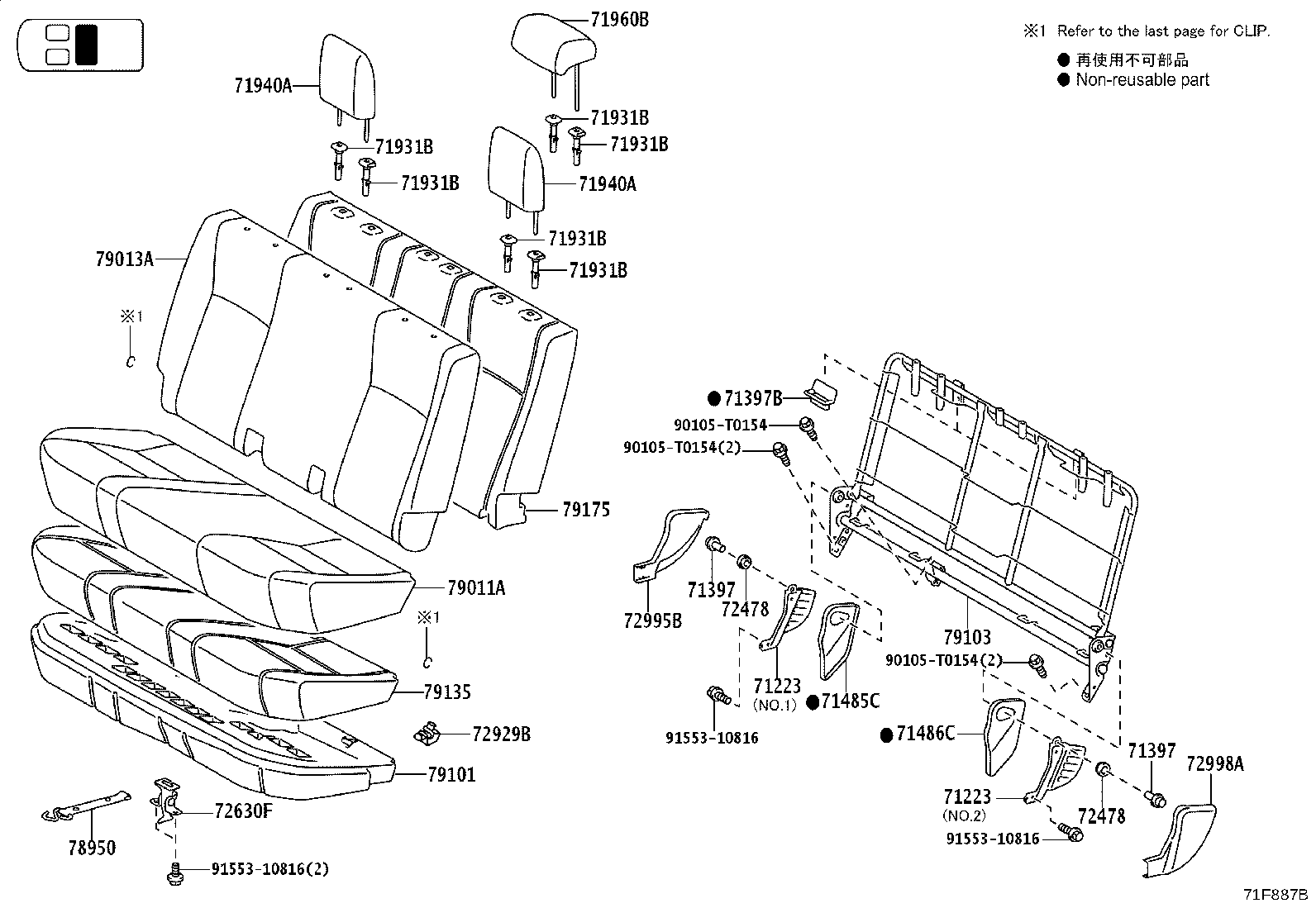

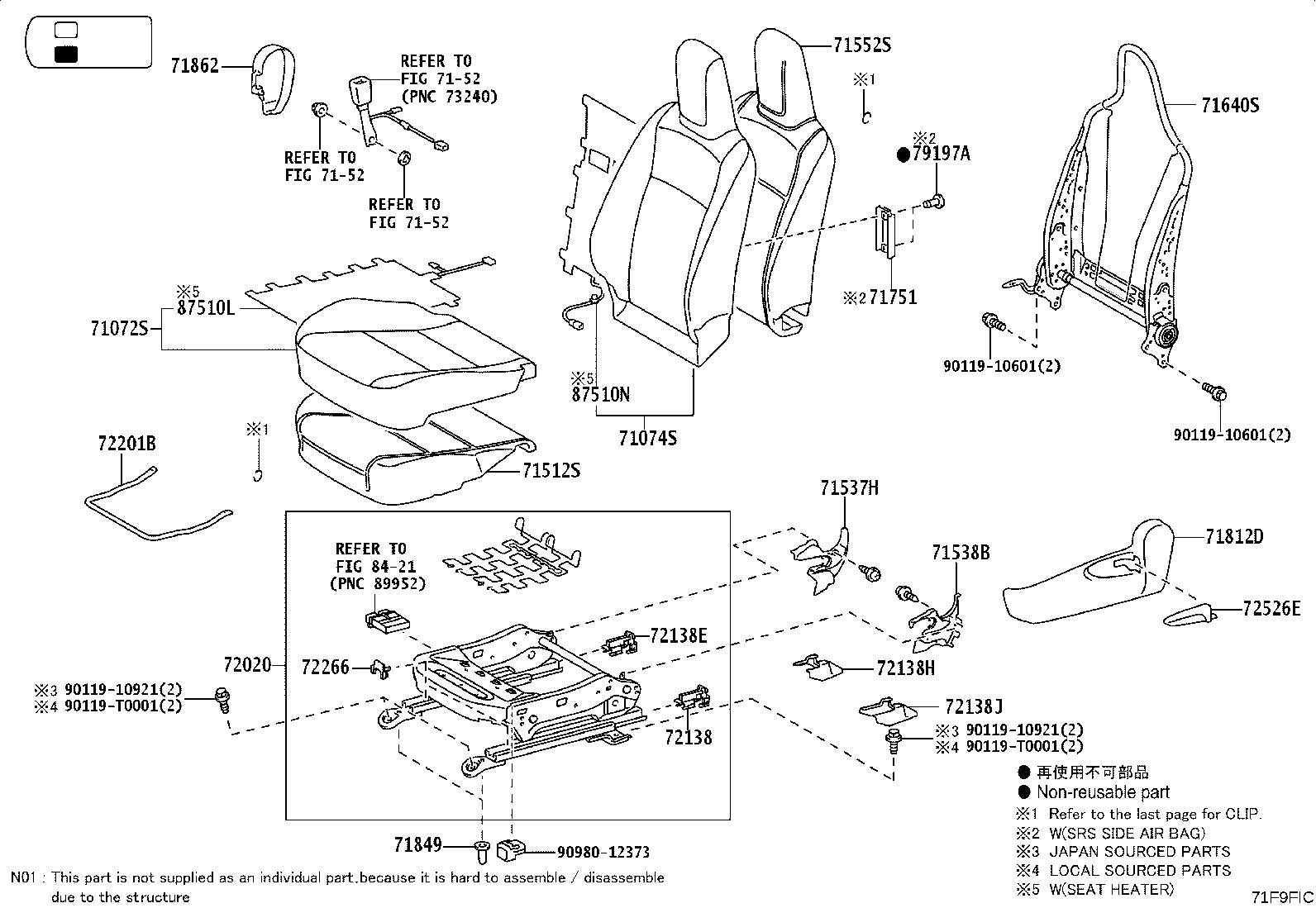

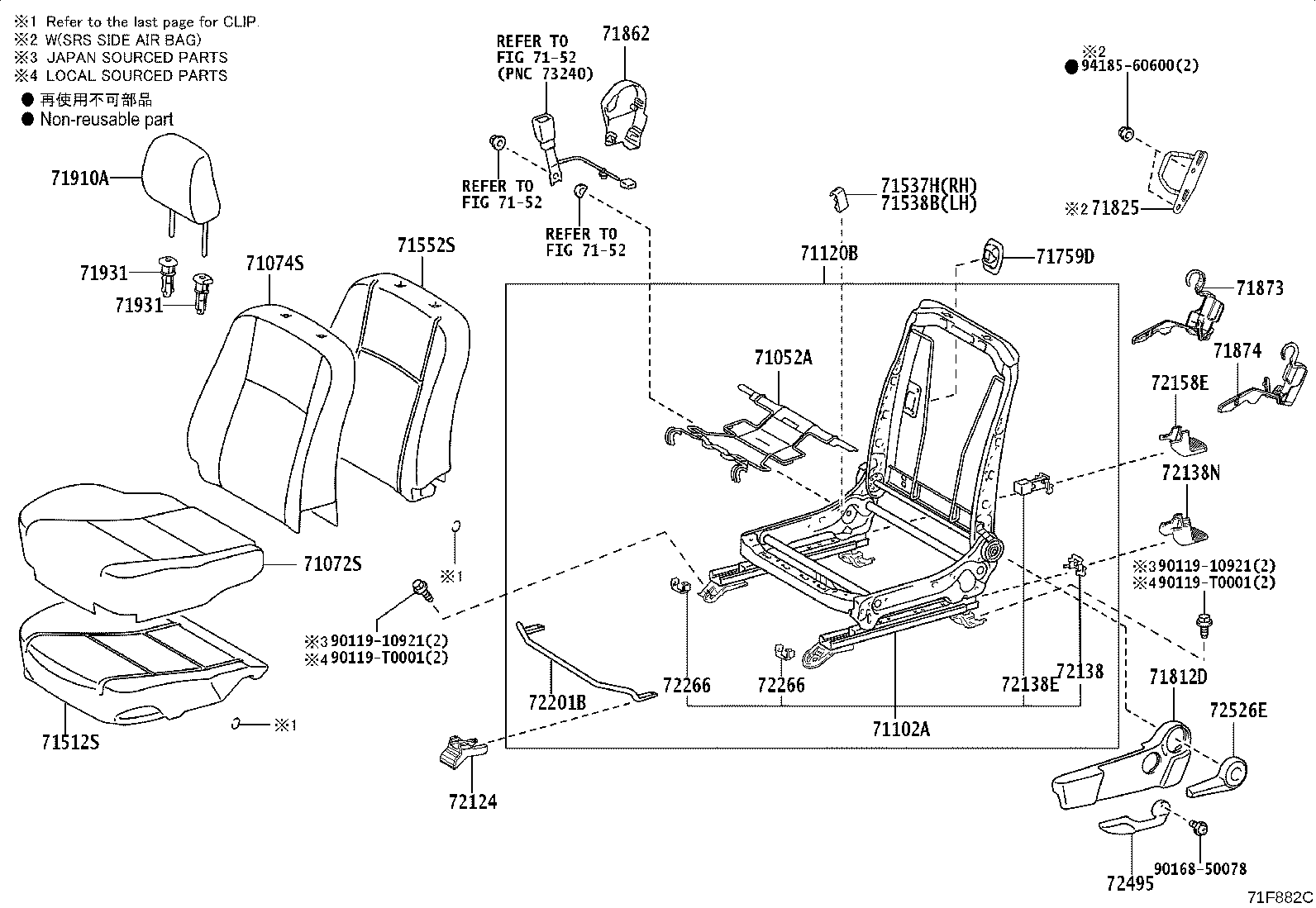

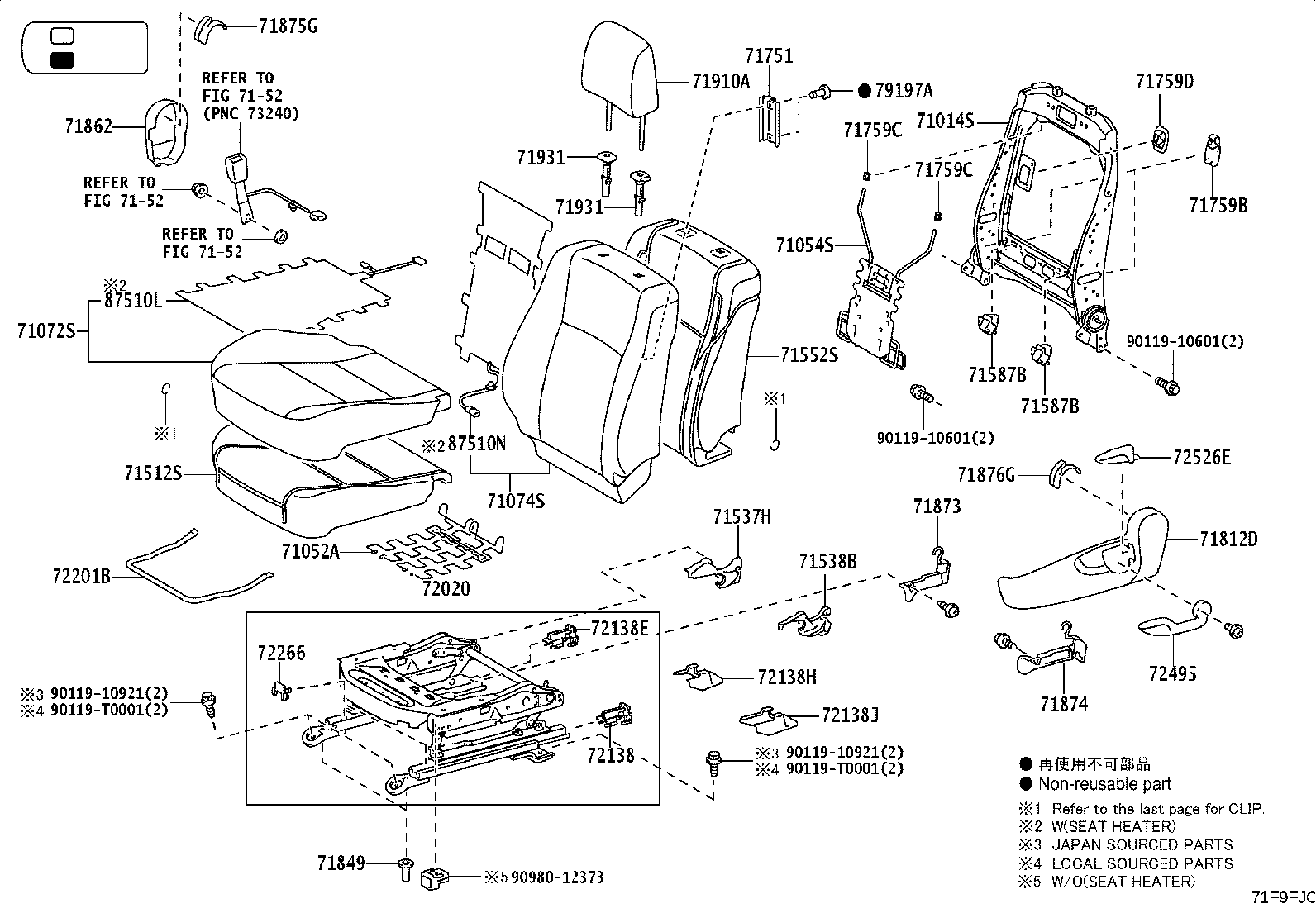

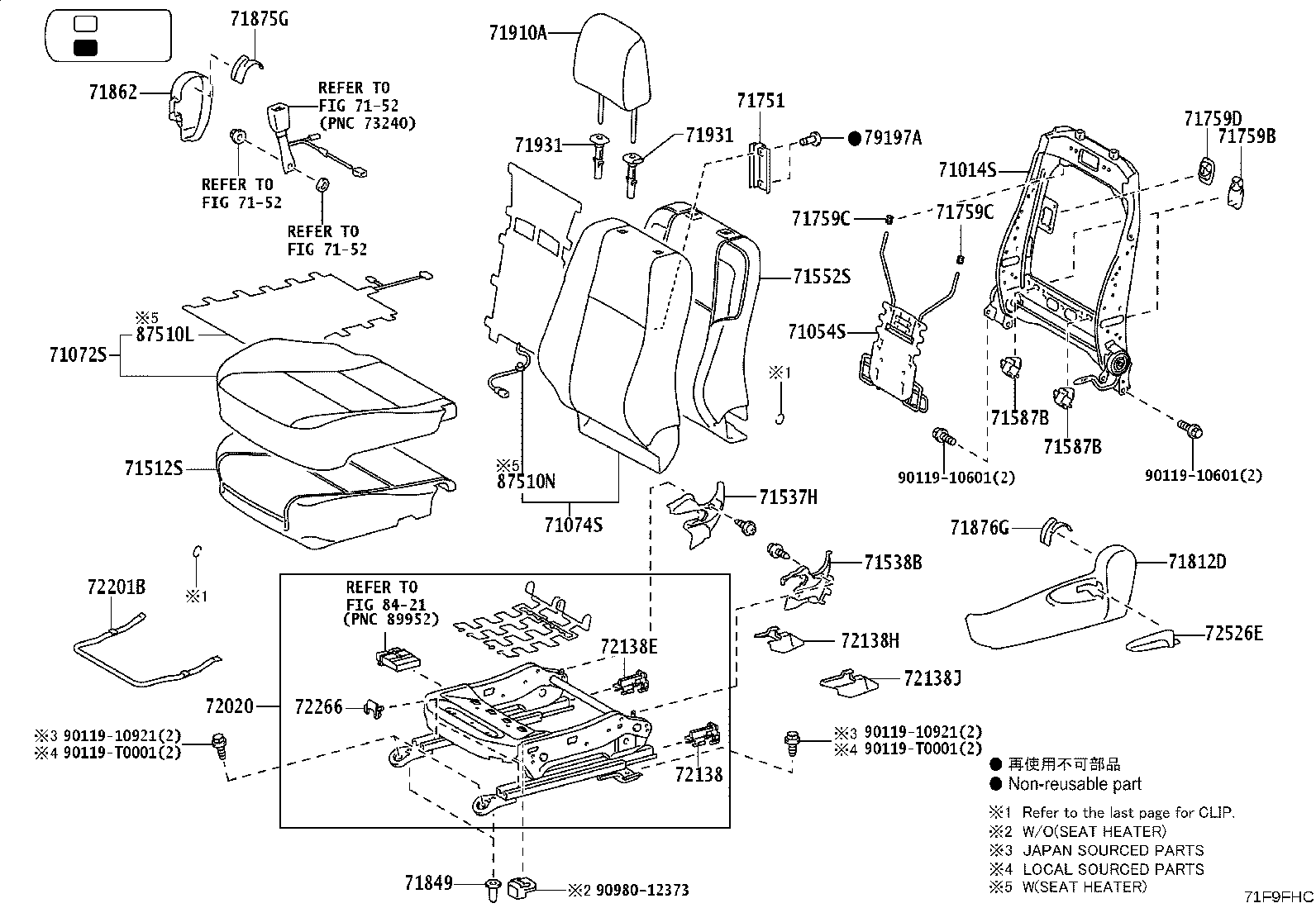

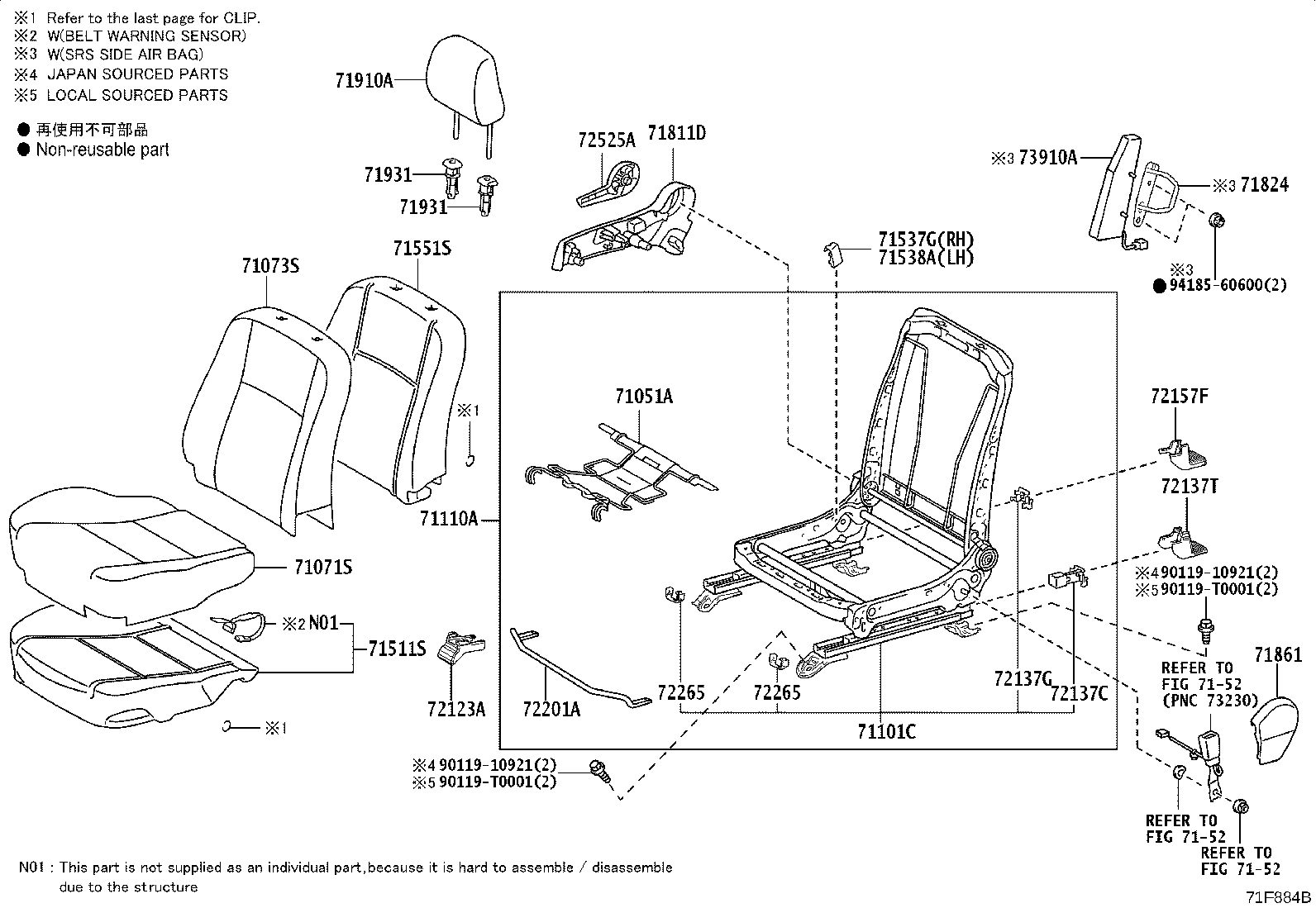

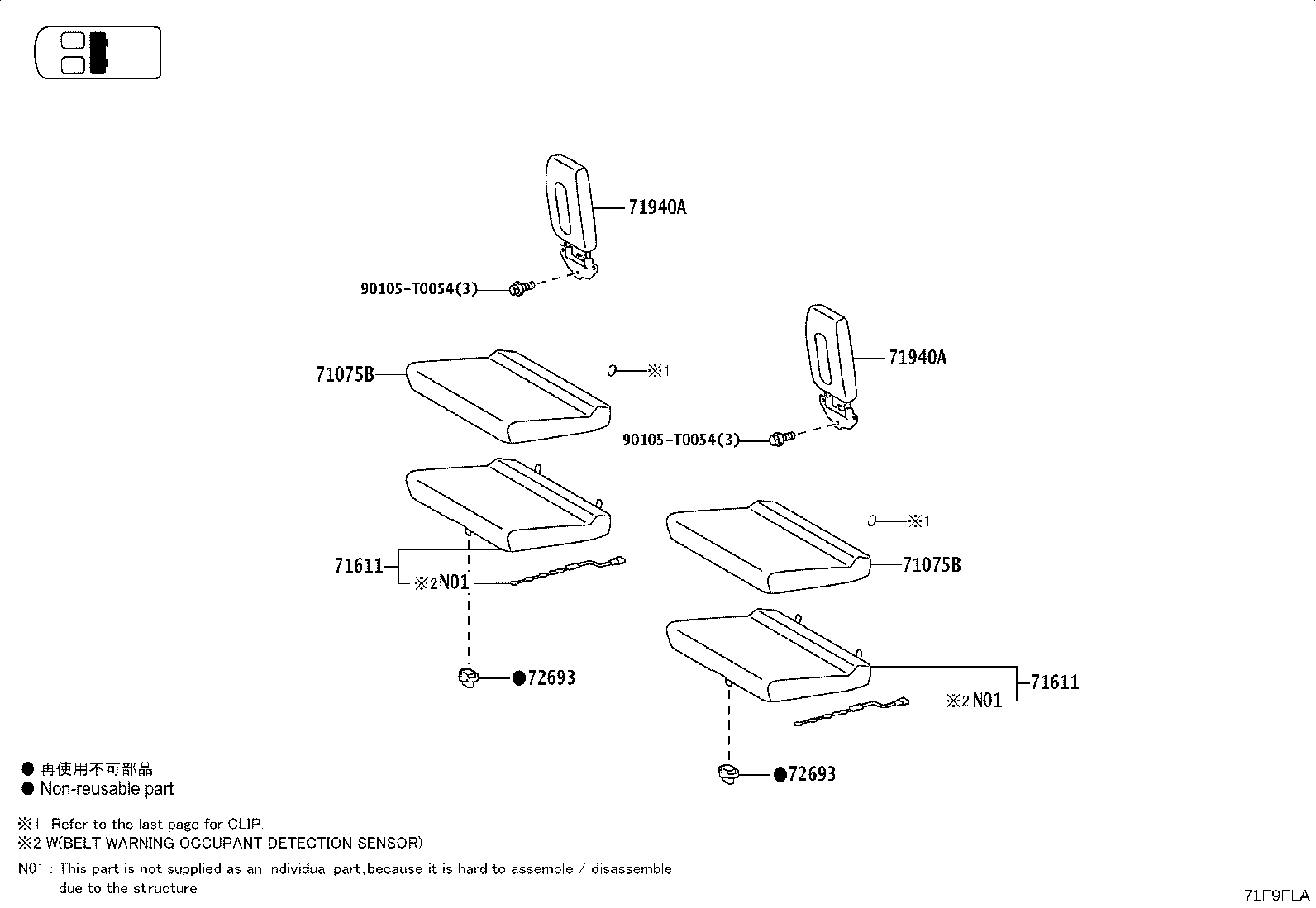

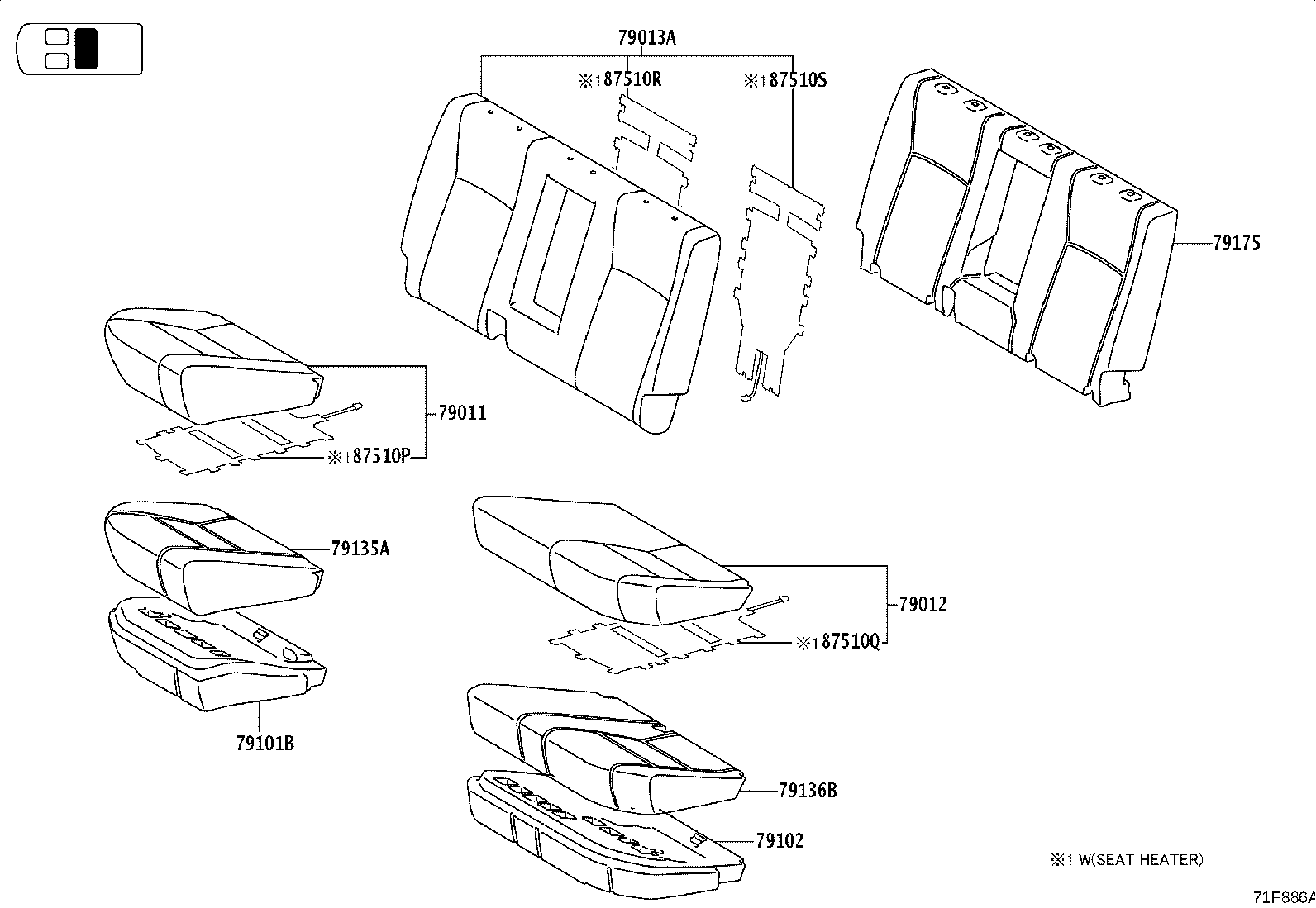

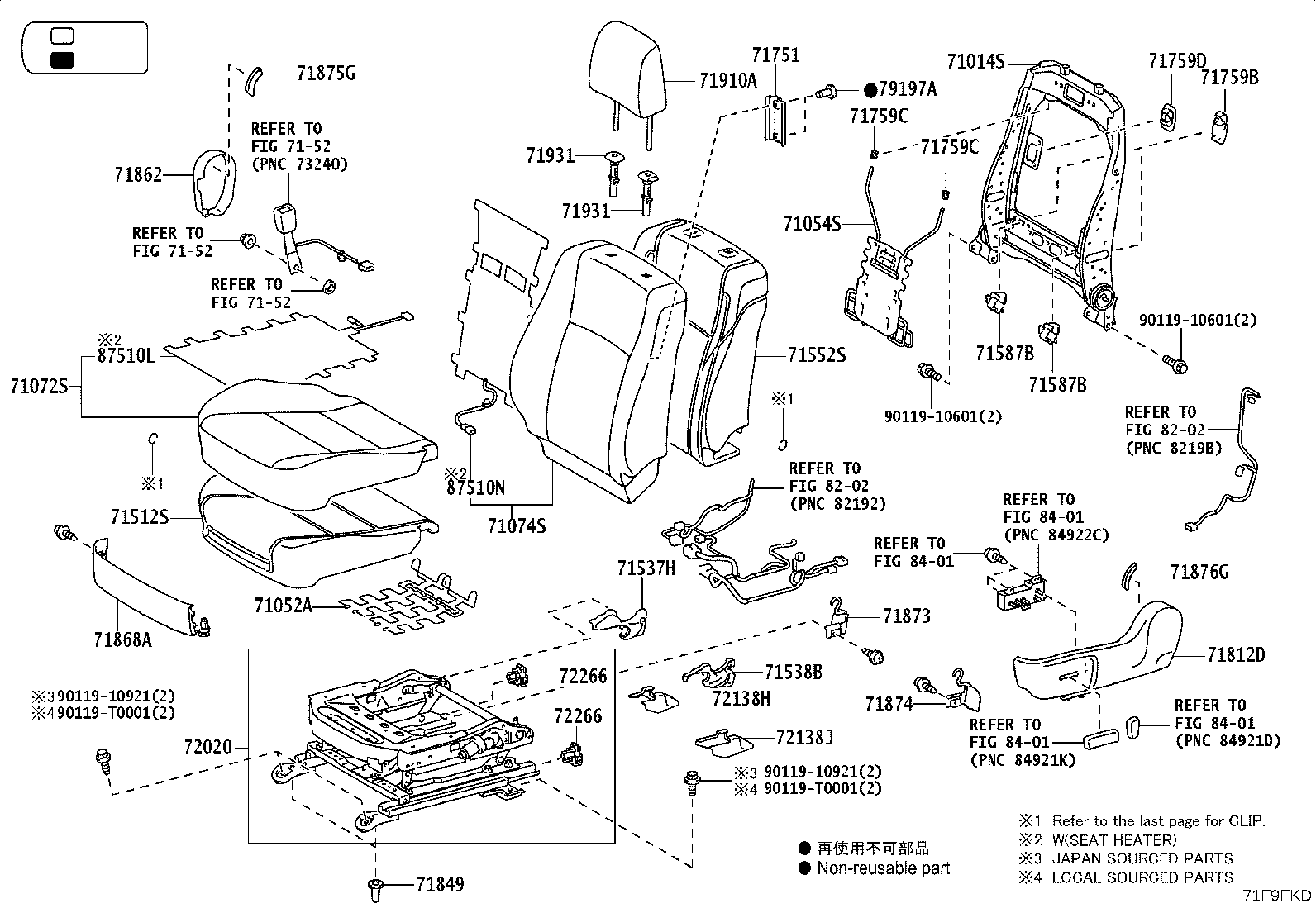

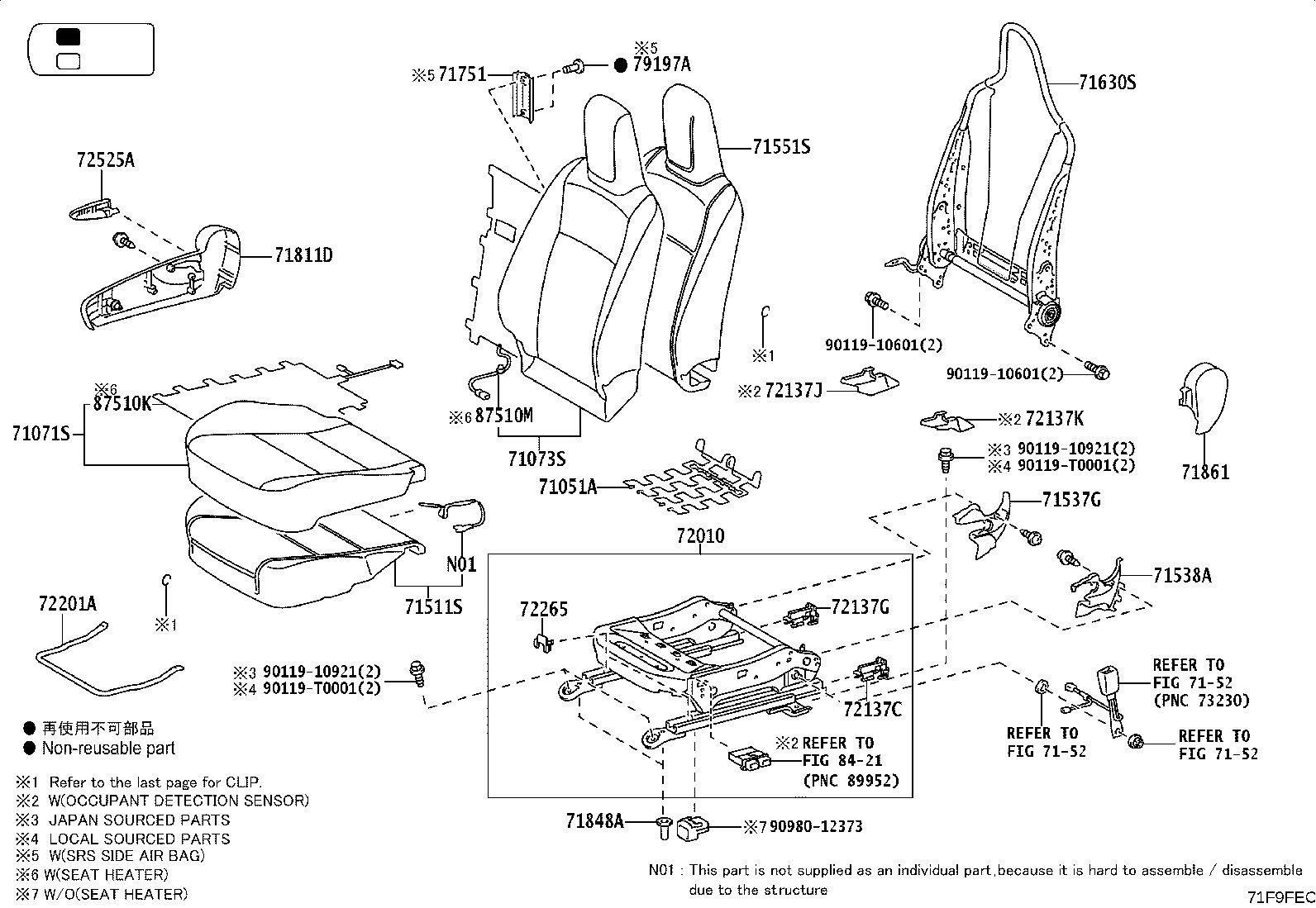

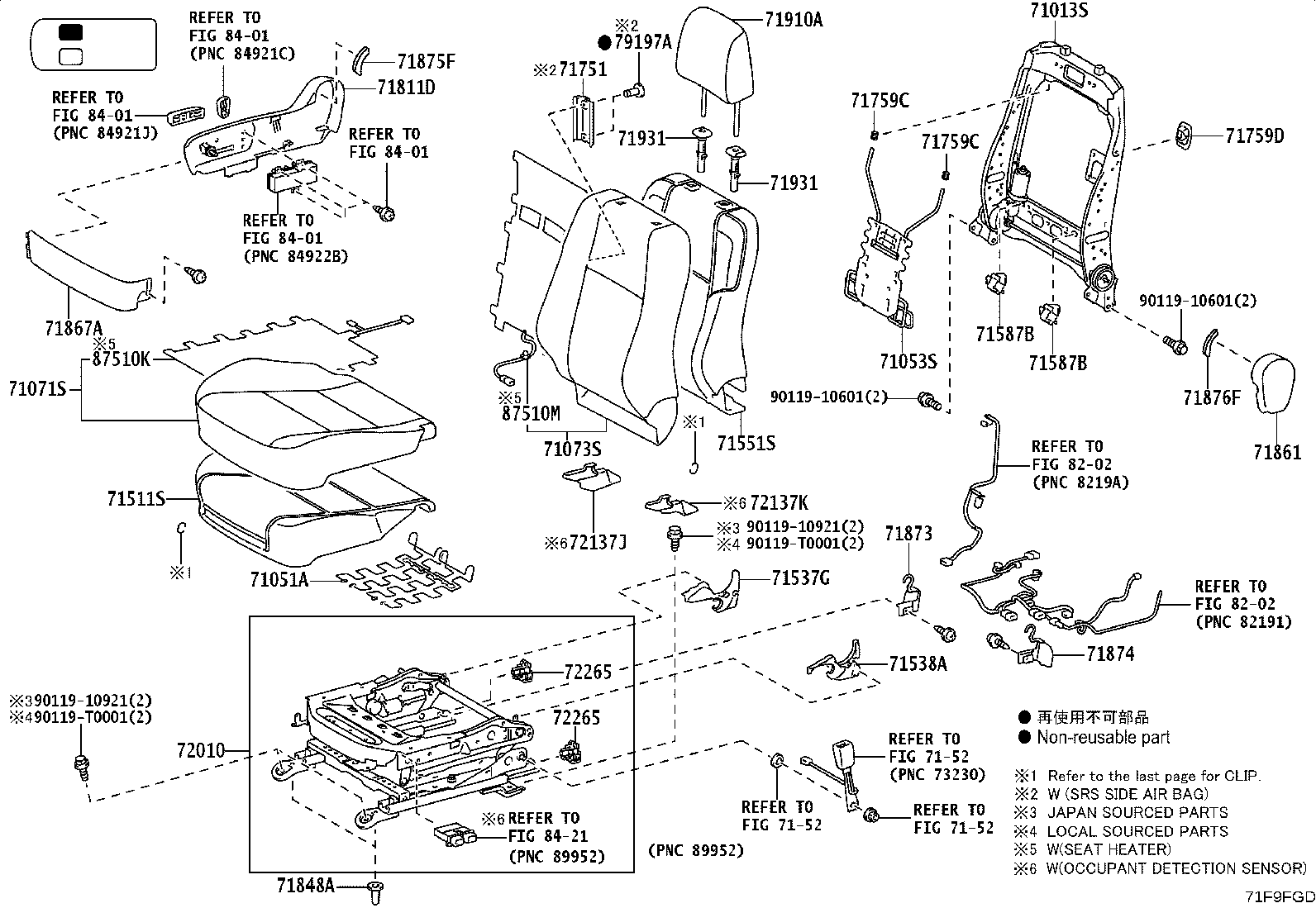

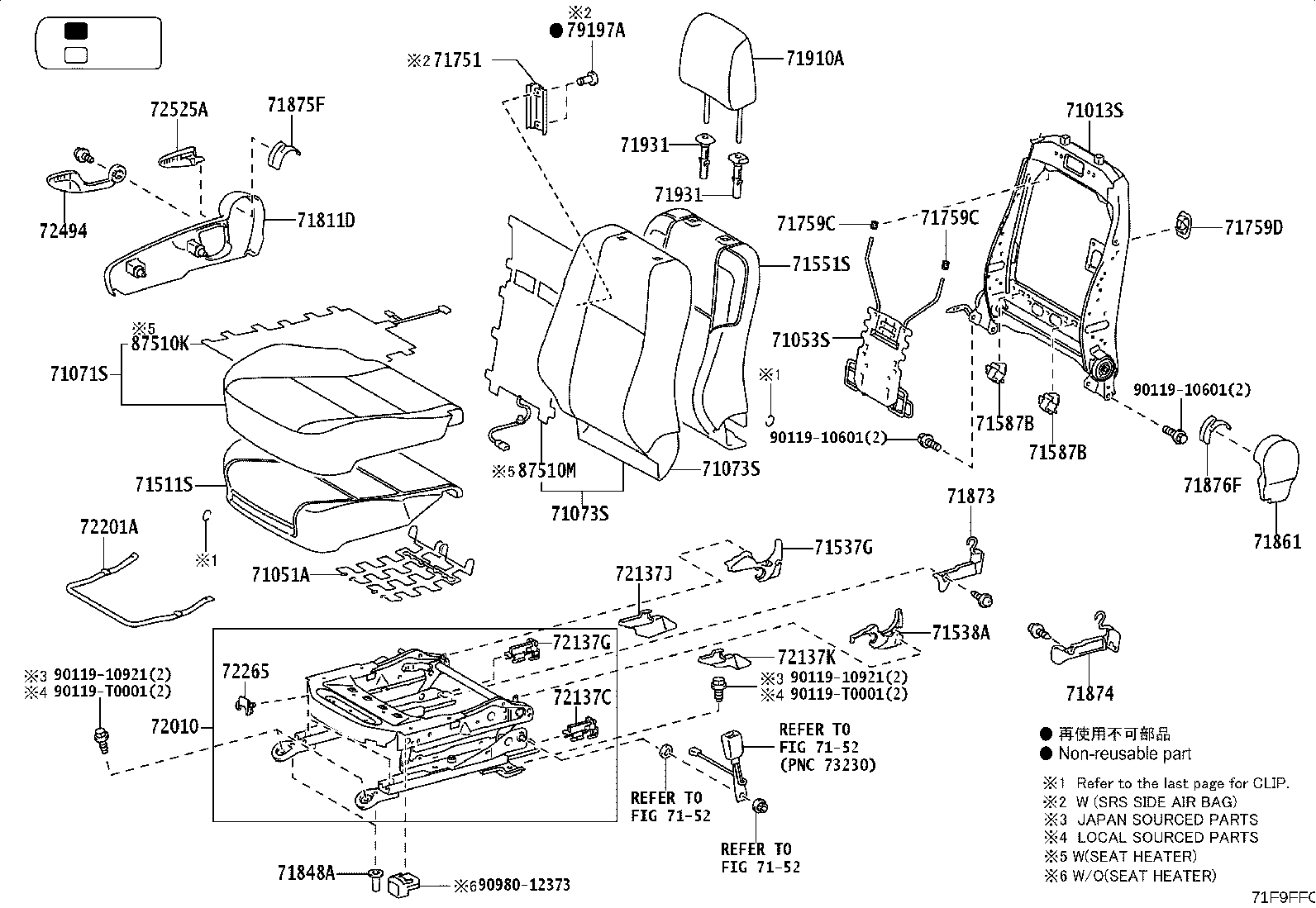

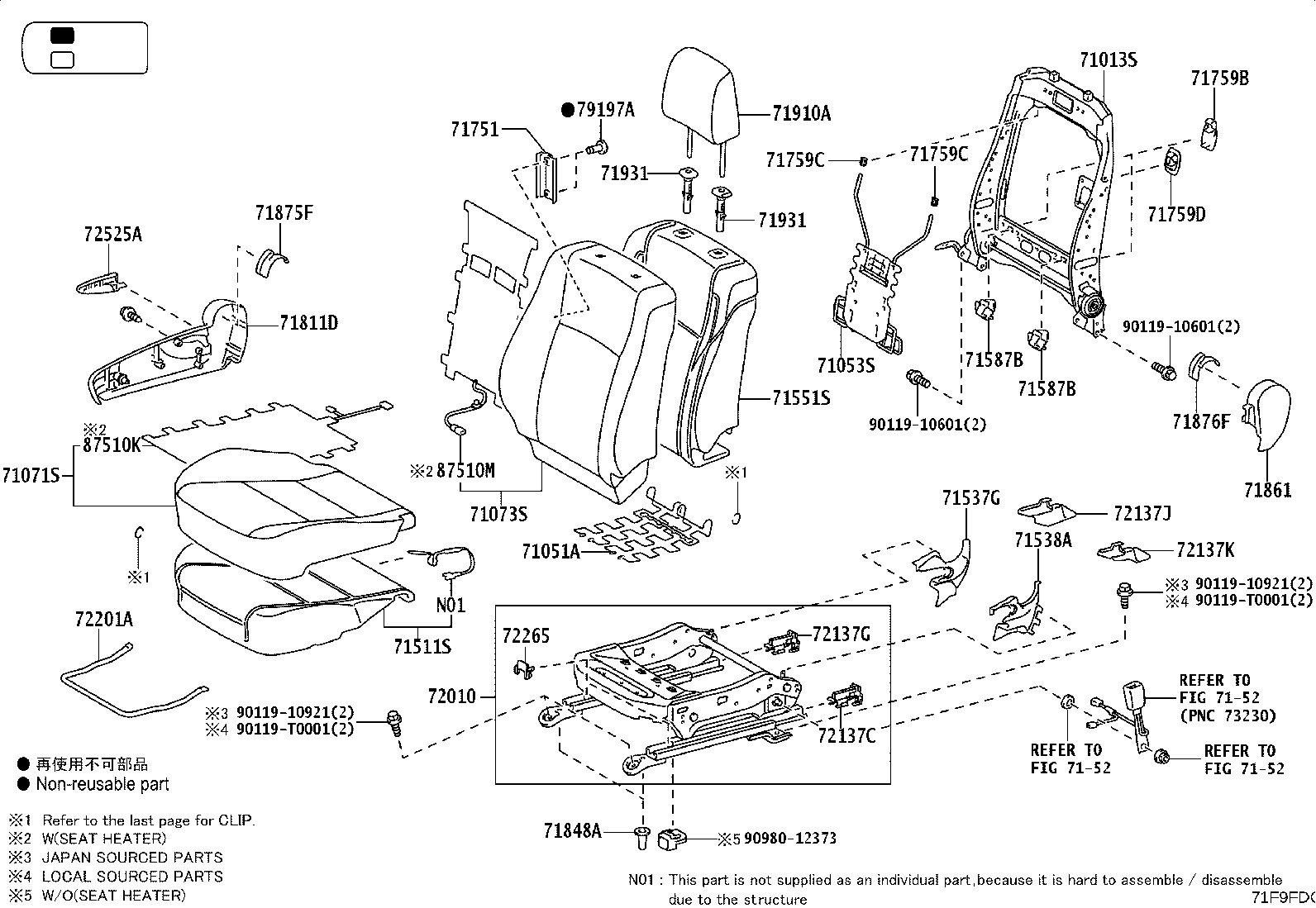

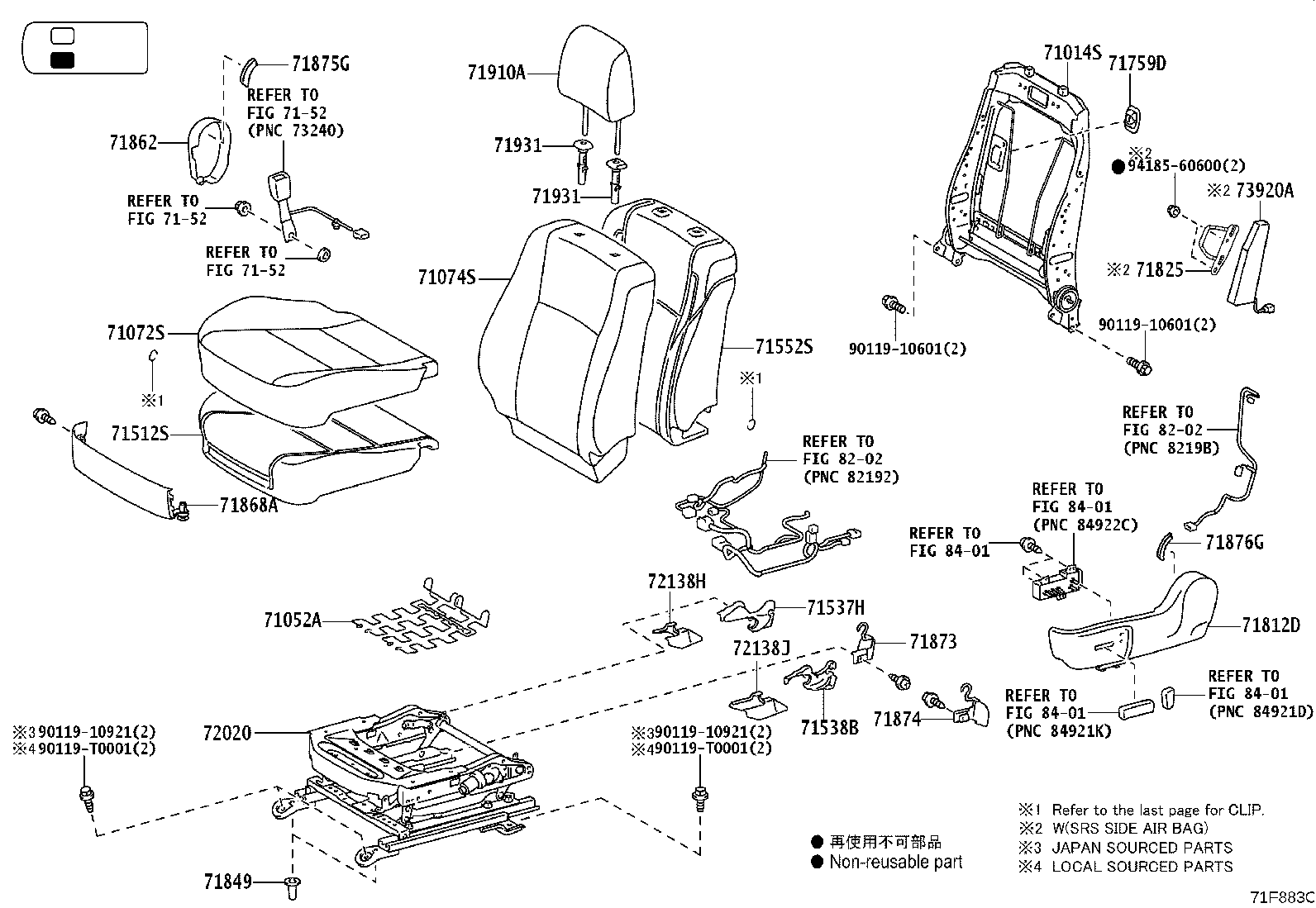

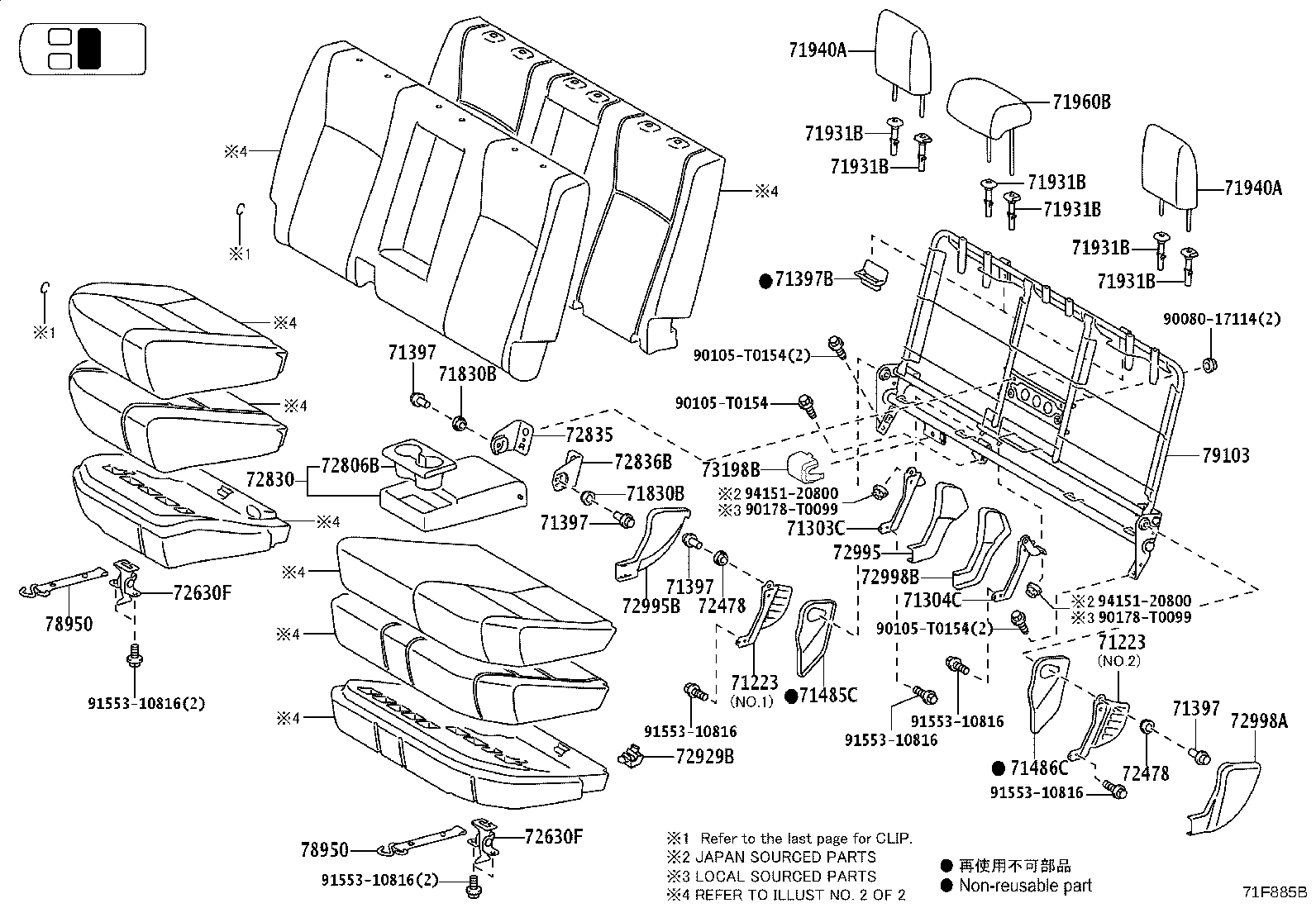

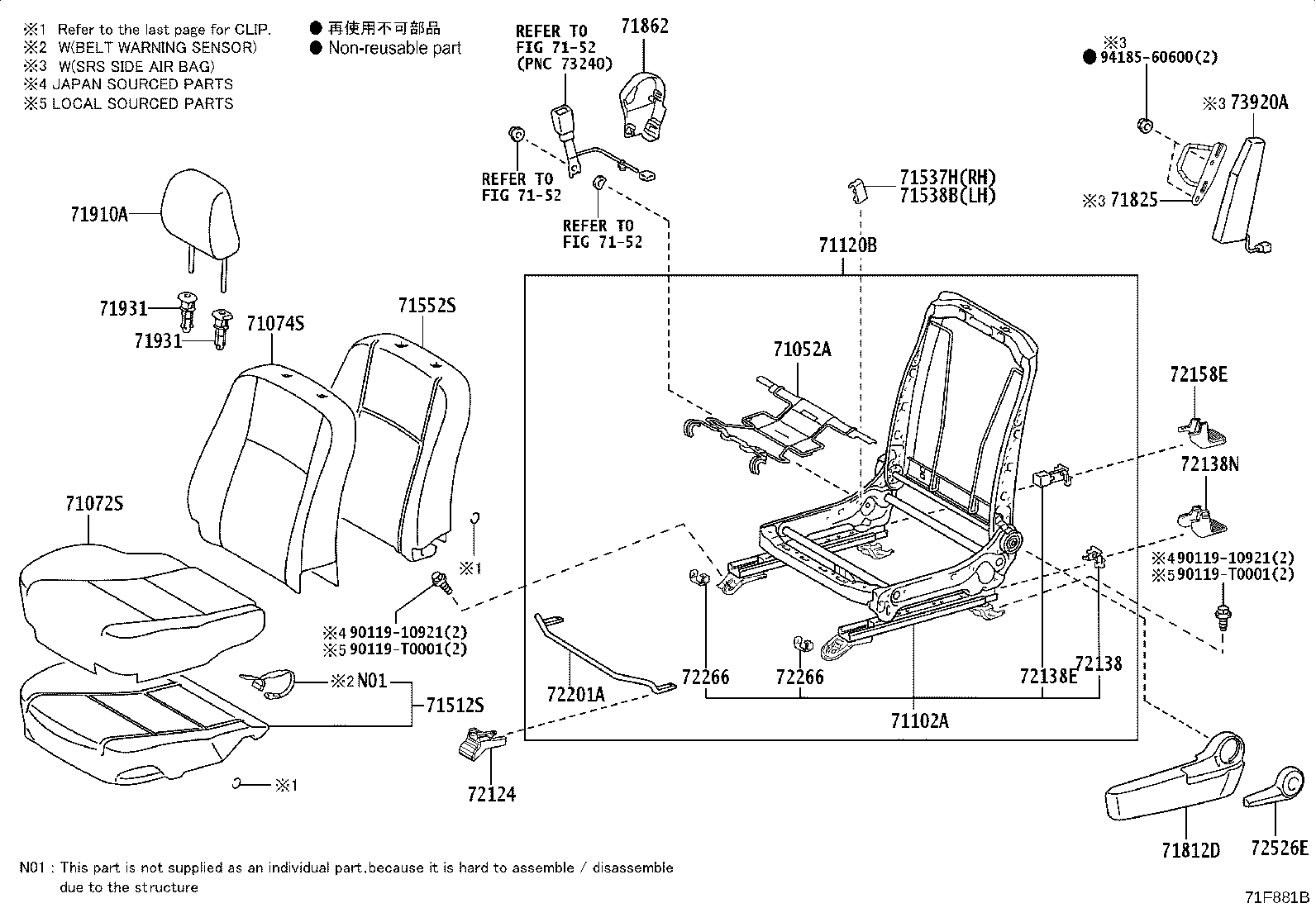

Figure 71F880C 71F880C 2023-08 → — Figure 71F9FHC 71F9FHC 2024-02 → — Figure 71F881B 71F881B 2023-08 → — Figure 71F9FIC 71F9FIC 2024-02 → — Figure 71F882C 71F882C 2023-08 → — Figure 71F9FJC 71F9FJC 2024-02 → — Figure 71F883C 71F883C 2023-08 → — Figure 71F9FKD 71F9FKD 2024-02 → — Figure 71F884B 71F884B 2023-08 → — Figure 71F9FDC 71F9FDC 2024-02 → — Figure 71F9FEC 71F9FEC 2024-02 → — Figure 71F9FFC 71F9FFC 2024-02 → — Figure 71F9FGD 71F9FGD 2024-02 → — Figure 71F885B 71F885B 2023-08 → — Figure 71F886A 71F886A 2023-08 → — Figure 71F887B 71F887B 2023-08 → — Figure 71F9FLA 71F9FLA 2024-02 → — Figure 71F855B 71F855B 2023-08 → —

Part groups

PNCDescription
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71053S Spring Sub-assy, Front Seatback, RH
71054S Spring Sub-assy, Front Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71101C Seat Sub-assy, Front RH
71102A Seat Sub-assy, Front LH
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71223 Bracket, Rear Seat Cushion Side
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71397 Stopper, Rear Seat
71397B Holder, Rear Seatback, RH
71485C Cover, Rear Seat Hinge, RH
71486C Cover, Rear Seat Hinge, LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537G Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71537H Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71538A Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538B Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587B Protector, Front Seatback Edge
71611 Pad, Rear Seat Cushion
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71751 Hanger, Seat Cover
71759B Hook, Front Seatback
71759C Hook, Front Seatback, NO.1
71759D Hook, Front Seatback, NO.2
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71824 Bracket, Front Seat Side, NO.1 RH
71825 Bracket, Front Seat Side, NO.1 LH
71830B Bush(FOR REAR SEAT ARMREST)
71848A Cap, Seat Adjuster Cover, RH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931B Support Assy, Rear NO.1 Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72137C Cover, Seat Track Inner, RH
72137G Cover, Seat Track, Outer RH
72137J Cover, Front Seat Track, RH Rear Outer
72137K Cover, Front Seat Track, RH Rear Inner
72137T Cover, Seat Track Bracket, Outer Rear RH
72138 Cover, Seat Track, Outer LH
72138E Cover, Seat Track, Inner LH
72138H Cover, Front Seat Track, LH Rear Inner
72138J Cover, Front Seat Track, LH Rear Outer
72138N Cover, Seat Track Bracket, Outer Rear LH
72157F Cover, Seat Track Bracket, Inner Rear RH
72158E Cover, Seat Track Bracket, Inner Rear LH
72201A Handle Sub-assy, Seat Track RH
72201B Handle Sub-assy, Seat Track LH
72265 Cover, Seat Track Upper Rail, RH
72266 Cover, Seat Track Upper Rail, LH
72478 Bush, Vertical Adjuster
72494 Handle, Vertical Adjusting, RH
72495 Handle, Vertical Adjusting, LH
72525A Handle, Reclining Adjuster Release, RH
72526E Handle, Reclining Adjuster Release, LH
72630F Lock Assy, Rear NO.2 Seat
72693 Hook, Rear Seat Cushion Lock
72806B Holder Sub-assy, Rear Seat Center Armrest Cup
72830 Armrest Assy, Rear Seat, Center
72835 Arm, RR Seat Armrest, RH
72836B Arm, Rear Seat Armrest, LH
72929B Holder, Rear Seat Cushion Band
72995 Cover, Rear Seat Cushion, RH
72995B Cover, NO.1 Seat Cushion, RH
72998A Cover, NO.1 Seat Cushion, LH
72998B Cover, Rear Seat Cushion, LH
73198B Cover, Rear Seat Bracket
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
78950 Band Assy, Fold Seat Stopper, NO.1
79011 Cover Sub-assy, NO.1 Seat Cushion, RH
79011A Cover Sub-assy, NO.1 Seat Cushion
79012 Cover Sub-assy, NO.1 Seat Cushion, LH
79013A Cover Sub-assy, NO.1 Seatback
79101 Frame Sub-assy, NO.1 Seat Cushion
79101B Frame Sub-assy, NO.1 Seat Cushion, RH
79102 Frame Sub-assy, NO.1 Seat Cushion, LH
79103 Frame Sub-assy, NO.1 Seatback
79135 Pad, NO.1 Seat Cushion
79135A Pad, NO.1 Seat Cushion, RH
79136B Pad, NO.1 Seat Cushion, LH
79175 Pad, NO.1 Seatback
79197A Rivet
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
87510P Heater Assy, Seat
87510Q Heater Assy, Seat
87510R Heater Assy, Seat
87510S Heater Assy, Seat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
