Toyota Hiace Van,Commuter
1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe
Discontinued model
Data version 1988-12

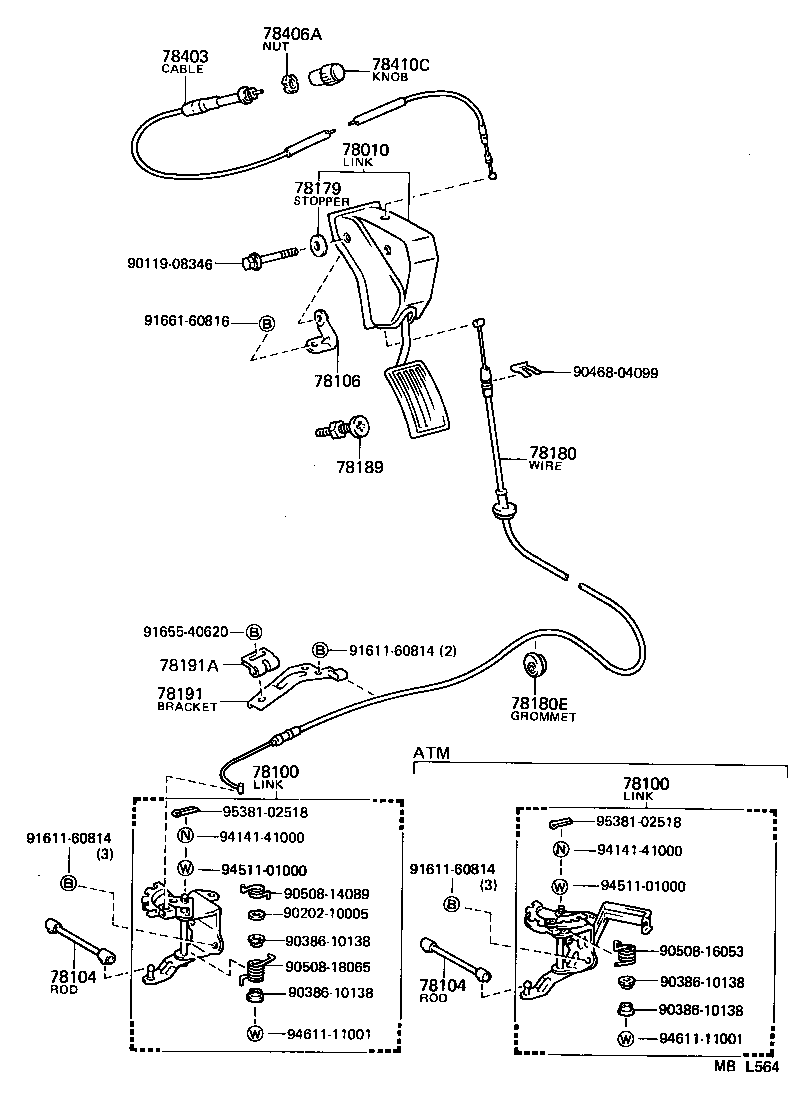

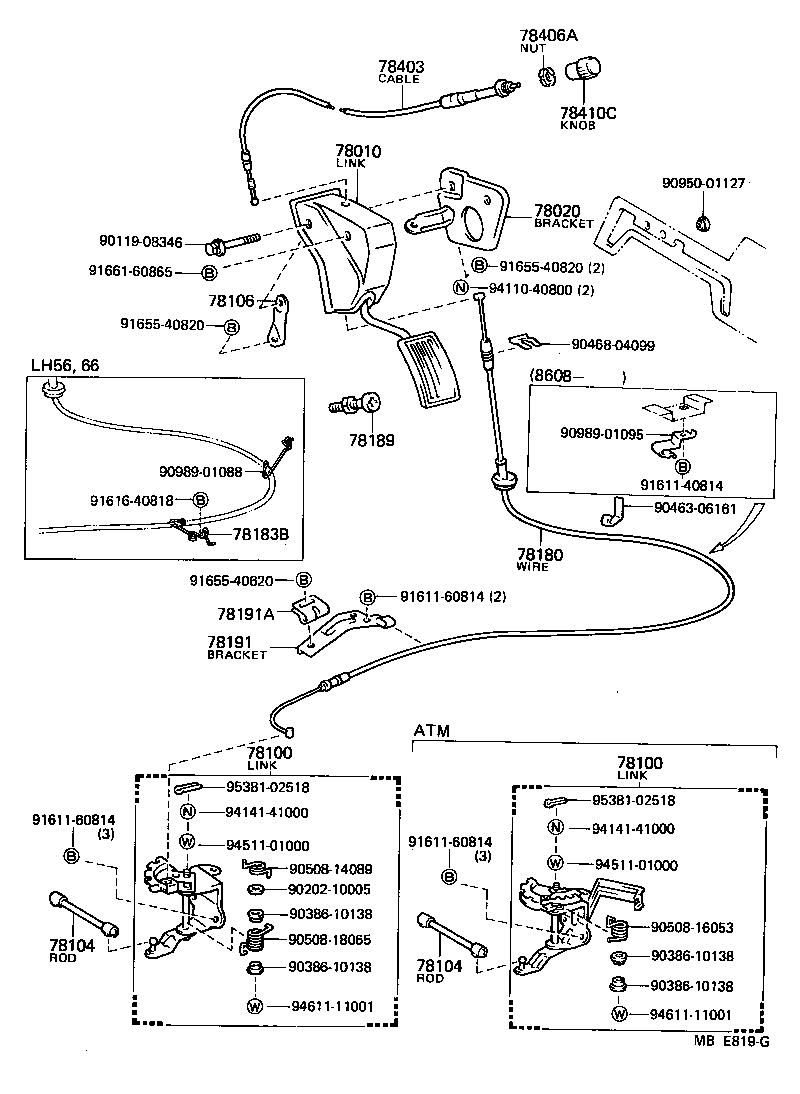

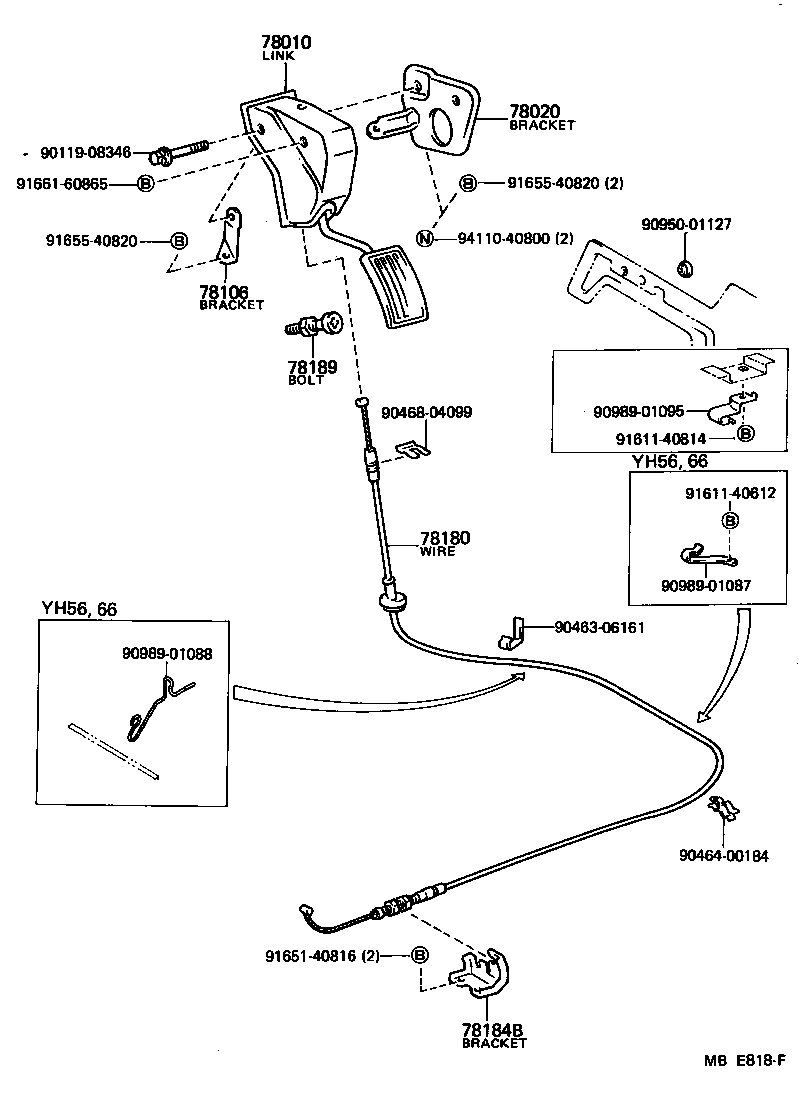

Accelerator Link
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 78010 | Link, Accelerator |
| 78020 | Bracket Assy, Accelerator Control |
| 78100 | Link Assy, Accelerator |
| 78104 | Rod Sub-assy, Accelerator Connecting, NO.2 |
| 78106 | Bracket Sub-assy, Accelerator Pedal Support |
| 78179 | Stopper, Accelerator Link Arm |
| 78180 | Wire Assy, Accelerator |
| 78180E | Grommet (FOR ACCELERATOR WIRE) |
| 78183B | Clamp, Accelerator Control Cable |
| 78184B | Bracket, Accelerator Control Cable |
| 78189 | Bolt, Accelerator Pedal Stopper |
| 78191 | Bracket, Accelerator Wire Support |
| 78191A | Clamp (FOR ACCELERATOR WIRE SET) |
| 78403 | Cable Sub-assy, Throttle Control |
| 78406A | Nut, Holder (FOR THROTTLE BUTTON) |
| 78410C | Knob, Throttle Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
