Toyota Hiace/Hiace S.B.V

1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

18 part groups · 6 illustrations

Illustrations

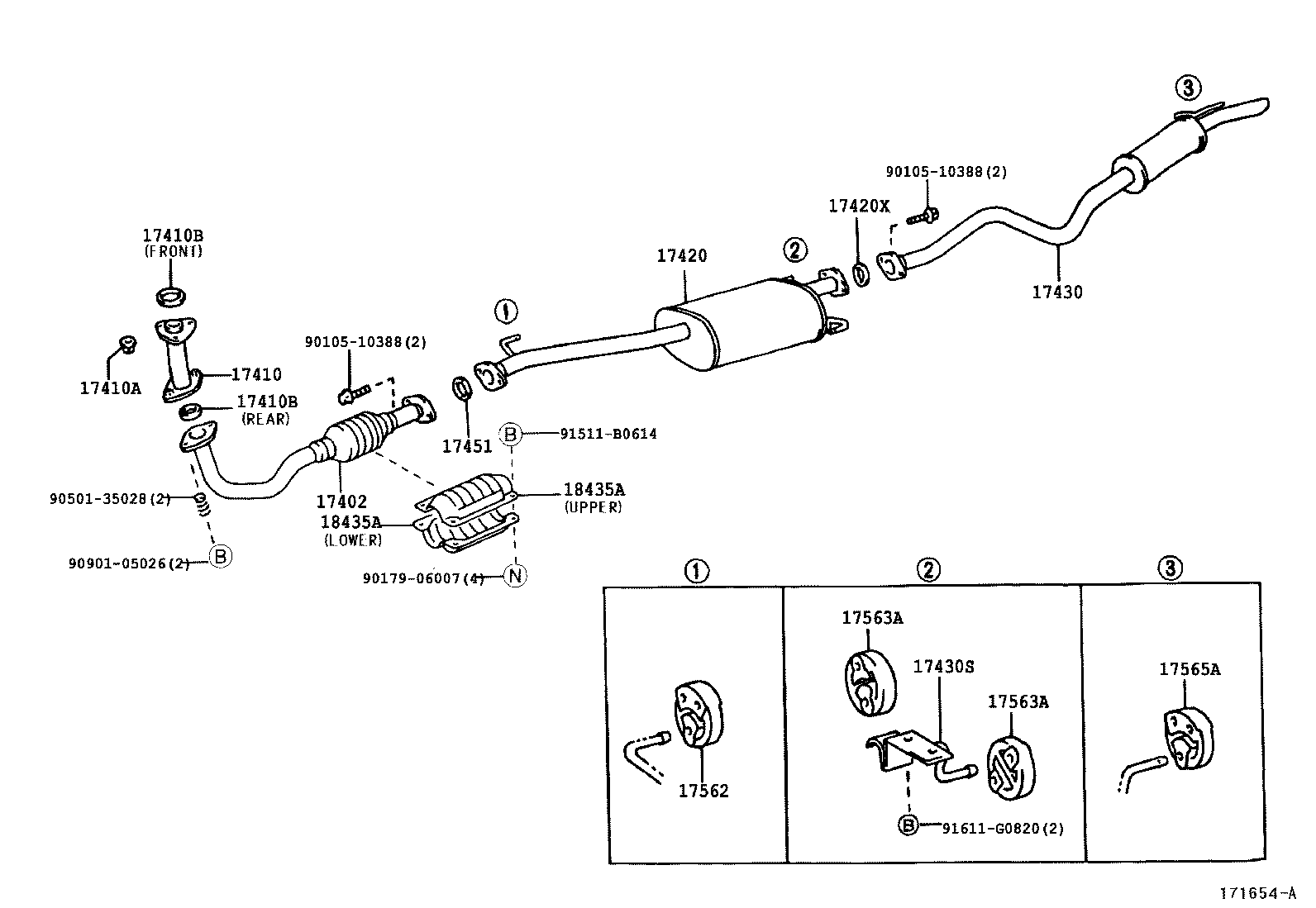

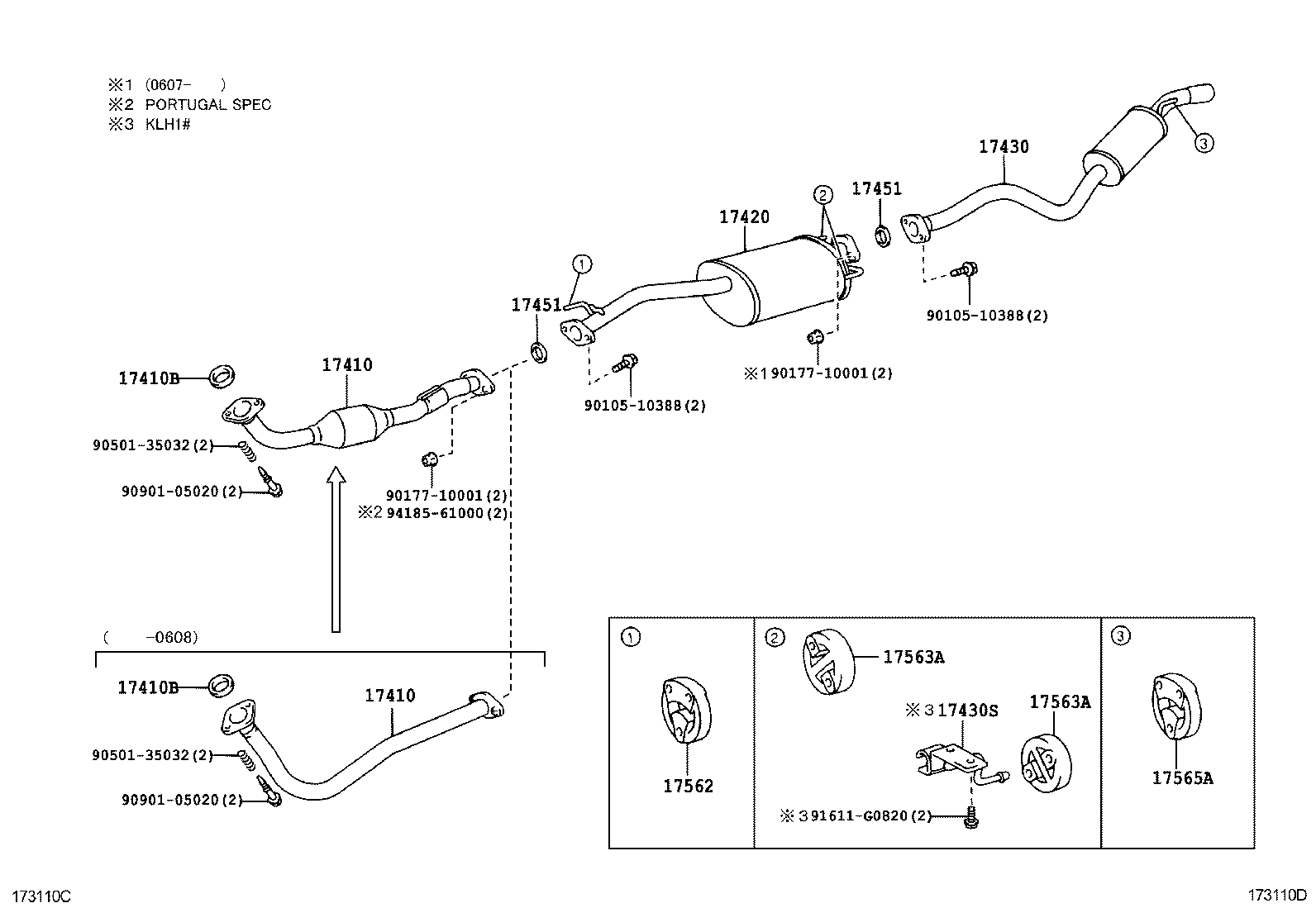

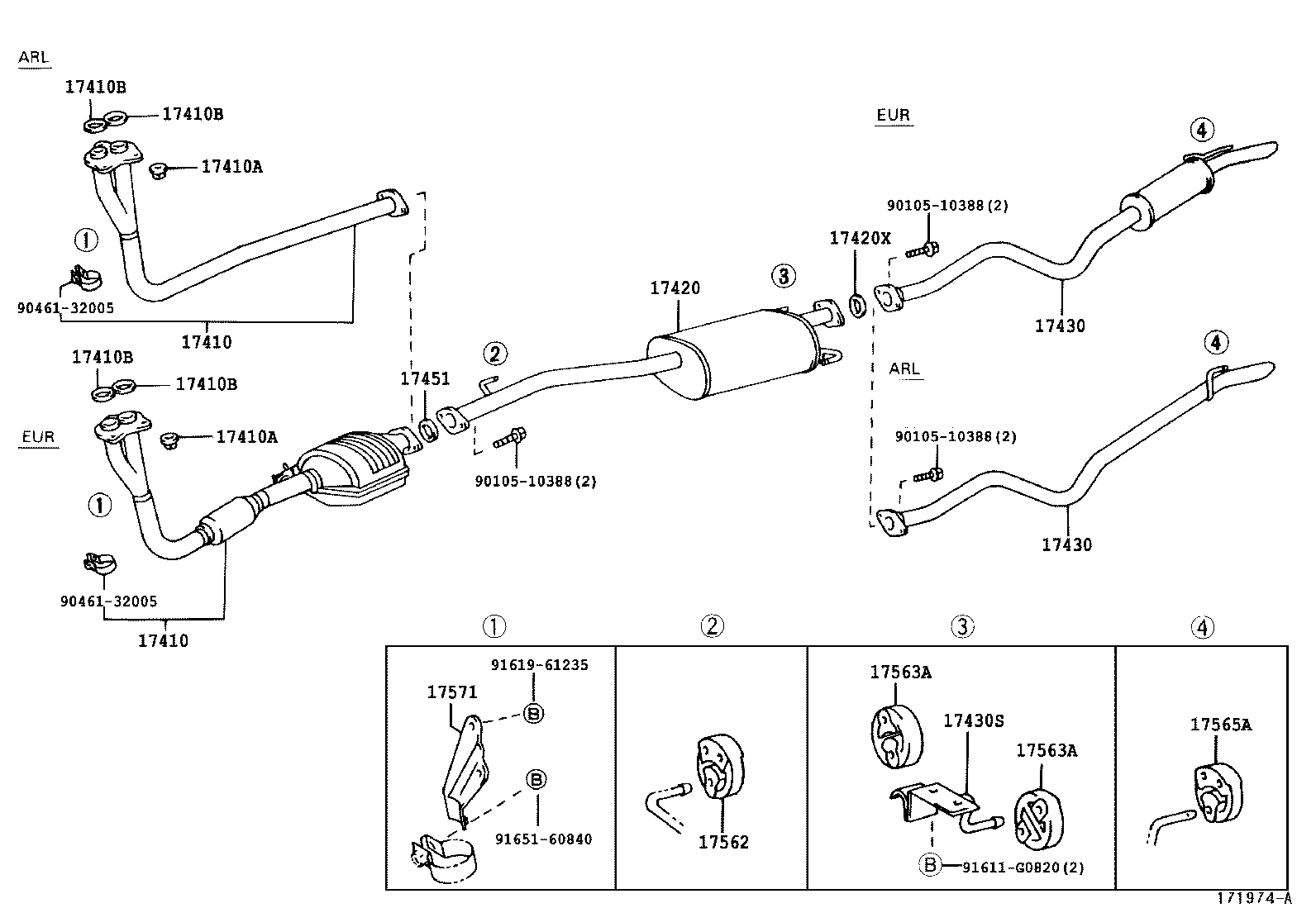

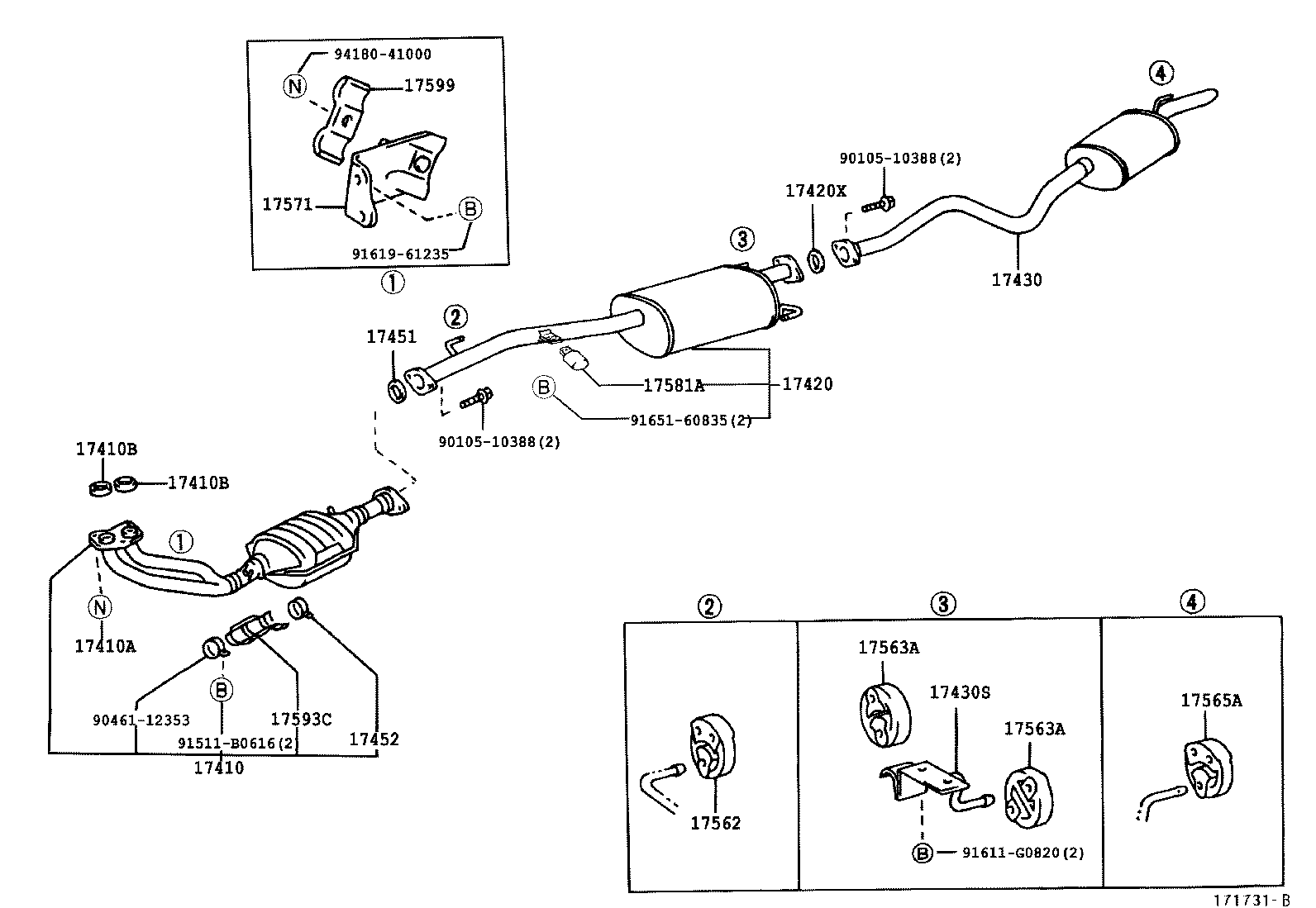

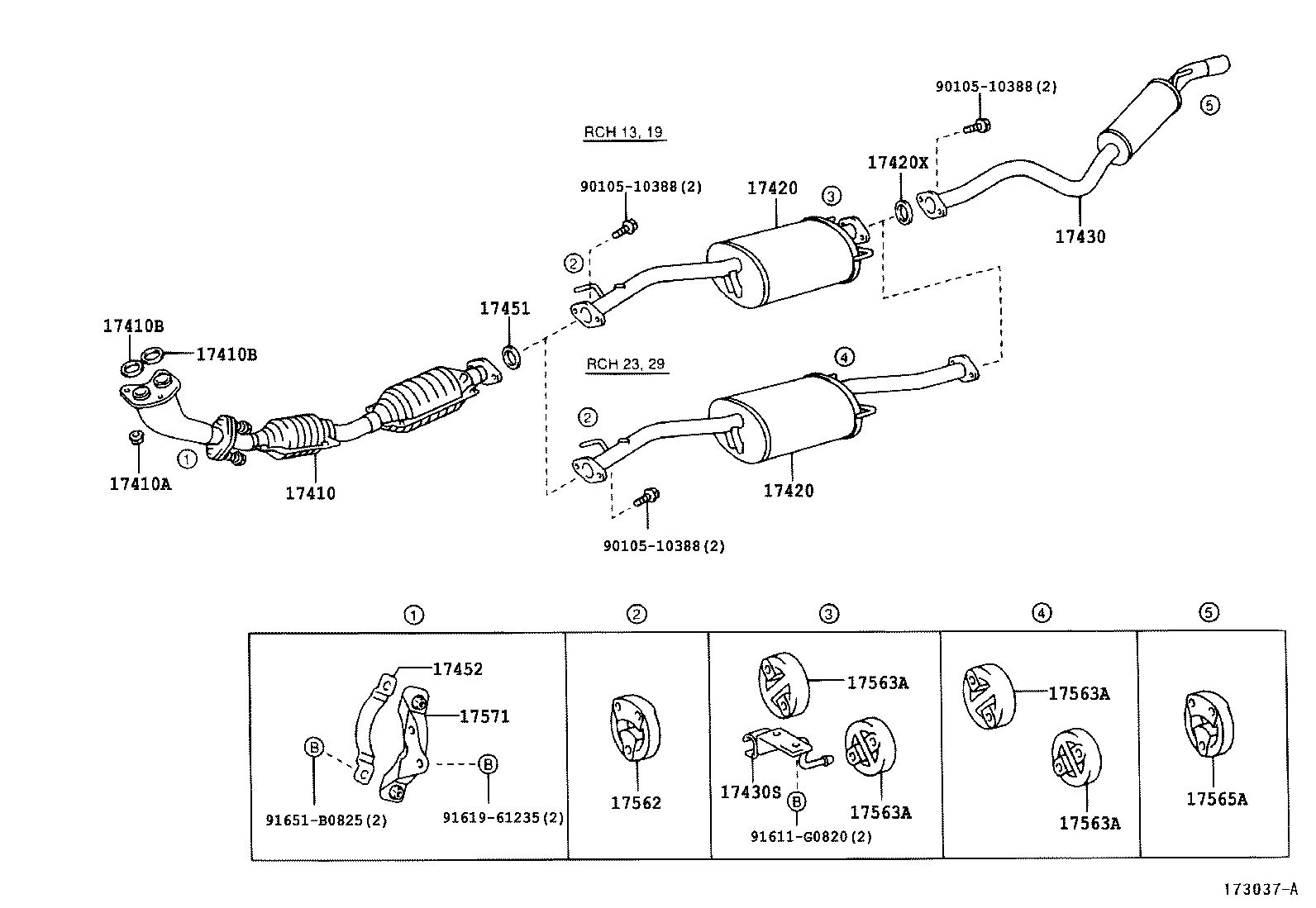

Figure 170967C 170967C 1995-08 → 1998-04 Figure 171654A 171654A 1998-04 → 2001-08 Figure 171731B 171731B 1998-04 → 2001-08 Figure 171974A 171974A 1995-08 → — Figure 173037A 173037A 2001-08 → — Figure 173110D 173110D 2001-08 → —

Part groups

PNCDescription
17402 Pipe Sub-assy, Exhaust, Front NO.2
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
17452 Clamp, Exhaust Pipe
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17581A Damper, Exhaust Pipe
17593C Protector, Exhaust Pipe, Lower NO.1
17599 Holder, Exhaust Pipe Support Stopper
18435A Protector, Monolithic Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
