Toyota DYNA200

1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

41 part groups · 6 illustrations

Illustrations

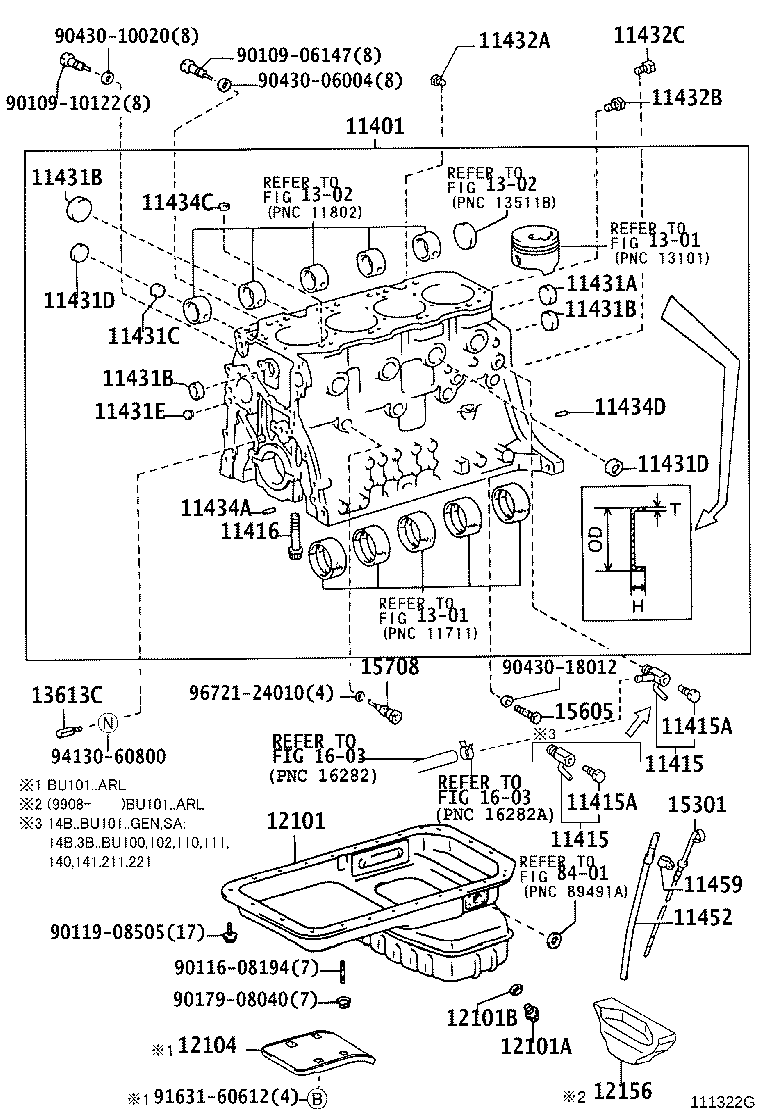

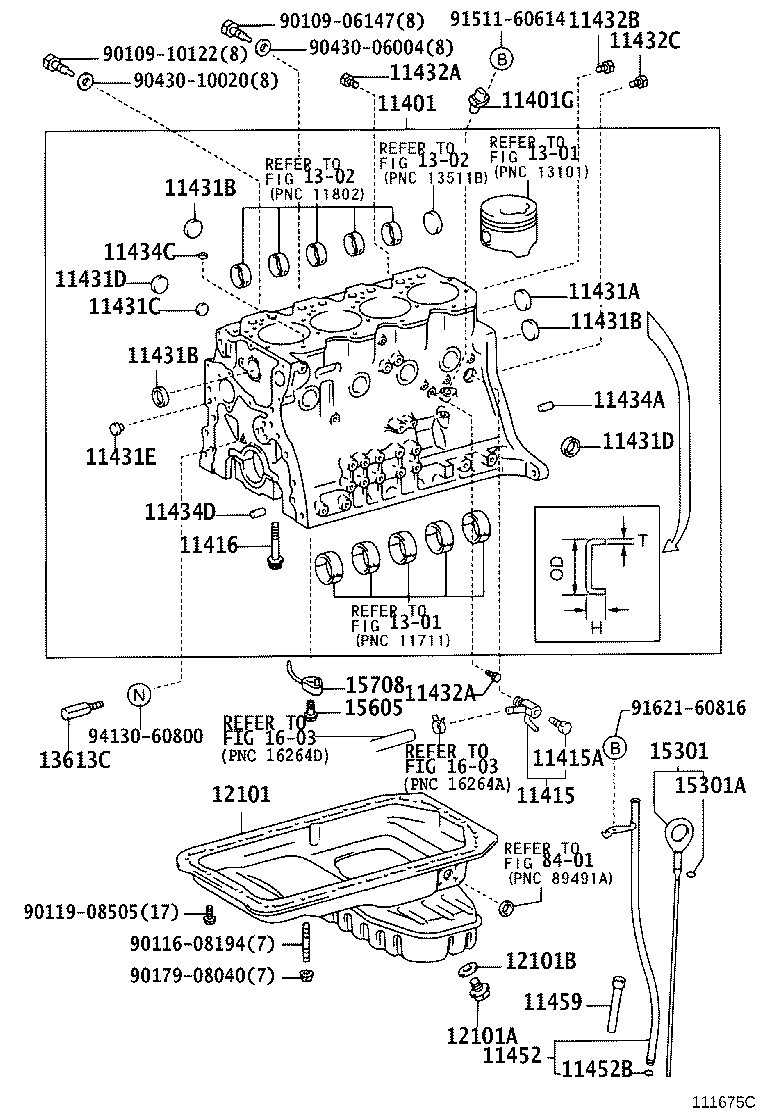

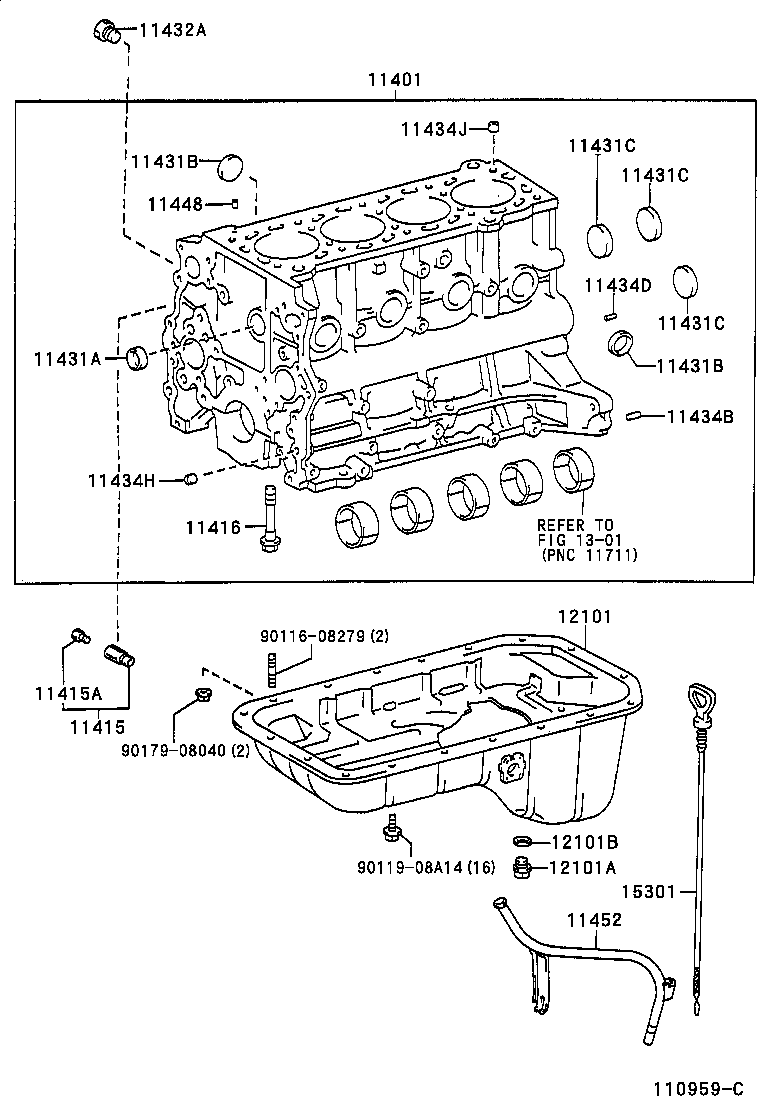

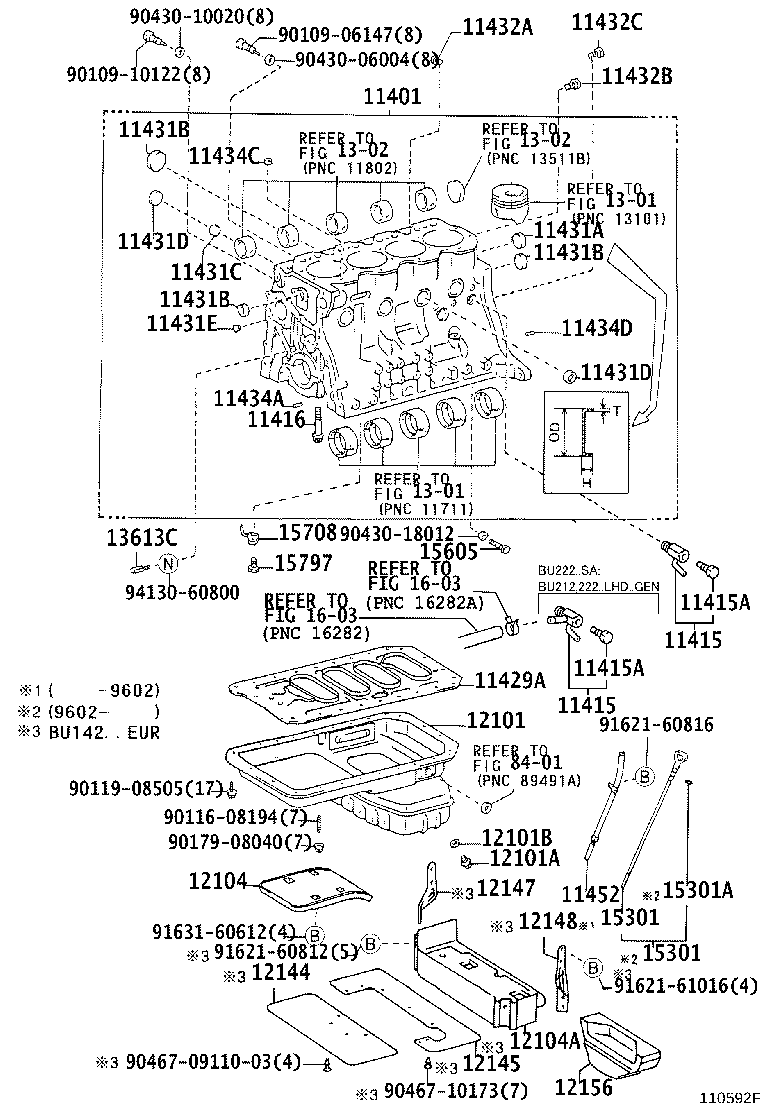

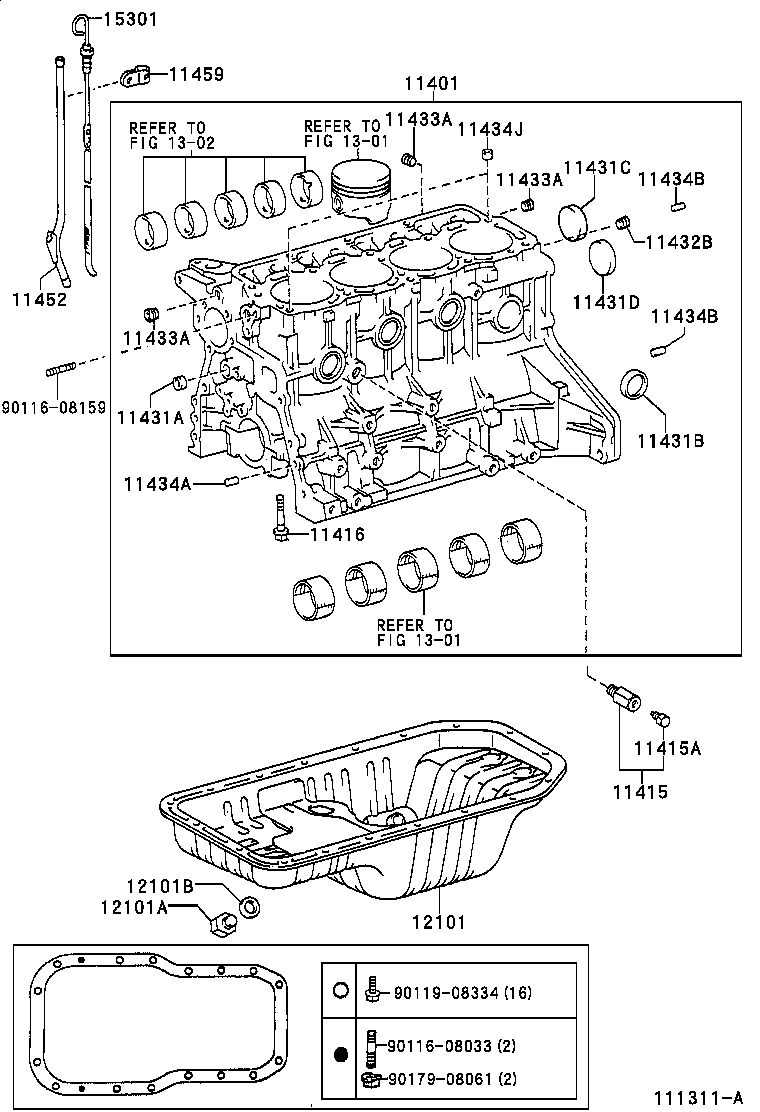

Figure 111192C 111192C 1995-05 → — Figure 110592F 110592F 1995-05 → — Figure 111322G 111322G 1995-05 → — Figure 111675C 111675C 1999-08 → — Figure 110959C 110959C 1997-03 → — Figure 111311A 111311A 1995-05 → —

Part groups

PNCDescription
11401 Block Sub-assy, Cylinder
11401G Sensor, Crank Position
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11429A Plate, Cylinder Block Stiffening
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11431C Plug, Tight, NO.3(FOR CYLINDER BLOCK)
11431D Plug, Tight, NO.4(FOR CYLINDER BLOCK)
11431E Plug, Tight, NO.5(FOR CYLINDER BLOCK)
11432A Plug, W/Head Taper Screw, NO.1
11432B Plug, W/Head Taper Screw, NO.2
11432C Plug, W/Head Taper Screw, NO.3
11433A Plug, Straight, NO.1
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434H Pin, Ring (FOR TIMING BELT COVER SET)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11448 Orifice, Cylinder Block Oil
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
11459 Support, Oil Level Gage Guide
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12104 Cover Sub-assy, Oil Pan, NO.1
12104A Cover Sub-assy, Oil Pan, NO.2
12144 Silencer, Oil Pan Cover
12145 Silencer, Oil Pan Cover, NO.2
12147 Stay, Oil Pan Cover, Rear RH
12148 Stay, Oil Pan Cover, Rear LH
12156 Insulator, Oil Pan
13613C Nozzle, Oil
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15605 Valve Sub-assy, Oil Check
15708 Nozzle Sub-assy, Oil, NO.1
15797 Bolt, Oil Nozzle Union
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
