Toyota DYNA200

1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

36 part groups · 18 illustrations

Illustrations

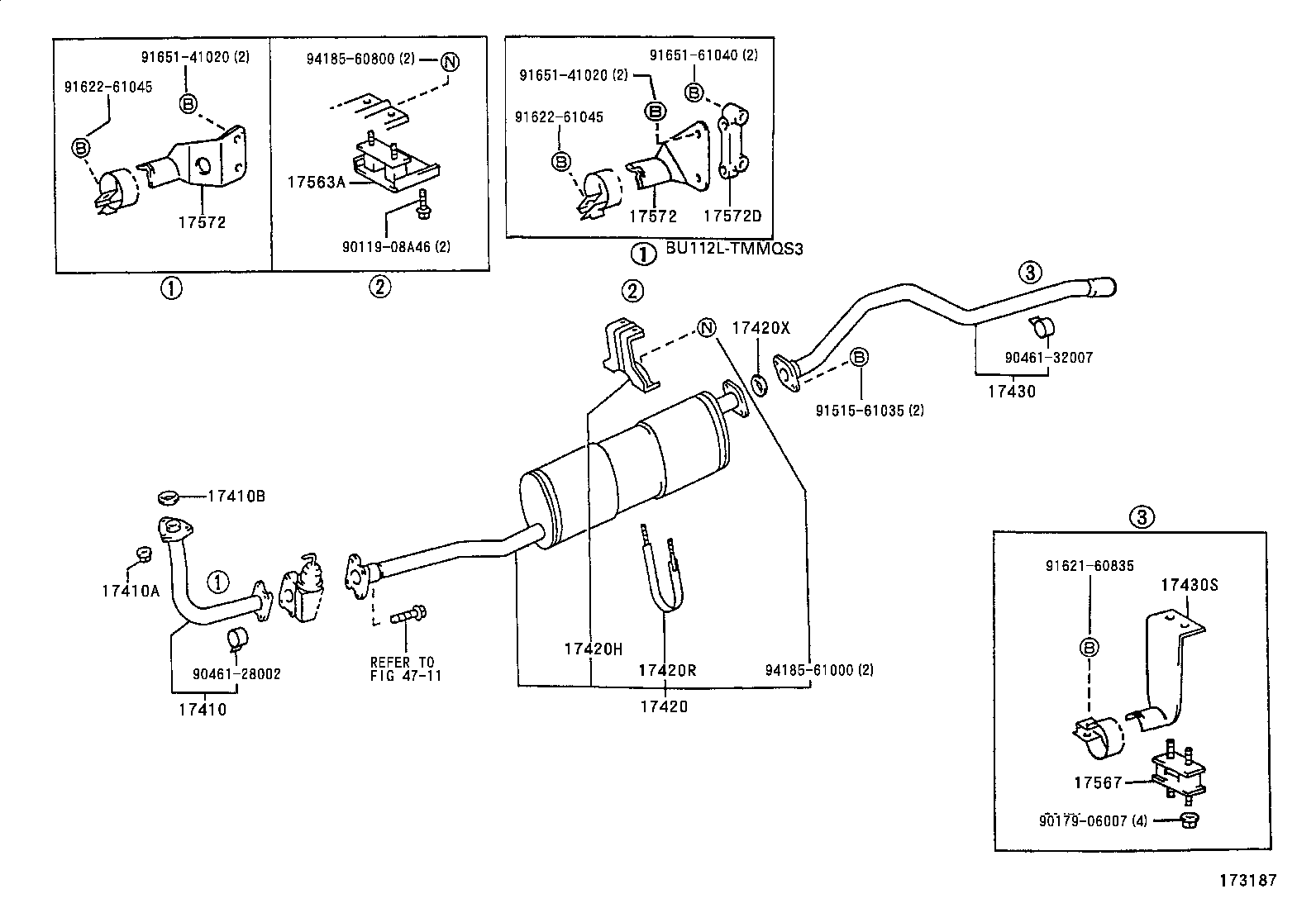

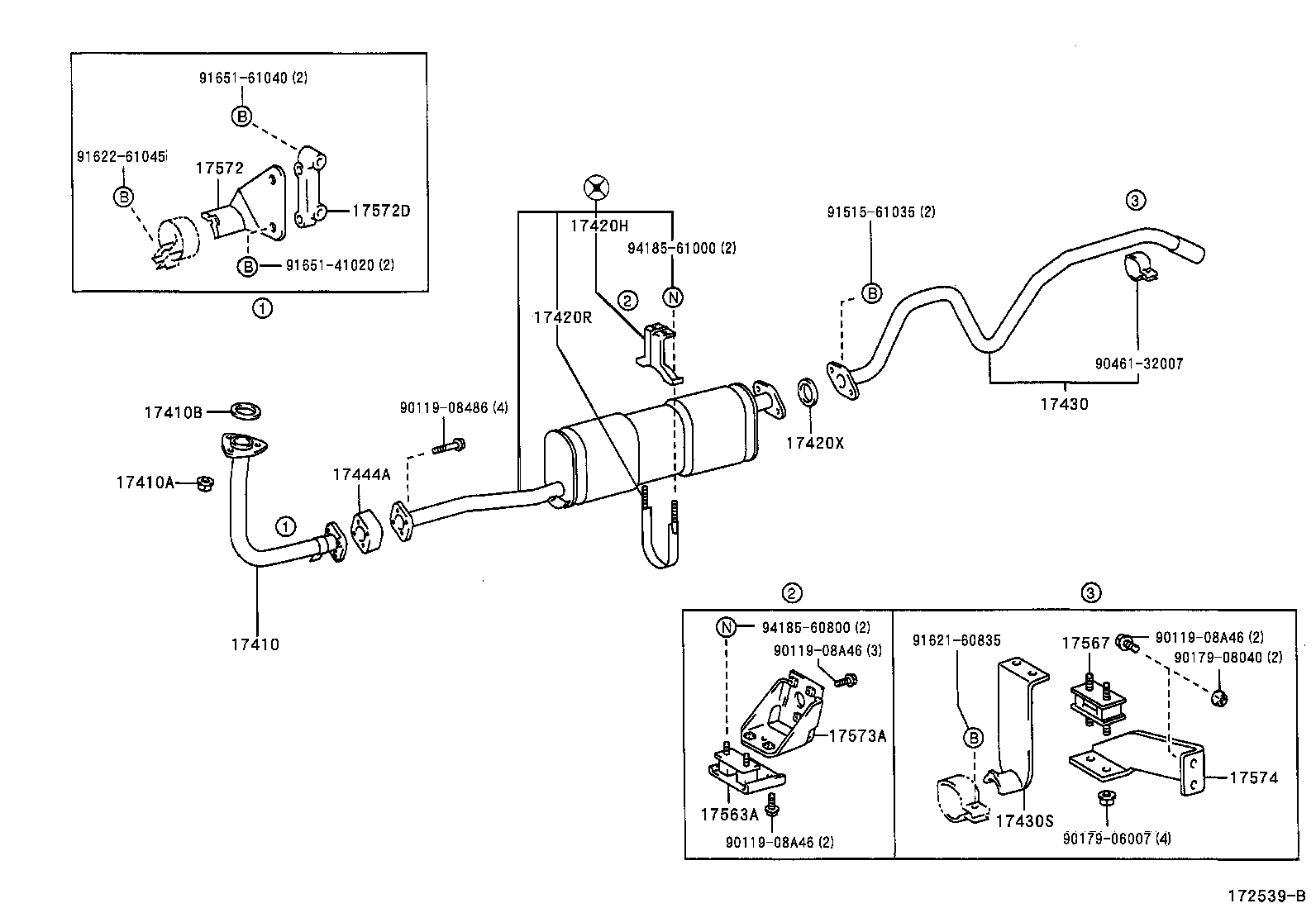

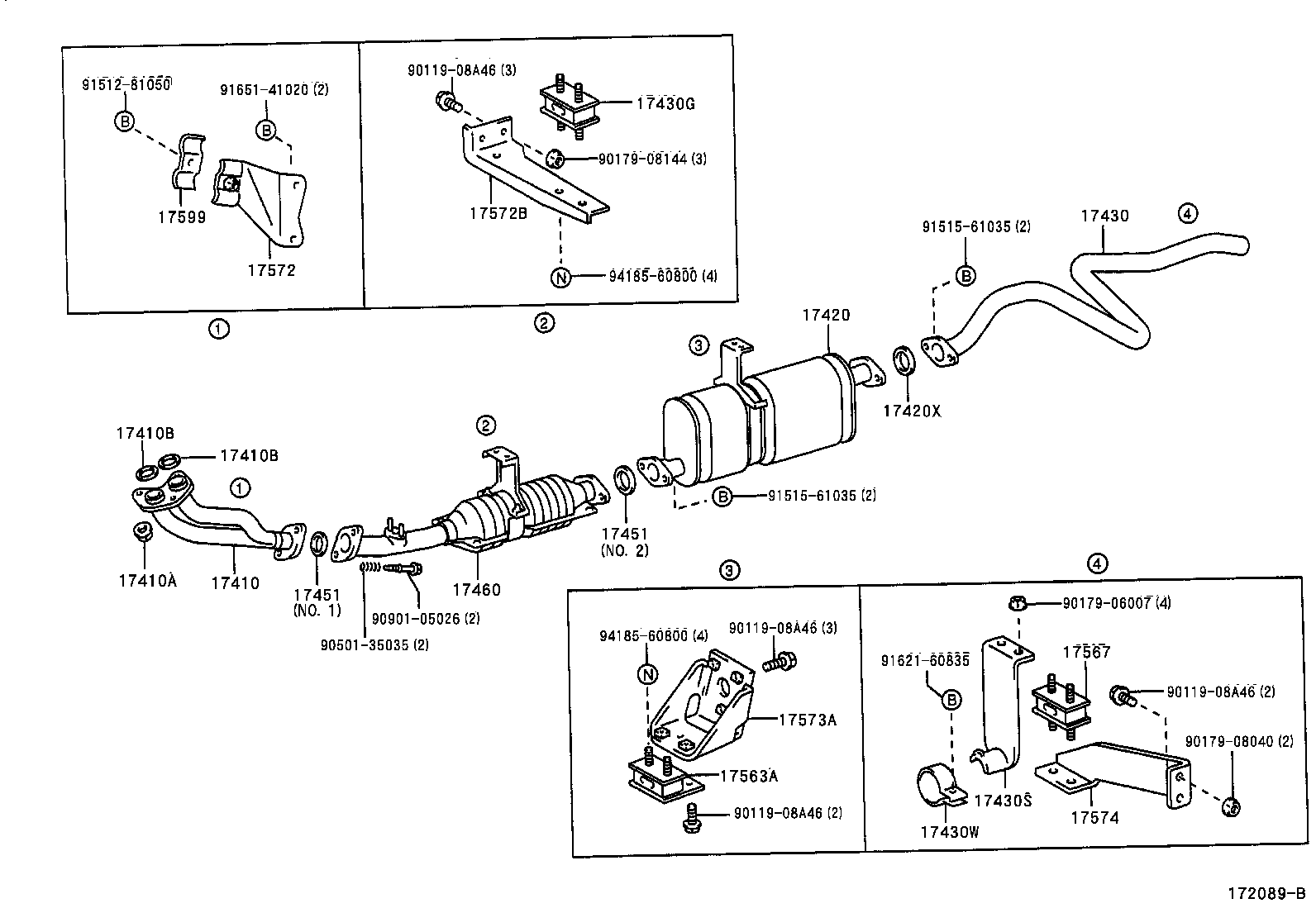

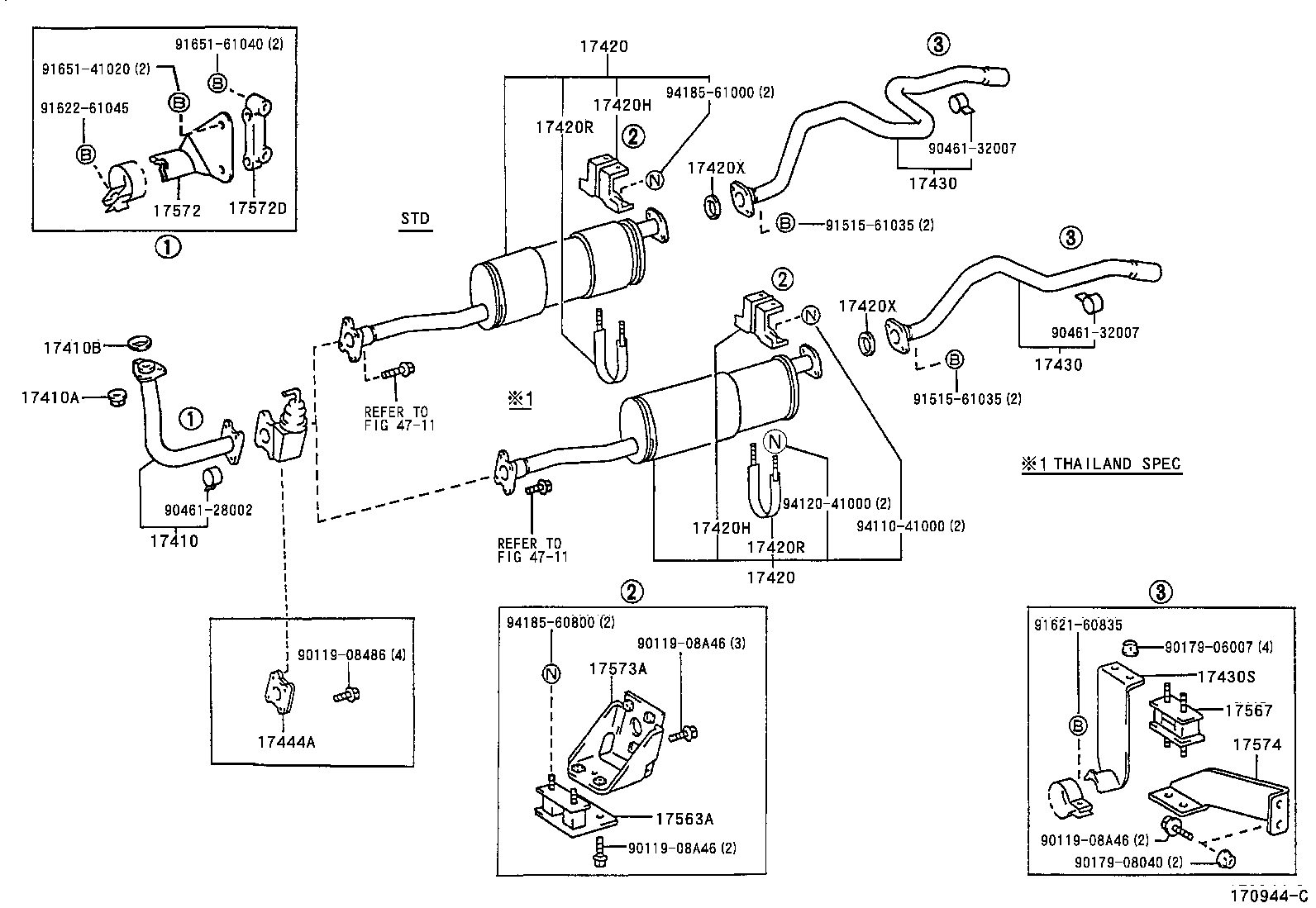

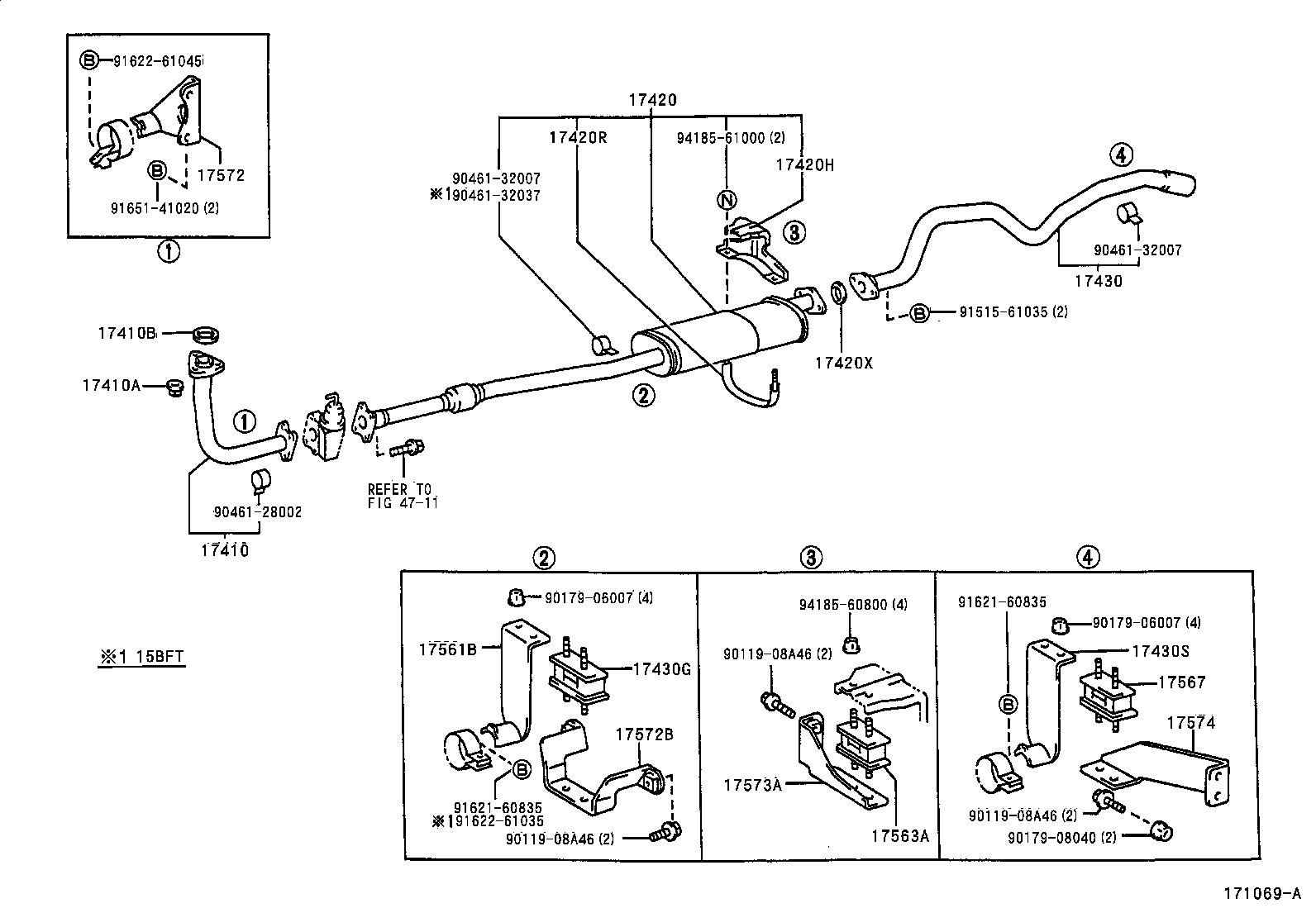

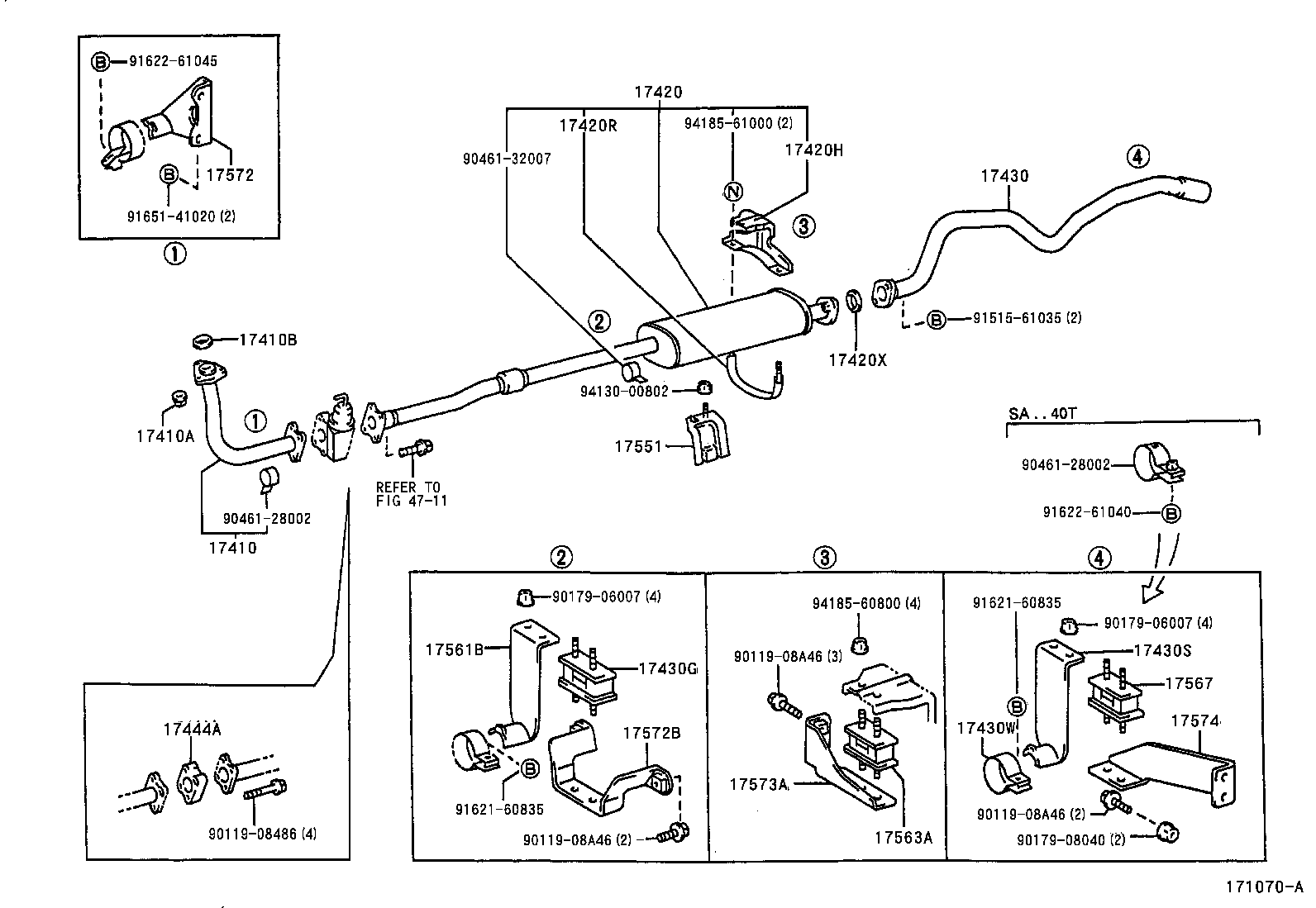

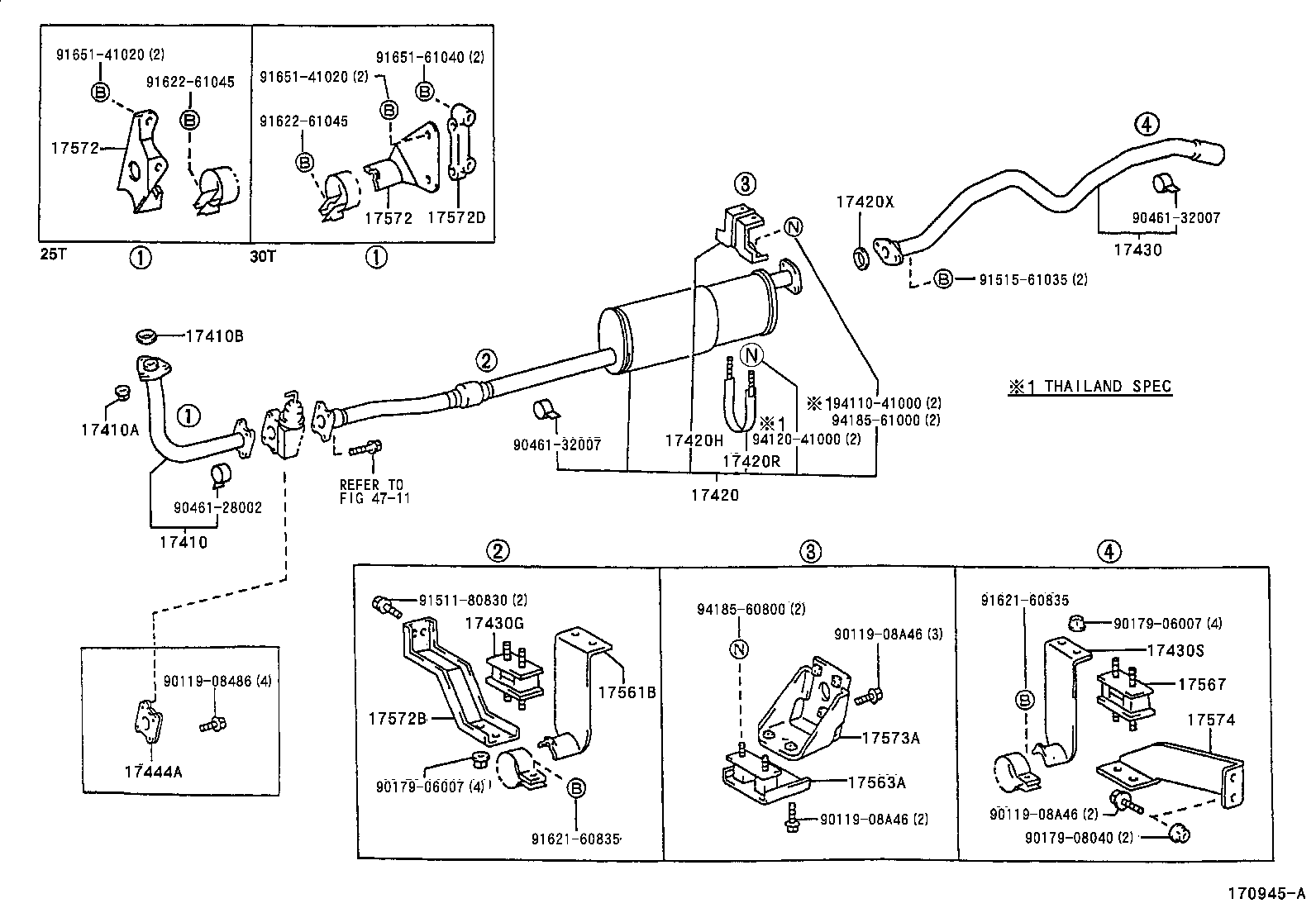

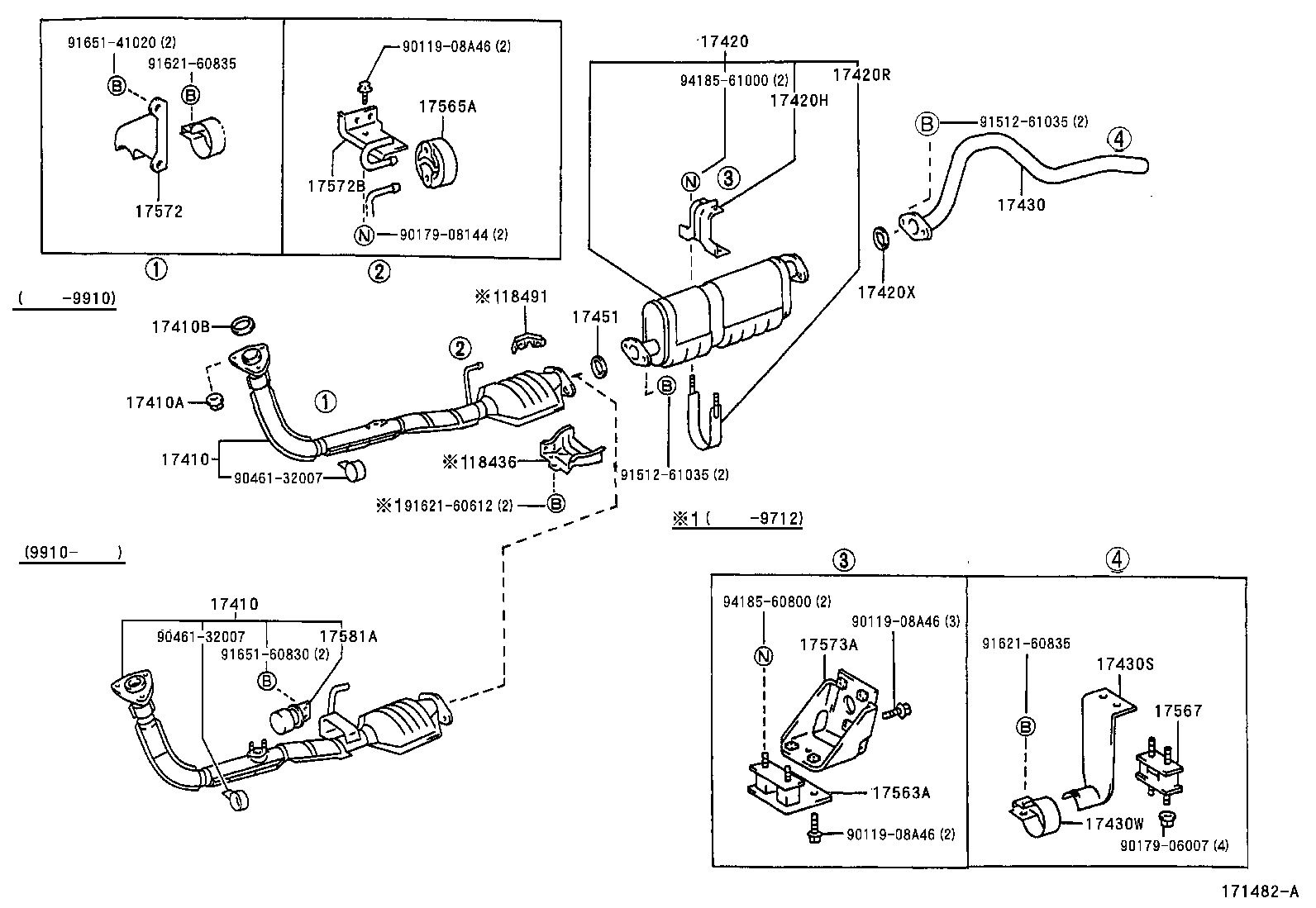

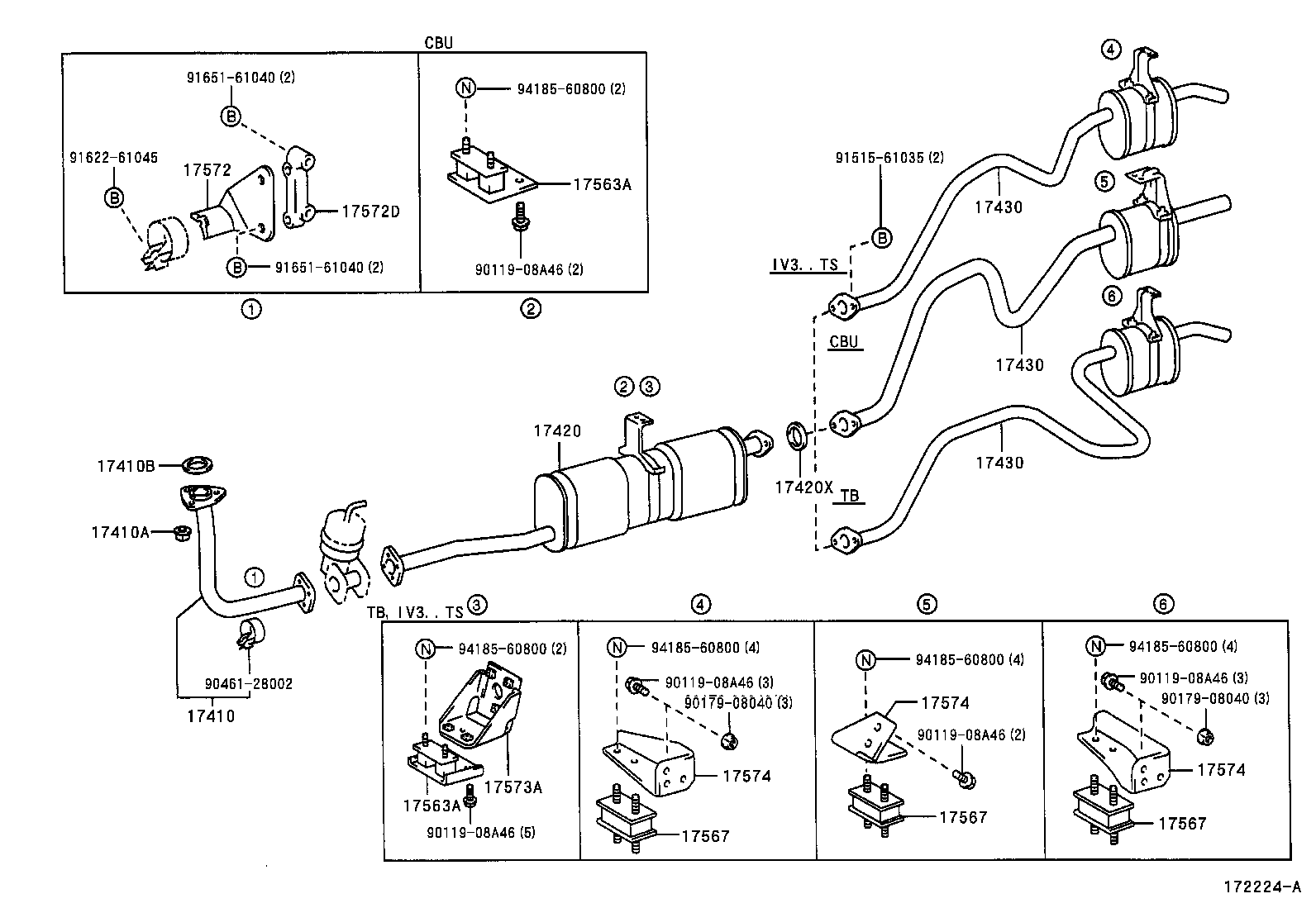

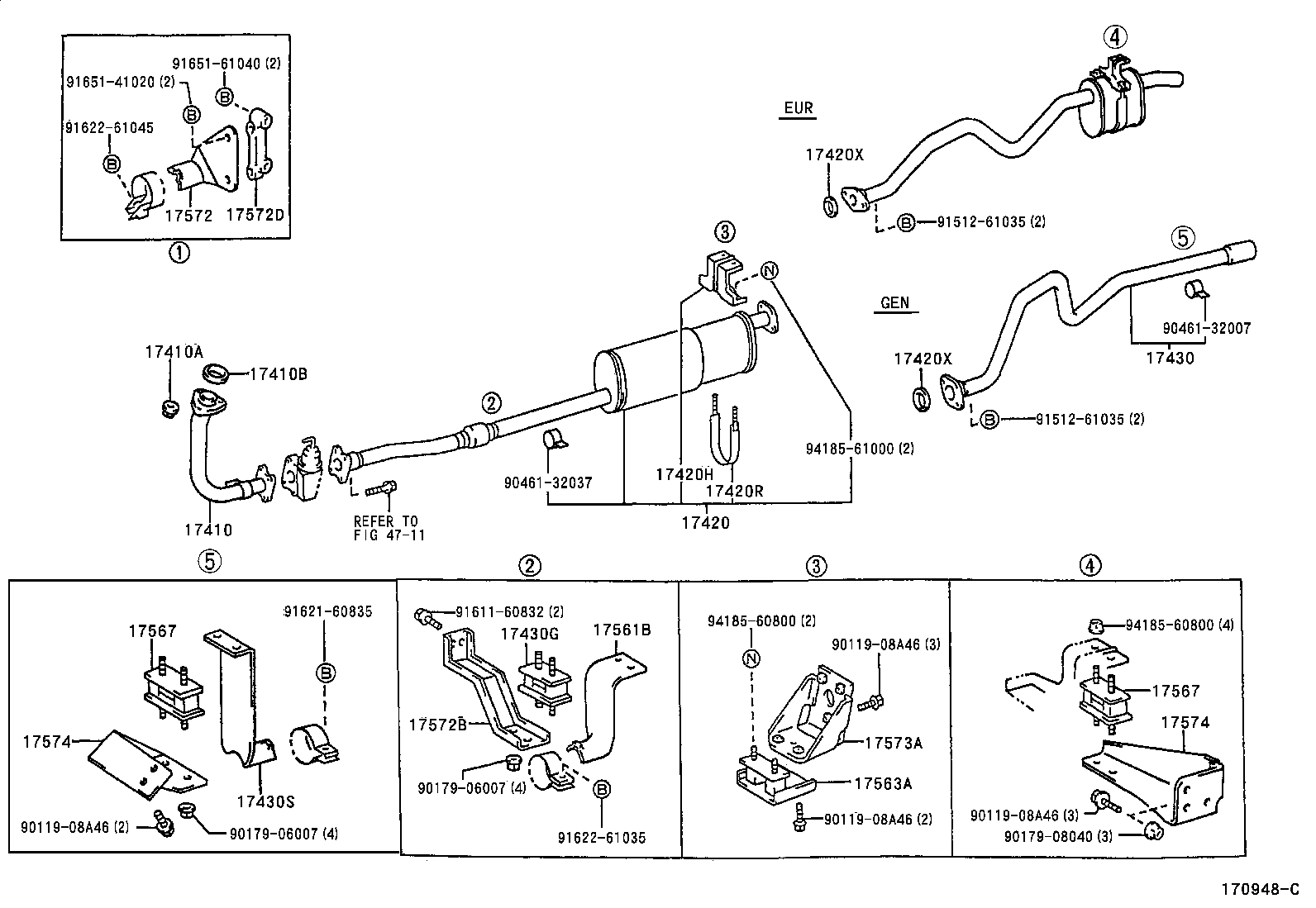

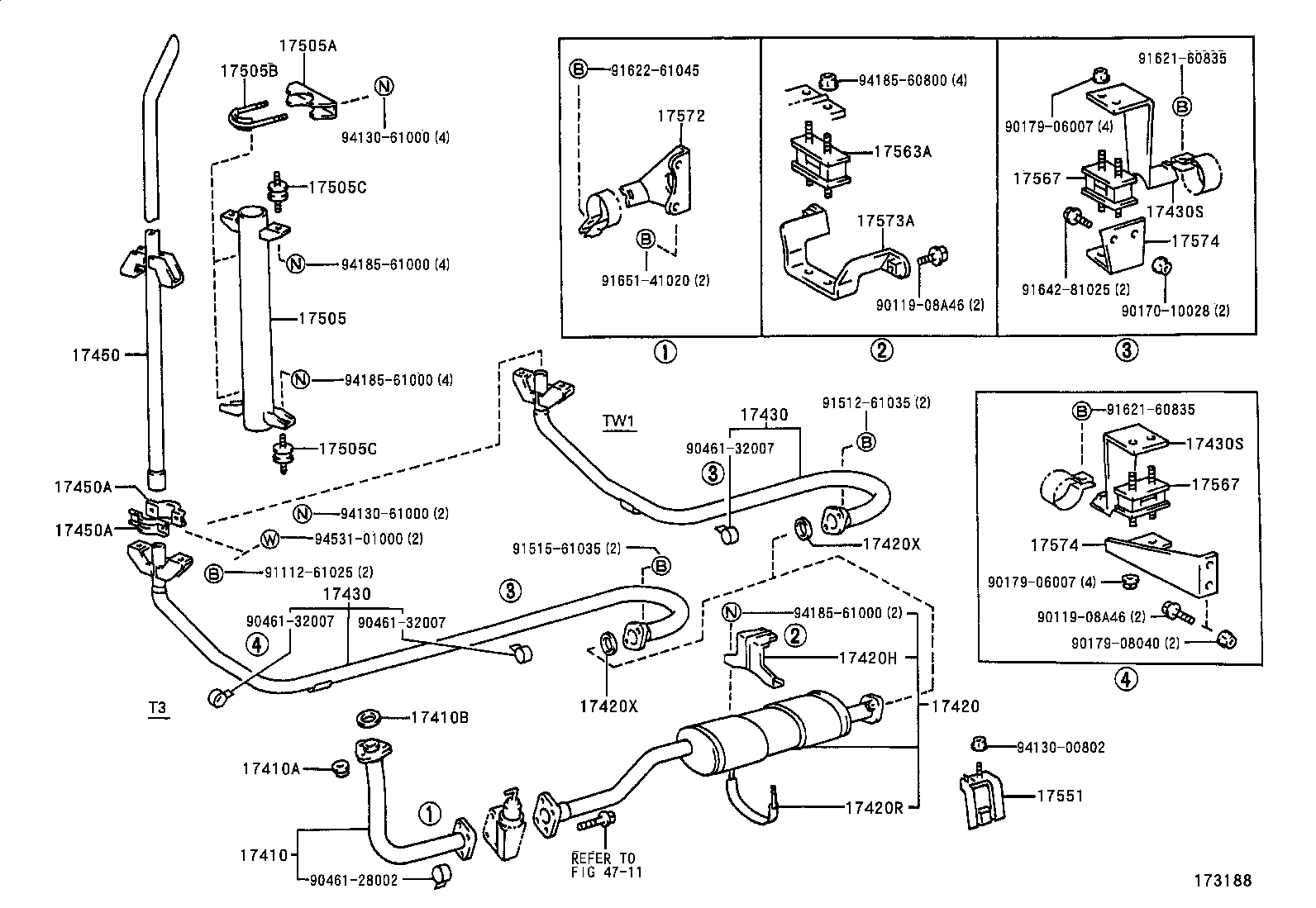

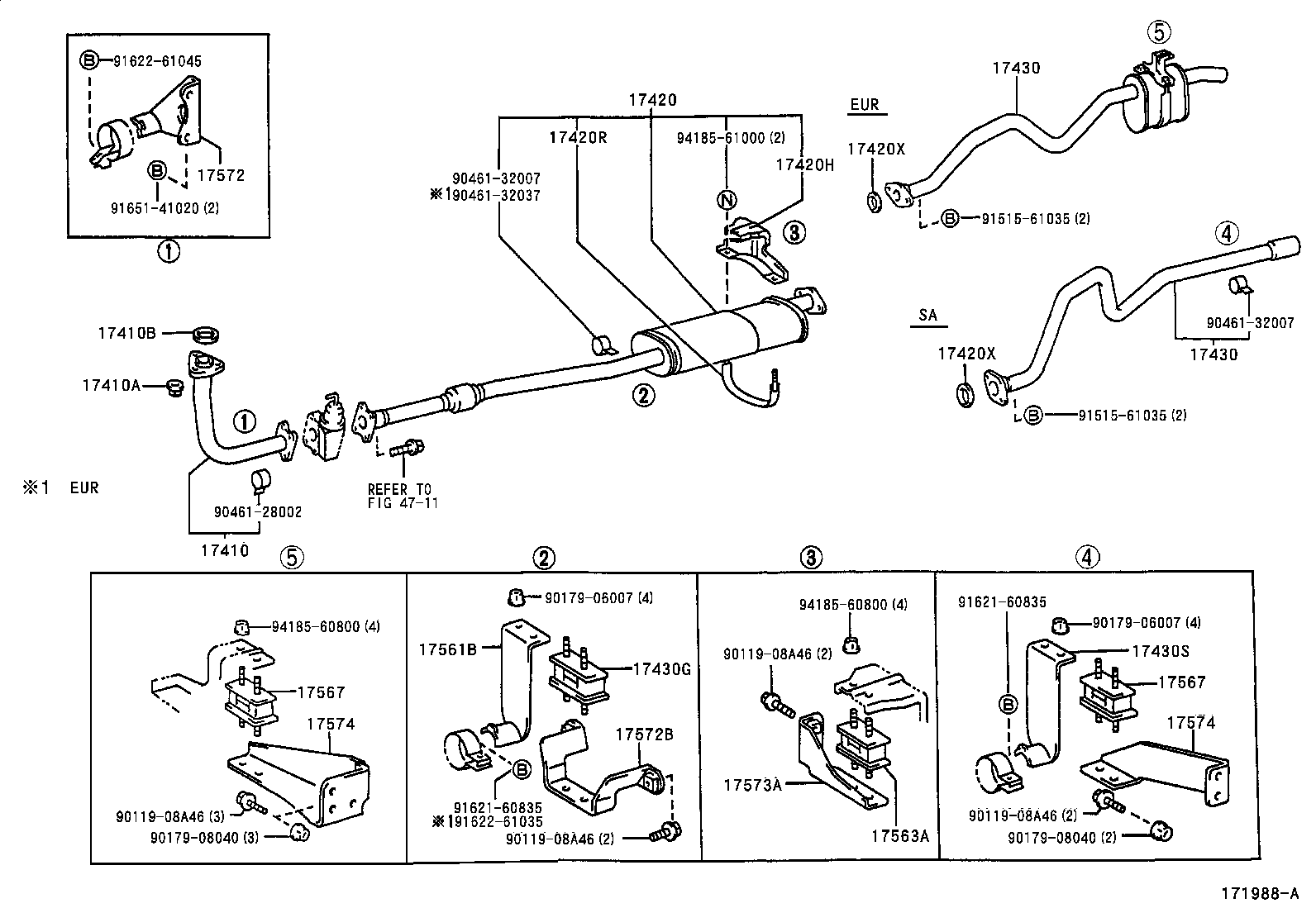

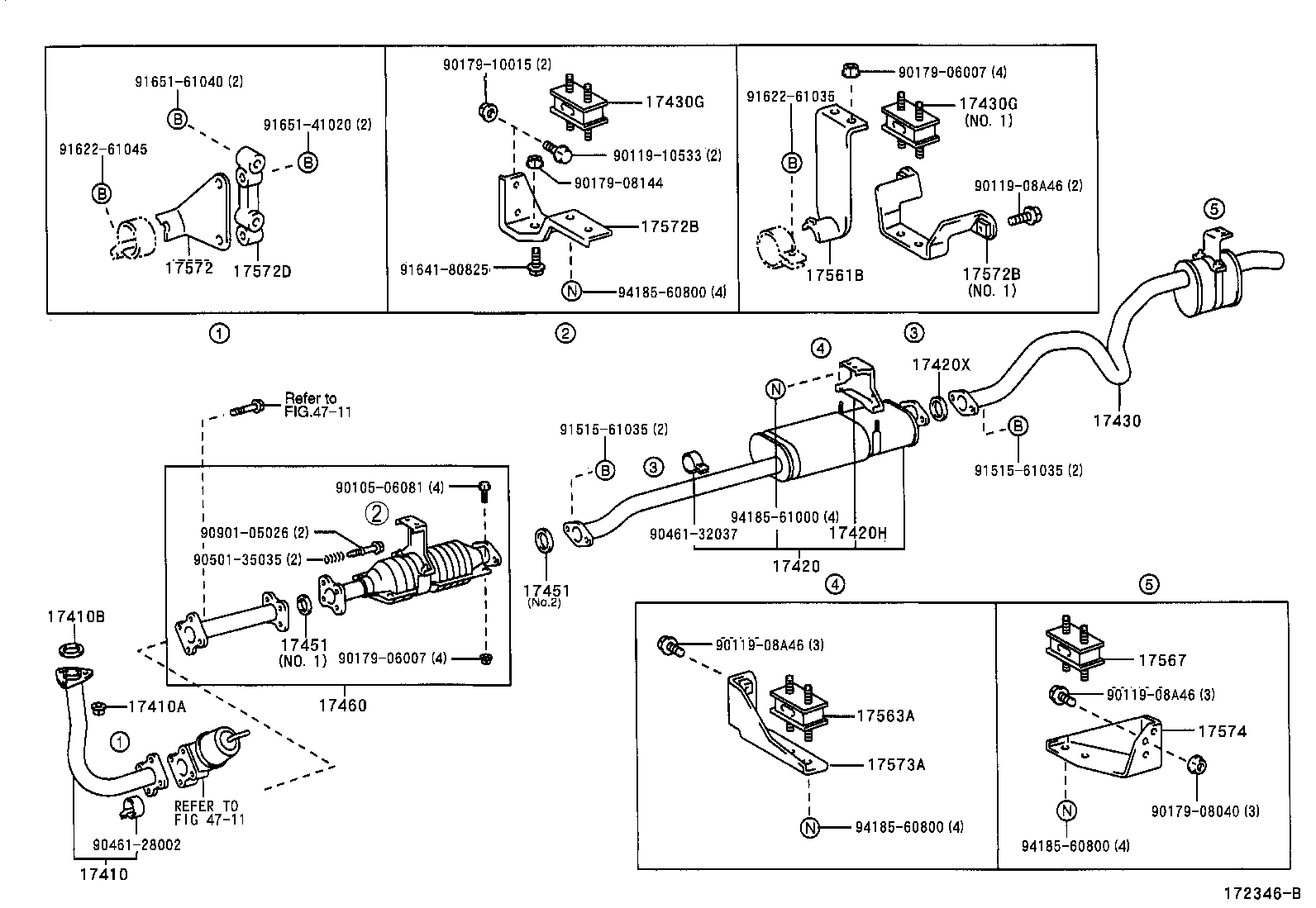

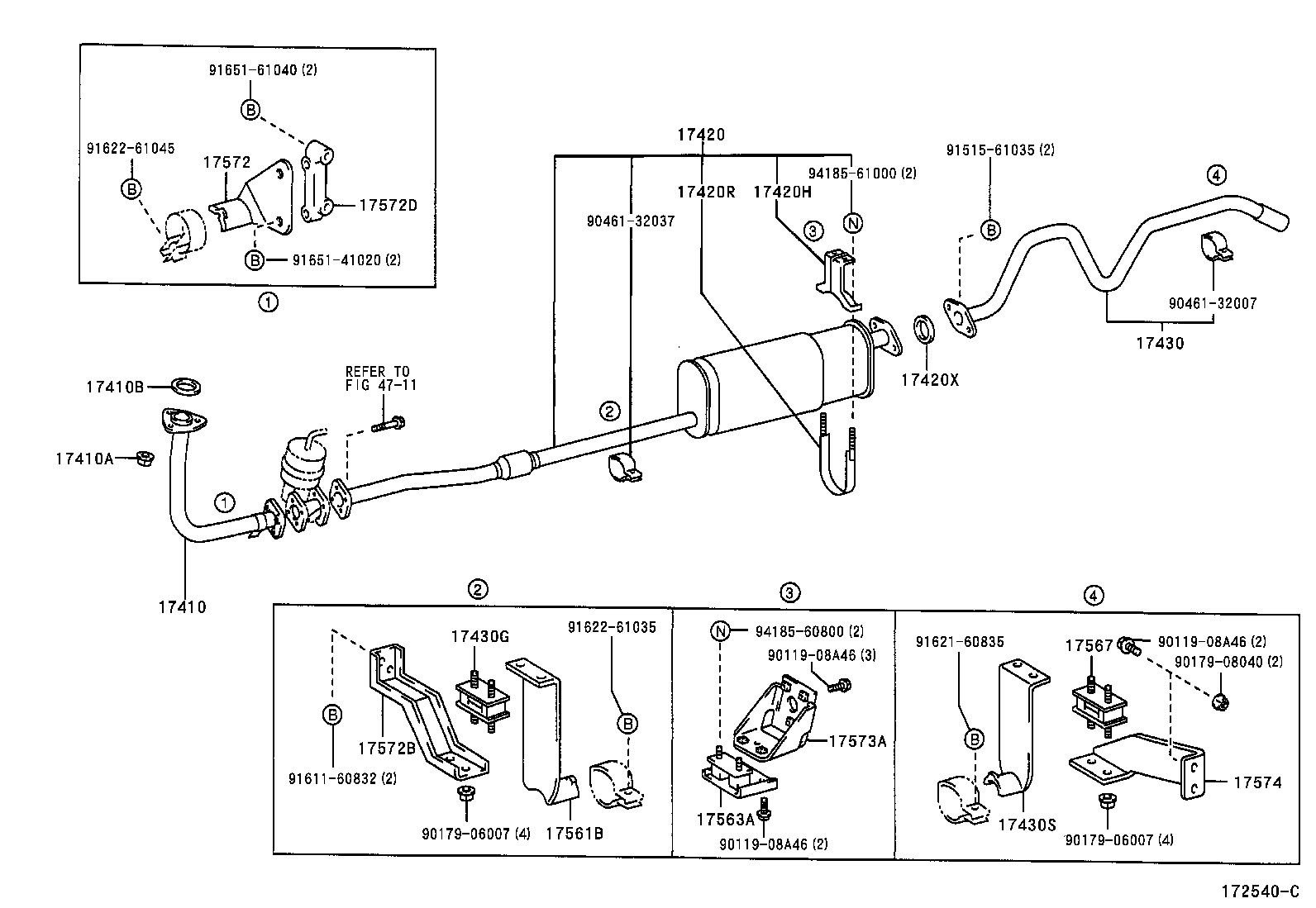

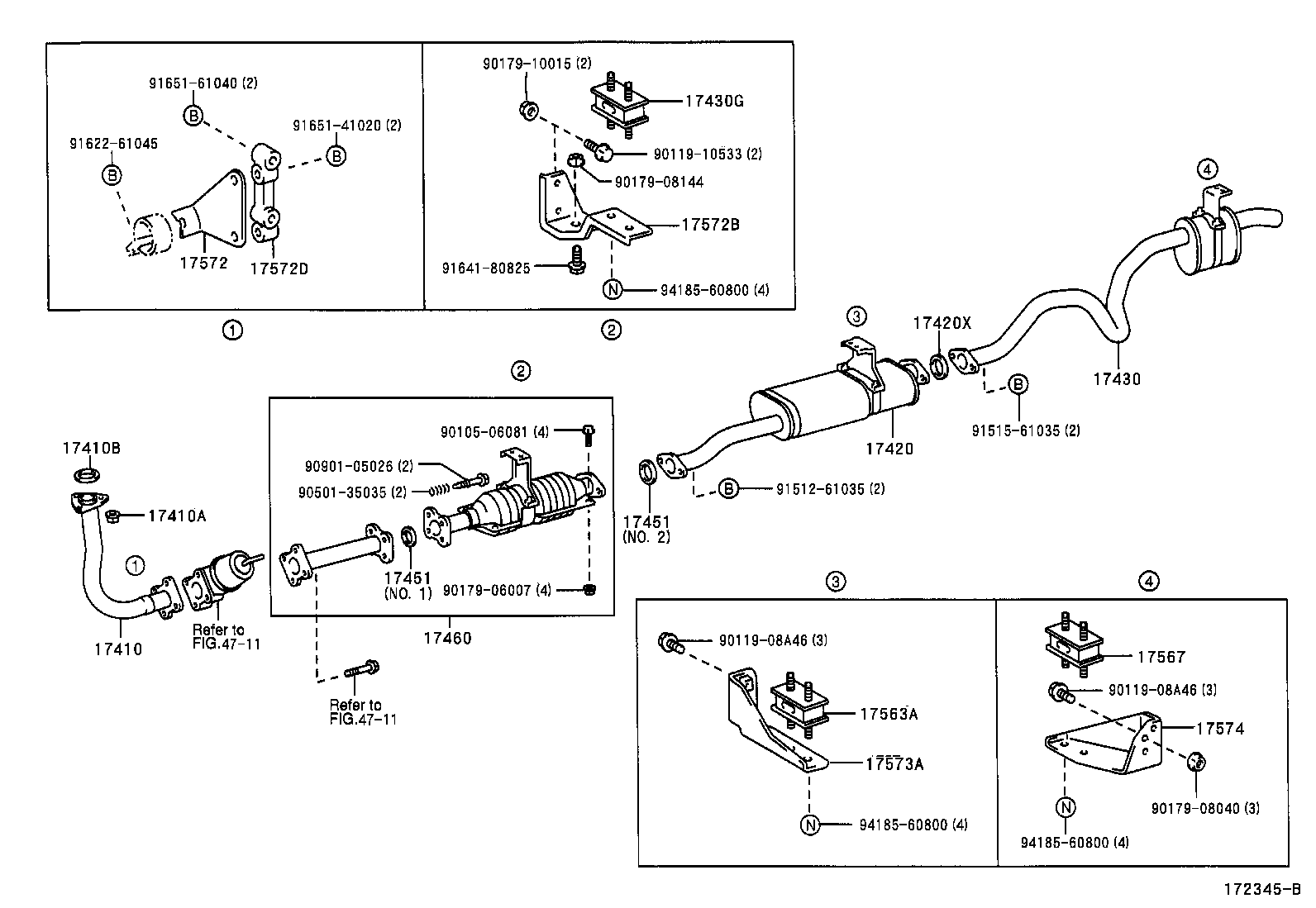

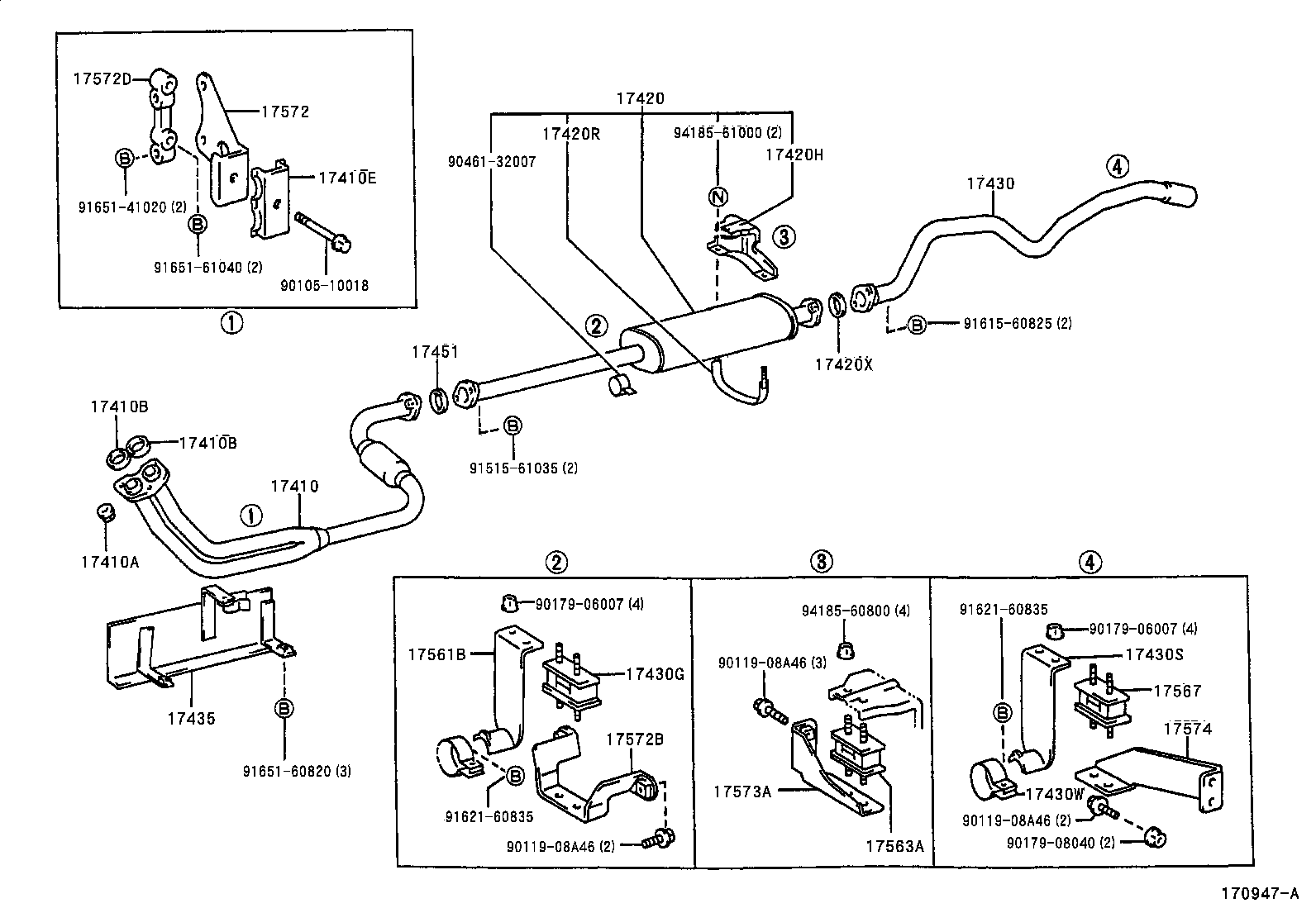

Figure 170943B 170943B 1995-05 → — Figure 170944C 170944C 1995-05 → — Figure 172224A 172224A 1999-08 → — Figure 173187 173187 1995-05 → — Figure 170945A 170945A 1995-05 → — Figure 173188 173188 1995-05 → — Figure 171069A 171069A 1995-05 → — Figure 171069A 171069A 2000-05 → — Figure 171070A 171070A 1995-05 → — Figure 172539B 172539B 2000-07 → — Figure 170948C 170948C 1996-05 → — Figure 172540C 172540C 2000-07 → — Figure 171988A 171988A 1999-02 → — Figure 172345B 172345B 1999-08 → — Figure 172346B 172346B 1999-08 → — Figure 171482A 171482A 1997-03 → — Figure 172089B 172089B 1999-08 → — Figure 170947A 170947A 1995-05 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17420 Pipe Assy, Exhaust, Center
17420H Clamp NO.1, Exhaust Pipe Center, Center
17420R Clamp NO.2, Exhaust Pipe Center, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430G Cushion, Exhaust Tailpipe(FOR CENTER)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430W Clamp NO.2, Exhaust Tailpipe (FOR REAR)
17435 Insulator, Exhaust Pipe Heat
17444A Spacer, Exhaust Front Pipe
17450 Pipe Assy, Exhaust, NO.5
17450A Clamp, Exhaust Pipe, NO.5
17451 Gasket, Exhaust Pipe
17460 Converter Assy, Catalytic W/Pipe
17505 Insulator Sub-assy, Exhaust Pipe Heat NO.1
17505A Clamp, Exhaust Pipe(FOR HEAT INSULATOR)
17505B Bolt, U(FOR HEAT INSULATOR CLAMP)
17505C Cushion, Exhaust Pipe(FOR HEAT INSULATOR)
17551 Insulator, Exhaust Pipe Heat, NO.1
17561B Support, Exhaust Pipe, NO.1
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17567 Cushion, Exhaust Pipe Support
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
17572D Bracket, Exhaust Pipe Support, NO.1
17573A Bracket, Exhaust Pipe Support, NO.3
17574 Bracket, Exhaust Pipe Support, NO.4
17581A Damper, Exhaust Pipe
17599 Holder, Exhaust Pipe Support Stopper
18436 Protector, Monolithic Converter, NO.1
18491 Flange, Thermosensor Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
