Toyota DYNA200
1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe
Discontinued model
Data version 2004-06

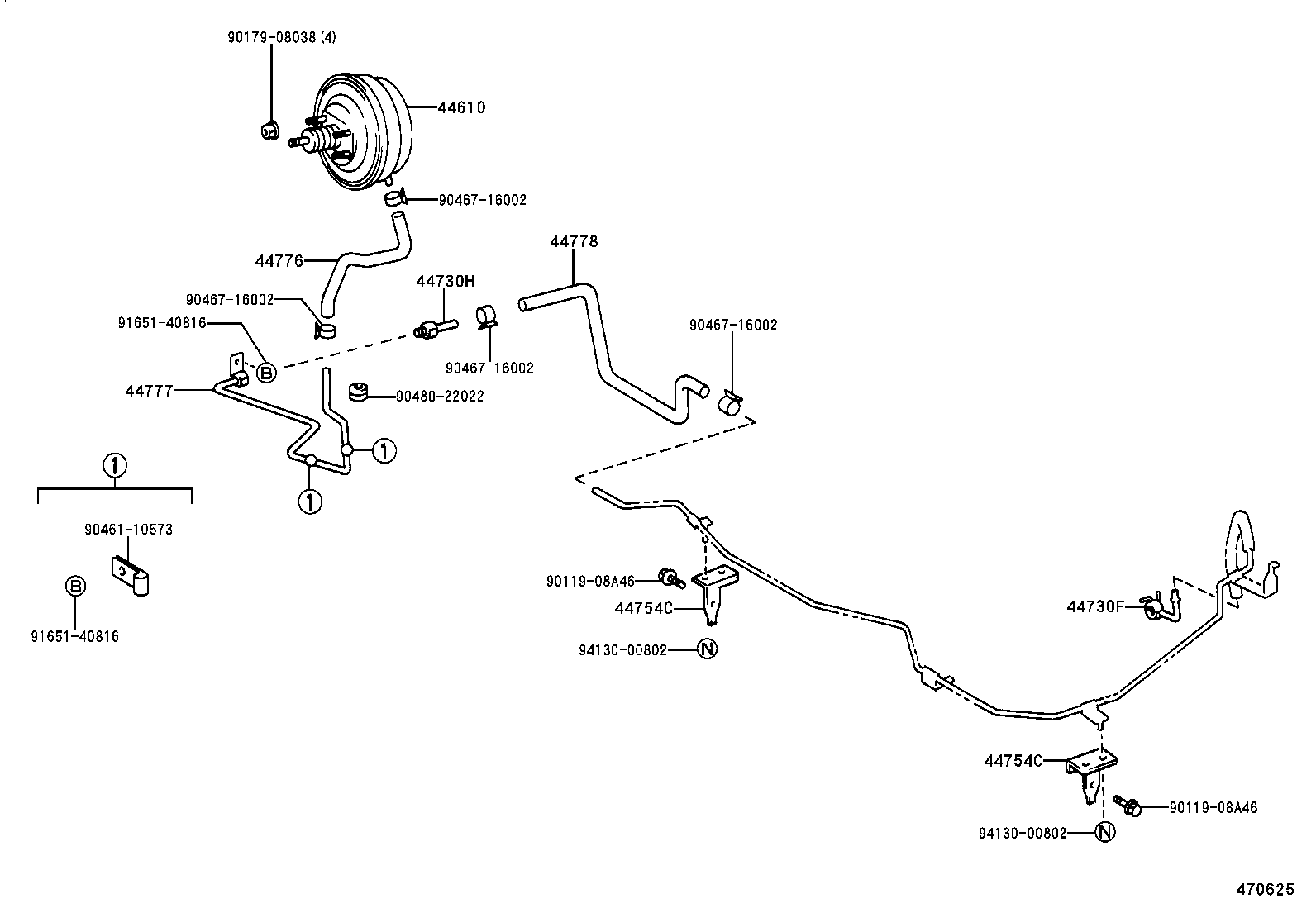

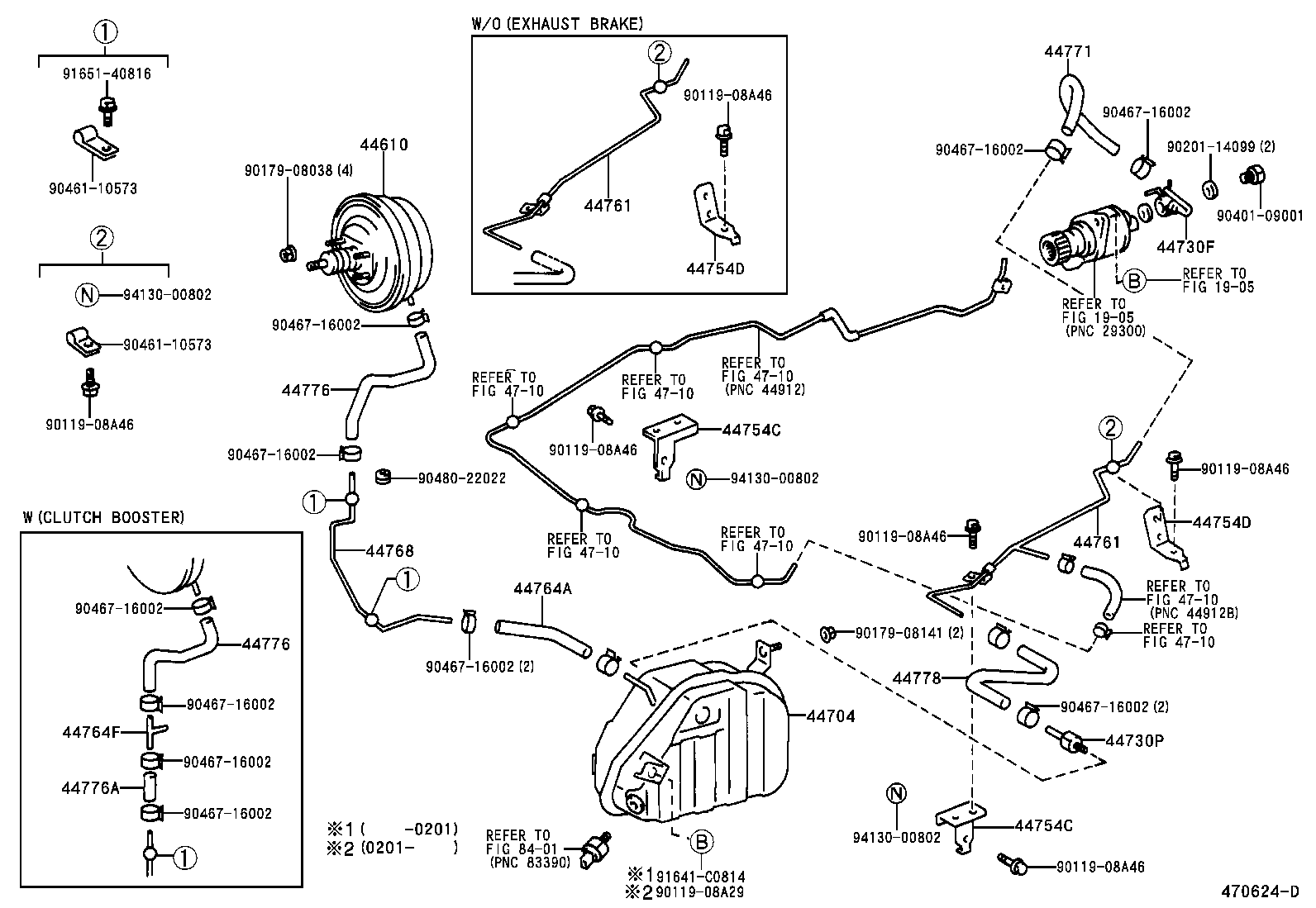

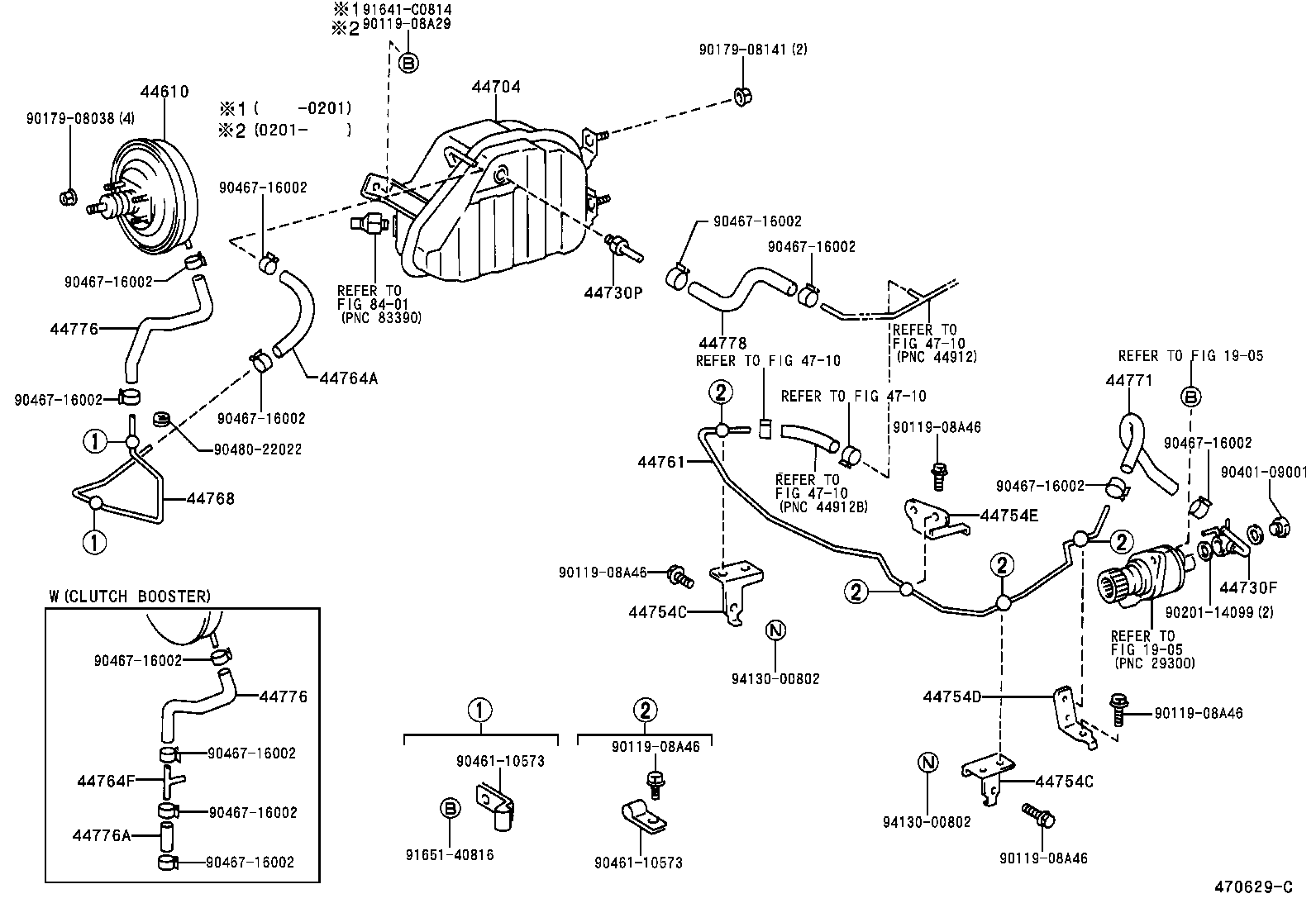

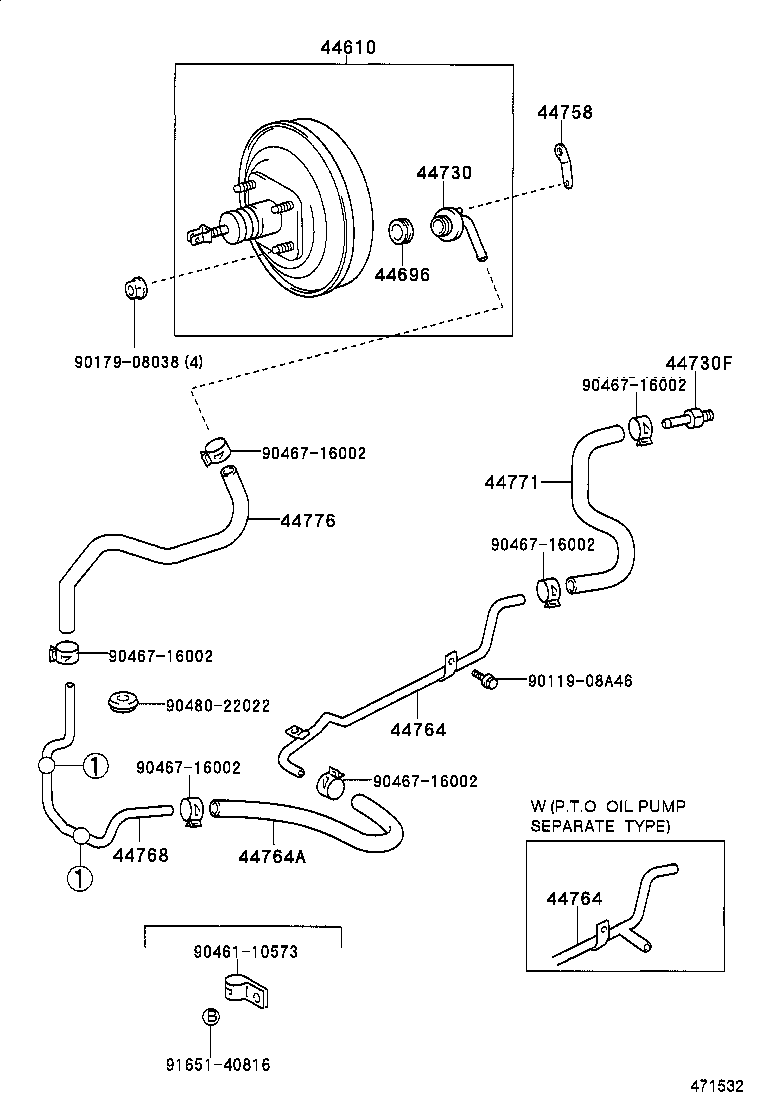

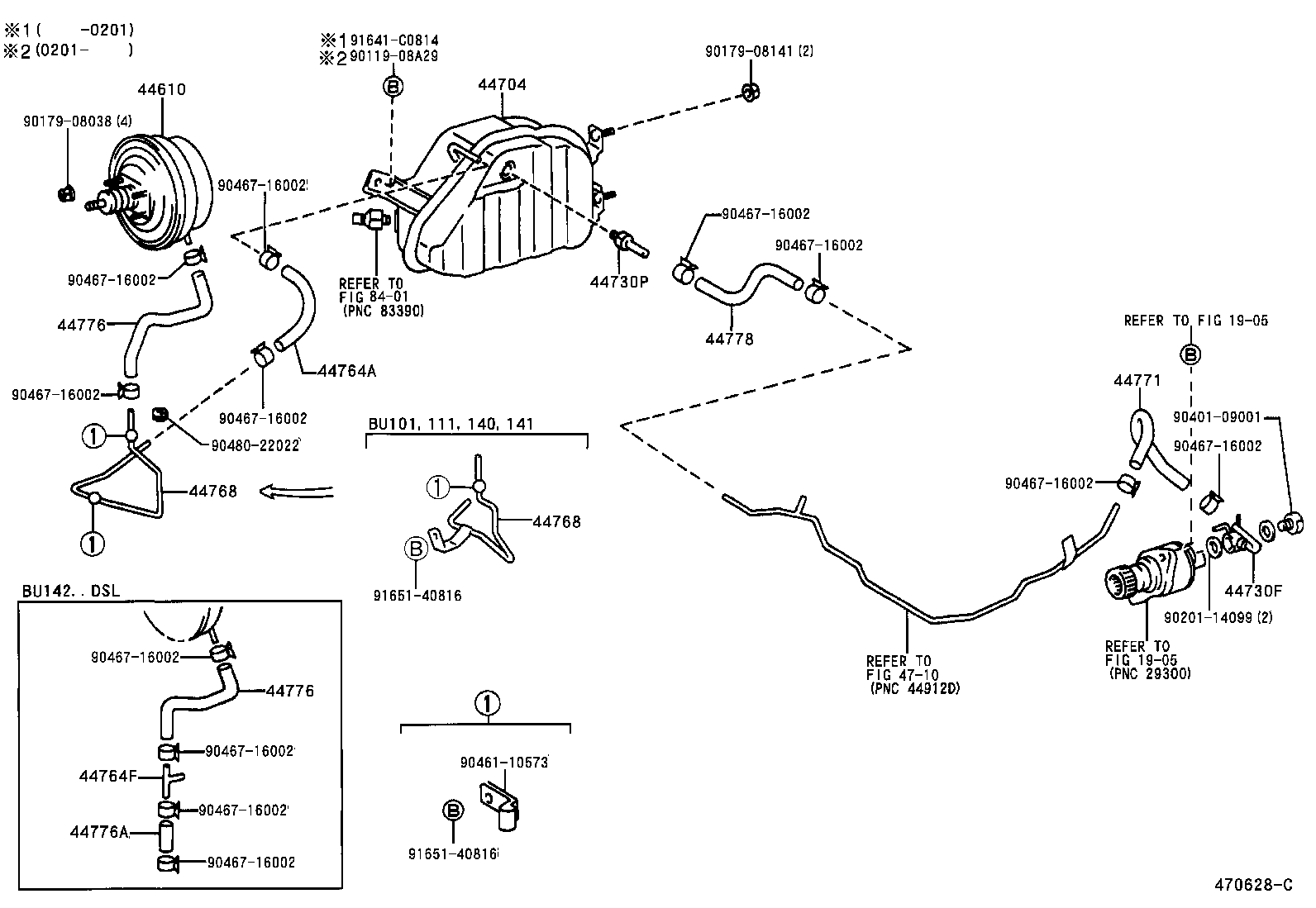

Brake Booster & Vacuum Tube
21 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44696 | Grommet, Check Valve |
| 44704 | Reservoir Sub-assy, Vacuum |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730F | Union, Vacuum Hose(FOR MANIFOLD SIDE) |
| 44730H | Valve Assy, Vacuum Check(FOR VACUUM RESERVOIR) |
| 44730P | Valve Assy, Vacuum Check, NO.1 |
| 44754C | Bracket, Vacuum Tube, NO.1 |
| 44754D | Bracket, Vacuum Tube, NO.2 |
| 44754E | Bracket, Vacuum Tube, NO.3 |
| 44758 | Bracket, Vacuum Check Valve |
| 44761 | Tube, Intake Manifold OR Vacuum Pump TO Connector |
| 44764 | Tube, Booster Vacuum |
| 44764A | Hose, Booster Vacuum |
| 44764F | Way(FOR BOOSTER VACUUM TUBE) |
| 44768 | Tube, Booster Vacuum |
| 44771 | Hose, Vacuum Tube Connector |
| 44776 | Hose, Brake Booster |
| 44776A | Hose, Vacuum Reservoir TO Brake Booster |
| 44777 | Connector, Vacuum Hose, NO.1 |
| 44778 | Hose, Connector TO Check Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
