Toyota DYNA200

1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Brake Tube & Clamp

7 part groups · 4 illustrations

Illustrations

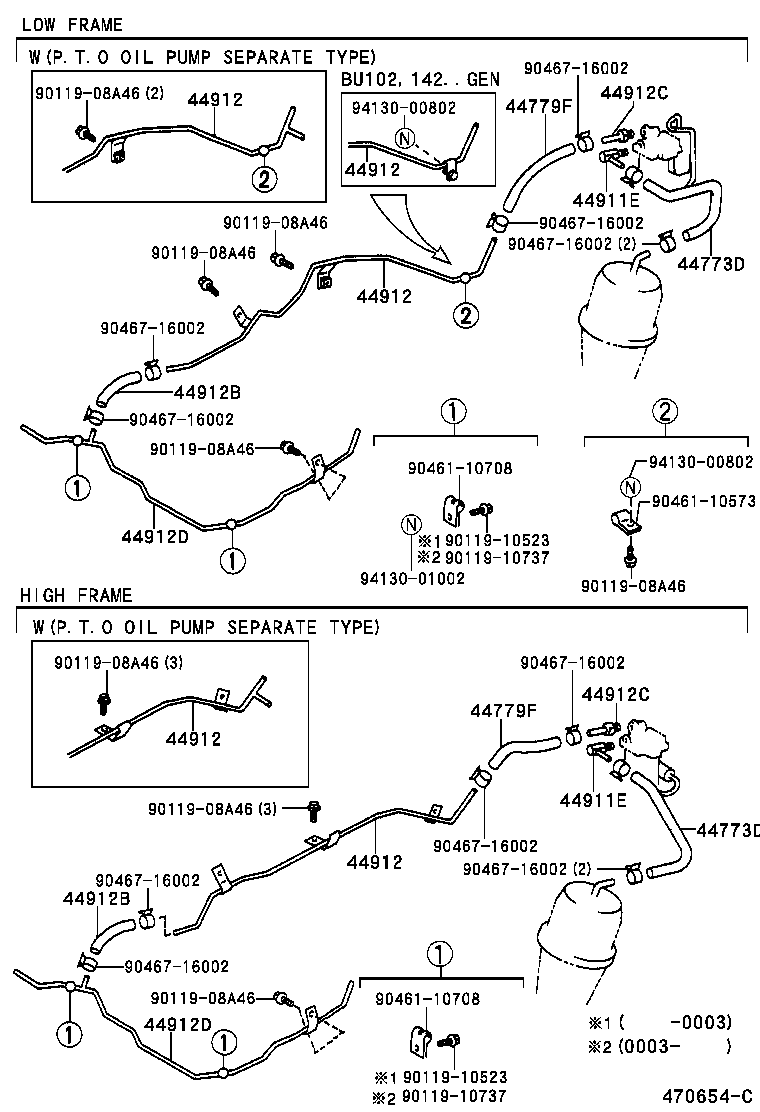

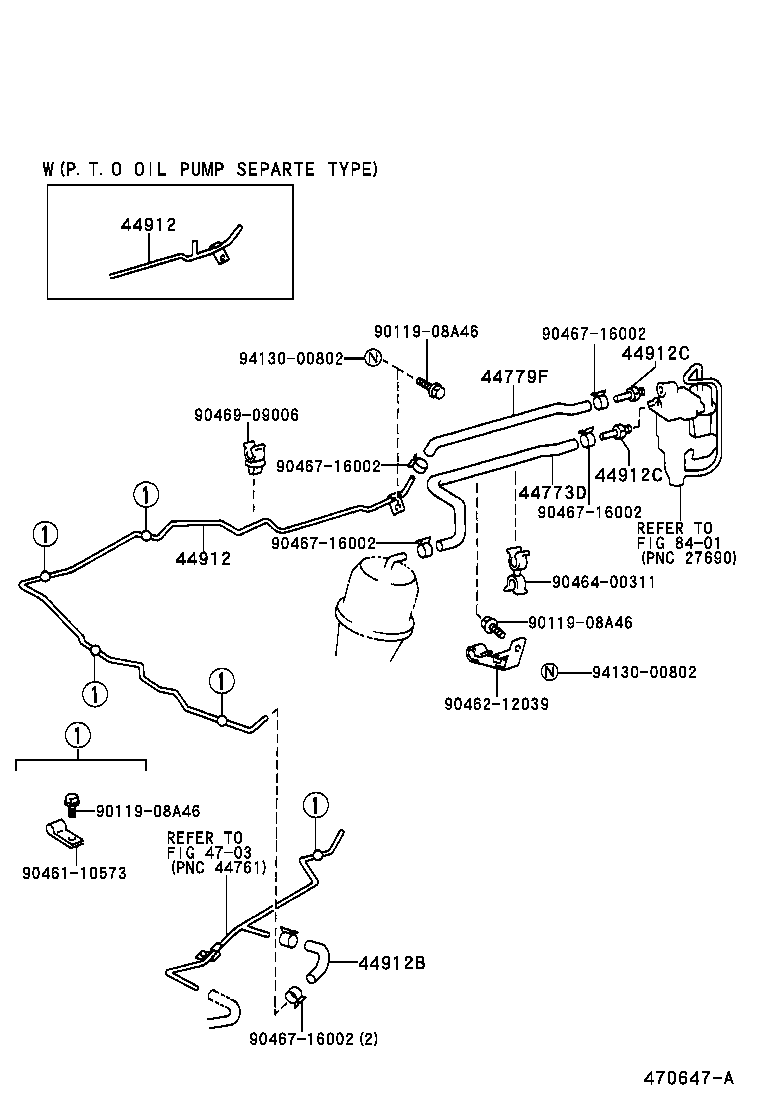

Figure 470646C 470646C 1995-05 → — Figure 470647A 470647A 1995-05 → — Figure 470654C 470654C 1995-05 → — Figure 470643 470643 1995-05 → —

Part groups

PNCDescription
44773D Hose, Solenoido TO Retarder
44779F Hose, Connector Tube TO Solenoid, NO.1
44911E Elbow (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)
44912 Tube, 3 Way TO Magnetic Valve
44912B Hose(FOR 3 WAY TO MAGNETIC VALVE TUBE)
44912C Union(FOR 3 WAY TO MAGNETIC VALVE TUBE)
44912D Tube, Vacuum(FOR MAGNETIC VALVE TO RESERVOIR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
