Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

42 part groups · 20 illustrations

Illustrations

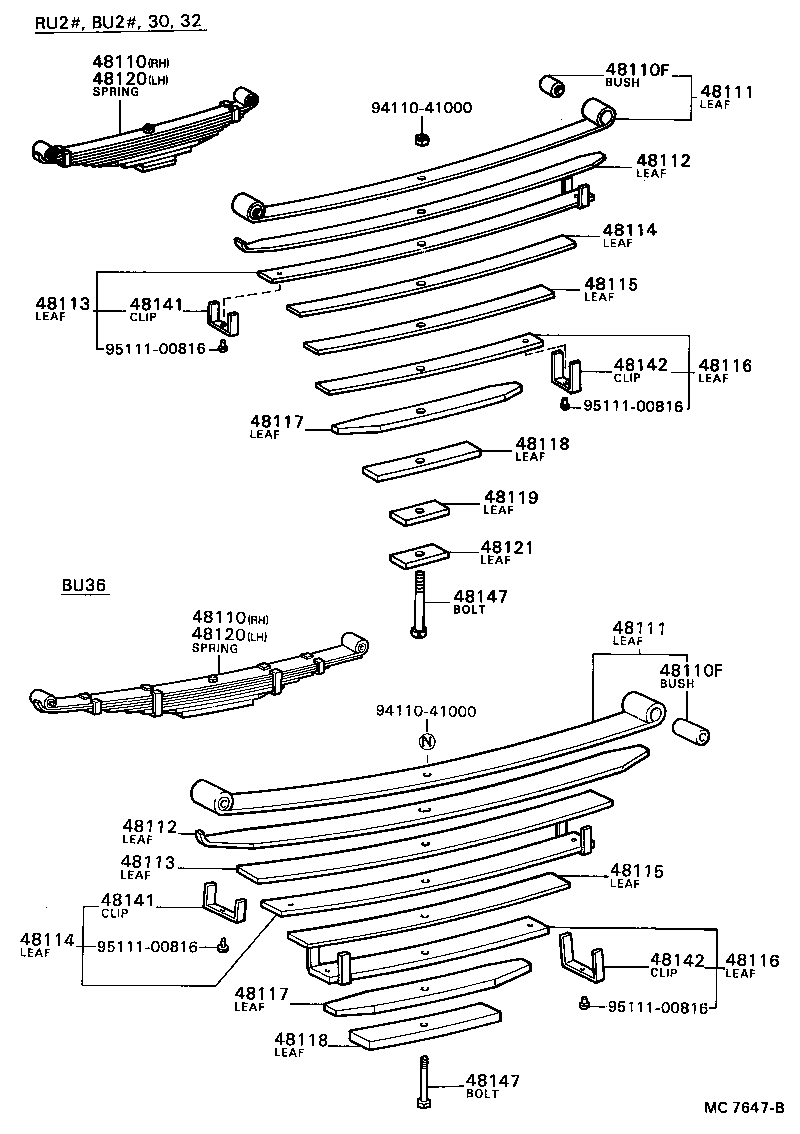

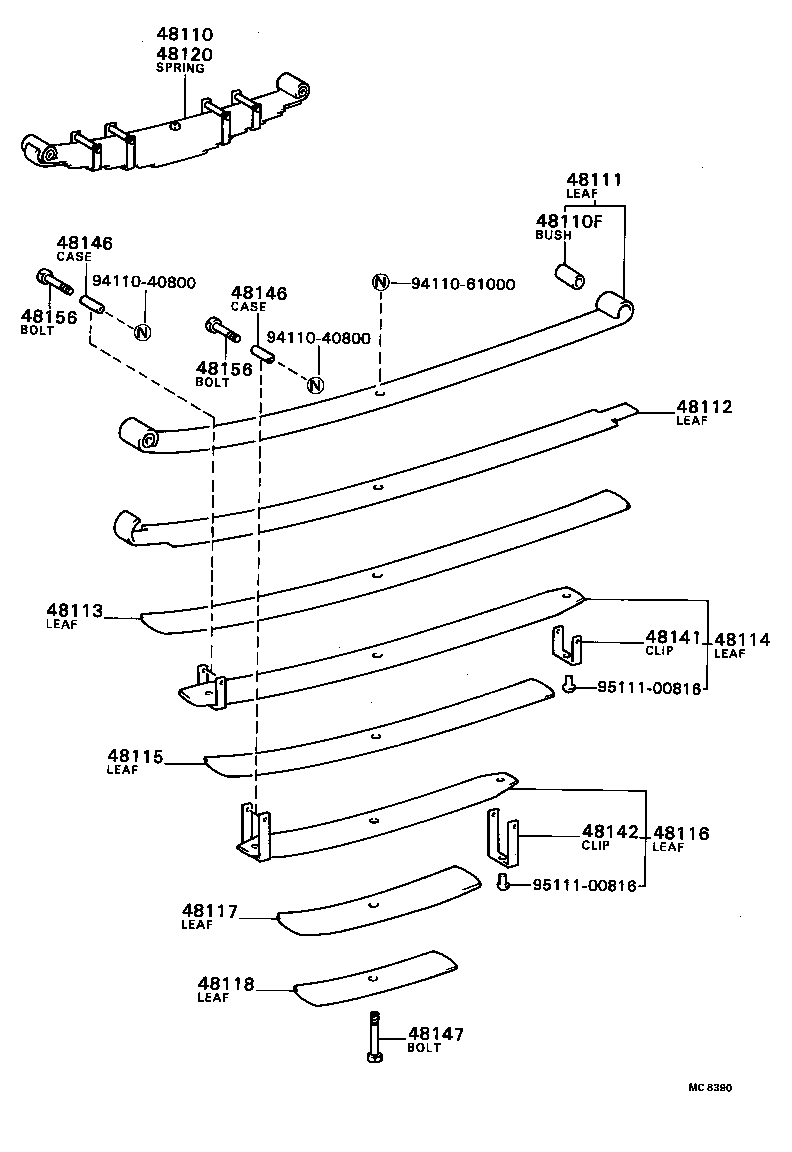

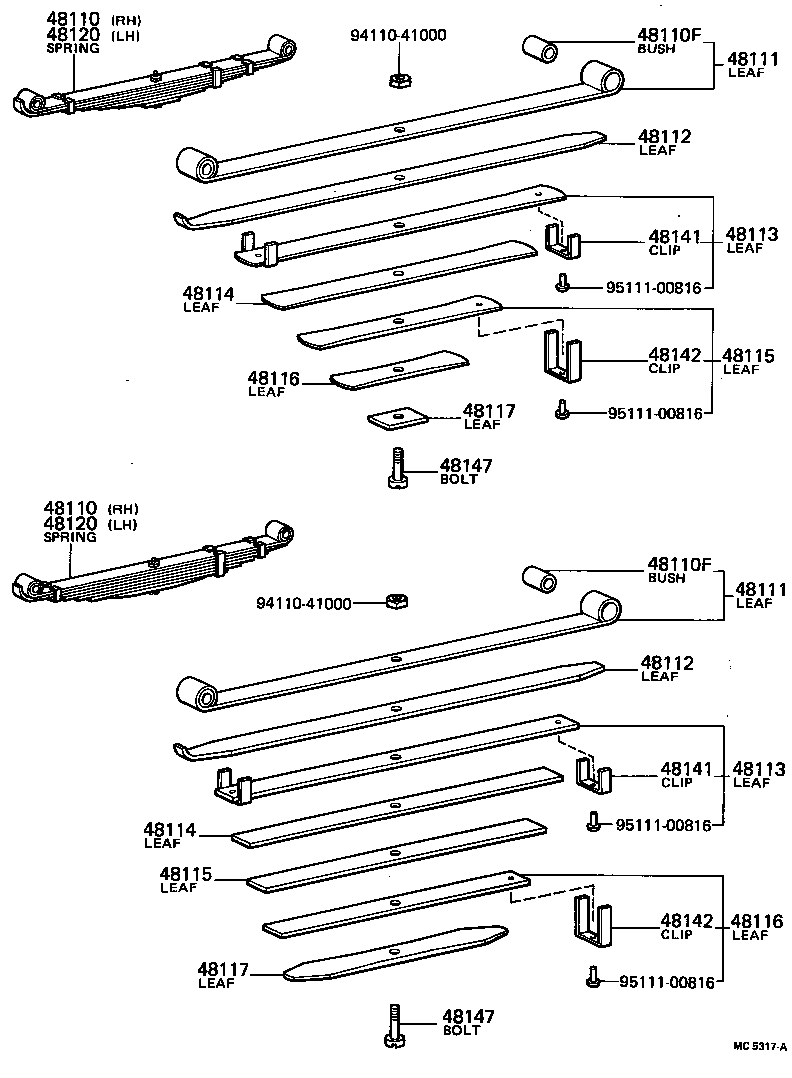

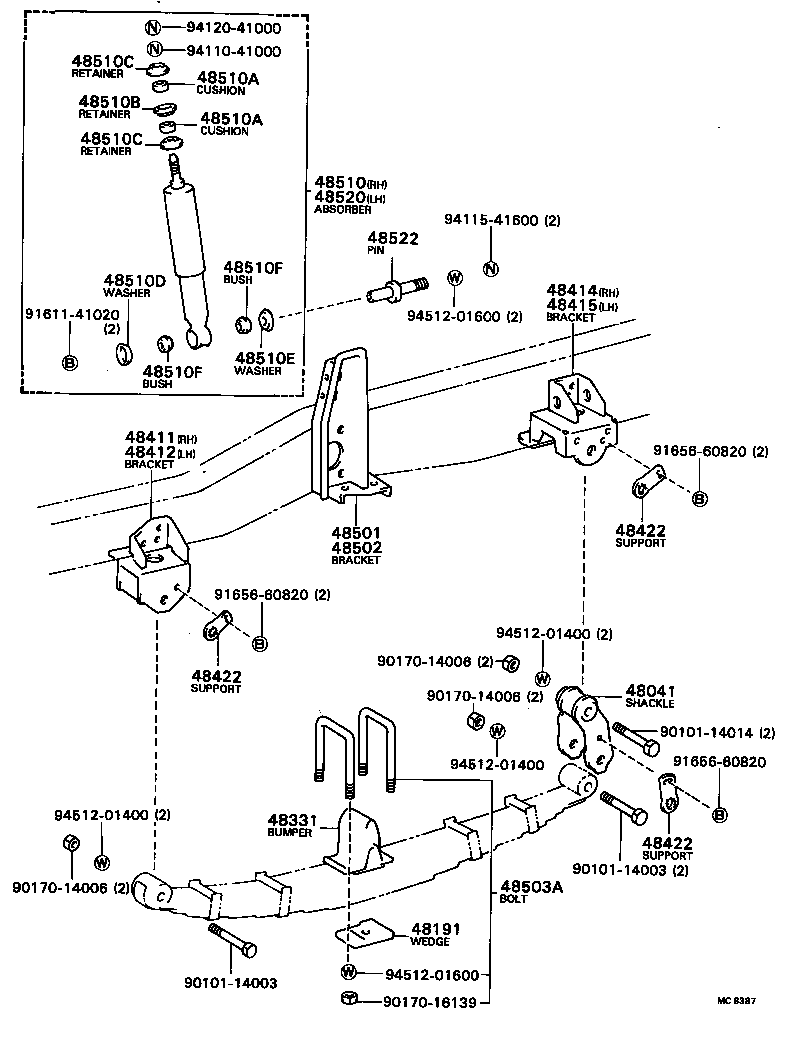

Figure MC5316G MC5316G 1977-08 → — Figure MC8387 MC8387 1982-04 → 1984-08 Figure MC5317A MC5317A 1977-08 → 1980-08 Figure MC5317A MC5317A 1980-08 → 1981-04 Figure MC5317A MC5317A 1981-04 → 1984-08 Figure MC5317A MC5317A 1981-04 → — Figure MC5317A MC5317A 1983-08 → 1984-08 Figure MC6266B MC6266B 1979-04 → 1980-08 Figure MC6266B MC6266B 1980-08 → 1981-04 Figure MC6266B MC6266B 1981-04 → — Figure MC6266B MC6266B 1983-02 → 1984-08 Figure MC5318A MC5318A 1977-08 → 1981-04 Figure MC5318A MC5318A 1979-04 → 1980-08 Figure MC5318A MC5318A 1980-08 → 1981-04 Figure MC5318A MC5318A 1981-04 → 1984-08 Figure MC7647B MC7647B 1981-04 → — Figure MC7647B MC7647B 1982-07 → 1984-08 Figure MC7647B MC7647B 1983-02 → 1984-08 Figure MC8390 MC8390 1982-04 → 1984-08 Figure MCA726 MCA726 1983-11 → 1984-08

Part groups

PNCDescription
48041 Shackle Sub-assy, Front Spring, NO.1
48110 Spring Assy, Front, RH
48110A Bush(FOR FRONT SPRING SHACKLE)
48110F Bimetal Formed Bush(FOR FRONT SPRING)
48110K Shackle Kit, Front Spring
48111 Leaf, Front Spring, NO.1
48112 Leaf, Front Spring, NO.2
48113 Leaf, Front Spring, NO.3
48114 Leaf, Front Spring, NO.4
48115 Leaf, Front Spring, NO.5
48116 Leaf, Front Spring, NO.6
48117 Leaf, Front Spring, NO.7
48118 Leaf, Front Spring, NO.8
48119 Leaf, Front Spring, NO.9
48120 Spring Assy, Front, LH
48121 Leaf, Front Spring, NO.10
48141 Clip, Front Spring, NO.1
48142 Clip, Front Spring, NO.2
48146 Case, Front Spring Clip Bolt
48147 Bolt, Front Spring, Center
48156 Bolt, Front Spring Clip
48191 Wedge, Caster(FOR FRONT LEAF SPRING)
48331 Bumper, Front Spring, NO.1
48346 Stopper, Bumper, Front
48411 Bracket, Front Spring(FOR FRONT RH)
48412 Bracket, Front Spring(FOR FRONT LH)
48414 Bracket, Front Spring(FOR REAR RH)
48415 Bracket, Front Spring(FOR REAR LH)
48422 Support, Front Spring Pin
48475 Plate, Distance(FOR FRONT)
48501 Bracket Sub-assy, Front Shock Absorber, Upper RH
48502 Bracket Sub-assy, Front Shock Absorber, Upper LH
48503A Bolt, U(FOR FRONT SHOCK ABSORBER BRACKET)
48510 Absorber Assy, Shock, Front RH
48510A Cushion, Front Shock Absorber
48510B Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510C Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
48510D Washer, Front Shock Absorber Cushion, NO.1
48510E Washer, Front Shock Absorber Cushion, NO.2
48510F Cushion, Shock Absorber
48520 Absorber Assy, Shock, Front LH
48522 Pin, Front Shock Absorber Lower Pivot
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
