Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

32 part groups · 20 illustrations

Illustrations

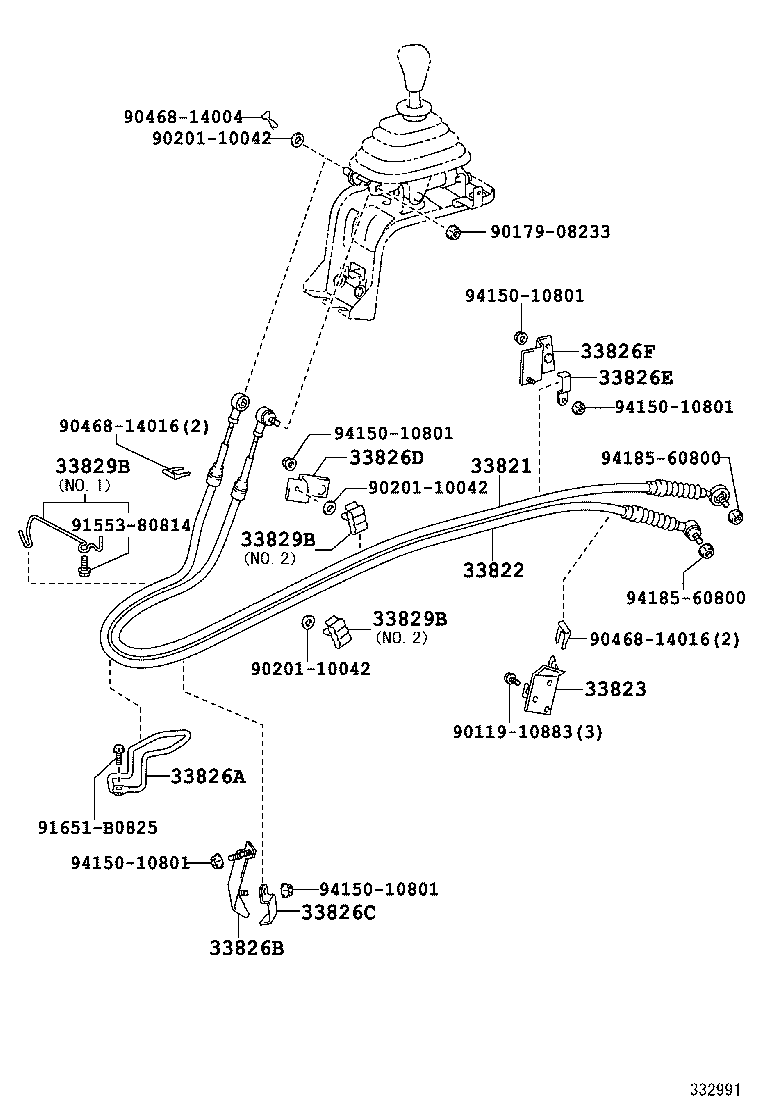

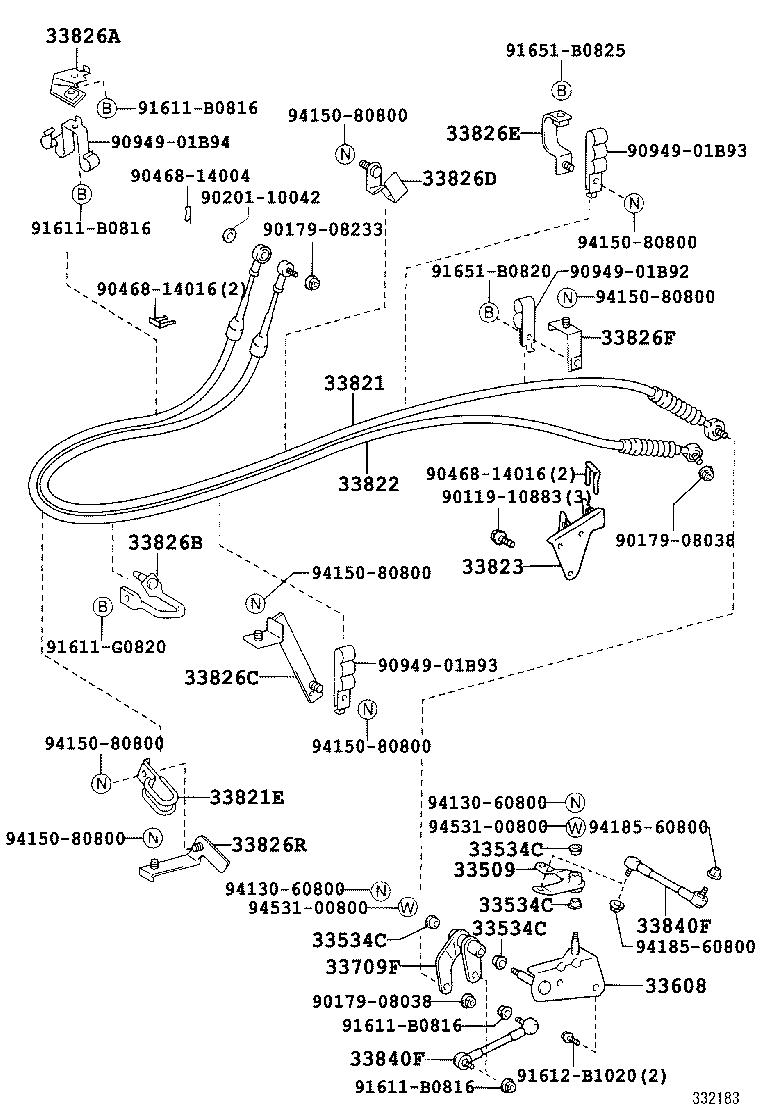

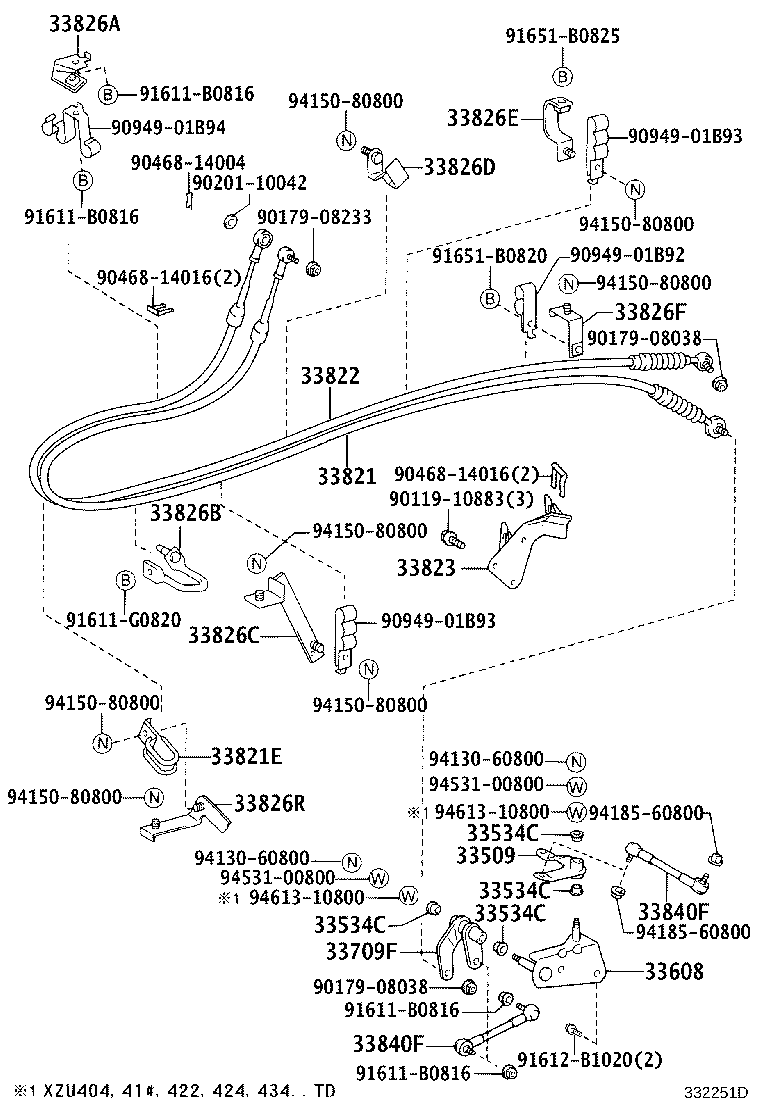

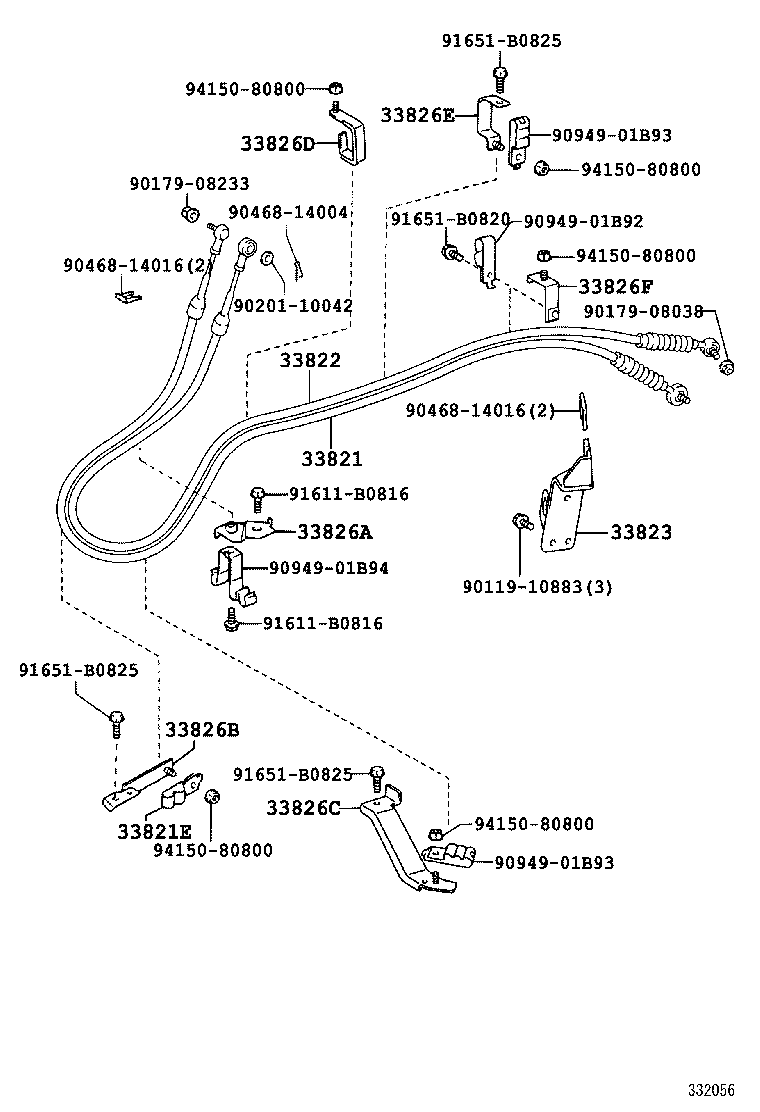

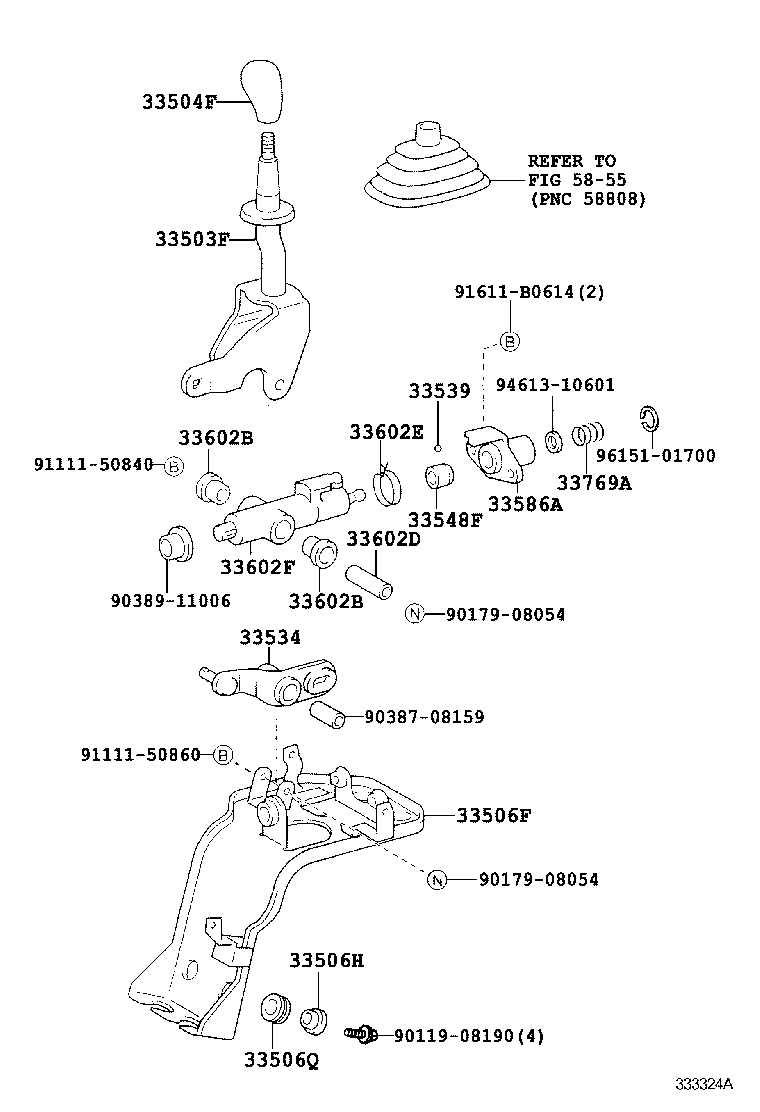

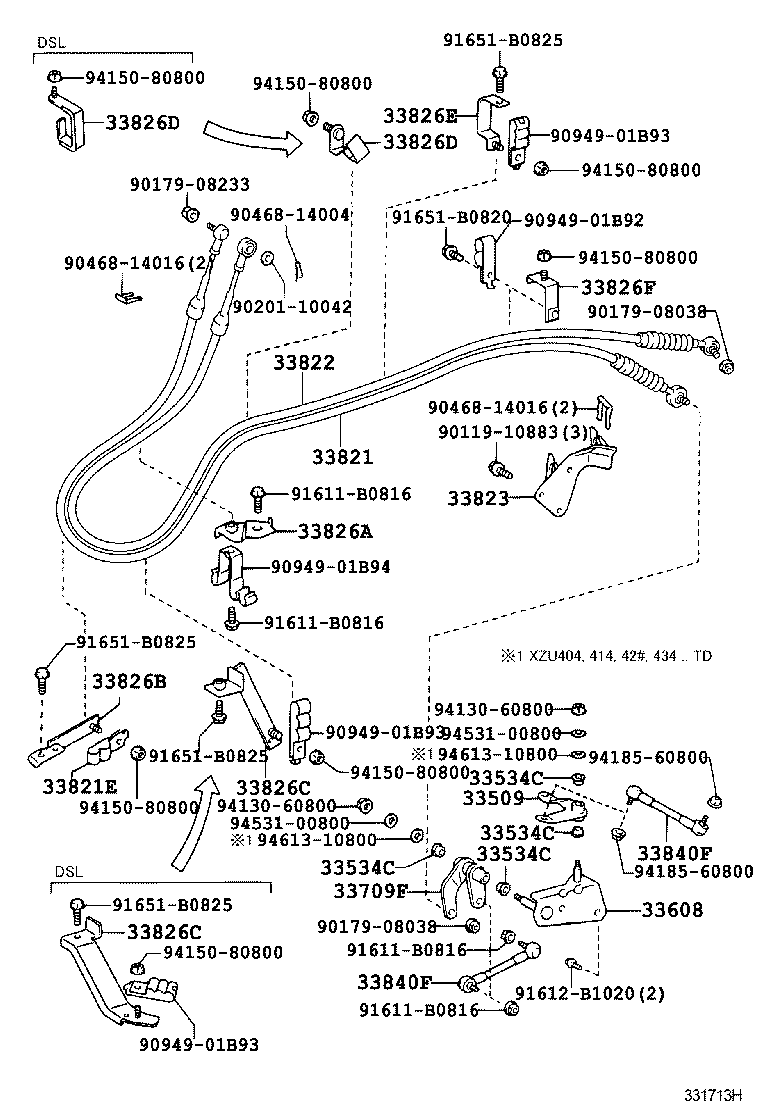

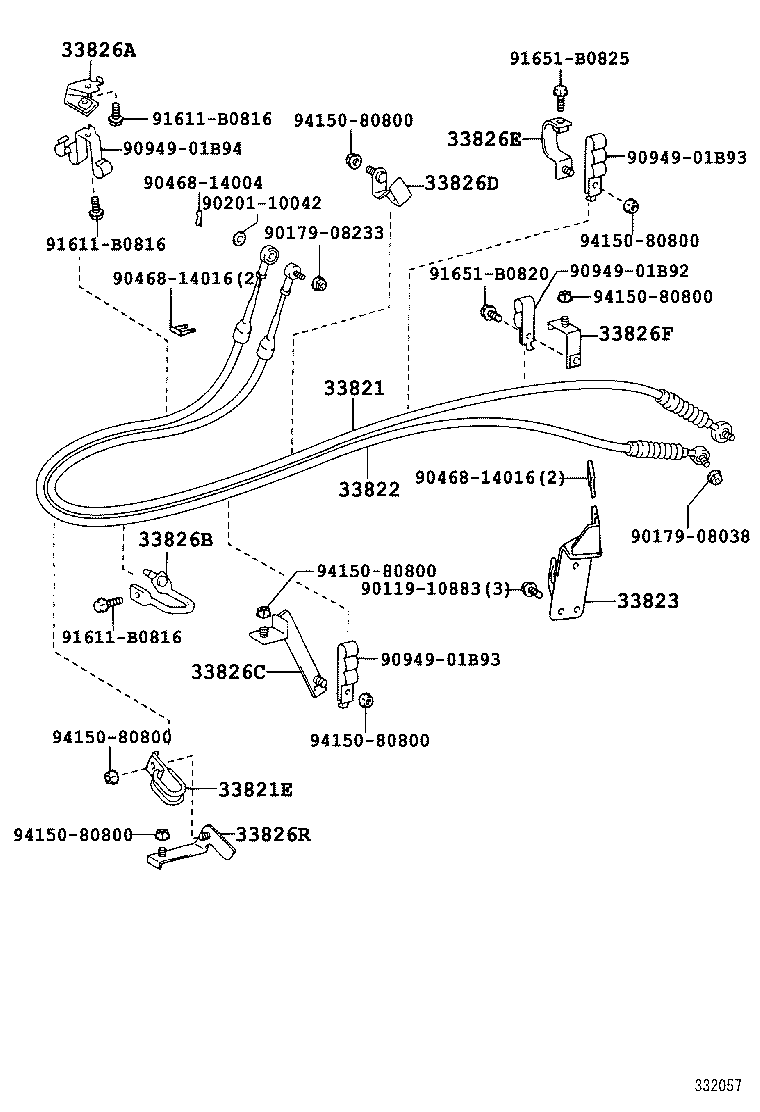

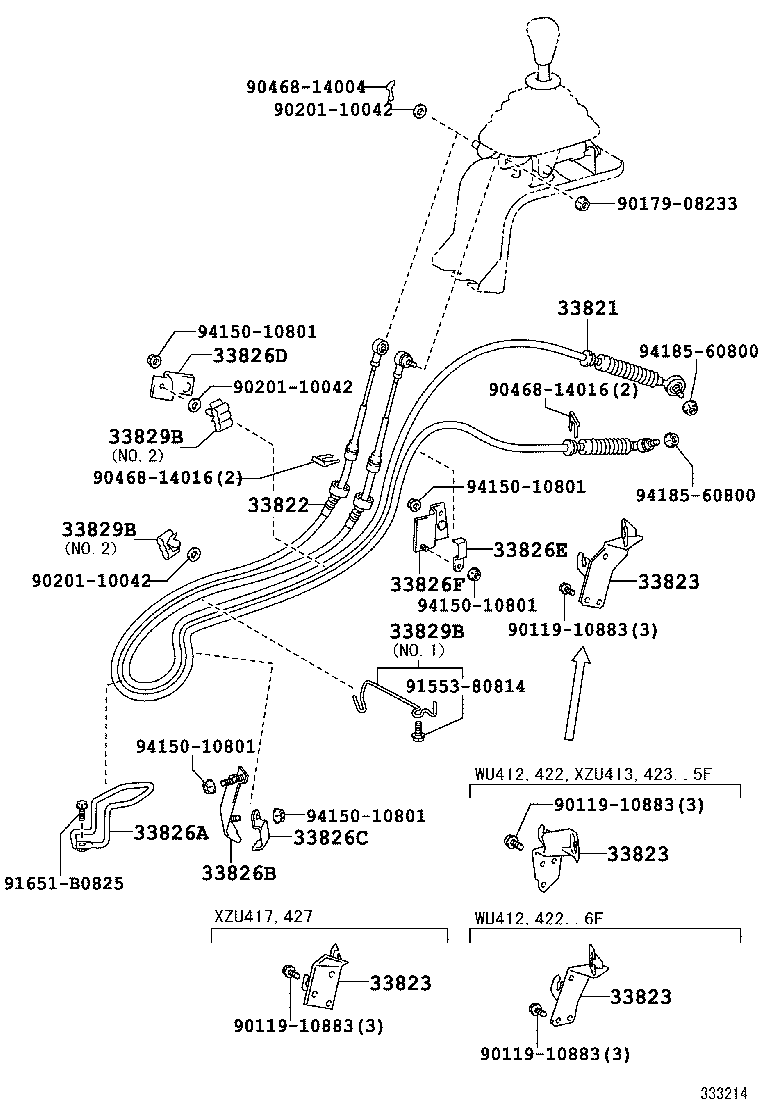

Figure 331711C 331711C 2001-10 → 2004-12 Figure 333619A 333619A 2002-12 → 2006-10 Figure 333619A 333619A 2004-12 → 2006-10 Figure 333619A 333619A 2004-12 → — Figure 333324A 333324A 2001-10 → 2007-01 Figure 333324A 333324A 2004-01 → 2008-02 Figure 332990C 332990C 2006-08 → 2007-08 Figure 333105B 333105B 2006-10 → — Figure 333107B 333107B 2006-10 → — Figure 331713H 331713H 2001-10 → 2006-10 Figure 331713H 331713H 2003-04 → — Figure 332251D 332251D 2001-10 → 2006-10 Figure 332251D 332251D 2004-01 → — Figure 332056C 332056C 2002-12 → 2006-10 Figure 332056C 332056C 2002-12 → — Figure 332057B 332057B 2002-12 → 2006-10 Figure 332183C 332183C 2004-11 → 2007-01 Figure 332991A 332991A 2006-08 → 2007-08 Figure 333214A 333214A 2006-10 → — Figure 333108B 333108B 2006-10 → —

Part groups

PNCDescription
33503F Lever Sub-assy, Shift(FOR FLOOR SHIFT)
33504F Knob Sub-assy, Shift Lever
33506F Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
33506H Bush (FOR SHIFT LEVER RETAINER)
33506Q Grommet, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
33509 Crank Sub-assy, Selecting Bell, NO.1
33534 Bellcrank, Selecting
33534C Bush (FOR SELECTING BELLCRANK NO.1)
33539 Cushion, Shift Lever Anti-rattle
33548F Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
33550 Floor Shift Assy, Transmission
33586A Stopper, Control Lever (FOR FLOOR SHIFT)
33602B Bushing (FOR SELECT LEVER)
33602D Collar (FOR SELECT LEVER)
33602E Spring, Torsion (FOR SELECT LEVER)
33602F Lever Sub-assy, Select (FOR FLOOR SHIFT)
33608 Support Sub-assy, Selecting Bellcrank
33709F Shaft Sub-assy, Cross, NO.1 (FOR FLOOR SHIFT)
33769A Spring, Cross Shaft End
33821 Cable Transmission Control Shift (FOR FLOOR SHIFT)
33821E Clamp, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33822 Cable Transmission Control Select (FOR FLOOR SHIFT)
33823 Bracket, Transmission Control Cable, NO.1
33826A Bracket, Transmission Control Cable, NO.2
33826B Bracket, Transmission Control Cable, NO.3
33826C Bracket, Transmission Control Cable, NO.4
33826D Bracket, Transmission Control Cable, NO.5
33826E Bracket, Transmission Control Cable, NO.6
33826F Bracket, Transmission Control Cable, NO.7
33826R Bracket, Transmission Control Cable, NO.8
33829B Clamp, Transmission Control Cable
33840F Rod Assy, Gear Shifting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
