Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

74 part groups · 50 illustrations

Illustrations

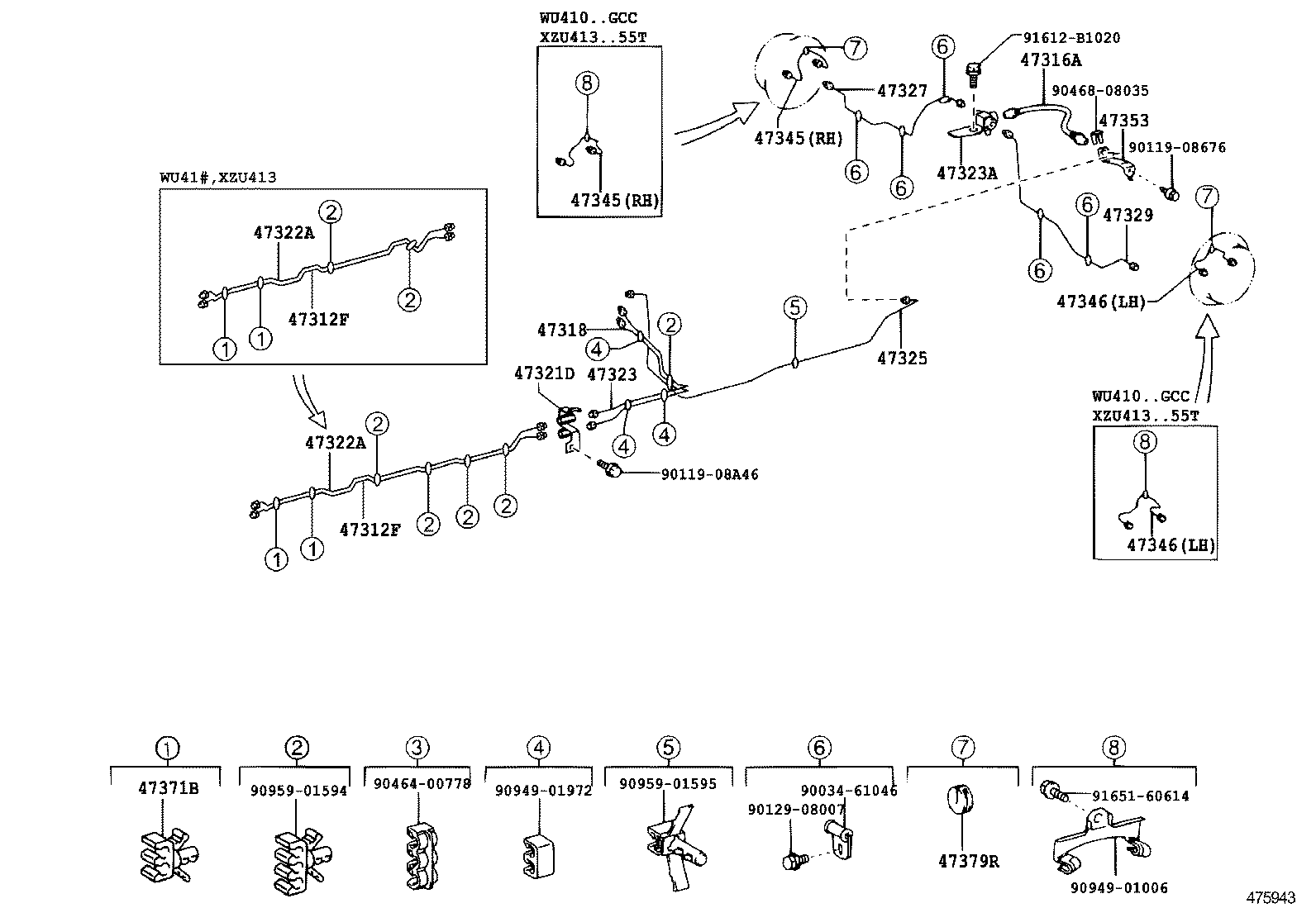

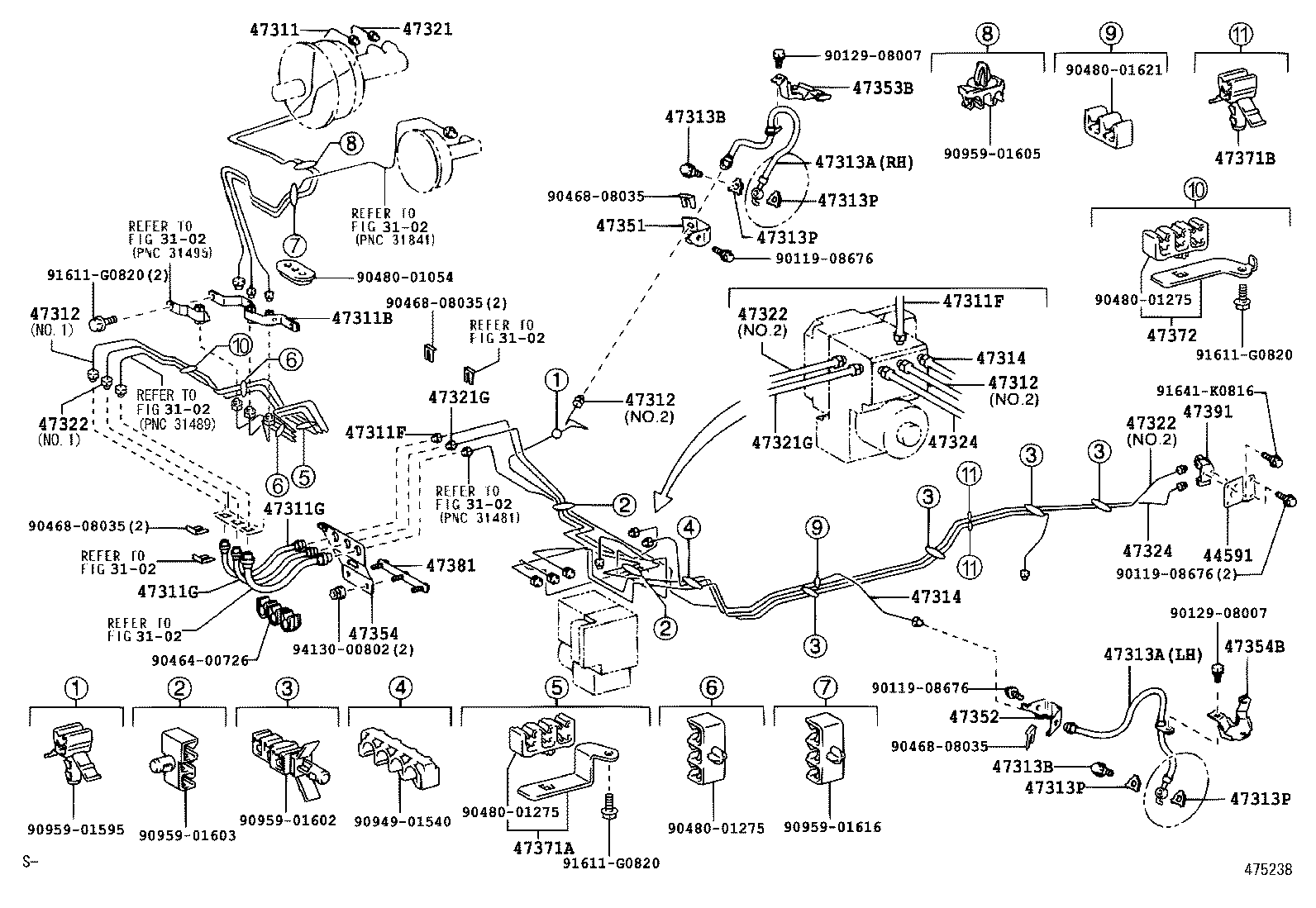

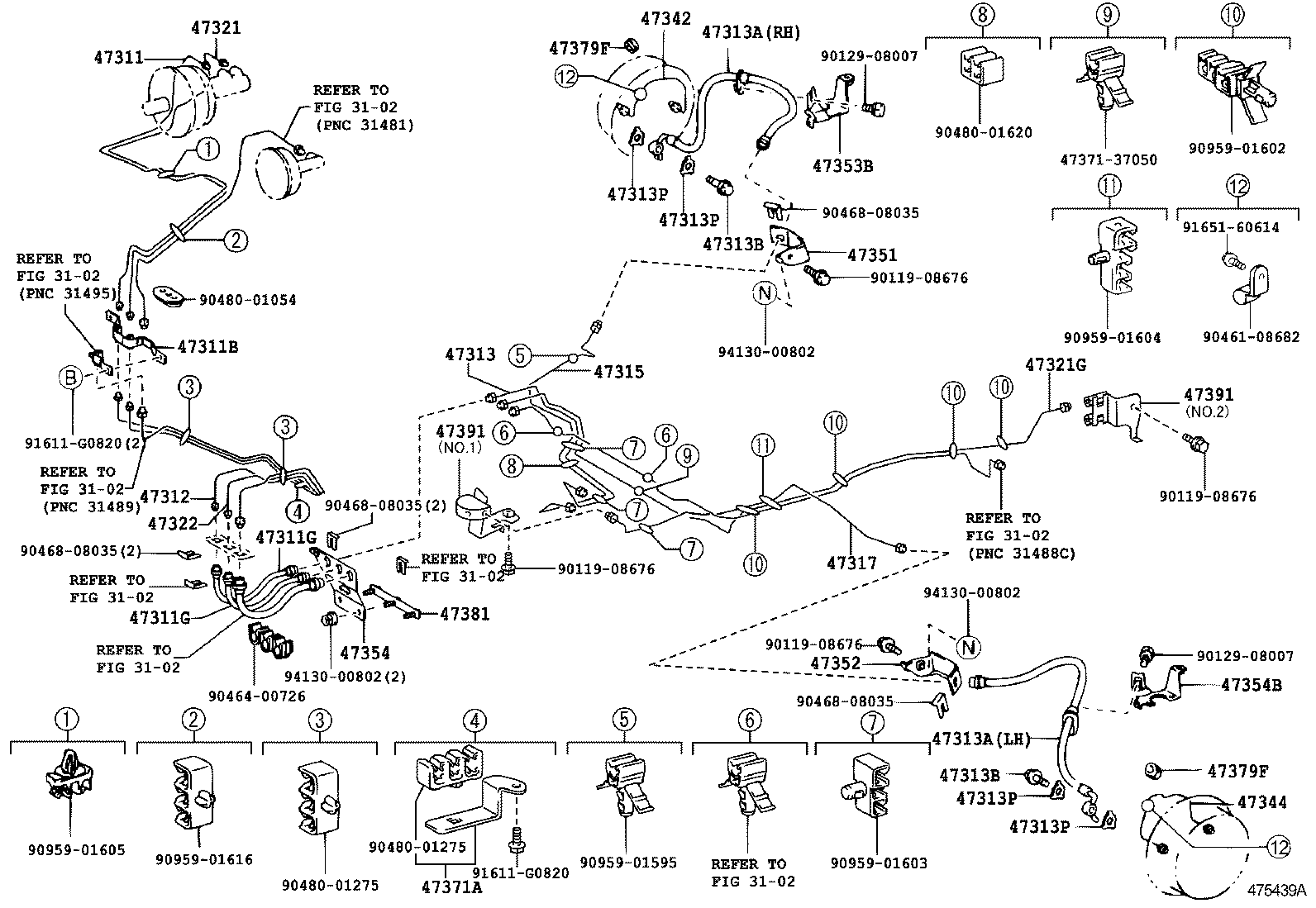

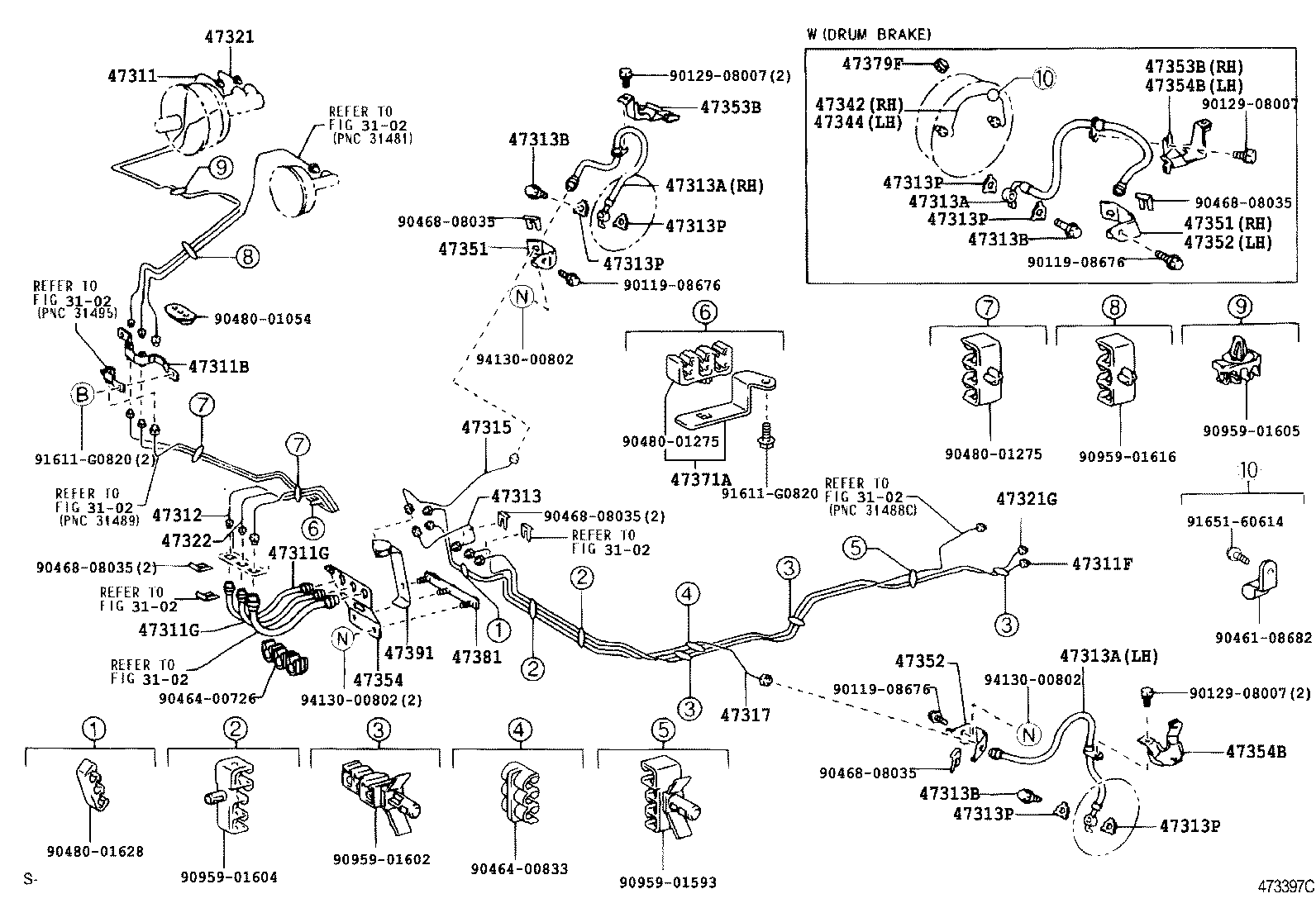

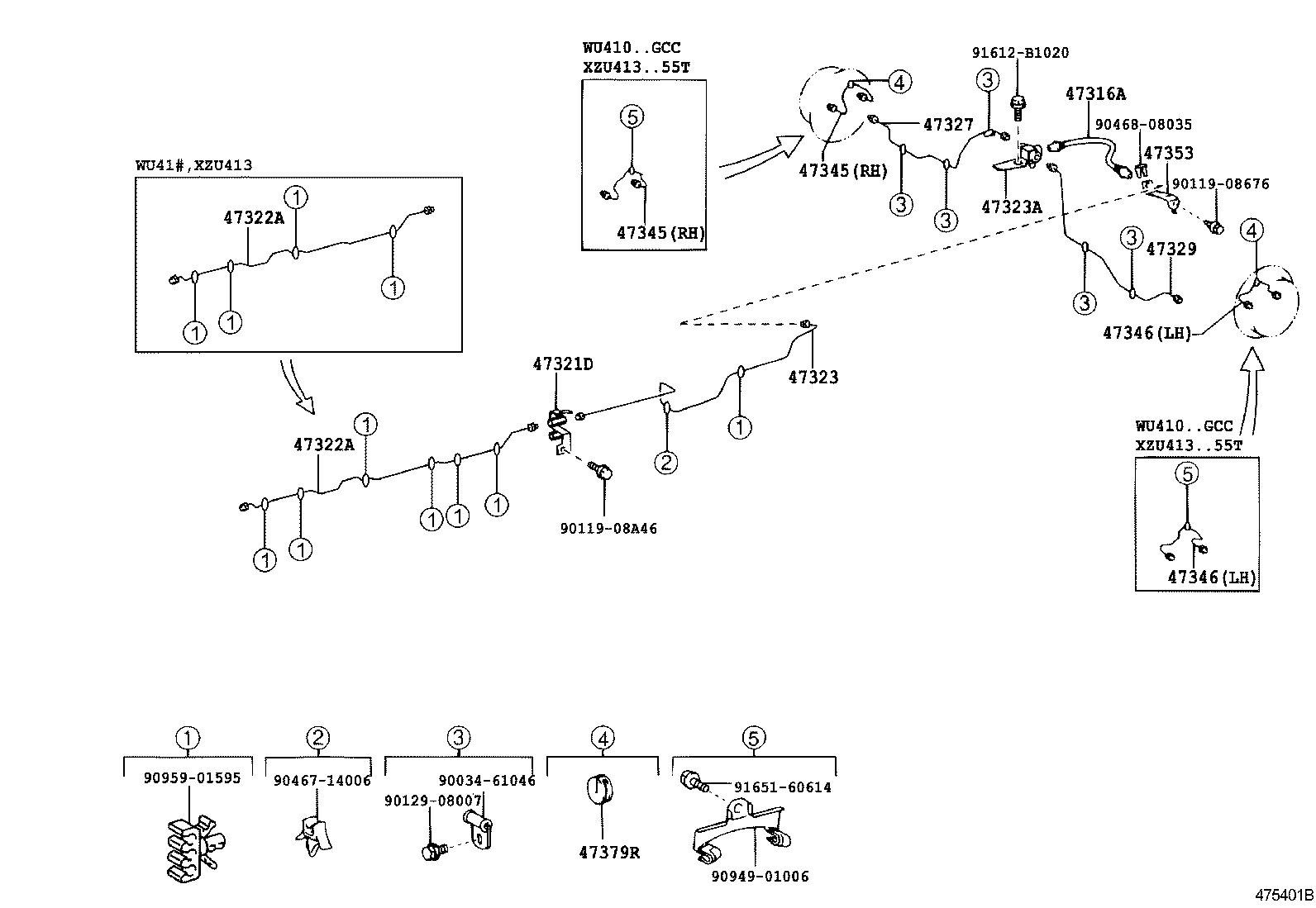

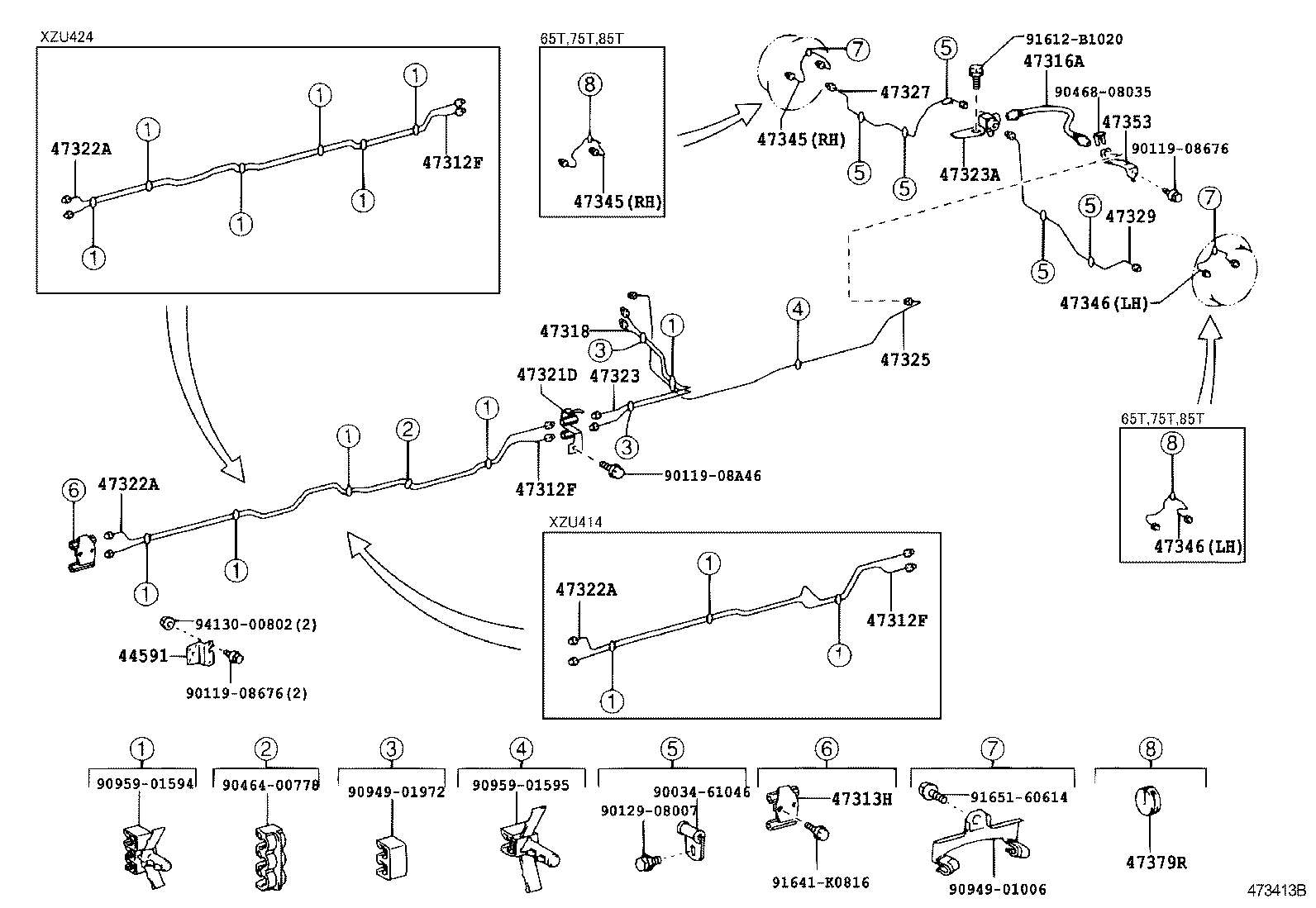

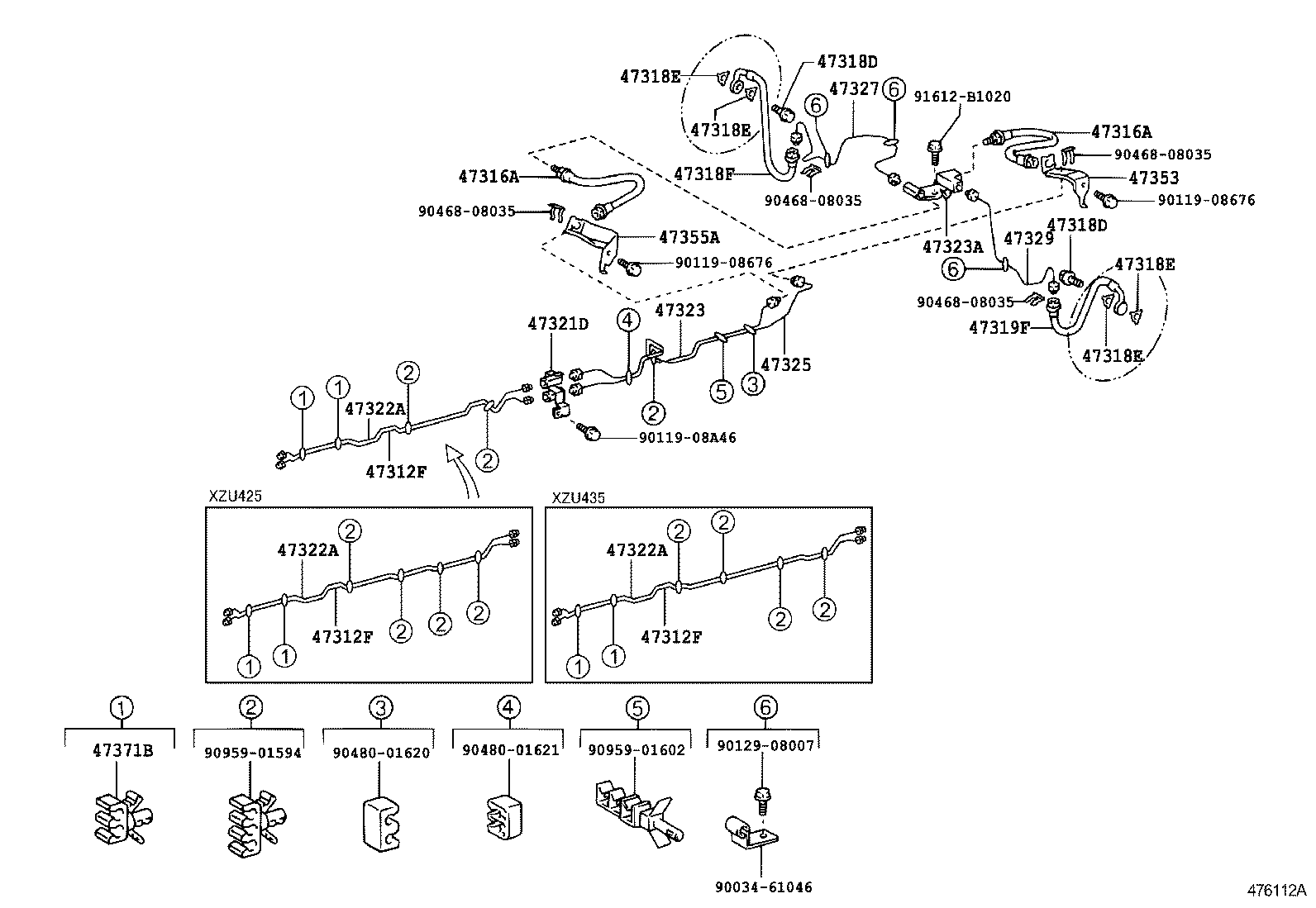

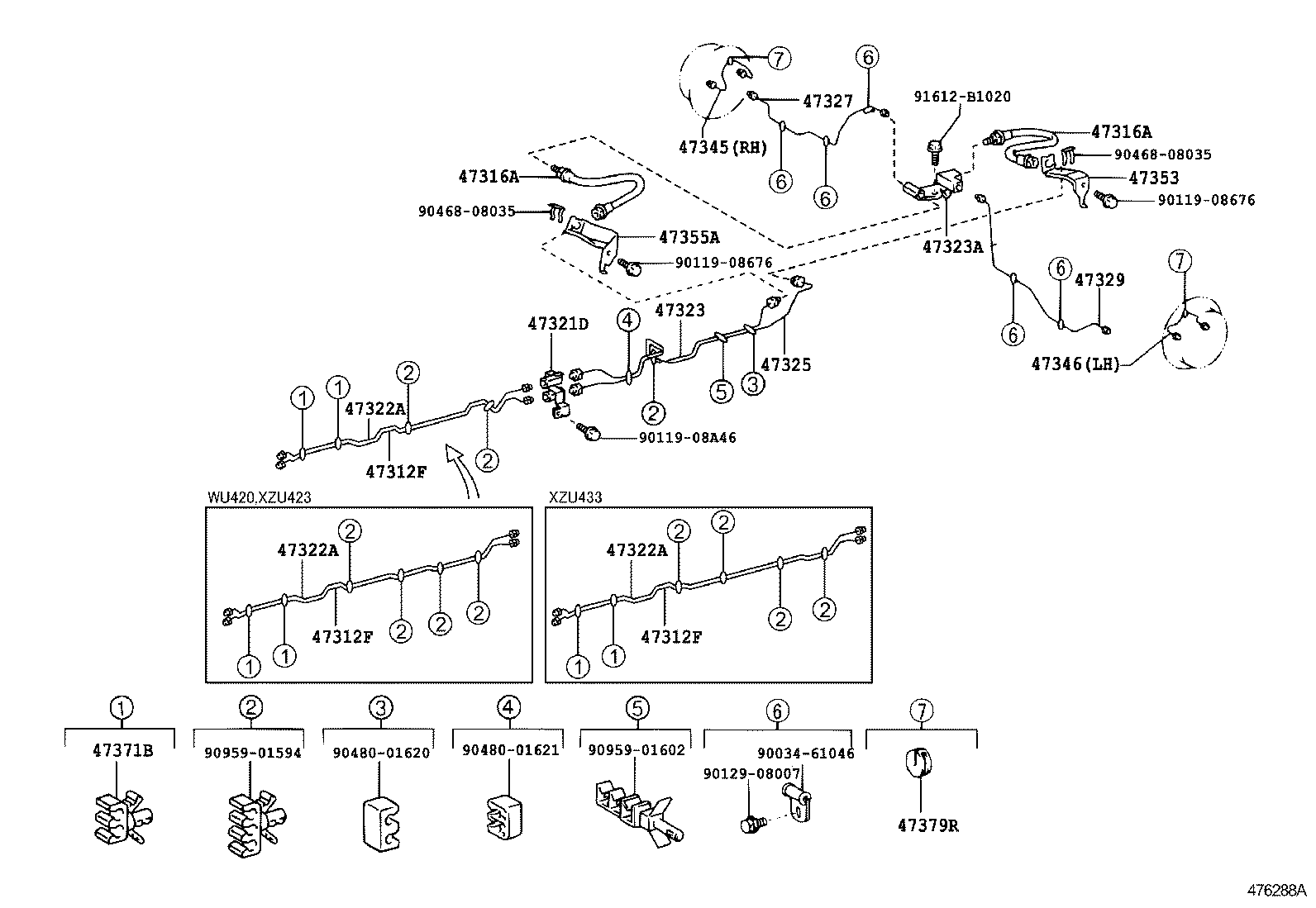

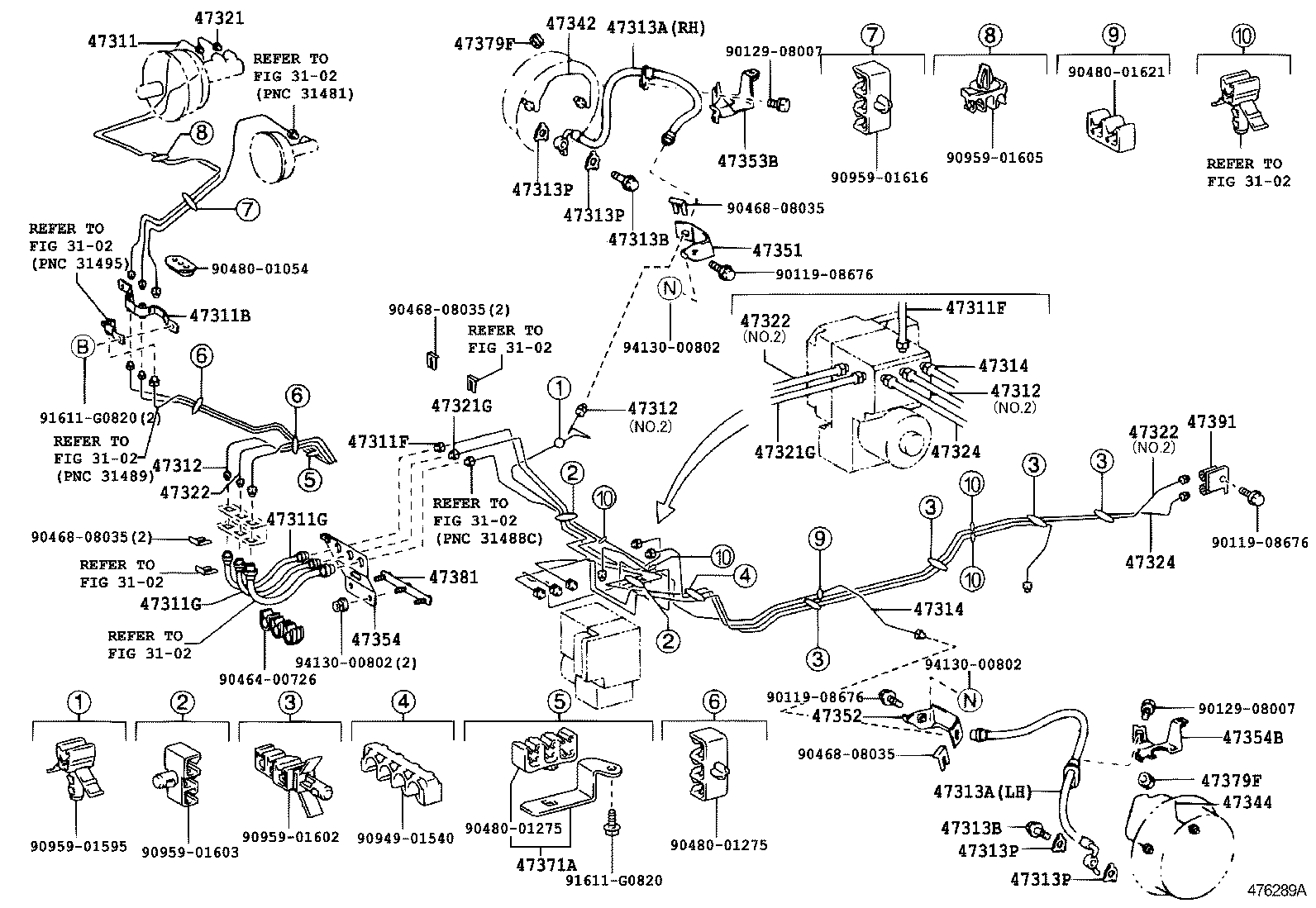

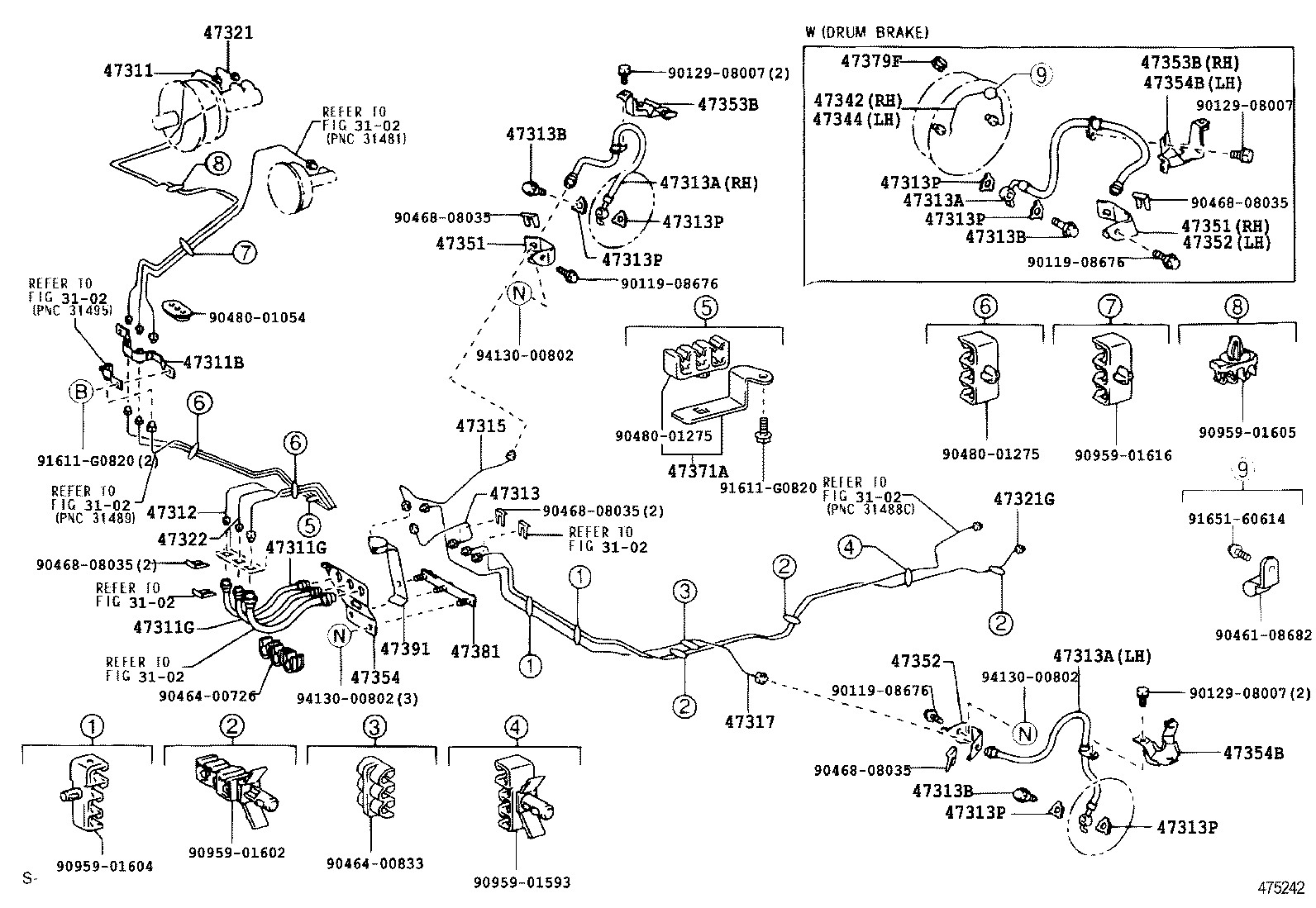

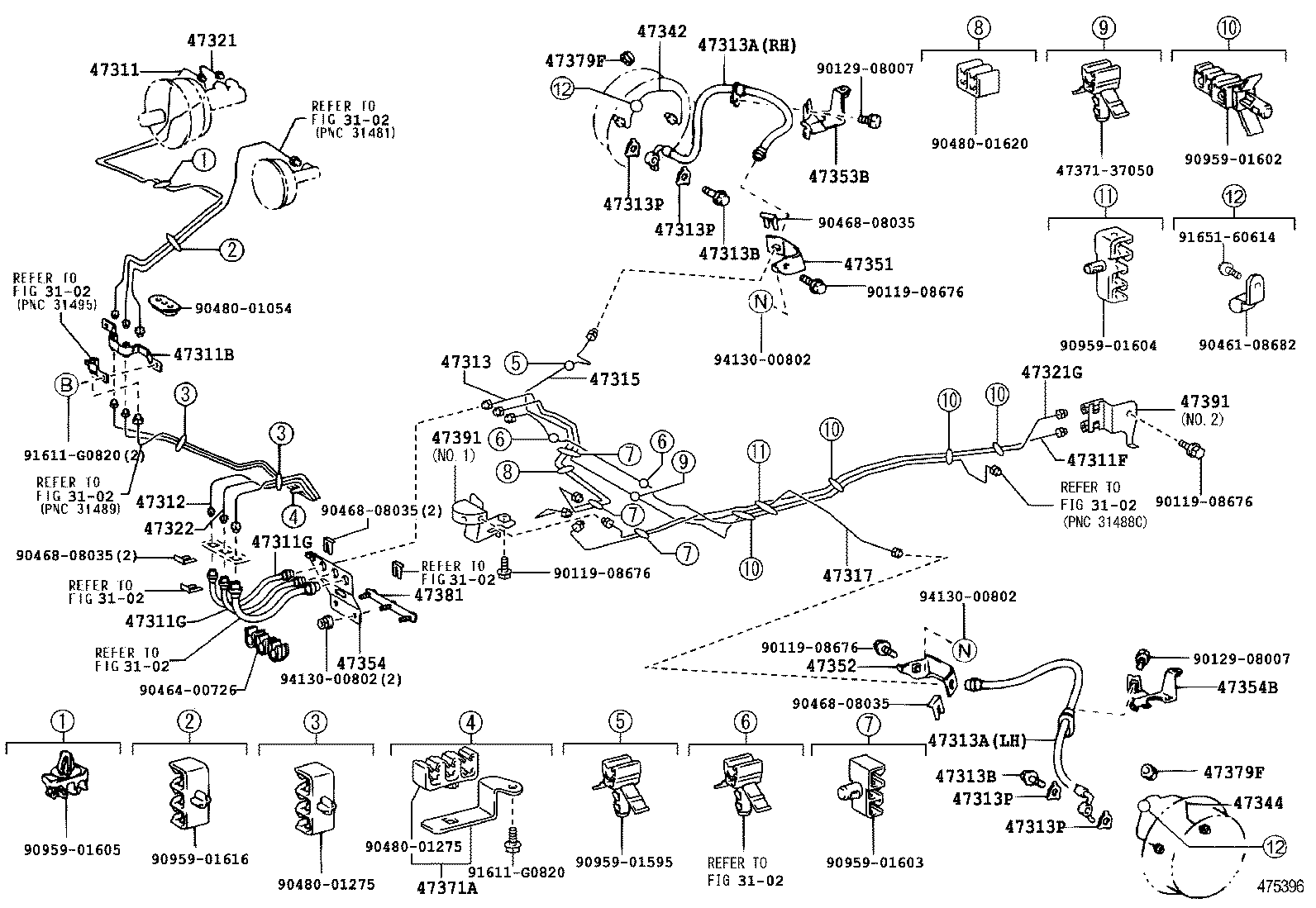

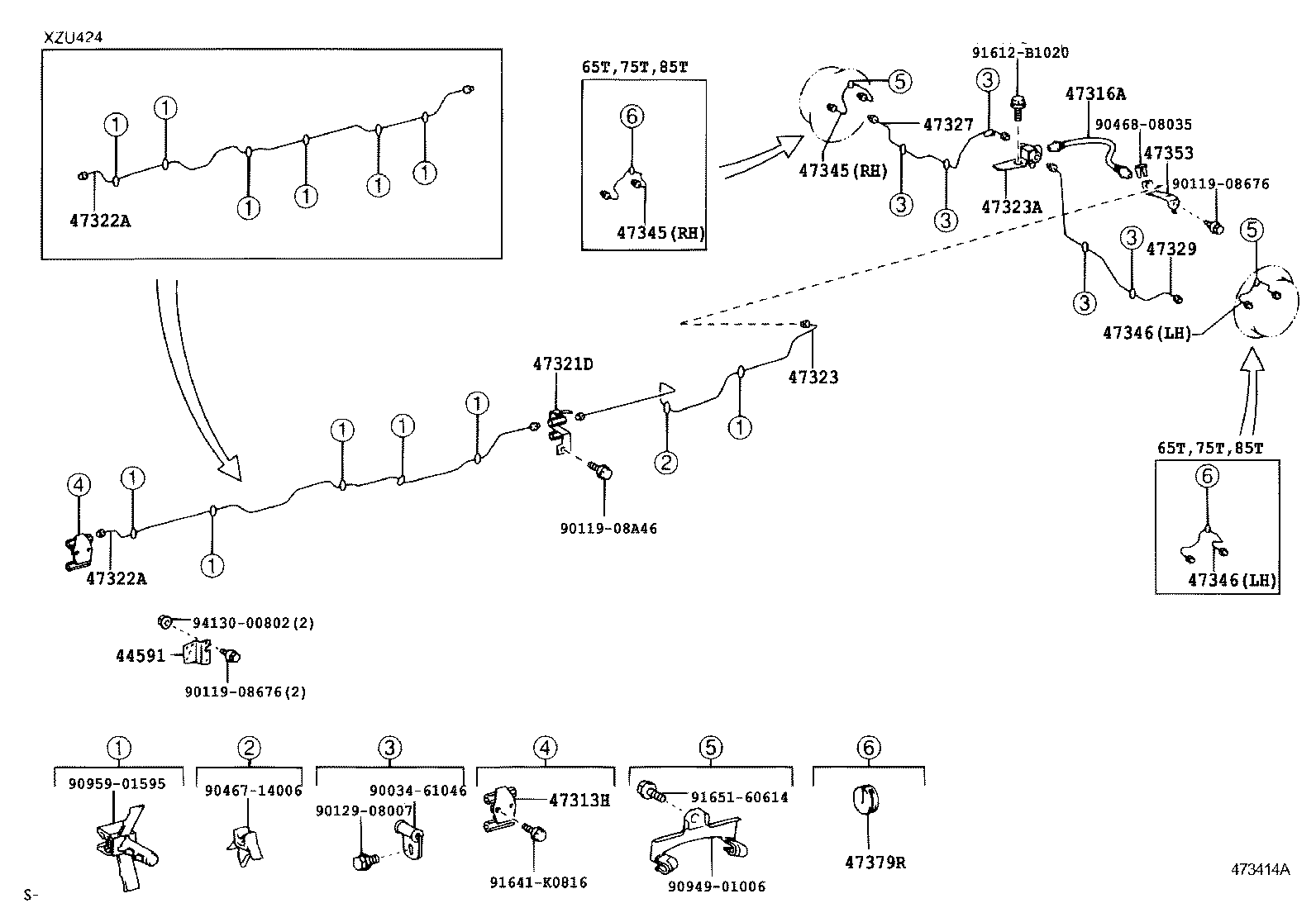

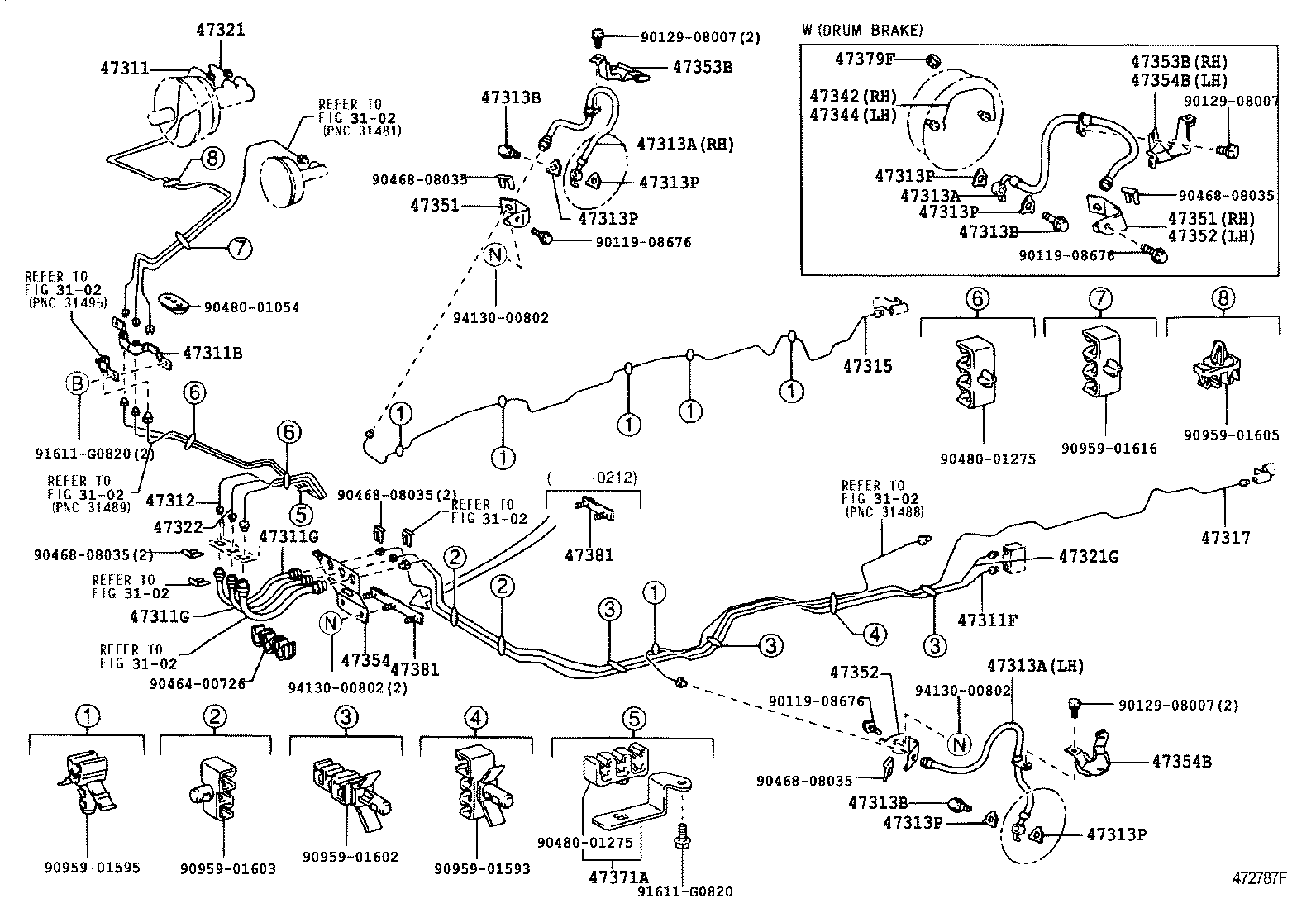

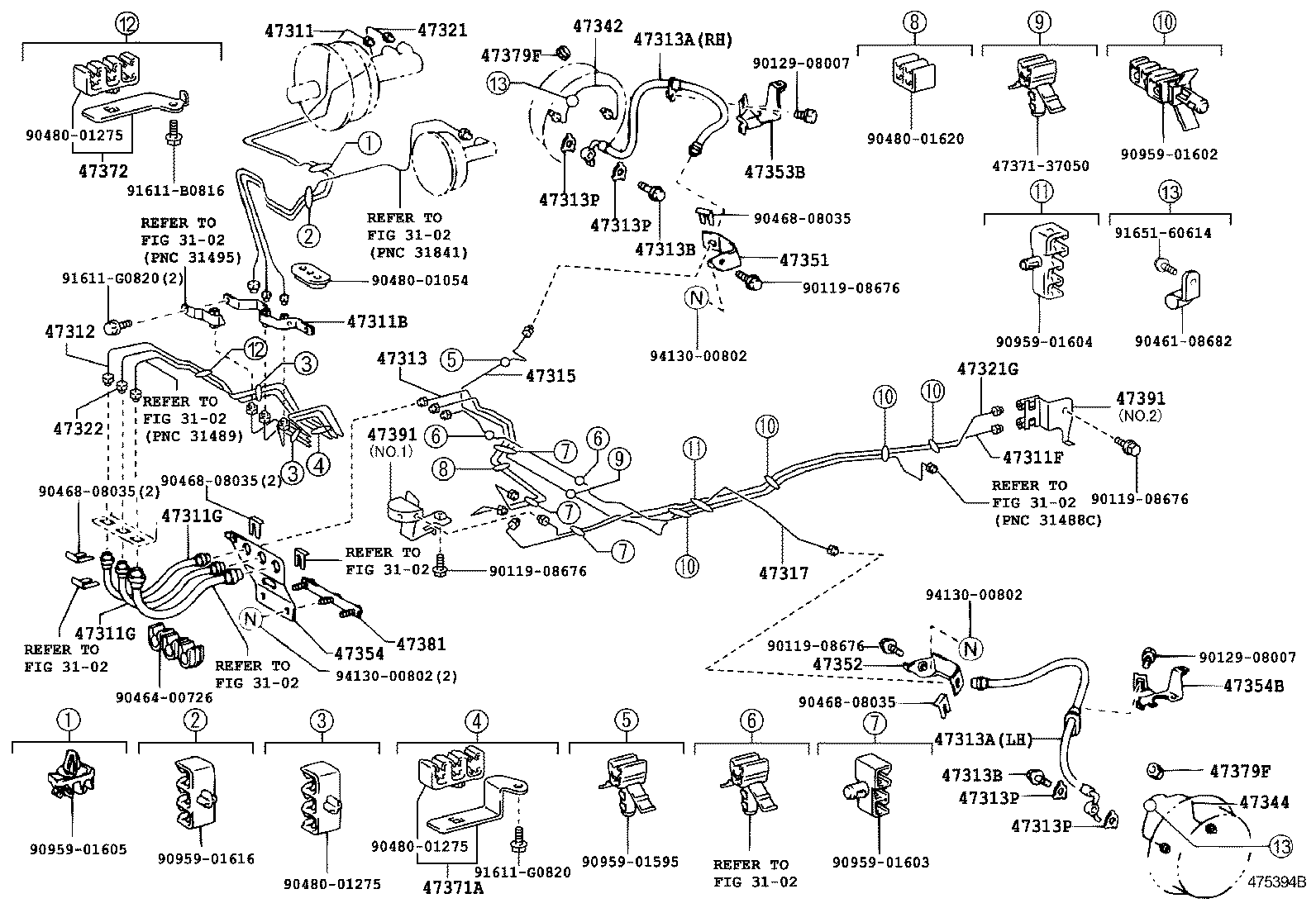

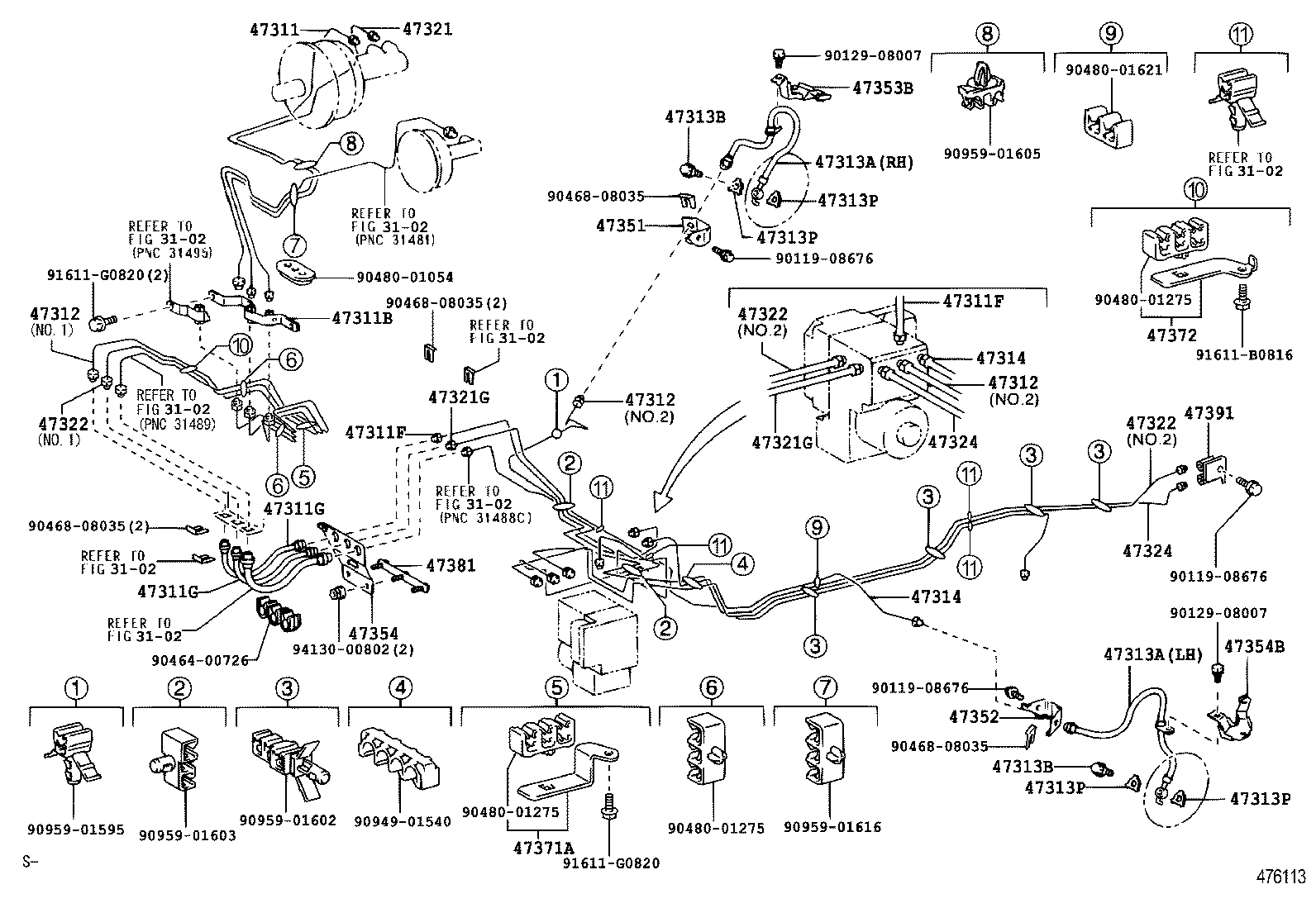

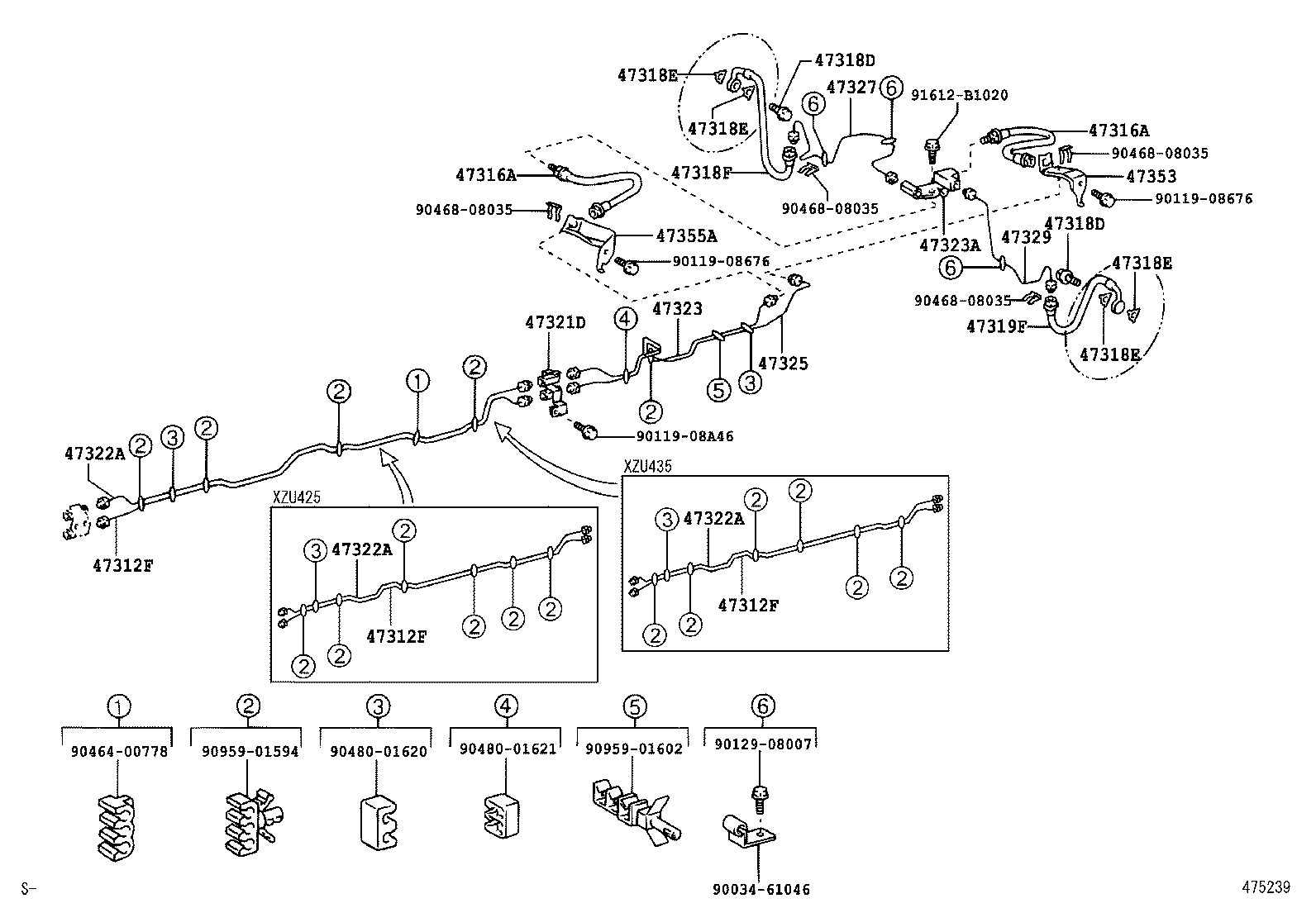

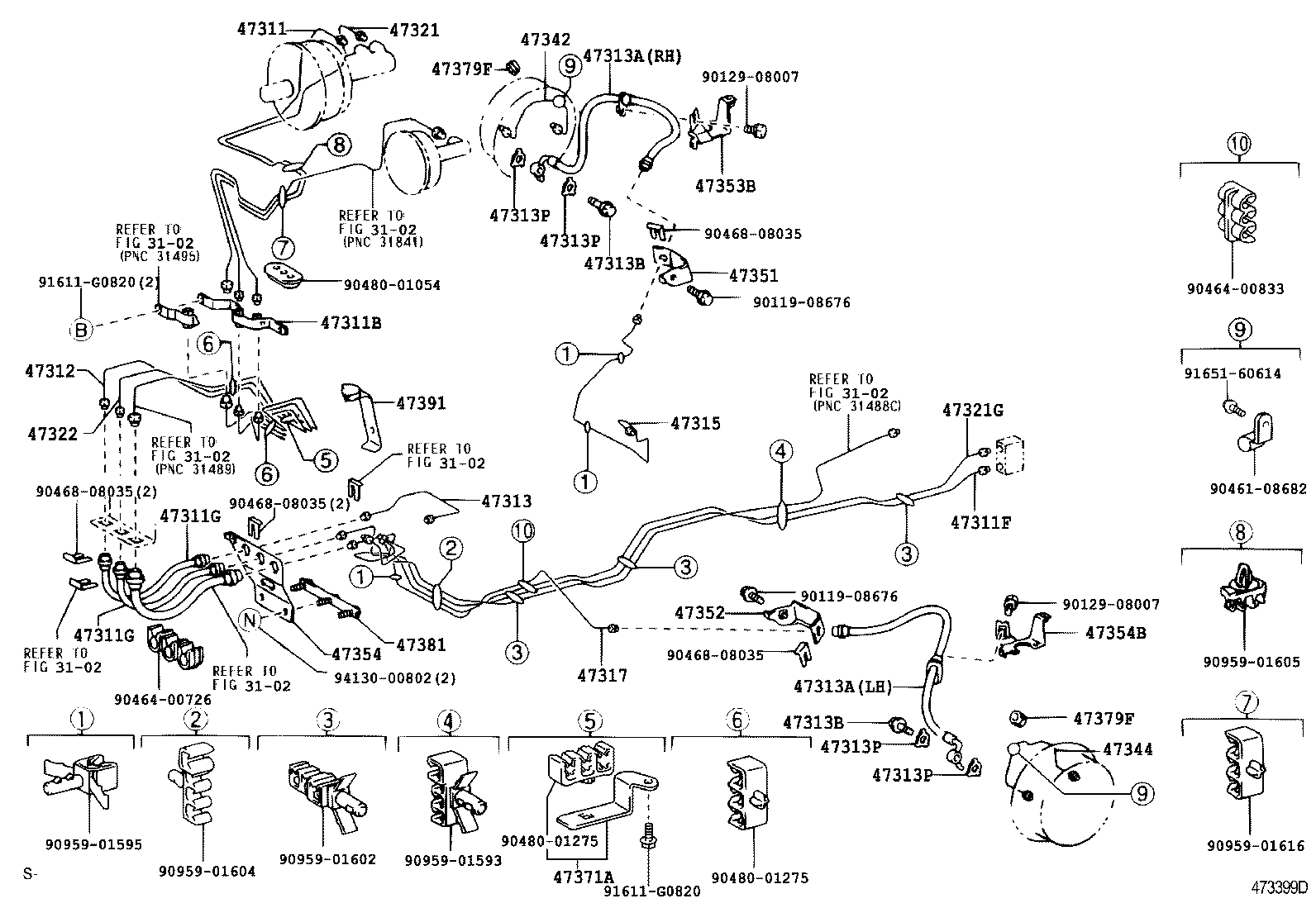

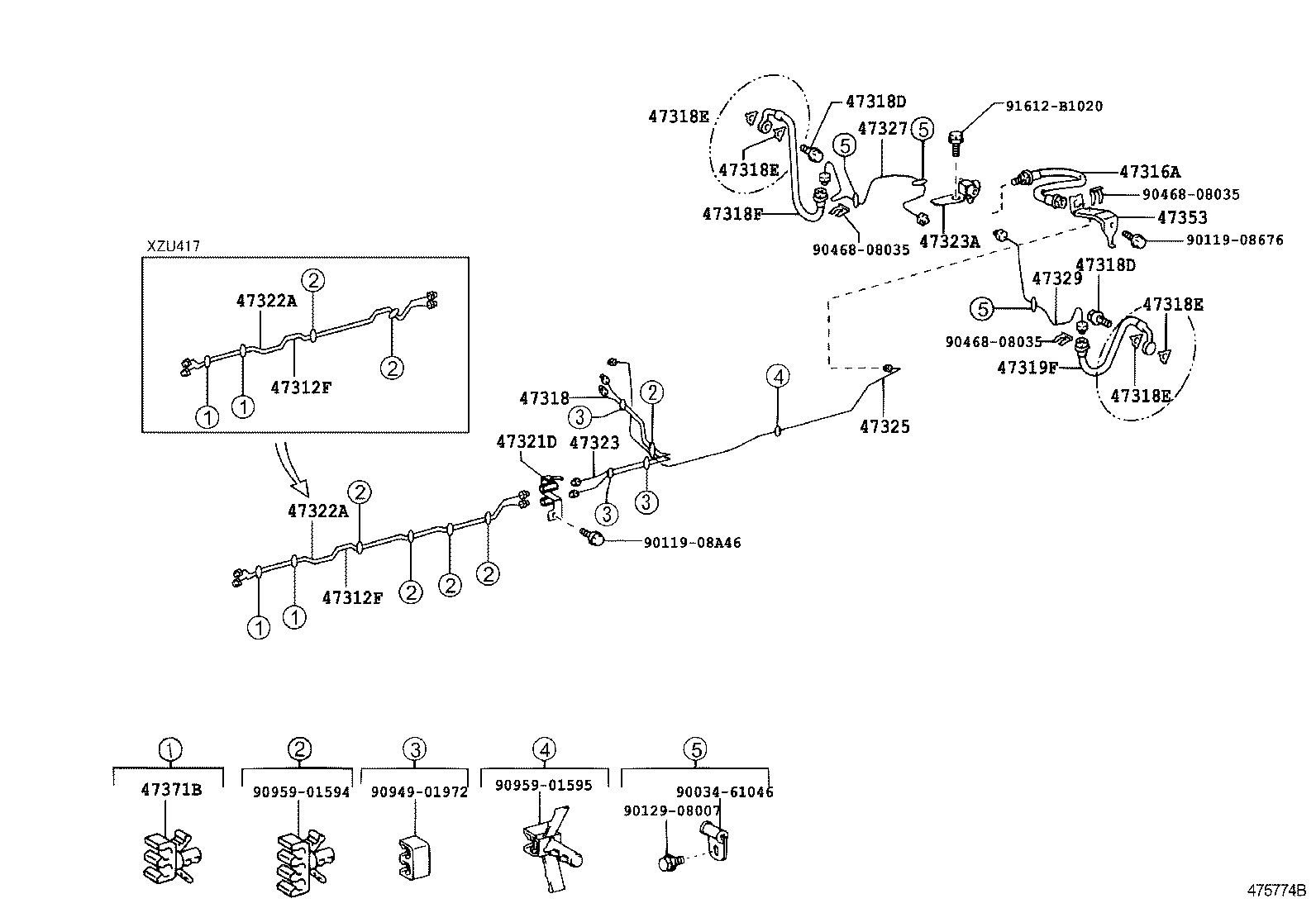

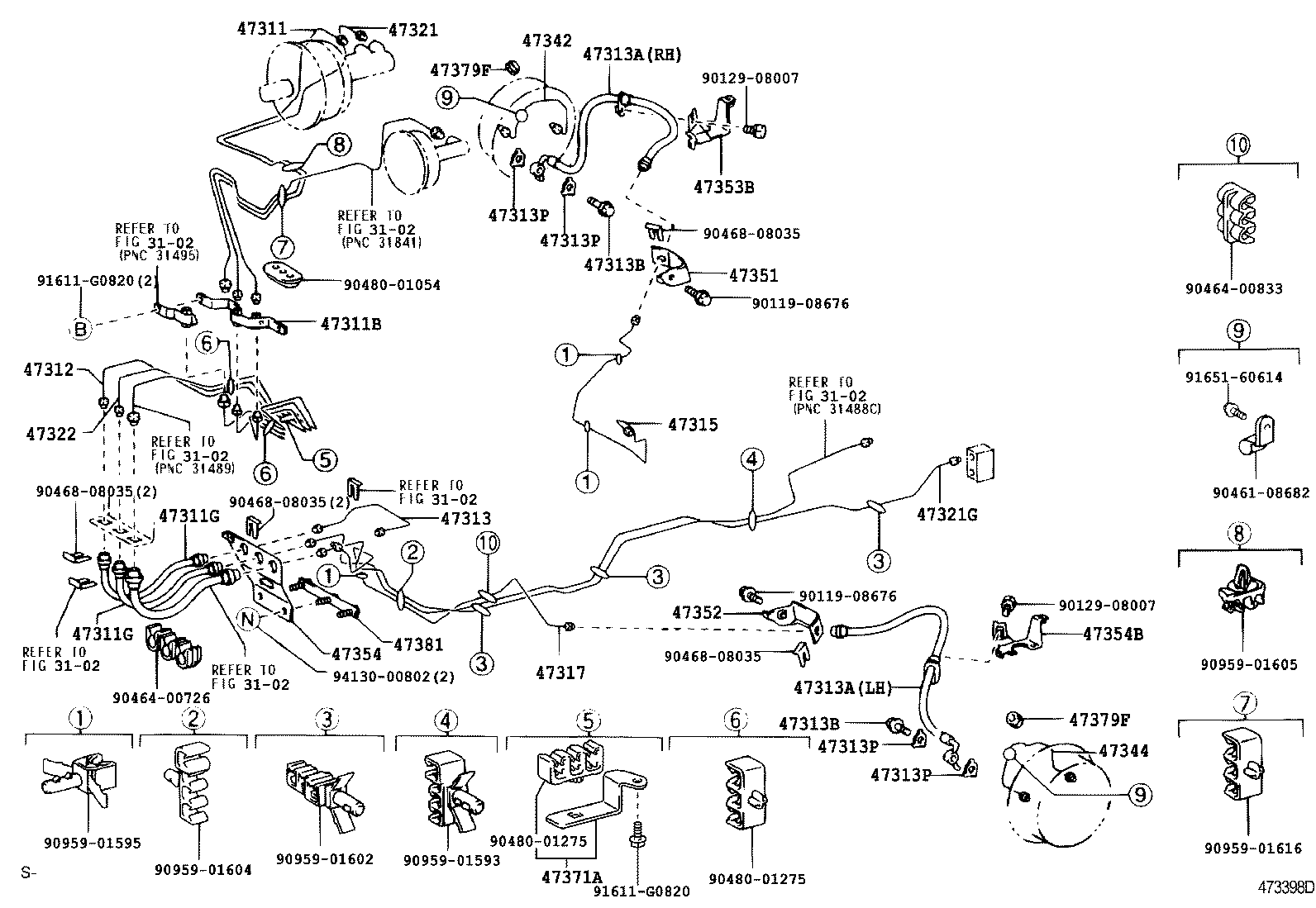

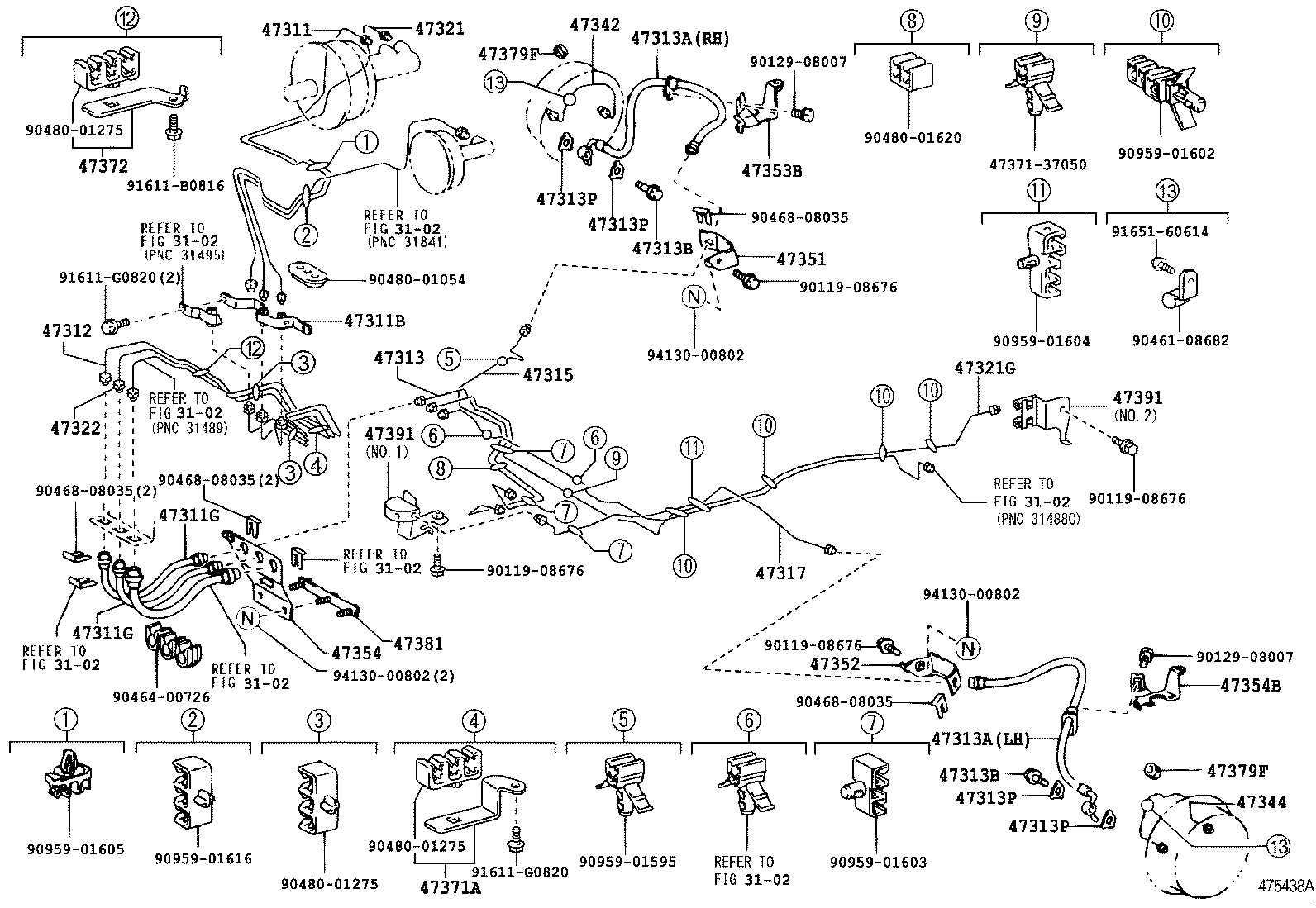

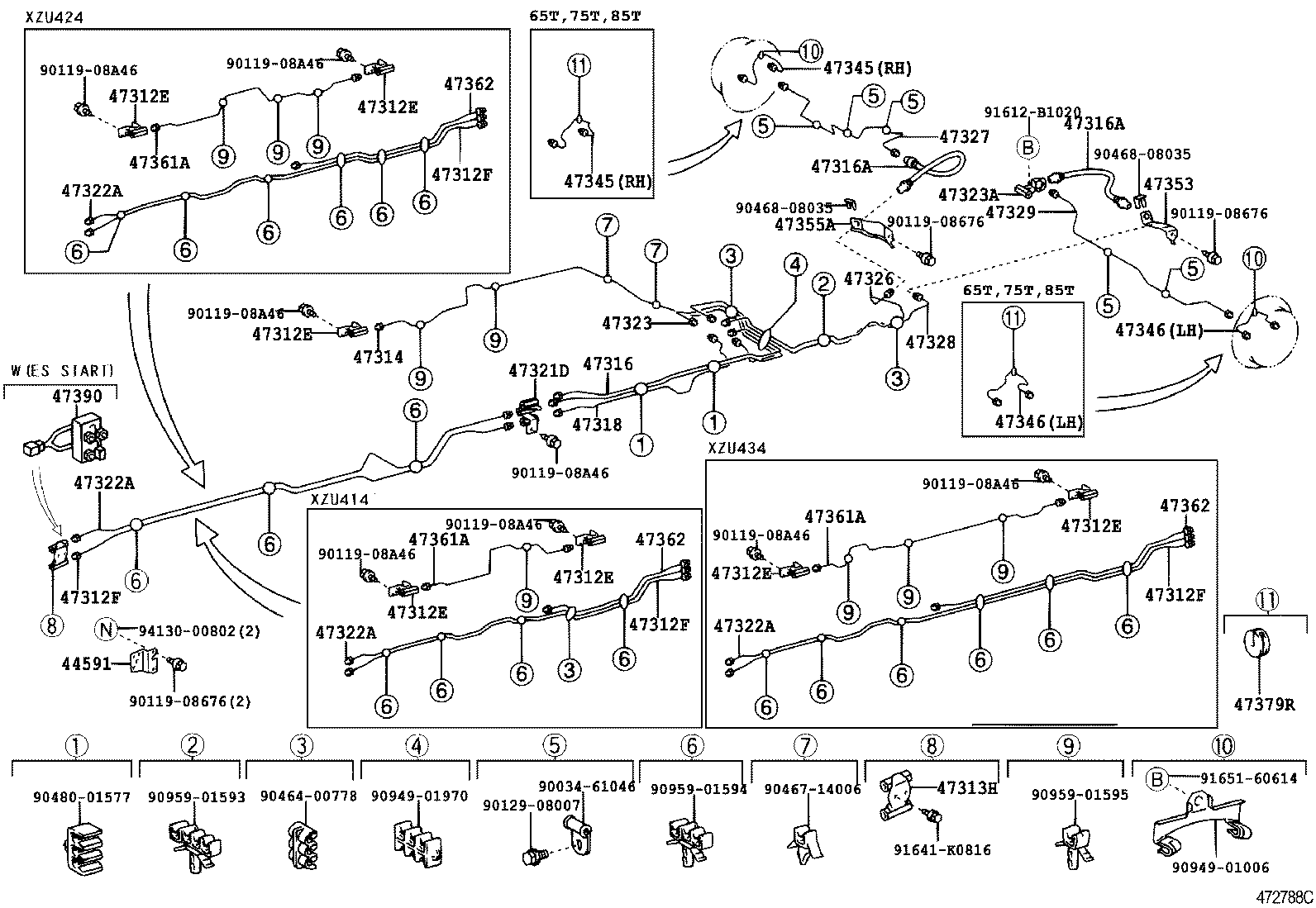

Figure 472786F 472786F 2001-10 → 2006-10 Figure 472786F 472786F 2004-11 → — Figure 473399D 473399D 2002-12 → 2006-10 Figure 473399D 473399D 2004-11 → — Figure 473398D 473398D 2002-12 → 2006-10 Figure 473398D 473398D 2004-11 → — Figure 472787F 472787F 2001-10 → 2006-10 Figure 472787F 472787F 2002-12 → 2008-01 Figure 472787F 472787F 2002-12 → — Figure 473397C 473397C 2001-10 → 2006-10 Figure 473397C 473397C 2002-12 → 2008-01 Figure 473397C 473397C 2002-12 → — Figure 475242 475242 2001-10 → 2006-10 Figure 475242 475242 2002-12 → 2008-01 Figure 475242 475242 2002-12 → — Figure 475238A 475238A 2006-08 → — Figure 475394B 475394B 2006-10 → — Figure 475438A 475438A 2006-10 → — Figure 475396 475396 2006-10 → — Figure 477371 477371 2006-10 → — Figure 476113 476113 2007-08 → — Figure 477372 477372 2008-01 → — Figure 472788C 472788C 2001-10 → 2006-10 Figure 472788C 472788C 2002-12 → 2008-01 Figure 472788C 472788C 2002-12 → — Figure 472788C 472788C 2002-12 → — Figure 477373 477373 2001-10 → 2006-10 Figure 477373 477373 2002-12 → 2008-01 Figure 477373 477373 2002-12 → — Figure 477373 477373 2002-12 → — Figure 473414A 473414A 2001-10 → 2006-10 Figure 473414A 473414A 2002-12 → 2008-01 Figure 473414A 473414A 2002-12 → — Figure 473414A 473414A 2002-12 → — Figure 475239 475239 2006-08 → — Figure 475943 475943 2006-10 → — Figure 475401B 475401B 2006-10 → — Figure 475774B 475774B 2007-01 → — Figure 476112A 476112A 2007-08 → — Figure 476288A 476288A 2008-01 → — Figure 472789D 472789D 2001-10 → 2006-10 Figure 472789D 472789D 2002-12 → 2008-01 Figure 472789D 472789D 2002-12 → — Figure 472789D 472789D 2002-12 → — Figure 475392A 475392A 2006-08 → — Figure 475392A 475392A 2008-01 → — Figure 475393A 475393A 2006-10 → — Figure 477238 477238 2001-10 → 2006-10 Figure 477238 477238 2002-12 → — Figure 477238 477238 2002-12 → —

Part groups

PNCDescription
04477 Bush & Boot Kit, Load Sensing Spring

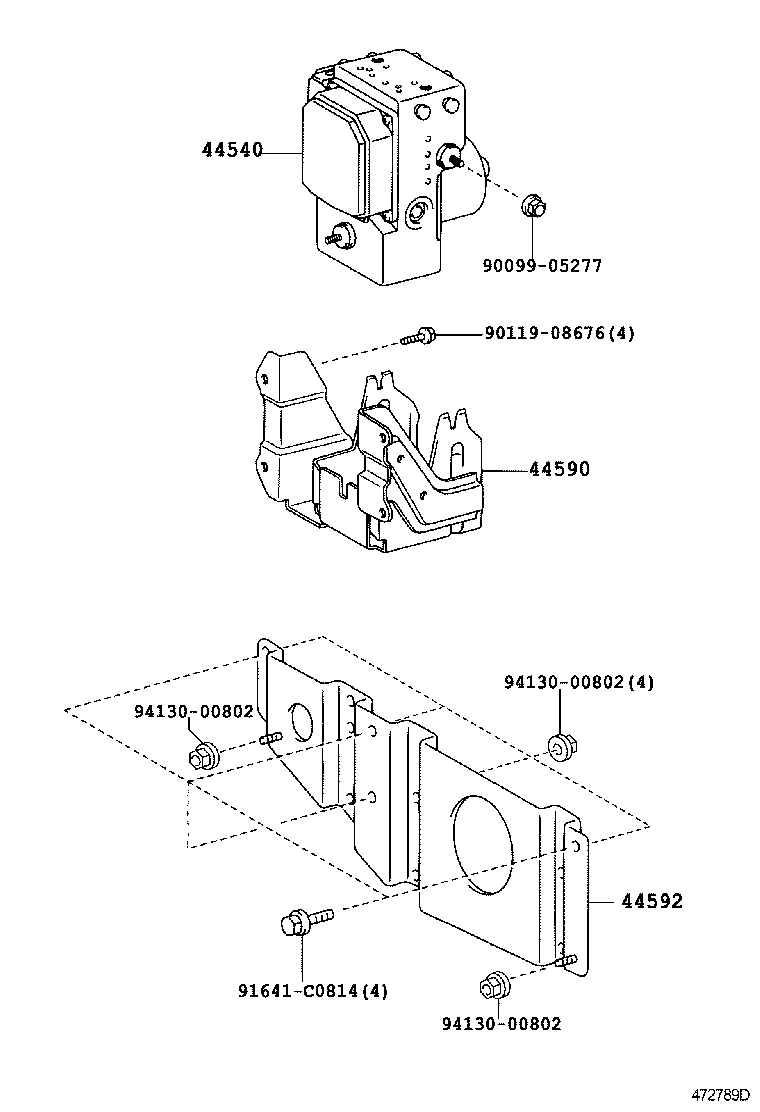

44540 Actuator Assy, Abs & Traction
44545D Holder, Brake Actuator Bolt
44590 Bracket Assy, Brake Actuator
44591 Bracket, Brake Actuator, NO.1
44592 Bracket, Brake Actuator, NO.2
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47311F Tube, Front Brake, Frame NO.1
47311G Hose, Flexible(FOR BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47312F Tube, Front Brake, Frame, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313H Way, NO.3(FOR FRONT BRAKE TUBE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47318D Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E Gasket(FOR REAR FLEXIBLE HOSE)
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47321G Tube, Rear Brake, Frame NO.1
47322 Tube, Rear Brake, NO.2
47322A Tube, Rear Brake, Frame NO.2
47323 Tube, Rear Brake, NO.3
47323A Way, NO.3(FOR REAR BRAKE TUBE)
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47329 Tube, Rear Brake, NO.9
47342 Tube, Wheel Cylinder, Front RH NO.2
47344 Tube, Wheel Cylinder, Front LH NO.2
47345 Tube, Wheel Cylinder, Rear RH
47346 Tube, Wheel Cylinder, Rear LH
47351 Bracket, Flexible Hose(FOR FRONT RH)
47352 Bracket, Flexible Hose(FOR FRONT LH)
47353 Bracket, Flexible Hose(FOR REAR)
47353B Bracket, Flexible Hose, NO.3
47354 Bracket, Front Flexible Hose
47354B Bracket, Flexible Hose, NO.4
47355A Bracket, Flexible Hose, NO.5
47361A Tube, Front Brake, NO.10
47362 Tube, Front Brake, NO.11
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47372 Clamp, Brake Tube, NO.2
47379F Damper, Tube(FOR FRONT)
47379R Damper, Tube(FOR REAR)
47381 Bracket, Brake Tube Clamp NO.1
47390 Valve Assy, Hill Holder Brake Lock
47391 Way, Brake Tube

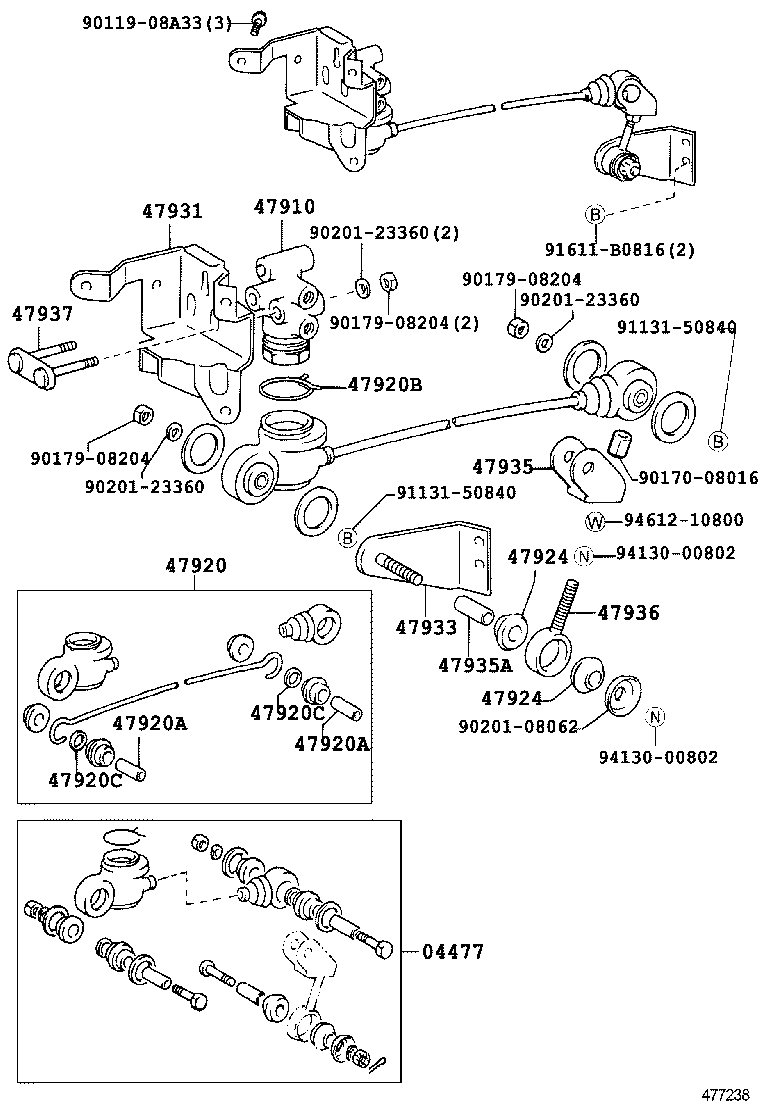

47910 Valve Assy, Load Sensing Proportioning
47920 Spring Assy, Load Sensing
47920A Collar(FOR LOAD SENSING SPRING)
47920B Clip(FOR LOAD SENSING VALVE BOOT)
47920C Washer(FOR LOAD SENSING SPRING)
47924 Bush, Load Sensing Valve
47931 Bracket, Load Sensing Valve
47933 Bracket, Load Sensing Shackle, NO.1
47935 Shackle, Load Sensing Spring, NO.1
47935A Collar(FOR LOAD SENSING SPRING SHACKLE)
47936 Shackle, Load Sensing Spring, NO.2
47937 Plate, Load Sensing Valve Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
