Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

69 part groups · 22 illustrations

Illustrations

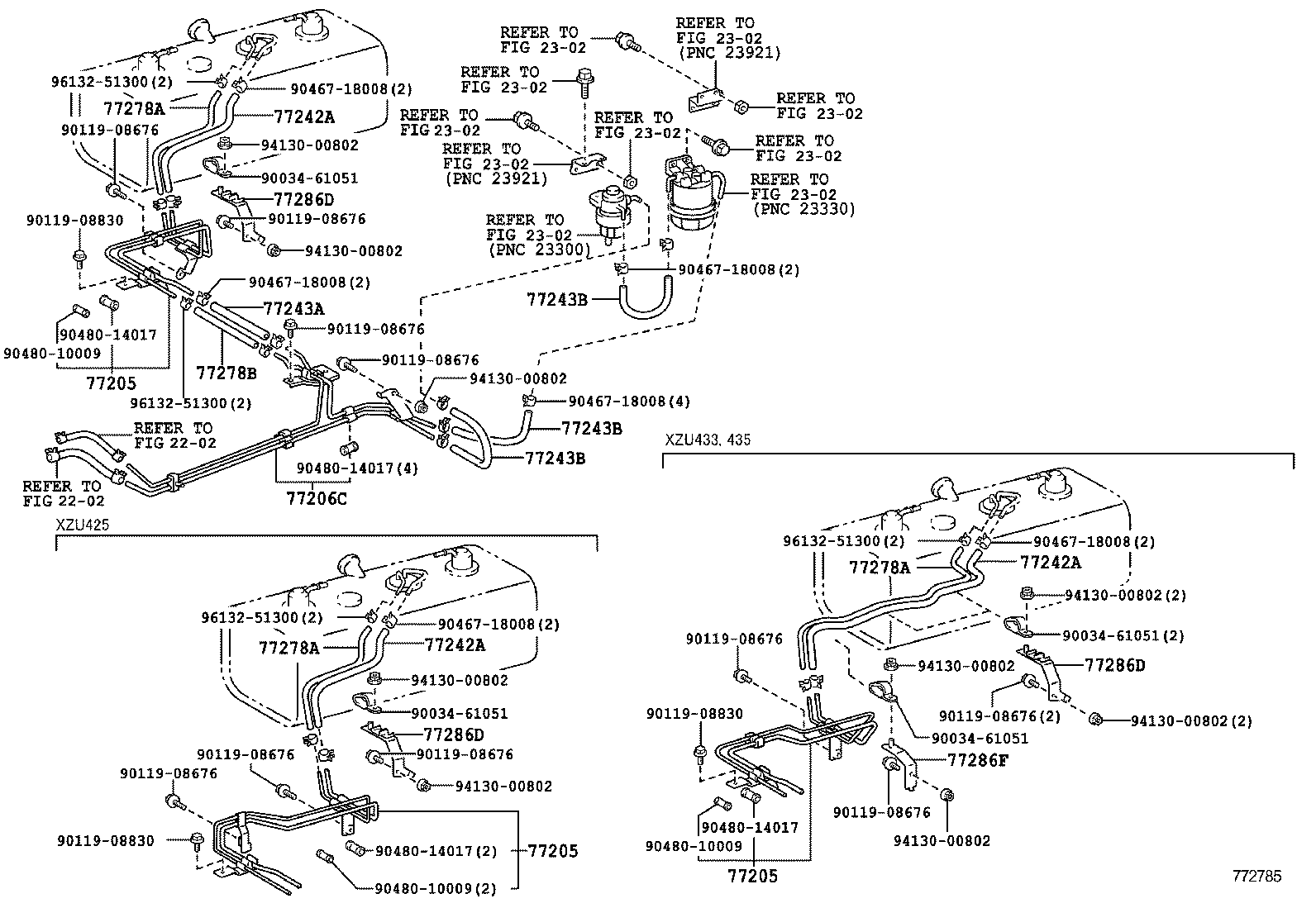

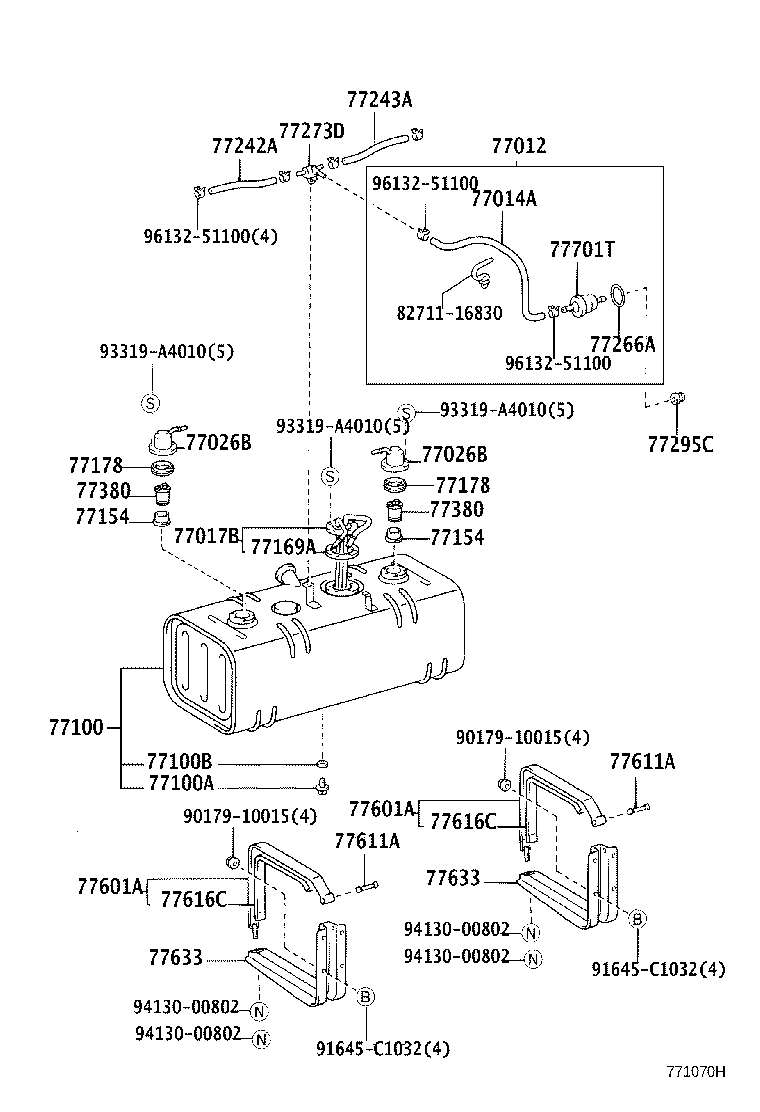

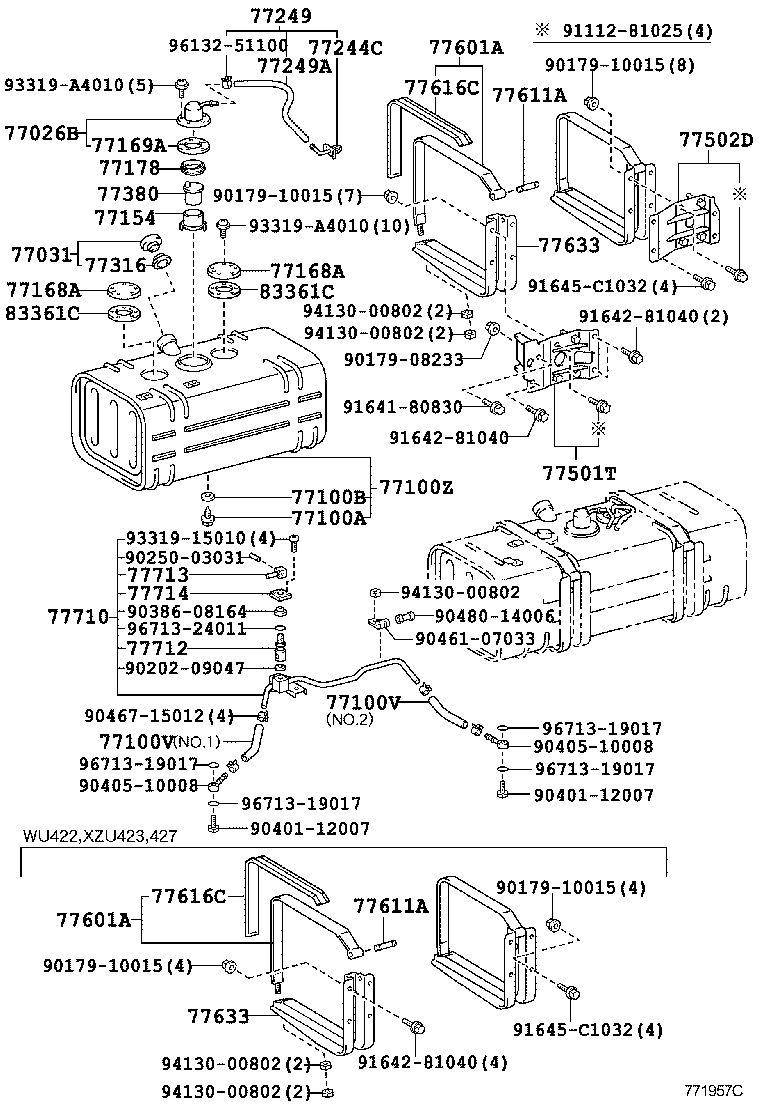

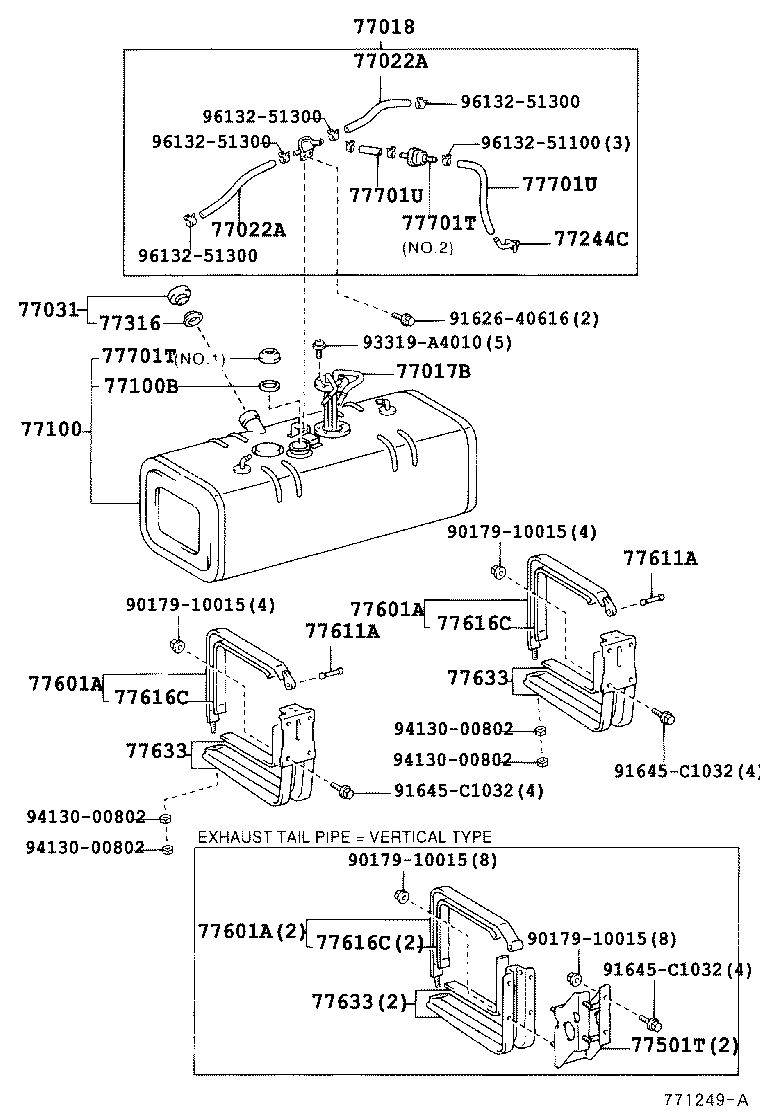

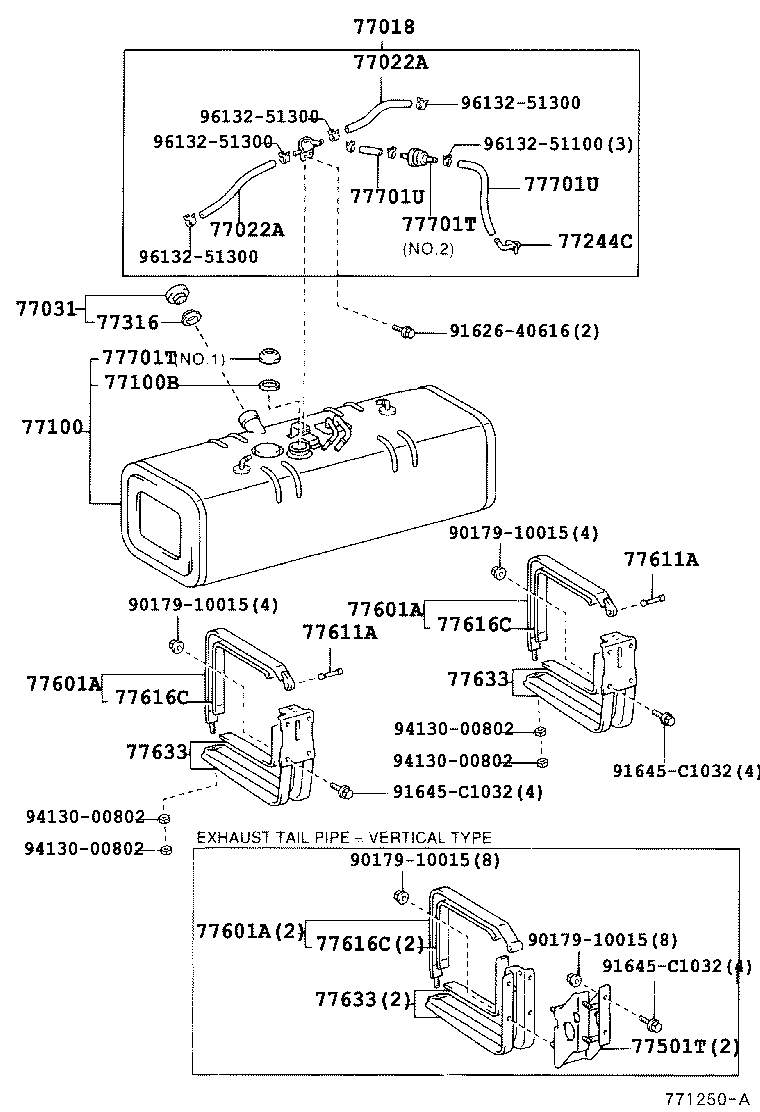

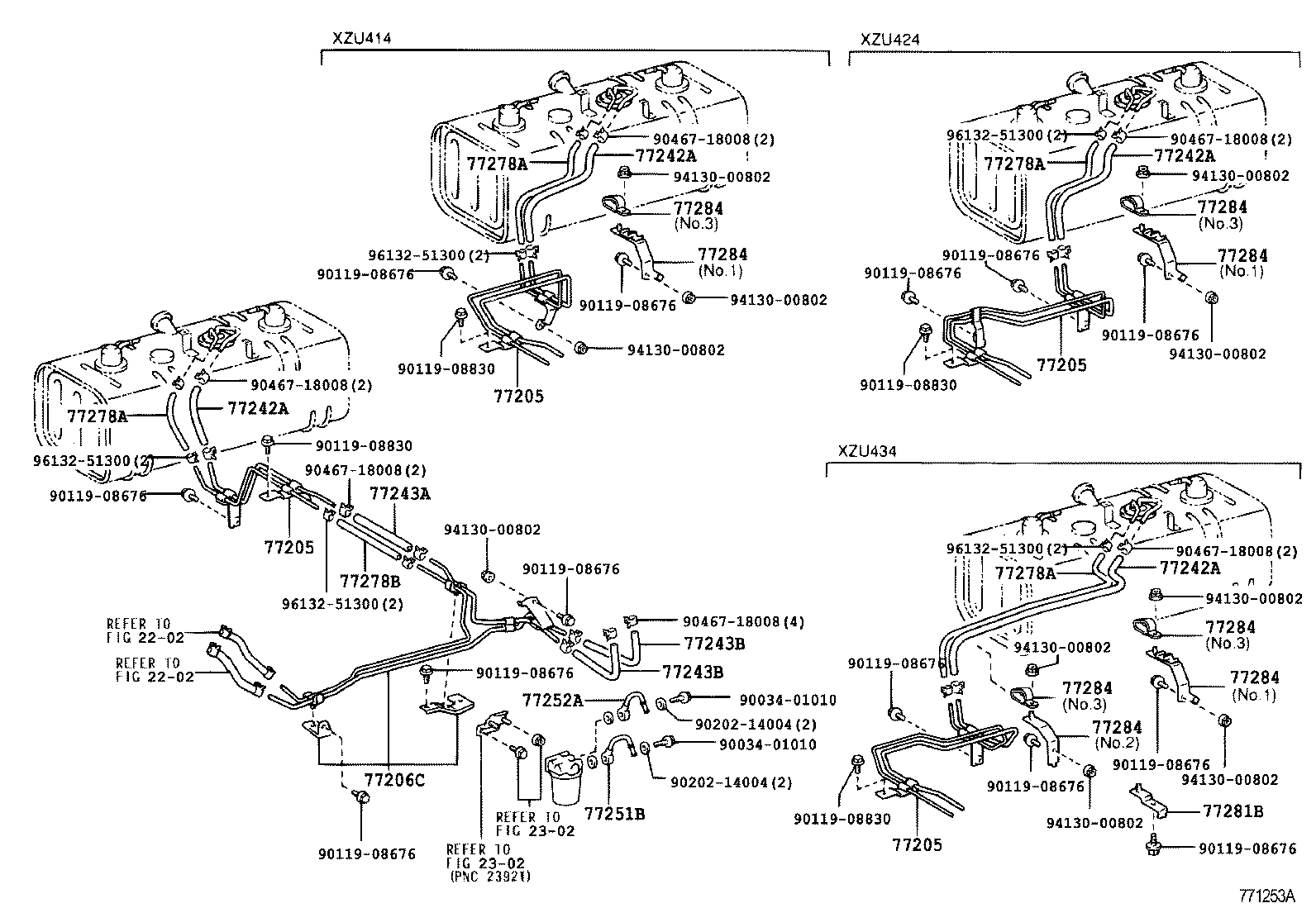

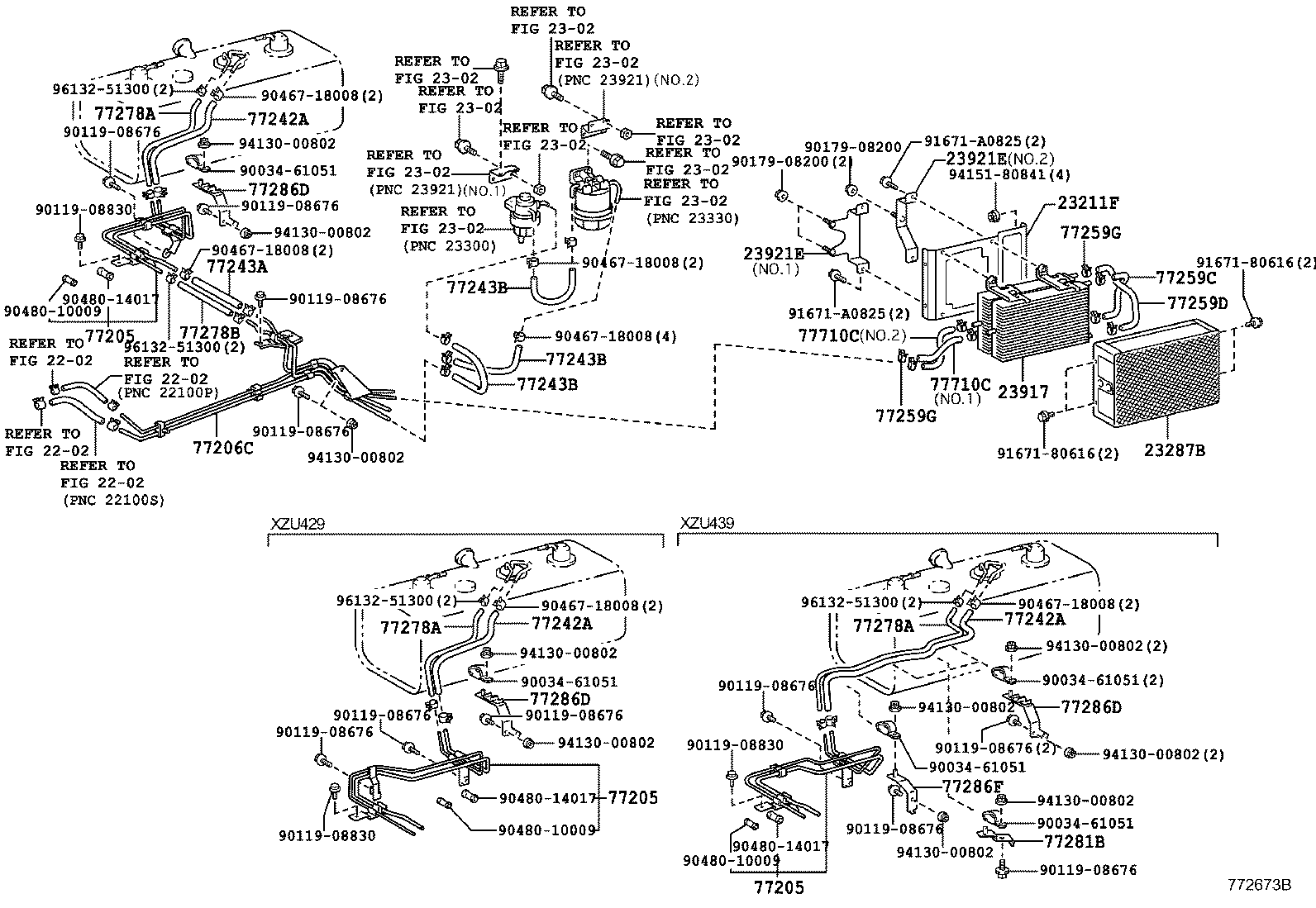

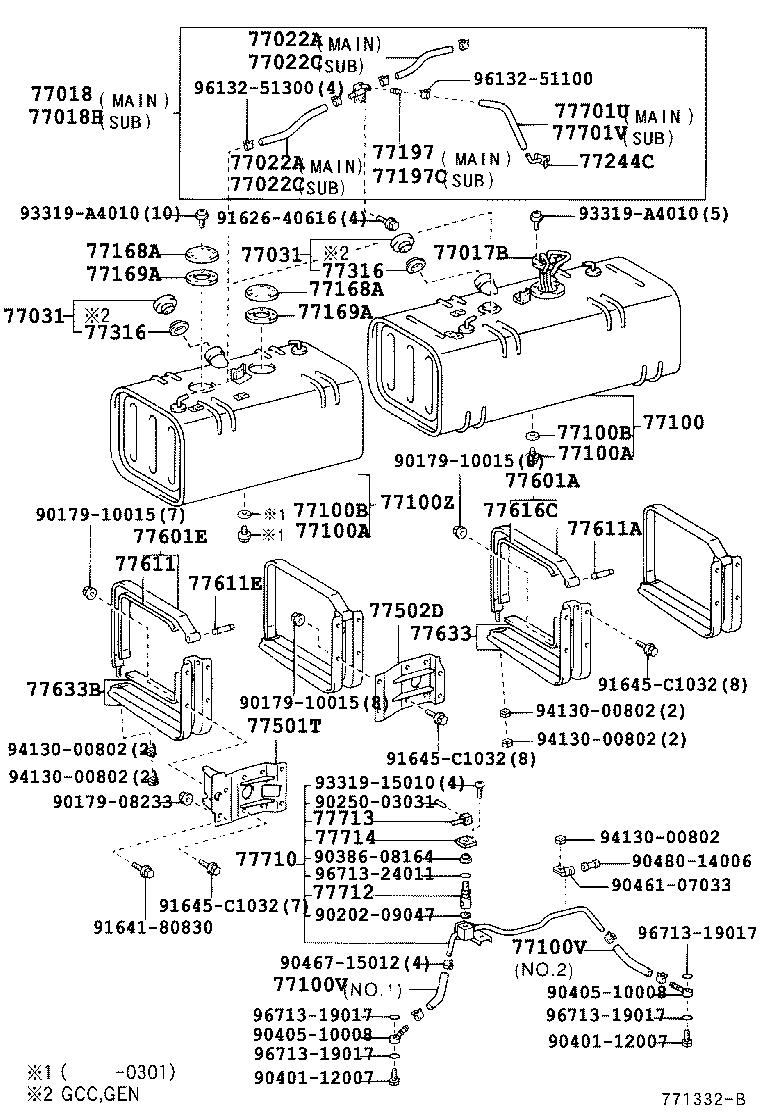

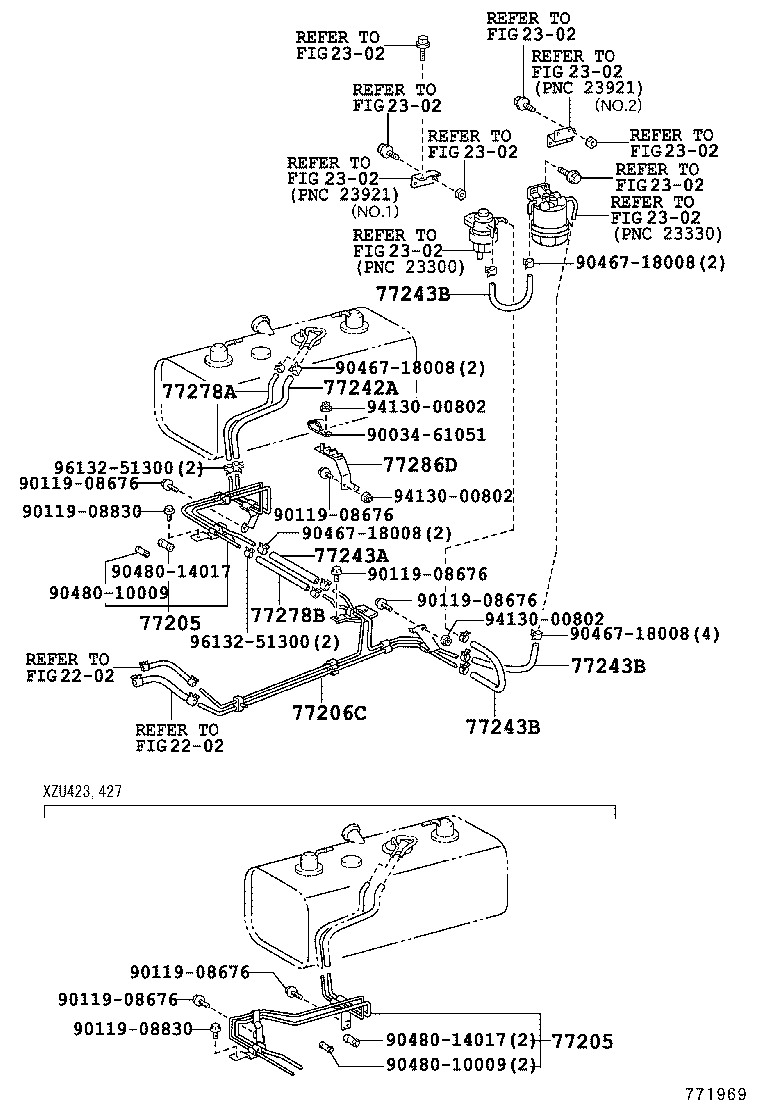

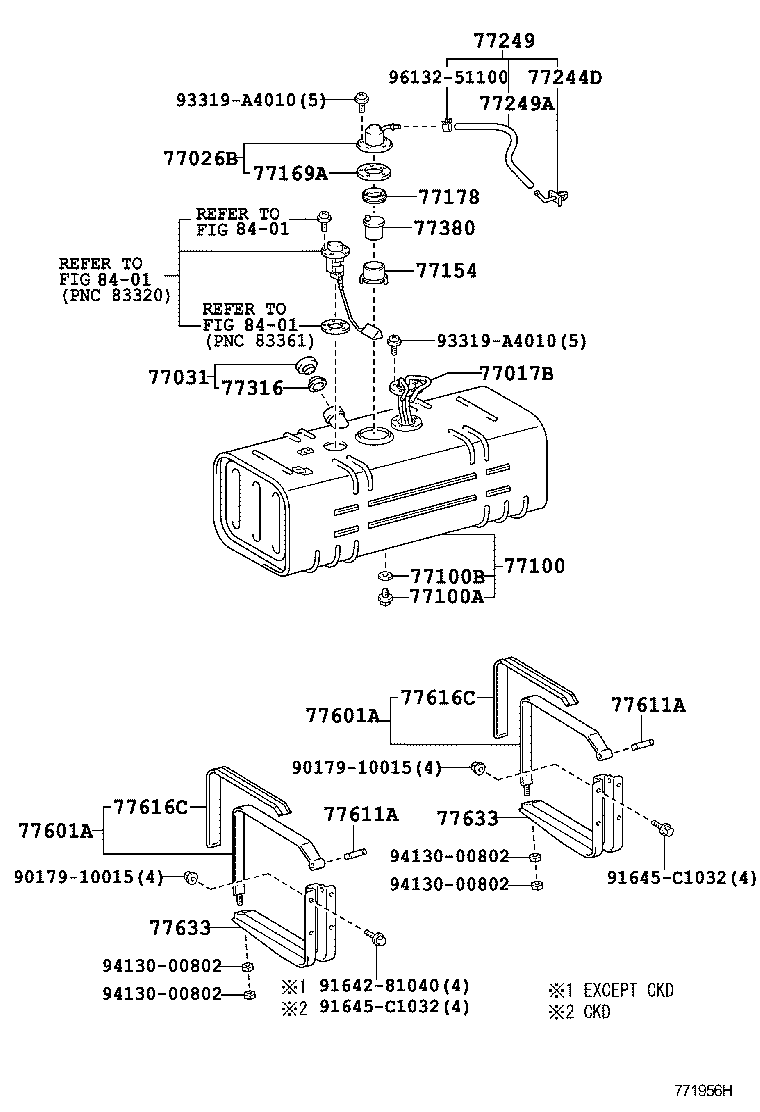

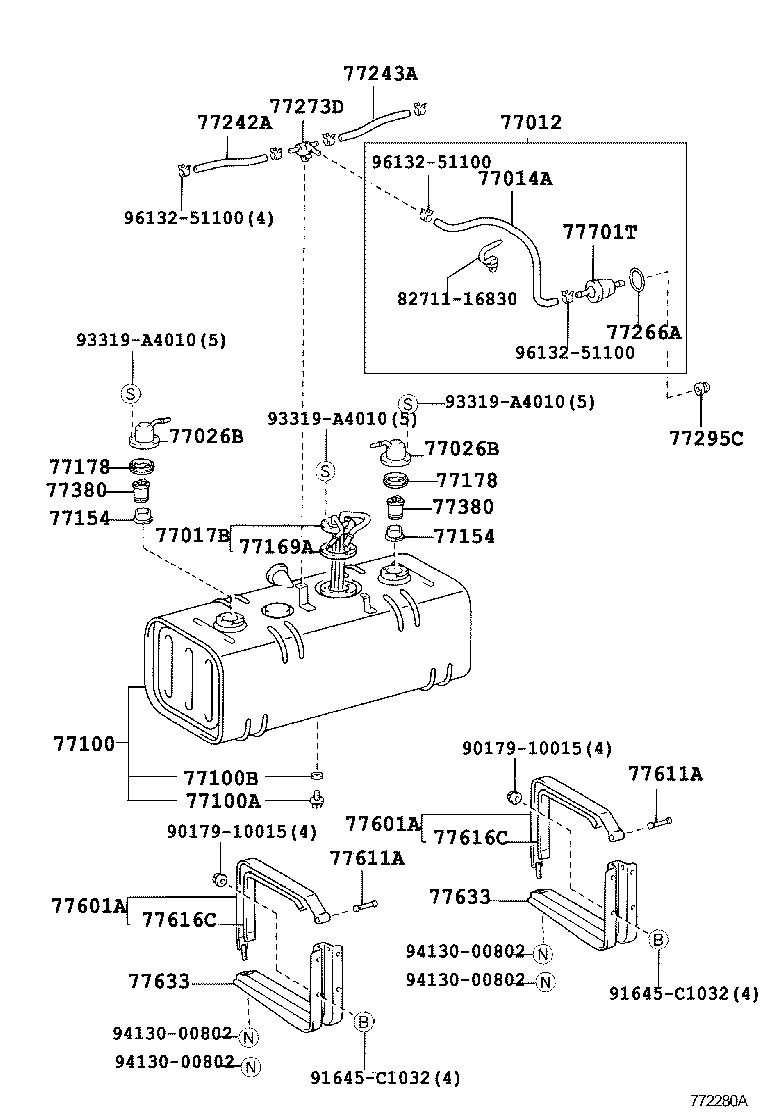

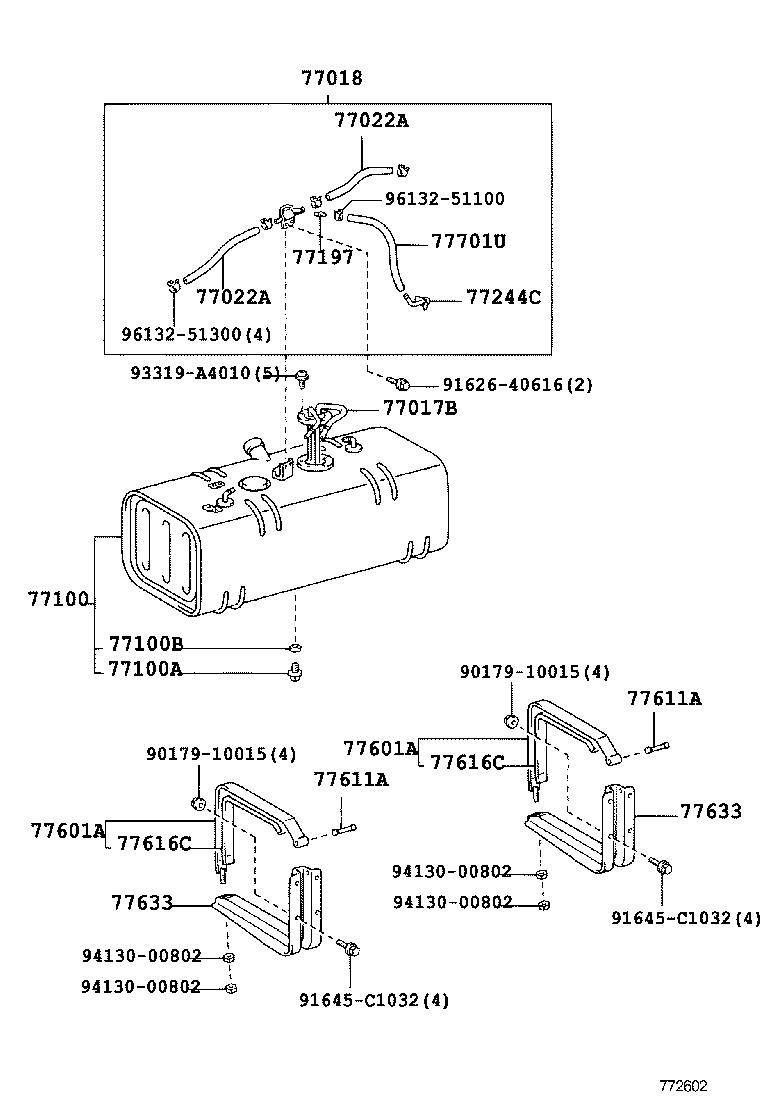

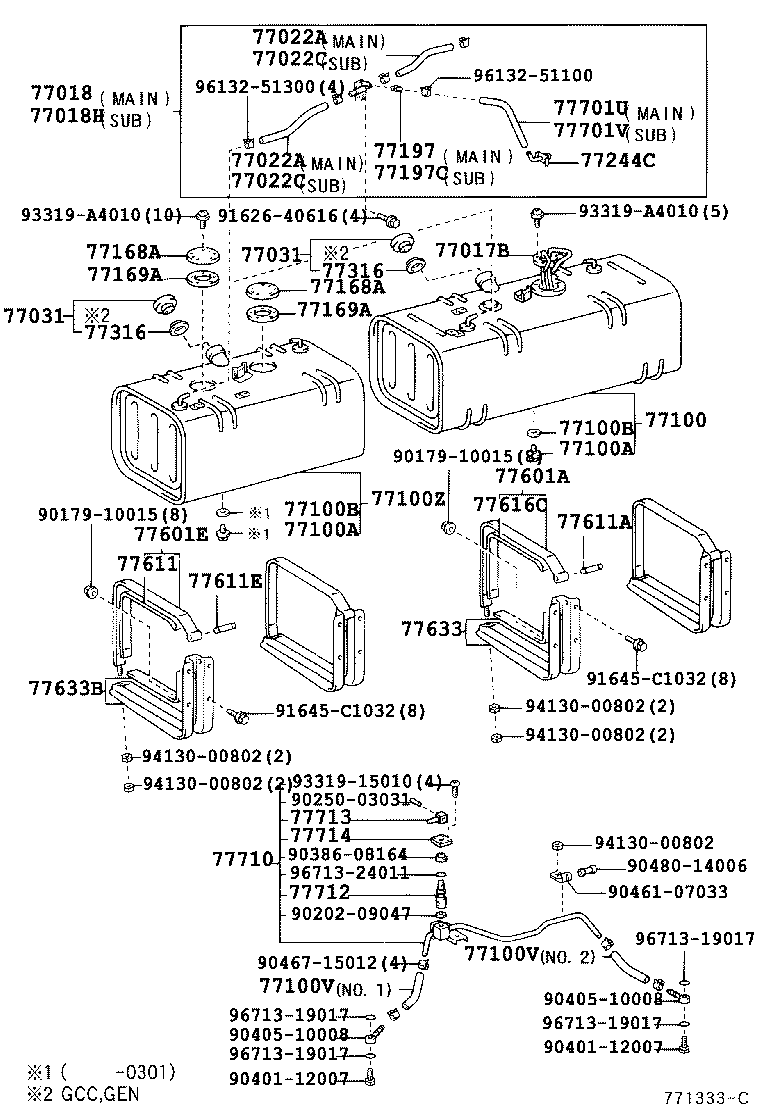

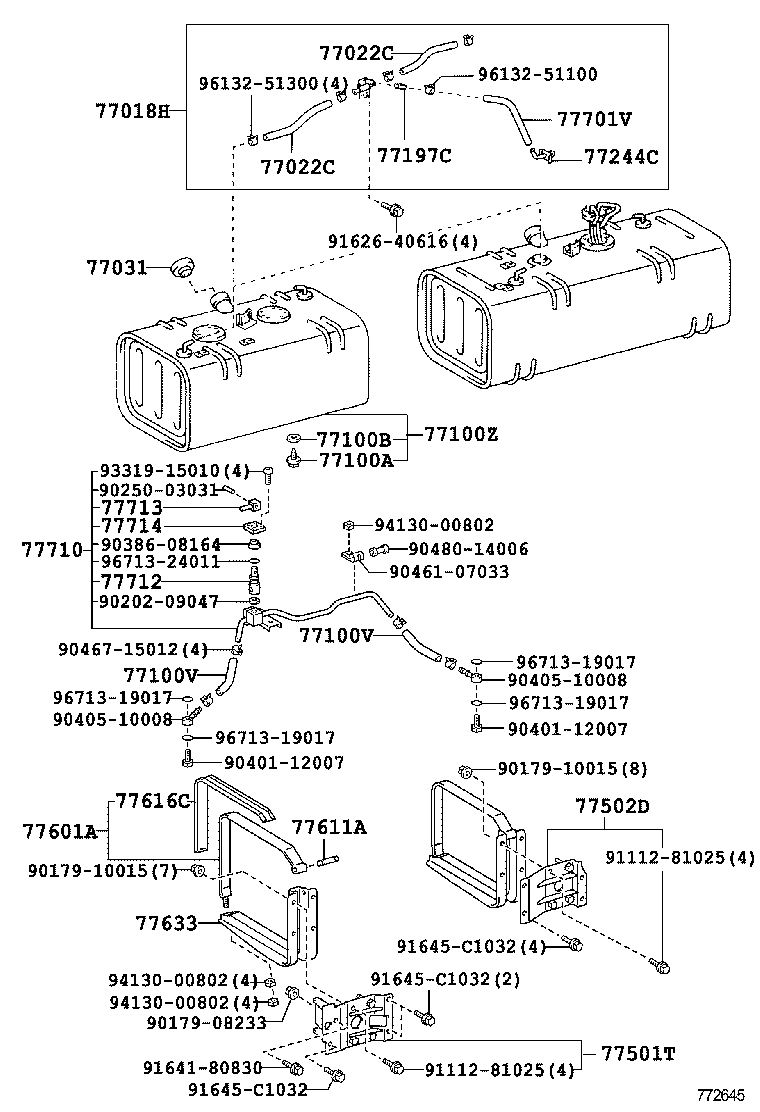

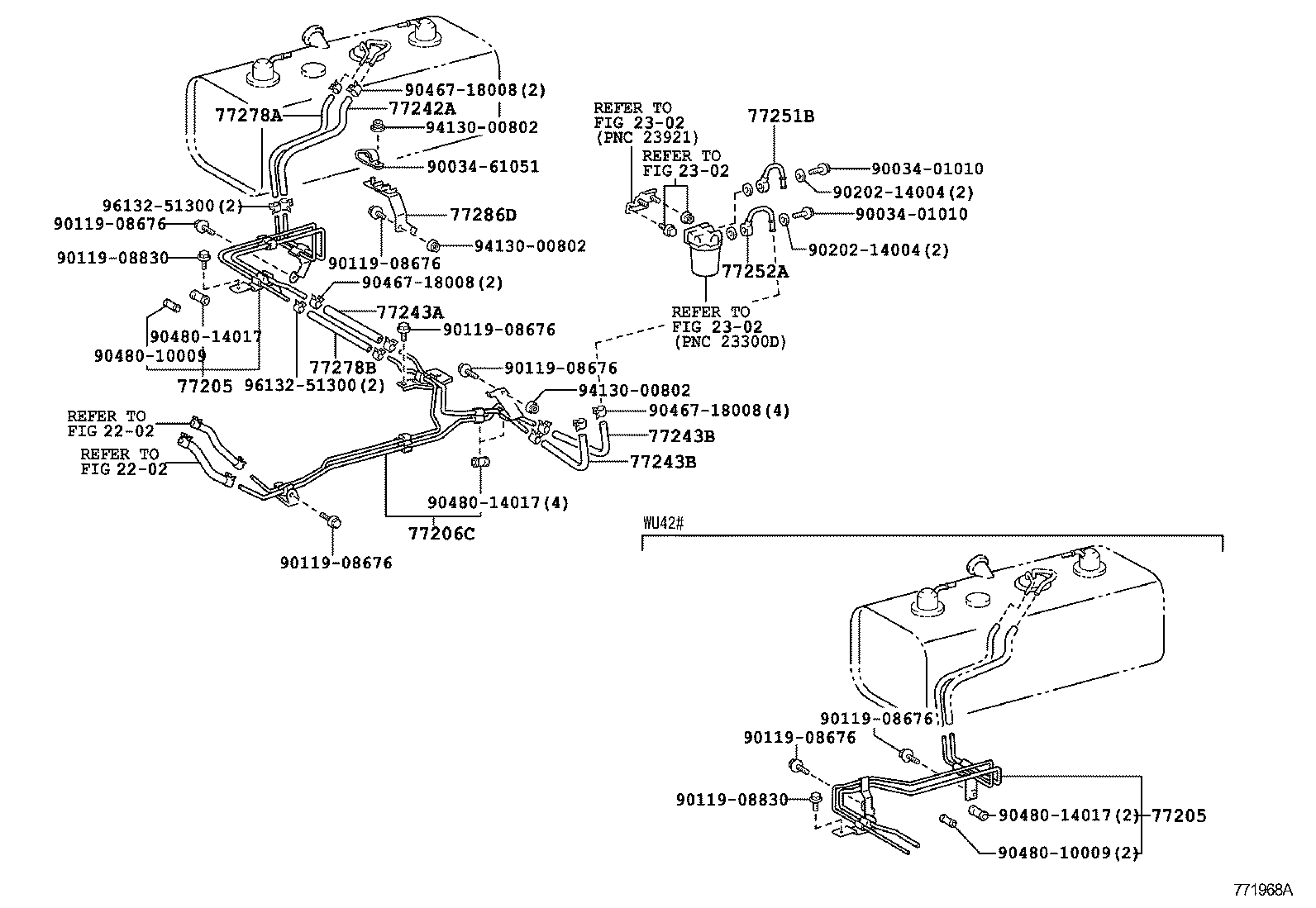

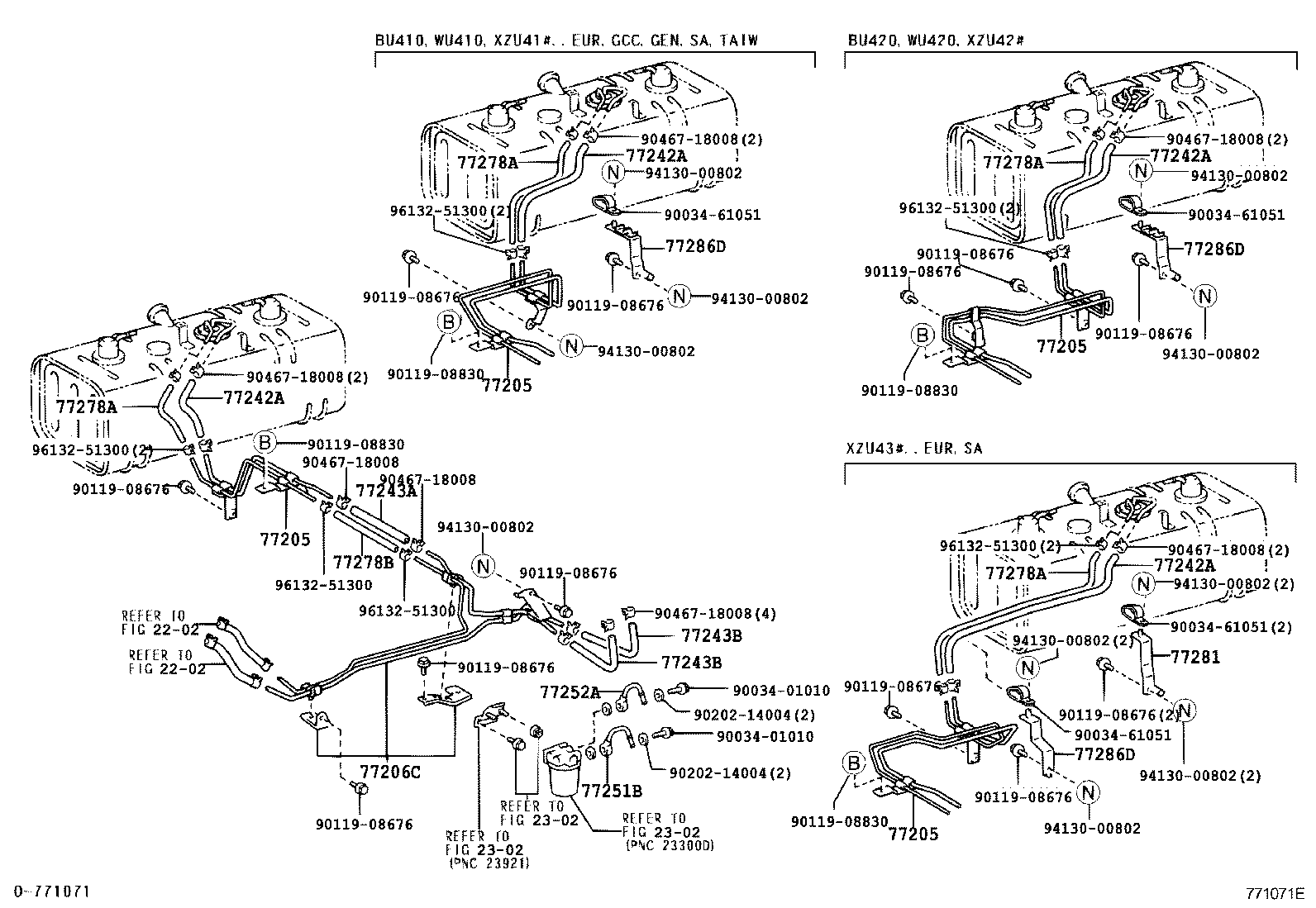

Figure 772062A 772062A 2001-10 → 2006-10 Figure 772062A 772062A 2006-10 → 2008-02 Figure 771332C 771332C 2002-12 → 2006-10 Figure 771332C 771332C 2004-01 → 2008-02 Figure 771333C 771333C 2002-12 → 2006-10 Figure 771333C 771333C 2004-01 → 2008-02 Figure 771070H 771070H 2001-10 → — Figure 771249A 771249A 2002-12 → — Figure 771250A 771250A 2002-12 → — Figure 771956H 771956H 2006-10 → — Figure 771957C 771957C 2006-10 → — Figure 772280A 772280A 2007-08 → — Figure 772602 772602 2009-03 → — Figure 772645 772645 2009-03 → — Figure 771071E 771071E 2001-10 → 2006-10 Figure 771071E 771071E 2006-10 → 2007-08 Figure 771071E 771071E 2006-10 → — Figure 771253A 771253A 2002-12 → — Figure 771968A 771968A 2006-10 → — Figure 771969A 771969A 2006-10 → — Figure 772785 772785 2007-08 → — Figure 772673B 772673B 2009-08 → —

Part groups

PNCDescription
23211F Bracket
23287B Protector, Fuel Cooler
23917 Cooler, Fuel
23921E Support, Fuel Filter
77012 Tube Sub-assy, Fuel Tank Breather
77014A Tube Sub-assy, Fuel Tank Breather, NO.3
77017B Tube Sub-assy, Fuel Tank Vent
77018 Valve Sub-assy, Fuel Vapour Separate
77018H Valve Sub-assy, Fuel Vapor Separate
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77022C Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR)
77026B Tube Sub-assy, Fuel Evaporation, NO.1
77031 Cap Assy, Fuel Tank
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100V Hose, Fuel
77100Z Tank Sub-assy, Fuel Sub
77154 Plate, Fuel Tank Evap/Vent Tube Support
77168A Plate, Fuel Tank Vent Tube Set
77169A Gasket, Fuel Suction Tube Set
77178 Gasket, Fuel Tank Filler Pipe, Lower
77197 Orifice, Fuel Vapor
77197C Orifice
77205 Tube Sub-assy, Fuel Main
77206C Tube Sub-assy, Fuel Main, NO.2
77242A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
77243A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
77243B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.3)
77244C Joint, Fuel Tube, NO.2
77244D Tube, Fuel Evaporation Breather, NO.1
77249 Hose, Fuel Emission
77249A Hose, Fuel Emission
77251B Tube, Fuel Main
77252A Tube, Fuel Main, NO.2
77259C Hose, Fuel
77259D Hose, Fuel, NO.1
77259G Clip, Fuel Hose
77266A Protector, Fuel Tube, NO.1
77273D Valve, Fuel Tank Breather
77278A Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
77278B Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2)
77281 Bracket, Fuel Main Tube, NO.1
77281B Clamp, Fuel Hose(FOR REAR FUEL MAIN)
77284 Clamp, Fuel Tube
77286D Clamp, Fuel Tube, NO.2
77286F Clamp, Fuel Tube, NO.2
77295C Grommet, Fuel Tube
77316 Gasket, Fuel Tank Cap
77380 Valve Assy, Fuel Cut Off
77501T Bracket Sub-assy, Fuel Tank
77502D Bracket Sub-assy, Fuel Tank, Rear
77601A Band Sub-assy, Fuel Tank, NO.1
77601E Band Sub-assy, Fuel Tank
77611 Band, Fuel Tank
77611A Pin (FOR FUEL TANK BAND)
77611E Pin, Fuel Tank Band
77616C Seat, Fuel Tank Band
77633 Stay, Fuel Tank
77633B Stay, Fuel Tank
77701T Valve, Check (FOR MAIN FUEL TANK)
77701U Hose, Fuel (FOR CHECK VALVE)
77701V Valve, Check (FOR SUB-FUEL TANK)
77710 Cock Assy, Fuel Change
77710C Hose, Fuel
77712 Valve, Fuel Change Cock
77713 Lever, Fuel Change Cock
77714 Cap, Fuel Change Cock
83361C Gasket, Fuel Sender Gage
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
